I’ve spent over a decade redesigning small homes, and balcony design drawings are one of my favorite ways to turn tight square footage into lifestyle upgrades. The current interior trend is clear: compact outdoor spaces are becoming extensions of the living room, with multi-functional layouts and light materials. Small spaces spark big creativity, and in this guide I’ll share 5 balcony design inspirations—grounded in my real projects and expert data—that you can translate into clear, build-ready drawings.

Before we dive in, here’s a practical truth I’ve learned from dozens of remodels: the best balcony plans begin with precise measurements and a defined use case. Morning coffee nook? Micro-garden? Fold-out workstation? Your balcony design drawings should reflect real routines, not just aesthetics. And since sunlight, privacy, and drainage are often overlooked, I’ll call those out along the way.

For quick inspiration, I’ve documented a case where "glass backsplash makes the kitchen feel more open"—that same visual lightness principle applies outdoors too, and you can explore a similar effect via glass backsplash makes the kitchen feel more open in a kitchen context, then adapt the idea to balcony rails and partitions.

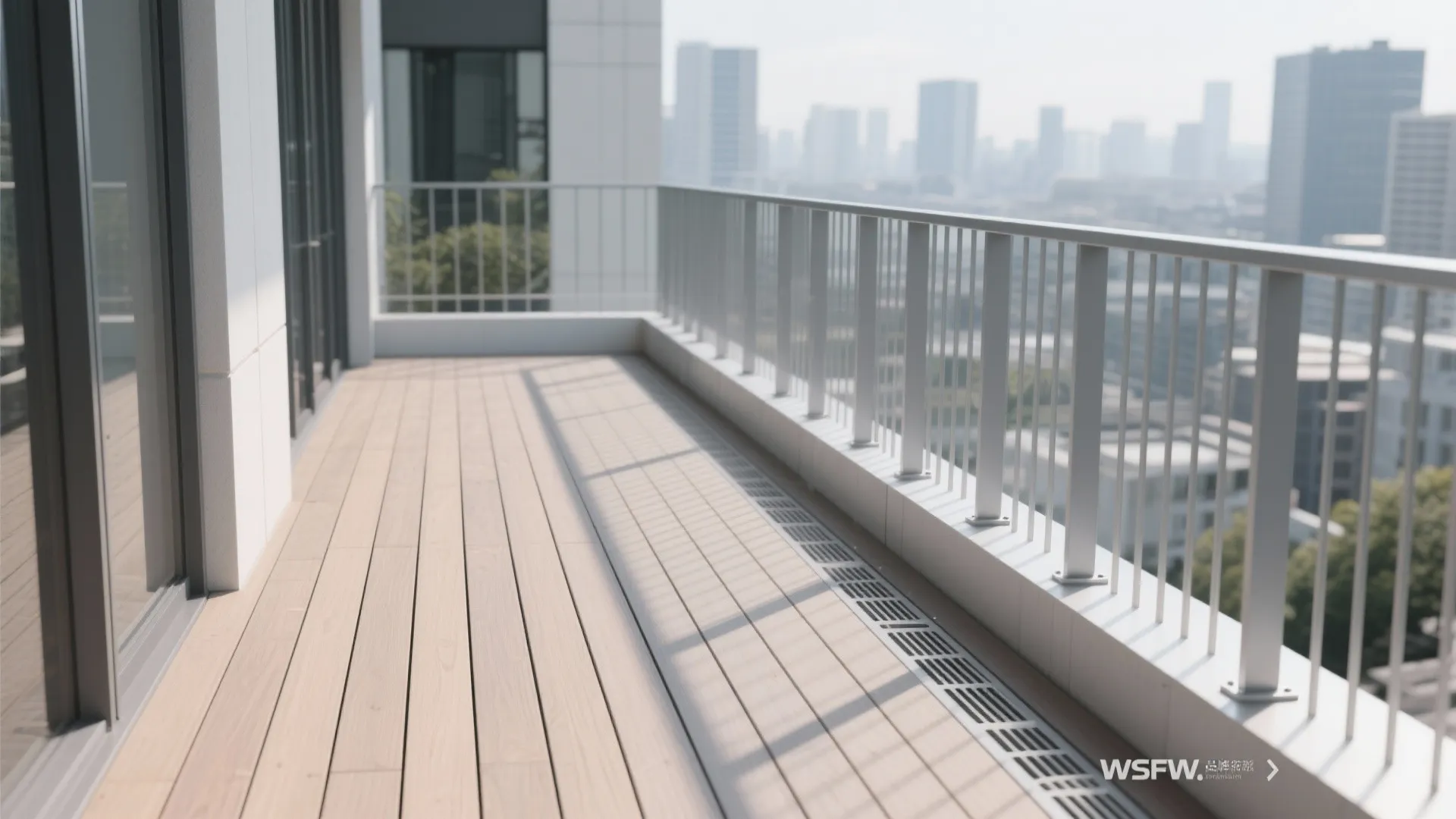

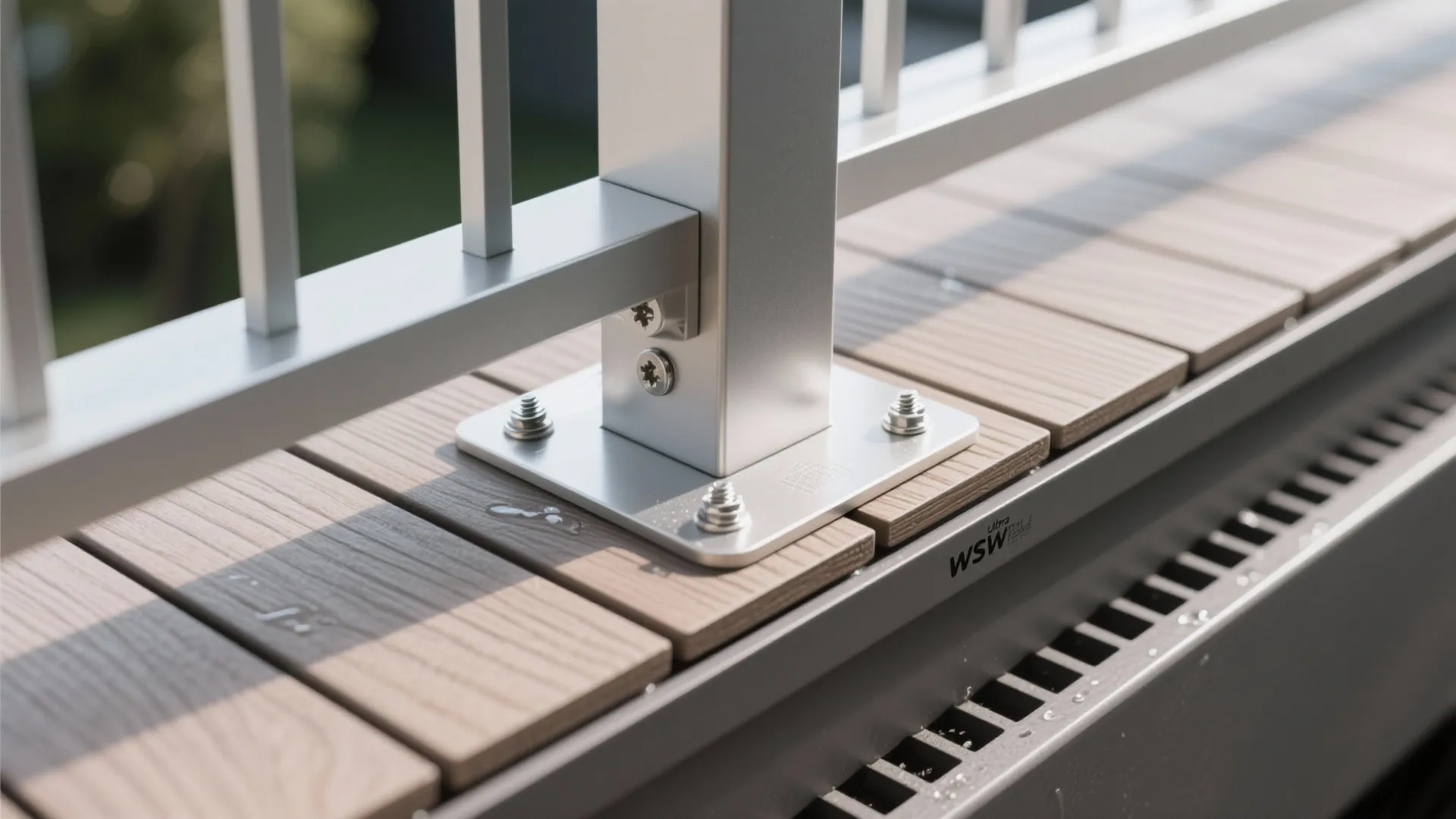

Minimalist rail and decking plan

My Take: In my own apartment, swapping a heavy solid parapet for slim metal rails instantly changed the feeling of space. Paired with narrow-plank composite decking, the balcony felt wider and brighter without expanding a single inch. The drawing set focused on rail spacing, anchoring points, and plank direction—little details that make a big difference.

Pros: Minimal railing improves sightlines, enhances ventilation, and supports a clean balcony design drawing with straightforward details. Long-tail bonus: "narrow-plank composite decking for small balconies" reduces maintenance while keeping lines tidy. According to the International Residential Code (IRC R312, as adopted locally), guardrails generally need a minimum height of 36–42 inches and baluster spacing that prevents a 4-inch sphere from passing—planning to code adds both safety and clarity.

Cons: Slim rails can feel a bit exposed if your balcony faces a busy street—privacy screens may be needed. Metal rails heat up in direct sun, which can be uncomfortable for leaning. And if you’re coastal, salt air will challenge finishes unless your spec includes marine-grade coatings.

Tip / Cost: If you can’t change structural rails, consider cladding: a top rail cap in hardwood or composite and repainting balusters in a satin light gray. Budget around $45–$85 per linear foot for quality rail systems; composite decking runs roughly $6–$12 per sq ft plus installation. Mark drainage lines on drawings to keep water from pooling beneath deck tiles.

save pin

save pin

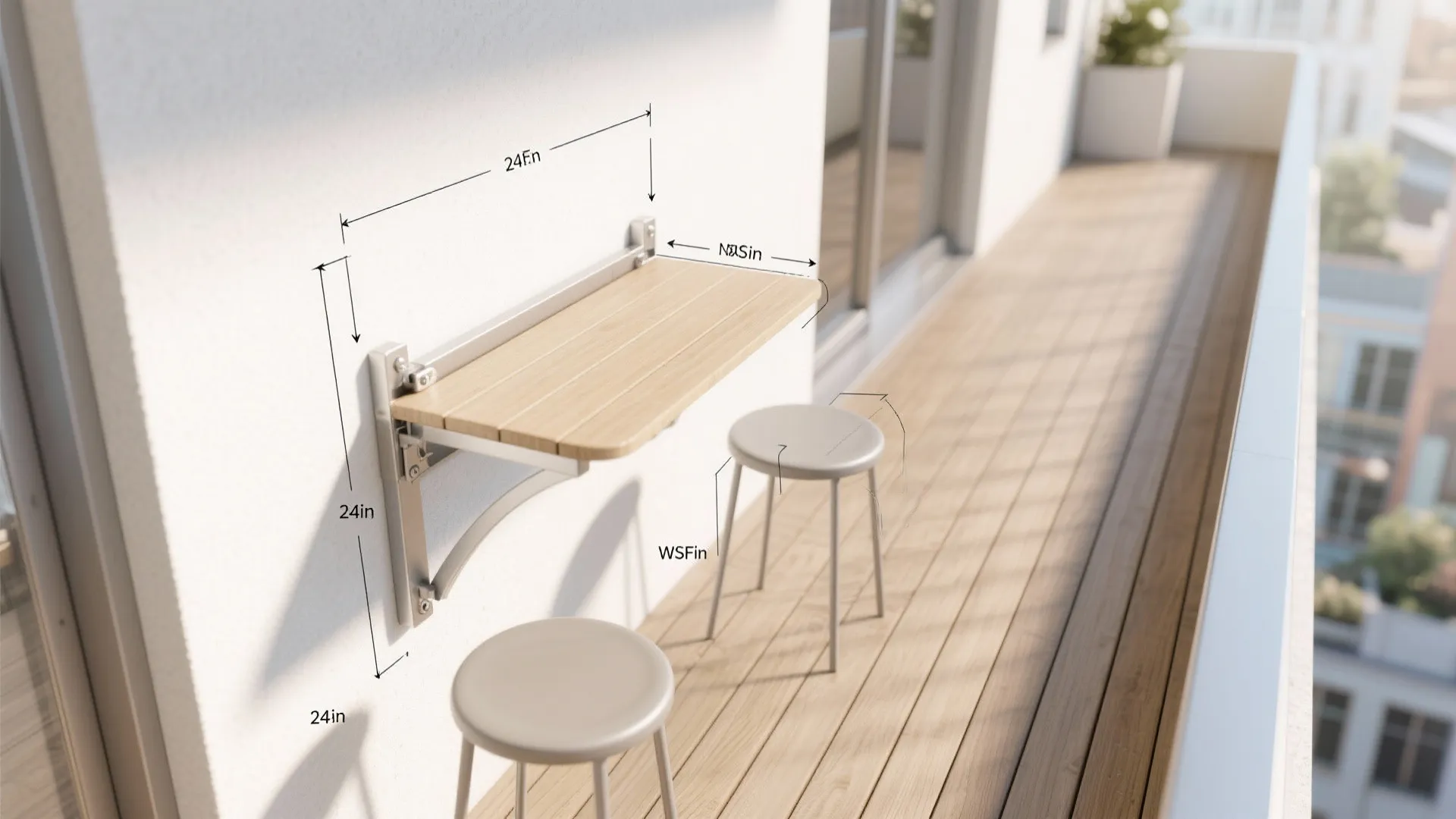

Fold-down bistro module

My Take: I designed a fold-down wall table for a client who wanted weekday laptop space and weekend wine time. The trick was using a shallow cleat system and concealed hinges so everything felt intentional even when stowed. In drawings, I defined the hinge centerline, swing radius, and clearance for chairs.

Pros: A fold-down table turns a 24–30 inch deep balcony into a usable micro-dining area. Incorporating "wall-mounted bistro tables for narrow balconies" as a long-tail spec can keep walkways clear. Ergonomically, a 28–30 inch table height pairs well with slim stools, and edge radiusing improves comfort.

Cons: Hinged parts mean routine maintenance; outdoor hardware can squeak or corrode. If your wall has uneven render, you’ll need packers or a mounting rail. And let’s be honest—on windy days, napkins will go airborne unless you add a simple clip or weighted coaster.

Tip / Case: For tight sites, design the table to fold upward rather than downward when you want to hide it; the underside becomes a clean façade panel. Mid-quality marine hinges start around $12–$25 each; stainless mounting plates add $20–$40. At roughly the halfway point of your balcony planning, explore how "L-shaped layout frees more counter space" applies to corner seating outdoors; see L-shaped layout frees more counter space and translate the zoning idea to balcony corners.

save pin

save pin

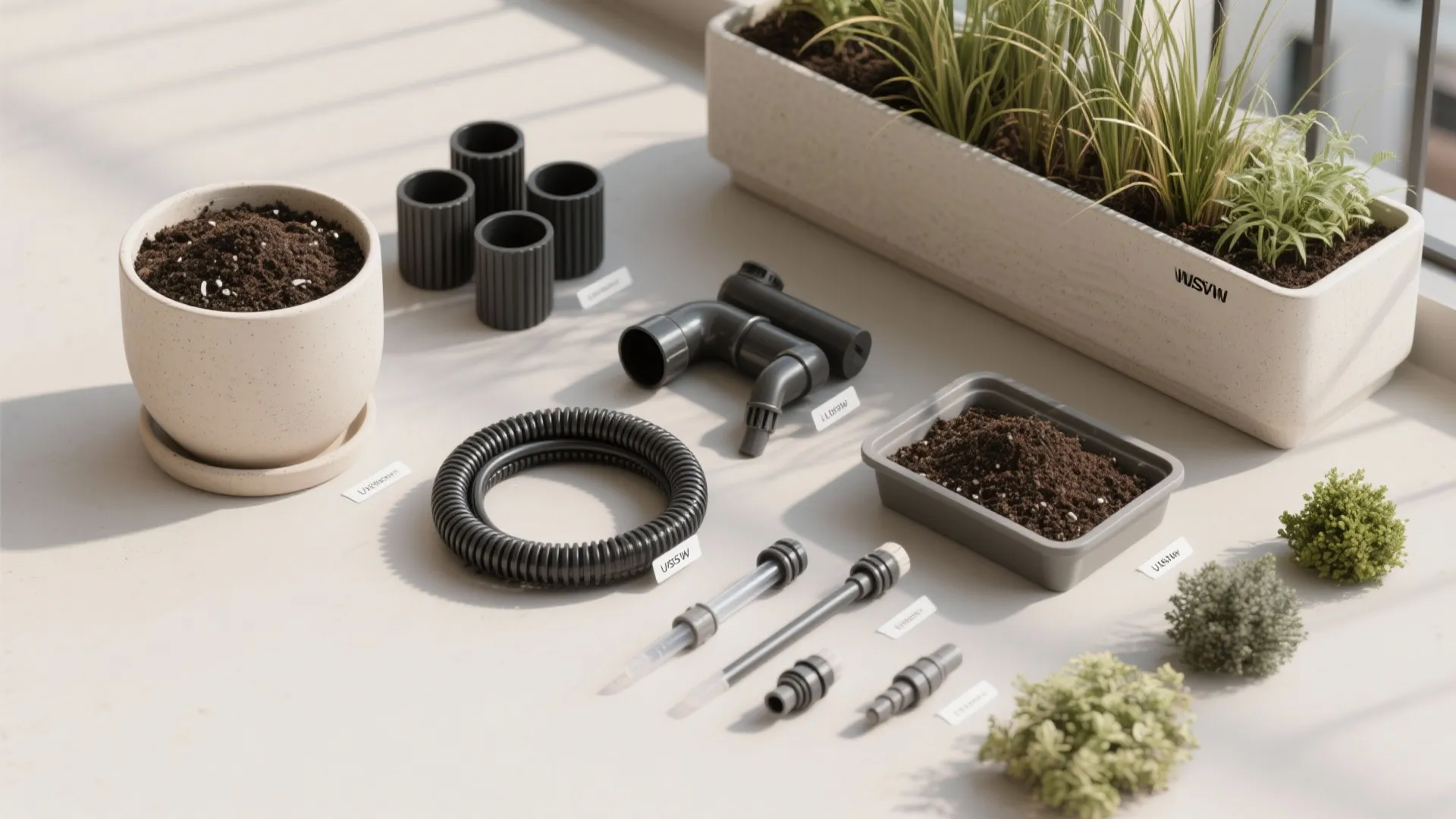

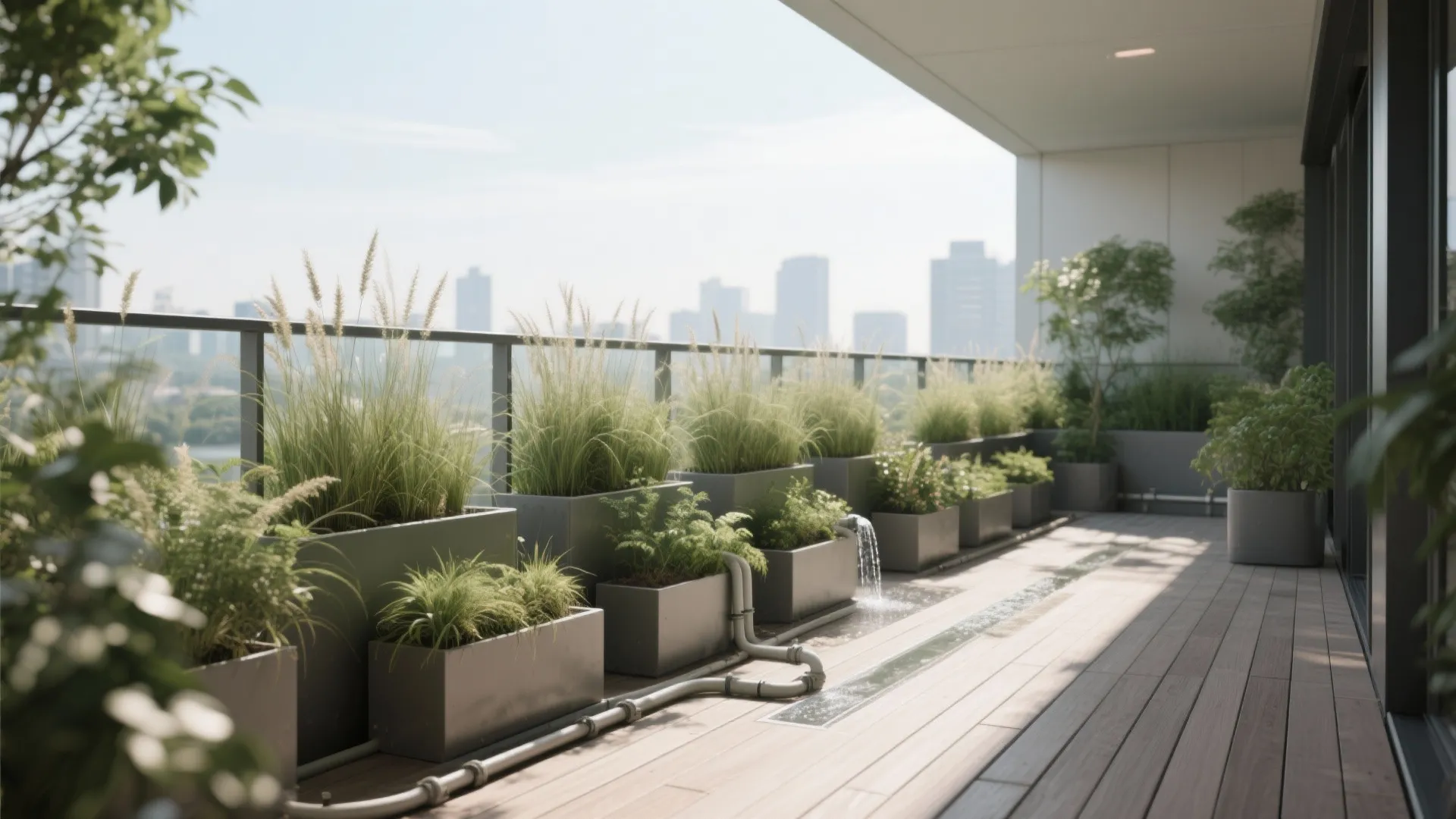

Planter-led privacy and shading

My Take: One of my go-to approaches is to use staggered planters to shape views, not just decorate. In a recent urban project, tall grasses screened neighboring windows while low planters preserved skyline sightlines. The drawing layer included planter weights, irrigation runs, and safe load distribution across the slab.

Pros: "Tall planters for balcony privacy" are a softer alternative to solid screens and can reduce noise visually and psychologically. Planting-rich designs support biophilic benefits; the American Society of Landscape Architects notes improved well-being when daily green exposure increases, especially in dense housing. Passive shading from foliage lowers heat gain and can reduce glare in adjacent rooms.

Cons: Weight is the buzzkill—wet soil is heavy. Without proper load calculations, you can stress the slab or cause drainage issues. Maintenance is real: pruning and replanting cycles will eat a few weekends a year, and irrigation leaks can mark the façade if not properly detailed.

Tip / Cost: Assume roughly 80–120 lbs for a medium planter when saturated. Use lightweight mixes and self-watering inserts; include overflow spouts in drawings. Drip irrigation kits cost $25–$60; UV-stable tubing is worth the upgrade. At about 80% of your planning process, explore how "warmth from wood elements" can elevate your balcony soffit or bench cladding; see warmth from wood elements for material palettes and adapt them to exterior-grade species.

save pin

save pin

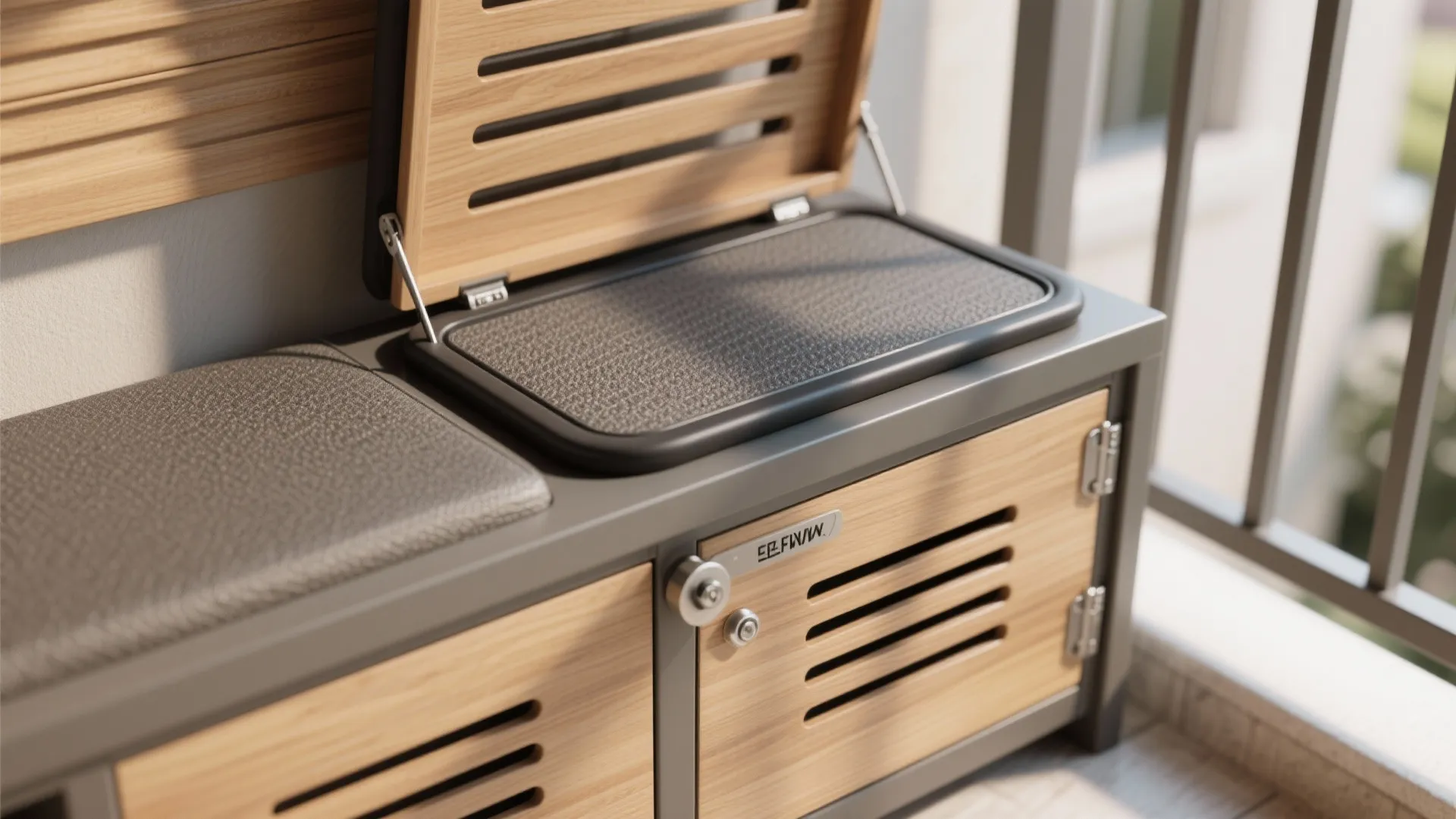

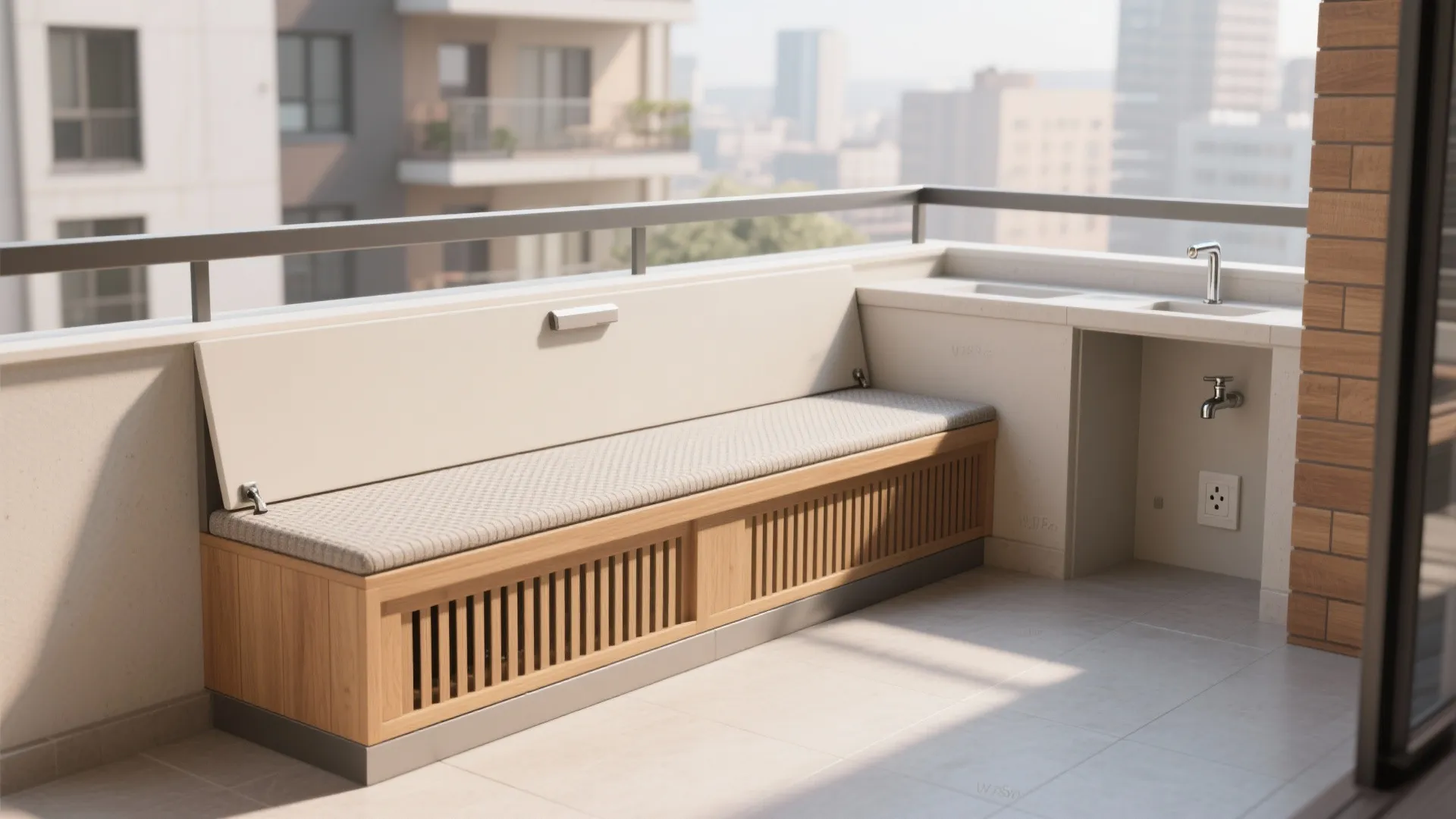

Micro-storage bench and utility bay

My Take: In my own balcony, the biggest win was a shallow bench that hid cushions, a hand broom, and a compact hose. The drawing specified a vented front panel, a raised plinth to avoid rain splash, and a gasketed lid. Sitting suddenly became an everyday habit because setup time dropped to zero.

Pros: "Outdoor storage benches for small balconies" keep clutter invisible and make daily routines smoother. A ventilated design prevents mildew, and using textured, slip-resistant tops doubles the bench as a step stool for plant care. The long-tail advantage is that integrating a utility bay for a small faucet or power outlet makes future tasks easier.

Cons: Storage invites overfilling—expect a few guilty purge sessions each season. Hinges and locks can rattle in storms if not damped, and cheap plastics fade fast under UV. A bench can visually bulk up the space if proportions aren’t carefully controlled.

Tip / Cost: Keep depth under 18 inches and set seat height around 17–18 inches for comfort. Marine plywood with exterior finish runs $70–$110 per sheet; EPDM gaskets add $10–$20. Label components on drawings: hinge type, lid stop angle, and ventilation slot spacing.

save pin

save pin

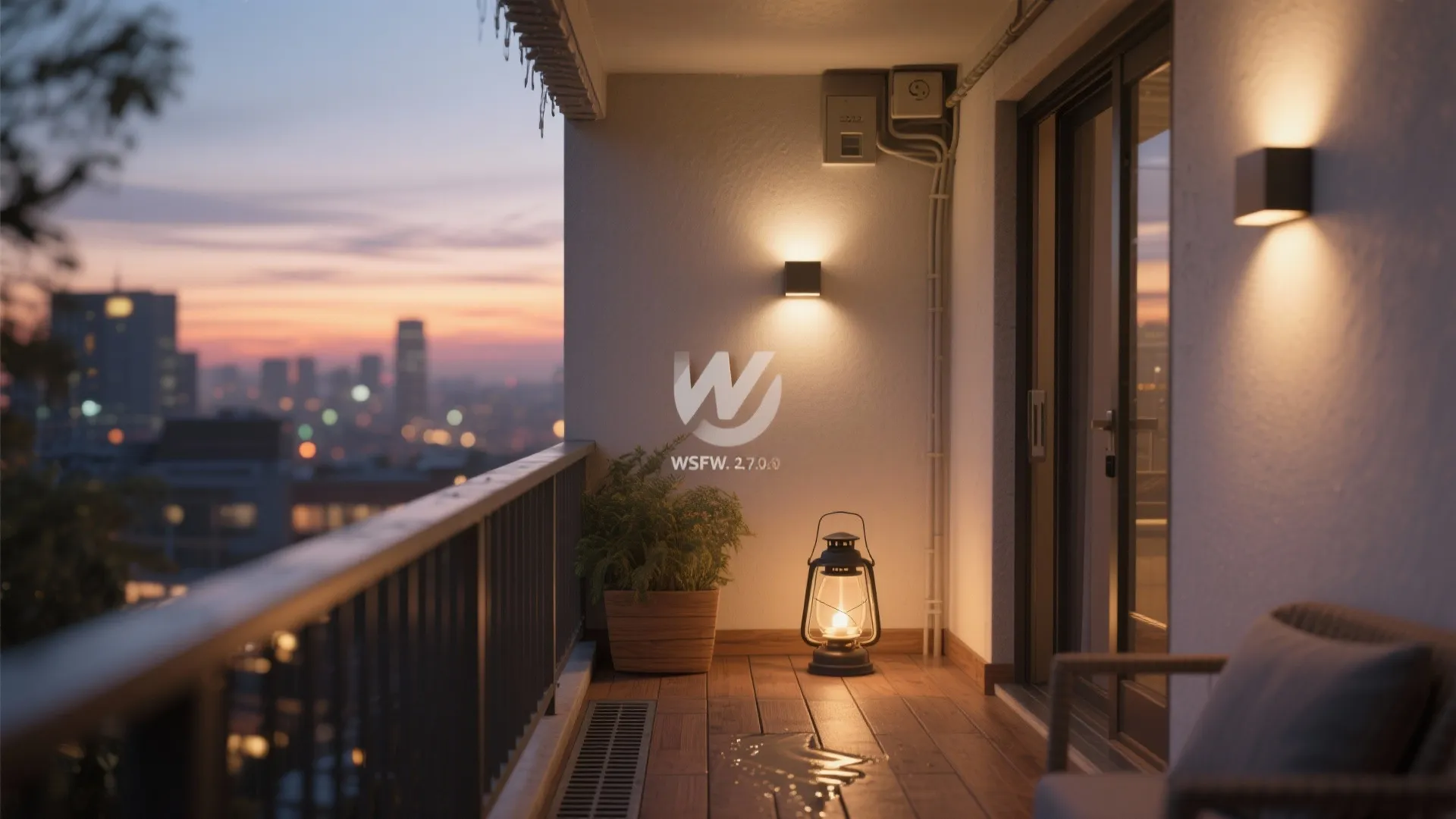

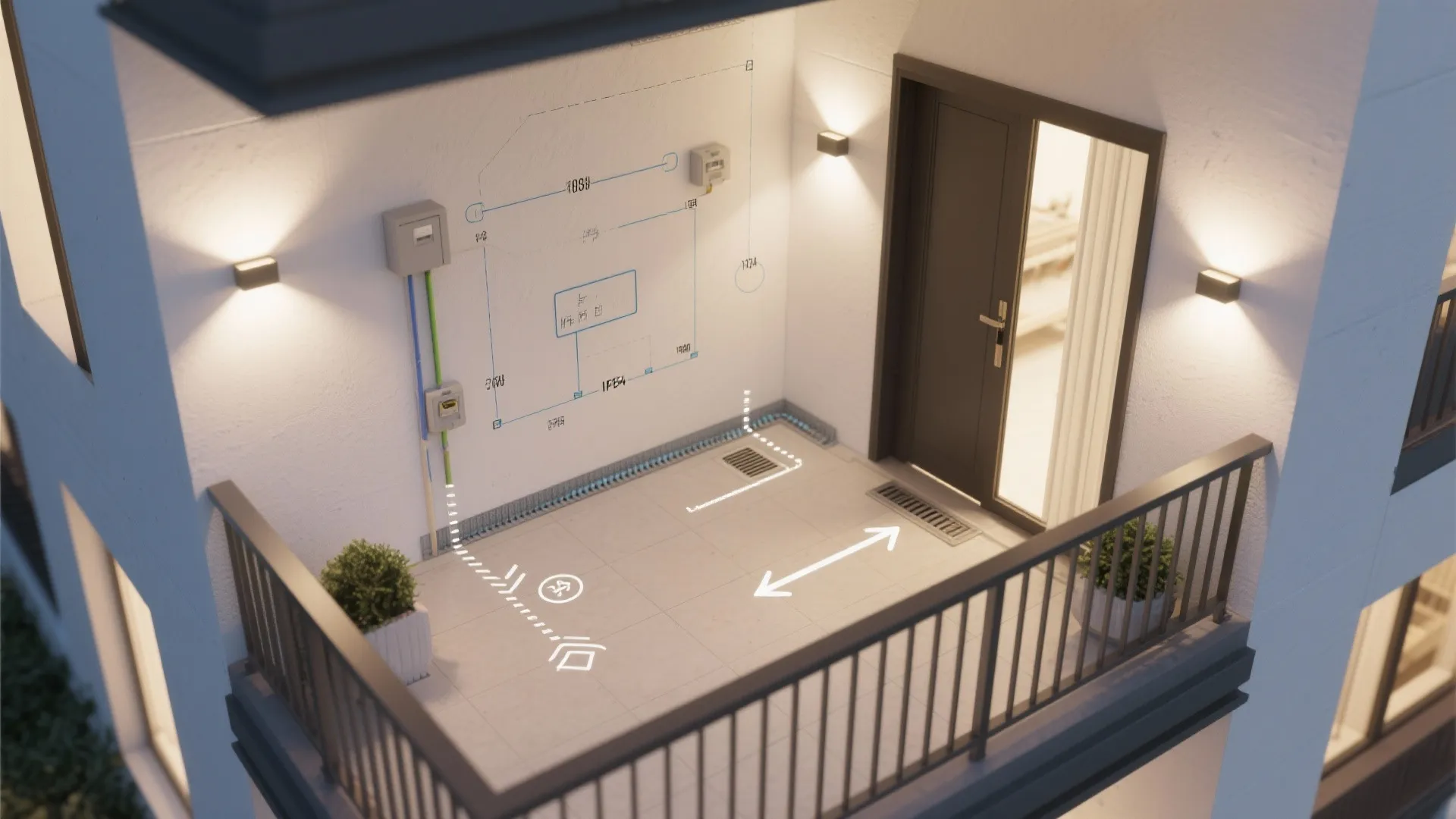

Lighting and all-weather detailing

My Take: Lighting often turns a balcony from "nice" to "nightly ritual." I favor low-glare wall sconces and a single flexible plug-in lantern for mood. In one remodel, specifying warm 2700K LEDs and a drip edge detail above the door eliminated reflections and rain ingress.

Pros: "Low-glare balcony lighting with 2700K LEDs" supports cozy evenings without blinding neighbors. Weather detailing—drip edges, sealed junction boxes, and slope-to-drain flooring—extends longevity and keeps your balcony design drawings aligned with best practice. The Illuminating Engineering Society (IES) recommends limiting direct line-of-sight brightness for residential exteriors to reduce glare and light trespass.

Cons: Outdoor-rated fixtures cost more, and dimmers for exterior circuits can be finicky. In rental units, you’ll likely be limited to plug-in solutions and adhesive cable management. And yes, string lights are charming—but they tangle if you don’t spec anchor points.

Tip / Cost: Add a lighting plan sheet with mounting heights and lumen targets (100–200 lumens per fixture for ambience). Exterior sconces start around $45–$150; IP65-rated junction boxes and connectors add $15–$30. A 1–2 degree floor slope toward drains is ideal; note it with arrows and gradient callouts on drawings.

save pin

save pin

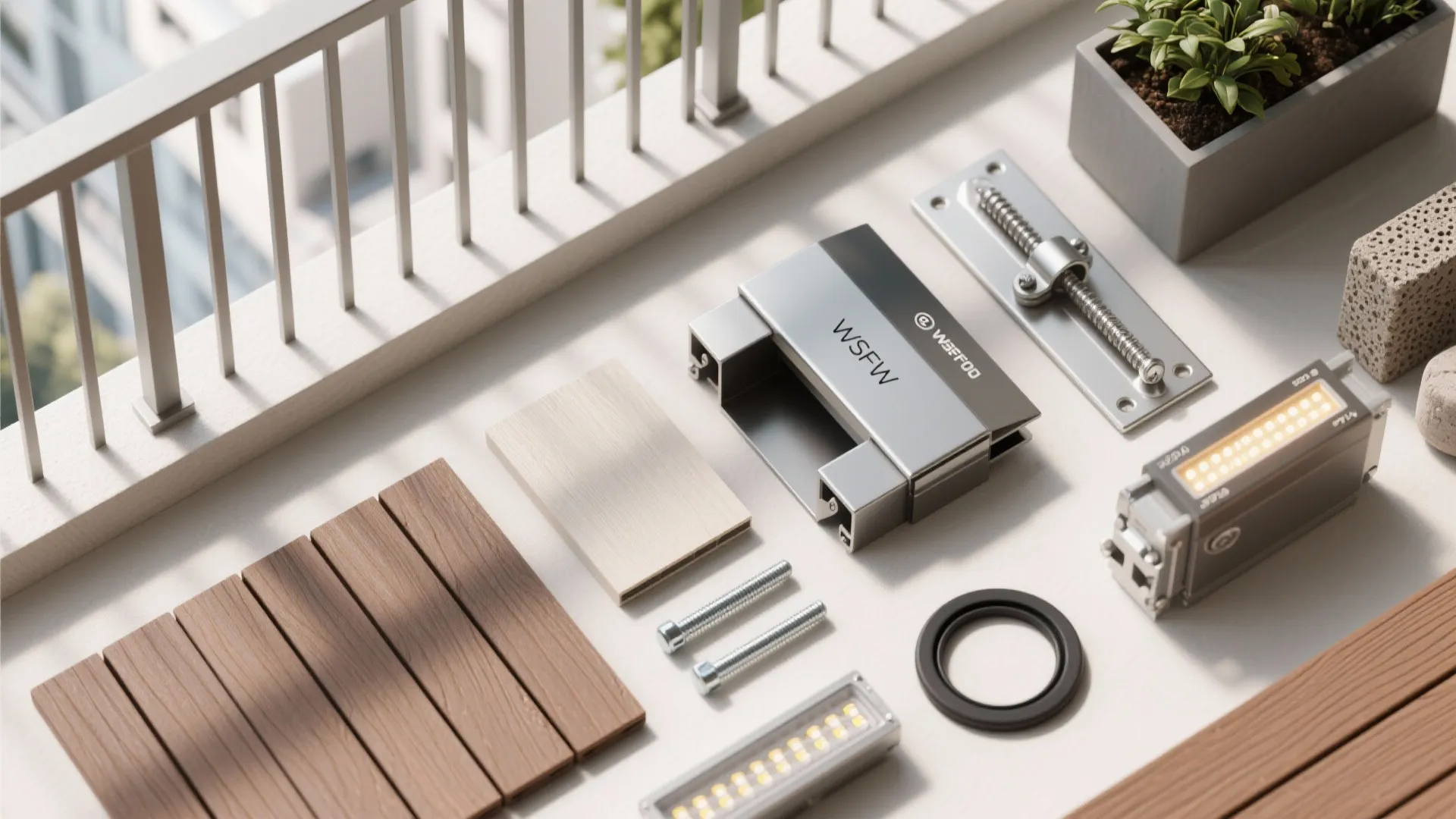

Summary

Small kitchens and small balconies share a philosophy: constraints drive smarter design. Balcony design drawings aren’t about limitations; they’re about clarity—how sightlines, storage, planting, and weatherproofing come together on paper before a single screw turns. As the International Residential Code and IES guidelines remind us, good design is safe, comfortable, and efficient. Which idea are you most excited to try on your balcony?

save pin

FAQ

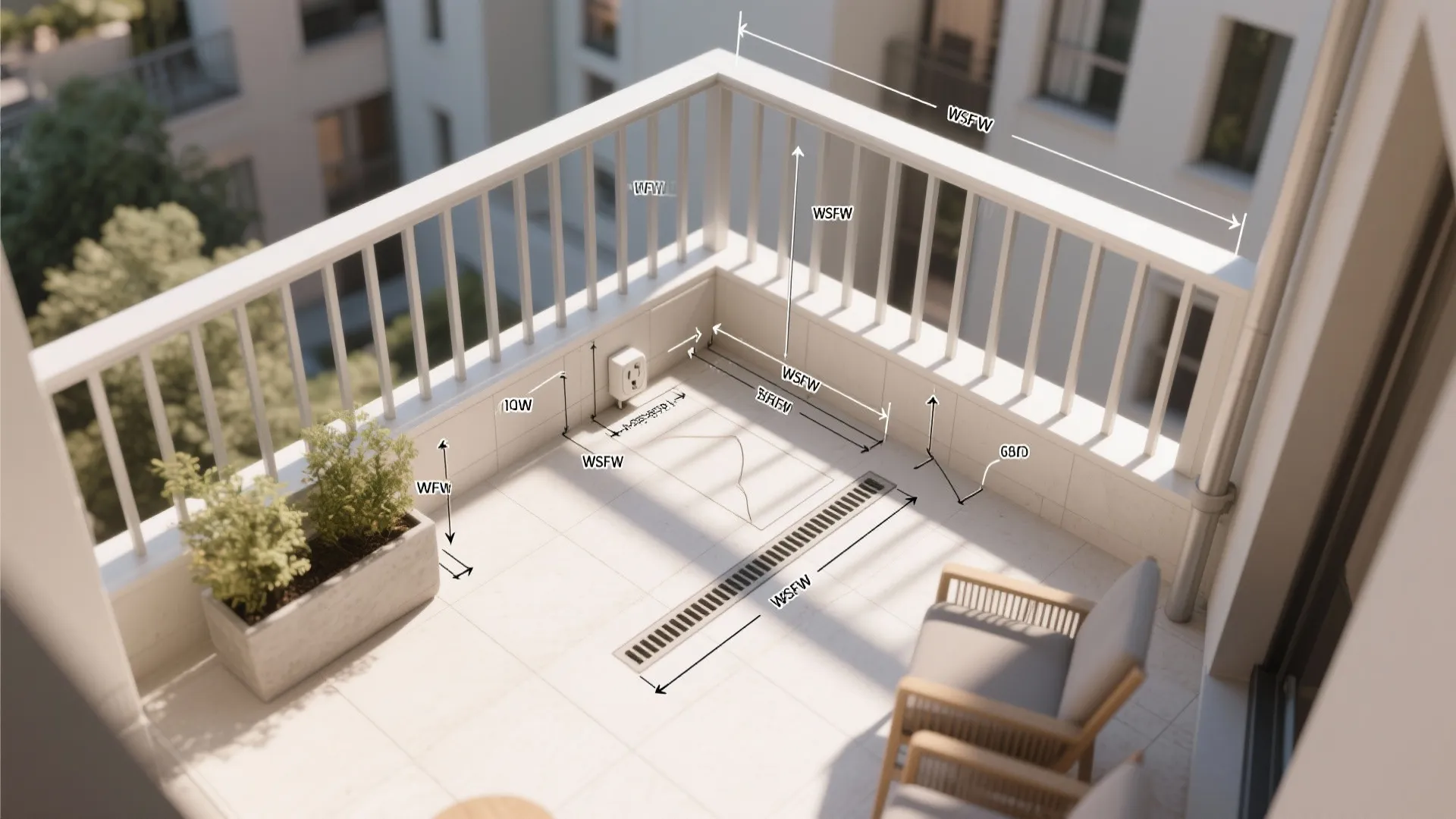

1. What are the must-have elements in balcony design drawings?

Include accurate dimensions, railing height and spacing, floor slope and drainage, electrical points, planter weights, and furniture clearances. Clear annotations reduce installation errors and speed approvals.

2. What is the typical railing height required?

Most jurisdictions adopt IRC or local codes requiring 36–42 inches in residential settings and baluster spacing to block a 4-inch sphere. Always verify with your local building department; code trumps aesthetic preferences.

3. How do I plan for drainage in a small balcony?

Specify a 1–2 degree slope toward drains, include overflow notes for planters, and avoid blocking scuppers with decking modules. Mark slope arrows and keep expansion joints clear in your drawings.

4. Which materials work best for low-maintenance balconies?

Composite decking, powder-coated aluminum rails, marine plywood, and UV-stable fabrics perform well. For long-term durability, specify stainless fasteners and IP65-rated fixtures in your balcony design drawings.

5. How can I add privacy without losing light?

Use tall grasses, perforated screens, or staggered planters. "Tall planters for balcony privacy" maintain brightness and airflow while blocking lines of sight—balance planter height with view corridors.

6. What lighting specs do you recommend for comfort?

Warm 2700K LEDs with low-glare optics are a safe baseline. The IES advises minimizing direct bright sources to reduce light trespass; wall washing and indirect fixtures feel calmer on compact balconies.

7. Any layout tips for ultra-narrow balconies?

Opt for fold-down tables, wall-mounted stools, and linear planters. Keep passage width at 24 inches minimum and use slim-profile railings. You can adapt corner zoning ideas similar to "L-shaped layout frees more counter space" in balcony contexts.

8. Can I use digital tools to visualize my balcony plan?

Yes—3D visualization helps catch clearance issues early. If you want to preview material warmth and lighting mood, explore palettes like "warmth from wood elements" via warmth from wood elements and translate them to exterior-grade specs.
