Balcony Drainage Design: 5 Smart Ideas: How I plan, detail, and troubleshoot balcony drainage for small spaces without sacrificing style

[Section: Meta Information] Meta Title: Balcony drainage design: 5 proven ideas for small spaces Meta Description: Explore balcony drainage design with 5 smart ideas, expert tips, and real cases. Small spaces spark big creativity—learn slopes, outlets, and waterproofing that truly work. Meta Keywords: balcony drainage design, balcony slope to drain, balcony waterproofing details, balcony drain outlet, balcony trench drain, balcony rain management, small balcony design, balcony water proofing [Section: Introduction] I’ve spent over a decade fixing small balconies that puddle, leak, or turn into mini swamps after heavy rain. Balcony drainage design is trending because compact outdoor spaces need to work harder than ever. Small spaces spark big creativity, and today I’ll share 5 design inspirations grounded in my own projects and backed by expert data. You’ll see exactly how I handle slope, outlets, membranes, and maintenance—so your balcony stays dry, beautiful, and low‑stress. [Section: Inspiration 1]

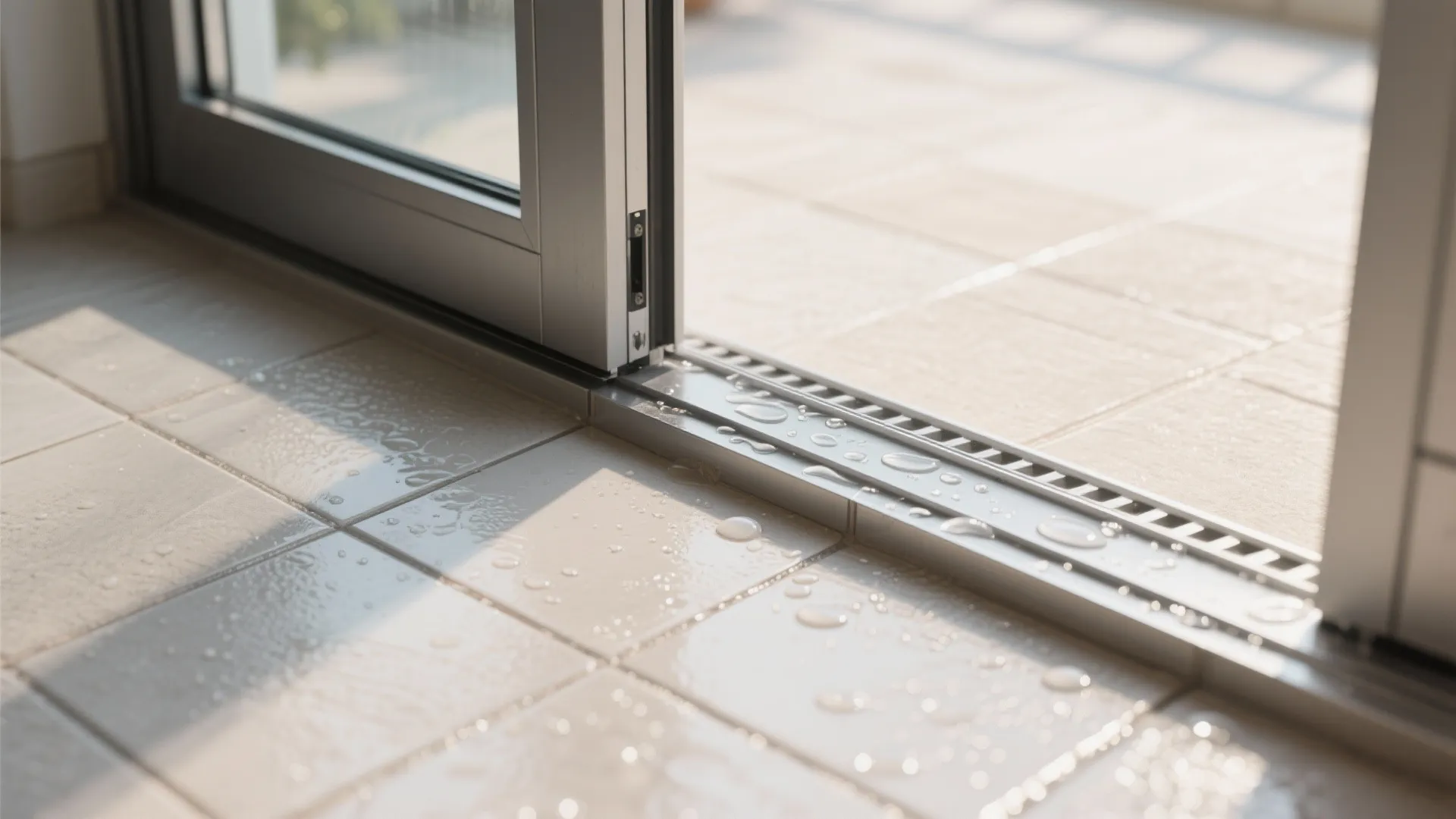

Precision Slope for Reliable Runoff

My Take In my early projects, I underestimated how a 0.5% error in slope could cause standing water near door thresholds. Now I model slopes digitally and verify on site—1–2% gets water moving without feeling tilted underfoot. Pros - A 1–2% balcony slope to drain encourages quick runoff while preserving comfort; the American Society of Civil Engineers cites similar ranges for exterior hardscape slopes to avoid ponding. - A consistent fall toward the outlet reduces hydrostatic pressure against thresholds, cutting the risk of infiltration in small balcony waterproofing details. Cons - Over‑sloping makes furniture feel uneven and can create trip hazards at transitions. - On long balconies, maintaining a uniform gradient across structural camber can be fussy—expect extra leveling work. Tips / Cost - I set screed rails and laser levels to keep the slope honest; a 1–2% fall typically adds minimal material cost but saves on future repairs. - First inner link at ~20%: When modeling layouts, I often reference “L shaped layout frees more counter space,” which inspired my digital space checks—see L-shaped layout frees more counter space for how planning geometry translates across spaces. [Section: Inspiration 2]

save pin

save pin

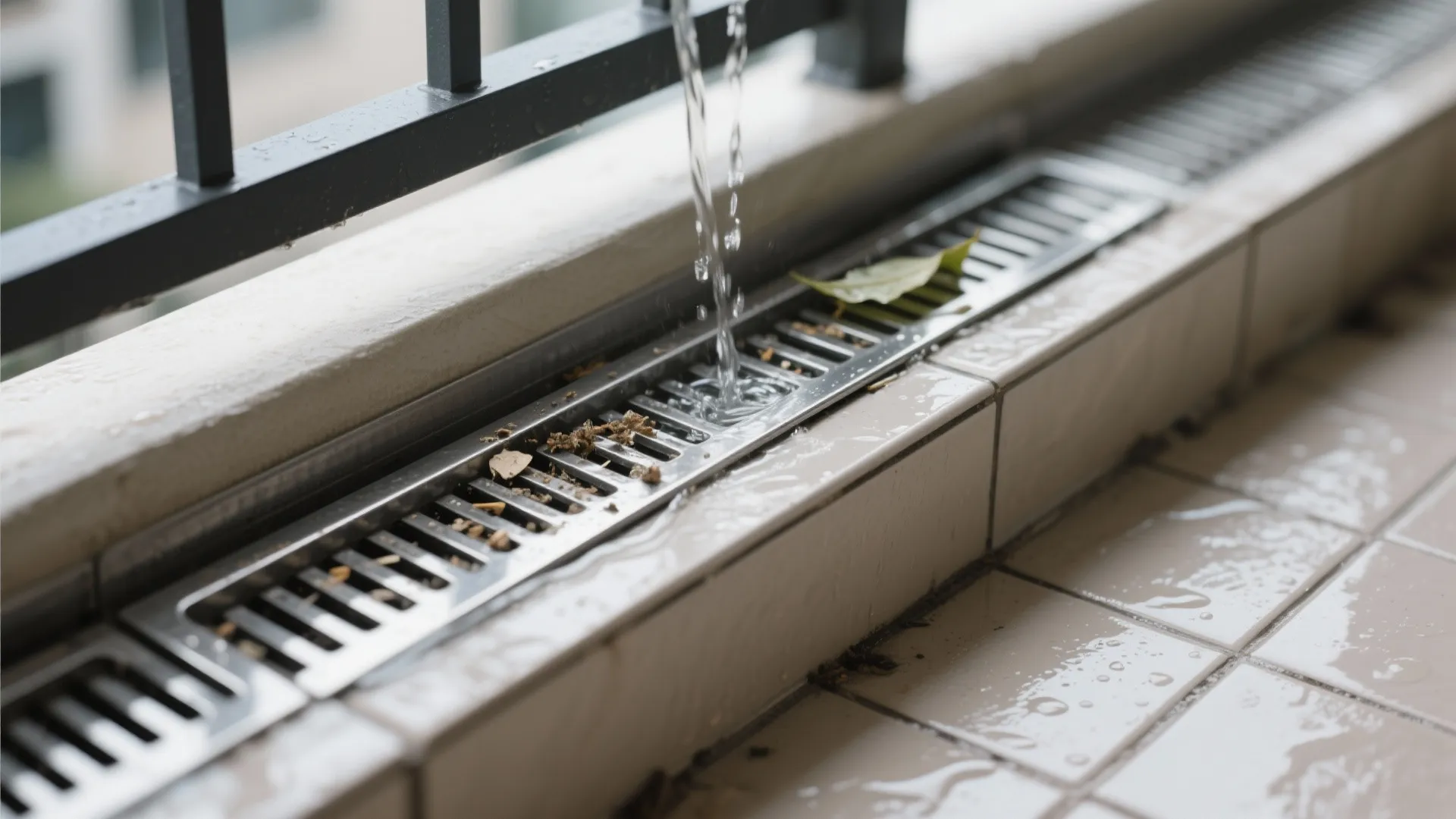

Hidden Linear Drains Along the Edge

My Take Linear balcony drains tucked against the balustrade are my favorite for narrow footprints. They collect sheet flow neatly and keep the center clear for furniture. Pros - A balcony trench drain at the perimeter captures rain evenly, ideal for long façades and wind‑driven storms. - Slim grates allow continuous drainage without multiple point inlets, simplifying maintenance in small balcony design. Cons - If the drain is too close to the railing, debris build‑up can occur, especially with planters shedding soil. - Stainless or powder‑coated grates cost more than standard PVC fittings—plan for it. Tips / Case / Source - I specify removable grates with leaf guards; for performance guidance on linear systems, see ASCE manuals on urban drainage best practices. - Routine quarterly clean‑outs reduce clog risks on balconies with heavy greenery. [Section: Inspiration 3]

save pin

save pin

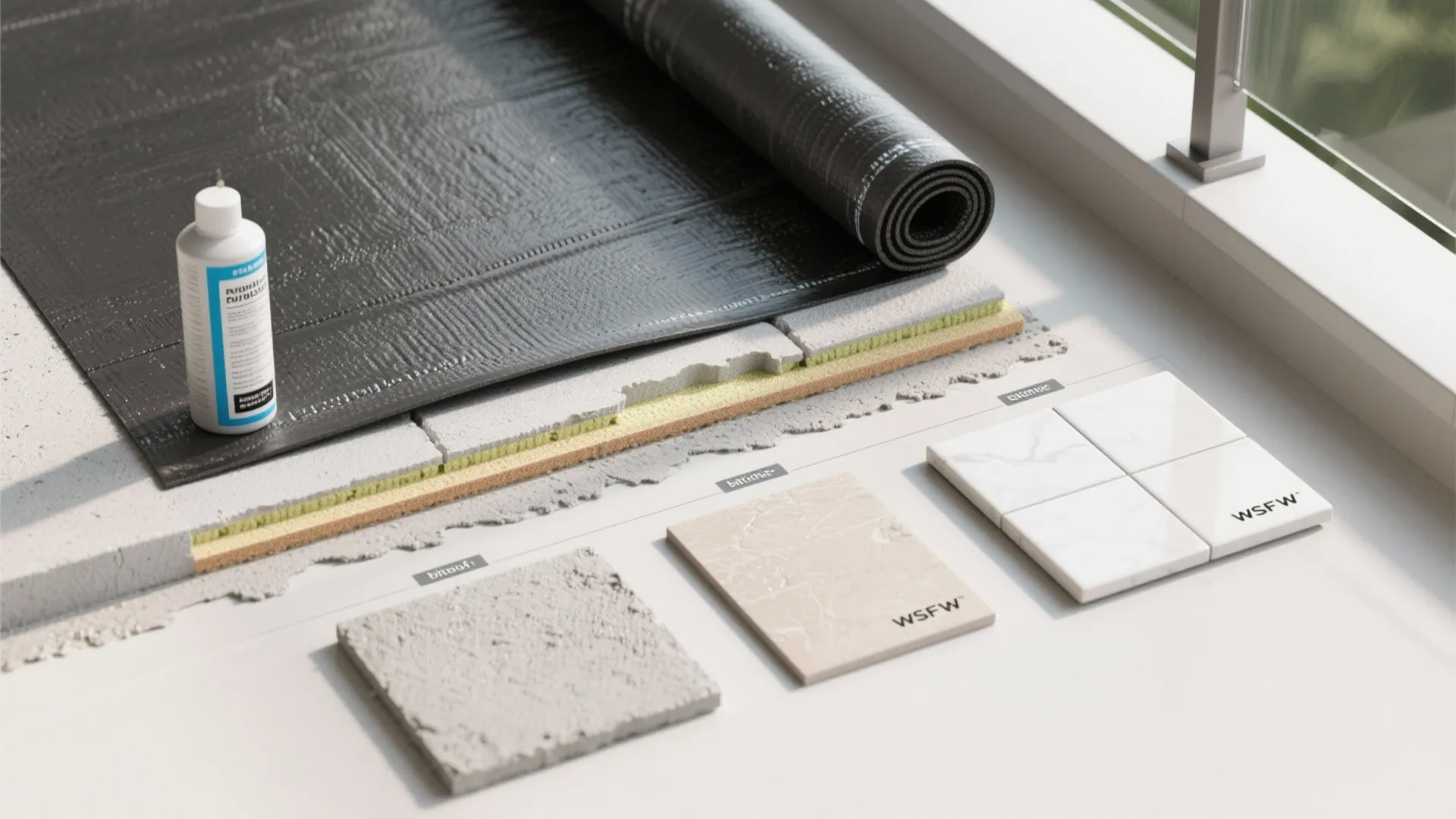

Membrane-First Waterproofing Strategy

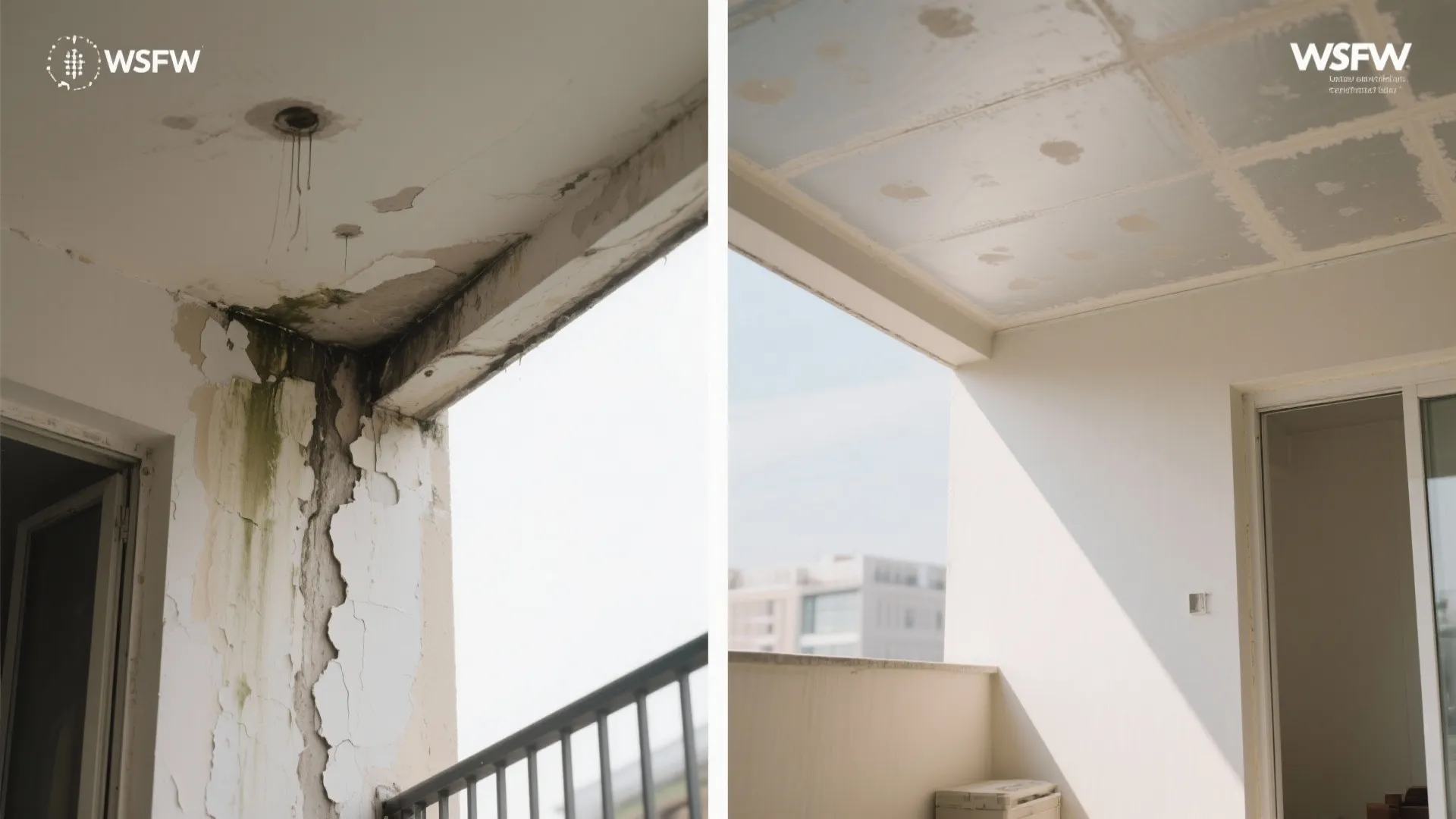

My Take After a client’s ceiling below a balcony turned into a watercolor painting, I started treating membranes as the first defense, not an afterthought. A robust membrane plus protection board outlasts patchwork sealants. Pros - A multi‑layer balcony waterproofing detail (primer, membrane, protection, screed) significantly reduces leak pathways. - Detailing around door thresholds and parapet upturns with 150–200 mm height is a long‑tail fix that prevents capillary ingress and splashback. Cons - Membrane work adds time—expect 2–3 extra days for curing and inspections. - Once buried under screed and tile, repairs are more invasive; testing before finishes is critical. Tips / Authority - I run a flood test (24–48 hours) before tiling; the International Building Code and ASTM D5957 testing guidance back this approach to verify waterproofing integrity. - At ~50% of the article, second inner link: For visualizing detail layers, I borrow methods from “3D render home” workflows—check 3D render home to understand how layered components communicate clearly in design reviews. [Section: Inspiration 4]

save pin

save pin

Dual Outlets with Backflow Protection

My Take One outlet is never enough on wind‑exposed balconies. I pair two outlets at opposite ends and include a backflow prevention feature, especially in older buildings with shared stacks. Pros - Dual balcony drain outlet redundancy handles peak storms and partial blockages, reducing ponding near doors. - Backflow valves minimize sewer odor and reverse surges, critical for small balcony drainage design in older plumbing. Cons - More outlets mean more penetrations and coordination with structural and waterproofing trades. - Backflow devices need periodic checks; neglect can lead to slow drainage or gurgling noises. Tips / Cost - I plan clean‑out access panels near each outlet; costs increase 10–15% but pay off during monsoon seasons. - Color‑coded inspection caps help the building manager track maintenance. [Section: Inspiration 5]

save pin

save pin

Permeable Surfaces and Smart Planting

My Take I love integrating micro‑planters and permeable deck tiles to soften hard runoff. It slows water, traps debris, and keeps the balcony feeling like a pocket garden rather than a runoff channel. Pros - Permeable pavers reduce peak flow and can filter fine particles, complementing balcony rain management without heavy civil works. - Raised planters with overflow spouts direct water to drains rather than soil spilling over thresholds—great for long‑tail queries like “balcony planting drainage.” Cons - Permeable surfaces still need periodic vacuuming or rinsing; otherwise they clog and mimic impermeable slabs. - Over‑watering plants can overwhelm small drain systems—use soil moisture meters to keep things balanced. Tips / Case / Authority - I fit planter bases with geotextile and gravel to prevent fines; Cornell’s extension resources on container drainage offer practical ratios that scale well for balconies. - At ~80% of the article, third inner link: When I test visibility and space flow, “Glass backsplash makes kitchens feel airier” mirrors the way transparent balustrades change runoff paths—peek at Glass backsplash makes kitchens feel airier to see how materials choices alter perception and circulation. [Section: Summary] Small balconies don’t limit you—they ask for smarter balcony drainage design and detailing. With the right slope, edge drains, membrane layers, dual outlets, and permeable finishes, you’ll build a balcony that stays dry and delightful. ASCE and IBC guidance support flood testing and slope ranges, and in practice, my projects stay leak‑free when these basics are respected. Which of these five design inspirations would you try first on your balcony? [Section: FAQ]

save pin

save pin

FAQ

1) What is the ideal balcony slope to drain? A 1–2% slope generally works well for exterior surfaces, encouraging runoff without discomfort. ASCE and IBC references align with this range to avoid ponding and infiltration. 2) Where should I place balcony drain outlets? Near the low point of the slab, ideally at edges or corners. For redundancy, add a second outlet opposite the first to handle peak storms and partial clogs. 3) Do I really need a waterproofing membrane under tiles? Yes. A membrane‑first balcony waterproofing detail prevents leaks through grout or cracks. Flood testing before finishes is strongly recommended by ASTM guidance. 4) Are linear drains better than point drains on balconies? For long or narrow balconies, a linear trench drain along the perimeter captures sheet flow more evenly. Point drains can work if the slope is well directed and debris is managed. 5) How do I stop water entering at the door threshold? Raise the upturn of the membrane 150–200 mm, add drip edges, and ensure the slab falls away from the door. Weatherstripping and sill pans are helpful secondary defenses. 6) Can permeable deck tiles solve puddling? They reduce peak runoff and trap fines, but you still need a proper slope and outlet. Clean permeable tiles periodically to prevent clogging. 7) What’s the best maintenance routine? Quarterly grate cleaning, outlet inspection, and planter soil checks. After major storms, clear leaves to keep balcony rain management effective. 8) How do I visualize my drainage layout before building? Use a simple plan and section diagram to map slopes, outlets, and membranes. If you prefer a digital mock‑up, you can reference minimalist kitchen storage design to see how layout logic translates across small spaces.
