Boundary Wall Design in India: 5 Smart Ideas: A senior designer’s field-tested ways to make your compound wall stylish, secure, and compliant—without blowing the budget

A client once asked me for a “fortress that feels friendly”—basically, Fort Knox with fairy lights. I nearly botched the gate swing that day, so I saved the meeting with quick 3D renders to show how materials and proportions could soften the look. Funny how a small frontage can spark big creativity; tight setbacks force you to think sharper about privacy, airflow, and street presence.

Today I’m wrapping up 10+ years of on-site lessons into five boundary wall ideas tailored to Indian plots. I’ll share what works, what to watch for, and a couple of tricks I’d use again in a heartbeat.

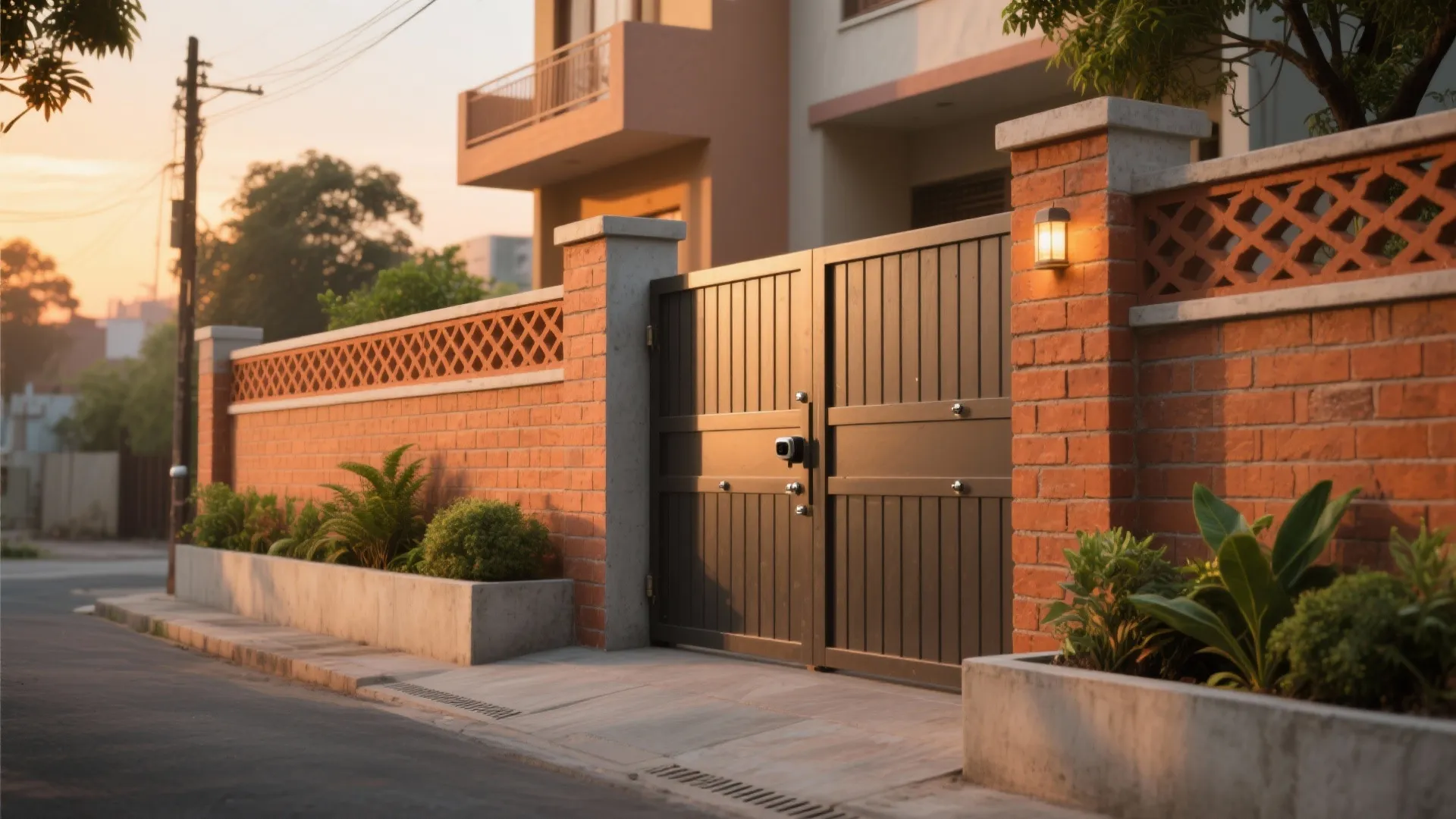

Idea 1: Mix local materials with a breathable band

I love pairing brick or laterite with a slim metal or terracotta jaali at the top. It gives privacy at eye level, yet keeps air and light moving—especially important in humid cities. The trick is proportion: roughly two-thirds solid, one-third semi-open usually feels balanced.

The catch? Jaali requires careful detailing to avoid water ingress and rust. Use a sloped coping above, seal joints, and pick powder-coated metal or terracotta that suits your climate. Costs stay sane because the jaali replaces some masonry, not adds to it.

save pin

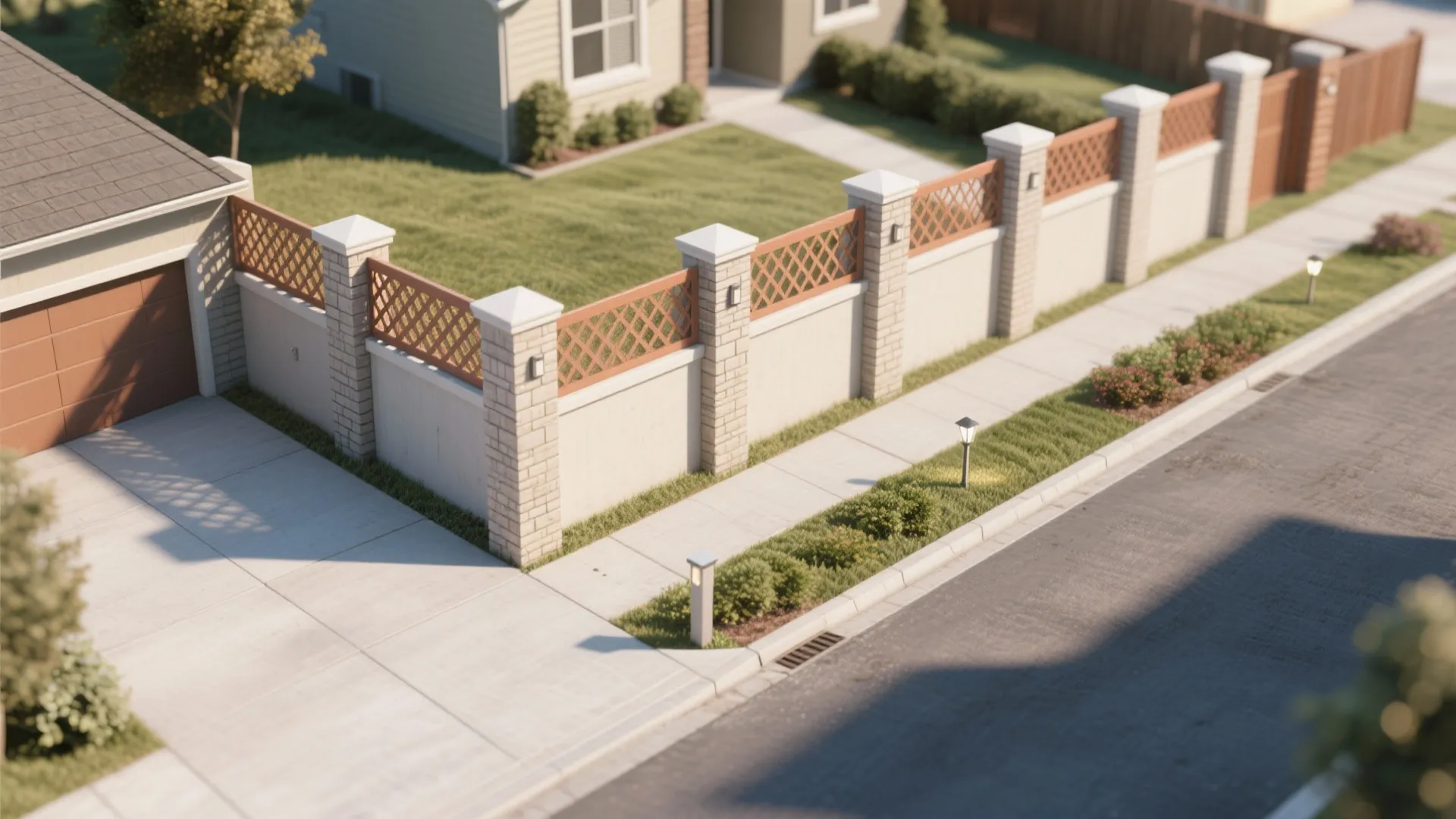

Idea 2: Legal height, layered privacy

Most cities allow around 1.8–2.4 m for boundary walls (but check your local bylaws). I often keep the solid portion lower and add a see-through top section to meet the legal max while blocking direct sightlines.

Stepped profiles help along sloping streets, and pilasters every 2.4–3 m prevent long runs from cracking. Remember: taller isn’t always safer—smart visibility and lighting matter more than an extra 200 mm of wall.

save pin

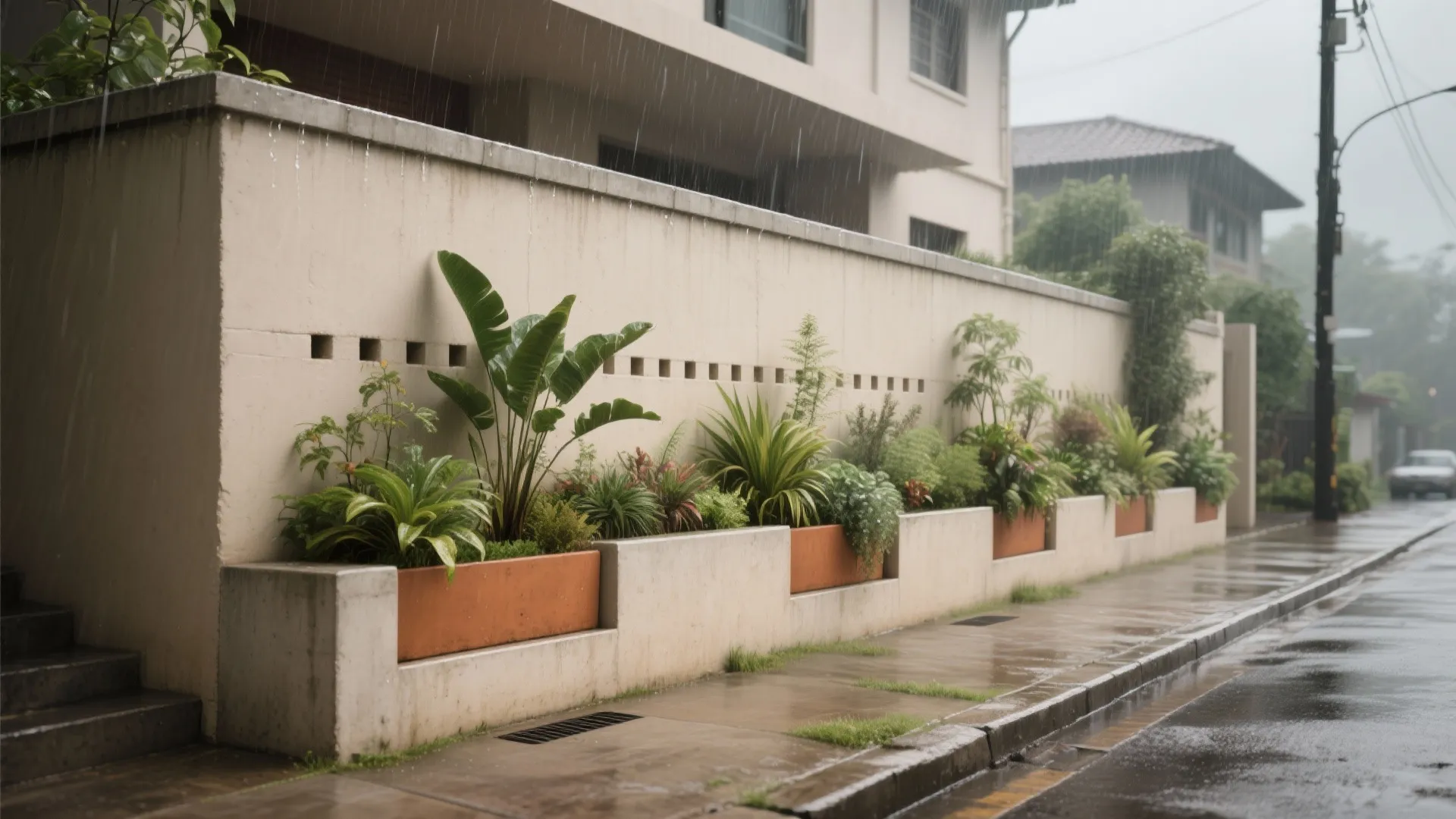

Idea 3: Green edges that don’t fight the monsoon

Planters integrated into the wall base or recessed pockets can soften the street view fast. Stick to hardy natives, design weep holes, and slope the coping so rain doesn’t backflow onto plaster.

Before planting, I like to explore AI-generated layout options to test where planters, light fixtures, and house numbers live without clutter. The only caution: root control. Use lined troughs and keep soil off the wall face to avoid damp.

save pin

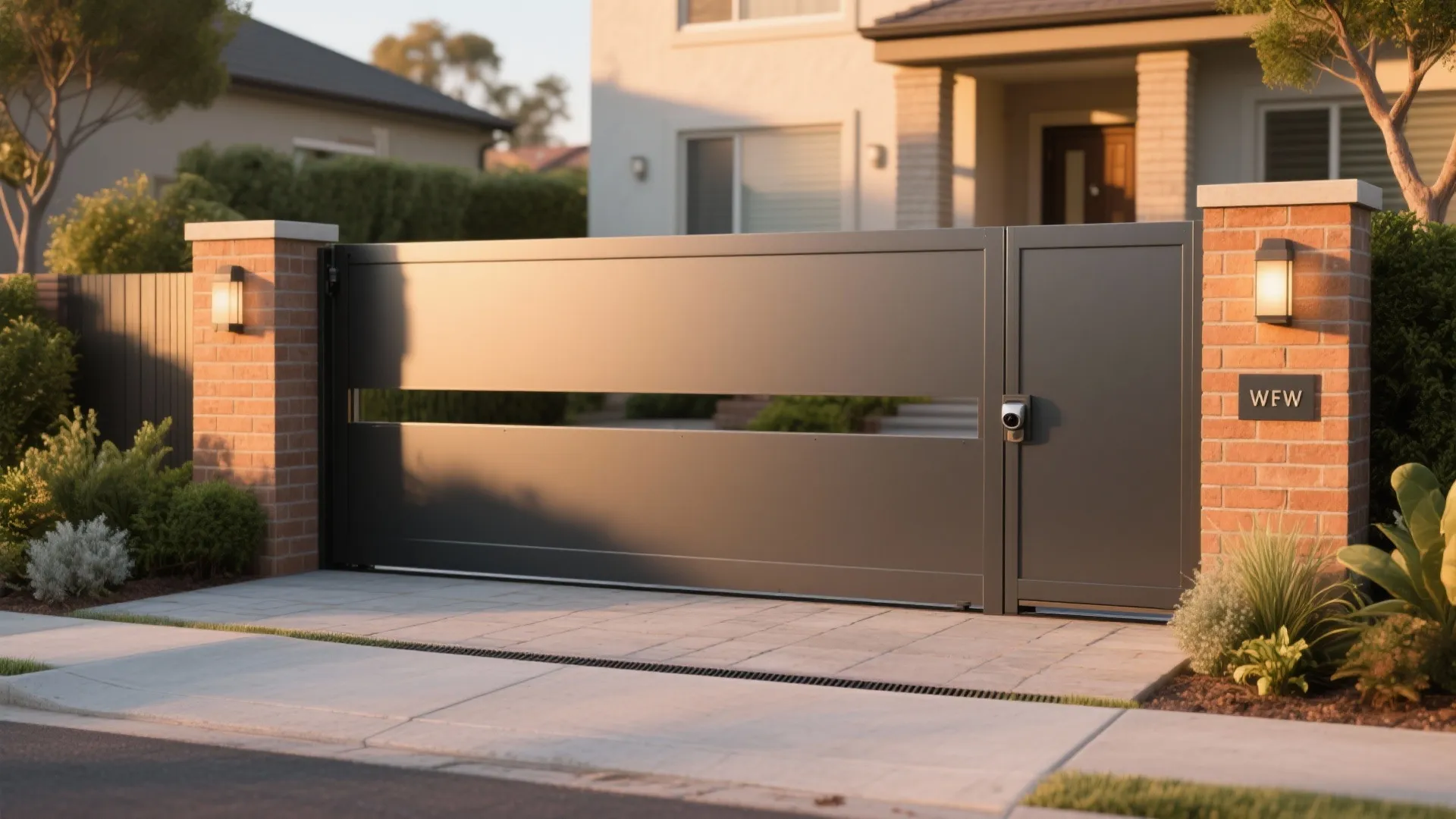

Idea 4: Gates that move right (and feel welcoming)

On tight plots, a sliding gate saves driveway space and avoids the “gate hits car” drama—ask me how I learned that. If you prefer swing gates, set the pivot clear, size the leafs sensibly, and add a stopper that doesn’t chew up your paving.

For security, combine a solid midsection with a narrow vision strip aligned to your door camera. It looks more residential than full grills, yet gives you sightlines to the street. Bonus points for a quiet track, an auto-closer, and a subtle warm light at the gate post.

save pin

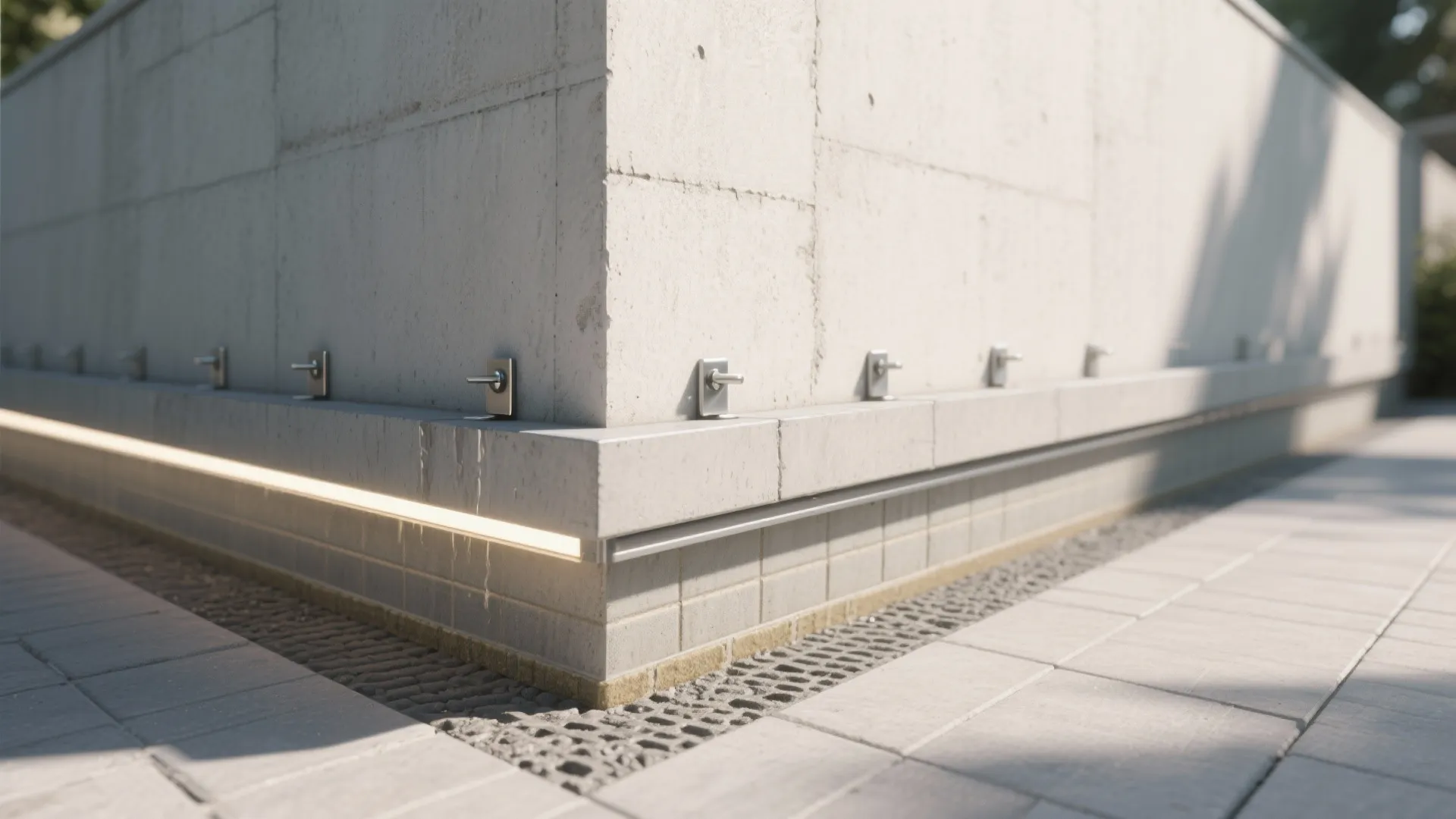

Idea 5: Details that last—coping, DPC, and smart lighting

Small details make big differences. A properly sloped coping (with drip grooves) keeps stains off. A damp-proof course at plinth level and breathable plaster reduce blistering. Stainless fixings, sealants, and expansion joints save you from “annual repairs” mode.

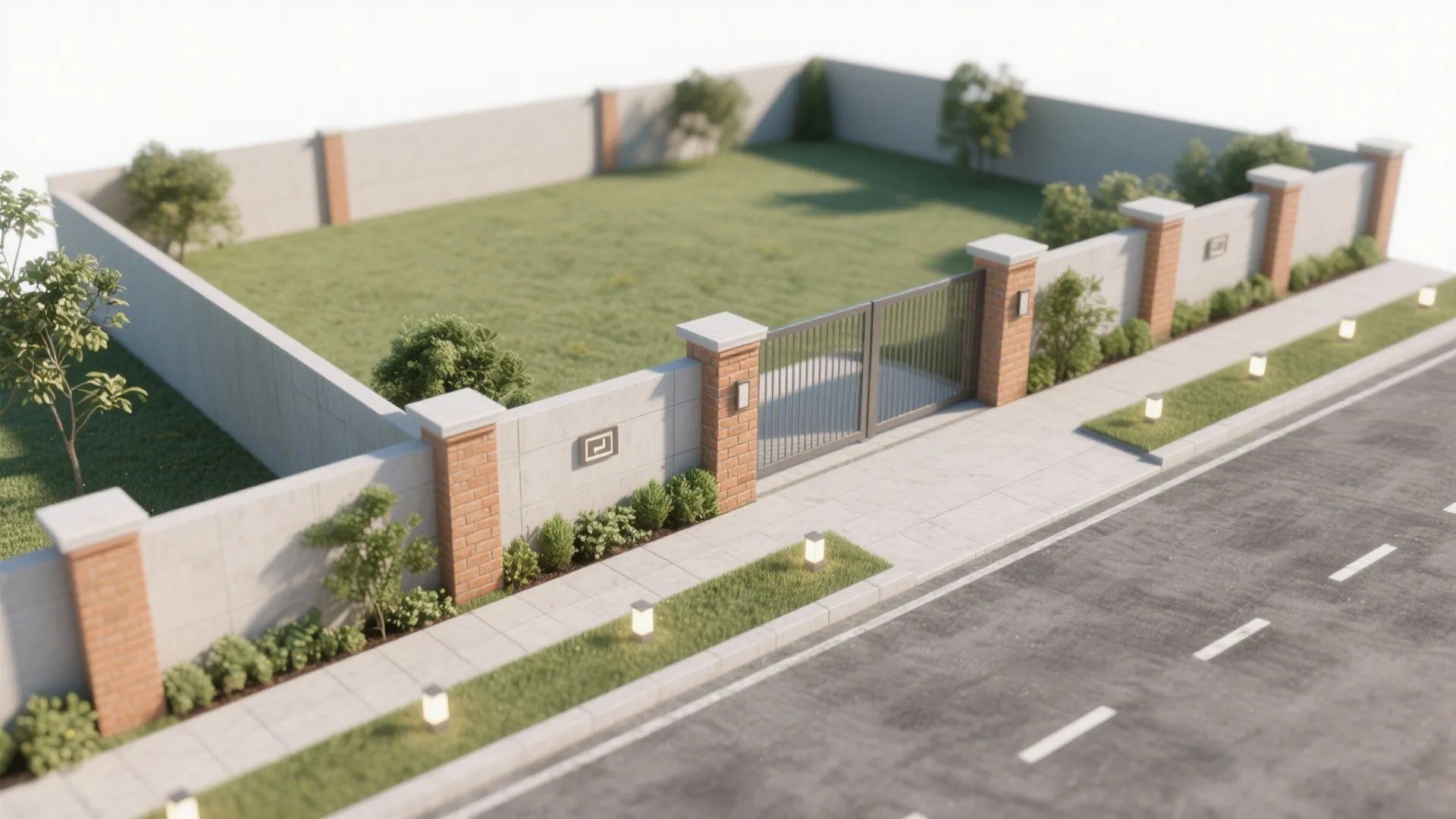

When I’m coordinating with the contractor, I draft a precise site plan in minutes showing columns, services, and gate clearances. Then I layer lighting: low bollards or concealed LEDs for path glow, and a motion sensor near the gate—secure but subtle.

save pin

FAQ

1) What’s the standard boundary wall height in India?

It varies by city, typically around 1.8–2.4 m for residential plots. I always check local municipal bylaws; a common approach is a lower solid section plus a semi-open top to meet both privacy and code.

2) Which materials are best for Indian climates?

Brick or block with RCC columns is reliable, laterite works beautifully in coastal belts, and basalt or granite shines in the west. Pair with powder-coated MS or terracotta jaali for airflow; just detail for drainage and corrosion protection.

3) Do I need permission to build or modify my boundary wall?

Often yes, especially for new construction, height changes, or corner plots that affect visibility. I advise submitting a simple site plan and elevation to your local corporation before work starts.

4) How can I reduce dampness and cracks?

Use a DPC at the base, good coping with drip grooves, and weep holes where needed. Pilasters at regular intervals and proper expansion joints keep long spans from developing settlement cracks.

5) Is barbed wire allowed on residential walls?

Rules vary; some municipalities or housing societies restrict barbed wire for safety and aesthetics. If you need extra security, I prefer taller semi-open bands, cameras, and lighting over aggressive toppings.

6) What footing and reinforcement details should I follow?

I size footings to soil conditions and load, and keep minimum concrete cover per code. For reference, IS 456:2000 (Bureau of Indian Standards) specifies nominal cover for footings at 50 mm (Clause 26.4.3); see BIS resources at https://bis.gov.in.

7) How do I combine privacy with ventilation?

A breathable band (metal or terracotta jaali) above solid masonry is my go-to. It blocks direct views while letting hot air escape—great in humid cities and tight lanes.

8) What’s a rough cost per running meter?

For a well-detailed masonry wall with RCC columns, coping, and a semi-open band, many Indian cities land between ₹3,000–₹8,000 per r.m., excluding the gate. Stone cladding or custom metalwork can push it higher.
