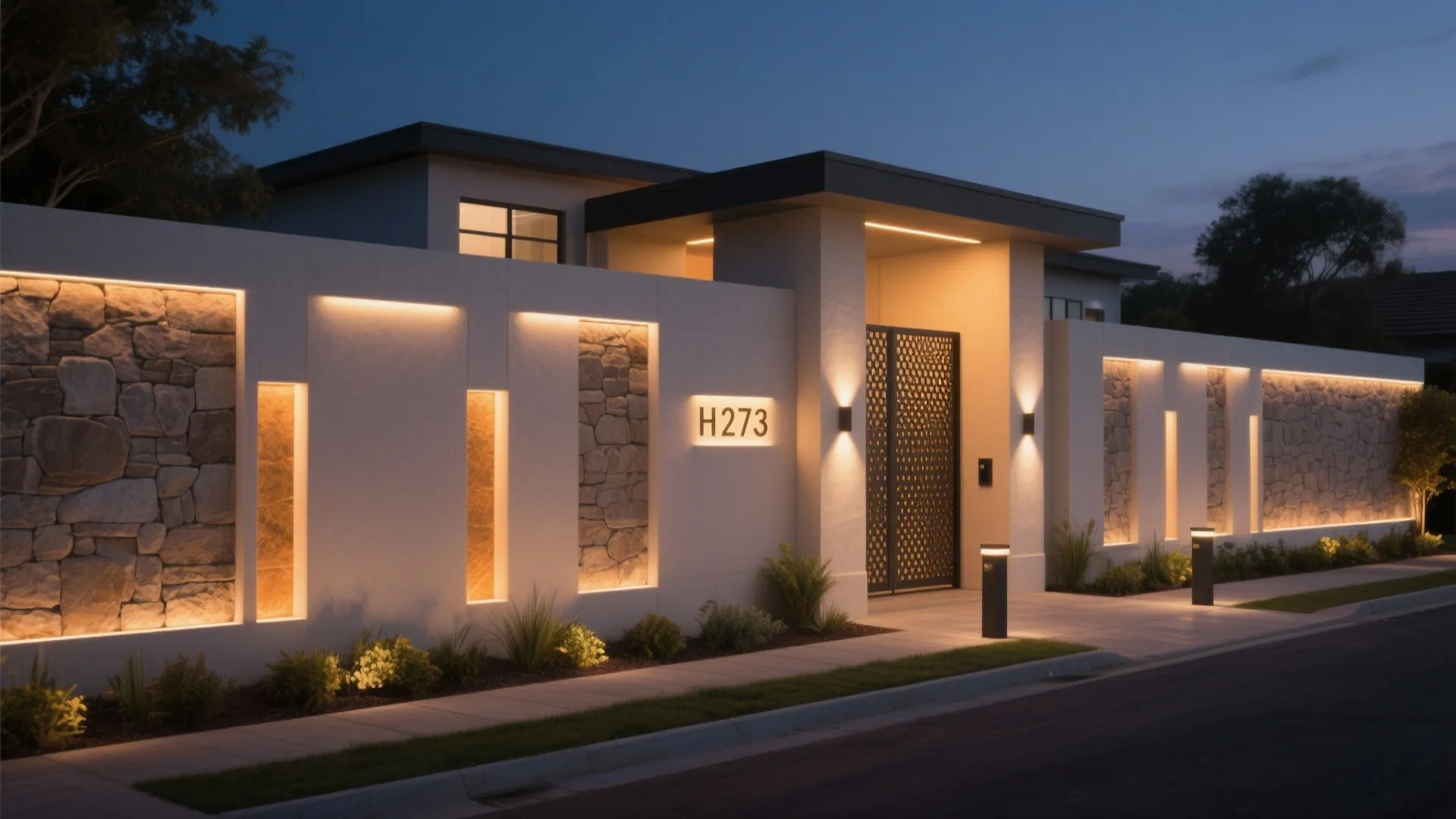

Boundary Wall Design with Light: 5 Bold Ideas: I turn plain boundaries into warm, safe, and stylish edges—with just the right glow.

Last year a client asked me to make his boundary wall glow like a runway; I laughed, sketched, then realized it could actually be tasteful. Before we drilled anything, I built some 3D mockups of the facade to test glare and shadows, because light on a long wall is unforgiving. Small spaces (yes, even a narrow boundary) always spark big creativity, and today I’m sharing five ideas I use on real projects.

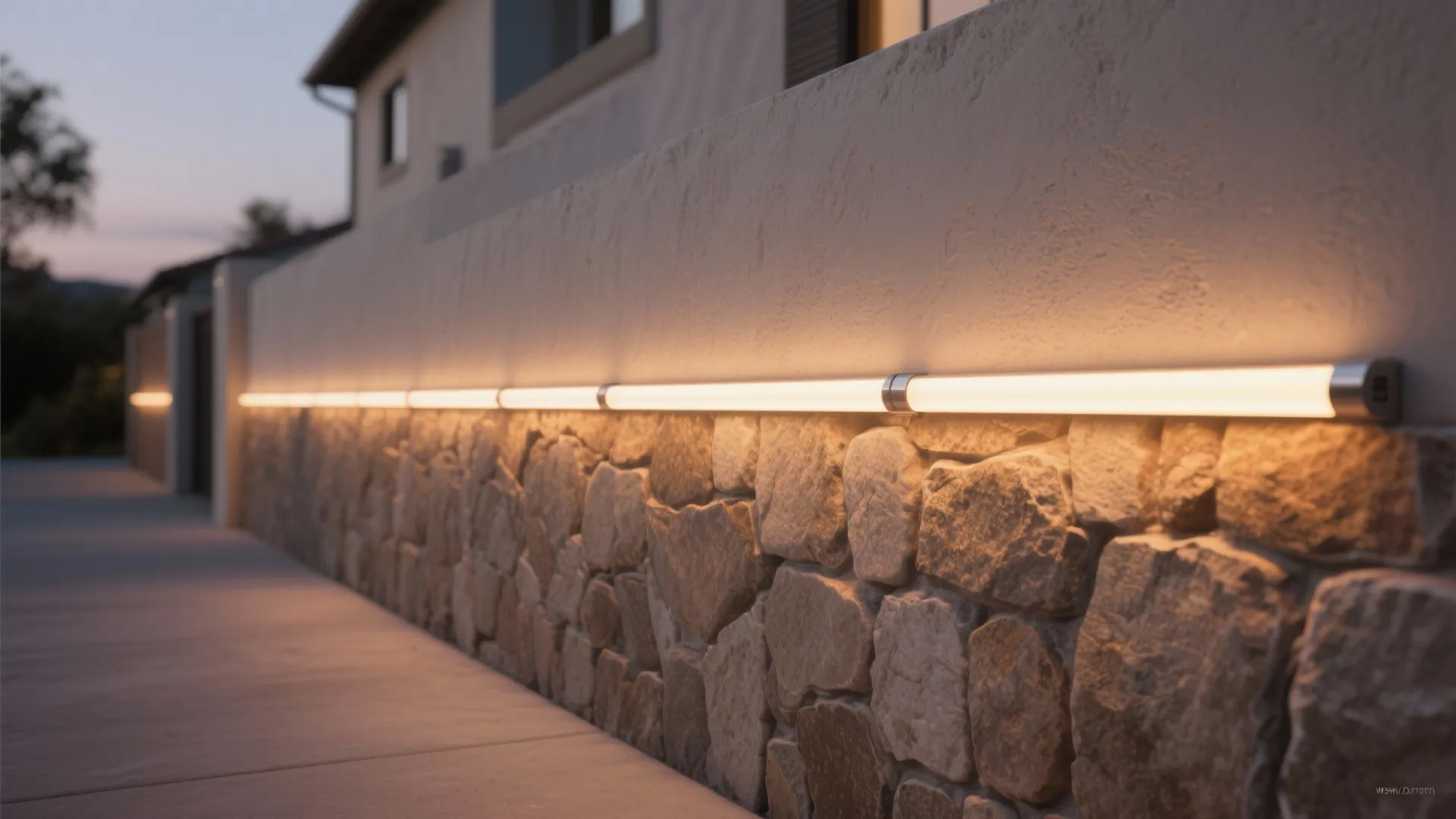

Idea 1: Linear LED Grazing on Texture

I love mounting slim LED strips a few inches off the wall to graze stone or stucco. The raked light pulls out texture so your boundary feels crafted, not just a perimeter.

Keep it warm (2700–3000K) and shielded; otherwise you’ll highlight dust and create hotspots. Budget-wise, good extrusions and IP65 strips cost more, but they save you from constant maintenance.

save pin

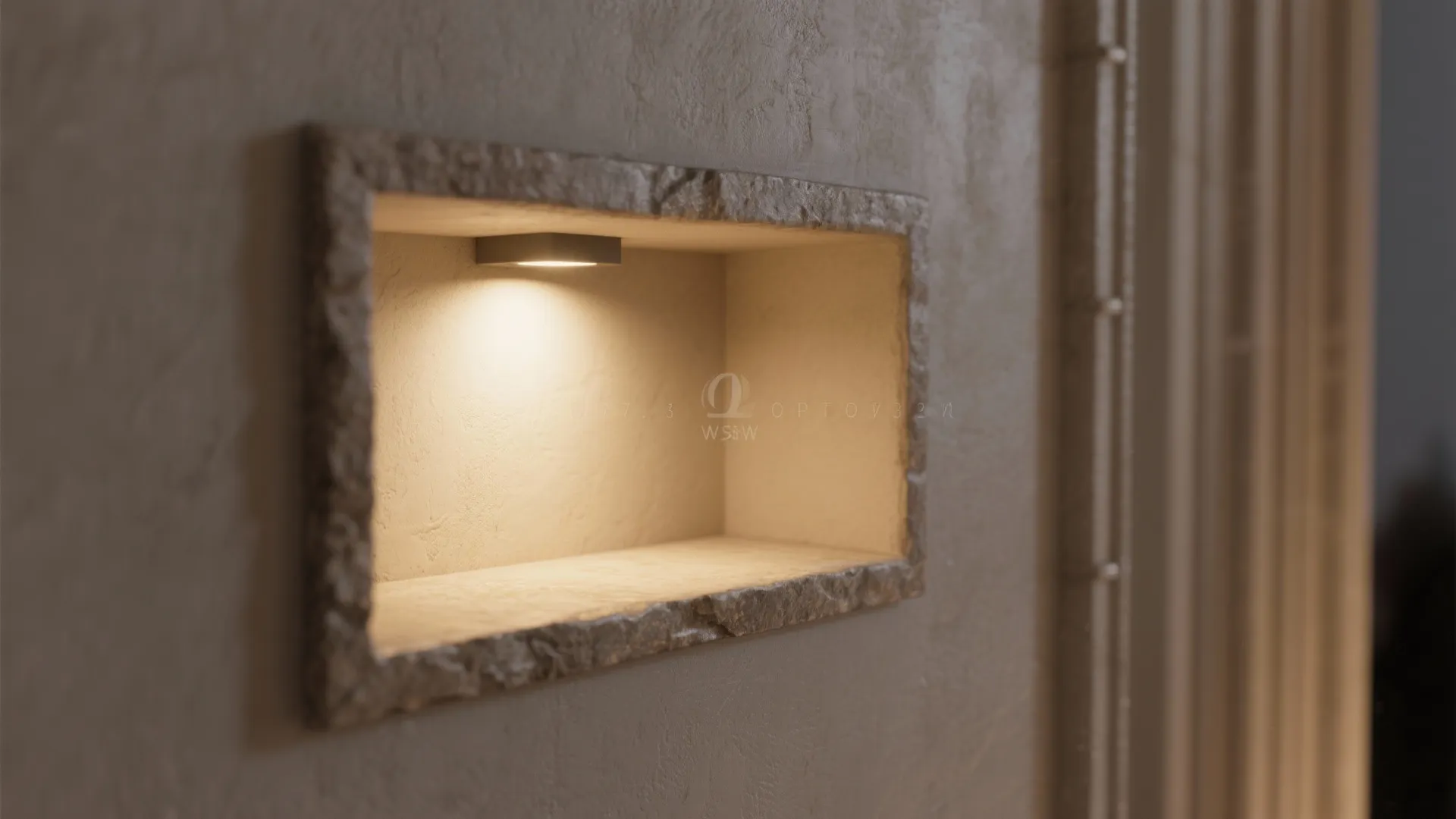

Idea 2: Recessed Niches and Soft Backlighting

If your wall has piers or panels, carve shallow niches and tuck a tiny fixture behind a lip. The result is soft halos that feel premium without screaming for attention.

It’s gorgeous but needs planning: waterproofing around cutouts, proper drainage, and conduit routes. I always test mockups at night because daytime symmetry can fool you.

save pin

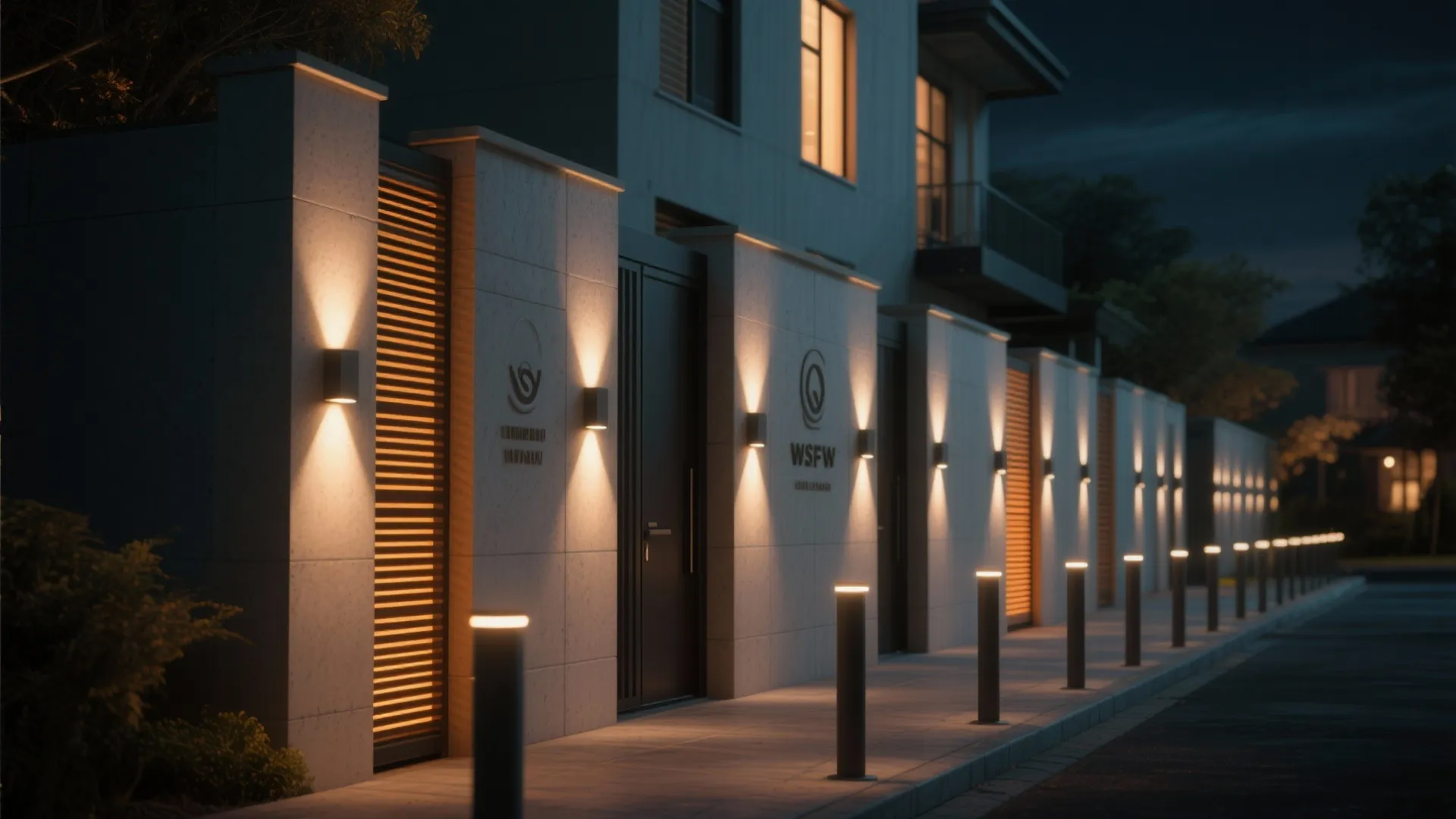

Idea 3: Vertical Rhythm with Uplights and Bollards

To break the “endless wall” effect, I punctuate columns with low-glare uplights, then tie the rhythm to short bollards near entries. That vertical cadence reads secure and upscale.

If you’re unsure about spacing, run quick visual tests to preview beam angles and spill. Watch for neighbor windows—aim beams tight and use louvers to keep light on your property.

save pin

Idea 4: Smart Control, Safer Nights

A boundary that’s always blazing is wasteful. I set scenes: a gentle evening glow, motion-boost near gates, and late-night dim for security without glare.

Sensors can misfire with plants or pets, so place them away from bushes and calibrate sensitivity. A simple timer plus a dawn/dusk sensor keeps the system hands-off and reliable.

save pin

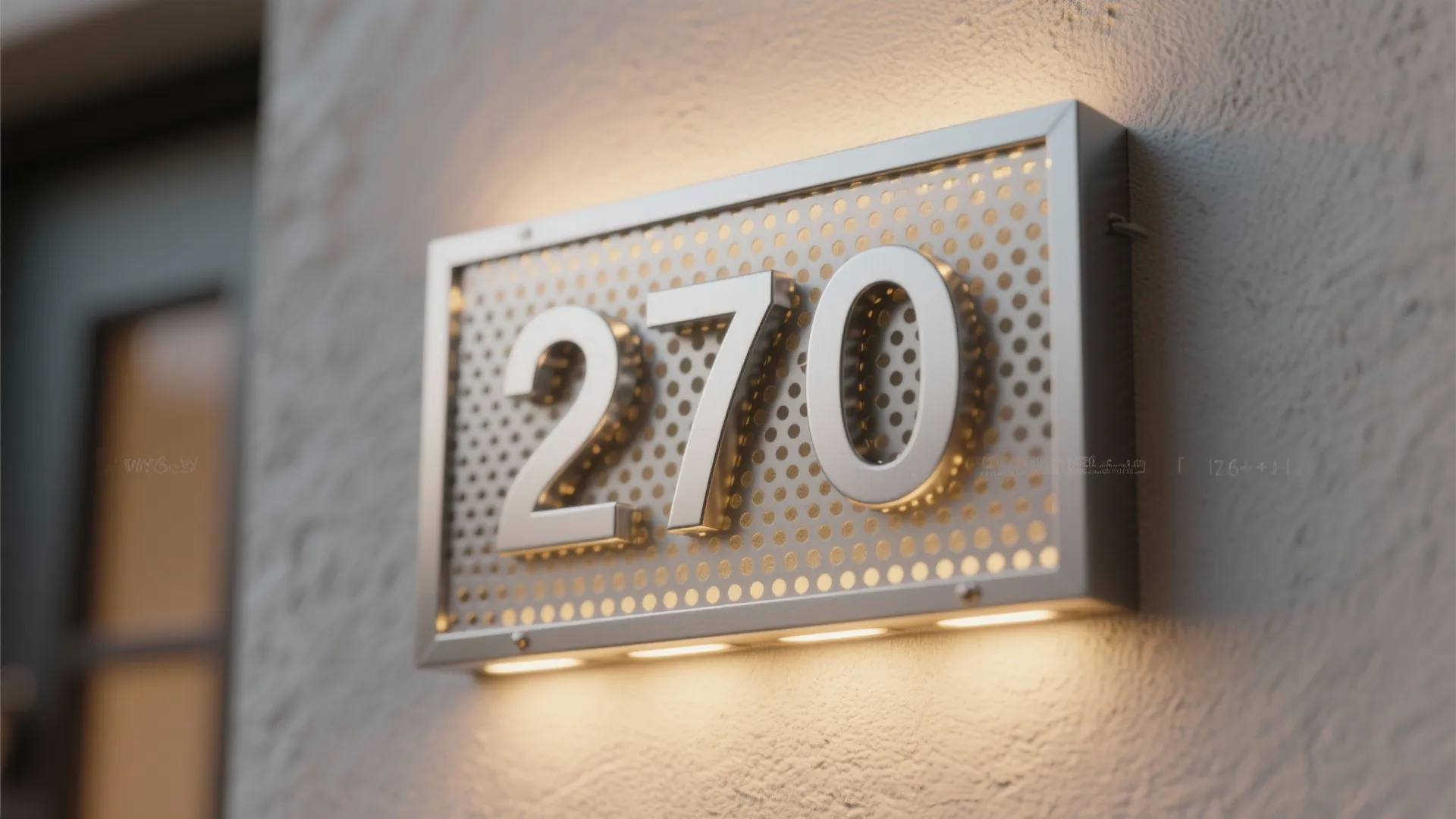

Idea 5: Artful Details—Backlit Numbers and Screens

Backlit house numbers and perforated metal screens add personality without clutter. Think tiny LEDs washing the material from behind so your identity glows, not glares.

I sketch placements, then map distances with a simple digital layout to ensure readability from the street. Use marine-grade stainless for coastal areas, and go for IP65+ fixtures with hidden wiring to keep it clean.

save pin

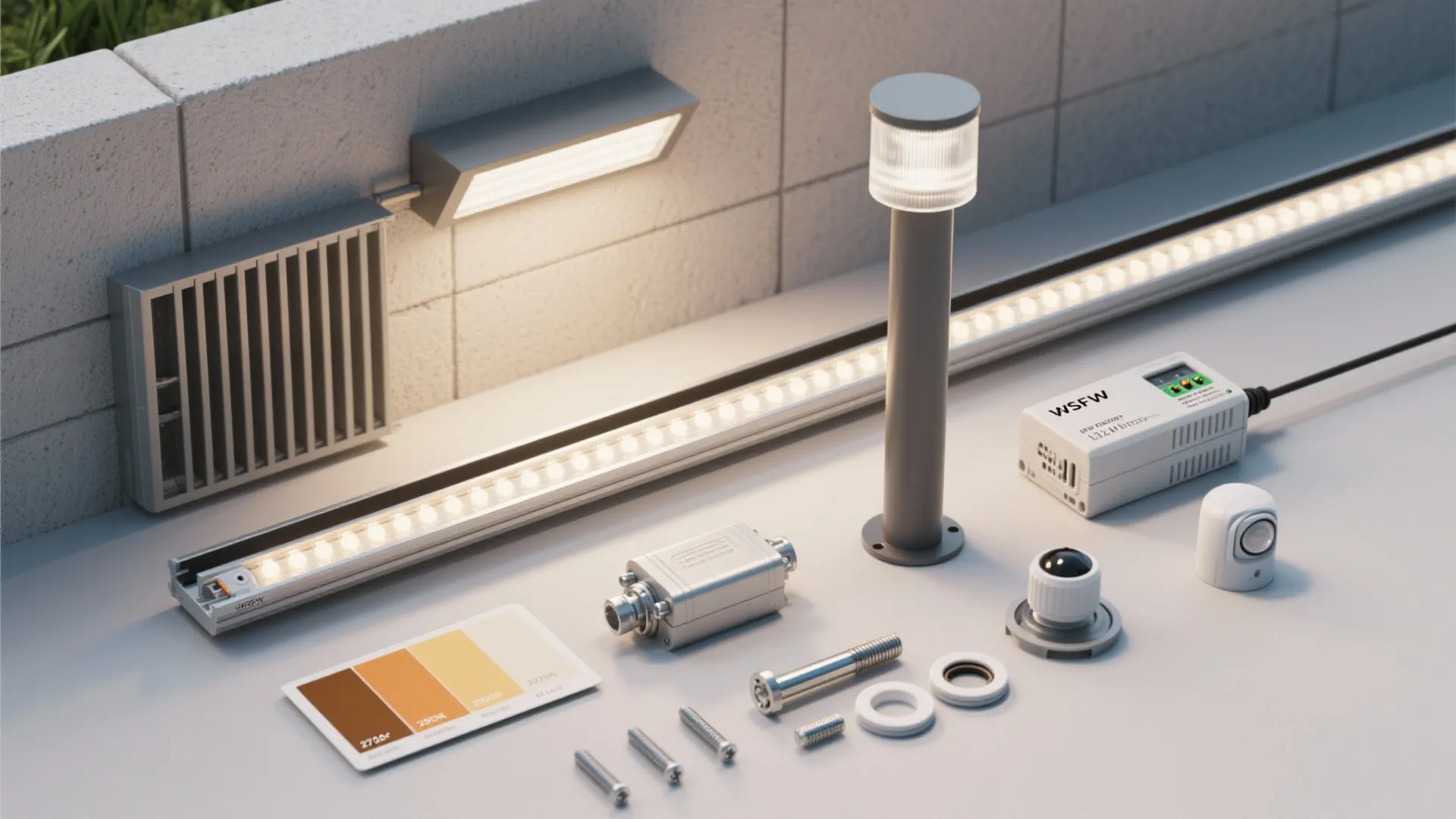

FAQ

1) What color temperature works best for boundary walls?

Warm white (2700–3000K) feels welcoming and reduces harshness. I reserve cooler light only for specific modern facades where contrast is intentional.

2) How bright should the lights be?

Think guidance, not stadium: 150–400 lumens per fixture is plenty for accents. Focus on beam control and shielding to avoid glare and light trespass.

3) What IP rating do I need outdoors?

IP65 or higher is my baseline for exposed fixtures. It protects against dust and water jets; fixtures near sprinklers or coastal air benefit from IP66–IP67.

4) How do I prevent glare for neighbors and drivers?

Use louvers, frosted lenses, and tight beam angles aimed away from property edges. Test at night and adjust tilt so you’re lighting surfaces, not eyeballs.

5) Are motion sensors worth it?

Yes—near gates and corners they boost light when needed and save energy otherwise. Calibrate and position them clear of plants to reduce false triggers.

6) What wiring and safety should I consider?

Low-voltage (12/24V) systems are safer and easier for long runs on walls. Always use weatherproof junction boxes and confirm with local codes.

7) Any standards I can follow?

The International Dark-Sky Association recommends warm light (≤3000K), full shielding, and minimizing uplight: see https://www.darksky.org/our-work/lighting/lighting-basics/ for specifics.

8) How do I choose materials for coastal or rainy climates?

Marine-grade stainless, powder-coated aluminum, and UV-stable plastics resist corrosion. Pair them with sealed gaskets and quality finishes to keep fixtures looking fresh.
