Compound Wall Structural Design: 5 Proven Ideas: Smart, code-aware boundary wall strategies for small plots with big impact

[Section: 引言]

Compound wall structural design has become a hot topic in residential projects lately, and I’m seeing homeowners ask smarter questions about stability, moisture, and height. On tight plots, details like reinforced concrete tie beam at plinth level can quietly do the heavy lifting, keeping the wall true over time. Small spaces really do spark big creativity—especially when every millimeter matters.

Across more than a decade of builds, I’ve learned boundary walls are not just fences; they’re mini structures with foundations, columns, loads, and drainage. In this guide, I’ll share 5 design inspirations for compound wall structural design, blending my on-site stories with expert data so you can plan with confidence.

If you’re renovating or building from scratch, think of the wall as part of your home’s ecosystem—protecting privacy, shaping curb appeal, and handling wind and rain. The ideas below are practical, budget-aware, and scalable for small residential plots.

[Section: 灵感列表]

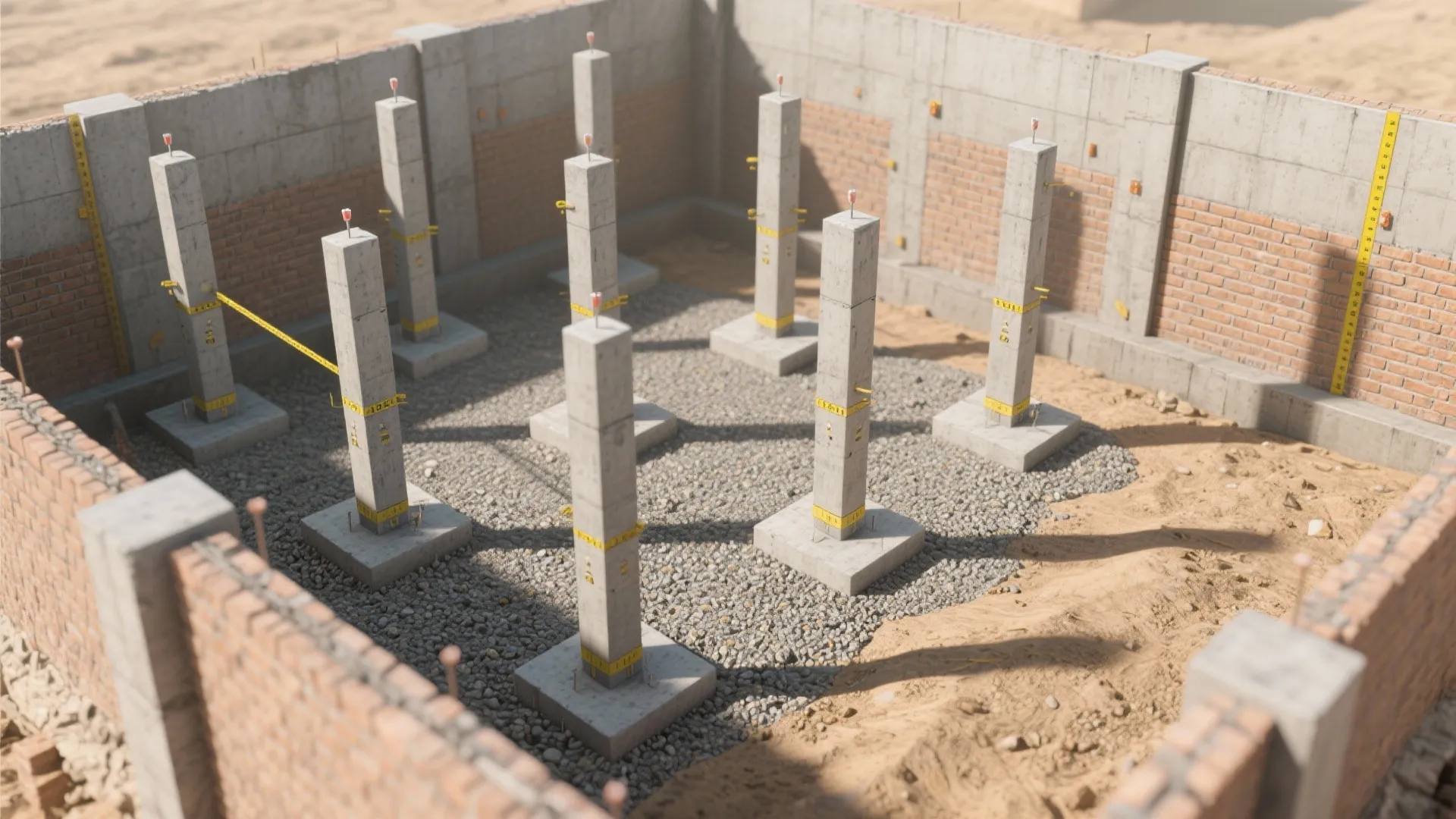

Balanced Footing and Column Spacing

My Take: On narrow sites, I’ve seen walls fail simply because footing sizes were inconsistent or columns were too far apart. When we standardized footing dimensions and refined column spacing, even a modest brick masonry compound wall felt rock solid.

Pros: A thoughtful compound wall footing design paired with sensible column spacing increases stiffness and reduces cracking in long panels. Assessing soil bearing capacity and matching footing size to actual loads keeps the boundary wall structural design efficient and cost-effective. On cohesive soils, shallow footings with a properly compacted base can be a budget-friendly win.

Cons: Larger footings mean more excavation and concrete volume—your cost spreadsheet will notice. In very weak soils, you may need deeper footings or a raft-like strip footing, which can complicate services running along the property edge. And if the site slopes, stepping footings adds labor and formwork time.

Tips / Case / Cost: For small plots, I often aim for column spacing between 2.0–2.5 m to keep masonry slenderness under control. Get a local geotech to confirm safe bearing capacity—even a simple test can prevent over-design or under-performance. Don’t forget to isolate gate columns; they take different loads.

save pin

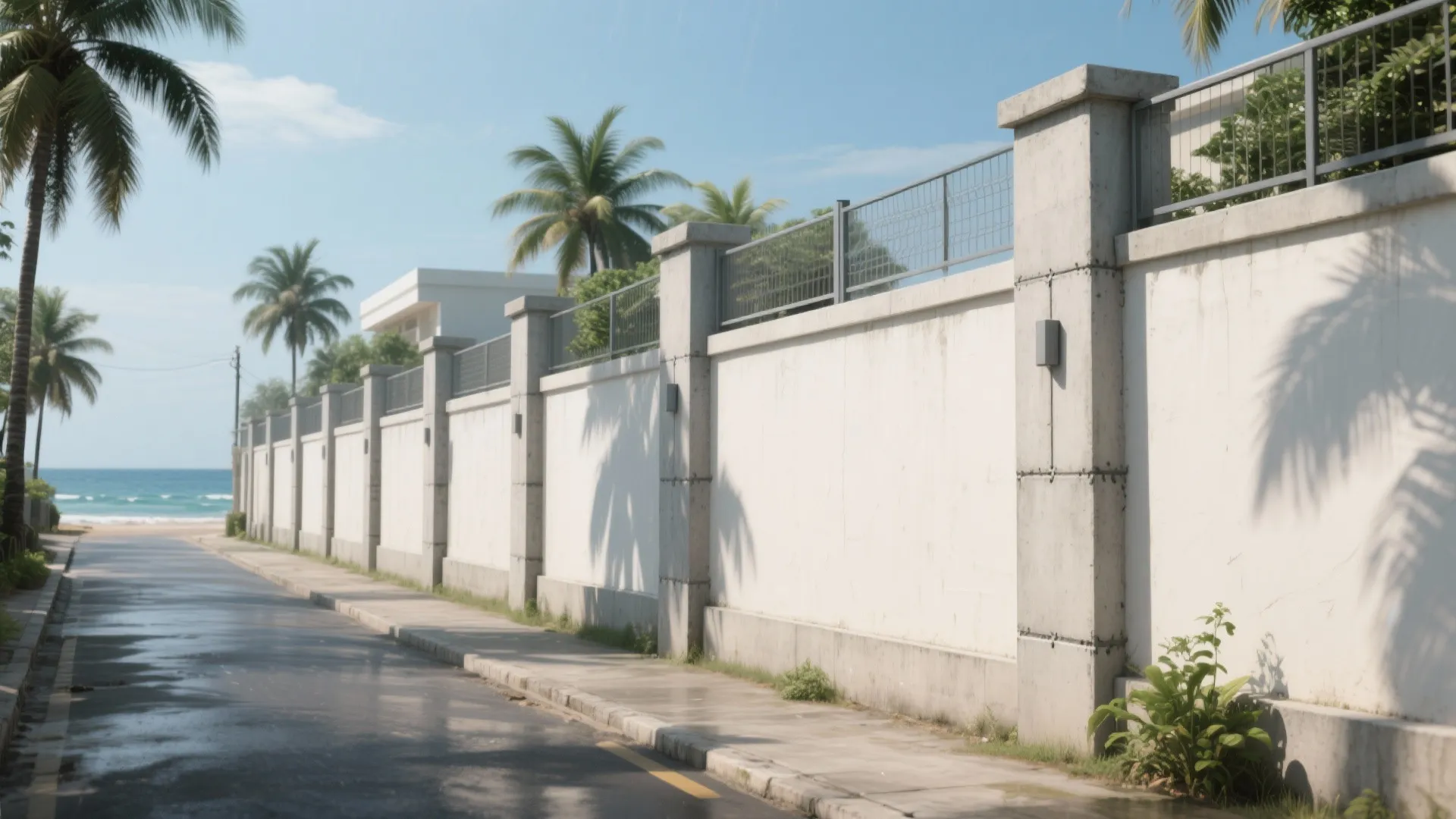

Wind-Ready Panels and Expansion Joints

My Take: After a monsoon season in coastal projects, I learned the hard way that slender walls need wind thinking early. We started designing with wind-ready sections and added expansion joints to relieve thermal movement—crack lines almost disappeared.

Pros: Wind load assessment (per IS 875 Part 3 or EN 1991-1-4) helps set panel height and thickness to avoid overturning and excessive deflection. Expansion joints for boundary walls at intervals reduce thermal stress and seasonal movement, protecting plaster and paint finishes. Taller walls benefit from a reinforced concrete (RCC) frame—columns and tie beams—to distribute loads safely.

Cons: Expansion joints require neat detailing and maintenance; poor sealing invites moisture ingress. Wind-ready designs may push you to heavier sections or RCC columns, increasing cost and construction complexity. In high-wind zones, added reinforcement and foundations can stretch budgets.

Tips / Case / Cost: If bylaws allow, segment long stretches with discreet joints behind shrub lines for a clean look. In very tall walls, consider partial transparency (grilles) at the top to reduce wind pressure. Coordinate joint locations with lighting and camera mounts so services don’t bridge the gap.

save pin

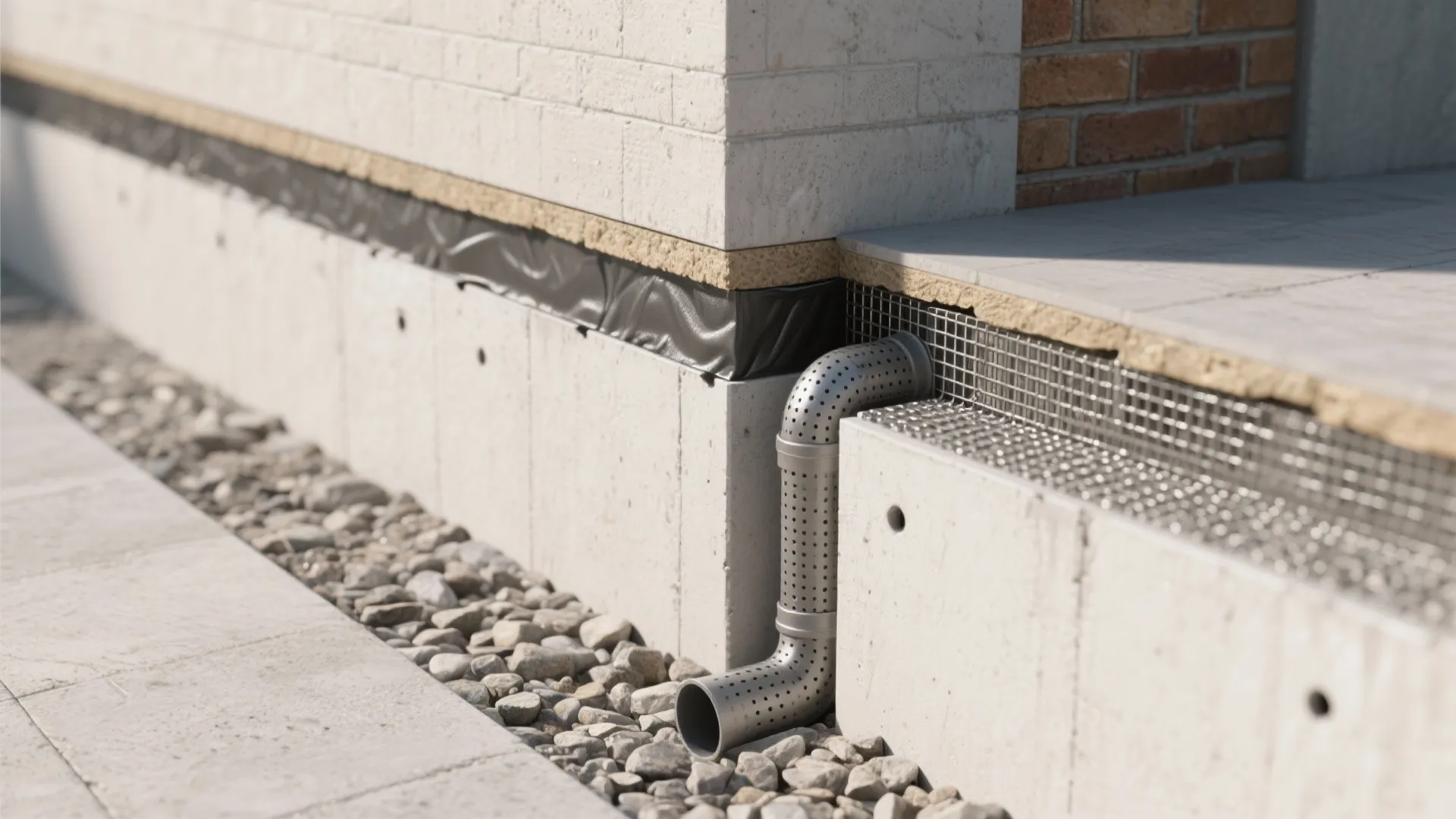

Moisture Defense: DPC, Drainage, and Weep Holes

My Take: The most frequent complaint I hear isn’t about height—it’s damp patches and peeling paint. Once we started treating the base with a continuous damp-proof course and added drainage, the boundary wall looked newly painted for years.

Pros: A damp-proof course for compound wall bases blocks capillary rise, keeping masonry dry and finishes intact. Perimeter drainage and pressure-relief weep holes along the base release water, preventing hydrostatic buildup during heavy rain. According to NBC India (2016), managing site drainage and surface run-off is fundamental to long-term durability near boundaries.

Cons: Drainage trenches can clash with landscaping plans, and weep holes need periodic clearing. In clay-heavy soils, water may linger unless you provide a granular layer or French drain—an extra line item in the budget. DPC continuity around gates and steps is fiddly and easy to miss on busy sites.

Tips / Case / Cost: I love a simple gravel bed with a perforated pipe; it’s discreet and effective. Keep weep holes above finished ground level and use stainless steel mesh to deter pests. Specify exterior-grade paints and breathable plasters to minimize blistering.

save pin

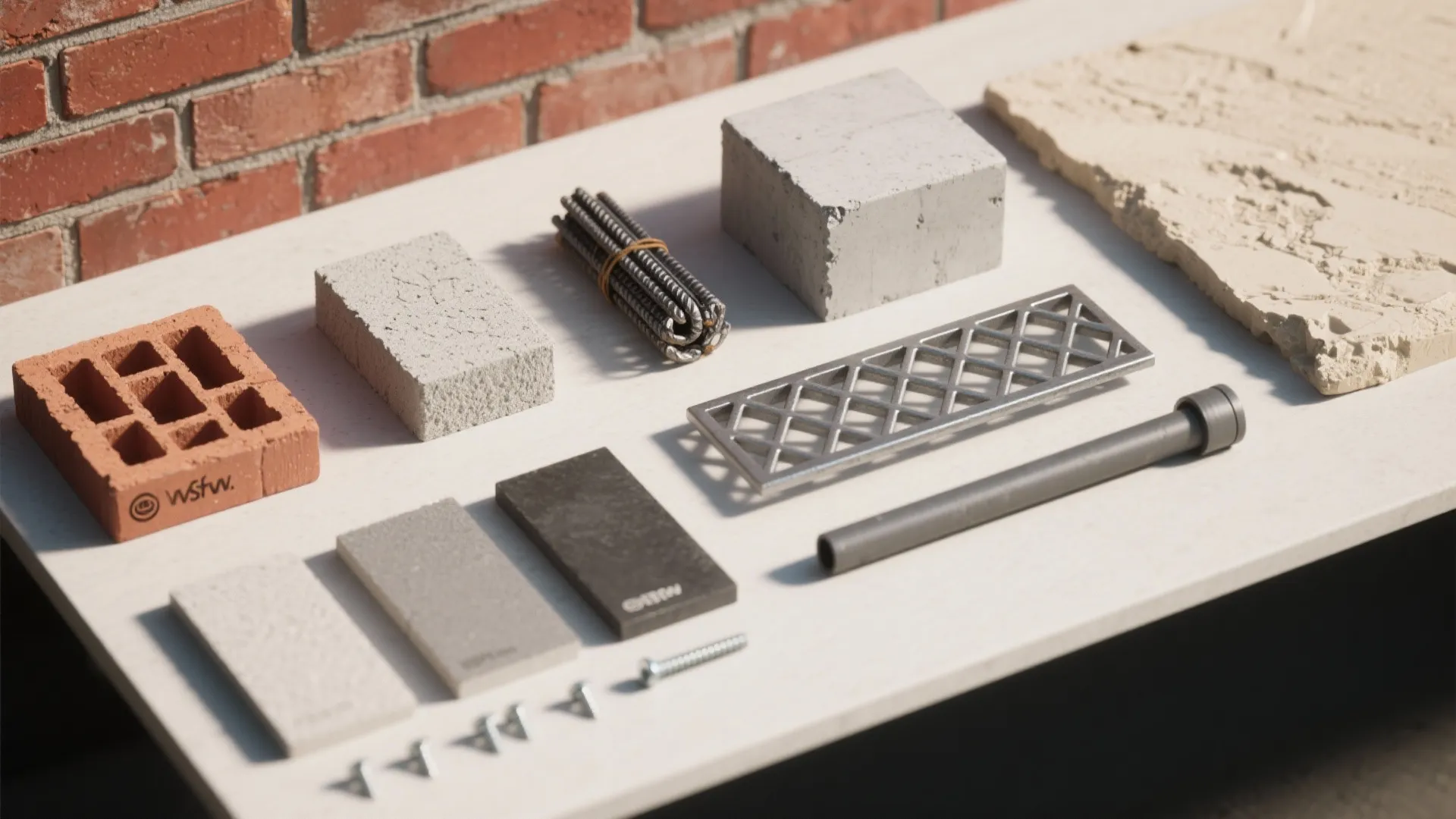

Smart Materials: Brick, Block, and RCC Hybrid

My Take: In small urban plots, I often mix materials: RCC columns and beams for the skeleton, brick or block infill for speed, and a refined plaster for finish. The hybrid approach keeps the wall slender, durable, and aesthetically flexible.

Pros: Brick masonry compound wall panels are cost-effective and easy to repair, while RCC frames increase lateral stability. Autoclaved aerated concrete (AAC) blocks reduce weight, helping with foundation sizing and overall cost. Using a reinforced concrete column-and-beam frame means you can embed conduits and lighting neatly without chasing the wall later.

Cons: Different materials expand and contract at different rates; joints and plaster need special attention. AAC blocks can chip during rough handling, so insist on experienced masons. RCC frames add shuttering and curing time to the schedule.

Tips / Case / Cost: If the site is windy or the wall is tall, opt for RCC corner columns and intermediate posts; balance infill for economy. Consider textured renders or thin stone cladding in high-visibility areas—lightweight options keep loads down. Specify corrosion-resistant reinforcement near coastal zones.

save pin

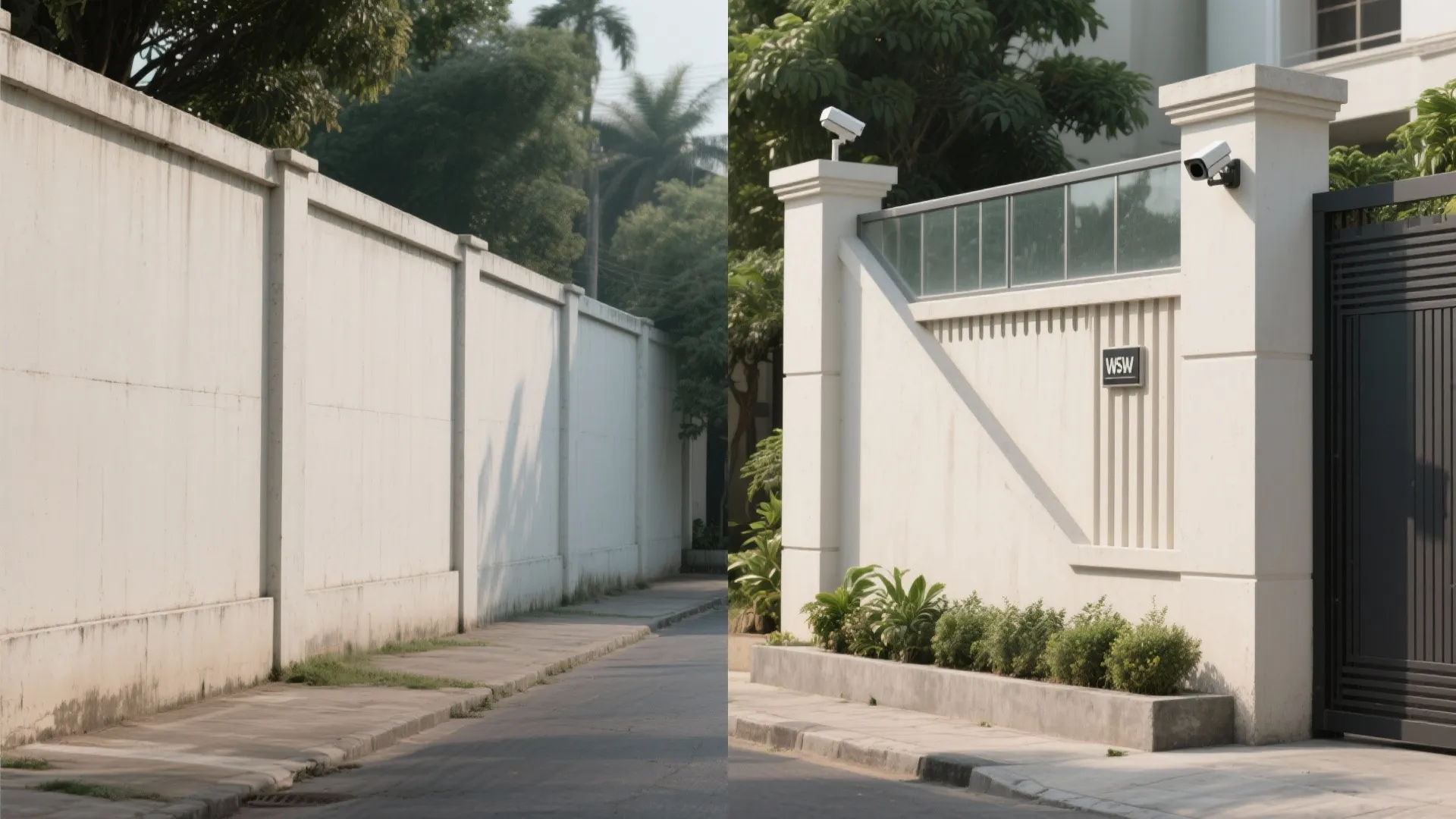

Security without Heaviness: Height, Coping, and Transparency

My Take: Homeowners often ask for taller walls, but height isn’t the only security lever. A well-shaped coping, lit corners, and strategic transparency at head height can deter climbing without making the street feel hostile.

Pros: A tapered coping with drip groove throws water clear of the face and makes the top harder to perch on, reducing staining and improving security. See-through elements (grilles, perforated panels) lower wind loads while maintaining sightlines for cameras and safety. Following local bylaws for maximum height and setbacks keeps you compliant and neighbor-friendly.

Cons: Very tall solid walls can increase wind suction and create a tunnel effect; they may also feel fortress-like. Metal grilles need anti-corrosion finishes and occasional repainting—plan maintenance. Aggressive toppings (spikes, barbed wire) might violate local codes or harm aesthetics.

Tips / Case / Cost: Align camera mounts and lighting with column centers to reduce vibration. Consider rounded or chamfered copings for safer interaction near walkways. In mixed-material tops, add a small RCC band to anchor fixtures securely.

[Section: 总结]

Small kitchens taught me a universal lesson that applies here too: small spaces demand smarter design, not compromises. In compound wall structural design, the right footing, wind-ready sections, moisture control, material mix, and coping details transform a boundary into a long-lasting, elegant edge. Codes like IS 875 (Part 3) for wind and NBC India (2016) for site drainage offer solid guardrails as you refine your plan. Which of these 5 design inspirations would you try first on your plot?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the ideal column spacing for compound wall structural design?

On small residential plots, 2.0–2.5 m spacing often balances cost and stiffness for masonry infill. Adjust based on wall height, wind exposure, and soil conditions verified on-site.

2) How tall can a compound wall be legally?

Maximum height is set by local bylaws and can vary from 1.8 m to 2.4 m or more. Always check your municipality’s rules before finalizing design and remember that transparent toppers can mitigate wind loads.

3) Which standards should I consult for wind load?

Use IS 875 (Part 3) in India or EN 1991-1-4 (Eurocode 1) in Europe to determine wind pressures and exposure categories. These codes guide wall height, thickness, and reinforcement decisions.

4) Do I need a damp-proof course (DPC) in a compound wall?

Yes, a continuous DPC at the base helps prevent capillary rise and paint failure. NBC India (2016) emphasizes proper site drainage and moisture control around foundations for durability.

5) Are AAC blocks suitable for boundary walls?

AAC blocks are lightweight and fast to install, but protect edges during handling and detail joints carefully. For tall or wind-exposed stretches, pair AAC infill with RCC columns and tie beams.

6) How do I plan foundations for sloping sites?

Consider stepped footings and maintain consistent cover to reinforcement. Keep an eye on water paths; add drainage layers uphill to prevent hydrostatic pressure behind the wall.

7) Should I include expansion joints in long compound walls?

Yes—long, continuous walls benefit from expansion joints to relieve thermal movement and shrinkage. Place joints at planned intervals and detail sealants to keep moisture out.

8) What reinforcement is necessary in the wall?

RCC columns with tie beams at plinth and head levels typically stabilize masonry panels. As per IS 456:2000 for concrete practice, ensure proper cover and curing; consult a structural engineer for exact bar sizes.
