Counterfort Retaining Wall Design: 5 Ideas: Residential-friendly counterfort retaining wall design ideas for tight sites and stylish small yards

A client once asked me to “grow a lawn on a vertical wall.” I laughed, then realized her tiny backyard needed a terraced solution with real structure behind the beauty. I mocked up a quick 3D sketch, and that playful start turned into a counterfort retaining wall that saved space and made room for herbs, lights, and evening wine. Small spaces really do spark big creativity, and today I’m sharing 5 ideas from projects where structure meets style.

Before we jump in, friendly reminder: counterfort walls are serious engineering. I collaborate with structural engineers and geotechs for reinforcement, footing, and soil parameters—then I layer the livability. Here’s how I’ve made counterfort retaining walls work beautifully in compact residential yards.

1) Slim, smart spacing with planter bays

In small yards, I treat the counterfort bays (the spaces between the ribs) as planter alcoves. Structurally, counterforts reduce bending in the main stem; aesthetically, those bays can host low-maintenance planting or bench-depth shelves. It looks lighter without losing strength.

The trick is coordinating spacing (often a fraction of wall height, determined by your engineer) so planters feel intentional, not random gaps. Waterproofing and drainage membranes are non-negotiable behind those green pockets, and I line alcoves with removable trays so roots don’t become a renovation in five years.

save pin

2) Step the profile for seating and views

I love stepping the wall—either terracing the grade or battering the face—so each level becomes seating, pot display, or a perch for solar lanterns. In one tight patio, a shallow step over the toe turned into a built-in bench; guests thought it was pure design, but it also reduced perceived mass.

Expect a little dance between frost-line depth, local code setbacks, and the toe/heel dimensions. If budget’s tight, I’ll keep the steps minimal and lean on textured finishes to create shadow play instead of complicated geometry.

save pin

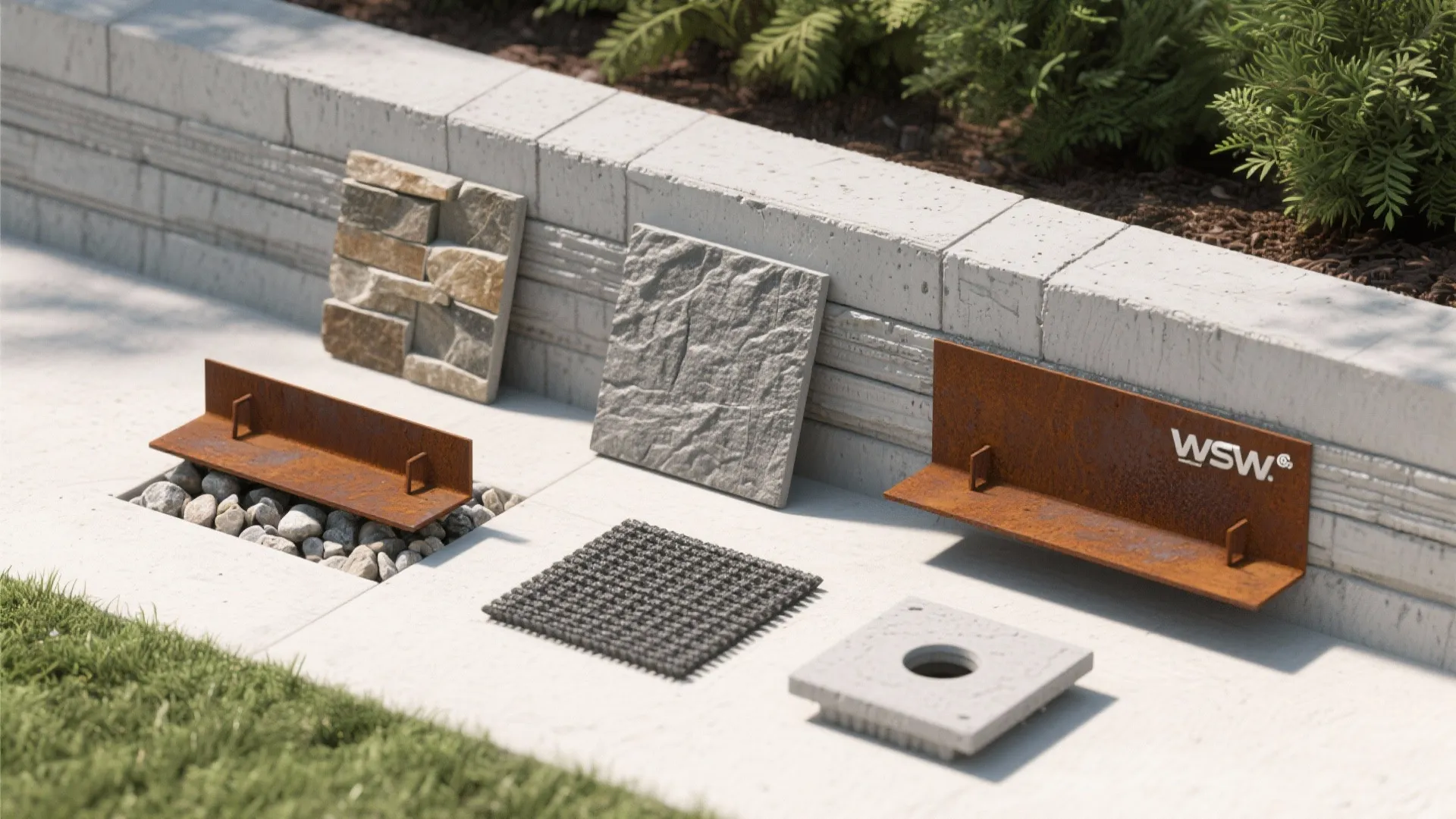

3) Honest materials: board-formed concrete, stone skins, or corten accents

Board-formed concrete is my go-to: warm, tactile, and honest about being a structural wall. When clients want more “garden,” I add a thin stone veneer or corten shelves anchored in non-structural zones of the stem—never into the main rebar paths. To test proportions against the patio, I do simple room mapping tests so the textures don’t overpower the scale.

Keep weep holes aligned, and use clean gravel backfill to keep water moving. Stone looks luxe, but remember it adds weight; I limit it to faces and caps, not full-depth mass in small yards. The win is a softer look without compromising the core structure.

save pin

4) Light the bays and hide the guts

Counterforts create natural rhythms where lighting can tuck in. I recess low-voltage LEDs in niches, add a slim service conduit, and keep access panels discreet. It’s like turning a “structural rib cage” into an evening gallery wall. When I want options fast, I sketch multiple patterns with AI-generated layout ideas—fun for visualizing night vs. day scenes.

Small caution: don’t chase or notch into primary structural zones for cables or irrigation. I work with the engineer to mark safe chases early, then waterproof and route everything behind finishes so maintenance feels easy years later.

save pin

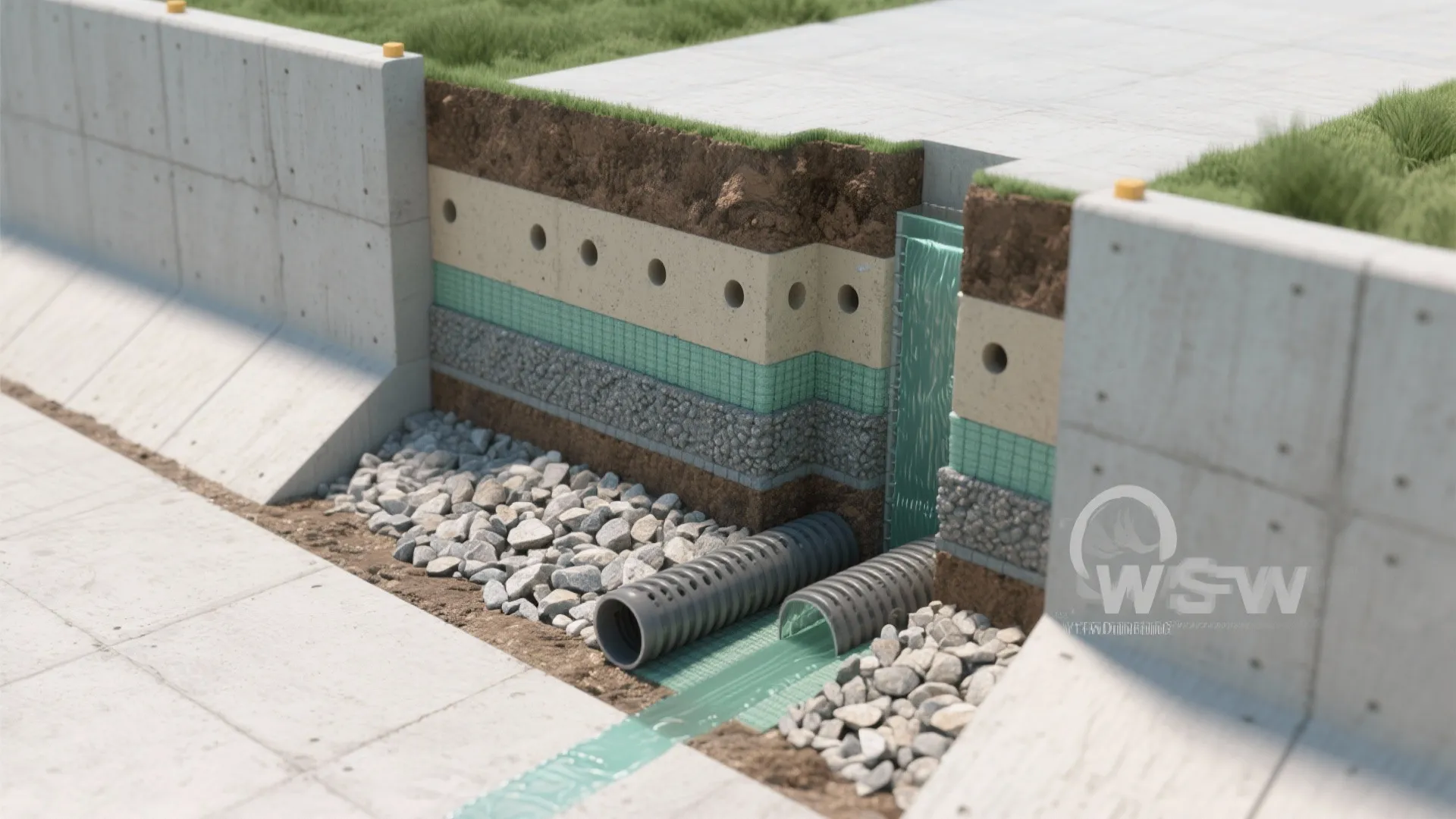

5) Drainage first, then the pretty layers

If water sits, beauty fades. I specify a perforated drain at the heel, washed gravel, geotextile to separate soil, and positive outfalls. In clay-heavy sites, I sometimes add a vertical drainage mat along the stem to relieve hydrostatic pressure; it’s not glamorous, but it’s what keeps walls straight and landscaping happy.

Budget note: invest in the unseen—drainage, membranes, and good compaction. You’ll spend less on future fixes and can splurge on finishes that won’t be stained by leaks. It’s the unsexy part that protects the sexy part.

save pin

FAQ

1) What is a counterfort retaining wall?

A counterfort wall is a reinforced concrete retaining wall with triangular “ribs” (counterforts) on the earth side tying the stem to the base. It reduces bending in the stem, making it efficient for taller walls compared to a simple cantilever design.

2) When should I choose a counterfort wall over a cantilever?

Typically for taller walls where bending moments become large and you want to reduce stem thickness. If site constraints demand a thinner face and reliable performance, counterforts often make sense—your engineer will confirm based on loading and soil conditions.

3) How are counterforts spaced?

Spacing is an engineering decision, often on the order of a fraction of wall height (commonly in the 0.3–0.7H range, but project-specific). See ACI 318-19 (Building Code Requirements for Structural Concrete) and FHWA-NHI-07-071 guidance on earth retaining structures for detailed design methodology.

4) What about drainage and waterproofing?

Provide a perforated drain near the heel, free-draining backfill (washed gravel), weep holes, and geotextile separation. A waterproofing or drainage mat on the back of the stem helps relieve hydrostatic pressure and keeps finishes clean.

5) Do I need a geotechnical report?

Yes. Soil type, bearing capacity, groundwater, and surcharge loads dictate design. A geotech report gives the engineer the parameters needed for safe dimensions, reinforcing, and drainage.

6) How deep should the footing be?

Footing depth depends on frost line, bearing capacity, and load. Your engineer will size the toe and heel and set base elevation to prevent sliding, overturning, and settlement based on geotech data.

7) What finishes work best in residential settings?

Board-formed concrete, thin stone veneer, and durable caps (stone or concrete) are practical and attractive. Keep to breathable, robust materials, and detail drip edges to avoid staining.

8) Rough cost range?

Costs vary by height, soil, access, and finish, but counterfort walls typically run higher than simple cantilevers due to complexity. Expect added budget for geotech, engineering, and drainage—money well spent for longevity.
