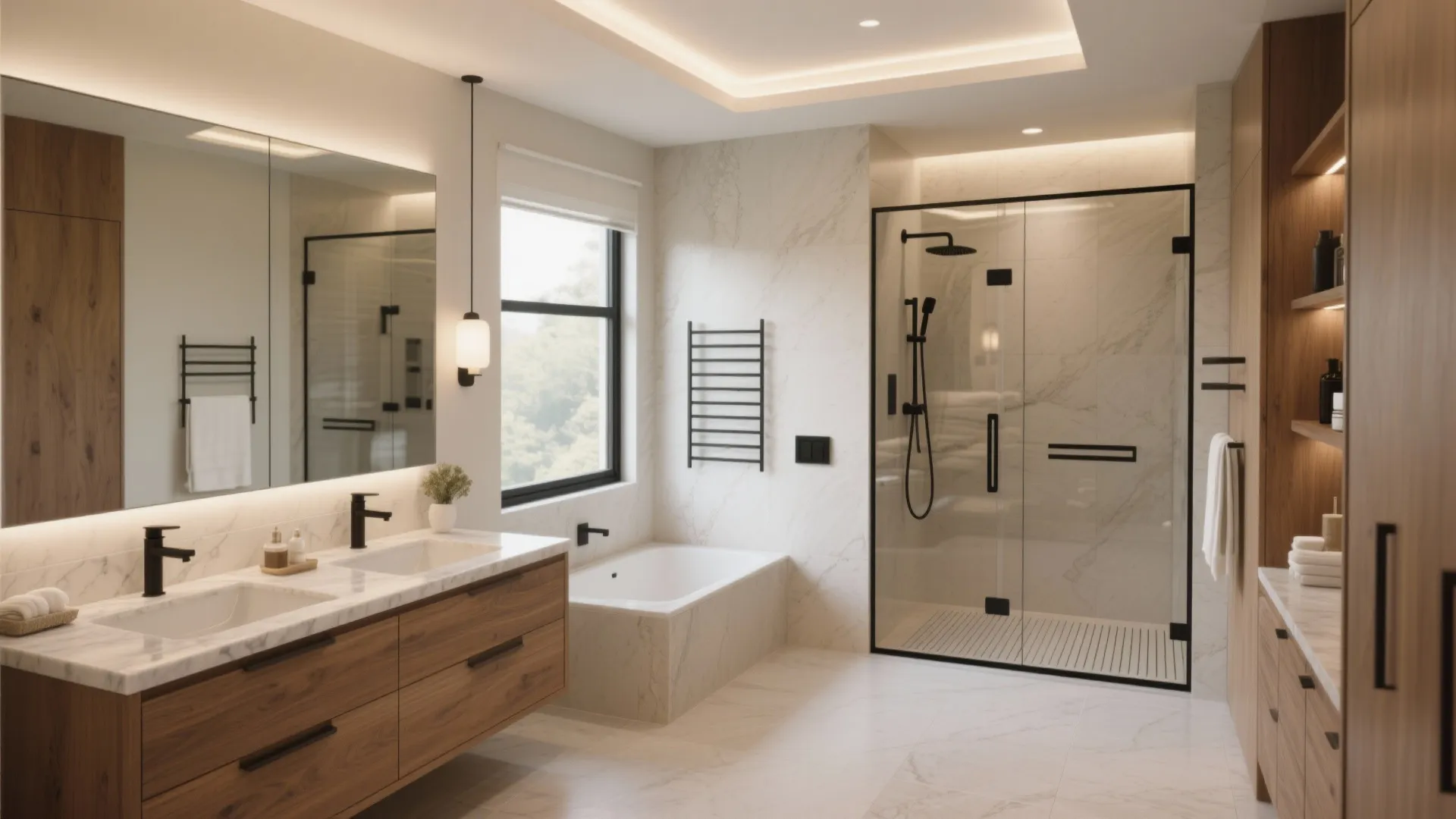

Master Bathroom Design Plans: 5 Ideas That Truly Work: My pro-tested blueprint for small and mid-size master bathrooms—5 smart ideas with costs, pros/cons, and real-world tips

As a senior interior designer, I’ve learned that the best master bathroom design plans balance flow, storage, and light—and yes, even small spaces can spark big creativity. Trends I’m seeing now: warmer woods with stone, smarter lighting layers, and compact spa features that don’t crowd the footprint. In this guide, I’ll share 5 design inspirations I use in real projects, blending hands-on experience with expert-backed data.

Before we dive in, here’s one of my go-to references for space planning—especially when I’m deciding how to align vanities, showers, and doors for better flow: balanced vanity-to-shower alignment. It helps me visualize clearances, which is critical in tighter primary suites.

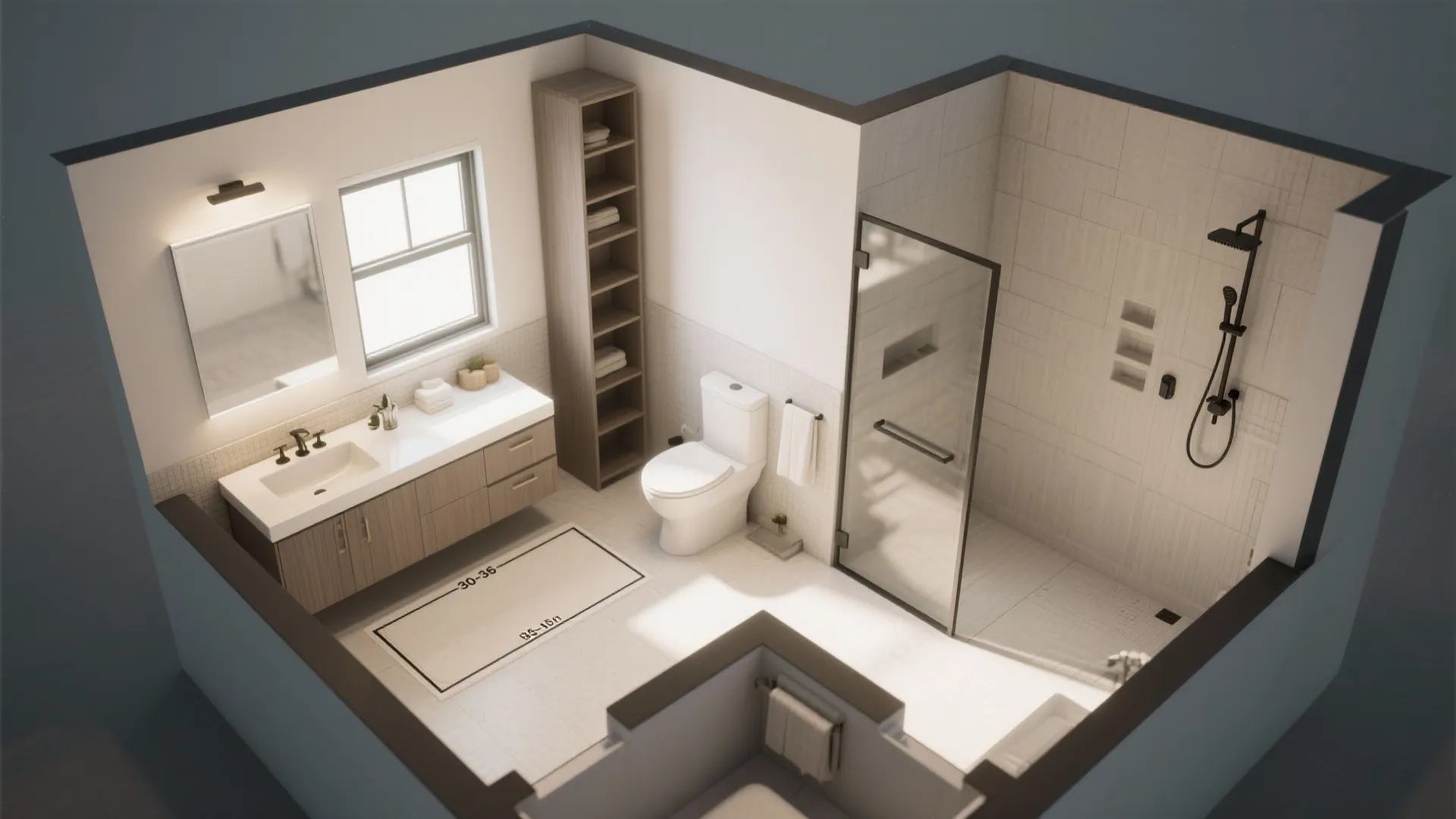

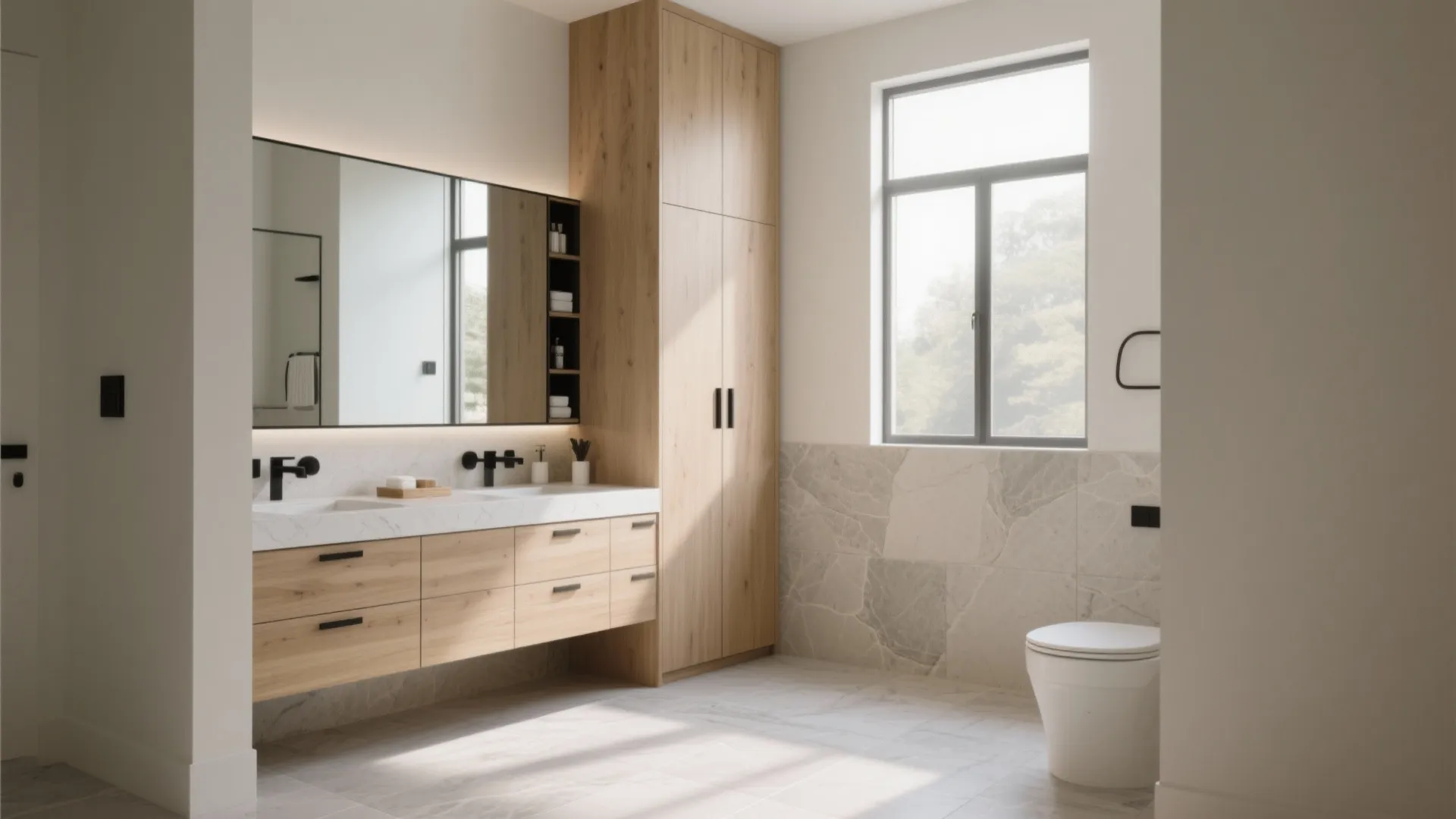

1) Light-first layout with zoned storage

My Take

I always start with light and circulation. In my own apartment’s master bath, I moved the vanity to face the window and tucked tall storage in the least-lit corner. The room immediately felt larger and calmer without adding a single square foot.

Pros

- Natural-light-first master bathroom design plans can reduce artificial lighting needs and improve morning routines, especially when mirrors bounce daylight.

- Zoned storage (daily items at eye level, bulk items in vertical towers) supports long-term organization and easier cleaning.

- According to WELL Building Standard principles on light and visual comfort, daylight access and glare control contribute to perceived spaciousness and wellbeing.

Cons

- Window-facing vanities may need anti-glare coatings or layered lighting for evenings; otherwise makeup application can be tricky.

- Repositioning plumbing for the ideal layout can increase budget and timeline, especially in condos with slab constraints.

- If you over-prioritize open sightlines, you might sacrifice closed storage—and end up with counter clutter.

Tips / Cost

- Budget: $1,200–$3,500 to rework lighting and add a tall cabinet; $4,000–$8,000 if relocating plumbing.

- Use a 30–36 inch clearance in front of fixtures; keep 15 inches from toilet centerline to side walls for comfort.

save pin

save pin

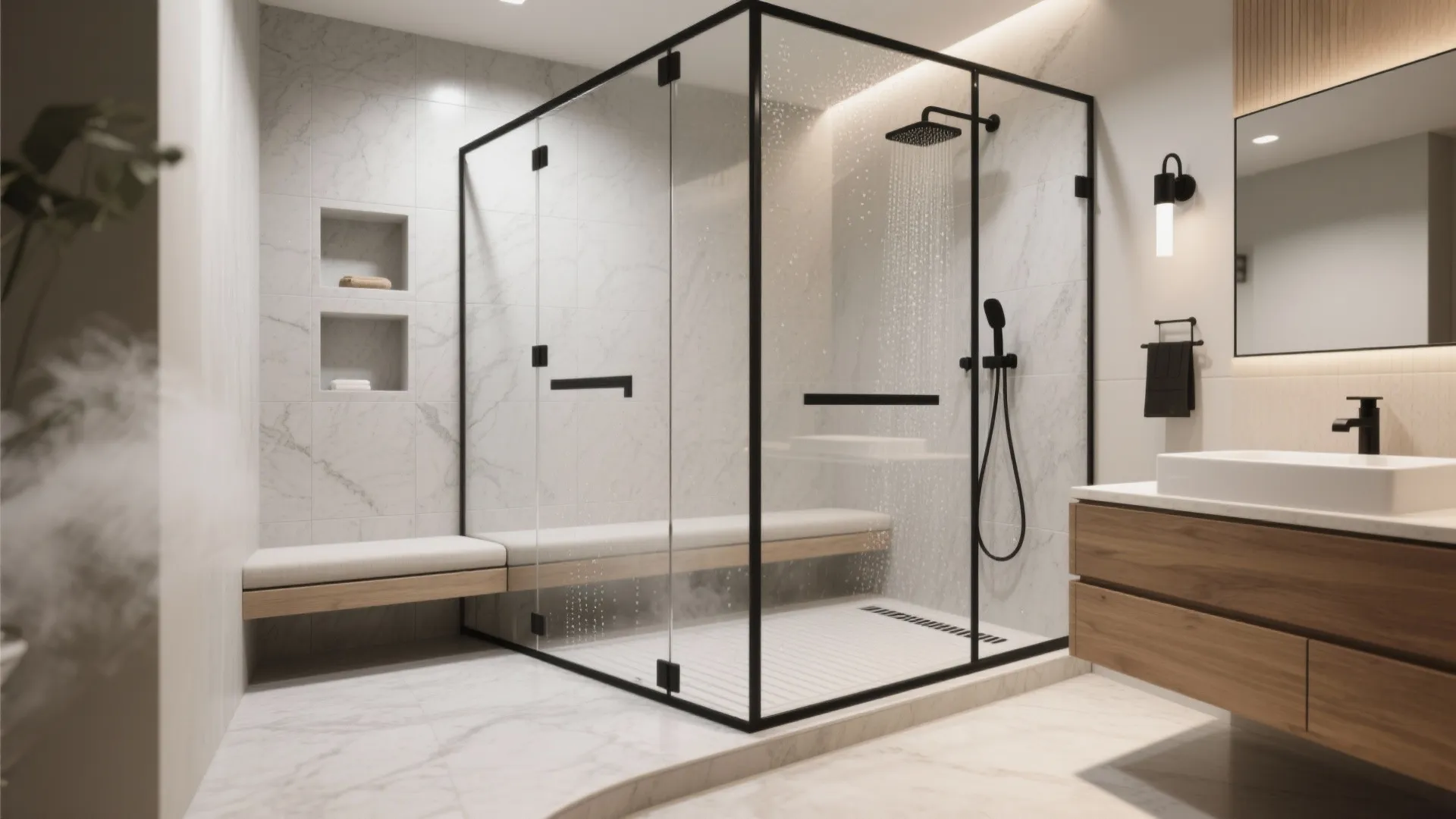

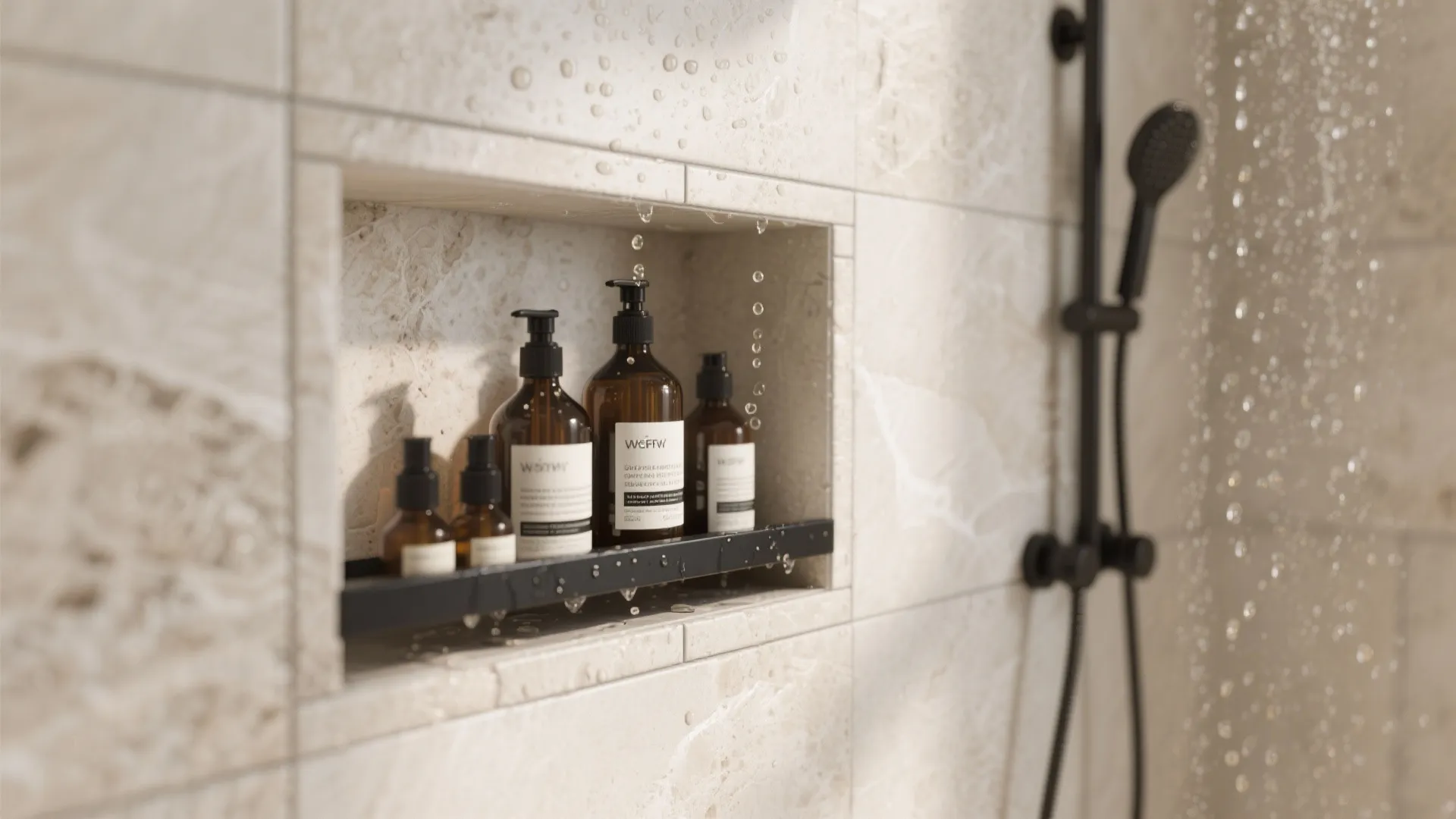

2) Spa shower with practical niches (skip the oversized tub)

My Take

About half my clients think they need a huge tub—until we quantify usage. Most end up choosing a generous shower with a bench, steam-ready door, and integrated niches. In one renovation, removing the drop-in tub freed space for a 48-inch double vanity.

Pros

- A walk-in shower with a bench, low curb, and niches improves daily usability and aging-in-place—a standout long-tail priority in many master bathroom design plans.

- Frameless glass increases visual width; linear drains enable a single-slope floor, reducing trip points.

- The National Kitchen & Bath Association (NKBA) guidelines support 36-inch minimum clear pathways and thoughtful fixture placement, improving safety and comfort.

Cons

- Frameless glass looks elegant but shows water spots—plan for a squeegee routine or a protective coating.

- Steam features require proper sealing, sloped ceilings, and a tight door—costs can escalate if the envelope isn’t planned from day one.

- Benches eat space; if the shower is under 36x48 inches, consider a fold-down option.

Tips / Case

- Cost range: $6,000–$18,000 for a quality shower build with porcelain tile; add $2,500–$5,500 for steam generator and sealing.

- Place niches on the non-spray wall at 48–54 inches high to avoid splash and shampoo shadows. At the midway point of planning, I often model an L-shaped layout to unlock more counter and storage using a tool like L-shaped vanity and shower zoning—it’s saved several clients from costly rework.

save pin

save pin

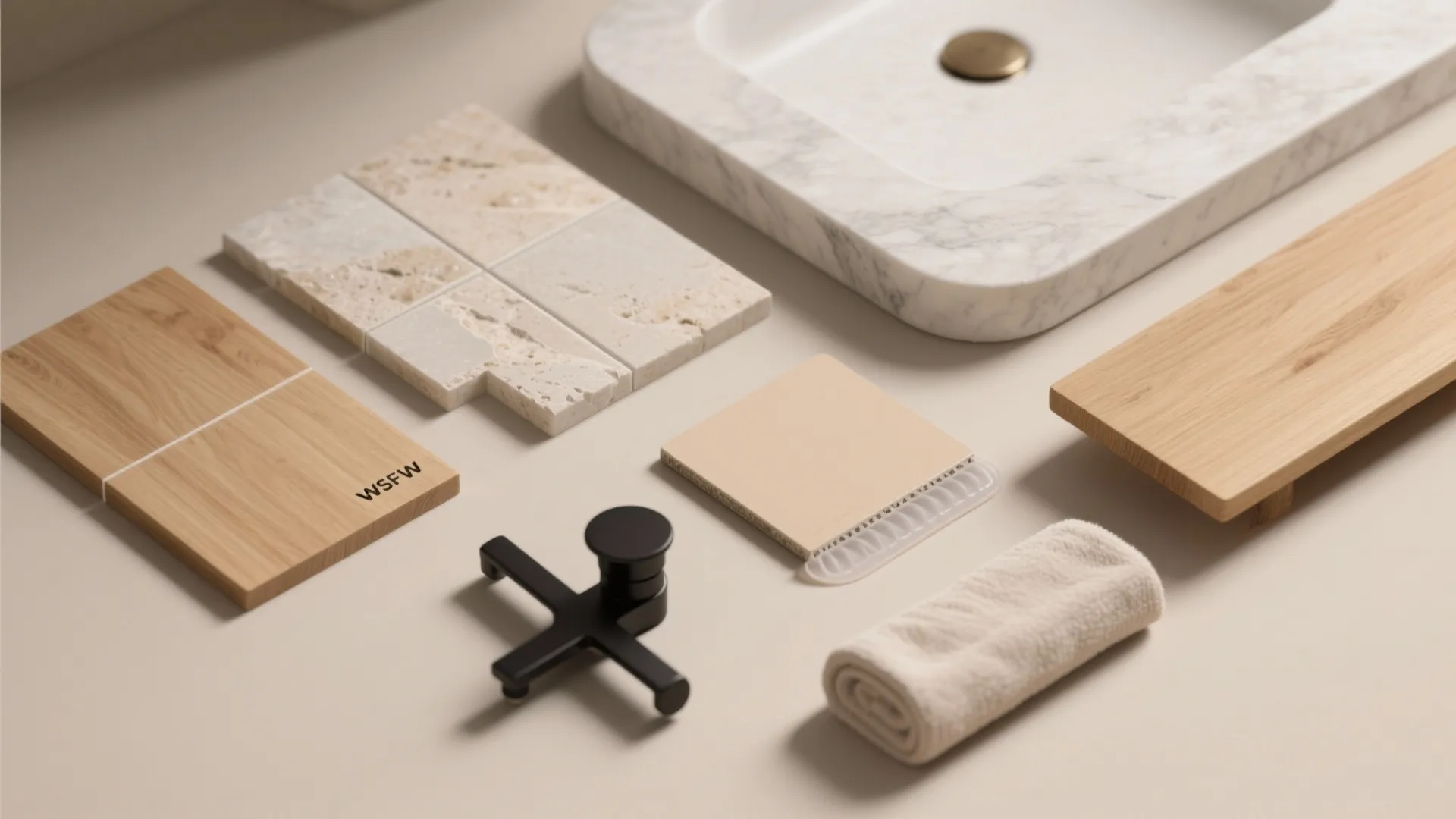

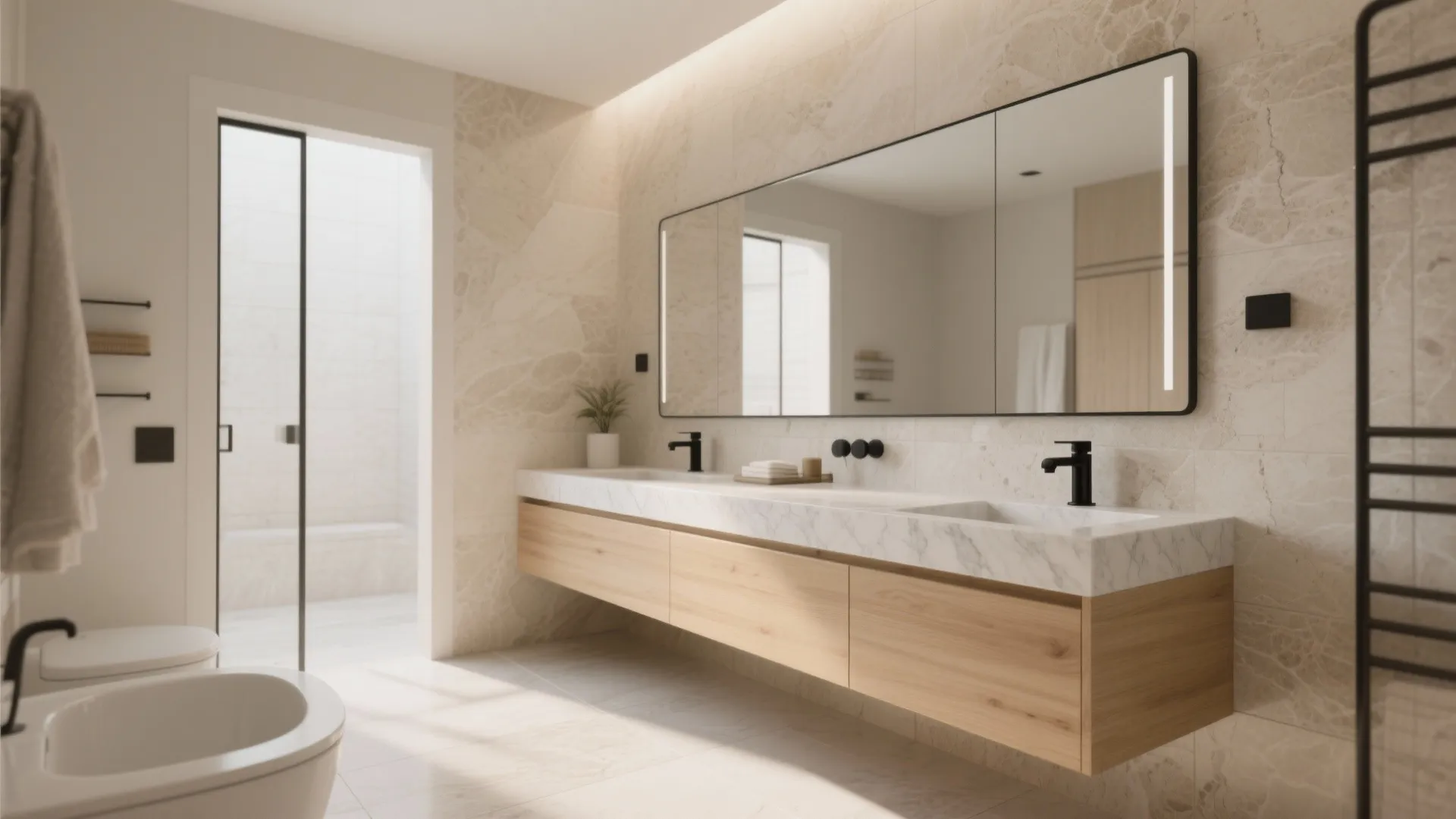

3) Warm minimalism: wood + stone, matte black accents

My Take

Warm minimalist palettes are having a moment because they calm the mind without feeling sterile. I love pairing light oak vanities with porcelain that mimics travertine, then using matte black for just a few touchpoints—faucets, mirror frames, or pulls.

Pros

- Wood accents soften acoustics and bring a spa-like mood to master bathroom design plans while staying durable when properly sealed.

- Porcelain “stone-look” tiles offer the elegance of limestone or marble without the etching, great for low-maintenance households.

- Balanced contrast (warm wood + black accents) helps define edges, improving perceived neatness and photography-friendly results—a subtle SEO-friendly benefit for real estate listings.

Cons

- Real wood needs a high-quality finish; budget options can warp in humid rooms.

- Too much matte black can visually shrink a small bath; use it as punctuation, not paragraphs.

- Natural stone still out-charms porcelain up close—if you crave patina, porcelain may feel “too perfect.”

Tips / Cost

- Budget: $3,500–$9,000 for vanity + top + hardware; porcelain wall-and-floor tile from $6–$15/sq ft installed (regional).

- Keep wood away from the direct shower splash zone; consider fluted panels for vertical rhythm and better scratch camouflage.

save pin

save pin

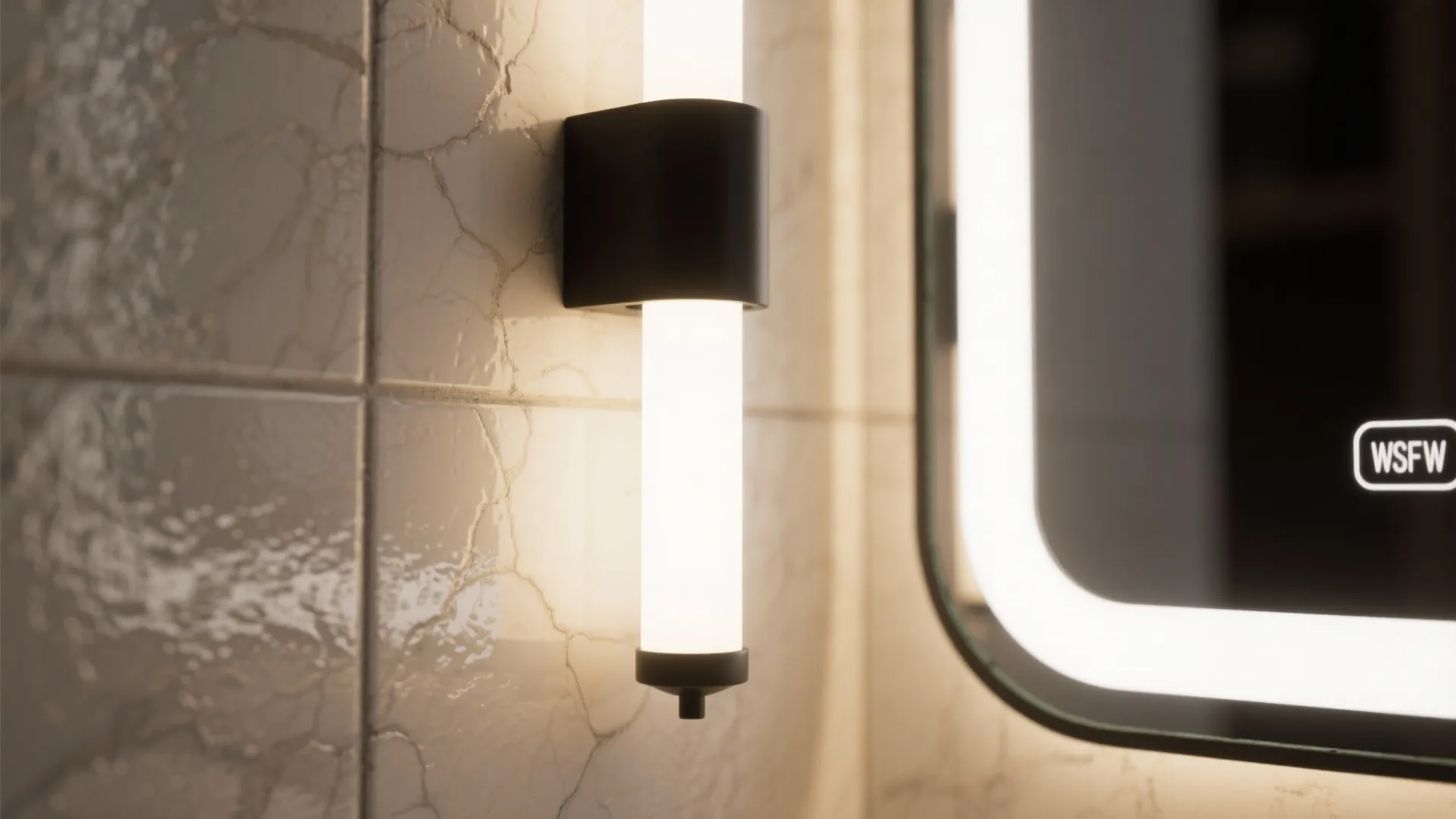

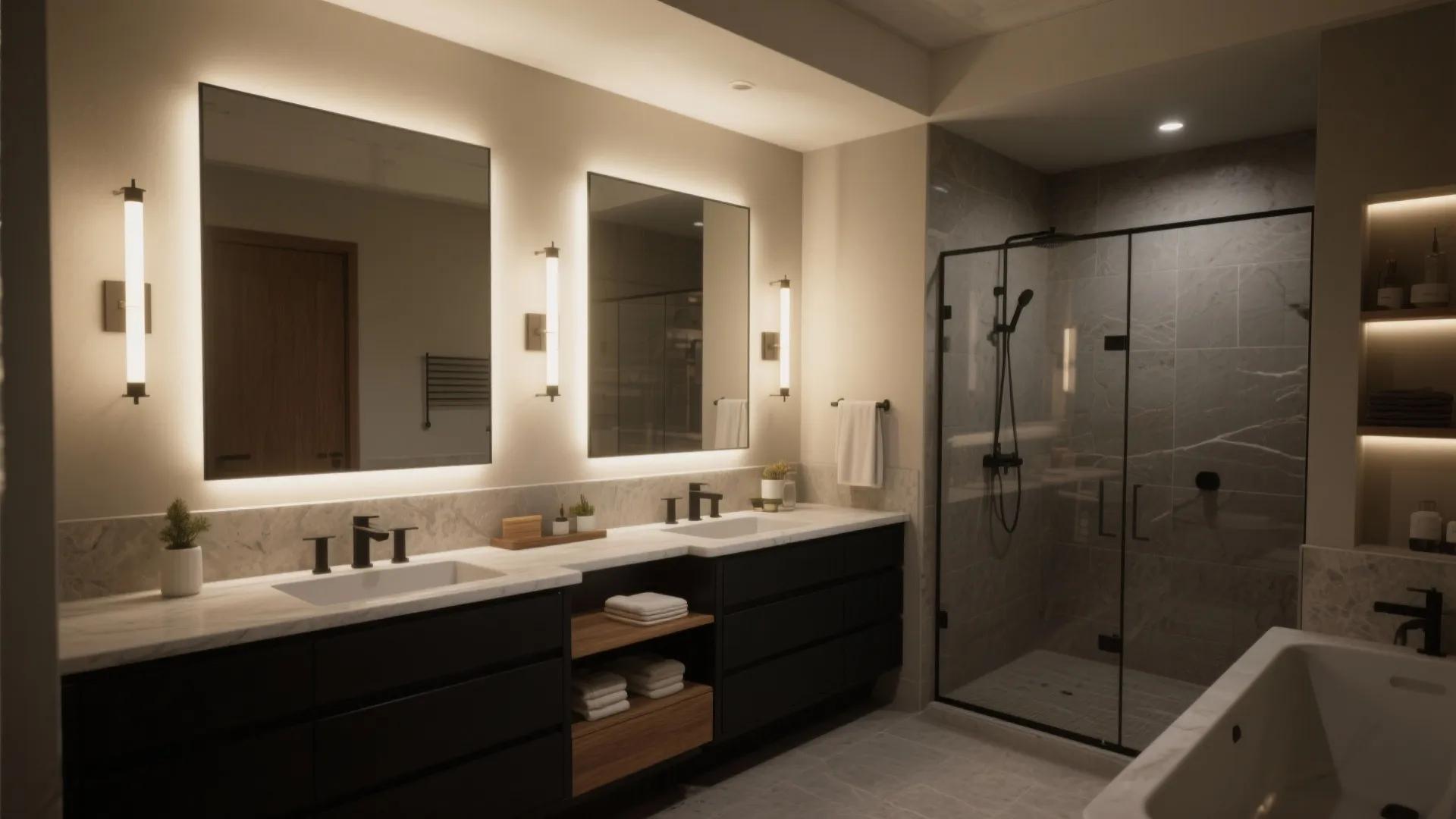

4) Layered lighting: task, ambient, and a hint of drama

My Take

Lighting can make or break a master bathroom. In one townhouse, adding a backlit mirror and a soft cove in the shower turned a narrow space into a boutique-hotel moment—without changing the layout.

Pros

- Three-layer lighting (task at the mirror, ambient on the ceiling, accent in niches) supports grooming accuracy and evening relaxation—key to functional master bathroom design plans.

- Vertical sconces at eye level reduce shadows; 90+ CRI bulbs render skin tones more accurately.

- ASHRAE and IES lighting recommendations favor proper lumen targets and efficacy, helping you meet energy codes while improving comfort.

Cons

- Too many circuits can confuse daily use—label switches or use a simple scene controller.

- Backlit mirrors vary wildly in color accuracy; cheap ones skew green or blue.

- Dimmers in wet zones must be correctly rated; permits and a licensed electrician are non-negotiable.

Tips / Cost

- Cost: $800–$2,500 for layered fixtures and dimmers; smart scenes add $300–$800.

- Use 2700–3000K for evening ambiance and 3000–3500K for morning brightness. At around the 80% mark of planning, I like to preview finishes and lighting together with a quick rendering—nothing fancy, just enough to test how glass and stone reflect layered lighting before ordering. It has saved me from shiny-floor glare more than once.

save pin

save pin

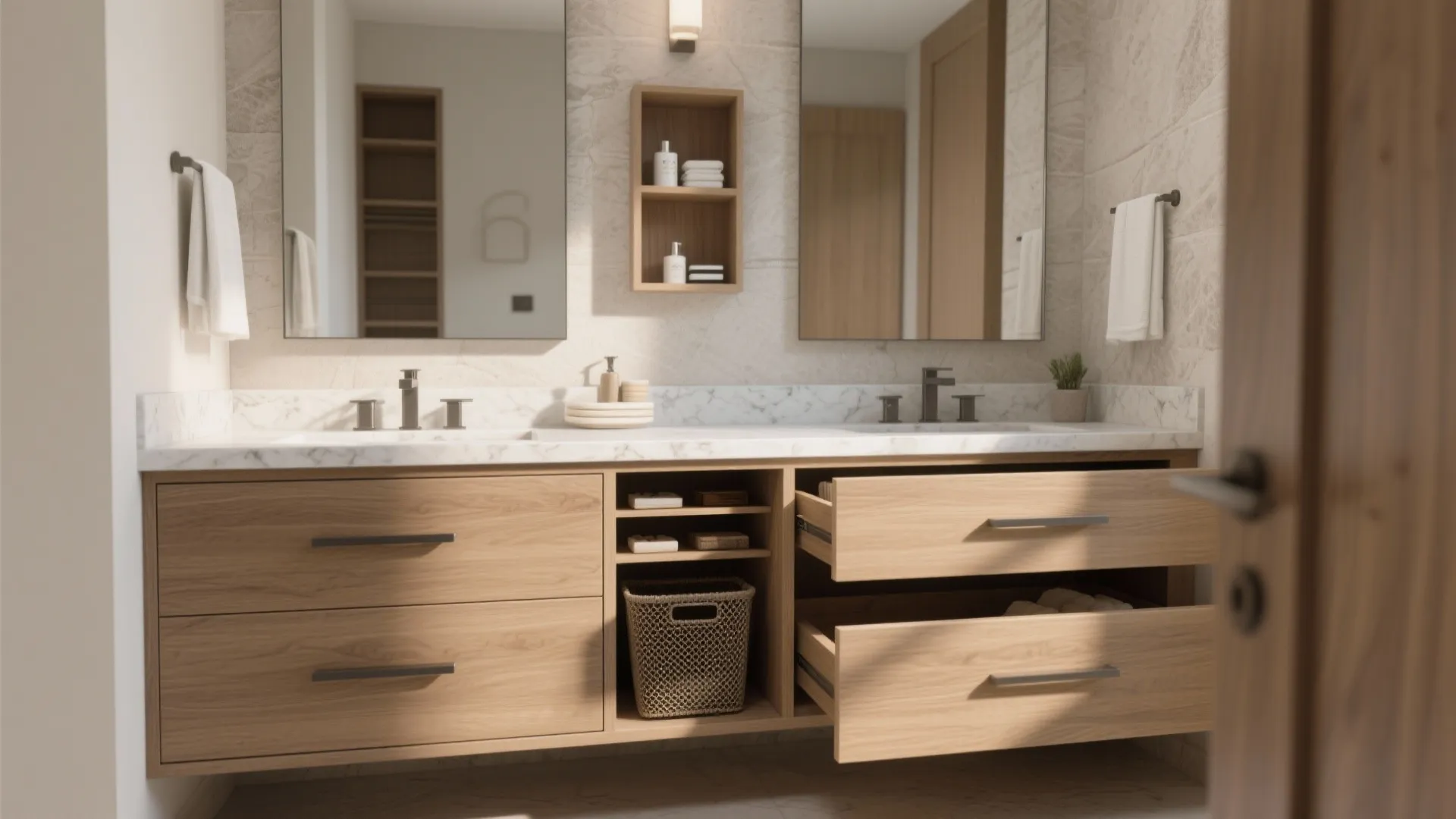

5) Quiet luxury storage: recessed medicine, drawers, and hidden hampers

My Take

I’m a storage neat-freak, and clients thank me later. Recessed medicine cabinets, deep vanity drawers with dividers, and a tilt-out hamper keep counters serene and mornings efficient.

Pros

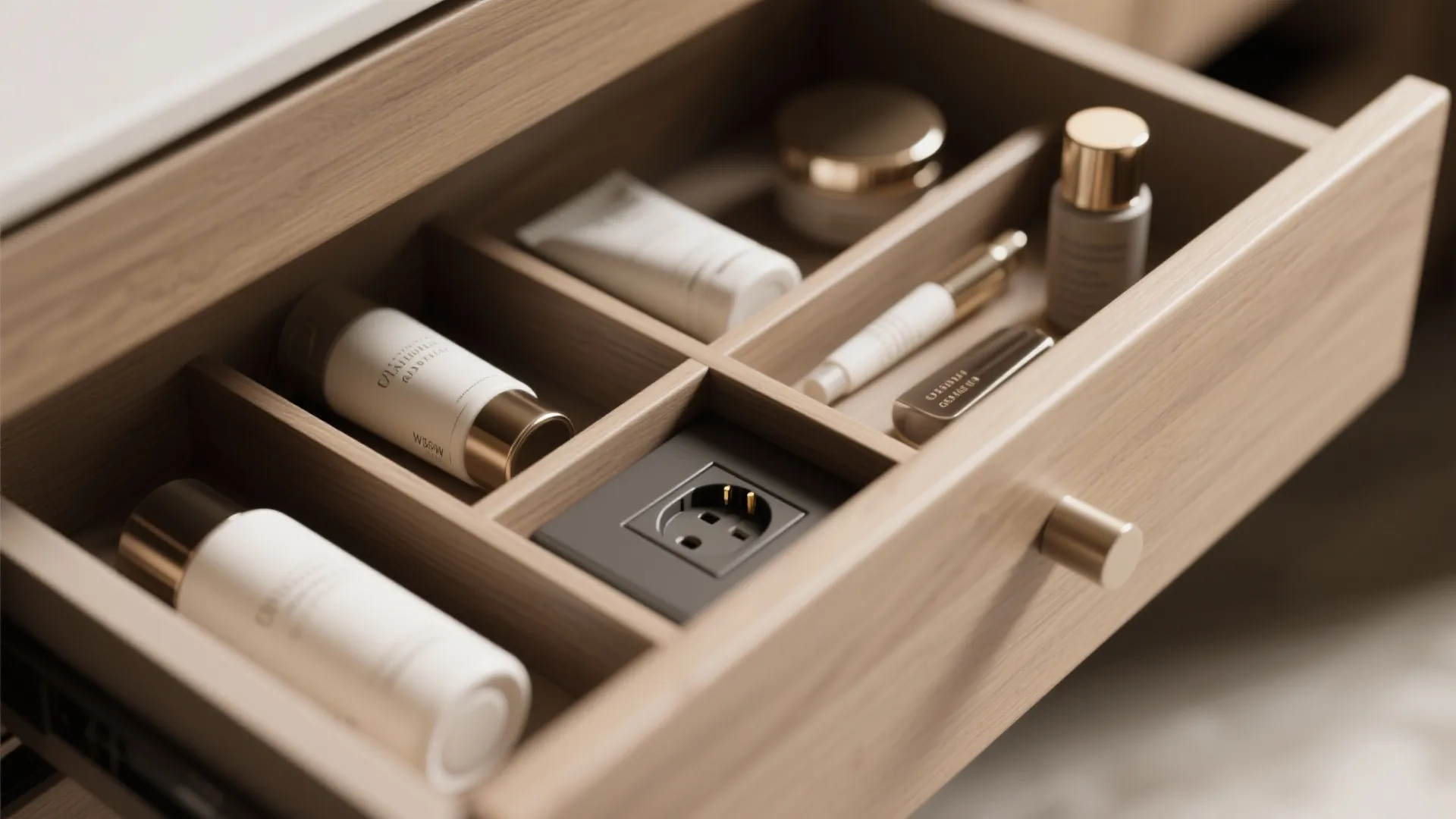

- In-drawer outlets and dividers turn chaos into routine; a long-tail winner for master bathroom design plans focused on daily efficiency.

- Recessed cabinets maintain clean lines while adding real capacity; great in rooms where every inch matters.

- Hidden hampers and pull-out cleaning caddies reduce visual clutter, which lowers perceived stress—a small mental-health boost.

Cons

- Recessing cabinets requires wall depth; in some condos, plumbing stacks make this tricky.

- Drawer-only vanities need good side-to-side organization; tall bottles may require a single door bay or a rollout tray.

- Integrated outlets require GFCI considerations and careful cord management.

Tips / Cost

- Cost: $1,500–$4,000 for quality vanity + accessories; recessed cabinet from $300–$1,200 each; electrical add $250–$600 per location.

- Standard drawer heights (4–6 inches top, 8–10 inches mid, 10–12 inches bottom) suit most toiletry sizes; use silicone liners to keep items from sliding.

save pin

save pin

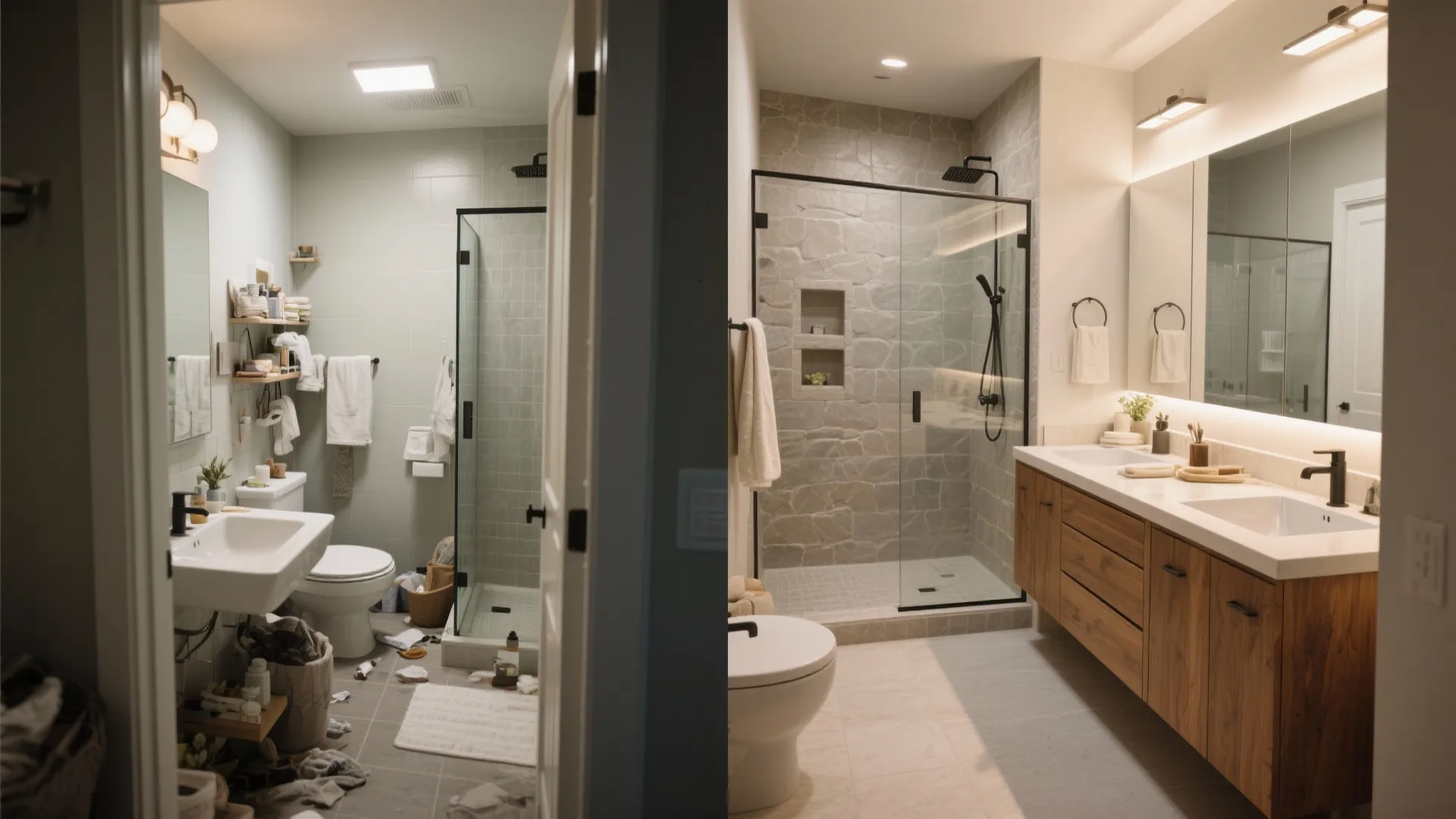

Summary

Smart master bathroom design plans aren’t about cramming in features—they’re about aligning light, storage, and circulation for daily joy. Small bathrooms simply demand smarter choices, not fewer. From warm minimal materials to layered lighting and a spa-forward shower, each idea here is buildable and future-proof. NKBA’s planning guidelines and lighting best practices consistently support clearances and comfort that stand the test of time. Which one of these five design inspirations are you most excited to try first?

save pin

FAQ

1) What’s the ideal size for a master bathroom?

For comfort, I aim for 40–60 square feet minimum, with 30–36 inches of clear space in front of fixtures. Larger suites (80–120 sq ft) allow separate shower and double vanity.

2) Bathtub or bigger shower—which adds more value?

In urban areas, a generous shower with a bench often wins for daily function. If this is the only tub in your home, keep a tub for resale balance.

3) What are must-have elements in master bathroom design plans?

Layered lighting, proper ventilation, and right-sized storage. Aim for task lighting at the mirror, low-sone exhaust, and drawers with dividers.

4) How do I plan a steam shower correctly?

Use a fully enclosed door, sloped ceiling (~2 inches per foot), vapor-sealed walls, and a generator sized to the cubic footage. Many manufacturers provide sizing charts.

5) Are there standard clearances I should follow?

Yes. NKBA suggests at least 30 inches of walkway clearance and 15 inches from toilet centerline to walls. These baselines improve comfort and code compliance.

6) Which materials are best for low maintenance?

Porcelain tile for floors and walls, quartz or sintered stone for counters, and matte finishes for easier fingerprint control. Sealants help wood last in humid rooms.

7) Can lighting really make a small master bathroom feel bigger?

Absolutely. Vertical sconces reduce face shadows, backlit mirrors float the wall plane, and a soft ceiling wash extends perceived height. I like to preview setups using subtle lighting mood tests before installation.

8) What authoritative guidelines should I consult?

Refer to NKBA Bathroom Planning Guidelines for clearances and fixture spacing, and IES for lighting fundamentals. Both are widely cited standards in residential design.
