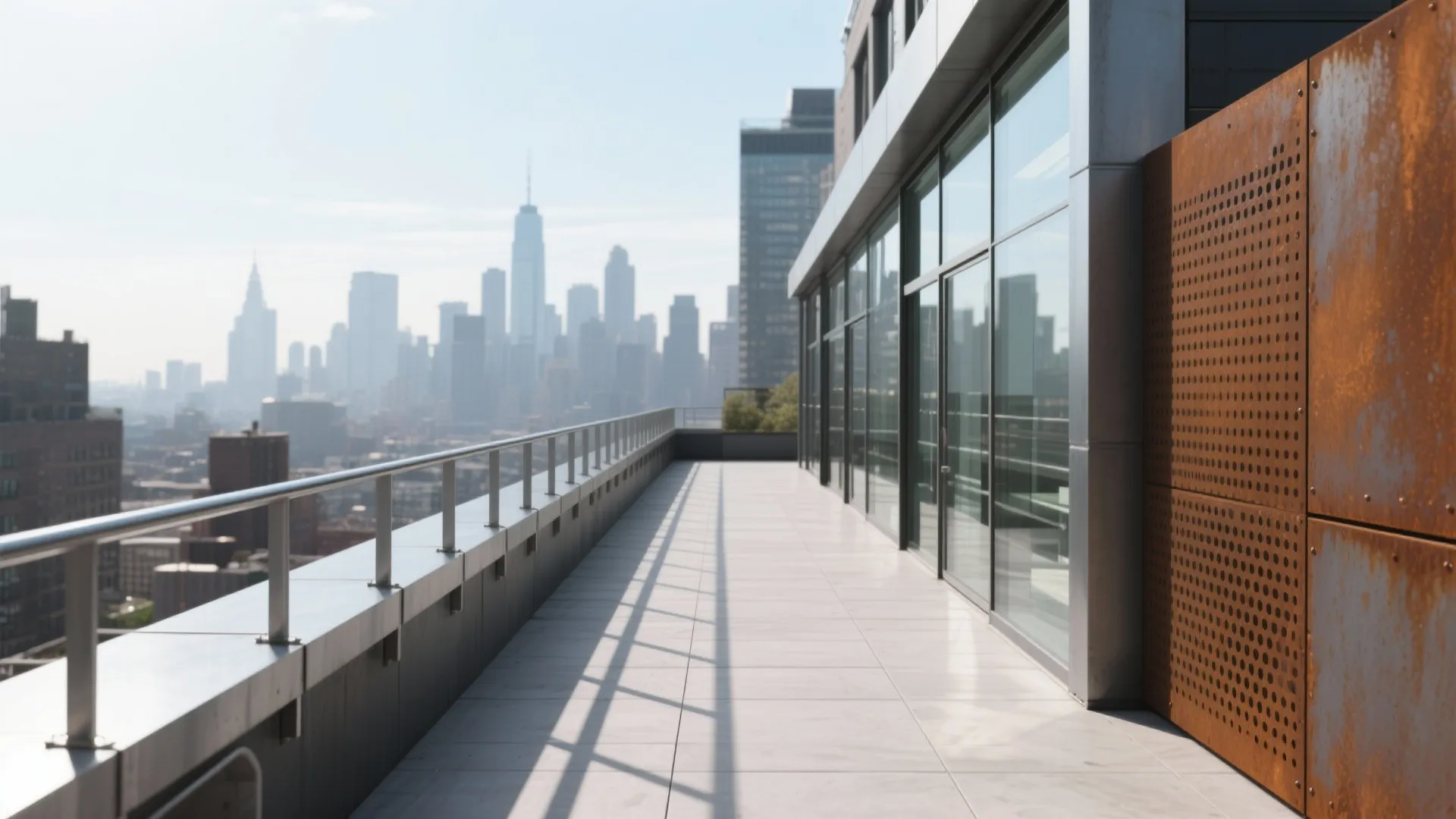

Parapet Wall Steel Design: 5 Proven Ideas: How I approach safe, elegant, and code-smart steel parapets for compact roofs and terraces—because small spaces spark big creativity

Steel is having a moment in parapet design. Slim profiles, mixed materials, and smarter connections are replacing heavy, blocky edges—and that’s great news for compact terraces and small roofs where every inch counts. As a designer who’s rebuilt more than a few parapet edges on tight urban rooftops, I’ve seen how small spaces spark big creativity.

In this guide, I’m sharing 5 parapet wall steel design ideas I actually use. You’ll get my hands-on notes, pros and cons with long-tail keywords, and a few code and standards references so you can make safe, beautiful decisions with confidence.

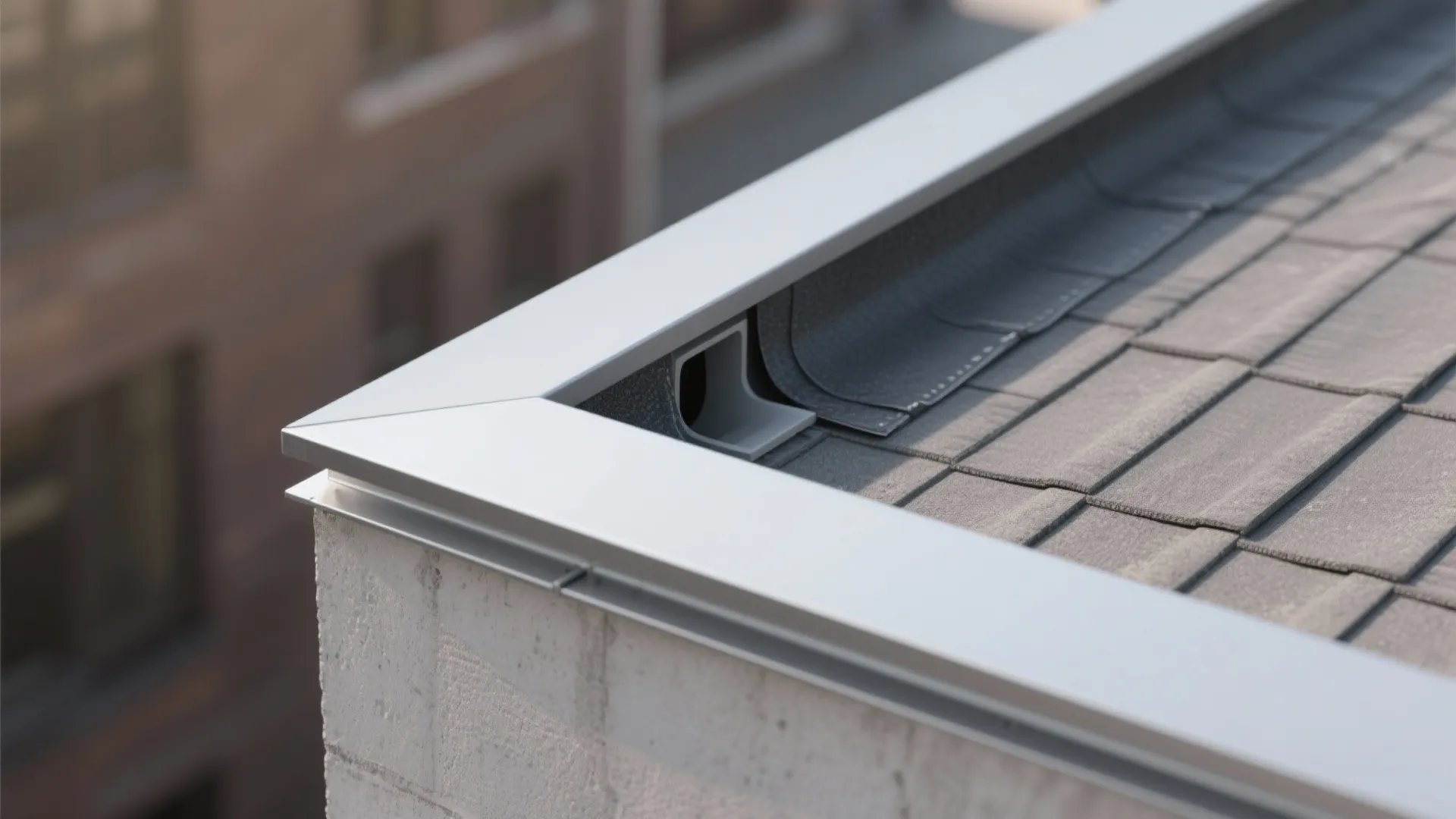

Minimalist steel coping with concealed drainage

My Take

I love a razor-thin parapet line that still handles weather like a champ. On a small balcony project in Shanghai, we used a continuous steel coping with a drip edge and hidden scuppers to keep the façade spotless. I refined the profile with slender steel parapet detailing that visually “disappeared” from street level.

Pros

This approach delivers a clean silhouette while integrating a steel parapet coping detail that channels water away from the wall. With a continuous drip flashing and back leg, you minimize stains and extend façade life—critical for long-term maintenance in dense cities. When combined with a thermal break at anchors, a lightweight steel parapet retrofit reduces thermal bridging and condensation risk.

Cons

Tips / Case / Cost

For small roofs, I target 1.5–2.0 mm galvanized steel coping with continuous cleats, then powder coat. Budget roughly $60–$120 per linear foot depending on coating and thermal-break hardware. The National Roofing Contractors Association (NRCA) coping and flashing details are a great baseline for sequencing layers.

save pin

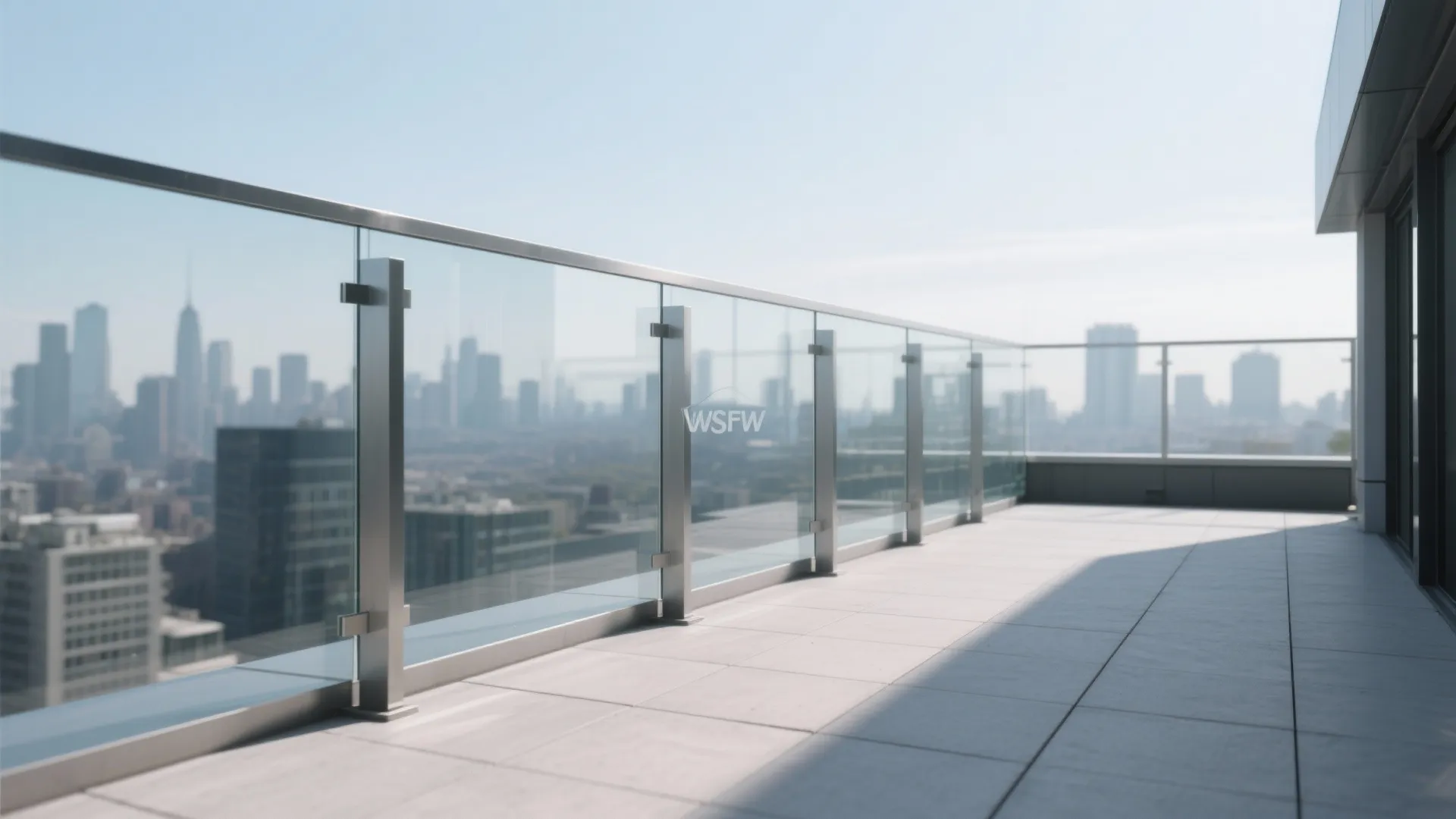

Glass-and-steel parapet for light and wind control

My Take

When a client wants to keep skyline views, I pair a steel frame with laminated glass infill. On a narrow rooftop garden, the glass lifted daylight into the interior stairwell while the steel posts took the wind, quietly and safely. The balance felt airy without compromising guardrail requirements.

Pros

A steel and glass parapet detail lets light pass while creating a comfortable wind break on small terraces. Using laminated tempered glass with standoff fittings keeps the look sleek and helps with acoustic bounce in busy neighborhoods. For safety and code, I design the top edge at compliant guard height; OSHA 1910.29 and IBC 1015 both reference a nominal 42-inch guardrail height, with tolerances depending on use and occupancy.

Cons

Glass shows everything—raindrops, handprints, and city dust—so plan for easy access to clean both sides. Edge reflections can glare if you don’t spec a low-iron panel or a soft gray tint. Structural posts spaced too far apart can lead to glass thickness jumps that raise costs and weight.

Tips / Case / Cost

For most low-rise rooftops, I start with 10–12 mm laminated tempered glass and 60–80 mm square steel posts at 1.2–1.5 m centers, then adjust per wind load. Coordinate top rail geometry so water won’t linger on the glass edge. Expect $180–$350 per linear foot depending on glass, finish, and site access.

save pin

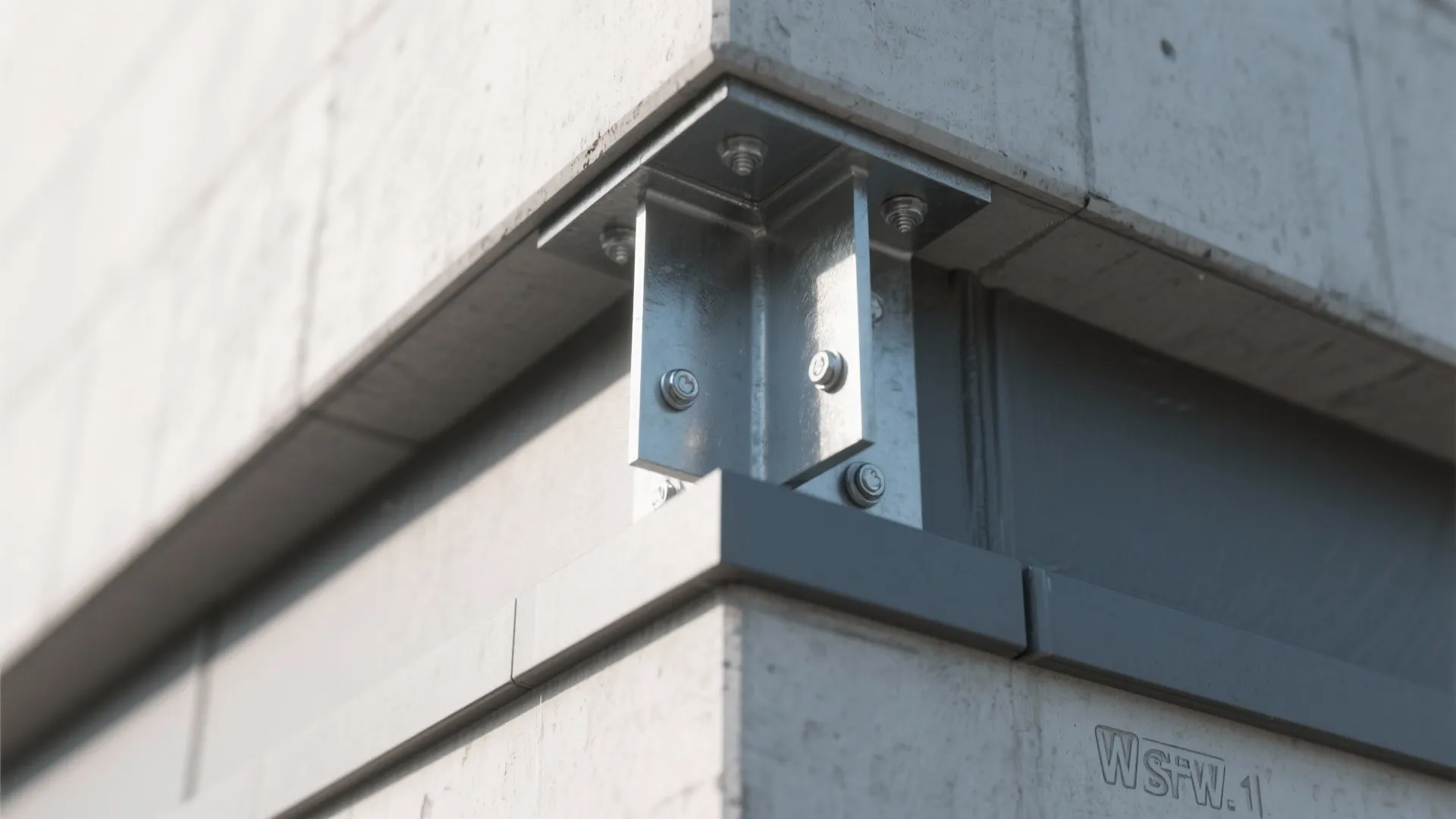

L-shaped corner bracing that disappears

My Take

Corner conditions are where flimsy parapets fail. I often introduce unobtrusive L-shaped steel bracing just below the coping, tying back to the slab with concealed plates. The result is a parapet that looks light but behaves like it’s been to the gym.

Pros

An L-shaped steel parapet bracing detail dramatically improves corner stiffness and limits vibration under gusts. Using closed sections (like square hollow steel) boosts torsional resistance without visual bulk, a smart move in compact terraces. I size anchors and edge plates with ASCE 7-22 wind load checks; edge and corner zones see higher pressures, so this step is non-negotiable.

Cons

Invisible bracing can complicate waterproofing; you’ll need carefully sequenced membranes and counterflashings. If the slab edge is weak or crumbly, post-installed anchors may need chemical adhesive systems and longer cure times. And yes, the shop drawings take a little longer because corners are where tolerances collide.

Tips / Case / Cost

On a coastal retrofit, we used 6–8 mm steel plates and M12 anchors at 200–300 mm spacing in corner zones, with a concealed stiffener under the coping. For small projects, prefabbing corner modules keeps site work fast and clean. Mid-project modeling a wind-tested parapet bracing layout helps stakeholders understand why corner zones need extra attention.

save pin

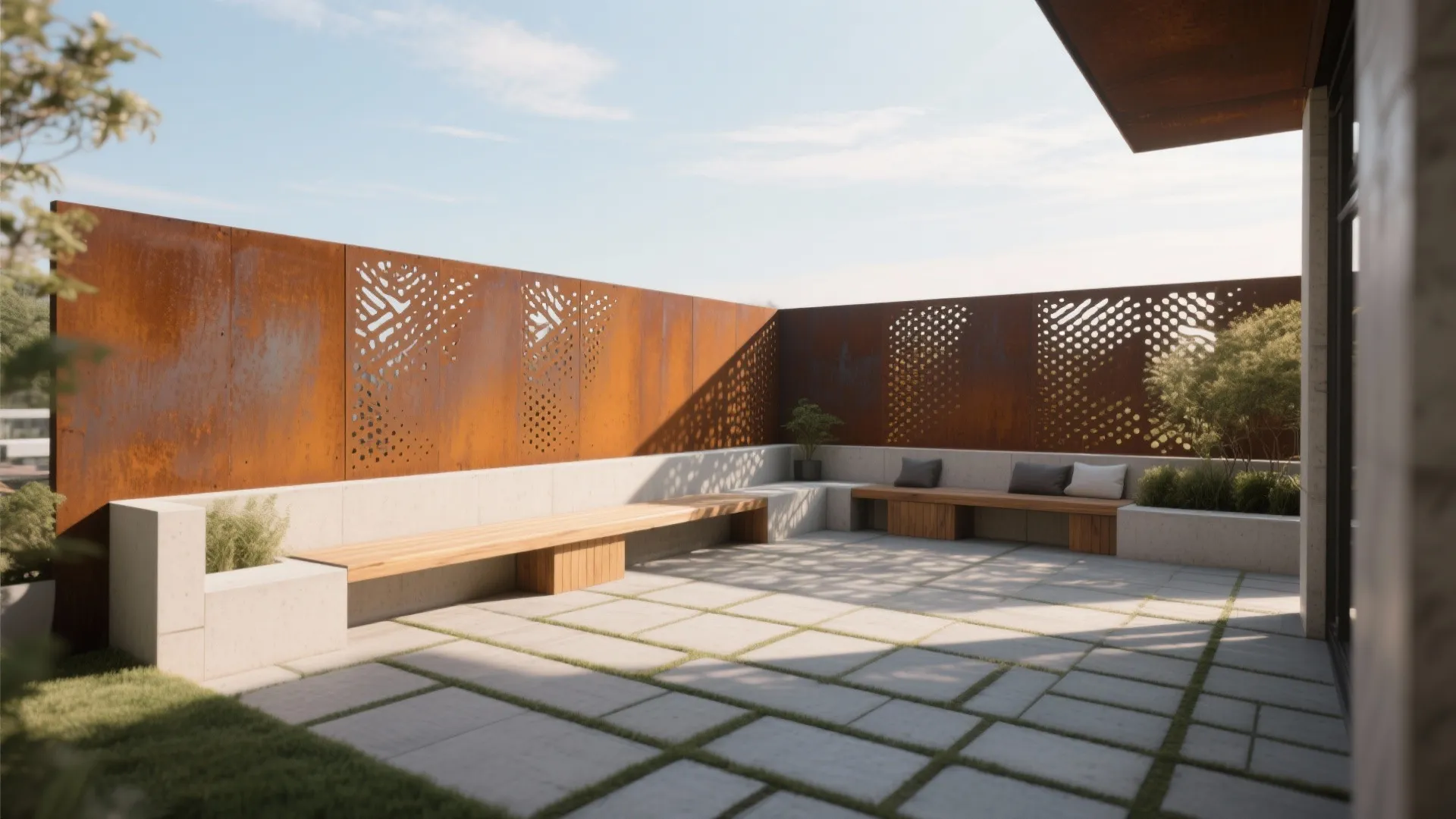

Perforated weathering steel as art and shield

My Take

I’m a fan of weathering steel (Corten) when a client loves texture and warmth. We designed a perforated steel parapet screen that softened crosswinds and cast beautiful shadows into a micro-terrace. It felt like a built-in art piece, but it still met safety height and load requirements.

Pros

A perforated weathering steel parapet offers visual privacy, airflow, and a durable patina that minimizes repaint cycles. With pattern gradients, you can tune porosity to balance wind pressure and transparency—handy for light-sensitive interiors. As a corrosion-resistant steel parapet strategy, weathering steel performs well where wet/dry cycles allow the patina to stabilize.

Cons

It’s not for every climate; constant humidity or marine spray can stall patina formation and stain adjacent surfaces. Early run-off can discolor light stone or plaster—detail drip edges and sacrificial flashings. Laser-cut patterns require tight handling to avoid dings that look obvious on day one.

Tips / Case / Cost

For small-space safety, keep solid zones at handrail height and open up perforation above eye level for views. Seal adjacent materials at the start to minimize run-off staining during the first season. I’ve seen costs from $120–$260 per linear foot depending on thickness, pattern density, and finish; pre-patina treatments add to budget. For inspiration, we mocked up a 1:1 corner to refine a perforated weathering steel rhythm before committing to the full façade.

save pin

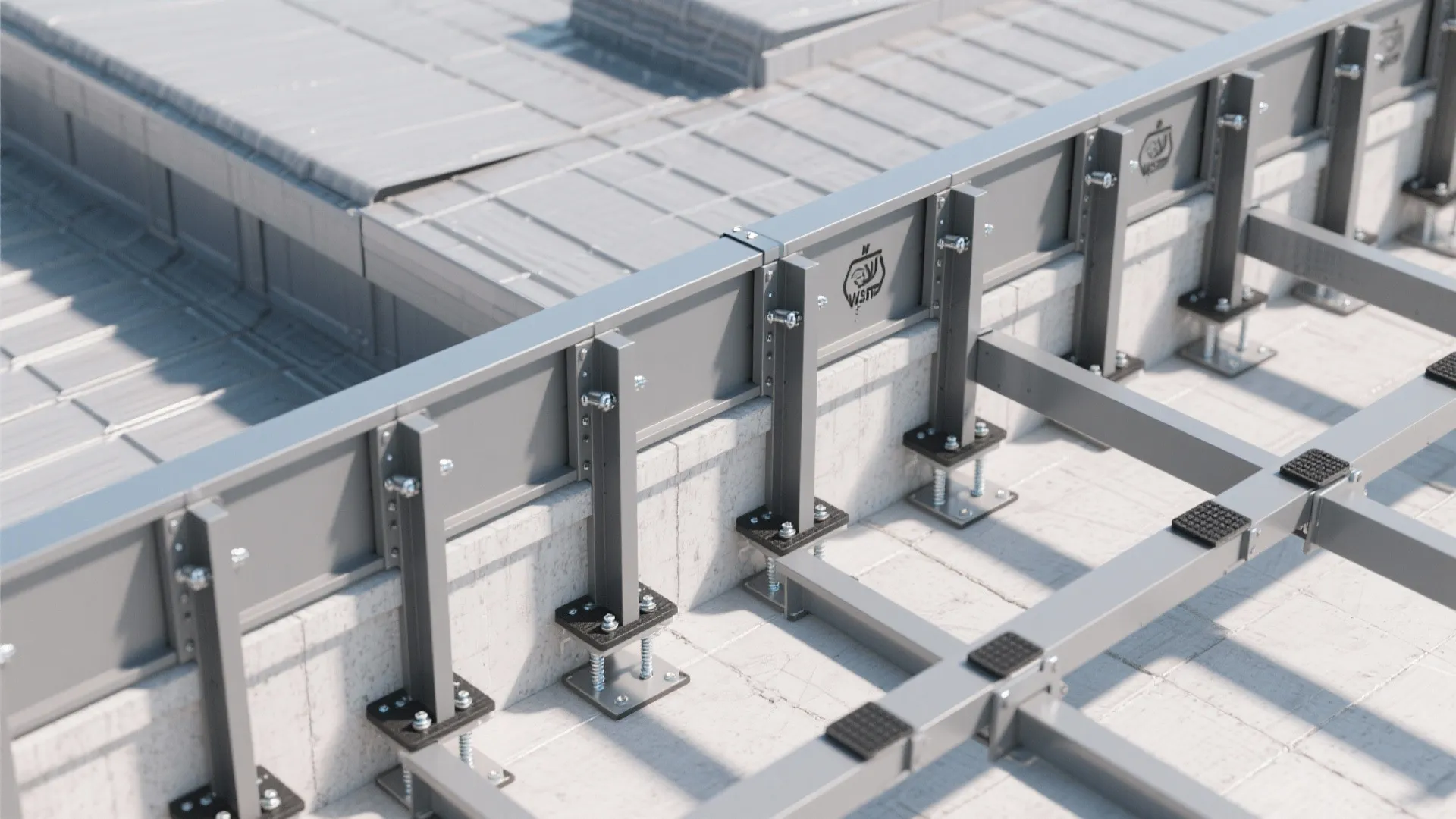

Modular retrofit systems for existing roofs

My Take

Most of my parapet work is retrofit, not new build. I like modular steel posts that clamp to structural edges, paired with bolt-on rails and panels. They’re lifesavers when you inherit a thin slab edge or a fussy waterproofing history.

Pros

A modular steel parapet retrofit can be installed fast with minimal penetrations, ideal for occupied buildings. Swappable infills—solid metal, slats, or glass—support phased work and future maintenance. With planned anchorage details for steel parapet posts, you can locate penetrations over structural beams to reduce the risk of membrane leaks.

Cons

Clamp-on systems need verified edge capacity; many older structures require load testing or engineering sign-off. Exposed hardware can look industrial if you don’t specify low-profile fittings and coordinated finishes. And because it’s modular, you’ll sometimes see more joints—worth it for speed and serviceability.

Tips / Case / Cost

On walkable roofs, I keep top-of-guard around 42 inches to align with OSHA/IBC guardrail height and specify a 200-lb concentrated load at the top rail for robustness. Coordinate thermal-break pads at base plates to cut condensation. Expect $90–$220 per linear foot depending on finish, infill, and access. If your roof warranty is active, confirm attachment details with the membrane manufacturer before drilling.

save pin

Summary

Small roofs and terraces aren’t a limitation—they’re an invitation to design smarter. With the right parapet wall steel design, you can get a slimmer profile, safer edges, and better durability without swallowing precious square footage. Between standards like ASCE 7 for wind and OSHA/IBC for guard height, you’ve got a reliable framework; the creativity lives in the details.

Which of these 5 ideas are you most excited to try on your project?

save pin

FAQ

1) What is parapet wall steel design?

It’s the planning and detailing of steel elements—coping, posts, rails, and anchors—that form the protective edge at the roof or terrace. A good design balances structure, waterproofing, safety, and aesthetics in a tight profile.

2) How high should a steel parapet or guard be?

Most occupiable roofs target a nominal 42-inch top-of-guard. OSHA 1910.29 and IBC 1015 provide height guidance and tolerances; always confirm local code and use type before finalizing details.

3) How do I account for wind loads on parapets?

Use ASCE 7 (e.g., ASCE 7-22) to determine design pressures, paying special attention to edge and corner zones. Then size posts, rails, and anchorage to meet those pressures with the required safety factors.

4) What’s a typical steel thickness for coping and rails?

For light, small-scale projects, I often specify 1.5–2.0 mm galvanized steel coping and 3–5 mm plate for brackets or base plates. For rails or posts, hollow sections sized by span and load usually land in the 60–80 mm range with sensible wall thicknesses.

5) How do I prevent corrosion in steel parapets?

Start with hot-dip galvanizing or a zinc-rich primer, then powder coat or a high-build fluoropolymer topcoat. In some climates, weathering steel works well, but protect adjacent materials from early run-off and avoid constant immersion or marine spray.

6) Can I add glass to a steel parapet?

Yes—laminated tempered glass infills paired with steel posts keep views open while meeting safety. Coordinate post spacing, glass thickness, and top-rail geometry to manage deflection and water.

7) How should steel parapets attach to the roof without leaks?

Locate anchors over structural elements when possible, use compatible sealants, and sequence membrane, counterflashing, and coping carefully. NRCA-style details are a solid reference to coordinate trades and reduce risk.

8) What does a parapet wall steel design cost?

Budgets vary by finish, height, and site access: think roughly $60–$120 per linear foot for minimalist steel coping, $90–$220 for modular retrofits, and $180–$350 for steel-and-glass systems. Engineering, mockups, and difficult access can add meaningful cost.
