I’ve spent a decade reshaping compact yards into outdoor rooms, and retaining walls often do the heavy lifting. When space is tight, stepped terraces feel more open stepped terraces feel more open, and thoughtful engineering turns slopes into cozy patios. If you’re looking for a retaining wall design calculations PDF, I’ll walk you through what I include—and why.

Small spaces spark big creativity. I’ve learned that a precise, buildable set of calculations means fewer surprises on site, better drainage, and a wall that ages gracefully. In this guide, I’ll share 5 design inspirations rooted in my projects and backed by expert references.

Expect my first-hand notes, pros and cons that feel real, and the exact checks I put into a retaining wall design calculations PDF—so you can talk with your engineer, contractor, or city reviewer with confidence.

[Section: 灵感列表]

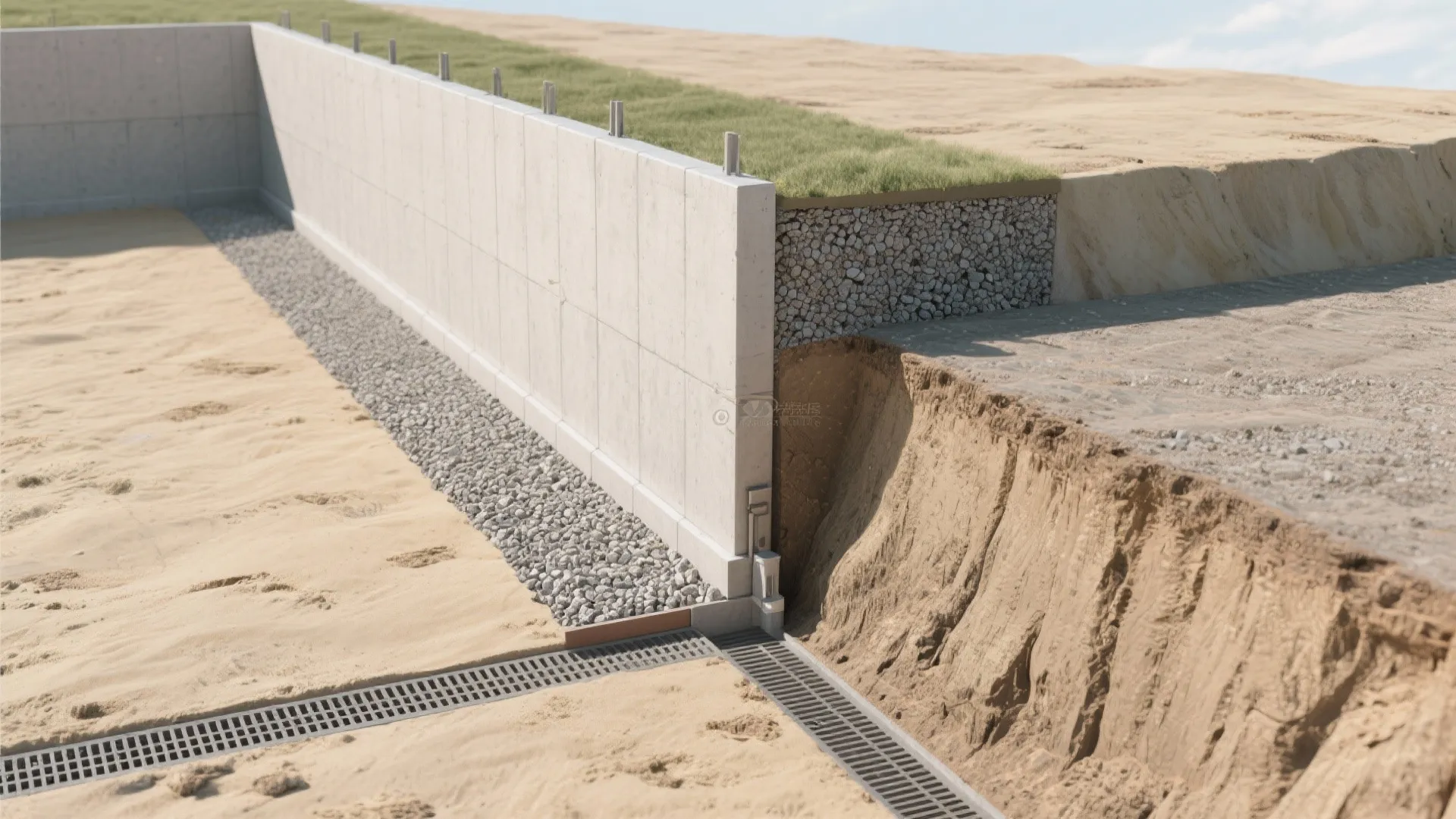

1) Earth Pressure Basics That Fit the Site

My Take: On one micro-yard in Seattle, the soil looked like sandy fill but behaved more cohesive under rain. I’ve learned to start any retaining wall design calculations PDF with site-specific earth pressure—Rankine vs. Coulomb—based on friction angle, wall batter, and backfill slope. It’s the first page I check, always.

Pros: Choosing the right active earth pressure method (Rankine for level backfill, Coulomb for sloping/back batter) makes your gravity retaining wall calculation far more honest. Long-tail must-haves like “earth pressure Rankine Coulomb” and “at-rest vs active” keep the wall from being under- or over-designed. BS 8002:2015 (Code of practice for earth retaining structures) is a rigorous reference here, and it reminds us to treat soil parameters as variable, not fixed.

Cons: Soil is moody; a quick sandcastle test won’t replace a geotech report. Over-conservative assumptions can balloon cost; over-optimistic ones can balloon the wall—literally. And no two backyards are ever twins, so copy-paste numbers from a random retaining wall design calculations PDF can mislead.

Tips/Case/Cost: If you can, get a simple geotechnical memo with friction angle (φ), unit weight (γ), and cohesion (c). For small projects, I do a sensitivity sweep: vary φ by ±2–3 degrees and see how pressures—and stability factors—move. That exercise often saves money and drama on site.

save pin

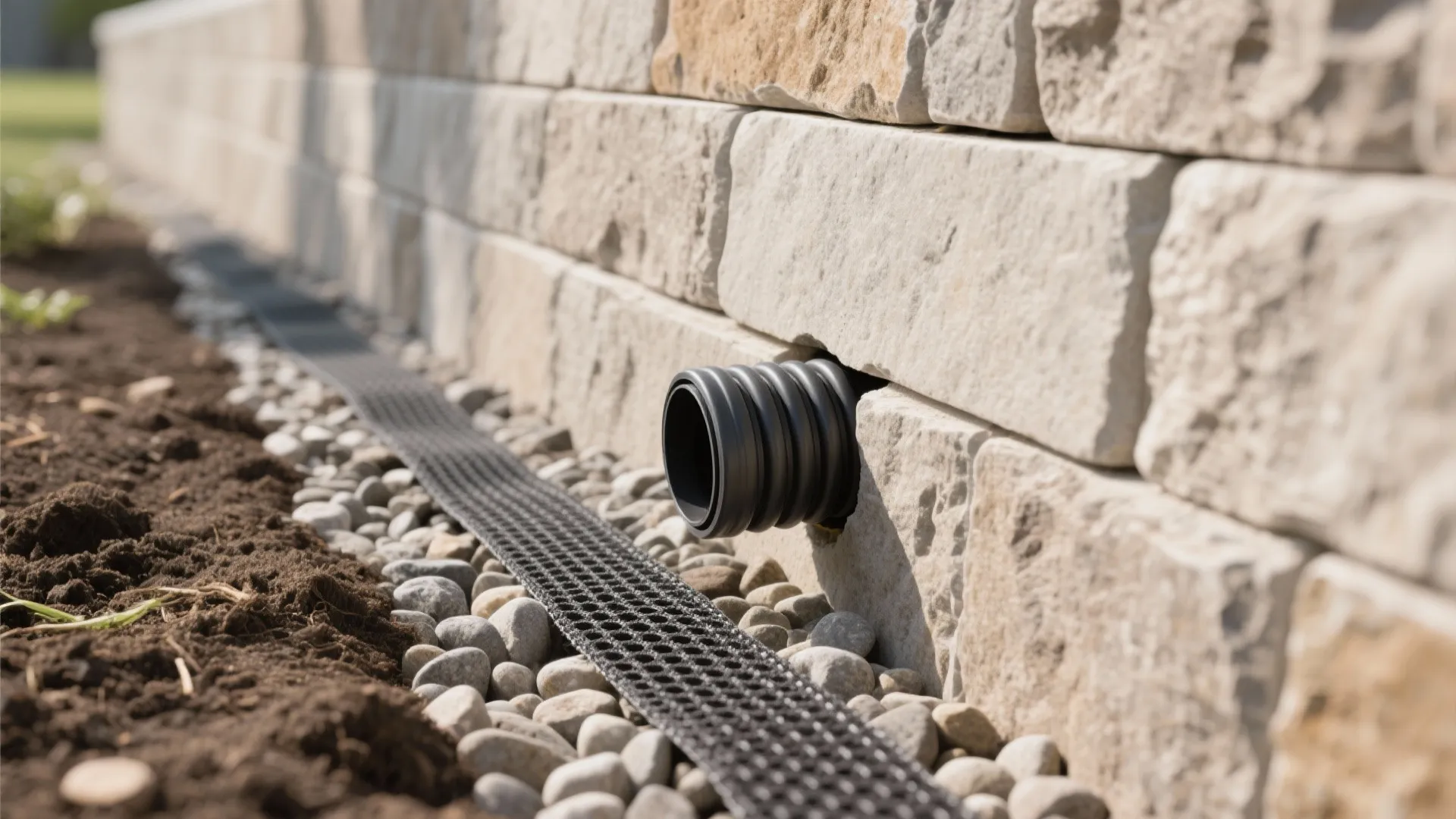

2) Drainage First: Weep Holes, Filters, and Freeboard

My Take: The best-looking wall I ever built would have failed without drainage. In tiny yards, I prefer 3/4-inch clean gravel behind the wall, filter fabric against native soil, and a perforated pipe with positive daylight. It’s unglamorous, but it’s the silent hero of small structures.

Pros: Smart drainage behind retaining walls reduces hydrostatic pressure, freeze–thaw damage, and efflorescence staining. In my retaining wall design calculations PDF, I include weep hole spacing, pipe slope, and minimum gravel zone width; they’re cheap elements that protect expensive work. With cohesive soils, adding a vertical drainage mat along the stem can be a game-changer.

Cons: Drains clog when landscapers forget the sock or fabric; maintenance isn’t fun, and no one wants to snake a pipe every year. In dense urban lots, finding daylight for the pipe or a sump discharge location can be a puzzle.

Tips/Case/Cost: Slope the perforated pipe at least 1% to daylight or to a sump with a reliable pump. Add weep holes every 1–2 meters for rigid walls; keep the fabric continuous to avoid fines washing into the gravel. A small cleanout at the low point can make future maintenance possible.

save pin

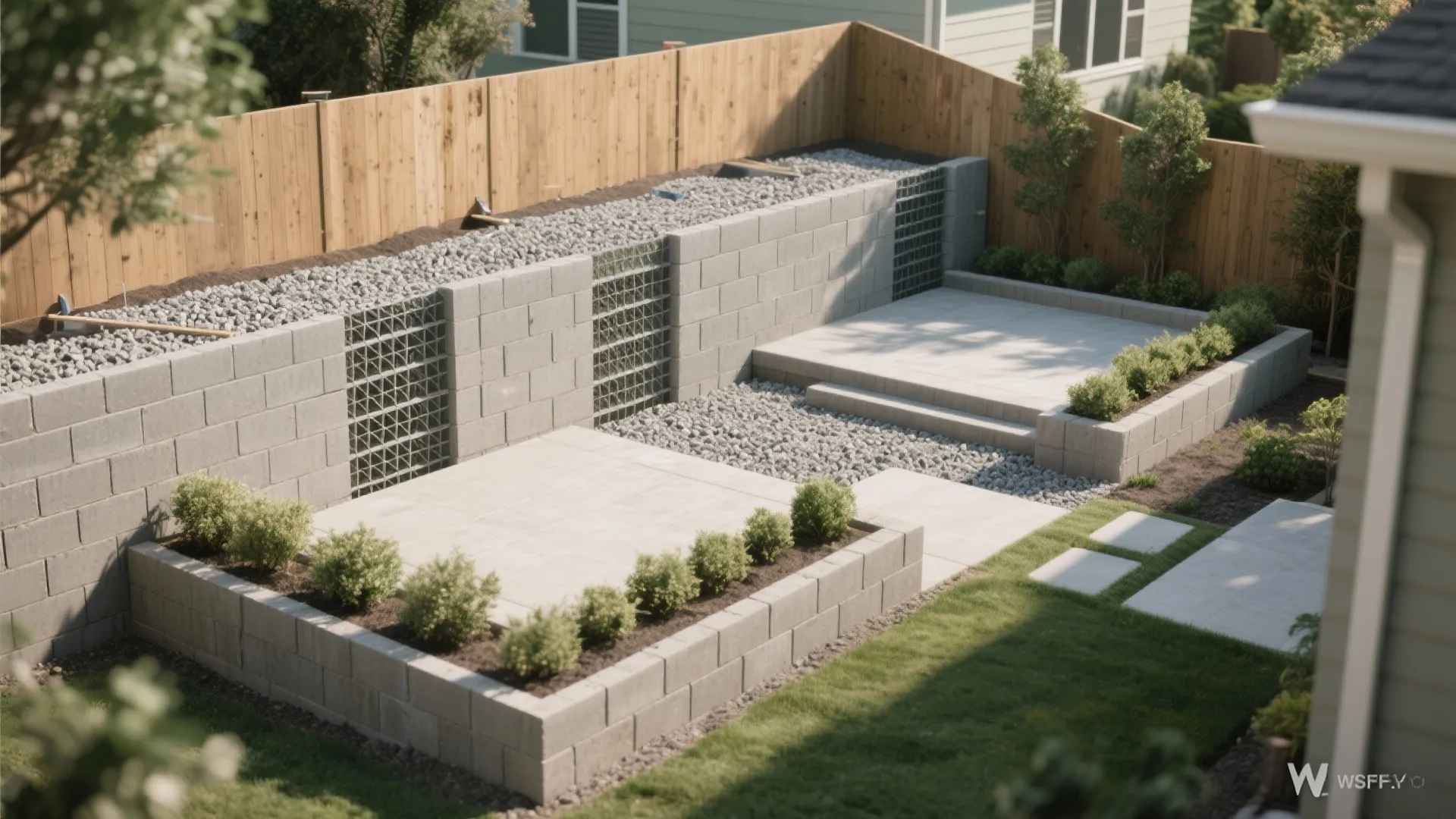

3) Geogrid-Reinforced Segmental Walls for Compact Yards

My Take: Segmental retaining walls (SRWs) with geogrid are my go-to for small terraces—fast to build, forgiving, and attractive with modular faces. On a tight backyard in Denver, 3 layers of grid turned a 5-foot slope into two sweet patios and a planter strip.

Pros: Geogrid reinforced retaining wall design is cost-effective and scalable; you can tailor grid length to get sliding and overturning safety without massive footing. A proper global stability analysis matters on slopes; the NCMA “Design Manual for Segmental Retaining Walls, 3rd Edition” offers clear guidance on grid spacing, embedment, and facing unit shear capacity. With clean granular backfill, construction stays nimble.

Cons: SRWs can look “too modular” if you don’t soften them with planting or varied textures. If you cheap out on backfill quality or compaction, grid layers won’t mobilize properly, and the wall can creep or bulge. Corners and curves need patience to align blocks neatly.

Tips/Case/Cost: I budget roughly for geogrid at every 16–24 inches of height, length ~60–100% of the wall height depending on loading and slope. To make small yards feel generous, I often turn corners to create short returns; a multi-level yard feels bigger multi-level yard feels bigger when circulation is clear and each terrace has a task—grill, herb bed, or lounge.

save pin

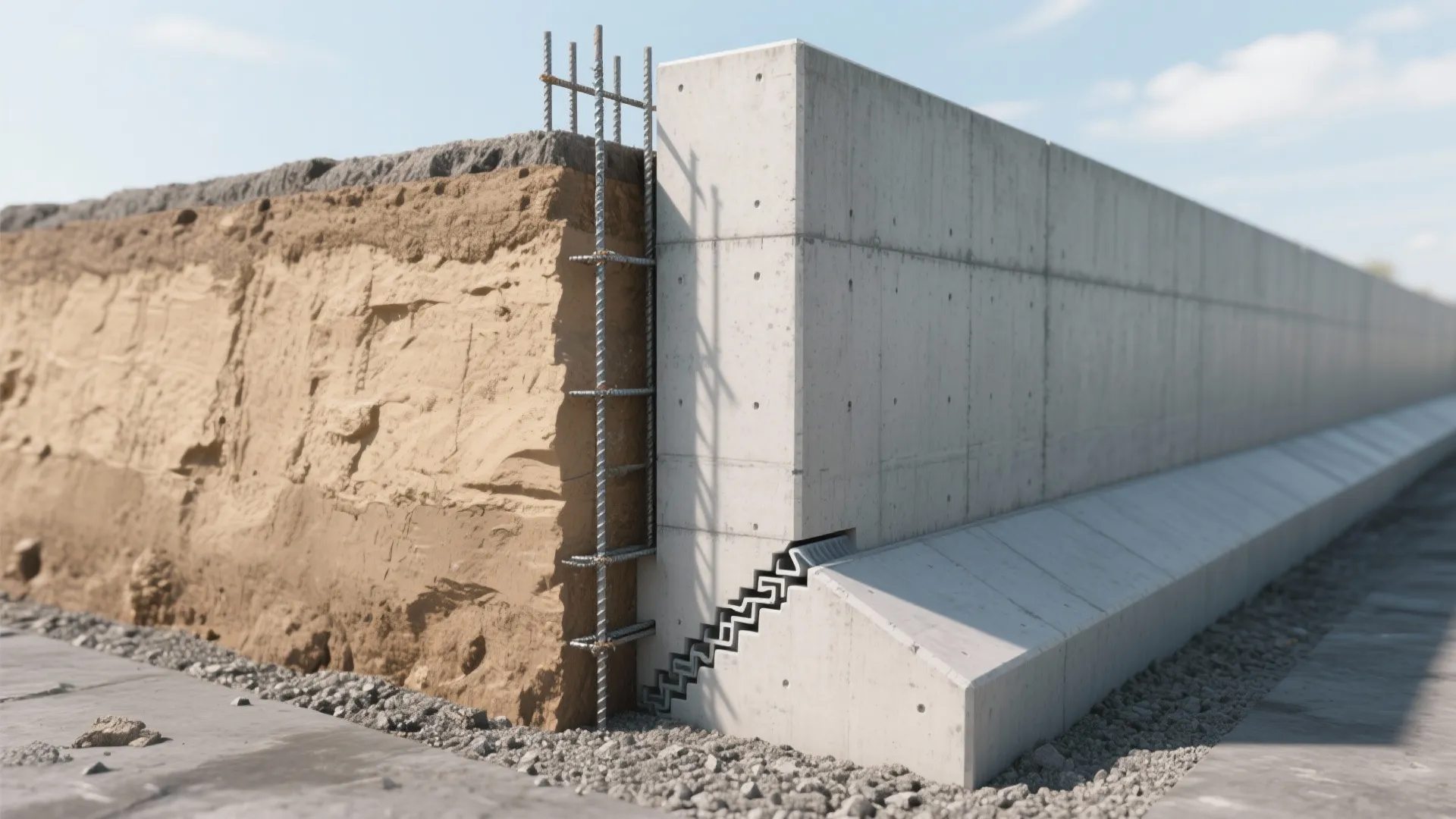

4) Cantilever Walls: Footing Checks That Keep You Honest

My Take: Where property lines squeeze you, a reinforced concrete cantilever wall earns its keep. The stem, heel, and toe all work, so your retaining wall design calculations PDF should show sliding, overturning, bearing pressure, and key depth if you use one. I’ve saved projects by tweaking heel length and adding a shear key.

Pros: A well-designed cantilever wall delivers reliable performance with clear safety factors against sliding and overturning and a bearing capacity check that matches soil conditions. FHWA NHI-10-024 (Retaining Walls and Reinforced Soil Slopes) is a solid, practical reference, and it reminds us to check eccentricity and ensure the resultant stays within the middle third for concrete stress distribution.

Cons: Excavation for the heel is a pain in narrow lots; you’ll move more soil than you think. Concrete prices fluctuate, and rebar schedules get dense fast; your contractor may grumble when the bar list reads like a novel.

Tips/Case/Cost: If sliding is marginal, a shear key under the toe can increase resistance without huge footprint changes. In frost-prone climates, consider footing depth and thermal protection for drains. To check grading and step-downs, I sketch the yard and visualize grading changes in 3D visualize grading changes in 3D before finalizing elevations—this reduces awkward steps at the patio edge.

save pin

5) Material Mood: Timber Warmth, Gabion Texture, Planting Pockets

My Take: As a designer, I care about how the wall feels after the math. Timber accents add warmth you can touch; gabions bring rugged texture and shadow. In small spaces, combining short walls with planting pockets turns structure into a place to linger.

Pros: Thoughtful facings integrate the wall with the home: timber slats, stone veneers, or split-face units can echo interior finishes for continuity. In my projects, adding shallow planters at intervals breaks scale and invites herbs and groundcovers. These aesthetic choices don’t change calculations, but they change how the wall lives.

Cons: Timber needs maintenance, especially near sprinklers; it can discolor or split. Gabions require consistent stone sizing and quality baskets—cheap mesh deforms. Over-decorating a tight yard makes it feel busy; restraint matters.

Tips/Case/Cost: If budget is tight, prioritize face treatments where you spend time—near seating and entries—and keep utilitarian faces simple. Blend lighting: low, warm accents near steps and plant pockets to expand evening use. I document these choices right after the engineering pages so the retaining wall design calculations PDF reads like a buildable story, not just math.

[Section: 总结]

Small kitchens taught me a truth that applies outdoors too: constraints sharpen creativity. A small retaining wall doesn’t limit you; it demands smarter design and a clear retaining wall design calculations PDF that covers earth pressure, drainage, reinforcement, and checks you understand. Referencing BS 8002 and FHWA keeps the numbers grounded while your design makes the space inviting.

Which one of these design inspirations would you try in your yard—drainage-first detailing, geogrid terraces, or a concrete cantilever with a quiet aesthetic?

[Section: FAQ 常见问题]

Q1: What should a retaining wall design calculations PDF include?

A: Include soil parameters (γ, φ, c), active/at-rest earth pressure, wall geometry, drainage details, stability checks (sliding, overturning, bearing), and, for SRWs, geogrid spacing and lengths. Add construction notes and maintenance recommendations.

Q2: Rankine vs. Coulomb—when do I use each?

A: Rankine is straightforward for level backfill and vertical walls; Coulomb handles wall batter and sloped backfill. Your geotechnical memo and site geometry determine the best fit, and the choice affects the lateral pressure used in your retaining wall design calculations PDF.

Q3: How do I handle drainage in tight urban lots?

A: Use clean gravel, continuous filter fabric, and a perforated pipe sloped to daylight or a sump. Add weep holes on rigid walls and consider a vertical drainage mat when cohesive soils hold water.

Q4: Are geogrid-reinforced segmental walls suitable for small heights?

A: Yes. For 3–6 feet, SRWs with proper geogrid can be efficient and attractive. Follow NCMA guidance on grid placement and backfill compaction; poor compaction undermines performance.

Q5: What safety factors are typical for sliding and overturning?

A: Common targets are about 1.5 for sliding and 2.0 for overturning under service loads, but consult local codes and your engineer. FHWA NHI-10-024 provides practical ranges and check procedures.

Q6: Do I need a geotechnical report for a small residential wall?

A: Even a brief memo helps. Soil friction angle and unit weight drive pressures and stability; guessing can mis-size the wall. If a full report isn’t feasible, ask for a limited-scope evaluation.

Q7: Can I mix materials—timber and masonry—in one design?

A: Absolutely, but keep structural roles clear. Use engineered elements for earth retention and apply timber or stone as facings or accents. Detail moisture protection to avoid premature decay.

Q8: What codes or standards should I reference?

A: BS 8002:2015 and FHWA NHI-10-024 are respected for earth-retaining structures, and NCMA guides cover SRWs. Cite them in your retaining wall design calculations PDF to align with best practice and streamline reviews.
