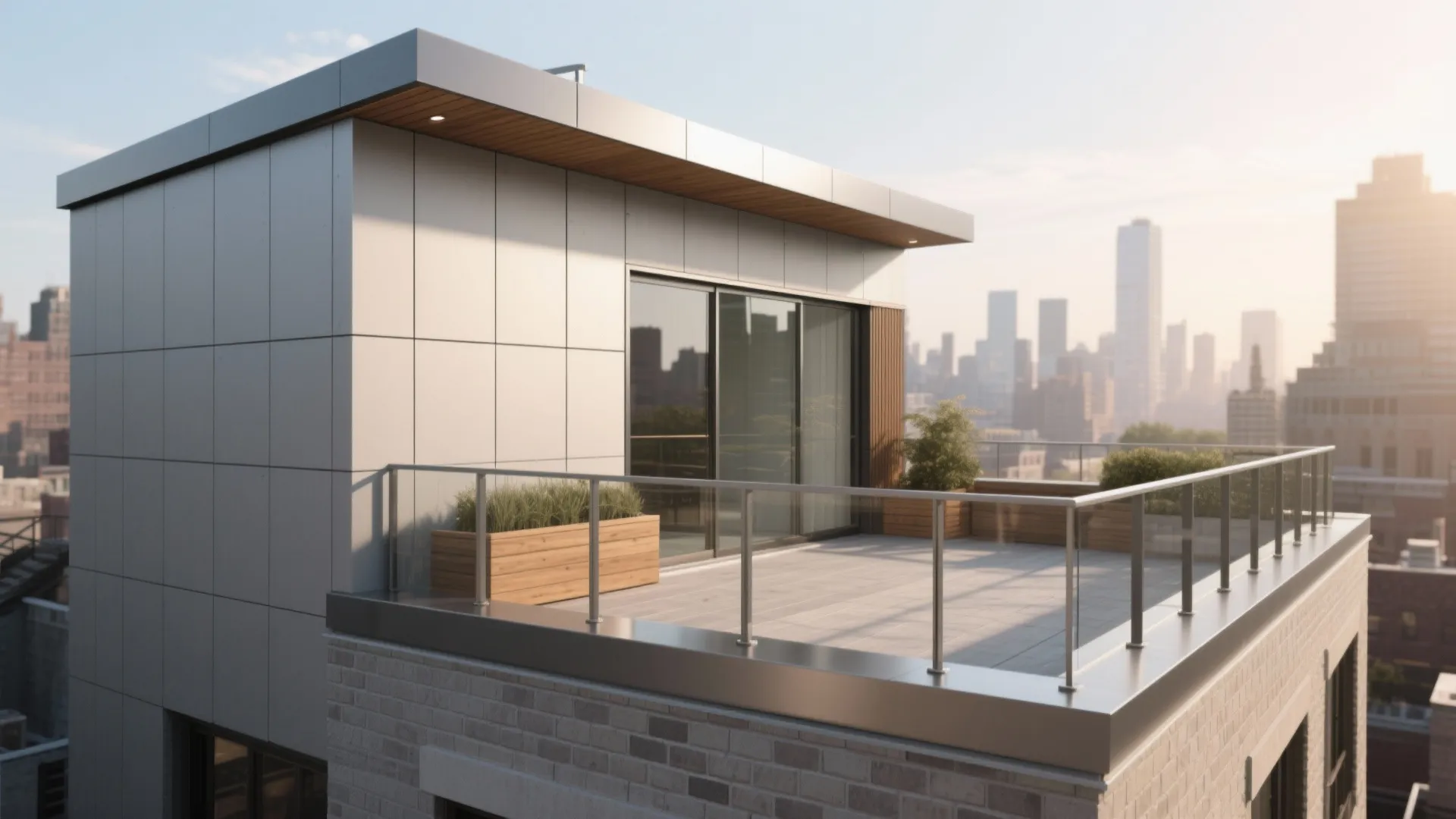

Roof Parapet Wall Design: 5 Smart Ideas That Work: A senior interior designer’s practical guide to roof parapet wall design for style, safety, and weather performance—5 ideas you can actually build.

[Section: Meta 信息] Meta Title and Description are provided in the meta field below. [Section: 引言] I’ve redesigned dozens of roof edges for compact homes and urban terraces, and roof parapet wall design keeps proving one thing: small spaces spark big creativity. From wind uplift to waterproofing, a parapet can be the slim line that decides whether a rooftop is livable, safe, and beautiful. In this guide, I’ll share 5 design inspirations grounded in my projects and backed by expert data, so you can tackle roof parapet wall design with confidence. Quick note before we dive in—on one small townhouse terrace, a thoughtful parapet profile turned a blustery corner into a calm seating nook while hiding drainage details. That was the day I learned that roof edges are never “just walls.” [Section: 灵感列表]

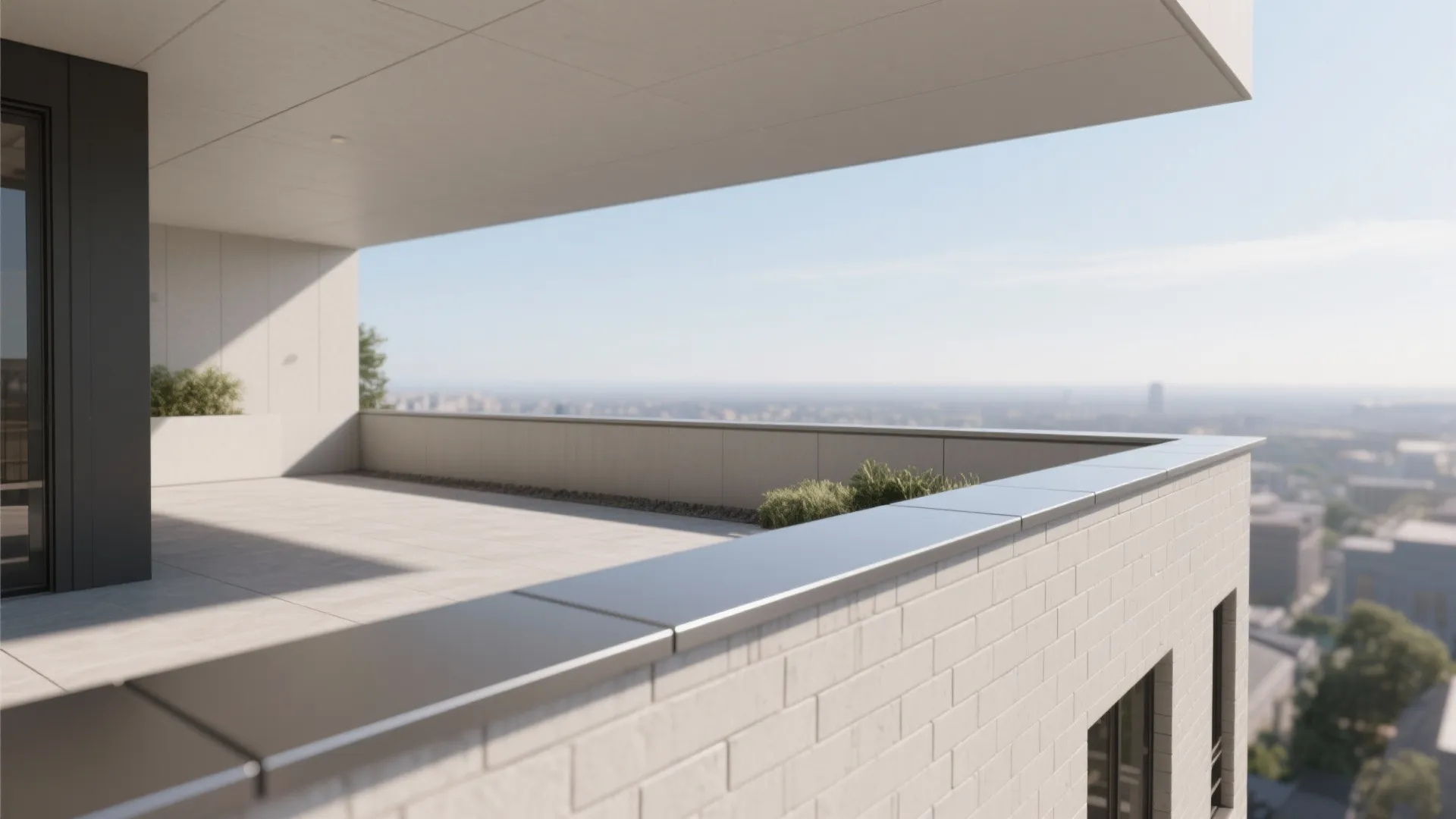

1) Minimalist parapet profiles for clean lines

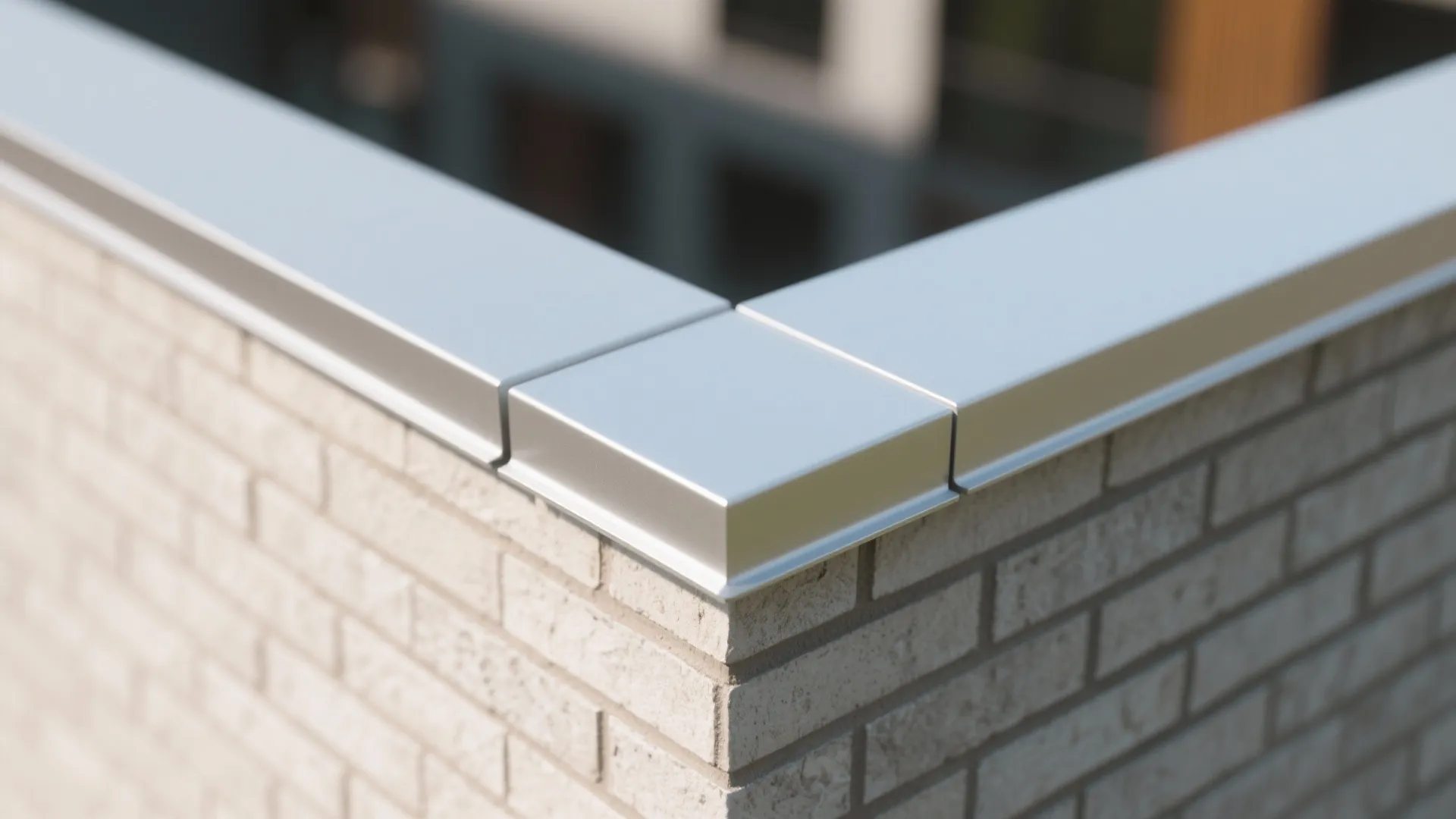

My Take On a recent micro-rooftop (under 18 m²), I used a 120–150 mm-thick parapet with a flush coping and concealed drip edge. The clean sightline made the space feel bigger, and clients loved how the horizon read uninterrupted. Pros - Slim profiles visually lighten the massing and support the long-tail keyword “modern flat roof parapet details.” - Simple sections reduce shadow clutter, which can make narrow terraces feel wider. - With a metal coping and a continuous cap flashing, maintenance stays predictable. Cons - Minimalism can hide mistakes: any unevenness in coping level or joint alignment shows immediately. - Ultra-thin parapets may limit insulation returns at the roof edge if not coordinated with the roofing build-up. Tips / Cost - Specify a 1:12 slope on the coping surface and a 15–20 mm drip to keep water off the face. - Powder-coated aluminum copings are cost-effective; stainless caps look premium but raise costs. [Internal link at ~20%] If you’re mapping edge conditions and furniture zones, I often reference “L shaped layout frees more counter space”—in rooftop terms, that translates to planning circulation and seating smartly; a quick mock-up using “L shaped layout frees more counter space” logic helps align coping breaks with use zones: L shaped layout frees more counter space.

save pin

save pin

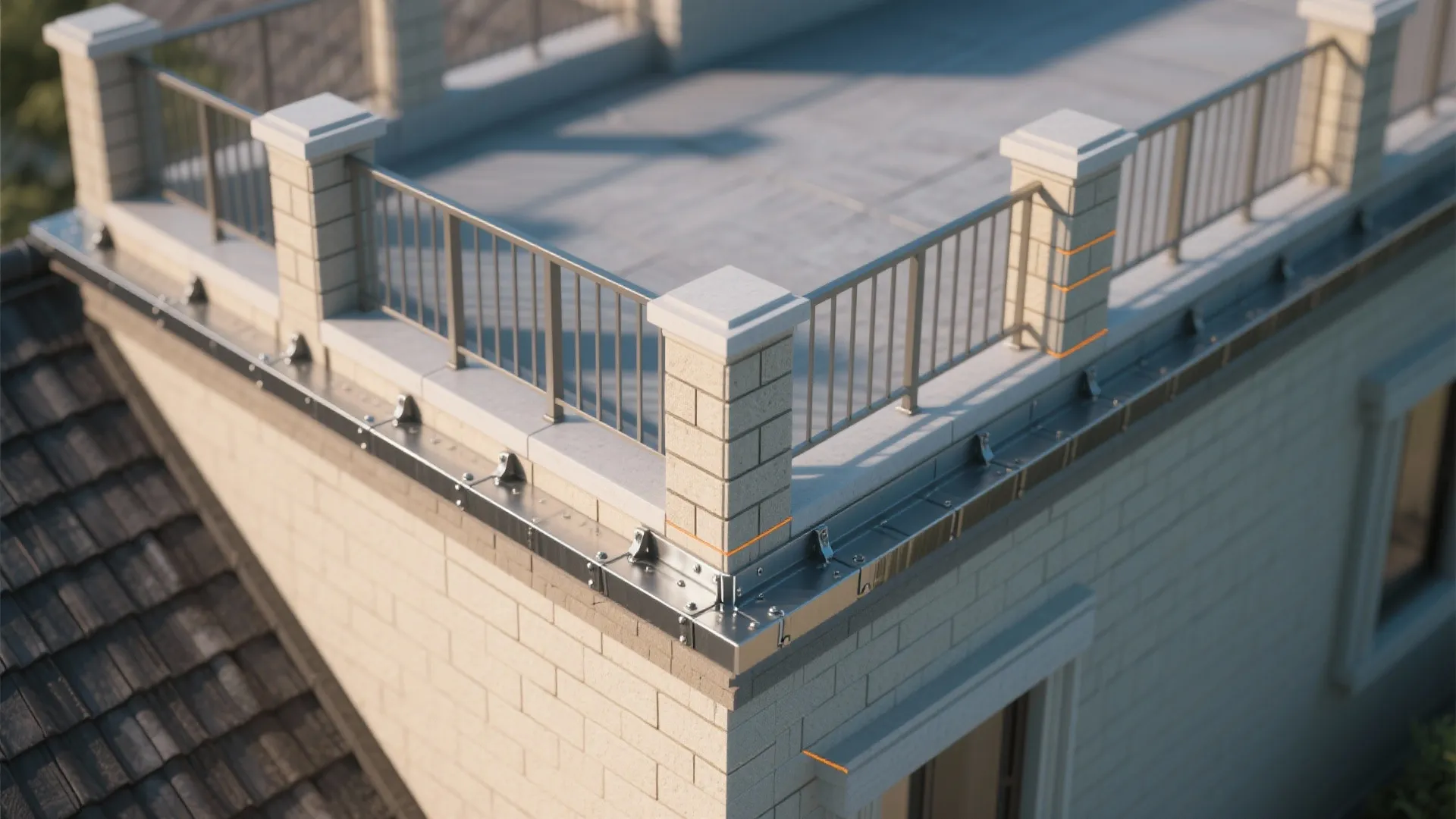

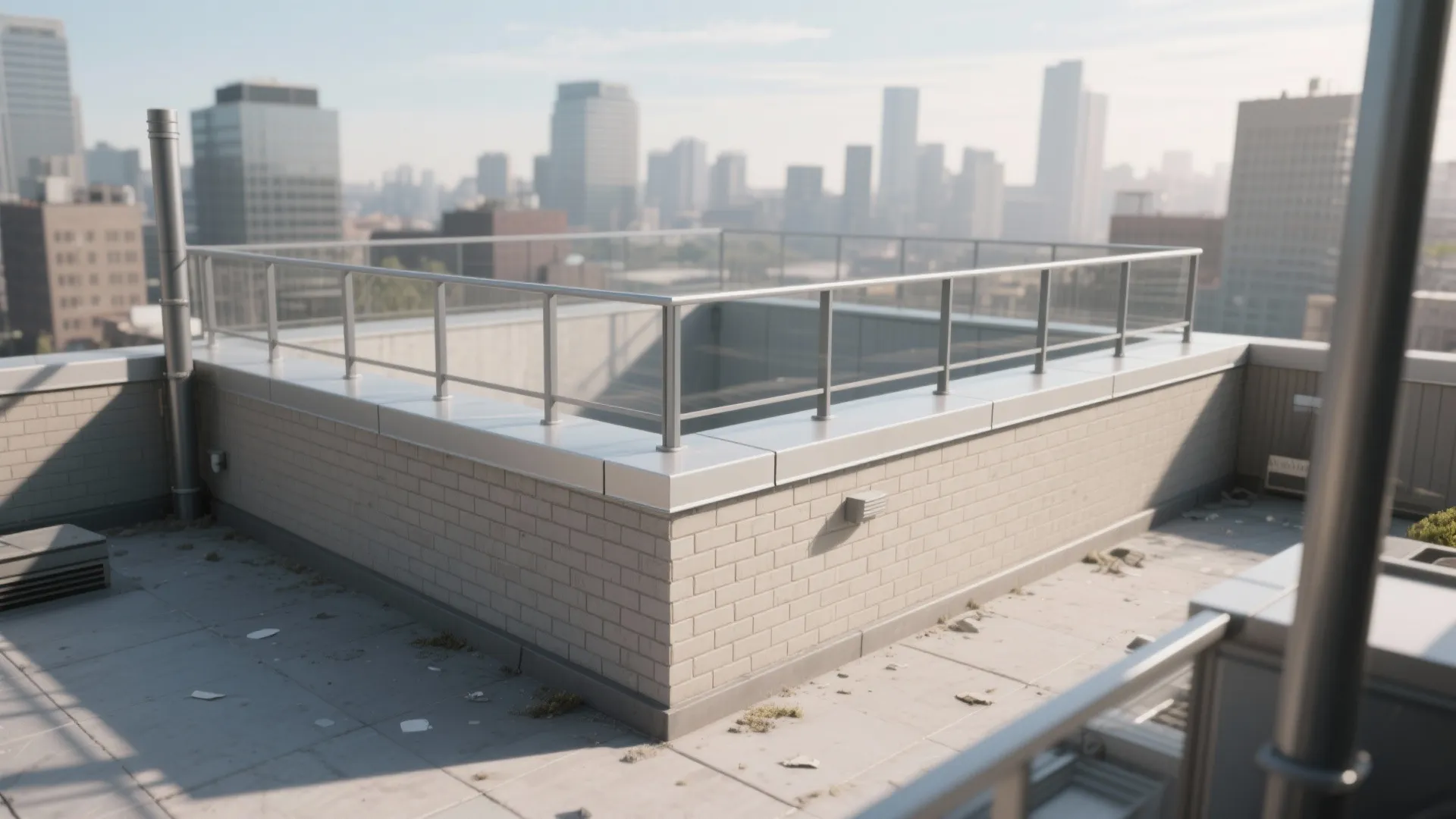

2) Wind-rated guard/parapet combos (safety-first)

My Take Many clients want the lightness of a guardrail with the solidity of a parapet. I’ve had success with a 450–600 mm masonry parapet plus a 500–700 mm guard to achieve code height while keeping the base robust. Pros - Combining a low parapet with a light guard maintains sightlines and meets the long-tail need for “roof parapet wall height code compliance.” - The solid base blocks debris and wind at foot level; the upper guard preserves views. - ASCE 7 wind load checks and anchorage to structural elements increase durability (ASCE/SEI 7-22 provides wind pressure guidance). Cons - Mixed materials mean more transitions; flashing at post penetrations can be fussy. - In coastal zones, salt spray demands higher-spec fasteners and coatings to avoid corrosion. Tips / Source - For guard post penetrations, use welded base plates on raised curbs with fully sealed boots. Where allowed, fascia-mounted posts avoid roof penetrations. - Reference: ASCE/SEI 7-22 for wind load parameters; always confirm local code height requirements (often ~1070 mm total in many jurisdictions—verify locally).

save pin

save pin

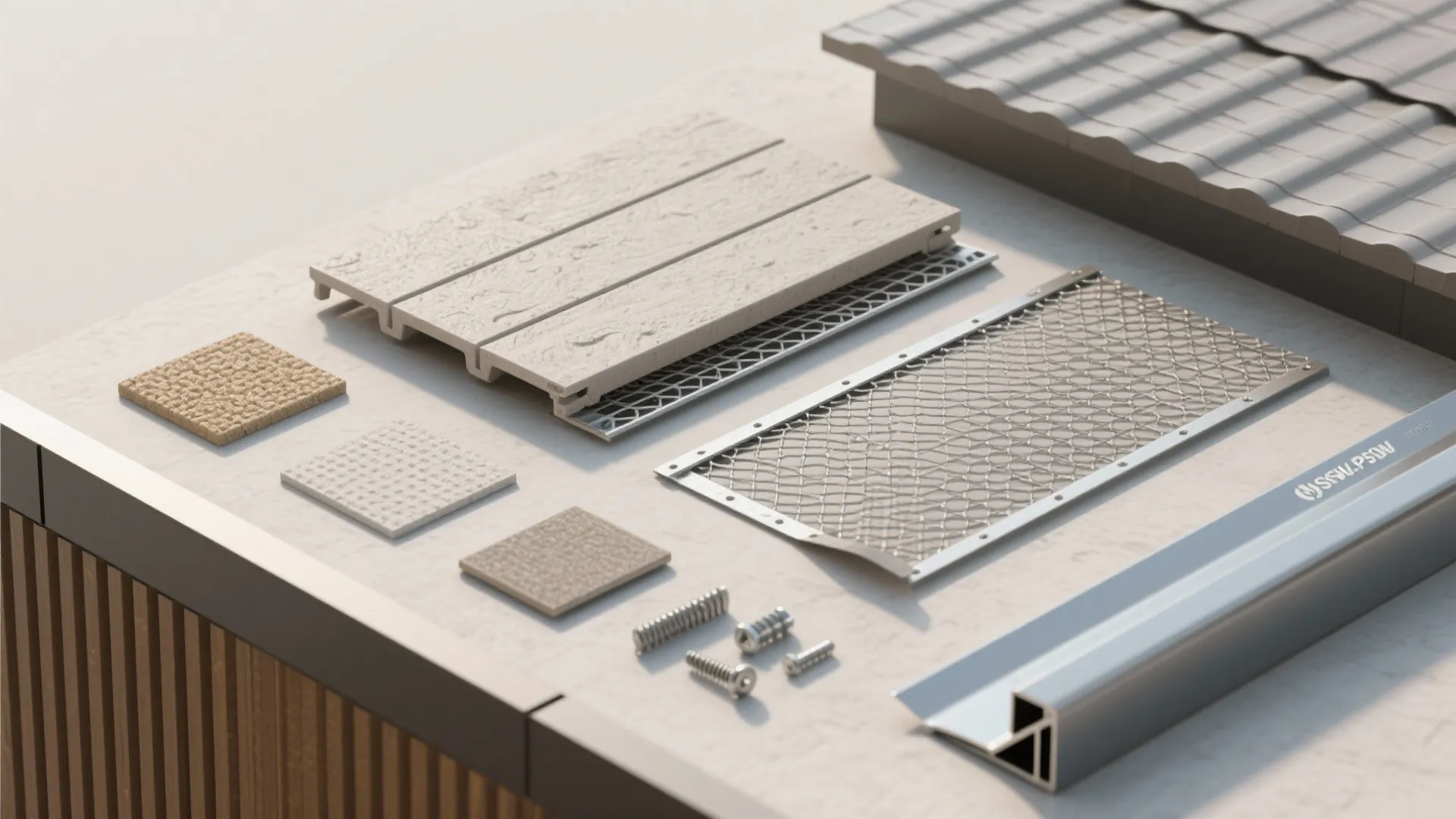

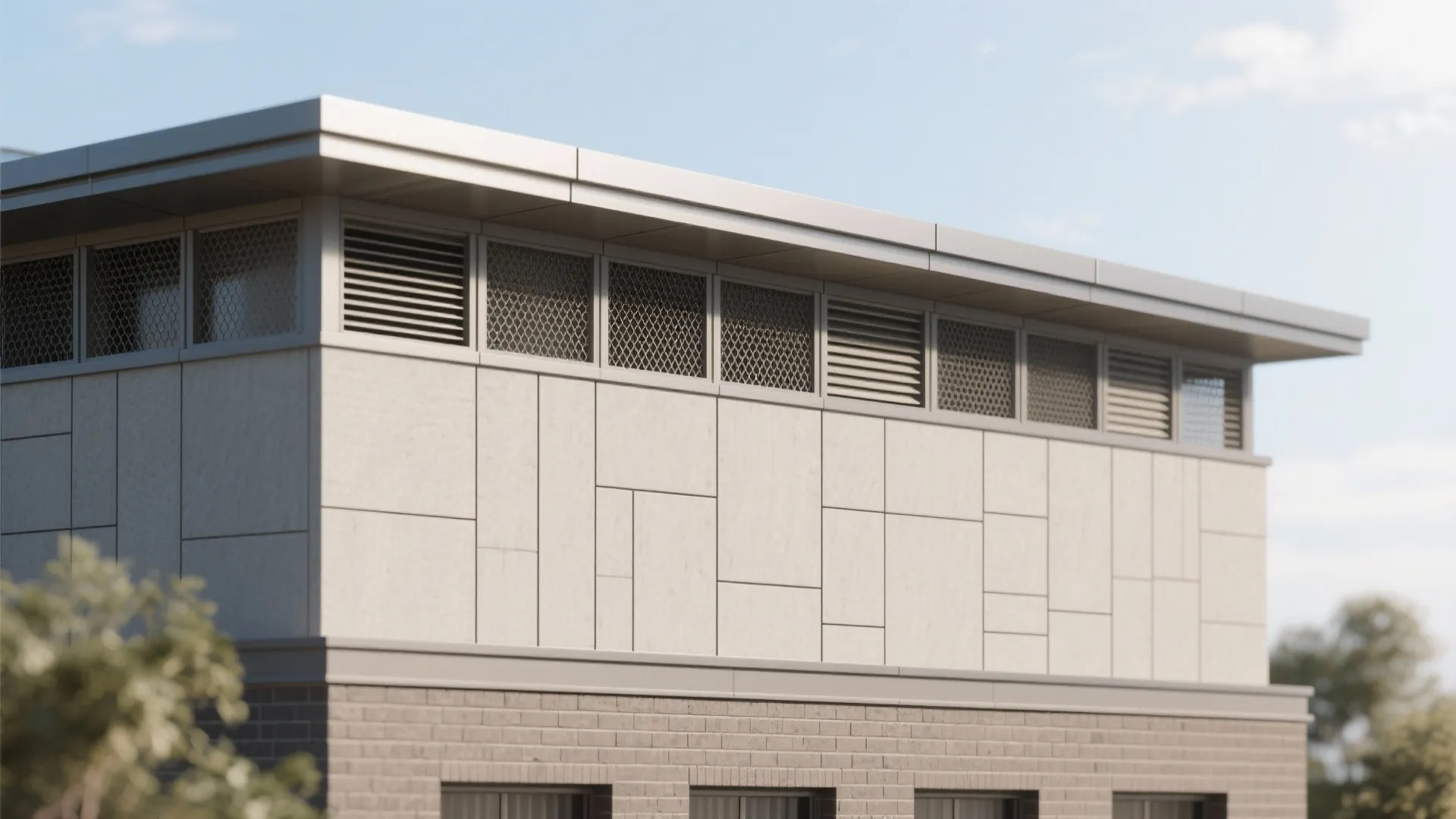

3) Rainscreen cladding over parapets for durability

My Take A client once asked why their parapet kept hairline cracking. We switched to a ventilated fiber-cement rainscreen over a masonry parapet with a metal coping. Five monsoons later, no staining, no cracks. Pros - A ventilated cavity helps pressure equalization and reduces moisture drive—great for “parapet waterproofing details for flat roofs.” - Replaceable cladding panels mean easier long-term maintenance. - UV-resistant facades keep parapet faces looking fresh longer, especially on south- and west-facing elevations. Cons - Extra depth: the cavity and furring add 30–60 mm, which can affect terrace width. - More components mean more line items in the budget and on the contractor’s punch list. Tips / Source - Specify open-joint rainscreens with insect mesh; maintain a 10–20 mm ventilation gap. - Use two-stage weathering: primary roof membrane upturn + secondary air/water barrier behind cladding. APA and BSI publications discuss pressure moderation in rainscreens; see BSI (Building Science Corporation) resources for parapet moisture control insights. [Internal link at ~50%] On tight timelines, I mock up edge junctions in 3D to catch conflicts between coping, cladding, and guards; here’s where a quick “3D render home” study saves rework: 3D render home.

save pin

save pin

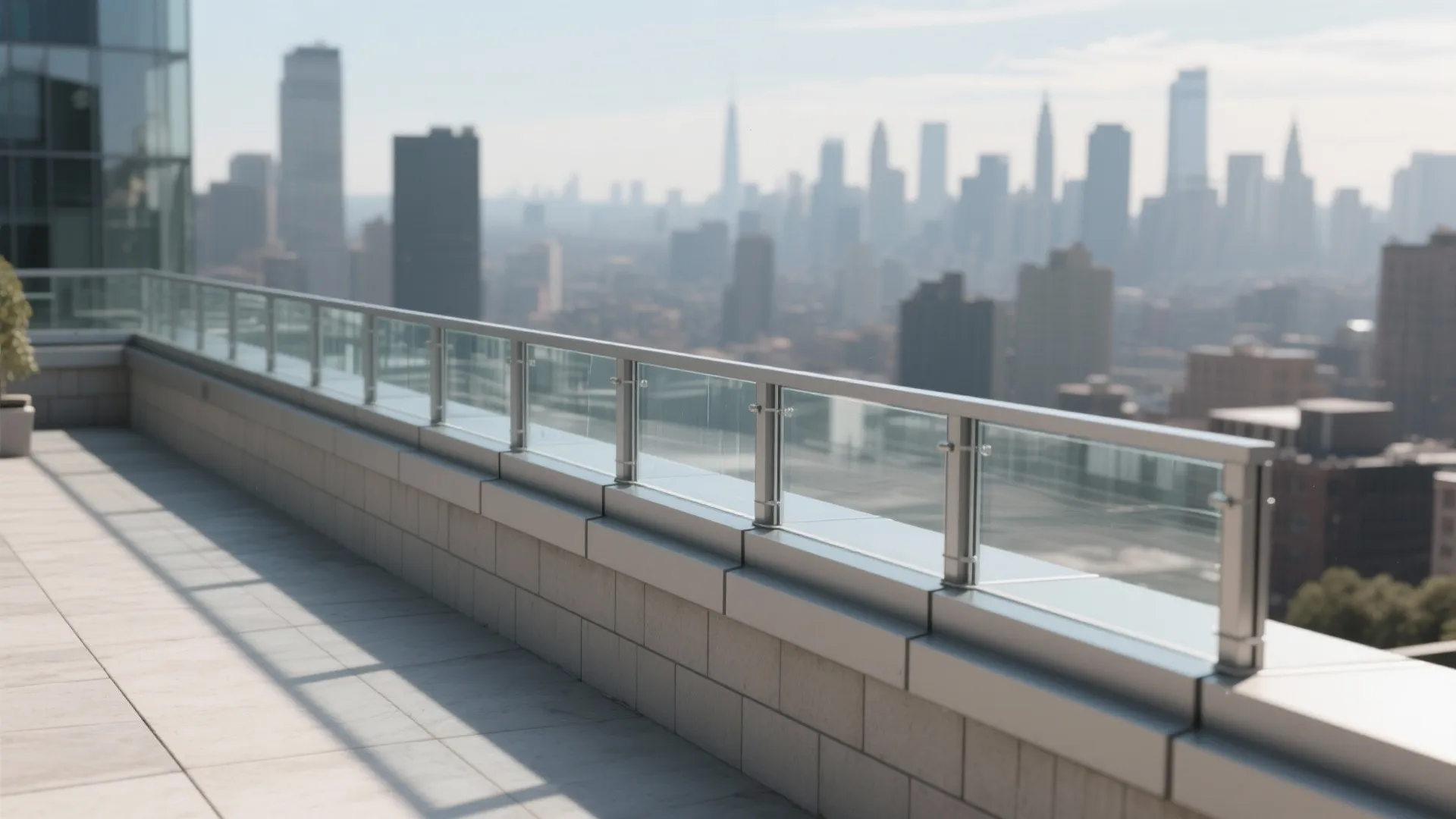

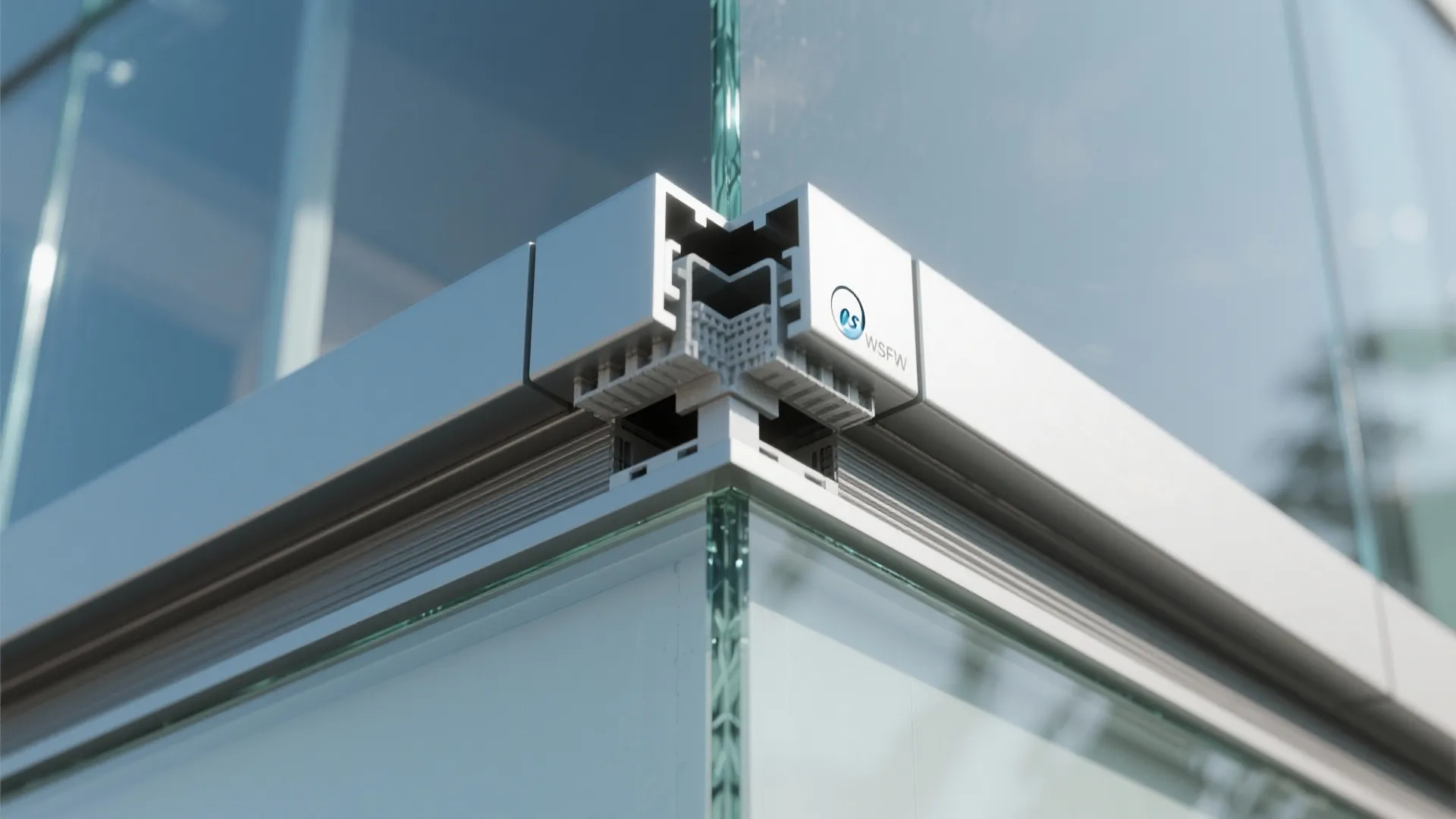

4) Glass tops or insets for view and wind control

My Take For a city roof garden, we replaced the top 300 mm of a solid parapet with laminated glass set in concealed channels. The street noise dropped a notch, wind softened, and the skyline view stayed uninterrupted. Pros - Laminated glass improves acoustics slightly and maintains daylight, aligning with “glass parapet wall design for rooftops.” - Where allowed, a transparent upper band reduces perceived bulk and preserves outward views. - Easy to clean if you specify hydrophobic coatings. Cons - Fingerprints and water spots are real; you’ll need a squeegee routine. - Higher upfront cost versus masonry alone; thermal breaks at channels are essential in hot/cold climates. Tips / Source - Use laminated, heat-strengthened glass with SGP interlayer for better post-breakage performance (see ASTM E2353 and relevant glass guard standards; check local adoption). - In high-wind areas, increase glass thickness and verify guard loads per IBC/ASCE. Edge gaskets and drainage weeps are non-negotiable.

save pin

save pin

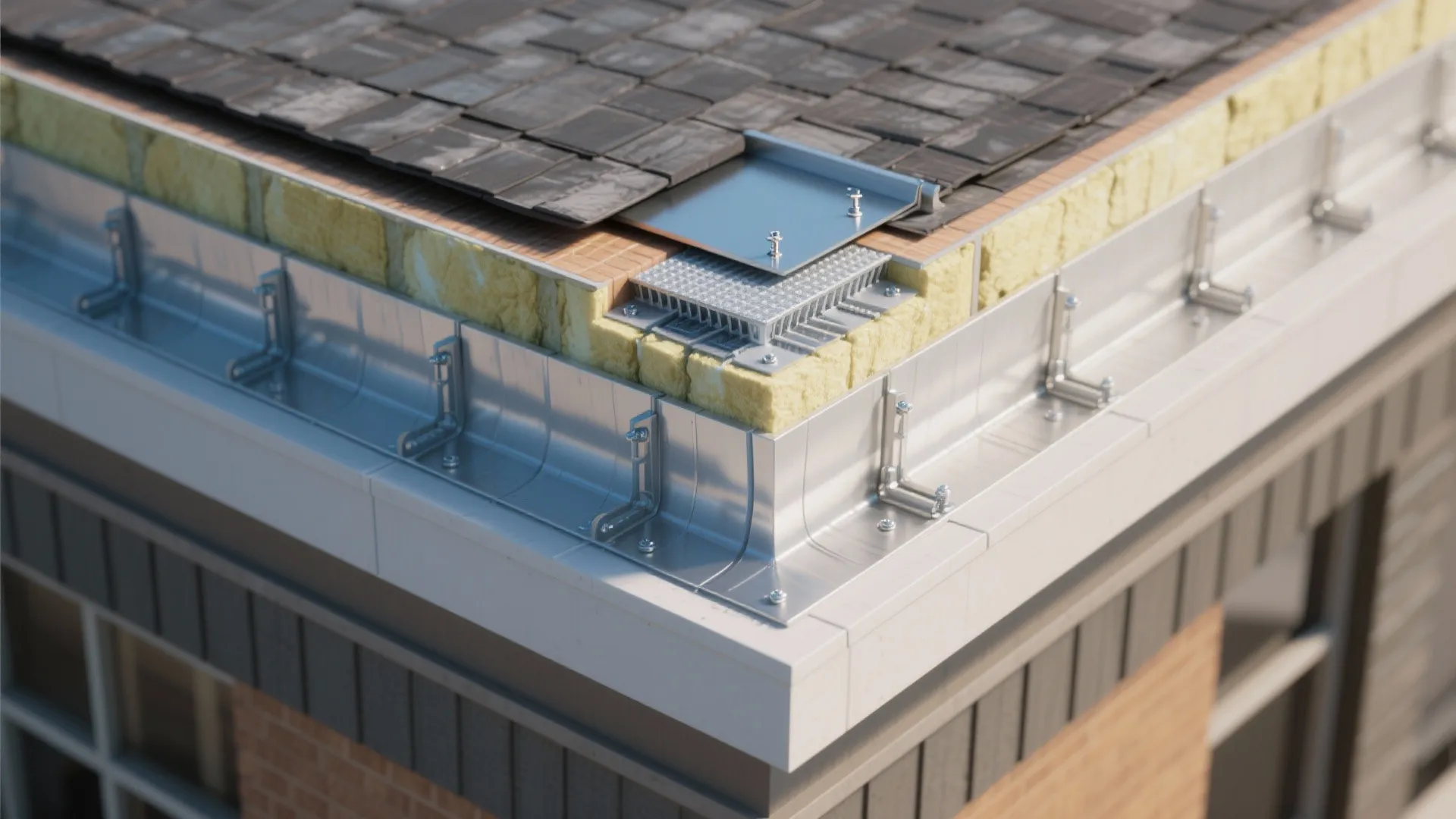

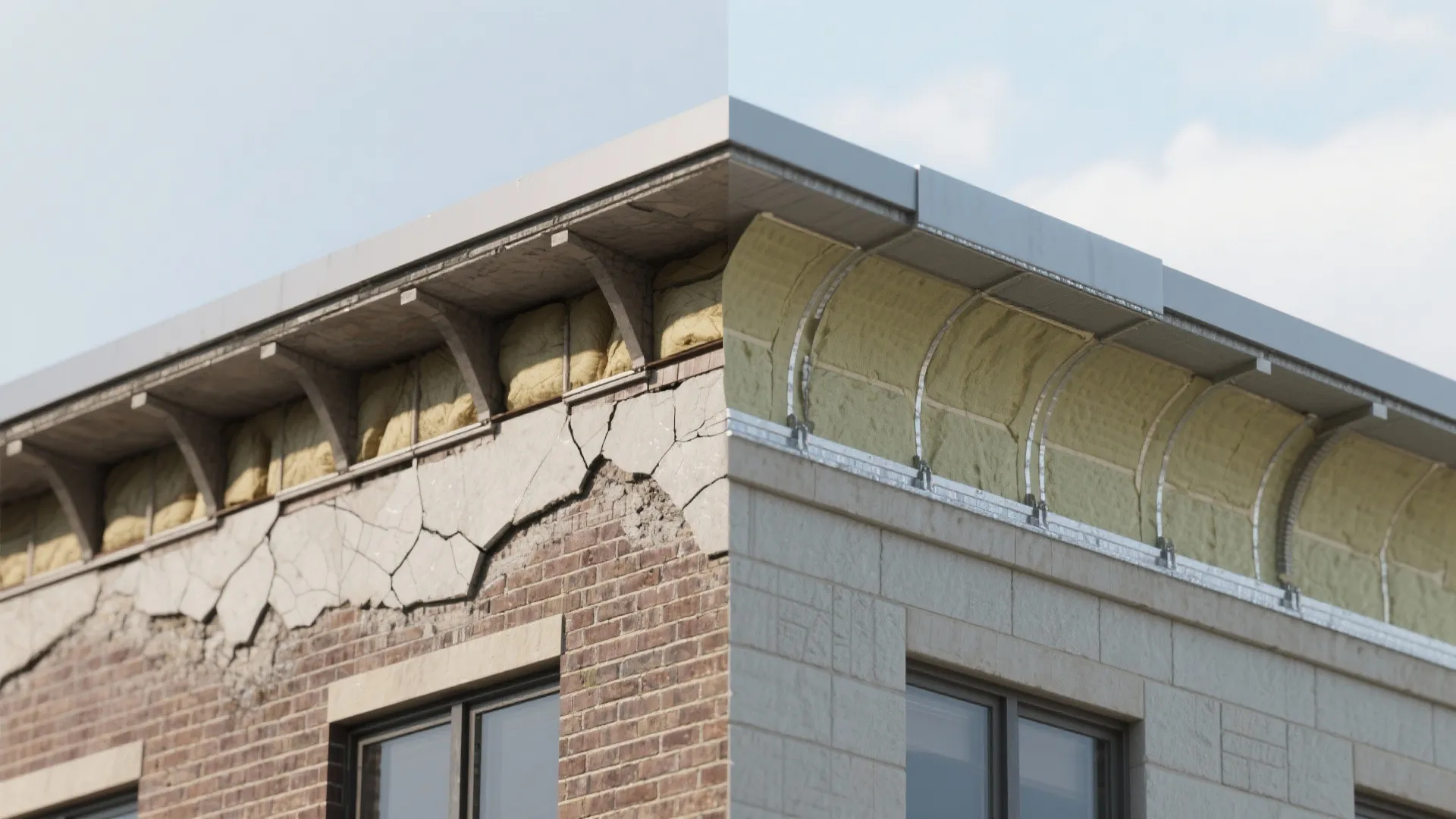

5) Thermal and moisture detailing that actually lasts

My Take Most parapet failures I’m called to fix trace back to interrupted insulation and poorly terminated membranes. On a retrofitted walk-up, we wrapped continuous insulation over the roof edge, added a sloped nailer, and brought the membrane up and over with fully adhered coping. Leak calls stopped. Pros - Continuous insulation across the roof-to-wall junction addresses “parapet thermal bridge mitigation” and reduces condensation risk. - A sloped parapet backup sheds water, and a continuous coping with hemmed drips protects the face. - Properly placed through-wall flashing with end dams controls hidden leaks. Cons - Detailing looks dense on paper and can intimidate small crews. - If you skimp on compatible primers and sealants, adhesion failures will find you after the first freeze-thaw. Tips / Authority - Follow NRCA Roofing Manual and IIBEC practice notes for membrane upturns, term bars, and coping attachment. Where snow loads exist, guard against ice dams with redundant flashing. - Schedule a mid-construction inspection for substrate moisture and fastener pull-out—cheaper than re-roofing. [Internal link at ~80%] When I iterate parapet layers—membrane upturns, insulation returns, coping fasteners—I like to sanity-check clearances using a quick “AI interior design” concept model to visualize conflicts around scuppers and guards: AI interior design. [Section: 总结] Small kitchens taught me the same lesson as rooftops: constraints make us smarter. Roof parapet wall design isn’t a limitation—it’s an invitation to solve wind, water, and views with a few elegant lines. If you remember continuous insulation, reliable waterproofing, and honest materials, your parapet will look sharp and perform for years. Per NRCA and IIBEC guidance, details at the roof edge are where durability is won or lost. Which of these five ideas are you most excited to try on your next roof? [Section: FAQ 常见问题] 1) What is the ideal height for roof parapet wall design? - Many codes target a total guard height around 42 inches (about 1070 mm). If the parapet itself is lower, pair it with a guardrail to reach code. Always confirm local regulations. 2) How do I waterproof a flat roof parapet? - Bring the roof membrane up and over the parapet, add a sloped coping with a drip, and include through-wall flashing with end dams. The NRCA Roofing Manual outlines best practices for terminations and copings. 3) Do minimalist parapets leak more? - Not if detailed correctly. Even slim profiles need slope, continuous metal coping, compatible sealants, and membrane upturns. Poor transitions—not minimalism—cause most leaks. 4) Can I use glass in roof parapet wall design? - Yes, but specify laminated glass with proper structural support and drainage. Check guard load requirements in IBC/ASCE and use corrosion-resistant fixings in coastal areas. 5) How do I reduce thermal bridging at the parapet? - Return continuous insulation over the edge and use thermally broken copings or clips. This “parapet thermal bridge mitigation” strategy lowers condensation risk and improves energy performance. 6) What materials are best for long-term durability? - Masonry or concrete cores with metal copings and a ventilated rainscreen face are a robust combination. Stainless steel or powder-coated aluminum copings resist weathering; fiber-cement or metal panels handle UV well. 7) How do I manage wind loads on parapets and guards? - Coordinate structure and anchorage per ASCE/SEI 7 wind pressures. In high-wind zones, increase fastening schedules, use stiffer glass or guard posts, and avoid unbraced tall parapets without structural backing. 8) Can I plan parapet details with simple 3D tools? - Yes. A quick massing and detail check catches clashes between coping, posts, and scuppers early; a lightweight “3D render home” approach helps visualize edge conditions. For inspiration, see: https://www.coohom.com/case/3d-render-home
