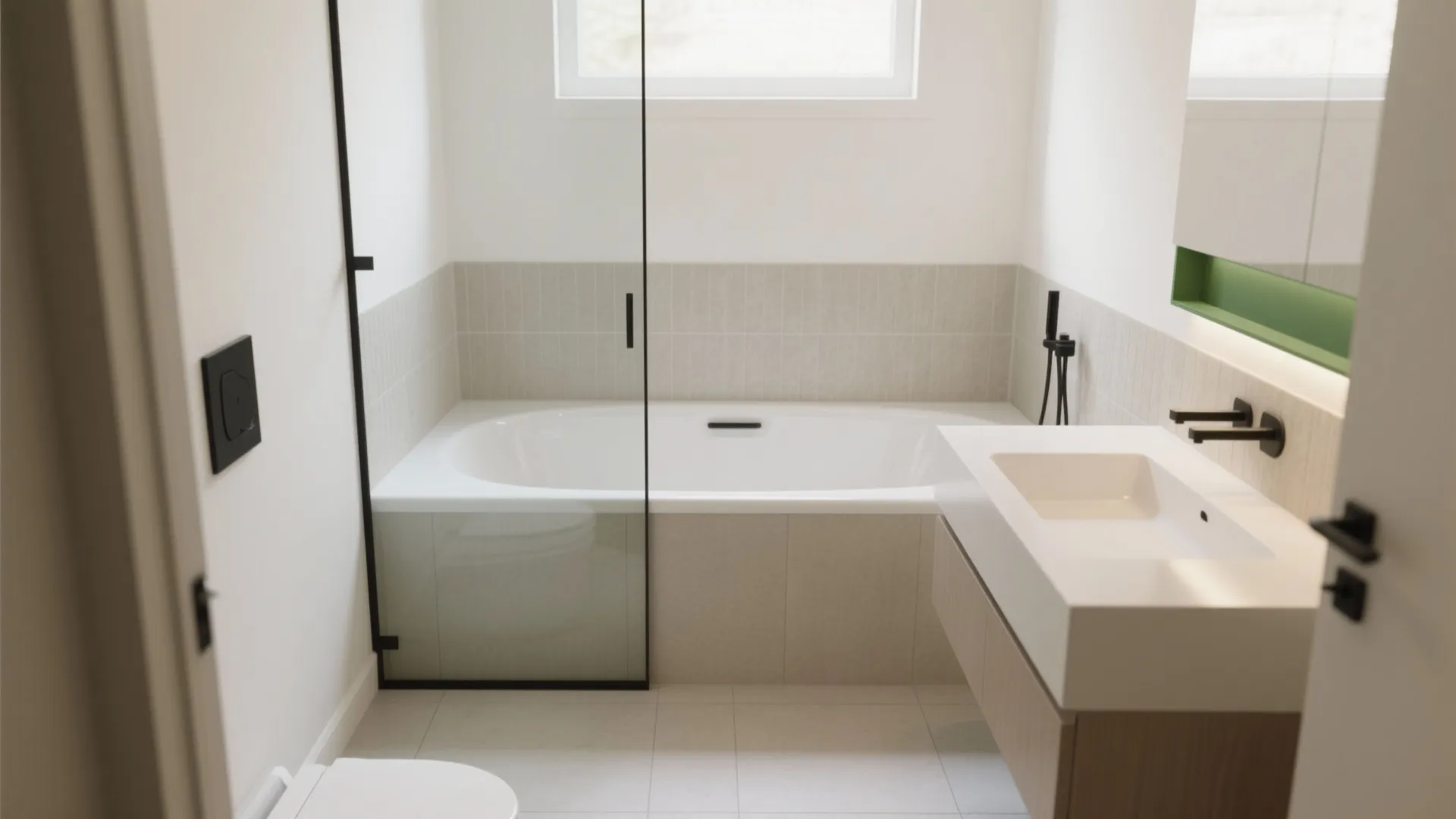

Small Bathroom with Bathtub: 5 Smart Design Ideas: Real designer tips and data-backed strategies to make a small bathroom with bathtub feel bigger, calmer, and easier to clean

[Section: Meta 信息] Meta Title and Description are in the meta field below. [Section: 引言] I’ve redesigned more than a dozen small bathrooms with bathtubs in the past decade, and the trend is clear: softer neutrals, micro-textures, and smarter storage are winning. Small spaces unlock big creativity—especially when you want the comfort of a tub without feeling cramped. In this guide, I’ll share 5 design ideas for a small bathroom with bathtub, blending my hands-on experience with expert-backed data. Fun fact from my own projects: most “impossible” tubs were saved by rethinking the surround, not the tub itself. Let me walk you through what actually works in tight footprints. [Section: 灵感列表]

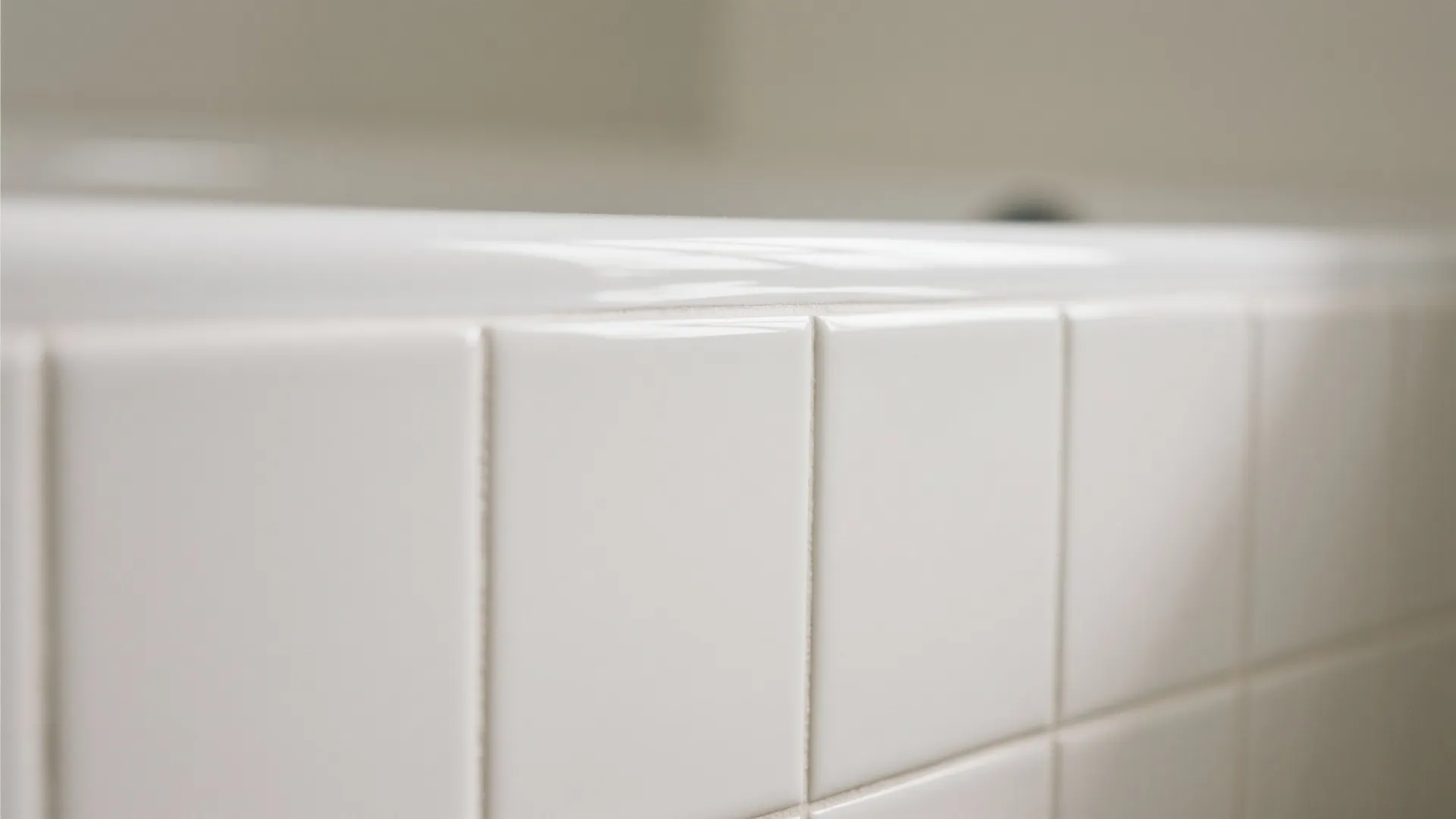

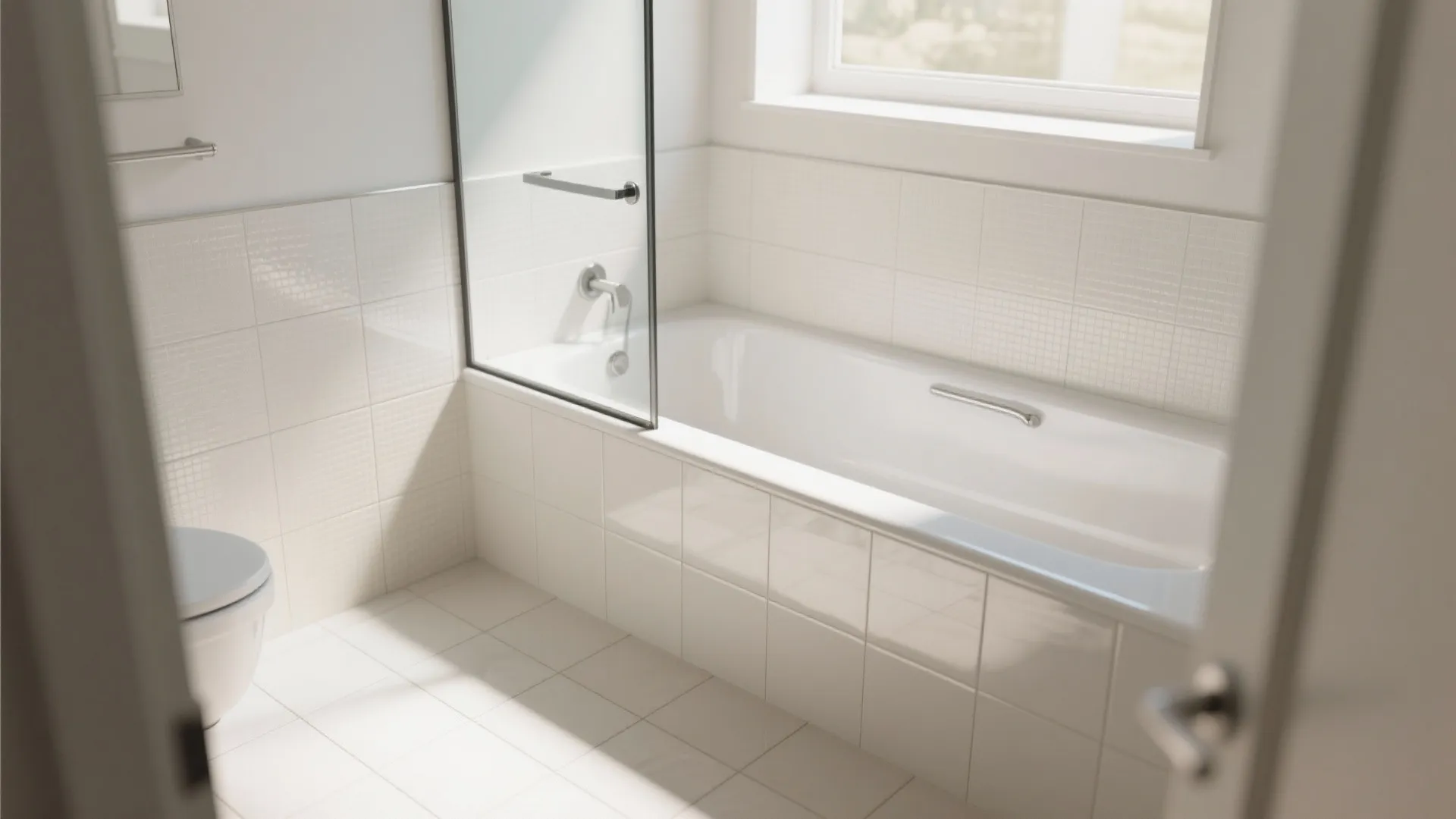

Frameless glass panel with a light-reflecting tub surround

My Take In a 4.5 m² bathroom for a young couple, I replaced a bulky shower curtain with a fixed frameless glass panel and tiled the tub apron with satin-white porcelain. The room immediately felt brighter, and cleaning got faster. Pros - A frameless panel reflects light and visually extends floor lines—great for the long tail keyword “small bathroom with bathtub ideas.” - Satin or semi-gloss tiles on the tub surround bounce light without glare, making the bath zone feel larger. - According to WELL v2 and lighting best practices, higher LRV (light reflectance value) materials can improve perceived spaciousness and mood. Cons - Glass shows water spots; if your water is hard, you’ll need a quick squeegee routine. I set a timer and treat it like a 60-second cooldown. - Fixed panels control splash but not as much as full enclosures—messy bathers may still challenge them. Tips / Cost - Specify tempered 8–10 mm glass; leave a 30–45 cm open walk-in gap for easy access. For budgets, panels range roughly $180–$600 depending on hardware. - For the render stage, preview reflections and tile joint lines using “Frameless glass panel” materials—testing before drilling helps. [Internal link 1 at ~20%] If you want to visualize aisle clearance and lighting bounce, check out “L shaped layout frees more countertop space” style planning in 3D via L shaped layout frees more countertop space.

save pin

save pin

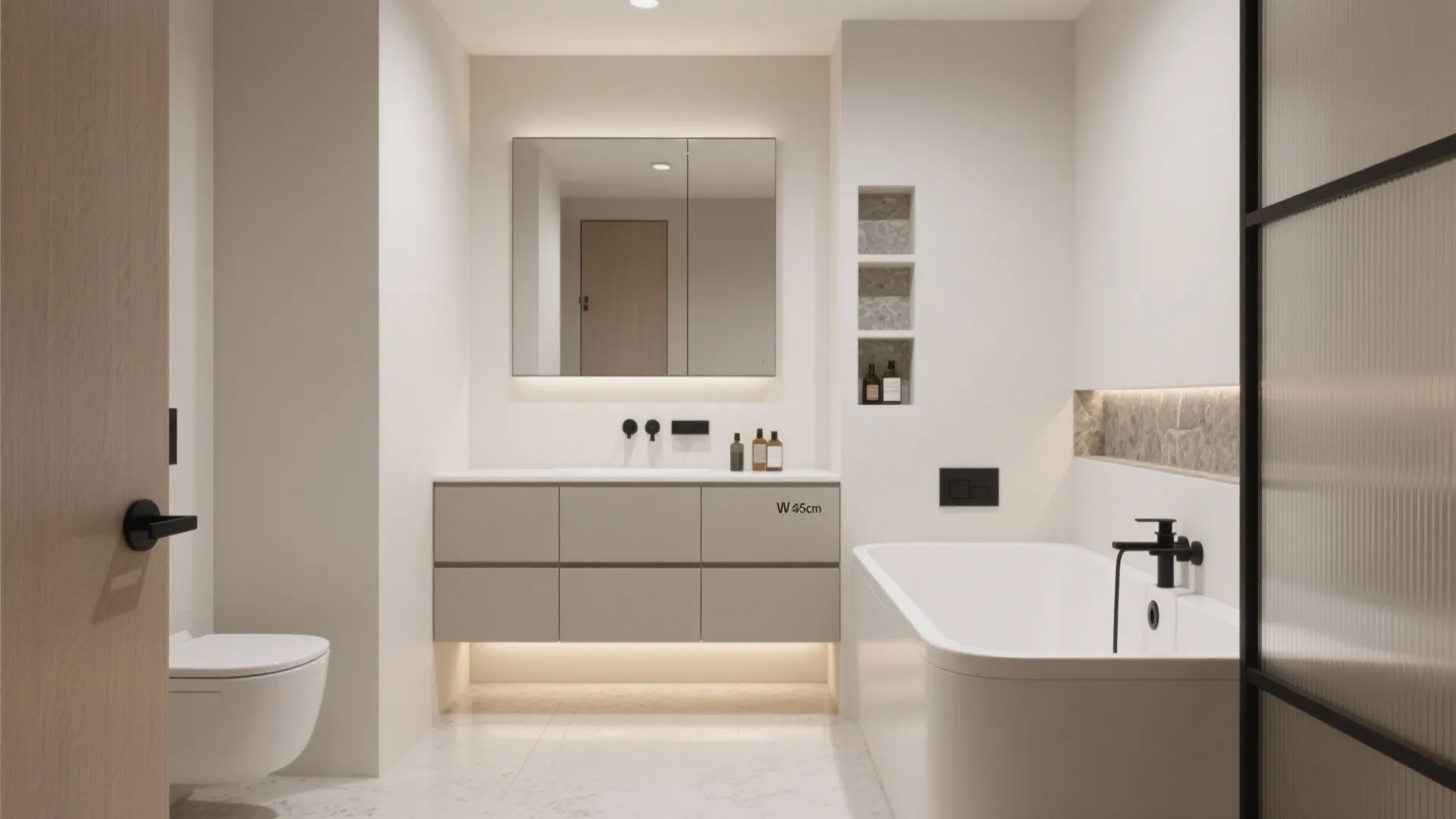

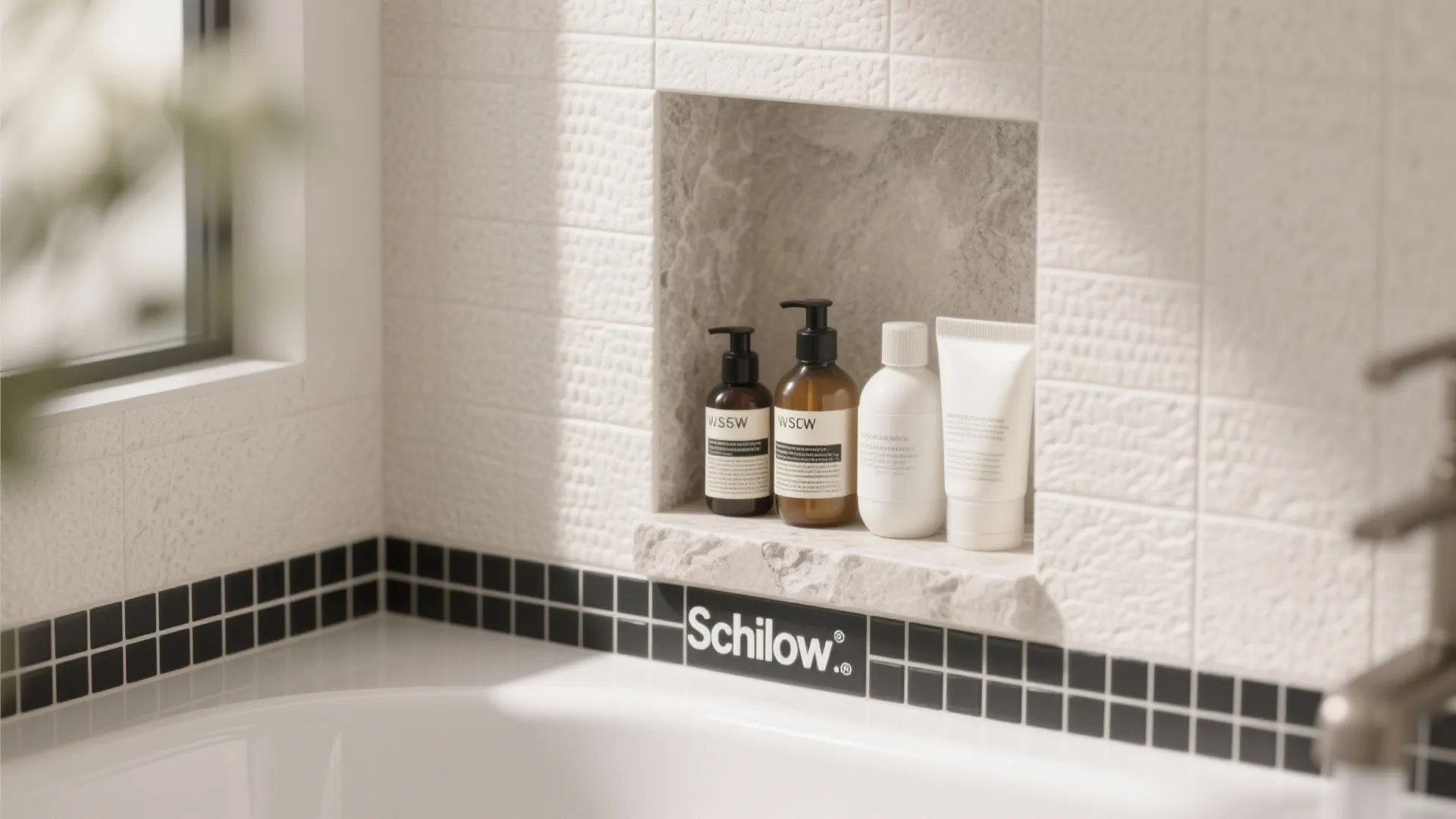

Wall-mounted vanity and niche storage along the tub

My Take I’m a huge fan of floating vanities paired with tub-side niches. In my own apartment, a 60 cm deep vanity felt clunky; switching to a 45 cm wall-mounted unit plus a vertical niche completely changed circulation. Pros - Wall-mounted vanities reveal more floor, which is a classic trick for “small bathroom with bathtub layout” optimization. - Tub niches (horizontal low niche for bath products, vertical niche near the headrest) reduce clutter and keep the rim clean. - Studies on environmental clutter suggest visible floor area correlates with perceived spaciousness; your eye reads more “breathing room.” Cons - Floating cabinets need proper blocking; retrofitting in old buildings can be fussy and dusty. - Over-niching weakens walls if you ignore stud/joist maps; coordinate with plumbing and waterproofing details. Tips / Cost - Keep niches 7–10 cm deep with stone or solid-surface sills for durability. Use Schluter-style trims for clean edges. - Plan a GFCI outlet inside the vanity for hair tools—small luxury, big difference.

save pin

save pin

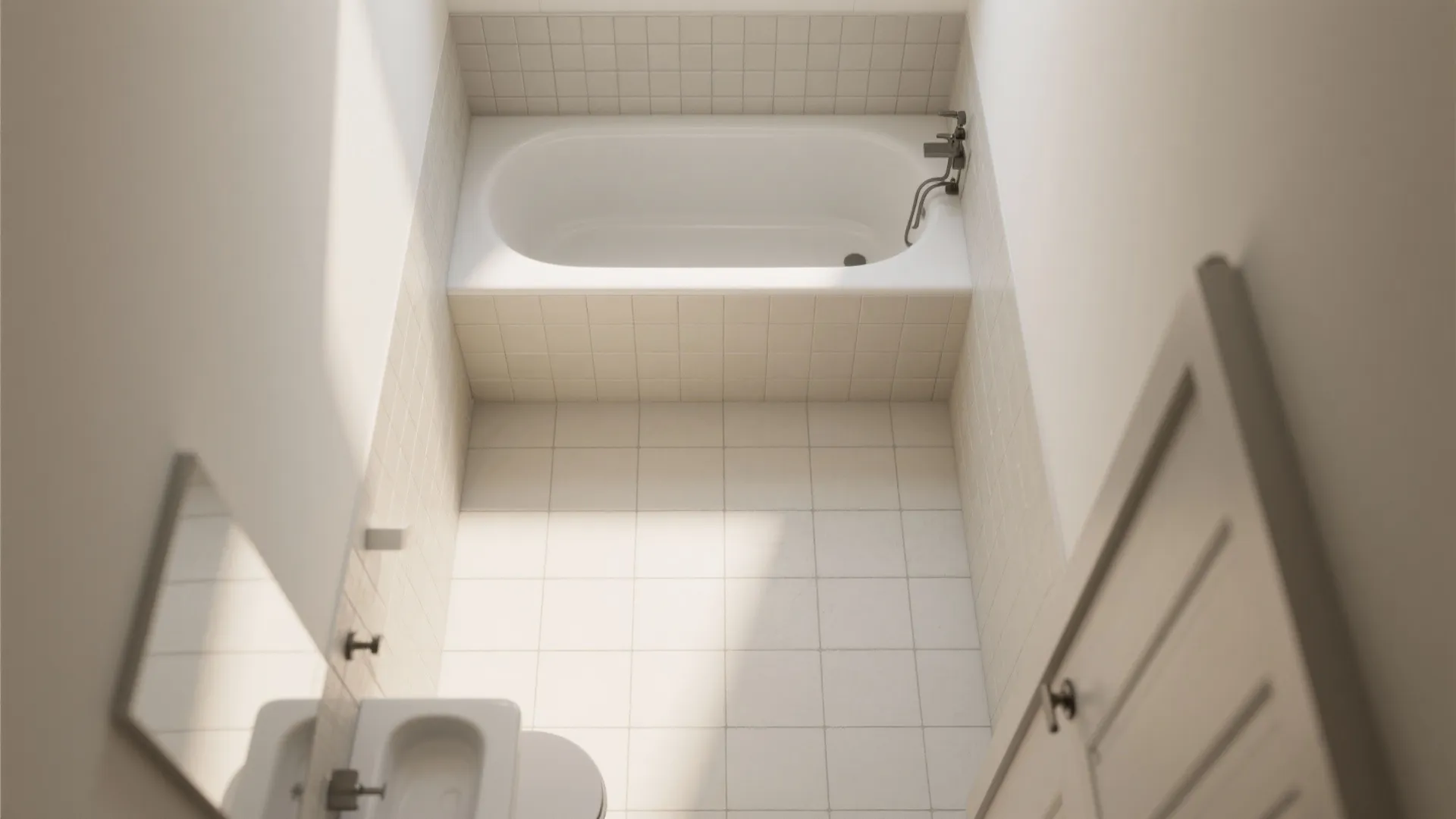

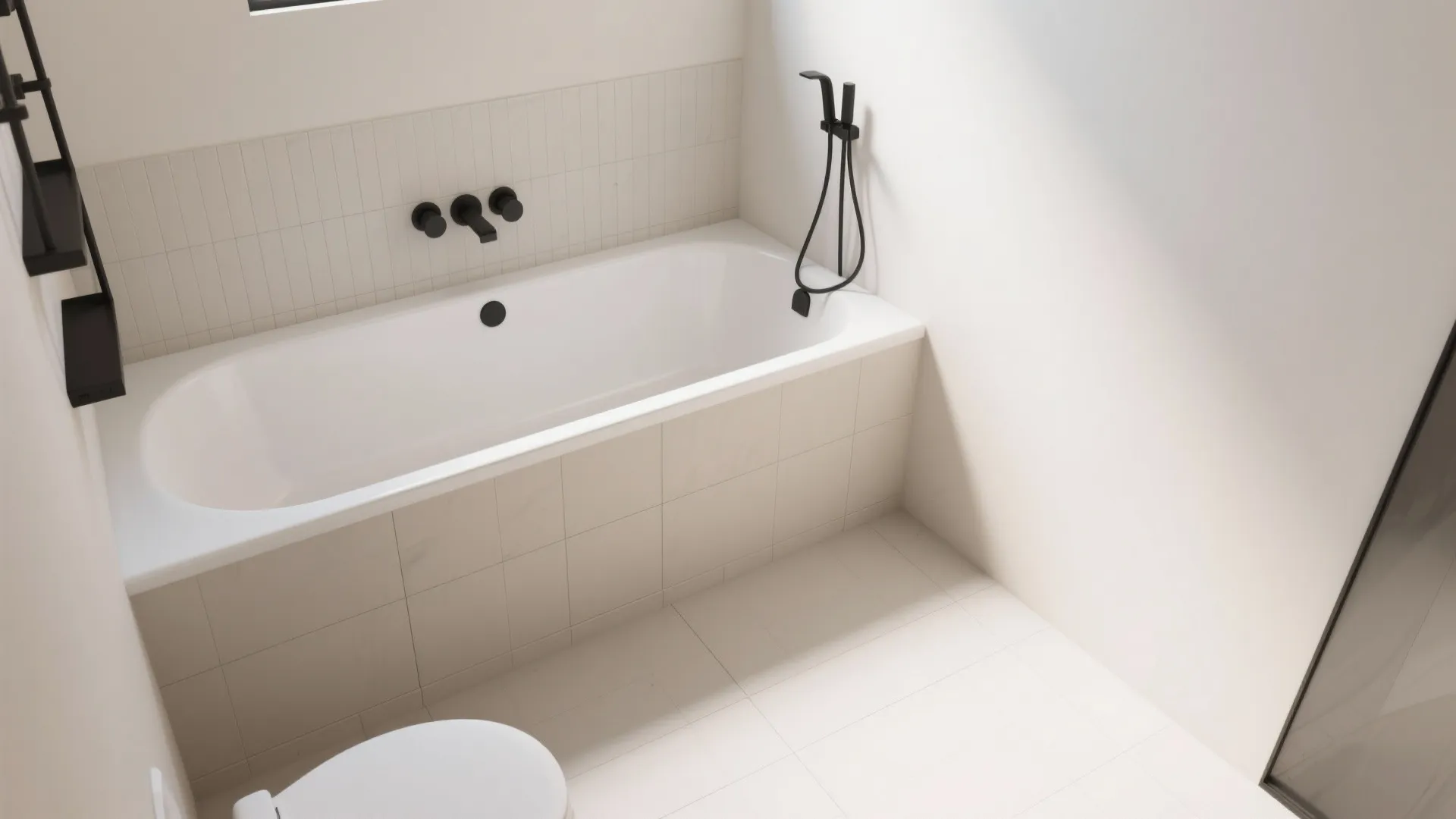

Continuous flooring and a low-profile tub with curved corners

My Take One of my favorite tricks is running continuous porcelain or SPC flooring right up to the tub face, then selecting a tub with gently radiused corners. I did this in a 1.4 m wide bath, and it visually “softened” the room. Pros - Continuous flooring creates a unified field that makes a small bathroom with bathtub feel wider; identical grout lines reduce visual breaks. - Low-profile, short alcove tubs (typically 150–160 cm) with 15–17 inch soaking depth maintain comfort while saving space—great for “small alcove bathtub for tiny bathroom.” - The CDC-backed slip-resistance guidance and ANSI A326.3 suggest choosing floor tiles with adequate DCOF for wet areas, which you can still find in elegant finishes. Cons - Not all floors should run under the tub; usually, you end at the apron. Confirm with your installer to avoid moisture traps. - Curved-corner tubs limit some curtain rod geometries if you don’t use a glass panel. Tips / Cost - If you love warm feet, radiant heat mats under porcelain can be zone-controlled; expect $12–$20 per square foot installed in many markets. - For a planning sandbox specific to bath geometry, try modeling the “glass backsplash makes kitchens more open” concept as an analog for reflectivity and sightlines in a bath. It’s a mental trick that works. [Internal link 2 at ~50%] To draft precise dimensions for tubs and clearances, simulate with glass backsplash makes kitchens more open so you can preview reflections and edges before you build.

save pin

save pin

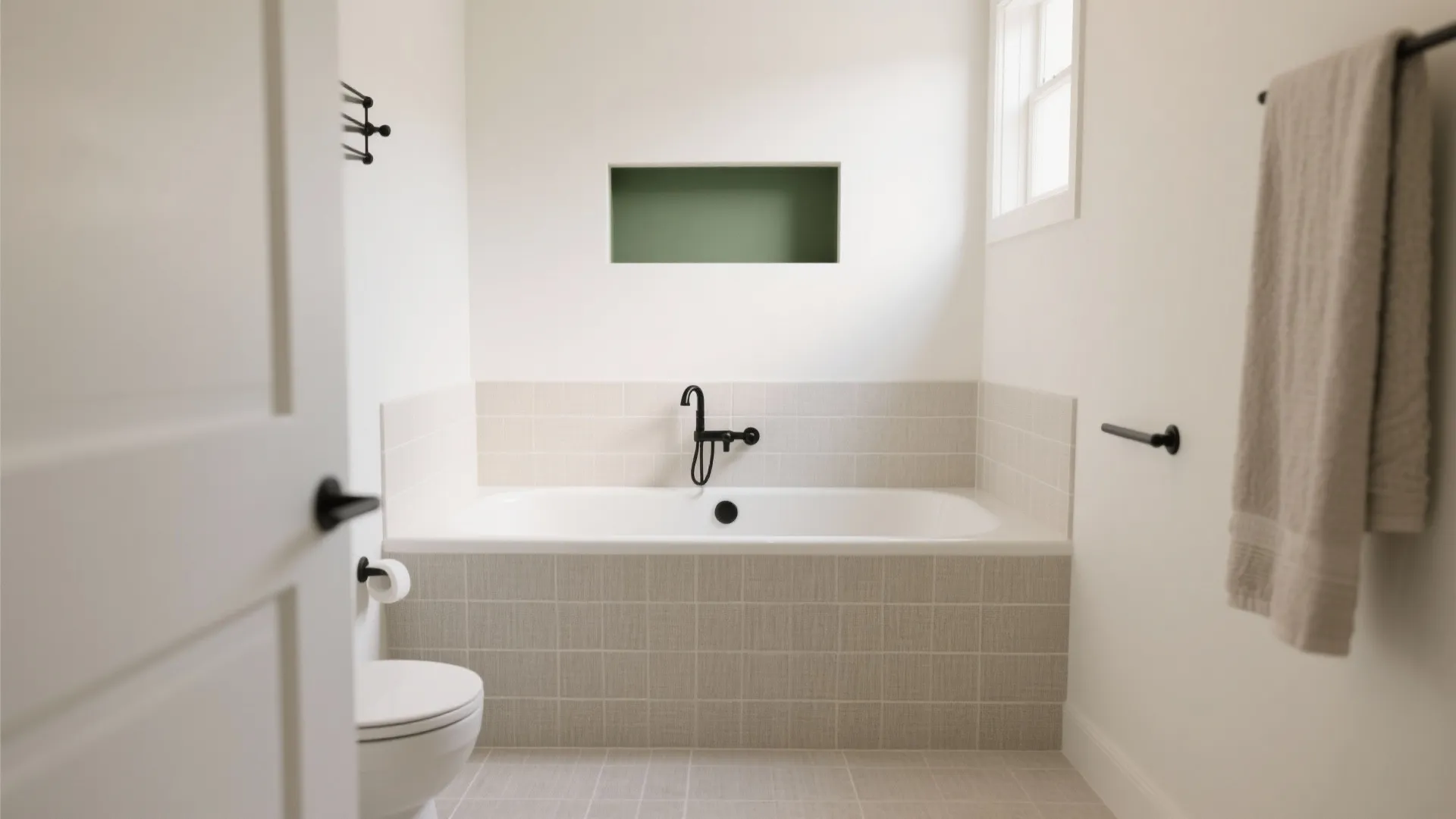

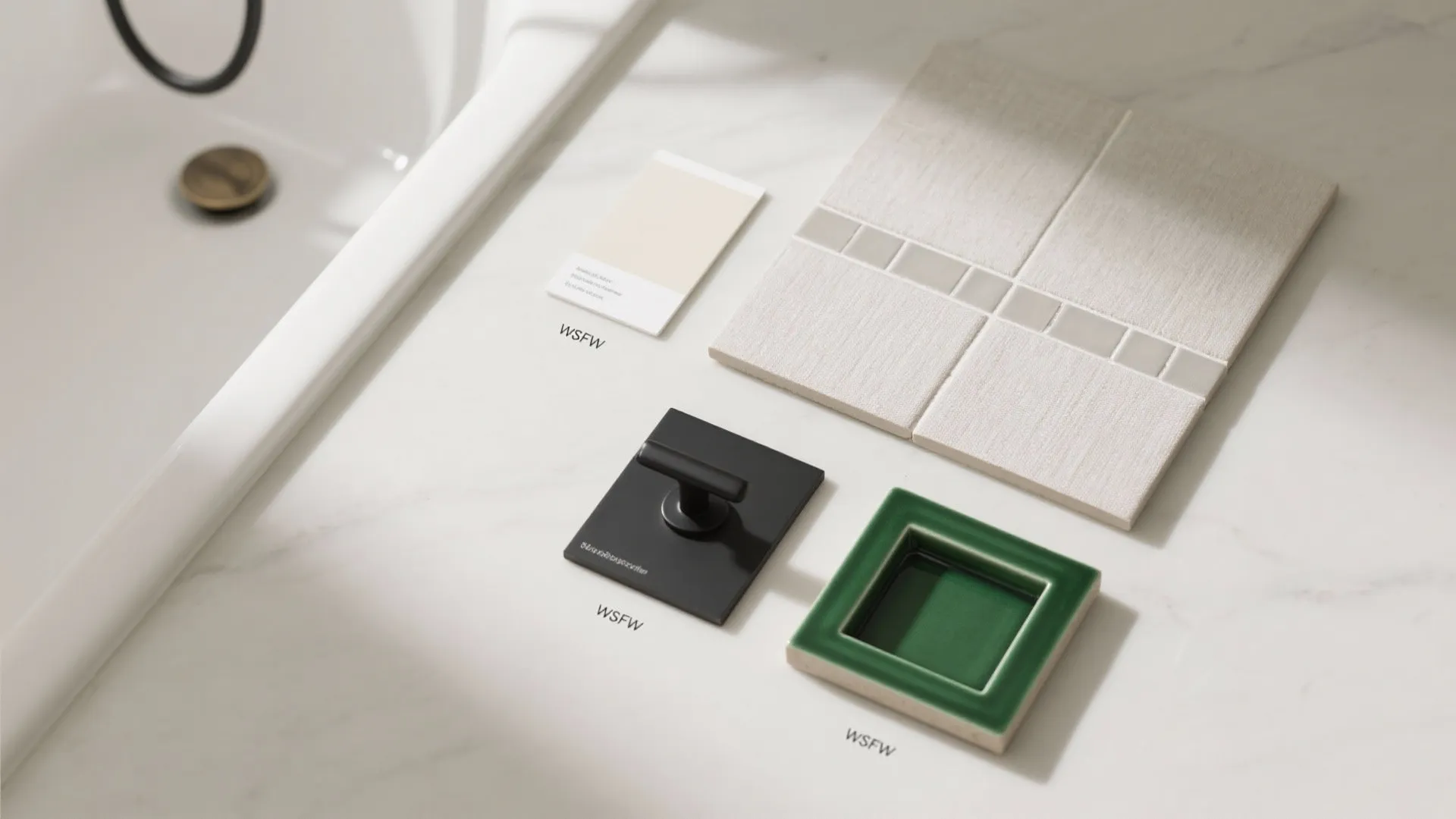

Soft-neutral palette with micro-texture and one bold accent

My Take When space is tight, I choose a calm base: warm white walls, pale greige tiles, and a micro-textured linen tile in the tub surround. Then I add one bold accent—like a deep green niche or matte black hardware. Pros - Soft neutrals increase LRV and help small bathroom with bathtub spaces appear larger while micro-texture hides water marks. - A single accent prevents monotony without chopping the room visually; this supports the “one-focus rule” I use in compact baths. - The NKBA Bathroom Planning Guidelines emphasize cohesive palettes and adequate task lighting, which complement light finishes for comfort. Cons - Overusing accents fractures the space—five statement choices in a tiny bath is five too many. - Very light grout can show staining; a mid-tone grout often ages better in shower/tub areas. Tips / Cost - Choose 300×600 mm tiles for fewer grout lines; reserve mosaics for the niche only to avoid busy patterns. - Paint-grade moisture-resistant MDF for trim can be cost-effective if properly sealed.

save pin

save pin

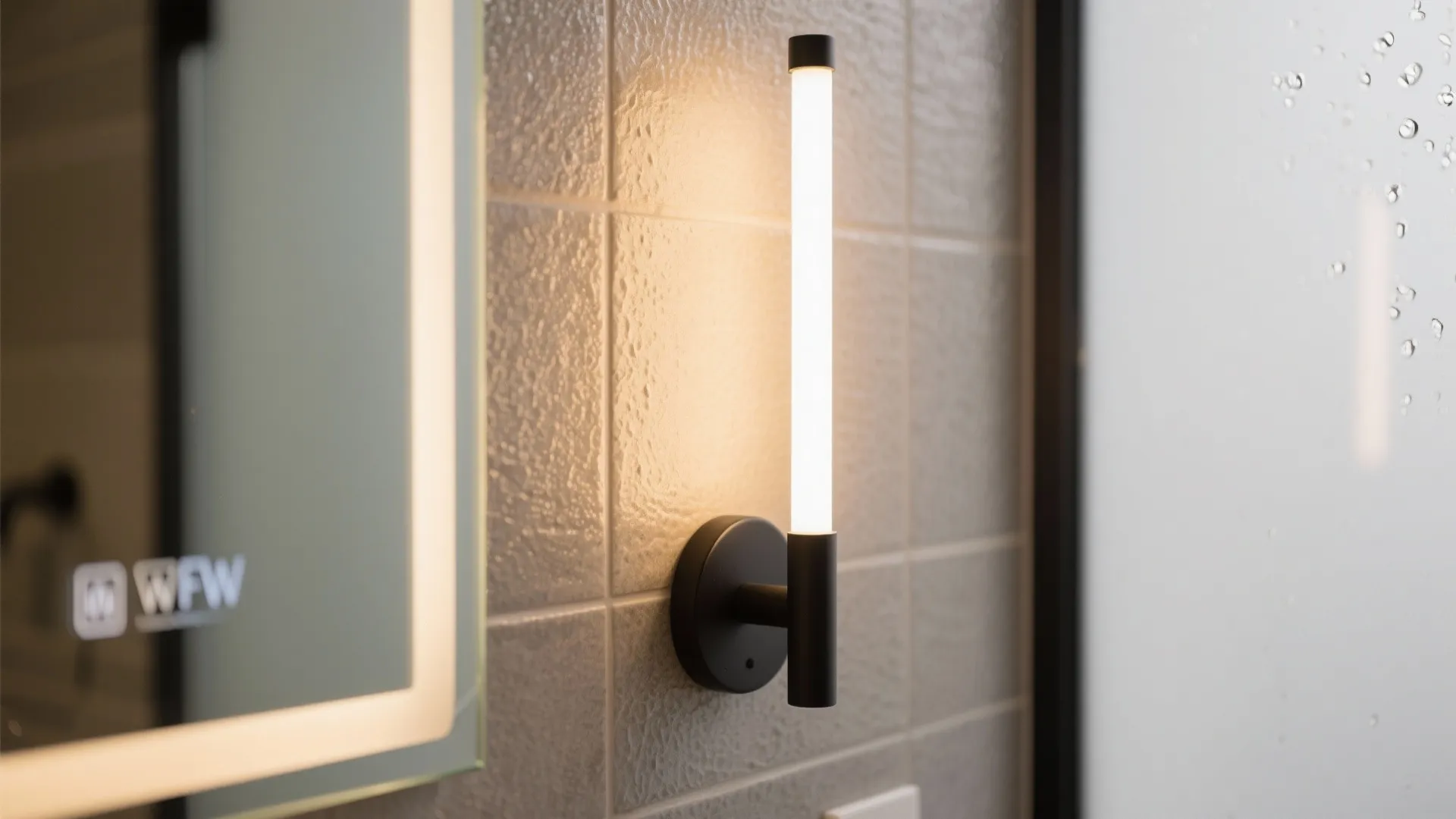

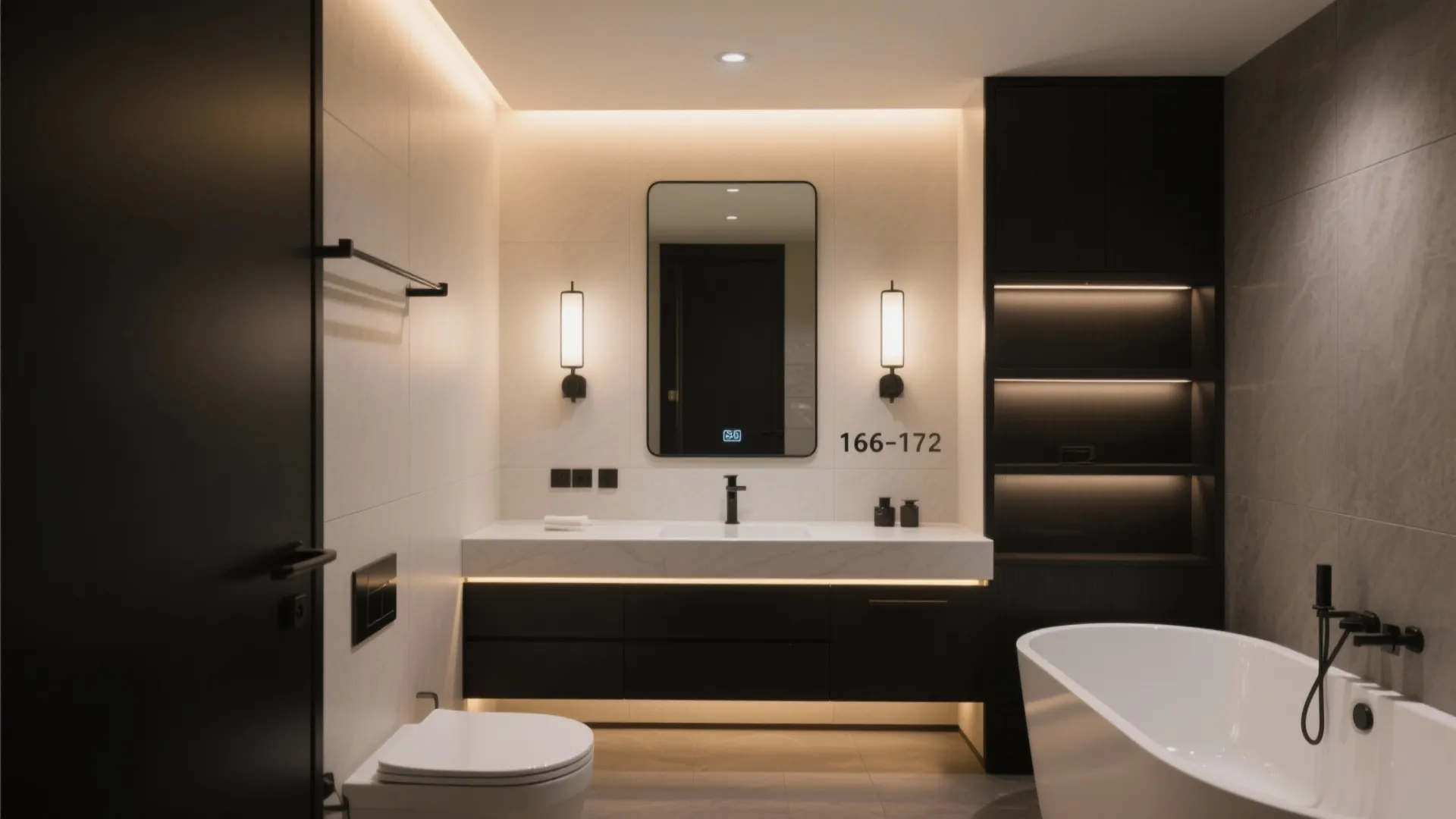

Layered lighting: task, ambient, and a dimmable soak mode

My Take I design lighting like a soundtrack. Bright and crisp for morning routines; dim and warm for evening baths. In one family bath, we added a toe-kick LED under the floating vanity—instant hotel mood. Pros - A three-layer scheme supports function and relaxation: CRI 90+ task lights around the mirror, indirect ambient, and a 2700–3000K dimmable soak mode—ideal for “small bathroom with bathtub lighting.” - IES recommendations favor uniform vertical illumination at the face; side sconces at 165–172 cm height reduce shadows for grooming. - Dimmers increase perceived luxury and can support circadian comfort in evening routines. Cons - Too many fixtures on different drivers complicate controls; keep circuits simple. - IP ratings matter near tubs; skipping this detail can kill fixtures and mood alike. Tips / Cost - Use wet-rated trims for any downlights over the tub; confirm local code for zoning around water. - Smart dimmers that remember last level are inexpensive upgrades that feel “custom.” [Internal link 3 at ~80%] If you’re testing sightlines and reflection points, run a quick mock in 3D using wood elements bring a warm atmosphere to see how finishes and lighting interact in a compact bath. [Section: 总结] A small bathroom with bathtub isn’t a limitation—it’s an invitation to design smarter. From glass panels and floating vanities to layered lighting, the right choices create comfort without clutter. As the NKBA and IES guidelines suggest, proportion and light matter more than square meters. Which of these five ideas are you most excited to try first? [Section: FAQ 常见问题] 1) What is the best bathtub size for a small bathroom with bathtub? For tight spaces, a 150–160 cm (60–63 inch) alcove tub with about 38–43 cm (15–17 inch) soaking depth balances comfort and footprint. Prioritize a slimmer apron and straighter sides to gain interior length. 2) Are shower curtains or glass better in a small bathroom with bathtub? Fixed frameless glass panels maximize light and make the room feel larger. Curtains offer flexibility and cost savings but can visually crowd a narrow tub area. 3) How can I make cleaning easier in a small bathroom with bathtub? Choose satin or matte tiles that hide spots, solid-surface sills for niches, and a frameless panel that you can squeegee in under a minute. Mid-tone grout also ages better than bright white. 4) What lighting is ideal for small bathroom with bathtub areas? Layered lighting works best: CRI 90+ task lights at the mirror, ambient ceiling or cove light, and a dimmable warm soak mode. Follow IES guidance for even vertical illumination to avoid face shadows. 5) What colors make a small bathroom with bathtub look bigger? High-LRV neutrals like warm whites, soft greiges, and pale taupes reflect light and open up the room. Add a single bold accent to keep it interesting without crowding the visual field. 6) Can I fit storage without making the space feel tight? Yes—use a wall-mounted vanity, tub-side niches, and shallow mirrored cabinets. Keep depth to 10–12 cm for flanking storage so circulation stays comfortable. 7) Is underfloor heating worth it in a small bathroom with bathtub? In small spaces, radiant heat adds noticeable comfort and dries floors faster. Operating zones are small, so energy use can be reasonable compared to whole-house systems. 8) Are there standards I should reference for safety near tubs? Yes—check local code, IP ratings for fixtures near water, and IES lighting recommendations. For planning guidelines on clearances, the NKBA Bathroom Planning Guidelines provide reliable, practitioner-approved benchmarks.
