Temple Boundary Wall Design: 5 Inspired Ideas: How I craft sacred, secure, and sustainable temple compound walls in tight urban plots

Temple boundary wall design is having a moment—heritage motifs are blending with practical security, and sustainable details are finally part of the conversation. In my own projects, I love how small compounds push bigger creativity; a compact site forces better lines, smarter openings, and more meaningful materials. From carved stone jali screens to discreet drainage slots, today’s walls can be both sacred and street-smart. In this guide, I’ll share 5 design inspirations backed by hands-on experience and expert data.

If you’re working with a tiny temple plot, don’t worry—constraints are fuel. Over the last decade, I’ve learned that a thoughtful boundary can frame processions, calm traffic, and make everyday rituals feel special. Let’s dive into the ideas that consistently balance beauty, function, and budget.

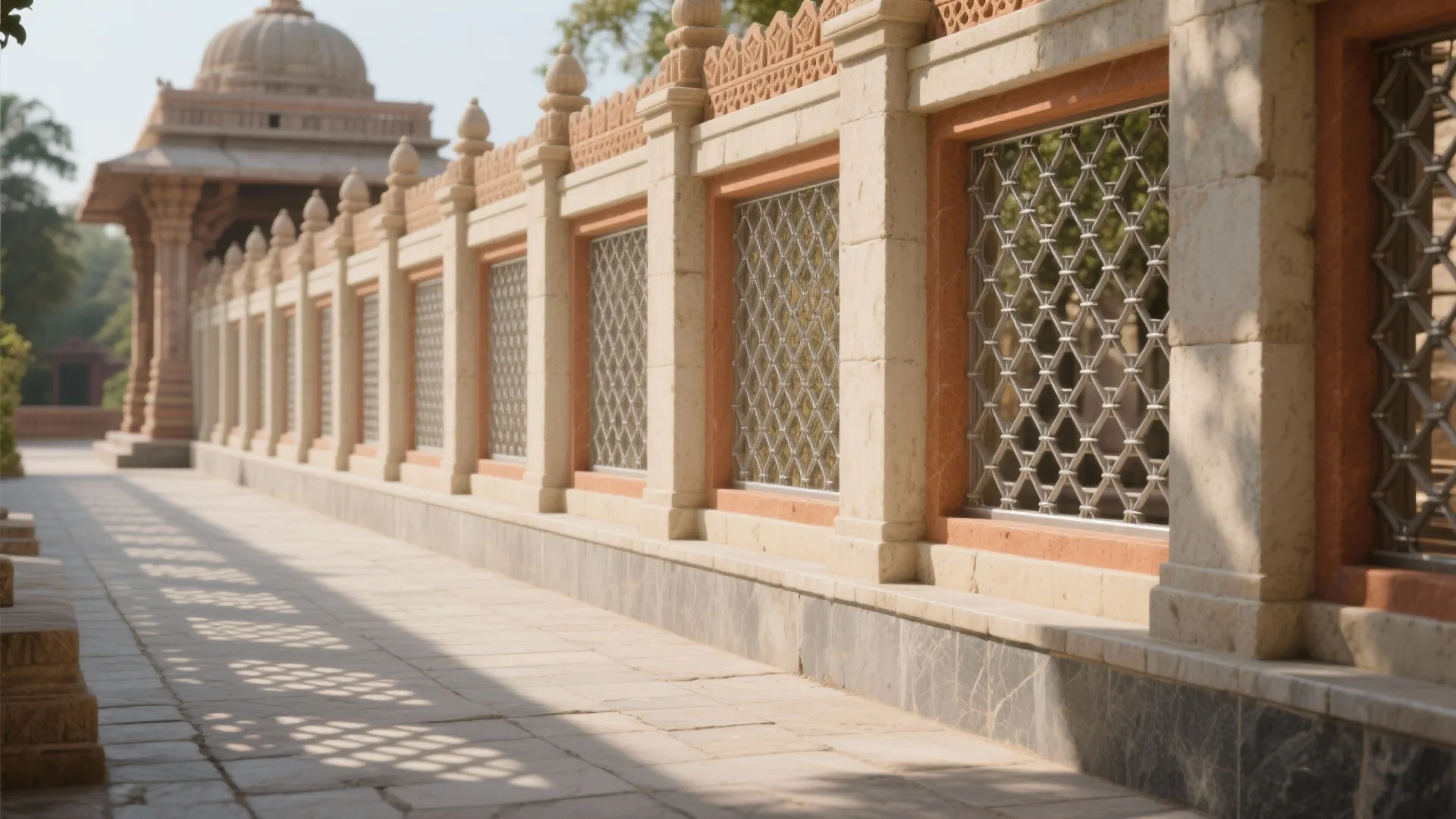

Sacred Geometry and Perforated Screens (Jali)

My Take: I still remember a small shrine in an old neighborhood where the street was noisy and hot. We used a sacred-geometry jali pattern to filter views, cool the space, and cast soft shadows along the walkway. It became everyone’s favorite backdrop during festivals.

Pros: A jali wall supports airflow and daylight while preserving privacy—perfect for a temple boundary wall design with jali pattern in hot climates. Studies in Energy and Buildings (2017) show perforated facades can reduce solar gain and improve ventilation, which matches what I’ve seen in South-facing compounds. With a sacred geometry fence, patterns can align with ritual directions and create a spiritual rhythm.

Cons: Jali panels do collect dust, so plan for easy access and seasonal cleaning. Tiny openings can become cozy spots for birds—cute until they’re not—so consider behind-the-scenes mesh in sensitive areas. If openings are too large, over-curious passersby might peek, so scale matters.

Tips / Case / Cost: For sandstone jali, I aim for 18–25 mm minimum rib thickness so details don’t chip. In coastal zones, I back the jali with stainless steel mesh and a 30–40 mm air gap for ventilation without pests. Budget-wise, hand-carved stone costs more upfront but wins long-term on durability and aging gracefully.

save pin

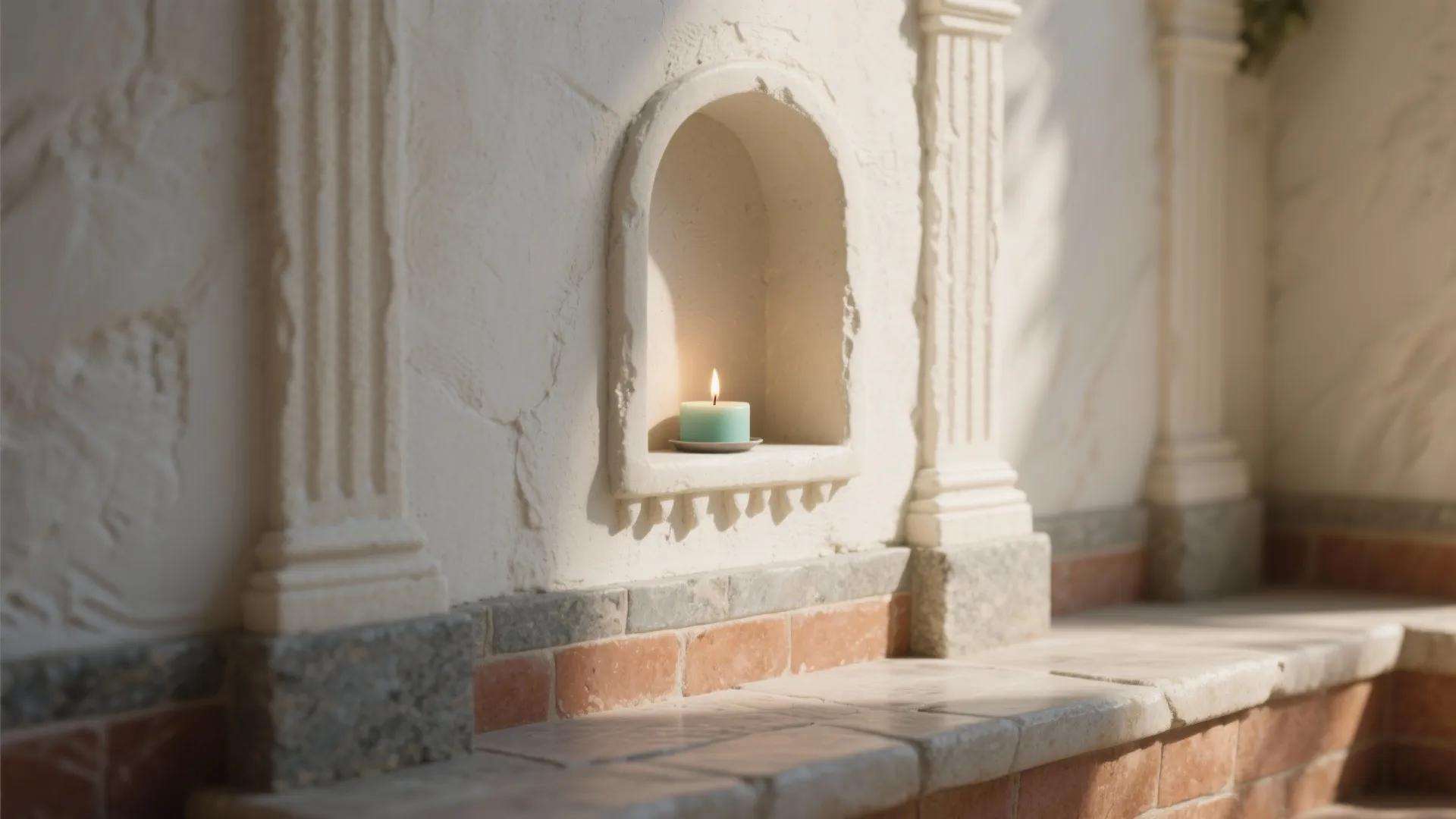

Layered Plinths, Pilasters, and Processional Niches

My Take: In a compact temple, we layered the boundary with a low plinth, shallow pilasters, and lamp niches. The wall felt ceremonial without being bulky, and pilgrims naturally used the ledge for brief pauses and offerings.

Pros: Layering creates rhythm that supports processions and photo moments—ideal for processional niche boundary wall temple design. A plinth doubles as seating and keeps dust splash off the base, which is great for white lime plaster. Shallow pilasters visually strengthen long runs and help align banners and festoon lighting.

Cons: Niches are irresistible storage magnets; if you don’t set rules, they’ll collect random items. Deep recesses can trap water in heavy rain, so add drip edges and slope the niche sills. Pilasters that project too far sometimes invite scraping from large vehicles in tight lanes.

Tips / Case / Cost: I keep niches 45–60 mm deep for tealights and small idols, with a 5–8 mm drip at the upper lip. A 100–150 mm plinth is high enough to stop splash, low enough for casual seating. If budgets are tight, use paint-band detailing to suggest pilasters without full masonry build-out.

save pin

Natural Stone, Lime Plaster, and Warm Terracotta

My Take: Material honesty matters. Reclaimed granite near the base and breathable lime plaster above create a soulful blend. On festival evenings, the lime glows softly, and the terracotta caps bring a warm, earthy finish.

Pros: Stone at the base resists impact and grime, while lime plaster is repairable and breathes—perfect for low-maintenance temple boundary wall materials. Terracotta copings help shed water and look timeless. UNESCO’s Historic Urban Landscape (2011) approach encourages compatible, local materials; I’ve found that staying regional makes repairs simpler and looks more authentic.

Cons: Natural stone prices can spike, and uneven supply affects timelines. Lime plaster needs skilled hands; without good curing, hairline cracks can appear. Terracotta caps are brittle if mishandled, so consider backing them with mortar keys and stainless pins in windy zones.

Tips / Case / Cost: I use granite or laterite up to 450–600 mm height, then lime plaster above for a balanced look. Seal stone only where absolutely necessary to avoid sheen; a matte finish suits historic contexts. On tight budgets, we’ve switched to colored mineral wash over lime to reduce maintenance while keeping the breathable layer intact. In a project last year, a terracotta parapet with rhythmic niches delivered charm without the cost of full carved stone caps.

save pin

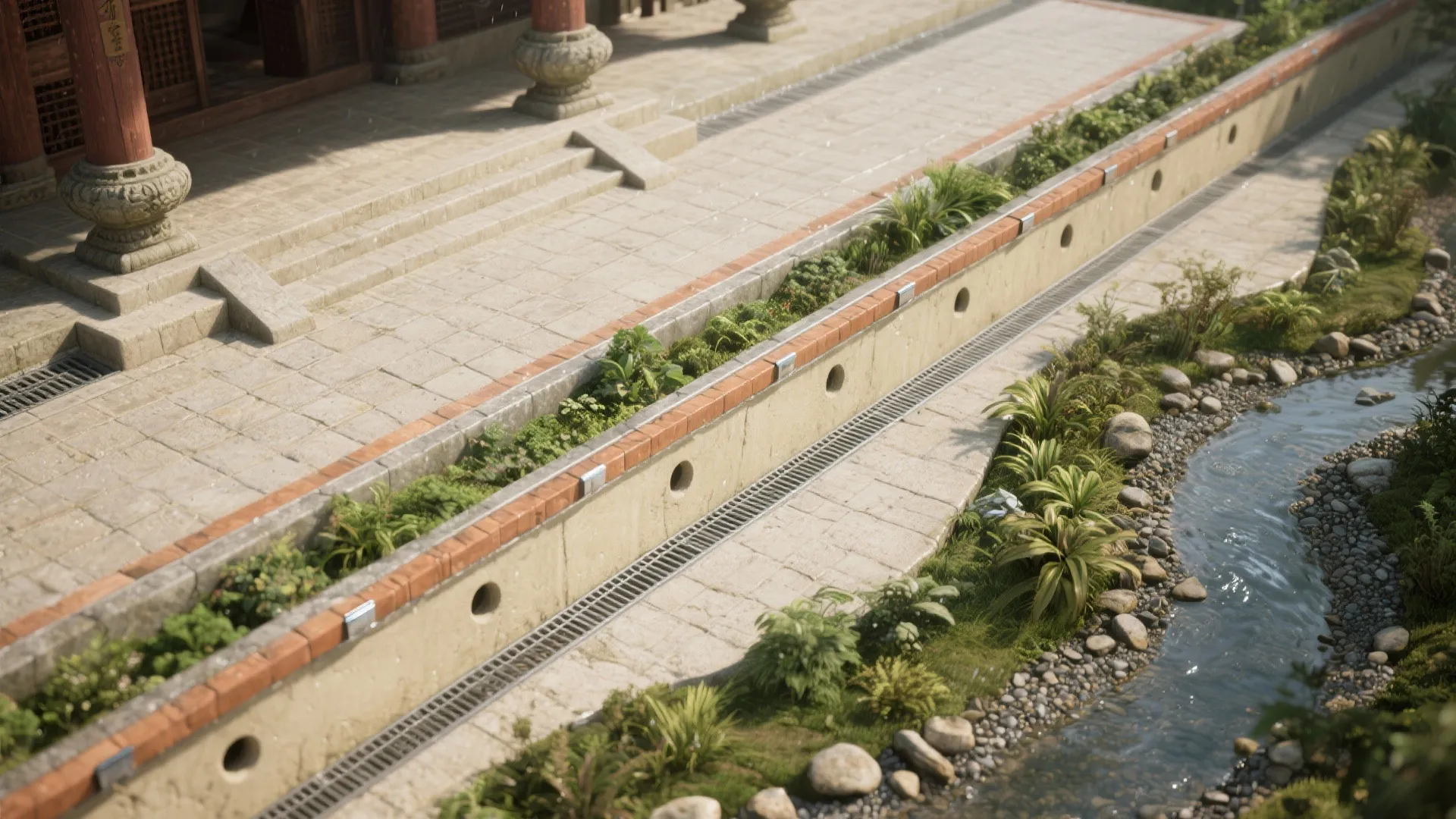

Integrated Greenery and Rain-Friendly Detailing

My Take: Green edges soften the wall, reduce heat, and make the approach feel gentle. In a monsoon-prone site, planter ledges with hidden drainage saved us from water stains and kept the base dry.

Pros: A planter ledge combined with weep holes supports rain-friendly temple boundary wall detailing and reduces wind-driven splash. Bio-swales at the base can capture runoff and recharge groundwater—US EPA’s Green Infrastructure guidance highlights how simple vegetated swales improve stormwater management. With smart irrigation, vines add shade without attacking the structure.

Cons: Roots can be mischievous; avoid aggressive species near foundations. Overwatering leads to algae and slippery sidewalks, so set flow limiters. In droughts, planters can look sad—pick hardy natives or integrate sculptural gravel that still looks composed when greenery rests.

Tips / Case / Cost: I place weep holes every 1.5–2.0 m at 75–100 mm above paving, sized 12–20 mm, protected by a tiny stainless grille. A geotextile liner inside planters reduces soil migration; a waterproof layer behind masonry keeps damp from telegraphing. For small compounds, climbers on a stainless trellis provide coverage without rooting into the wall.

save pin

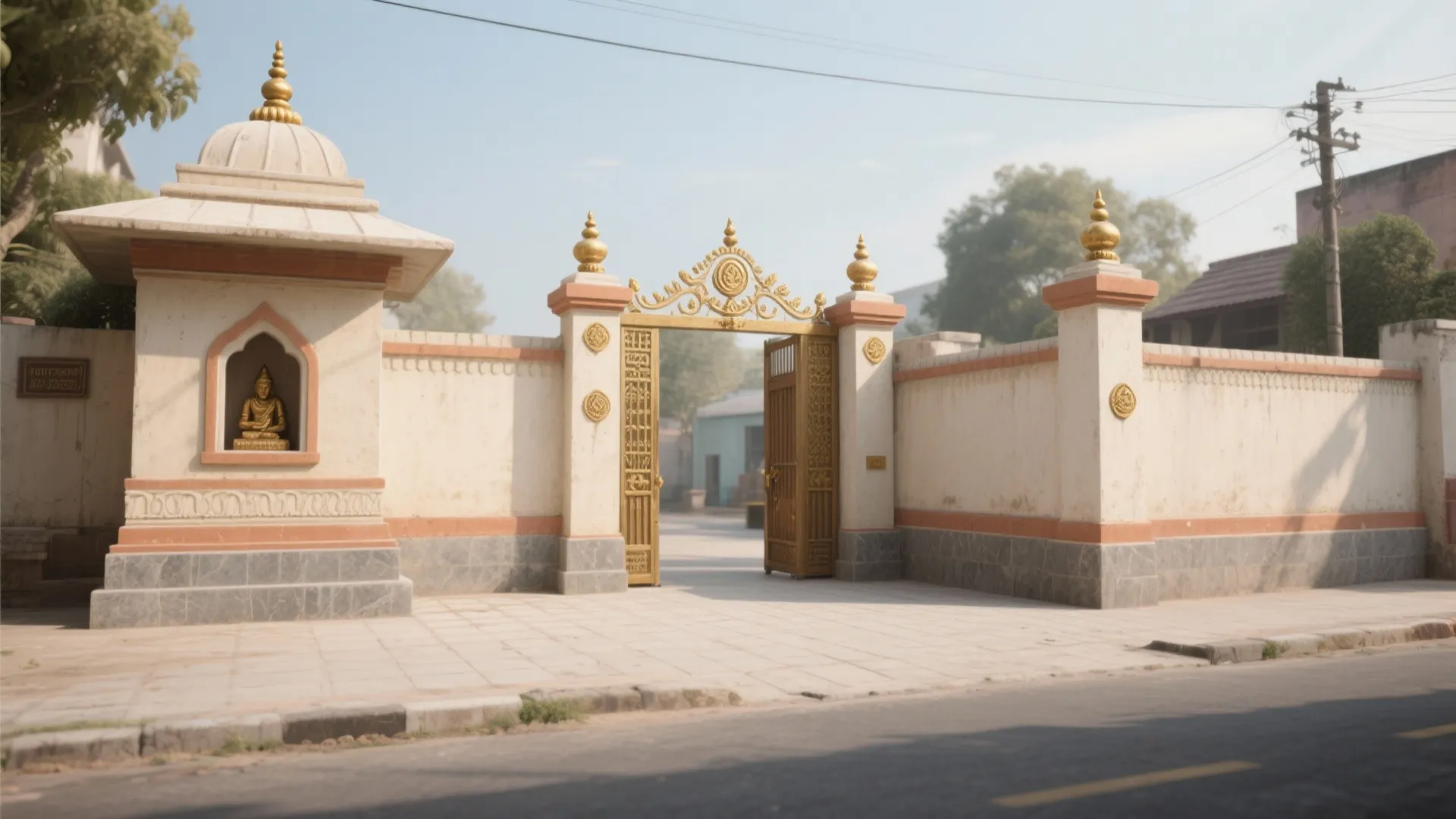

Gateways and Corner Pavilions as Visual Anchors

My Take: I like the boundary to feel like a frame, not a fortress. A modest gateway aligned to the deity, paired with a corner pavilion, gives arrival a sense of ceremony. The wall stays humble; the entry and corners hold the narrative.

Pros: Thoughtful anchors improve sightlines and security—staggered corners hide back-of-house doors, and a small guard niche can monitor traffic discreetly. Choosing calmer tones for the wall and reserving accents for the gate supports Vastu-compliant boundary wall colors when culturally relevant. Ornamental crowns are lovely when restrained; last season we used golden finials and sacred geometry motifs to emphasize the gateway without overpowering the street.

Cons: Over-designed entries can overshadow the temple itself. Taller features may need structural checks for wind; I recall one gilded spire that sang in the breeze—romantic until the maintenance crew had to stabilize it. Corner pavilions can become congregation magnets; plan lighting and traffic flow accordingly.

Tips / Case / Cost: I cap gateway height based on local by-laws and wind exposure; in open areas, keep projections lean or add concealed tie-backs. For tight budgets, paint-based sacred geometry on a simple plastered gate provides ceremony without sculptural costs. A slightly thicker corner pier (by 75–100 mm) reads stronger without a full pavilion build.

save pin

Summary

Small compounds make us smarter, not smaller. A great temple boundary wall design elevates processions, cools the walkway, and grounds the street, all while staying humble to the sanctum. When we combine breathable materials, measured openings, and rain-savvy details, the wall becomes a quiet backbone of everyday rituals. In heritage zones, ICOMOS charters advocate compatibility and reversibility—principles I keep close for repairs and upgrades. Which of these five inspirations would you try first in your site?

save pin

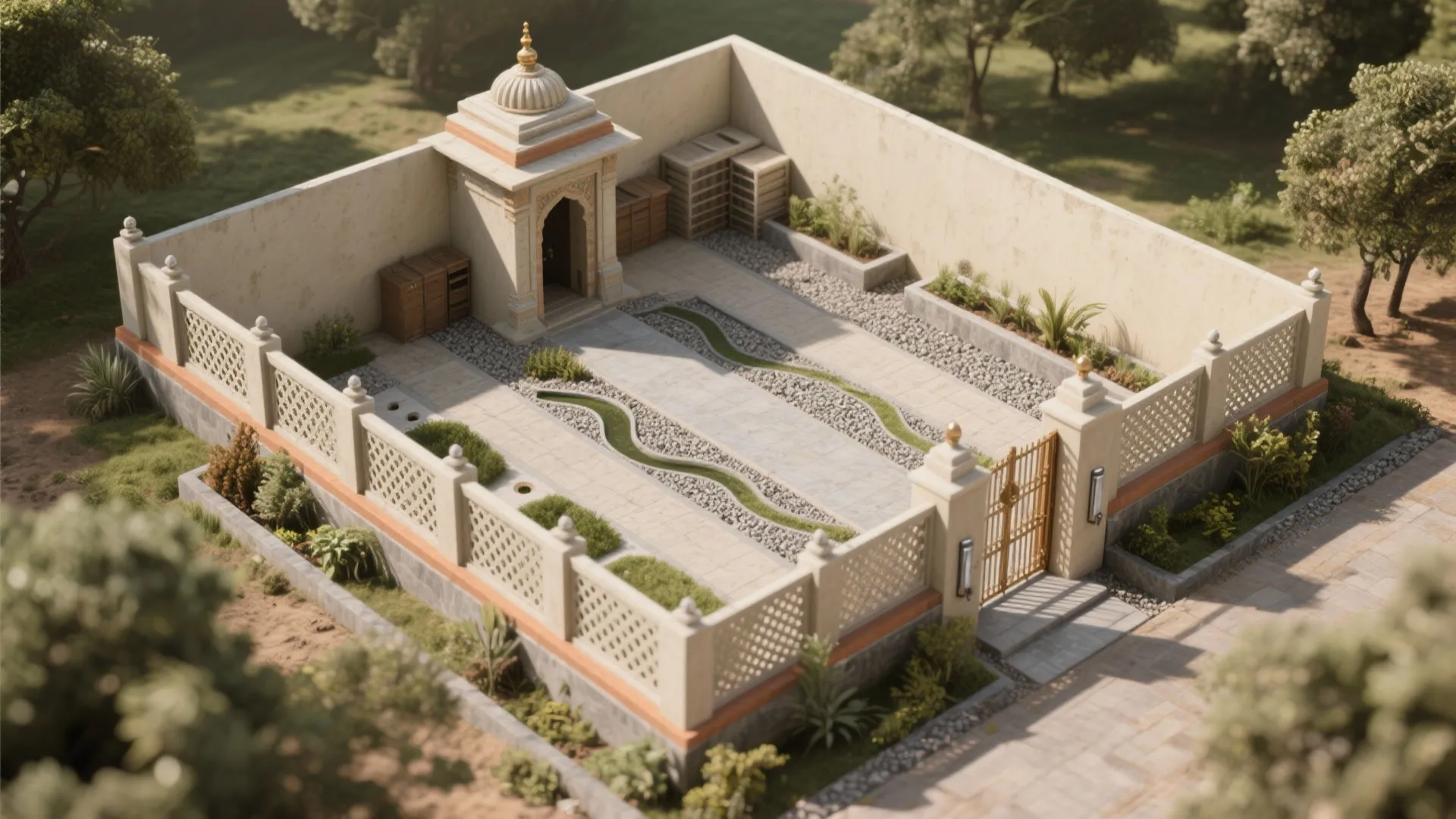

FAQ

1) What is the ideal height for a temple boundary wall?

Check local municipal by-laws first; many cities cap boundary walls between about 1.5–2.4 m. The National Building Code of India (2016) references local authority control on boundary heights, so compliance varies by jurisdiction.

2) Which materials are best for low maintenance?

Natural stone at the base and lime plaster above are durable and repair-friendly. Terracotta copings shed water well, and mineral washes keep the lime breathable for long-term performance.

3) How can I balance openness with security?

Use a jali only where oversight is useful; keep solid stretches near storage or back-of-house areas. Staggered corners and a narrow guard niche improve sightlines without creating a fortress feel.

4) Are jali patterns secure enough?

Yes, if scaled properly—limit opening sizes and reinforce with hidden mesh in sensitive zones. Opt for thicker ribs and avoid overly delicate motifs near public footpaths.

5) What colors work best for a temple boundary?

Neutral, earthy tones age gracefully and don’t compete with the temple. If Vastu matters to your community, reserve strong accents for the gateway and keep the wall calm.

6) How should I handle rain and drainage?

Add drip edges, weep holes, and gentle base slopes toward a bio-swale or drain. EPA’s Green Infrastructure guidance supports vegetated swales and permeable edges to manage stormwater sustainably.

7) What does a typical cost per running meter look like?

Costs vary widely by material and carving detail. As a rough guide, a lime-plastered masonry wall with simple stone base may range from modest budgets to premium if you add carved elements and terracotta caps.

8) Do I need heritage approvals?

If the temple or its precinct is protected, coordinate with local heritage authorities (for example, ASI in India) before changes. Compatibility, reversibility, and minimal intervention are common requirements in historic contexts.
