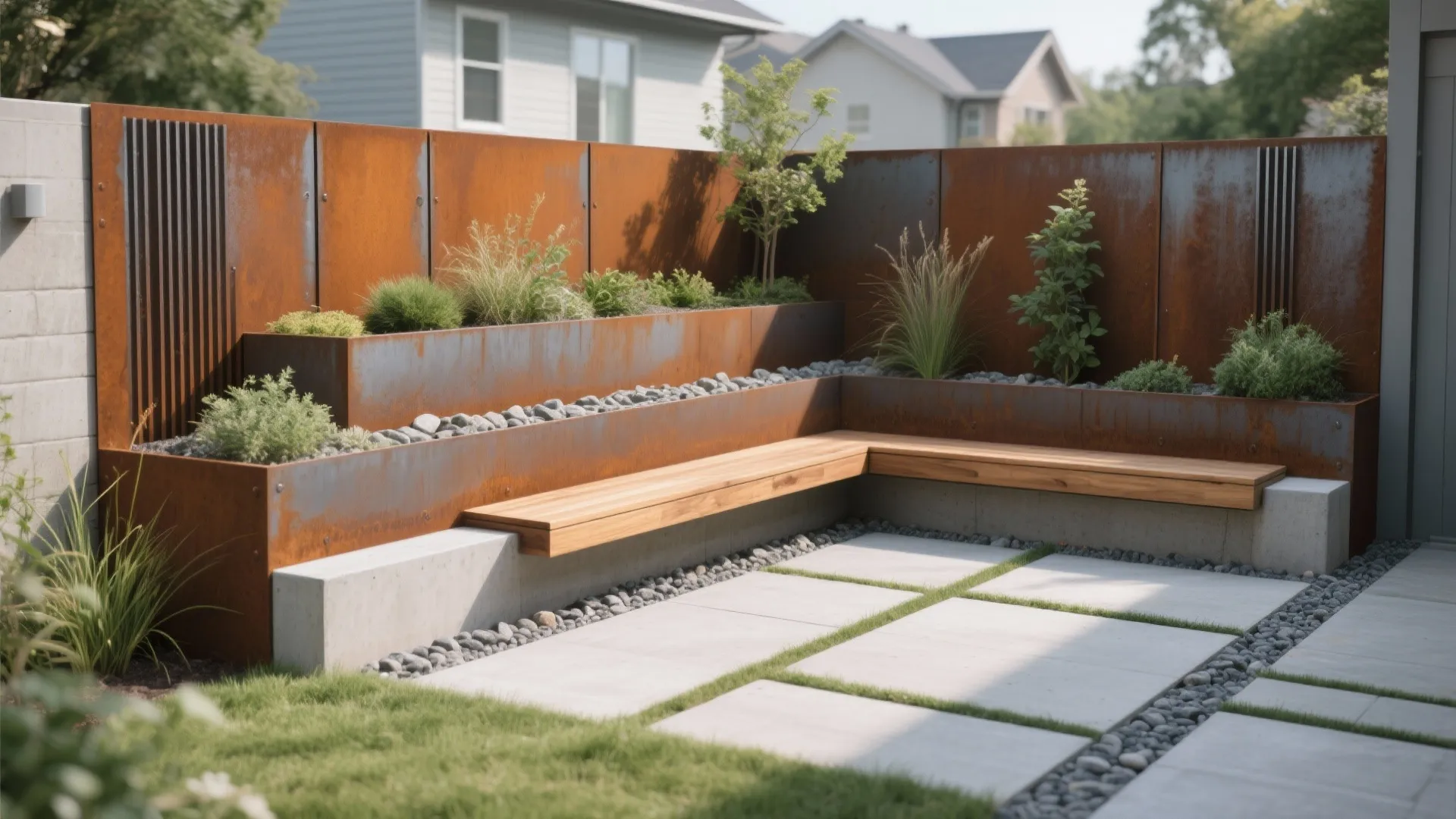

Retaining Wall Steel Design: 5 Expert Ideas: Small yards, big impact: my field-tested playbook for smarter retaining wall steel design with real pros, cons, and buildable details

[Section: 引言]

I’ve spent a decade squeezing more function out of tight homes and compact yards, and lately one request keeps coming up: retaining wall steel design with a clean, modern profile. The trend toward low-maintenance outdoor rooms and slender, architectural lines makes steel a natural fit—especially where every inch counts.

Small spaces spark big ideas. In courtyards, roof decks, and narrow side yards, I’ve leaned on steel to hold grade, carve out seating, and frame plant life without the bulk of concrete. It looks sharp, installs fast, and—done right—lasts.

In this guide I’ll share 5 design inspirations for retaining wall steel design, blending my on-site lessons with expert data. Expect candid pros and cons, practical detailing tips, and where I’ve seen budgets and timelines land in real projects.

[Section: 灵感列表]

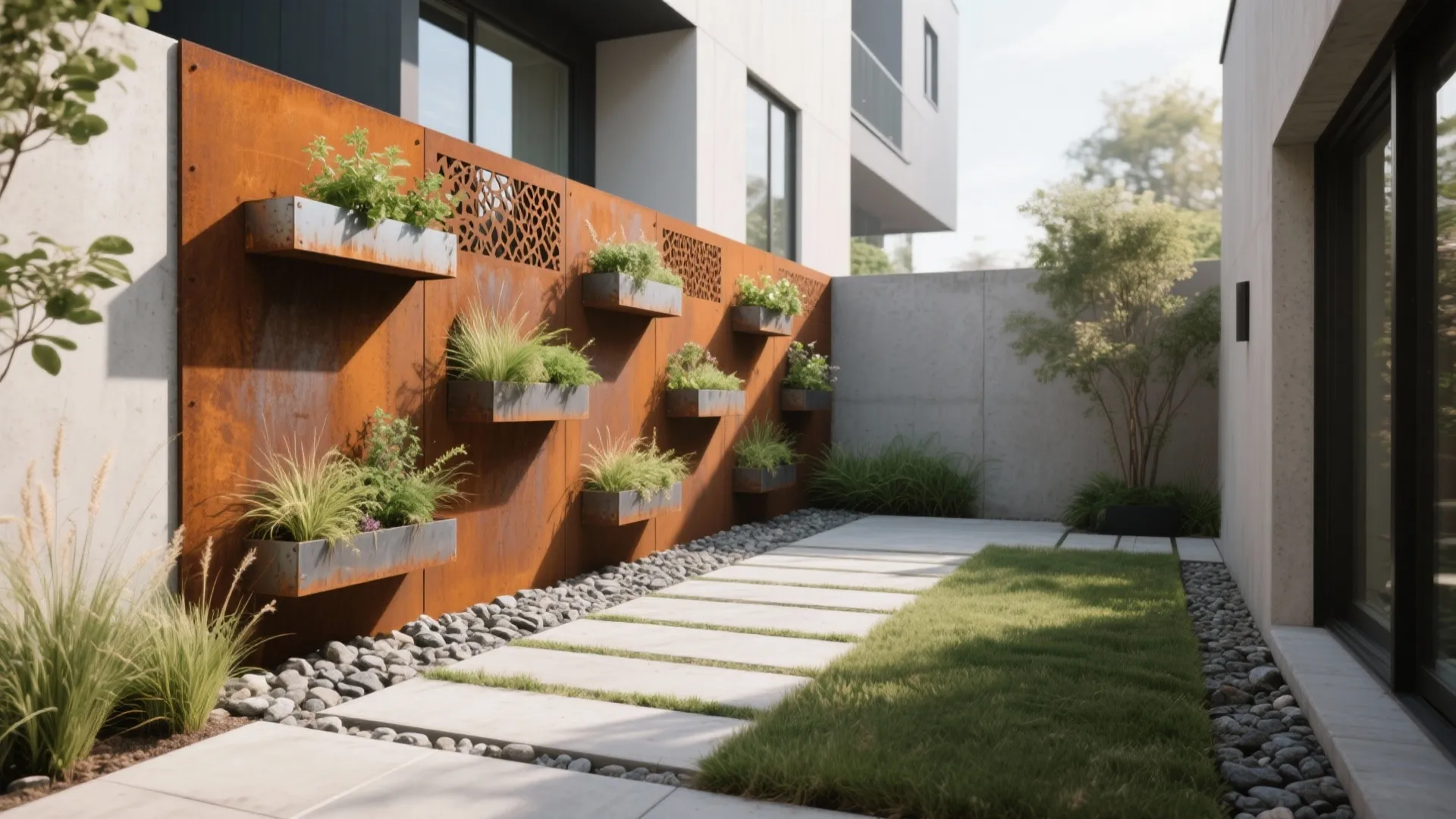

1) Weathering Steel Statements with Planting Pockets

My Take

On a sloped micro-courtyard, I switched from bulky block to weathering steel. The patina softened the modern architecture and became a backdrop for herbs and grasses—minimal footprint, maximum mood. I loved pairing Corten steel for a warm rustic feel with minimalist planting to keep the sightlines open in a small yard.

Pros

Corten forms a protective patina, making a Corten steel retaining wall visually warm and relatively low maintenance compared to painted steel. The slim profile is ideal for retaining wall steel design where inches matter—like narrow side yards or rooftop planters. With laser-cut planting pockets or welded shelves, you can add greenery without deeper footings, a win for small backyard retaining wall layouts.

Cons

Early rust runoff can stain adjacent paving, so plan a gravel drip edge or sacrificial strip you can replace later. In coastal or constantly wet environments, weathering steel may not stabilize as intended—if salt spray is a factor, choose galvanizing or a high-performance coating system instead. Fabricators familiar with weathering steel detailing might cost more, and lead times can stretch.

Tips / Case / Cost

Detail a 1–2% fall and a gravel toe to keep splashback off paving; use weep slots with filter fabric to prevent clogging. In my last 7 m run at 600 mm height, Corten material and fabrication came in 15–25% under poured concrete when access was tight and craning formwork would have been costly. Always consult a local engineer for footing depth, frost considerations, and surcharge loads.

save pin

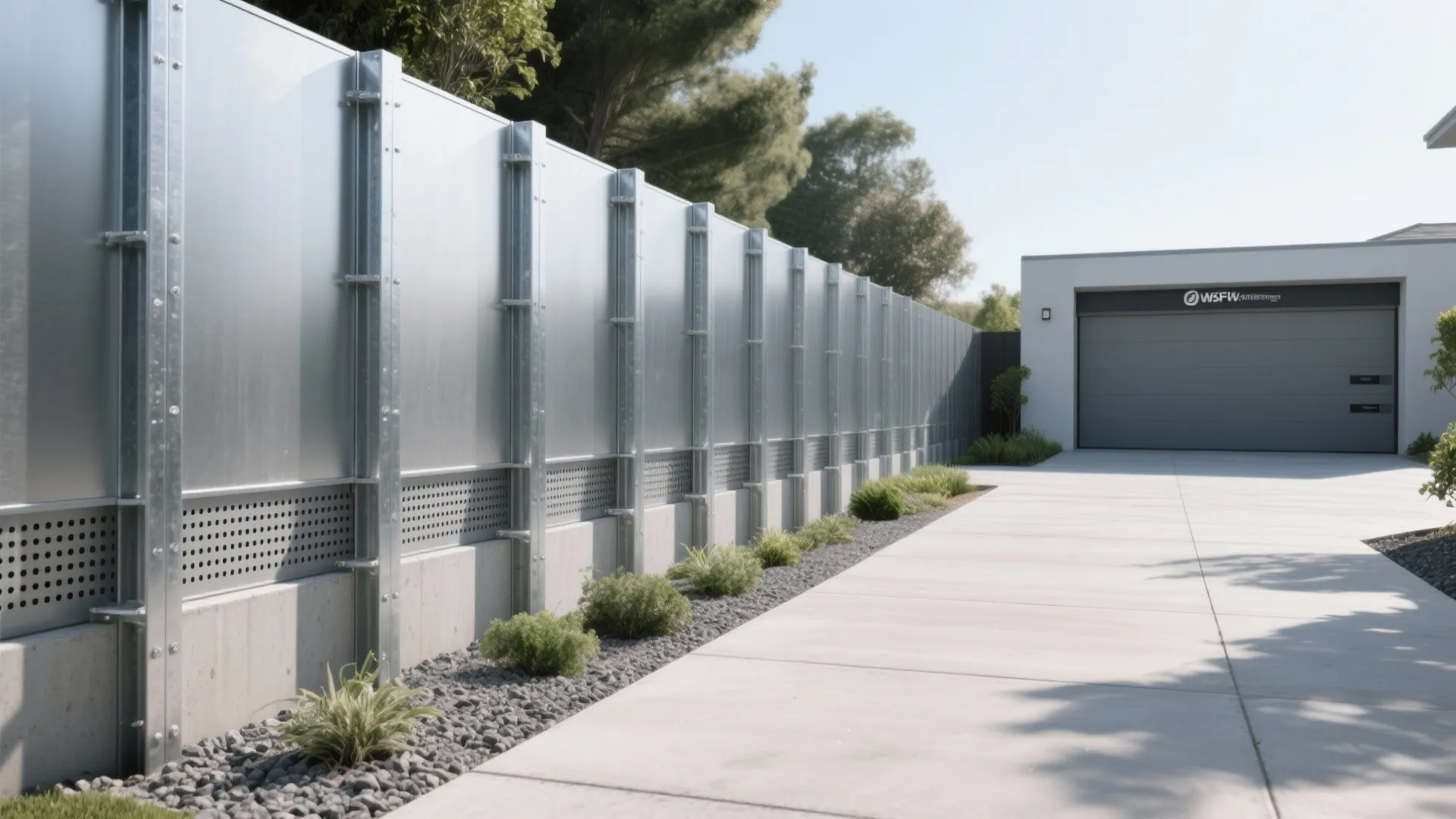

2) Slim Soldier Piles + Steel Infill Panels

My Take

When a client wanted a razor-thin look along a driveway, we drove steel soldier piles and slipped in steel infill panels. It gave us crisp lines, quick installation, and the ability to thread utilities behind the wall without reworking the face.

Pros

This retaining wall steel design for tight access sites installs with minimal excavation, preserving mature roots and nearby structures. Panels can be plain, fluted, or perforated to relieve pressure, and they’re easy to swap if you ever update finishes. Soldier piles can handle taller heights with proper engineering, which is helpful near driveways with higher surcharge.

Cons

Driven piles mean vibration; coordinate with neighbors and check for sensitive structures or brittle utilities. You’ll need accurate surveys and underground scans to avoid clashes when driving the piles. Exposed fasteners and panel seams demand careful detailing or they’ll read “industrial” in a residential garden—not everyone loves that look.

Tips / Case / Cost

On a 1.2 m wall next to a garage, we used perforated panels at the lower third to vent behind-wall air and reduce perceived bulk; it also kept the surface drier. For longevity, specify corrosion protection appropriate to soil aggressivity; get a soil test if possible. Costs can be attractive because panels are modular; you’ll likely spend more on engineering and driving equipment than on panel fabrication for small runs.

save pin

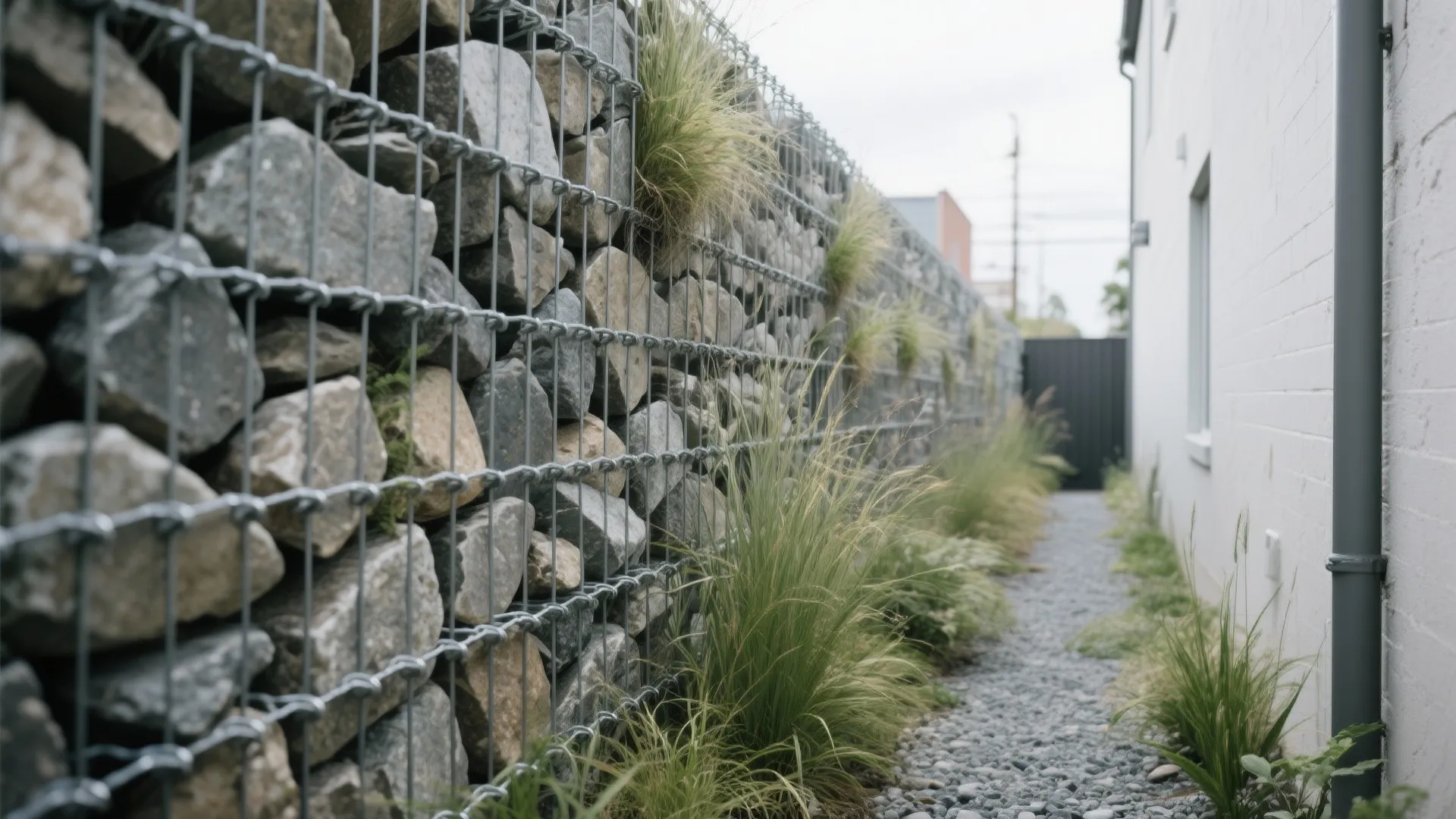

3) Gabion-Style Steel Cages with Rock Infill

My Take

For a city garden by a transit line, gabion-style steel cages with locally sourced stone solved two problems: grade change and noise. The texture looks organic, and in tight alleys we brought in rock by hand—no concrete trucks, no drama.

Pros

Gabion walls are forgiving on drainage; voids help dissipate water and reduce hydrostatic pressure, a perennial pain point in drainage for steel retaining walls. The look is timeless and pairs well with native planting, and it’s often DIY-friendly at low heights. For sustainability-minded clients, you can use reclaimed stone or recycled infill for a lower-carbon footprint retaining wall steel design.

Cons

They’re thicker than plate steel walls, so you trade some precious square footage. Wire diameter and coating quality matter; cheap baskets can twist and deform over time. Sharp edges and tie wires need careful finishing in family spaces—especially where kids climb everything (ask me how I know).

Tips / Case / Authority

Use welded mesh or heavy-duty woven mesh with hot-dip galvanizing or Zn-Al coating; line the back face with a non-woven geotextile to keep fines from washing through. For design guidance, the U.S. Army Corps of Engineers’ EM 1110-2-2901 (Gabions and Revet Mattresses) remains a solid reference for basket selection and assembly techniques. I also keep an eye on local codes for height limits before guardrails kick in.

save pin

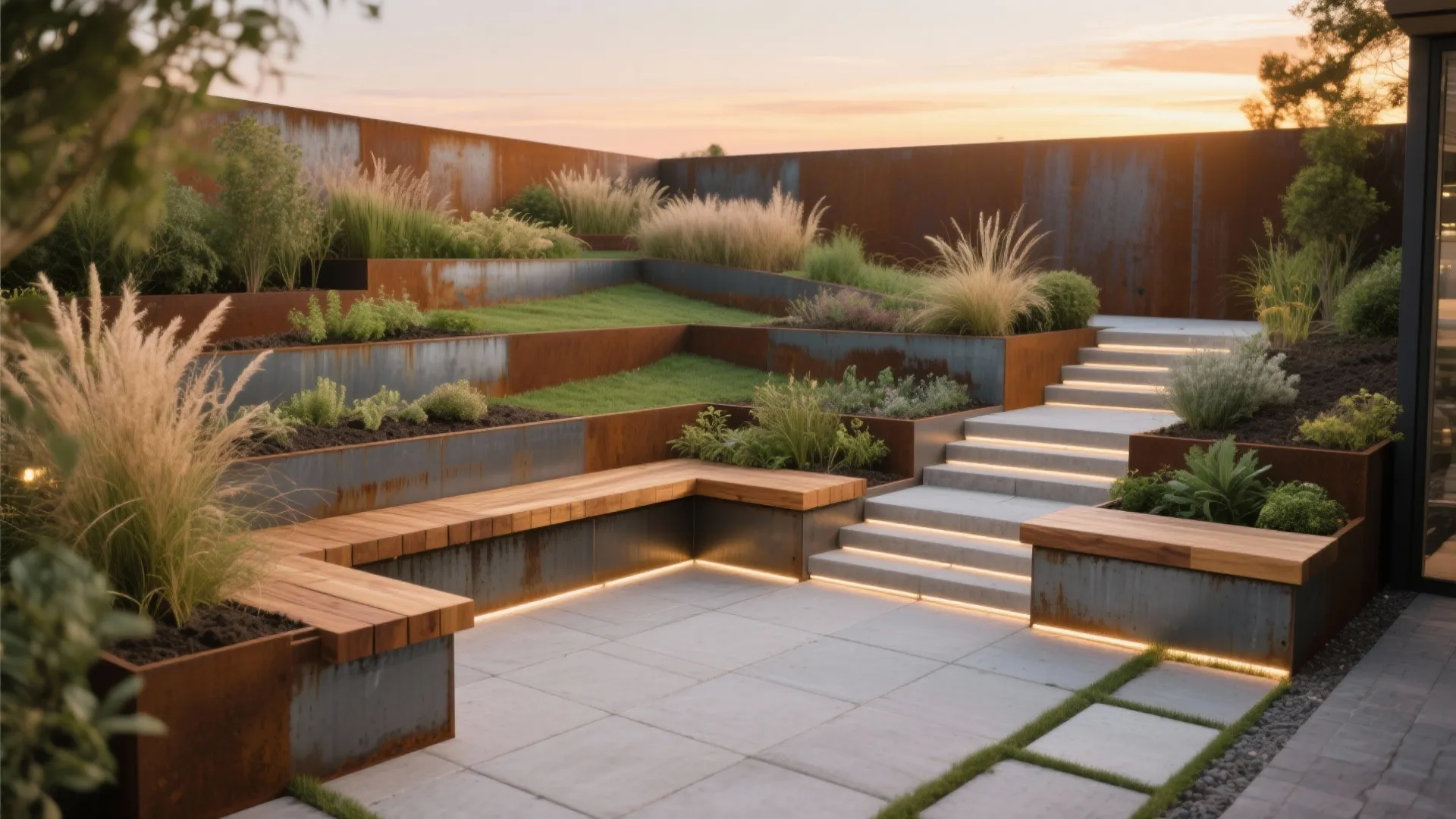

4) Tiered Steel Planters that Retain and Seat

My Take

One of my favorite small-yard moves is to split a single tall wall into two or three low tiers and turn the upper tiers into benches. In a 5 m by 5 m slope, we created usable zones, layered planting, and tucked lighting into the risers. We even laid out stepped terraces that double as seating to maximize square footage without overwhelming the garden.

Pros

Tiering cuts down perceived height and can reduce lateral pressure on each wall segment when set back correctly. It’s a people-first retaining wall steel design for small backyard terraces—more places to sit, dine, and garden. Integrating benches and planters helps justify the spend by packing multiple functions into the same footprint.

Cons

More tiers mean more edges to detail, more lighting runs, more irrigation—complexity creeps in. You need careful step-backs to avoid overloading lower tiers, and guardrails may be required at certain cumulative heights. Maintenance can be higher if you add lots of planting and integrated wood seats.

Tips / Case / Source

I aim for 400–450 mm seat heights and a comfortable 300–350 mm seat depth if you cap with wood. Coordinate waterproofing under seat caps and provide vented cavities so moisture can escape. Where loads are significant, have a licensed engineer verify global stability and, if needed, reference FHWA-NHI-10-024 for reinforced soil backfill best practices behind modular facing systems.

save pin

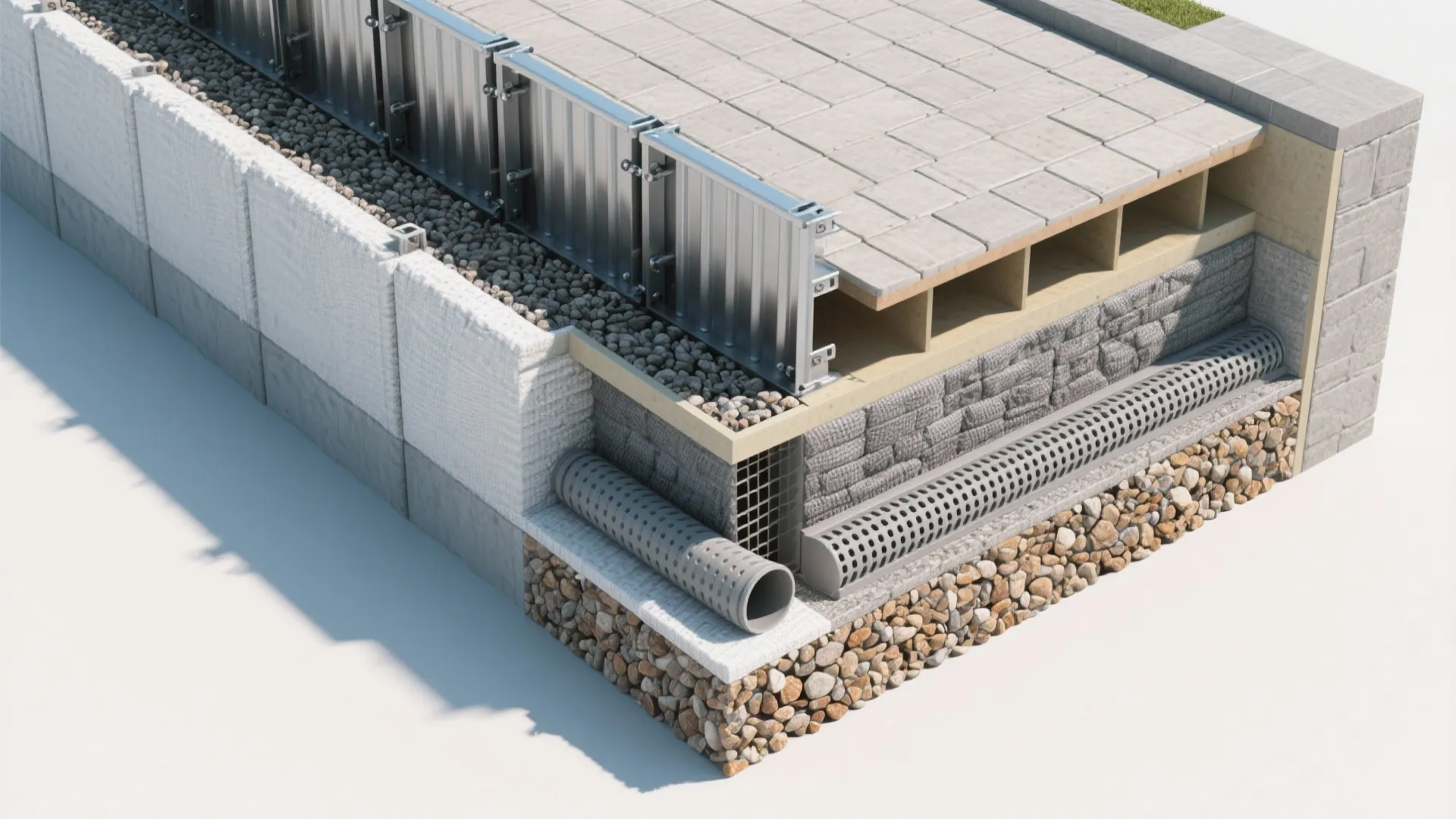

5) Coatings, Drainage, and Details for Longevity

My Take

Steel is only as good as its detailing. On a coastal project, we specified galvanized finishes for coastal durability, big easy-clean weep slots, and a sacrificial gravel toe. Five years later, it still looks fresh—no bubbling paint, no mystery stains.

Pros

Hot-dip galvanizing (per ASTM A123) provides robust corrosion protection for steel retaining walls, especially in high-salt or high-humidity zones. Where architectural color is desired, a duplex system—galvanizing plus powder or liquid coating—extends life; ISO 12944 is a helpful framework for selecting coating systems by environment category. Thoughtful drainage (free-draining backfill, filter fabric, and accessible weeps) dramatically reduces hydrostatic pressure and long-term maintenance.

Cons

Galvanized steel’s silvery finish isn’t everyone’s aesthetic, and it can be tricky to color-match repairs. Welds made after galvanizing require touch-up per ASTM A780, which demands disciplined site work. Coating systems add upfront cost; skipping preparation or using the wrong system adds far more cost later.

Tips / Authority / Cost

I spec geotextile-wrapped drainage aggregate, a perforated drain at the heel, and cleanable weep openings at 1.2–1.8 m spacing for low residential walls—always adjust per your engineer. For loads, your structural designer will consider local codes and standard combinations (e.g., ASCE 7) and any surcharge from vehicles, slopes, or nearby foundations. Material-wise, galvanizing adds cost but often pays back in reduced repainting; in my coastal jobs, the maintenance delta over 10 years has made the case for clients who plan to stay.

[Section: 总结]

Retaining wall steel design isn’t a constraint—it’s a catalyst. Slim profiles, honest textures, and smart drainage turn small outdoor spaces into hardworking extensions of home. From Corten’s warmth to engineered coatings, you’ve got options to match site, style, and budget.

If you’re weighing choices, start with soil conditions, exposure, and how you’ll use the space; then pick the steel system that fits. I’m curious: which of these five ideas would you try first in your yard?

[Section: FAQ 常见问题]

save pin

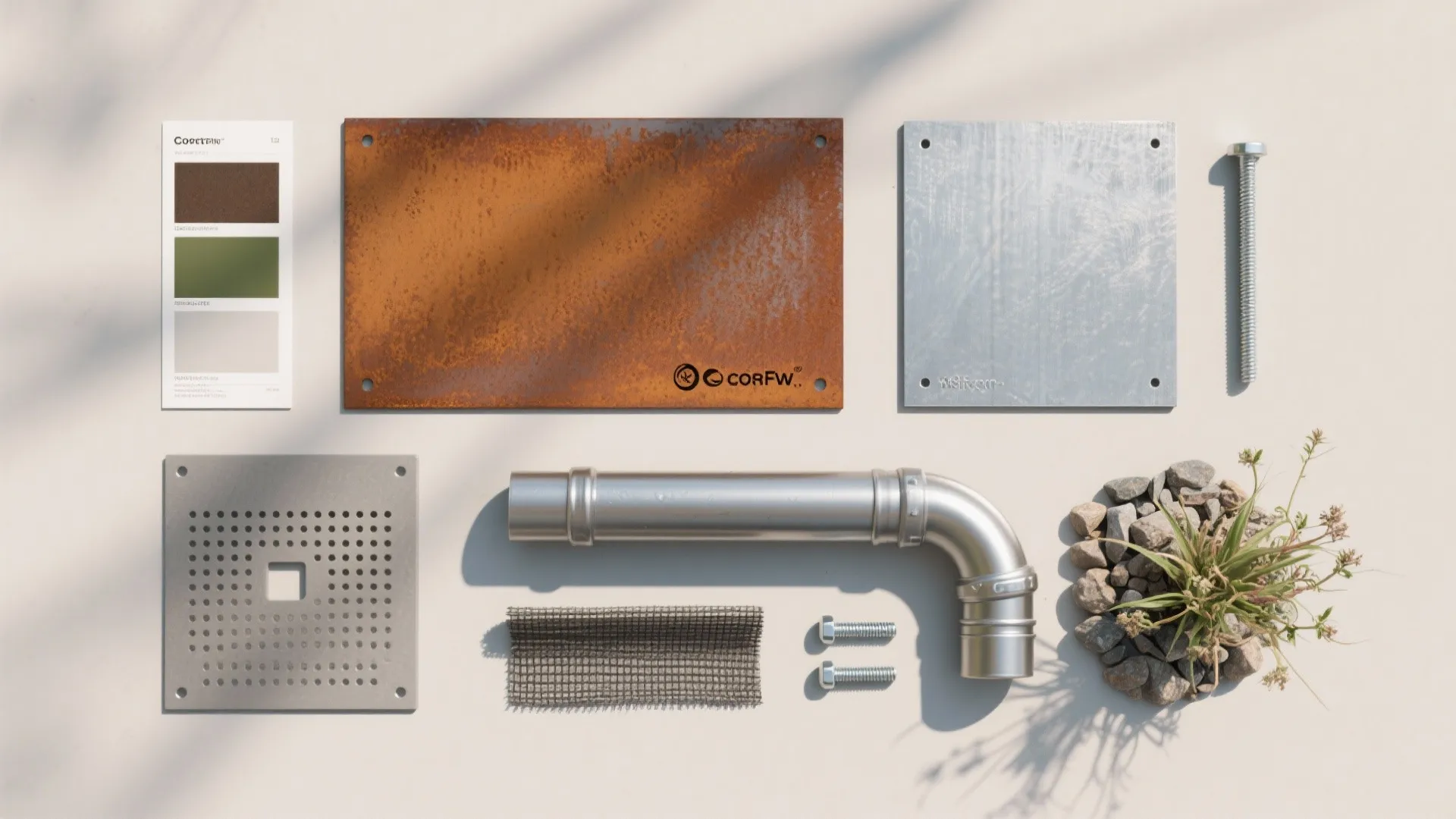

FAQ

1) What is the best steel for retaining wall steel design in a small backyard?

For inland sites, weathering steel (Corten) offers a warm patina with low maintenance. In coastal or constantly wet areas, hot-dip galvanized steel or a duplex-coated system typically outlasts Corten.

2) How tall can a steel retaining wall be without engineering?

Local codes vary; many jurisdictions cap DIY walls at around 0.9–1.2 m before requiring engineering or permits. Even for low walls, consult a pro if you have slopes, heavy surcharges, or poor soils.

3) Do steel retaining walls need drainage?

Yes—free-draining backfill, geotextile separation, perforated drains, and weep openings are essential. Proper drainage prevents hydrostatic pressure that can overstress the wall and shorten lifespan.

4) Will Corten steel stain concrete?

Early patina runoff can leave rust stains on adjacent paving or stucco. A gravel drip edge, set-back, or a sacrificial paving strip helps catch runoff until the patina stabilizes.

5) How long does galvanized steel last in retaining wall steel design?

Service life depends on coating thickness and environment. ISO 12944 provides durability ranges by environment class; in mild urban settings a robust system can reach decades with minimal maintenance.

6) Are gabion steel walls structural or decorative?

Properly built gabions can be structural within height limits and site conditions. The U.S. Army Corps’ EM 1110-2-2901 outlines basket specs and assembly methods for reliable performance.

7) What about seismic zones?

Seismic demands change design assumptions for wall height, backfill, and connections. Your engineer will use applicable local codes and standards (e.g., ASCE 7 load combinations) to size members and connections appropriately.

8) How do I budget a small steel retaining wall?

Access, finishes, and engineering drive costs more than length alone. For compact sites, steel often pencils favorably versus poured concrete because fabrication is offsite and installation is faster.
