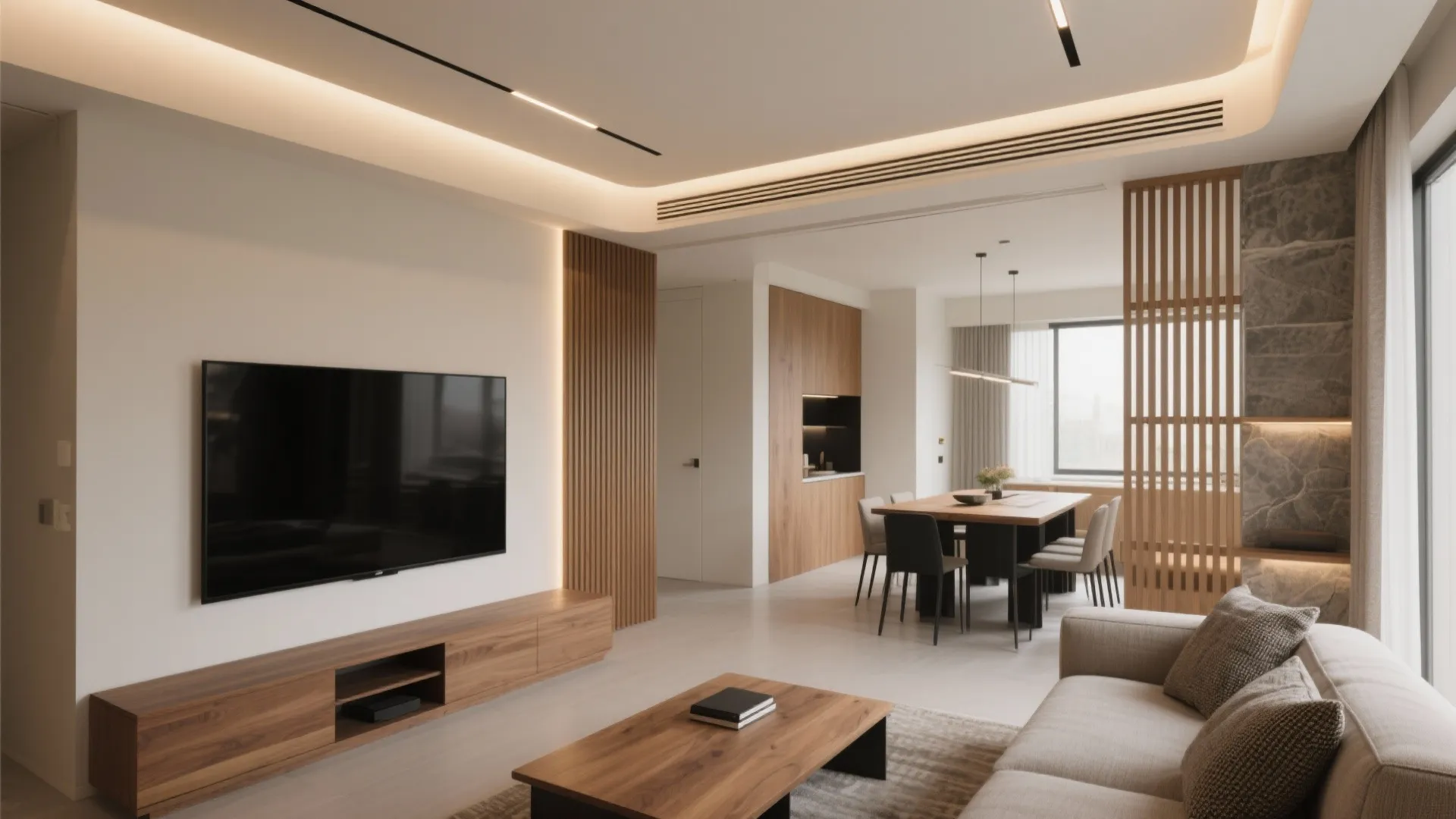

Top 5 main hall L shape false ceiling design ideas: Five pro-tested ways to shape, light, and warm an L-shaped hall ceiling—without wasting height or budget

I’ve redesigned more L-shaped living–dining halls than I can count, and the trend is clear: clean lines, indirect lighting, and natural textures are winning. A main hall L shape false ceiling design is one of my favorite playgrounds because small spaces spark big creativity.

In this guide, I’ll share 5 design inspirations I use on real projects, with my own wins and mistakes. I’ll back them with practical numbers and expert sources where it matters, so you can make confident choices for your home.

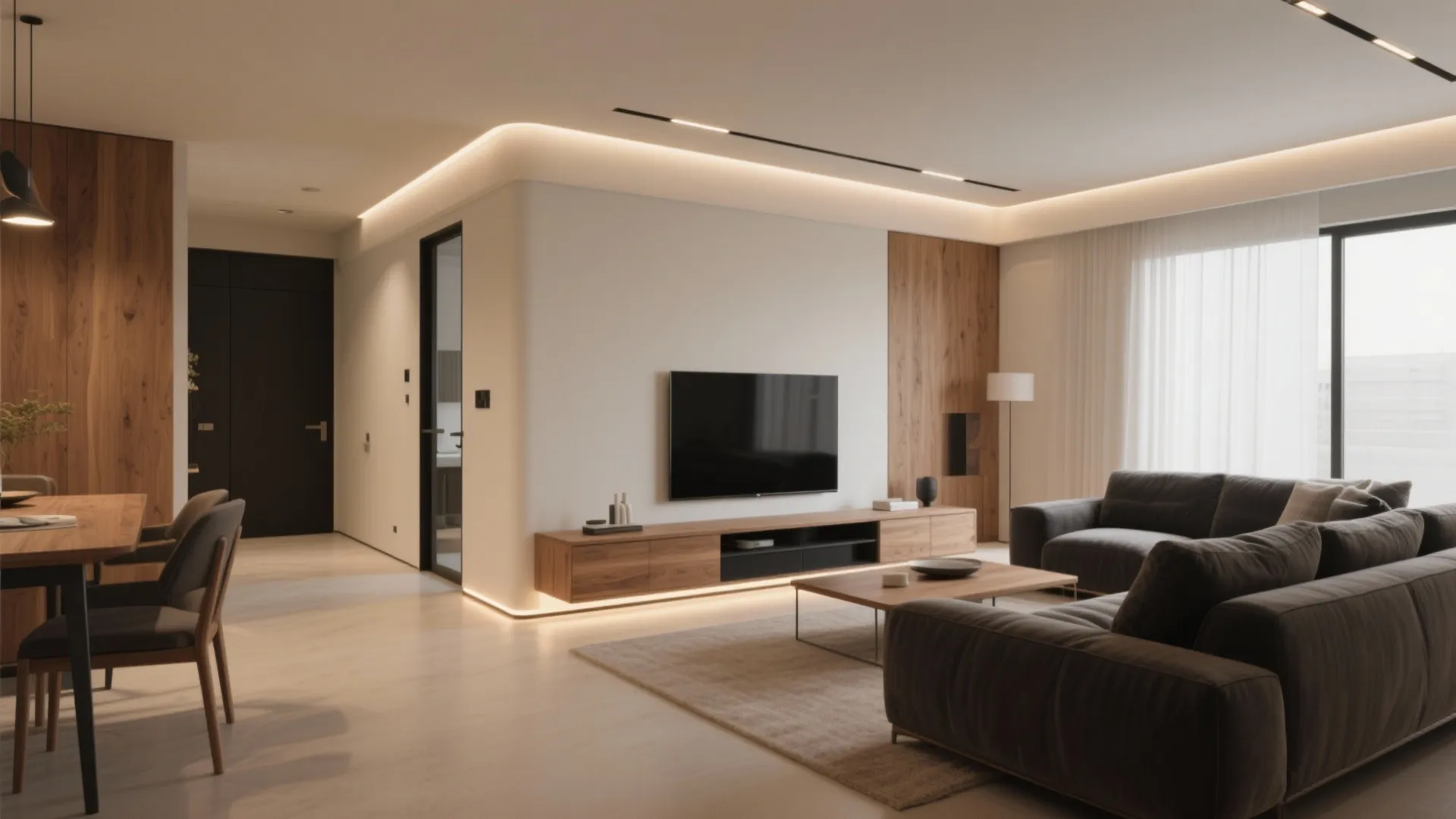

Soft L-cove that leads the room

My Take. When a hall turns the corner, I run a continuous cove on the ceiling’s outer L to guide your eye from entry to sofa, then toward dining. The indirect glow calms the geometry and instantly feels upscale.

Pros. Indirect LED coves deliver a comfortable 100–300 lux ambient layer ideal for living zones, and you can boost 300–500 lux over tasks like reading with a floor lamp. LEDs are efficient and dimmable, and warm temperatures (2700–3000K) flatter skin tones—perfect for entertaining (U.S. DOE, “LED Lighting”). An L-shaped soffit that guides the eye doubles as a subtle wayfinding cue when you host.

Cons. A cove eats a bit of height (60–120 mm) and needs crisp carpentry; bad joints betray the whole idea. If the LED strip is visible, you’ll get scallops or hot spots—keep the diode-to-lip distance right and use an aluminum profile.

Tips / Cost. For a 20–24 m² hall, plan 14–20 W/m LED strips with CRI 90+, 2700–3000K. Expect $18–$45 per linear meter for quality strips and profiles; gypsum or POP work adds $6–$12 per linear foot depending on city and finish. Test a one-meter mockup to judge brightness before committing.

save pin

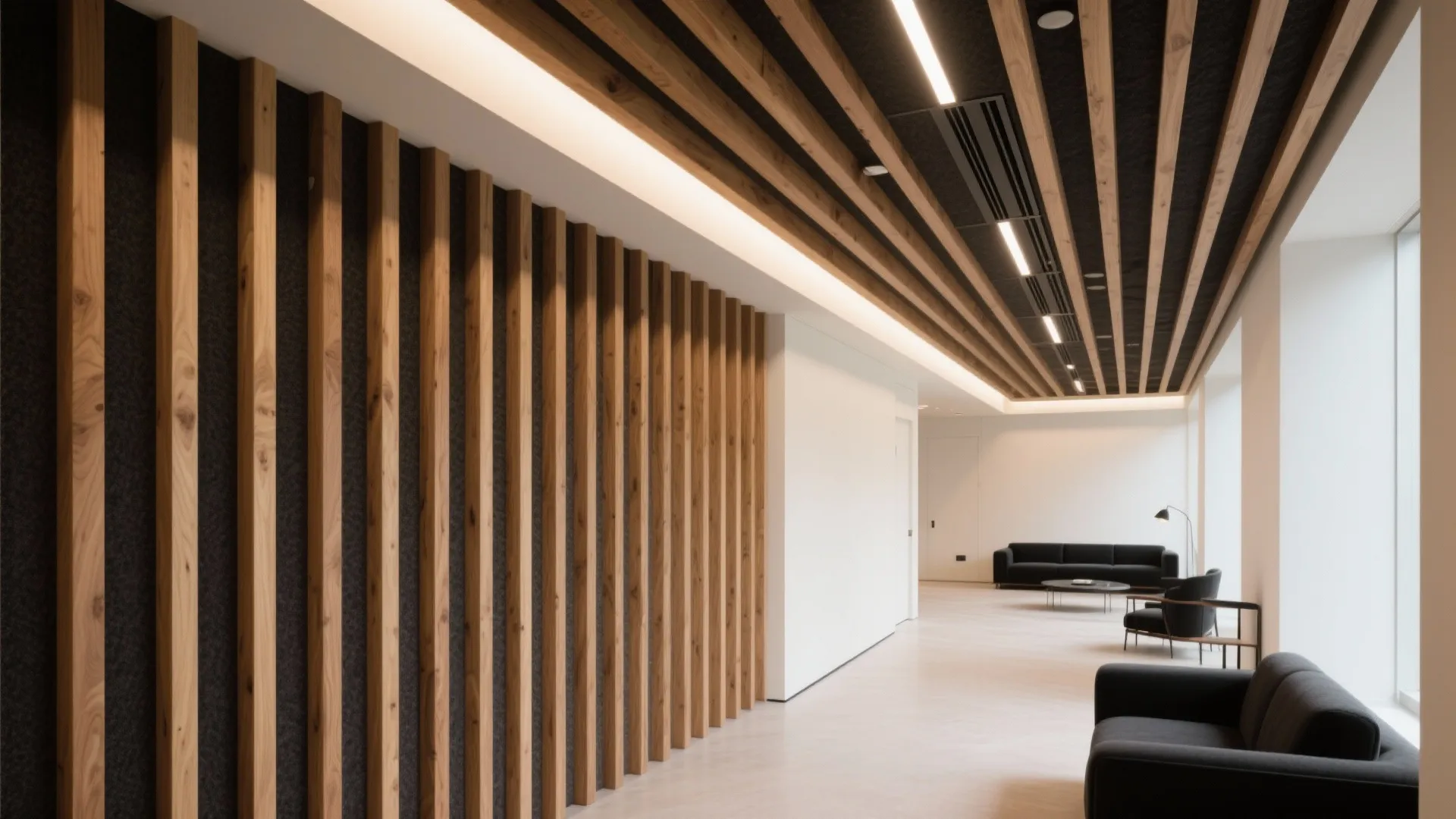

Warm timber slat drop at the bend

My Take. I love running timber slats across the short leg of the L to make the bend feel deliberate. A shallow drop with warm wood instantly zones the lounge without a bulky beam.

Pros. Wood slats and a black acoustic felt backer absorb mid–high frequencies, so your TV doesn’t echo down the corridor; look for NRC 0.5–0.8 panels from reputable manufacturers (Armstrong Ceilings publishes NRC data for slatted systems). Integrating a hidden access hatch among slats makes future wiring a non-event.

Cons. Humid climates can warp low-grade wood; I specify engineered veneer on moisture-stable substrates. Dusting slats is a chore—choose a 15–20 mm gap and run the slats only where they matter, not across the entire span.

Tips / Cost. Standard modules are 30–40 mm slat width with 15–20 mm gaps; keep total drop at 60–90 mm to protect head height. Budget $25–$60 per square foot for slats and felt, more for premium oak or walnut. Pair with a soft cove at the perimeter for an “embracing” feel.

save pin

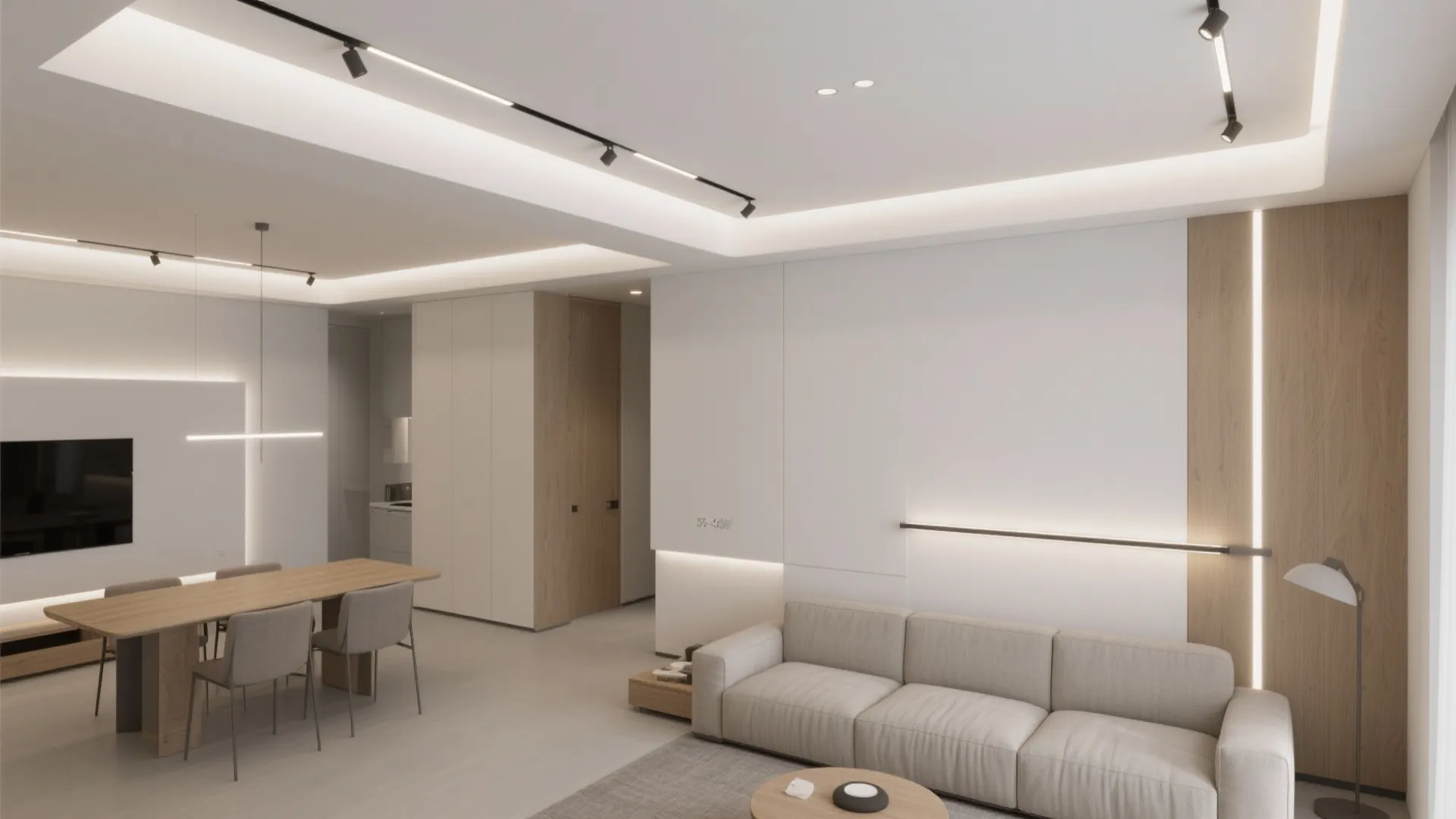

Layered linear lighting along the L

My Take. I mix a perimeter cove with a recessed linear along the main circulation line and a quiet track over the sofa. It keeps the L legible without glare.

Pros. With layered lights, you meet ambient needs and add punch only where needed, reducing glare and power. WELL Building Standard (Light) emphasizes glare control and visual comfort; shielding angles and diffusers on linear profiles go a long way (WELL v2, Light concept). I always model to preview the cove wash before you build so you can check shadows on the TV wall and confirm beam angles.

Cons. Too many lines can feel like an airport—stay minimalist with 1–2 statements. Tracks can buzz with poor drivers; pick quality 0–10V or DALI dimmable gear and keep drivers ventilated.

Tips / Cost. Use 24V LED strips for longer runs, 10–12 mm aluminum channels with opal lenses, and 36–60° beam spots for art or shelving. A 2-circuit track lets you split accent and general lighting; plan separate dimmers so movie nights are one tap away.

save pin

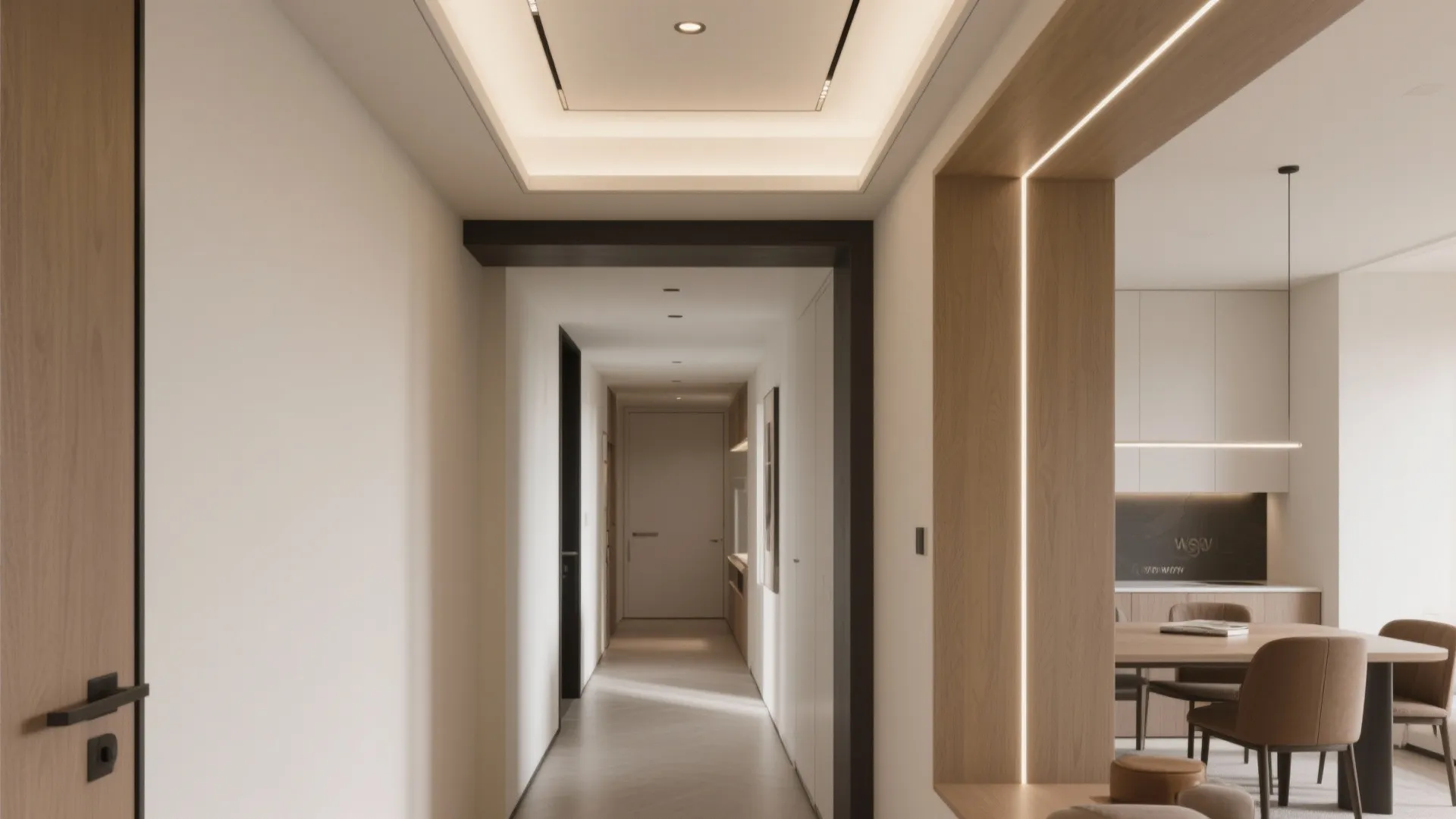

Tray + beam hybrid to zone living and dining

My Take. In narrow halls, a shallow tray floats above the living side while a slim beam steps the ceiling toward dining. The change in plane quietly signals the room switch and hides services.

Pros. The tray perimeter holds coves or micro-downlights, while the beam can conceal a sprinkler main, AC drain, or projector conduit—no ugly soffits. Painting the beam a half-shade darker creates a tailored, architectural look without extra materials.

Cons. Complex junctions at the inner L corner can crack if not meshed; I spec fiberglass mesh and a flexible joint compound. If your ceiling is already low (≤2.6 m), even a 75 mm drop may feel heavy—use a shadow gap and keep the edges thin.

Tips / Cost. Keep trays 45–75 mm deep with a 10–12 mm reveal for a floating effect. Before framing, check door head heights and window pelmets; use a laser to maintain one clean datum. I’ll often adjust the drop to clear your door heads and still line up with the dining pendant’s canopy.

save pin

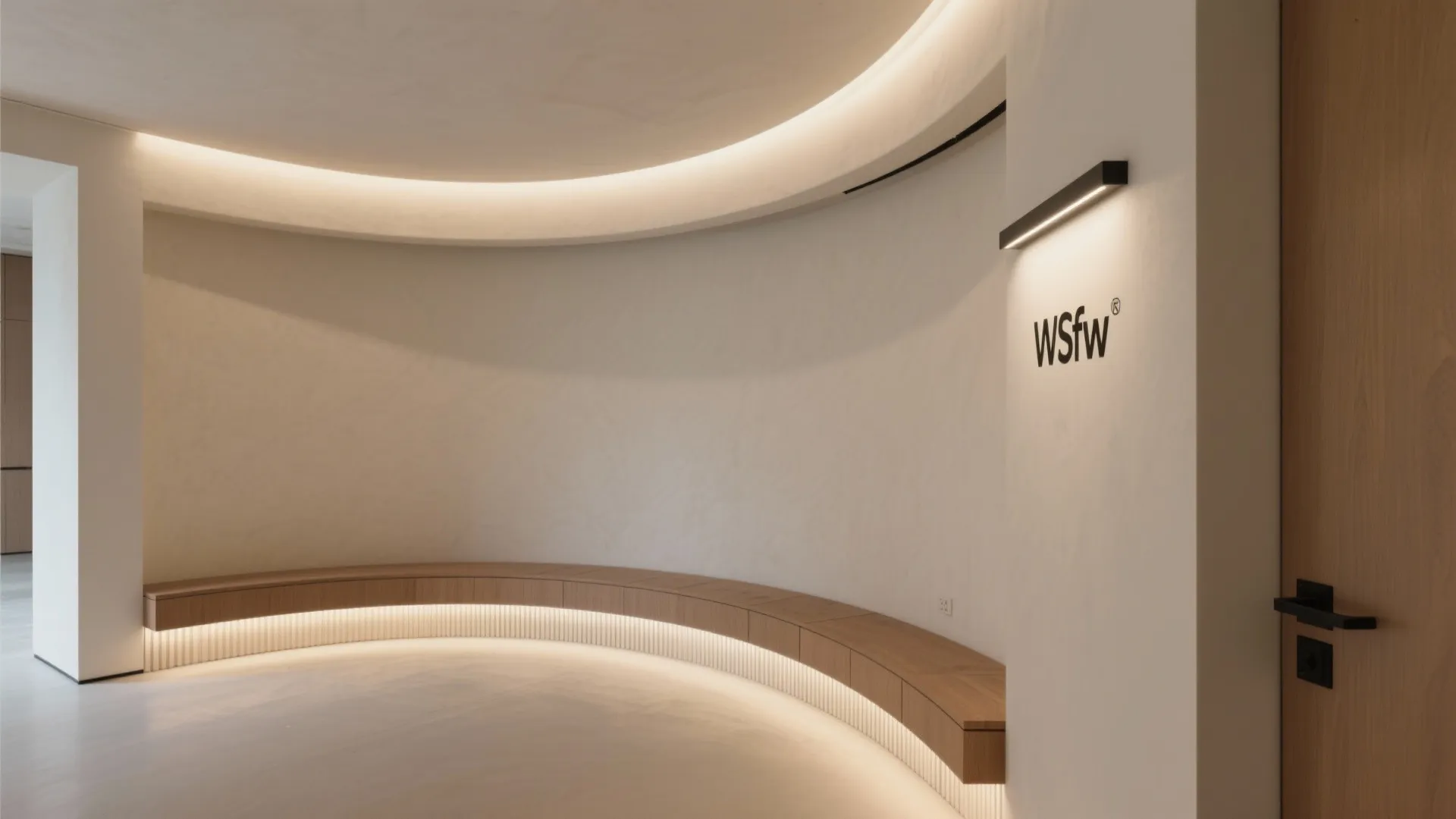

Gypsum sweep to soften the inner corner

My Take. A gentle gypsum curve at the inner L changes the whole vibe—suddenly the hall flows. I borrow this move when the plan is sharp or there’s a duct to hide.

Pros. The sweep creates a focal ceiling moment without heavy ornament; paired with a concealed washer, it produces a gallery-like wall glow. If you’re integrating AC, curving the bulkhead reduces turbulence noise compared with abrupt turns.

Cons. Curves demand skilled installers; poor templates equal wavy edges. LED strips may band on tight radii—spec tighter diode pitch (e.g., 120–168 LEDs/m) and use a deeper channel.

Tips / Cost. Template the curve with MDF ribs at 300 mm centers; wrap with 6 mm gypsum layers for a crisp finish. Expect $9–$16 per linear foot for curved POP/gypsum, plus lighting. Keep the radius generous (≥400 mm) for a modern, not “theme-park,” read.

save pin

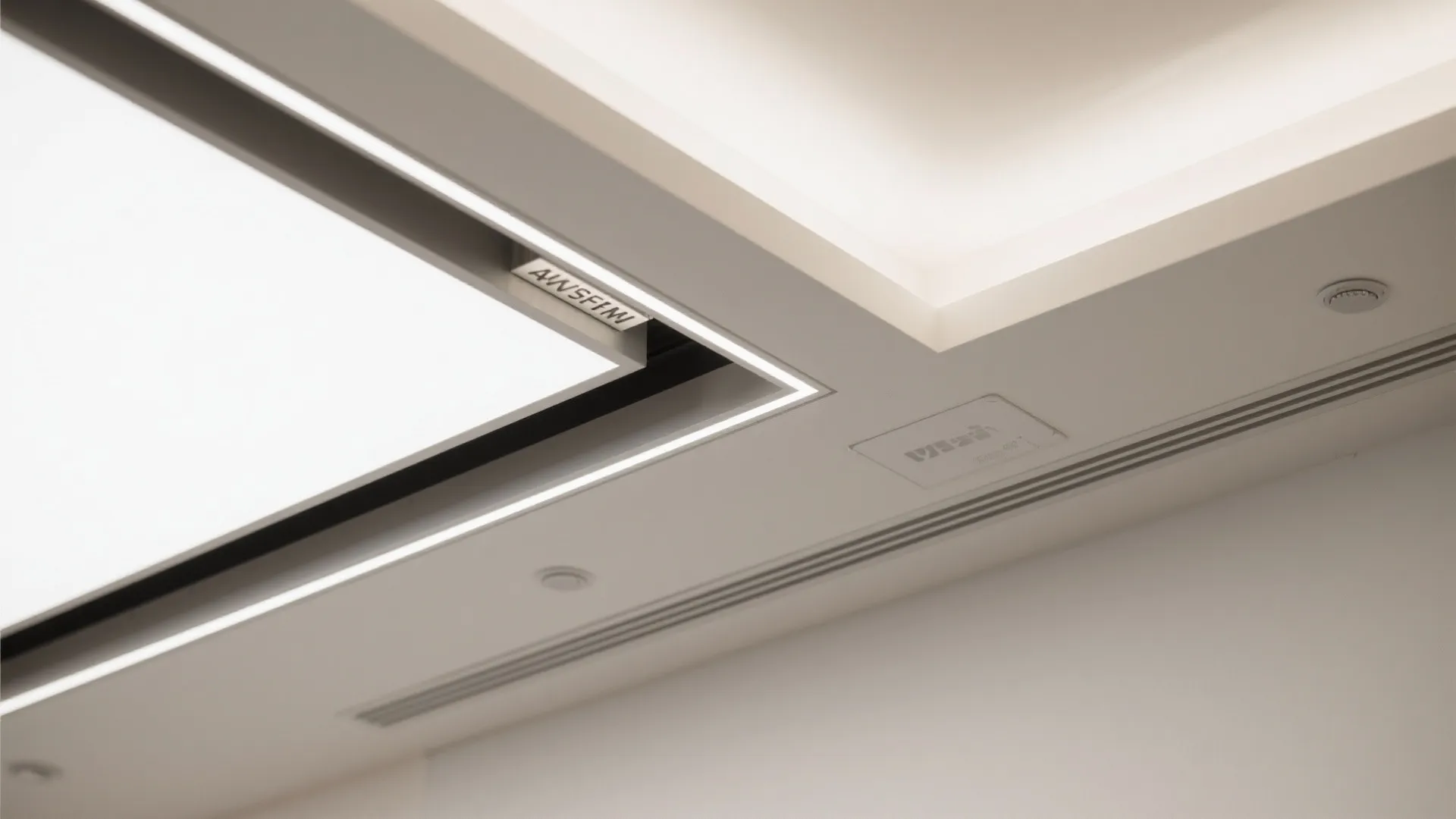

Details that make any L-shaped false ceiling work

My Take. The difference between “builder-basic” and beautiful lives in details: junctions, lighting control, and acoustics. I’ve learned to design for maintenance too—future you will thank you.

Pros. Put LED drivers in a serviceable niche; label circuits from day one. IC-rated recessed fixtures are safer near insulation; when in doubt, keep clearances and follow manufacturer specs and local code. Control with 2–3 scenes: bright (cleaning), living (evening), and movie (accent only).

Cons. Over-insulating a cove can trap heat and shorten LED life; leave ventilation gaps per profile specs. Too many devices (sensors, speakers, smoke detectors) clutter lines—coordinate early with MEP.

Tips / Cost. For paint, choose a low-sheen matte ceiling to avoid glare and patch marks. If you have a corridor leg off the L, integrate a motion sensor just for that run, not the whole hall. Invest in CRI 90+; the cost delta is small but colors and skin tones look much better.

save pin

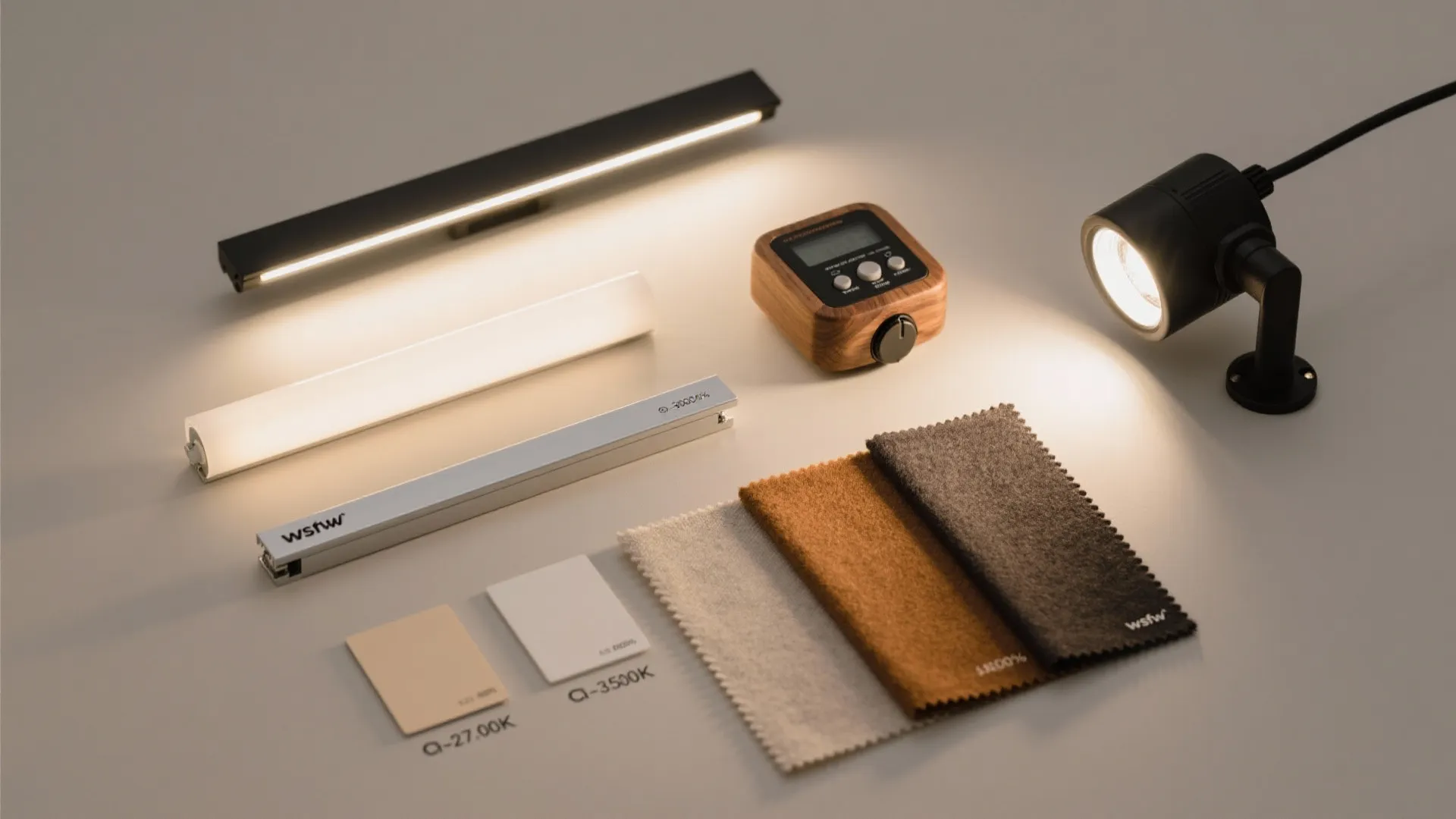

Why the light levels and color matter

My Take. Clients often ask, “How bright should a hall be?” I design around activities, then edit with dimmers. Mood needs as much attention as measurements.

Pros. For living spaces, a comfortable target is roughly 100–300 lux ambient, with 300–500 lux at reading spots; warm-white 2700–3000K reads cozy while 3500K can feel more modern (U.S. DOE, “LED Lighting”). Glare control and layering reduce eye strain and make your L legible at a glance (WELL v2, Light; look for shielding and diffusion).

Cons. Chasing very high lumens in a low ceiling flattens the room; shadows are your friend for depth. Cool-white strips can make wood look gray—match color temperature to material palette.

Tips / Cost. Buy extra LED and keep a labeled spare driver; batches vary. If you love artwork on the dining wall, consider CRI 95+ and R9>50 LEDs to make reds pop. Always sample finish + light on-site at night before you sign off.

save pin

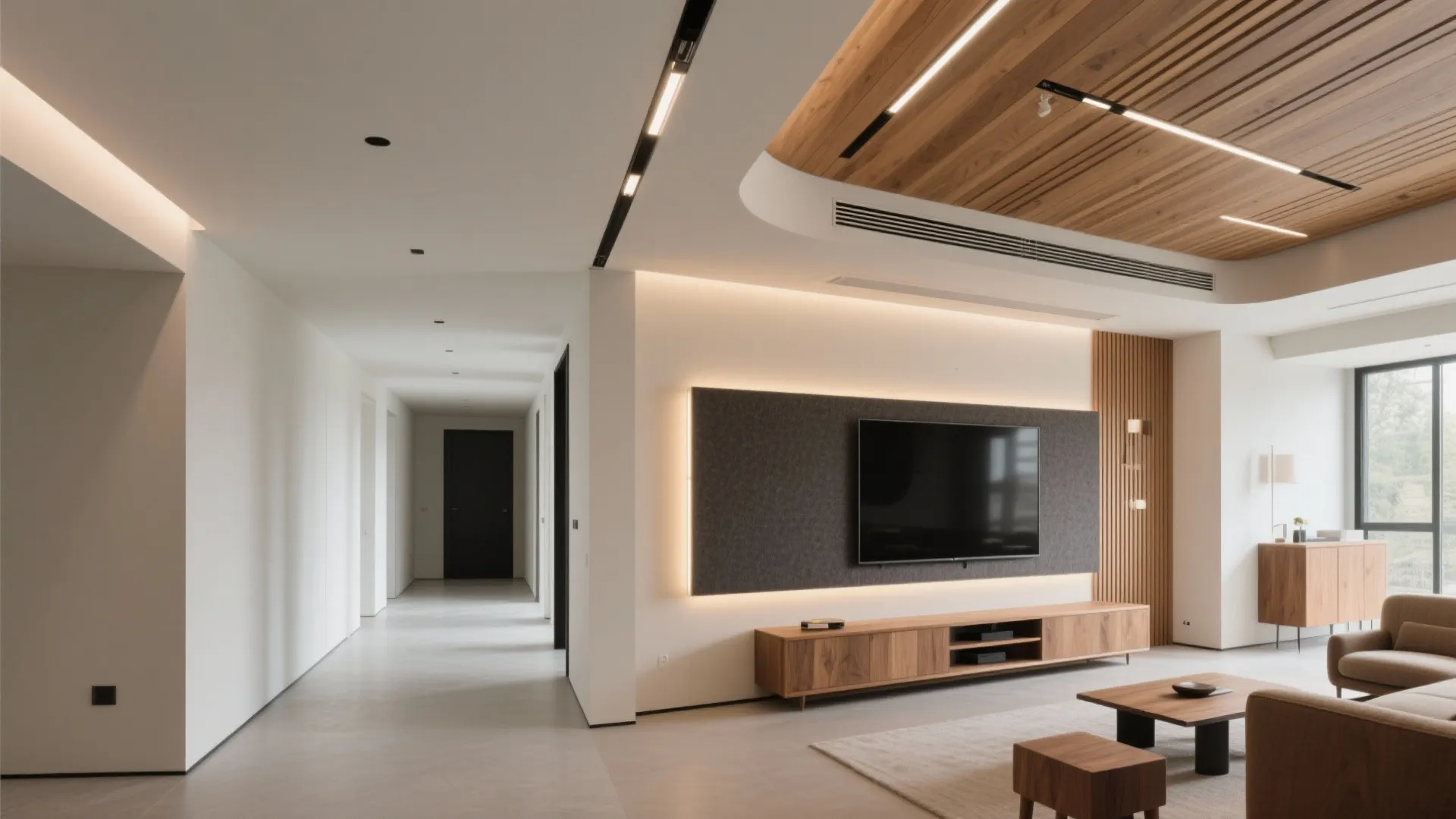

Putting it all together

My Take. On a recent 22 m² L-shaped hall, we ran a perimeter cove, added a timber slat drop just at the bend, and set a slim beam to hide the AC drain. The result was calm, bright, and easy to live with.

Pros. Combining one sculptural move (curve or slat) with one technical move (linear + cove) keeps budgets focused. Phasing helps too: frame and plaster now; install premium LEDs later when funds bounce back.

Cons. Decision fatigue is real. I keep clients to a three-material rule on the ceiling: paint, one texture, one light finish. More ingredients rarely mean better taste.

save pin

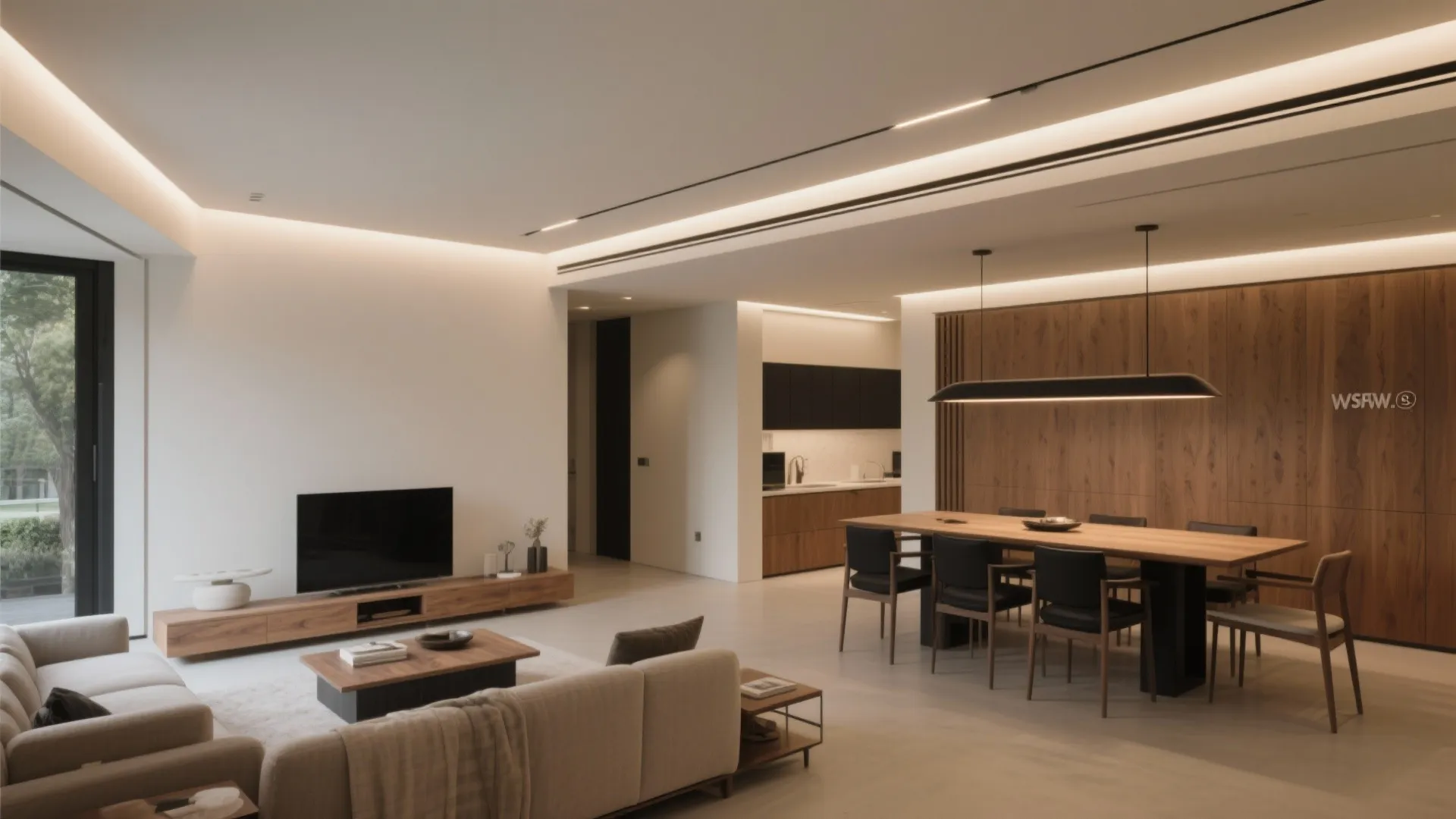

Summary

A main hall L shape false ceiling design isn’t a limitation; it’s a nudge toward smarter zoning, better light, and cleaner services. Keep the lines continuous, layer your light, and respect head height—and the L will feel intentional, not leftover. Which idea are you most excited to try in your own hall?

Sources mentioned: U.S. DOE Energy Saver (LED Lighting) and WELL Building Standard v2 (Light) for practical guidance on light quality, brightness, and glare.

save pin

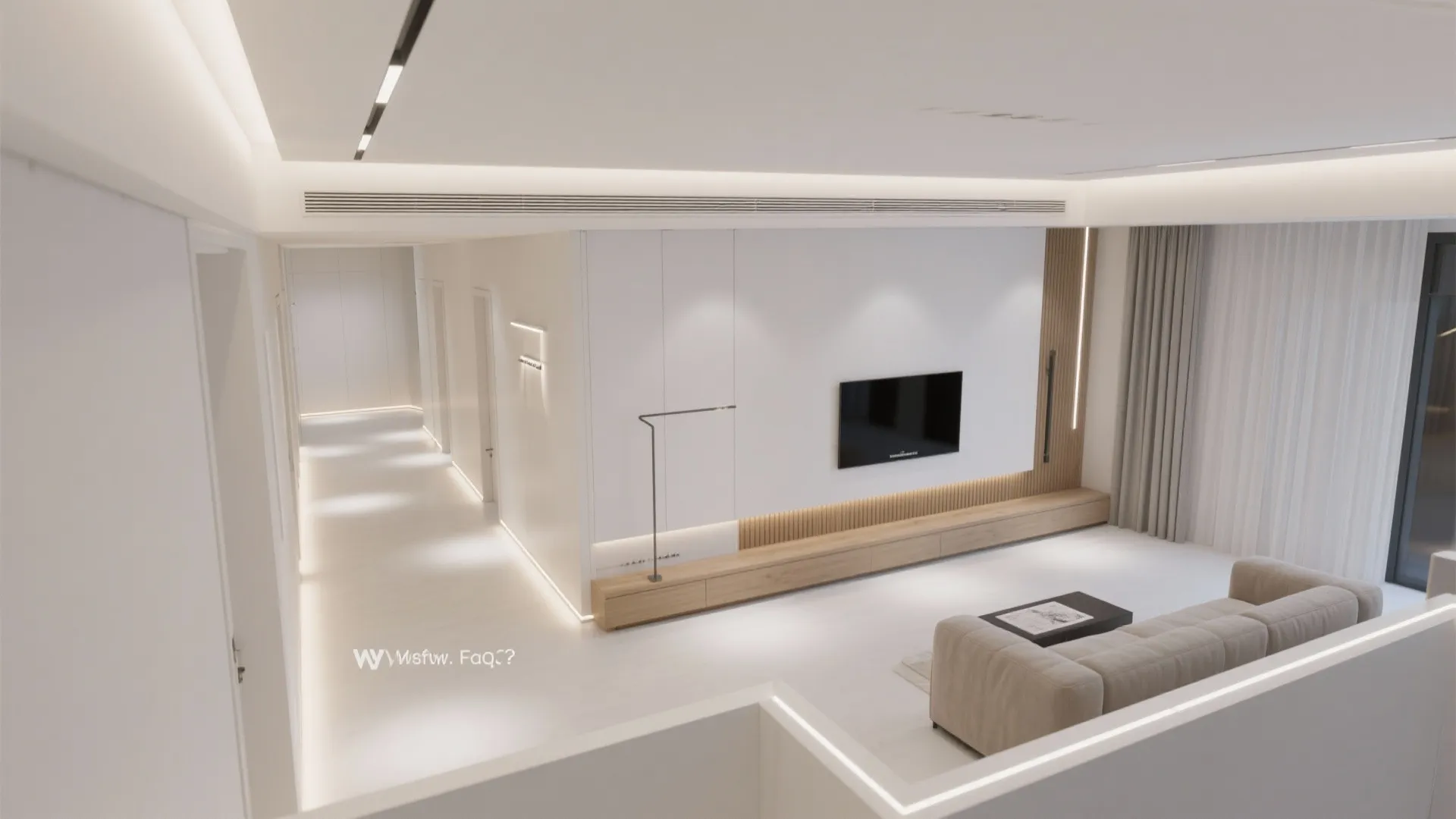

FAQ

1) What is the best main hall L shape false ceiling design for a small space?

Start with a shallow perimeter cove to keep head height and add a slim linear along the main circulation line. This combination reads clean and scales well from 12–24 m² halls.

2) How bright should my L-shaped hall be?

Aim for 100–300 lux for general ambient, and 300–500 lux at reading or task spots. Use dimmers so evenings can drop to a cozy 50–100 lux. (DOE’s “LED Lighting” gives helpful temperature and efficiency guidance.)

3) Which color temperature works best?

Warm 2700–3000K suits living spaces; 3500K feels crisper with modern palettes. Keep dining pendants matching the ceiling’s dominant tone to avoid mixed color casts.

4) Can I hide AC ducts inside an L-shaped false ceiling?

Yes—use a beam or curved bulkhead at the inner L to turn ducts, and leave access panels for filters and drains. Always coordinate with your HVAC tech before framing.

5) Are timber slats practical on ceilings?

They’re great for warmth and light acoustic absorption if you use a felt backer and stable substrates. Plan a dusting routine and limit slats to the bend or sofa zone to reduce maintenance.

6) How do I avoid glare on the TV?

Keep coves behind the viewer or off-axis from the screen, use diffused lenses, and dim the track over the sofa. WELL v2’s Light concept emphasizes glare control through shielding and layering.

7) What’s the average cost for a main hall L shape false ceiling design?

Basic gypsum/POP drops run roughly $6–$12 per linear foot; quality LED coves with profiles can add $18–$45 per meter. Timber slats range $25–$60 per square foot depending on species and acoustic backing.

8) Do I need high-CRI LEDs?

Yes—CRI 90+ makes wood and skin look right, especially in warm interiors. For art or rich textiles, go CRI 95+ and ensure R9>50 to keep reds and ambers vivid.
