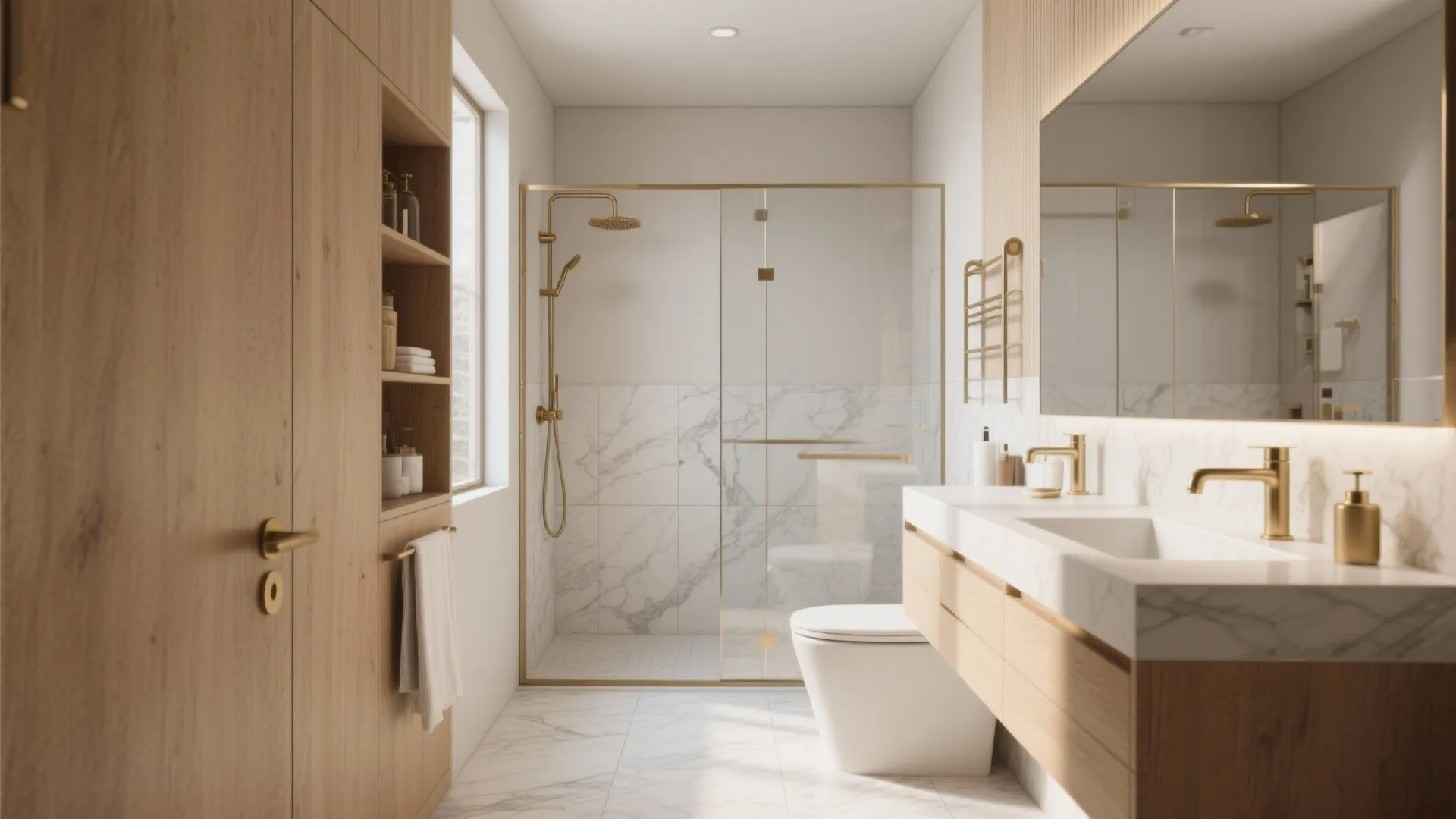

10x7 Bathroom Layout Ideas — 5 Smart Plans: Practical and stylish layout inspirations for a 10 x 7 bathroom, drawn from real projects and my decade of small-space design work.

I still laugh at the client who asked for a sauna, a clawfoot tub, and a washer-dryer stacked in a 10 x 7 room—on day one I learned that small spaces demand big honesty and smarter choices. From that near-disaster I started cataloging layouts that actually work, and I even saved one plan that became my go-to small bathroom case study when budgets were tight.

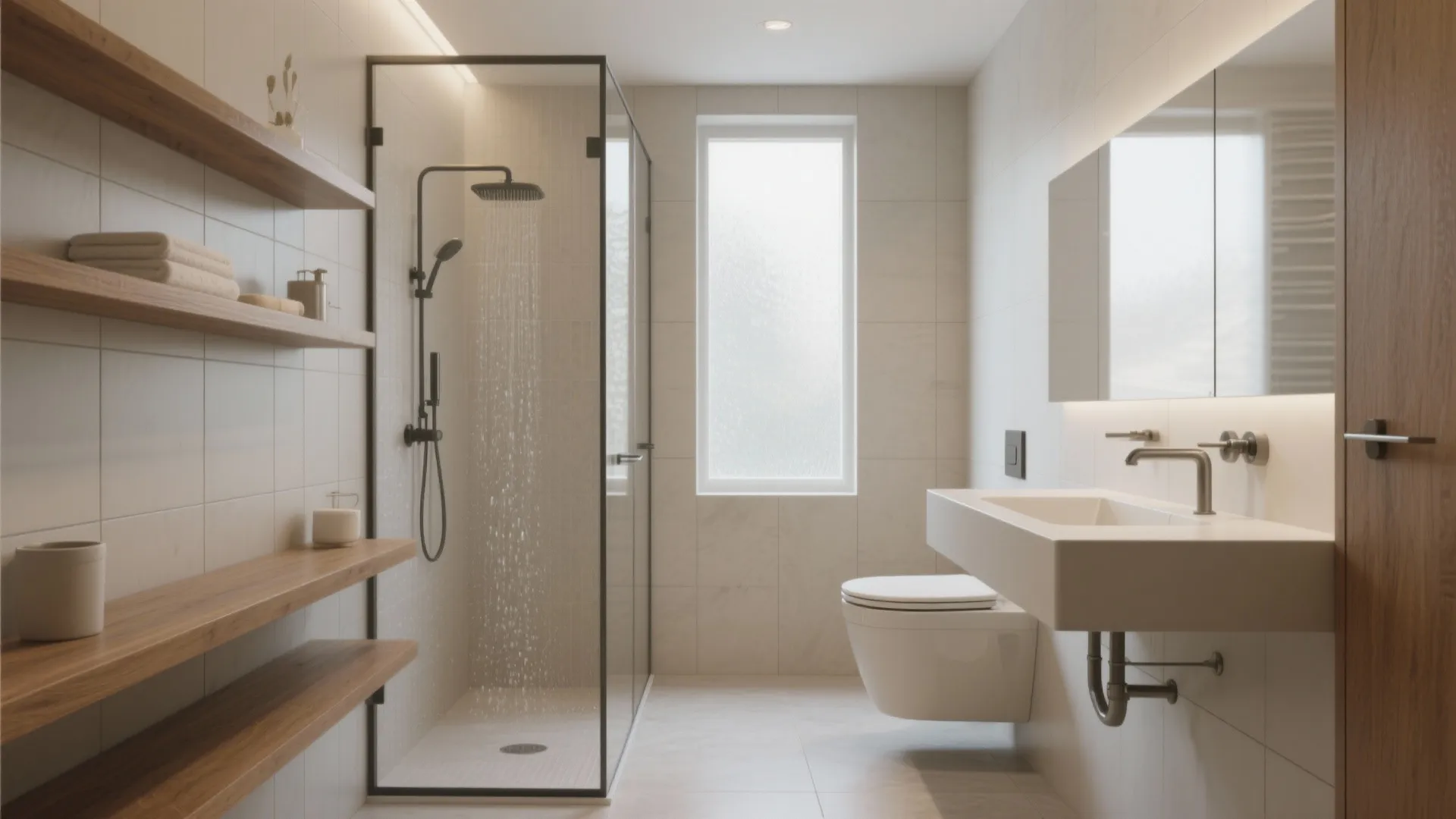

1. Linear wet wall: shower, vanity, toilet in a row

I love the simplicity of lining fixtures along one long wall in a 10 x 7 bathroom; it feels organized and opens sightlines. The upside is easy plumbing runs and a cleaner visual flow, though you’ll need a slim vanity and a glass shower screen to avoid a cramped look.

save pin

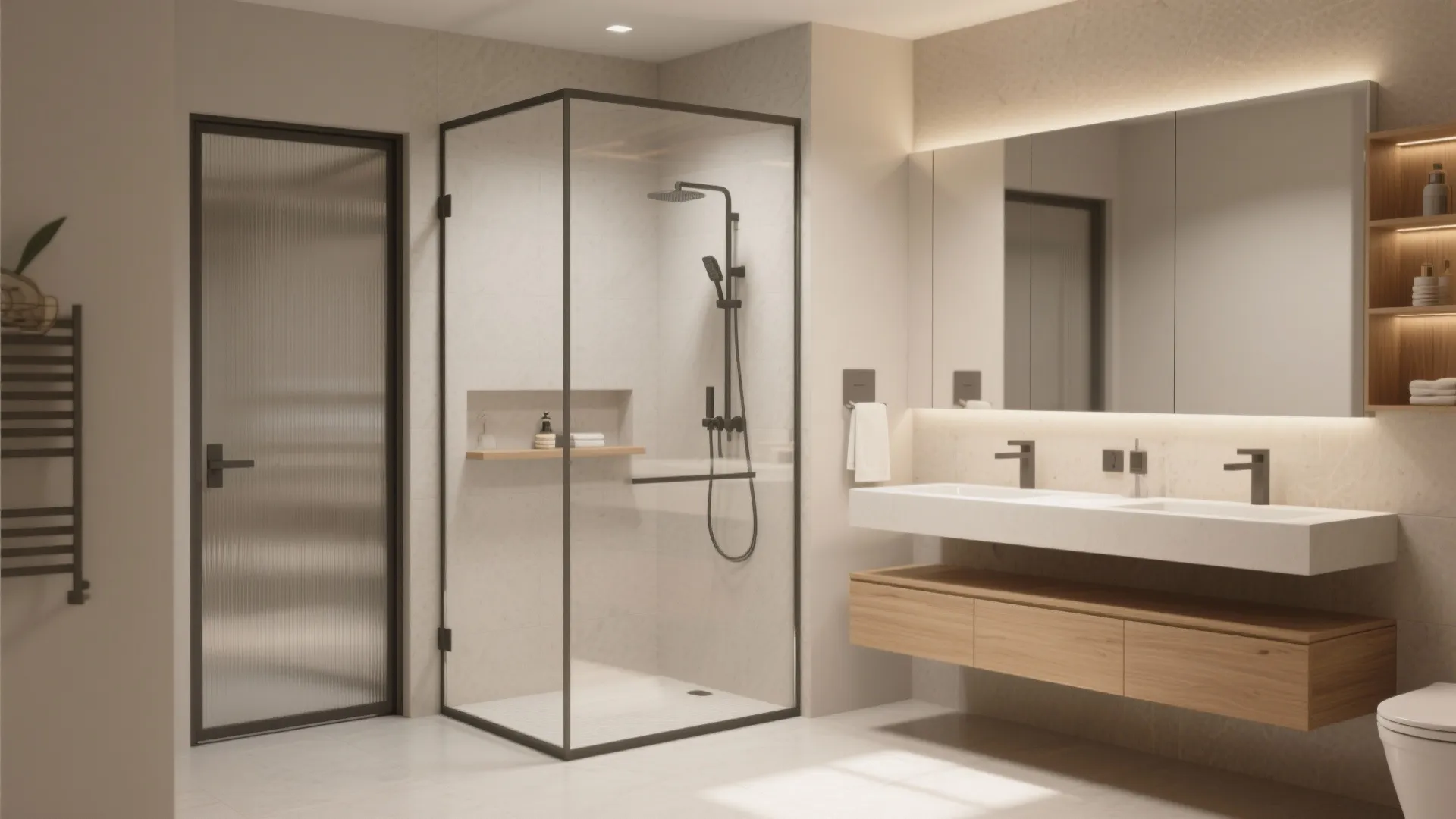

2. Offset shower + floating vanity for more elbow room

Putting a walk-in shower at one corner and a floating vanity opposite creates breathing space in the center—great for two people getting ready. It looks modern and makes cleaning easier, but plan the door swing carefully or use a sliding/bi-fold door to prevent collisions.

save pin

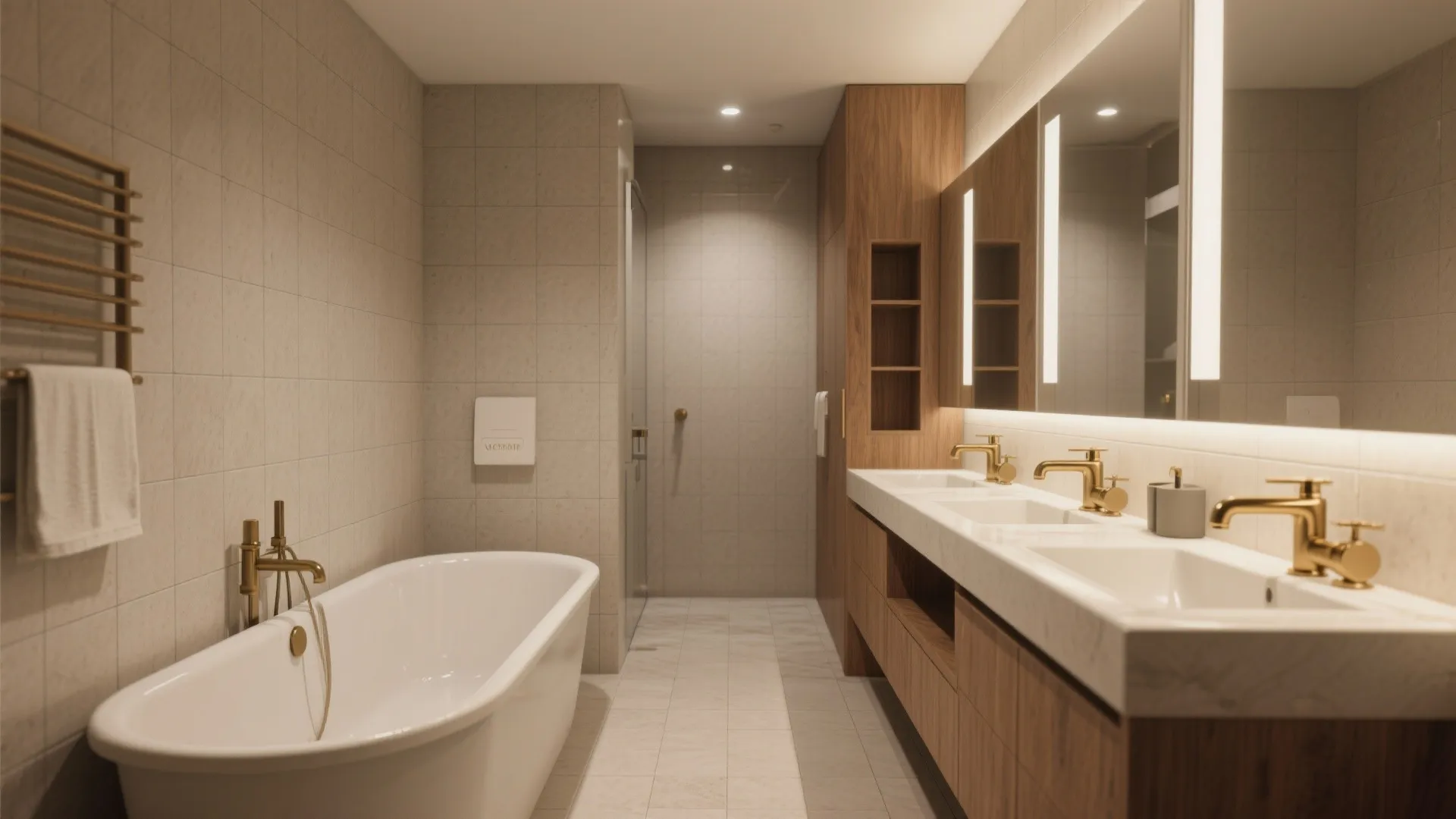

3. Tub along the long wall for classic comfort

Yes, you can fit a modest tub in 10 x 7 if you run it along the 10-foot wall; it gives the bathroom a hotel-like feel. The trade-off is less storage and possibly a narrower vanity, so compensate with vertical cabinets or recessed niches.

save pin

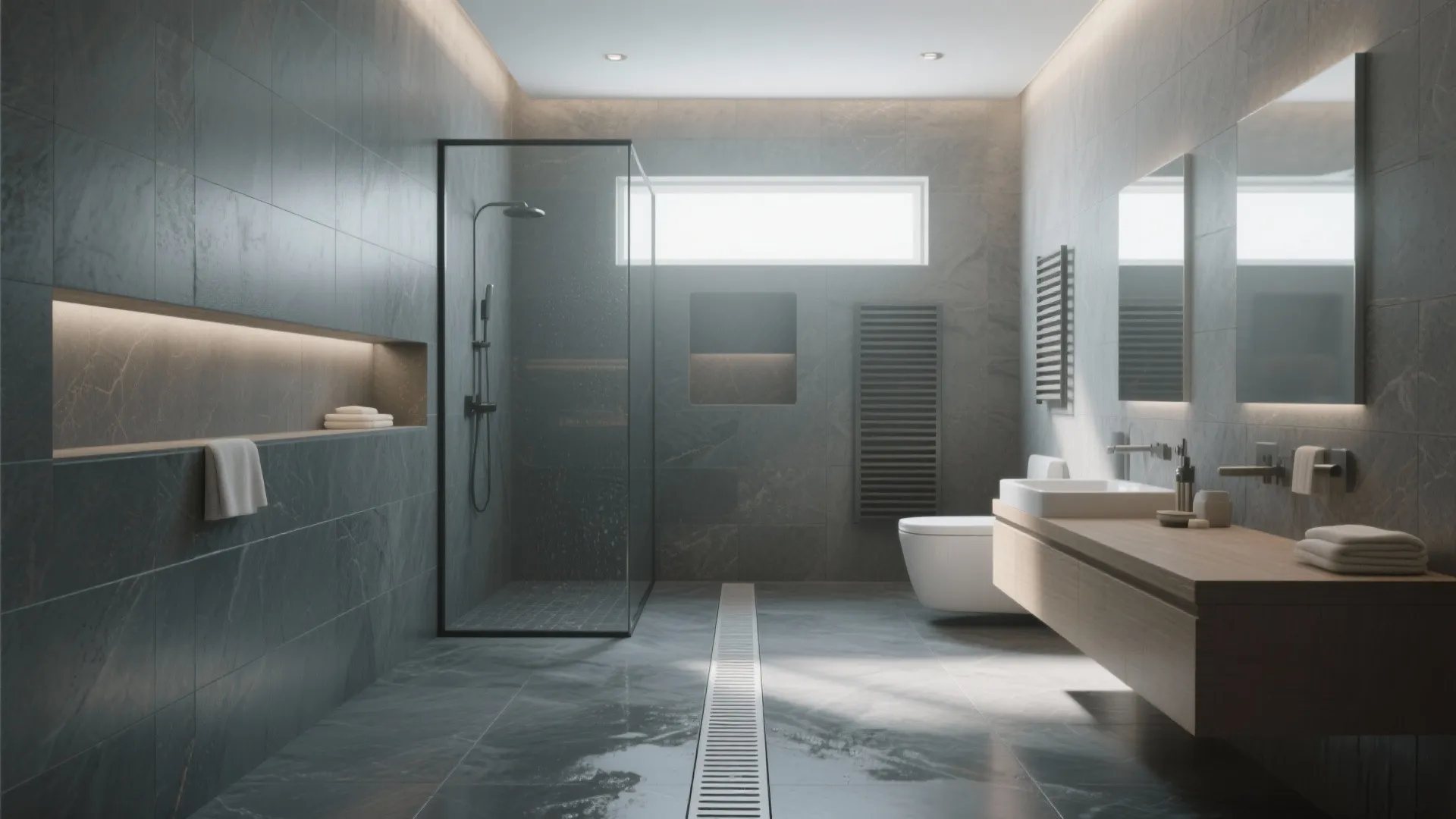

4. Wet-room style for a spa-like minimalist look

Turning the whole room into a wet area with a linear drain can visually expand the space and is surprisingly budget-friendly if you plan the waterproofing right. It’s beautiful and flexible, though you should expect a slightly higher upfront waterproofing cost and careful ventilation design.

save pin

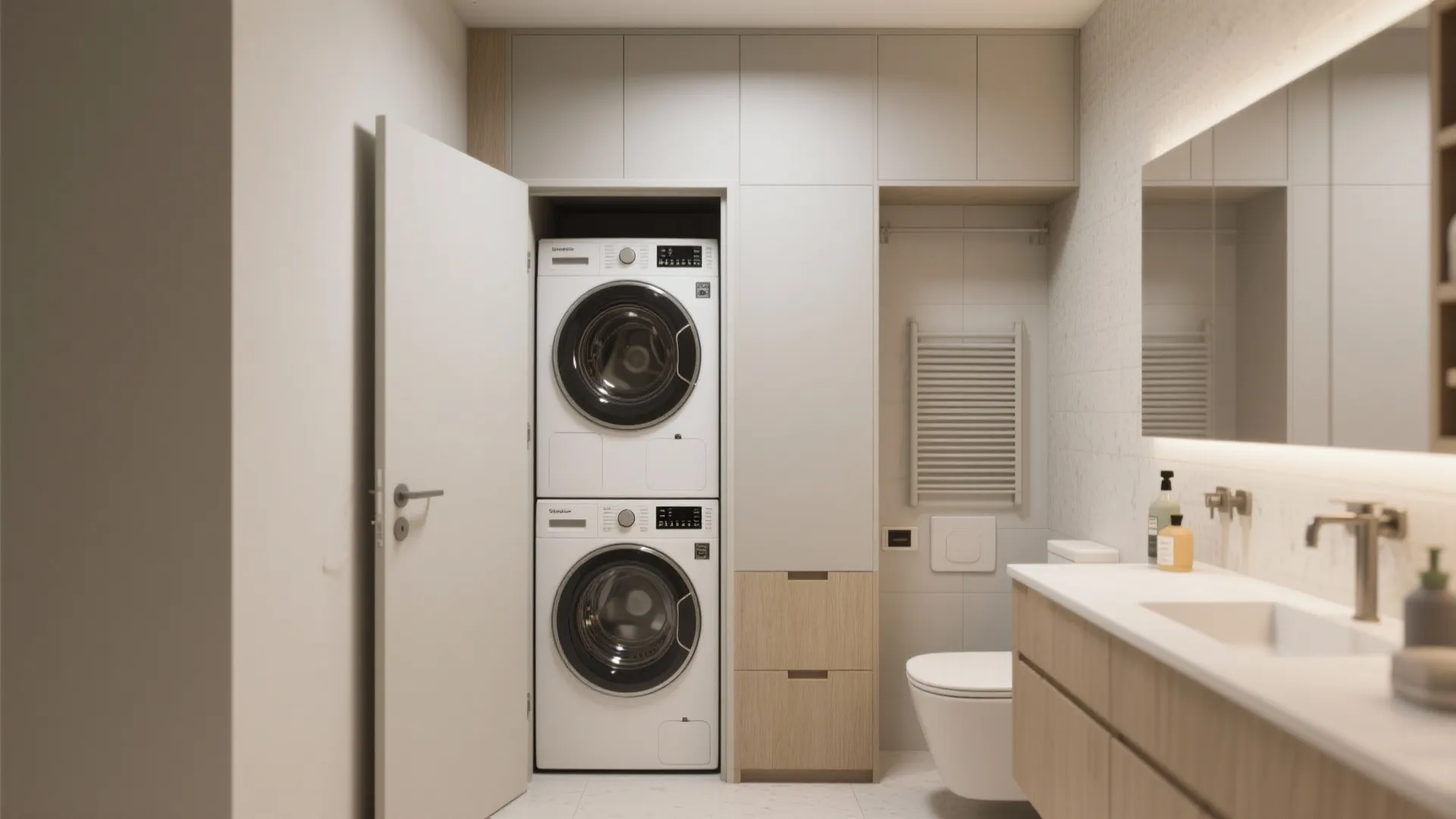

5. Split zones: laundry nook or storage wall

If you need utility, tuck a stacked washer-dryer behind a pocket door or use a full-height storage wall opposite the fixtures; this keeps clutter out of sight. It’s the most practical option for families, but I always remind clients that added appliances need proper ventilation and service access.

If you like seeing a quick visual before committing, I often use a 3D layout preview to test different fixture placements and finishes—seeing the scale in 3D saves time and headaches later.

Budget tips: start with layout and plumbing moves first. Moving plumbing along the same wall cuts costs dramatically. Also, choose a few statement finishes (think a bold tile or brass tap) and keep the rest neutral to avoid visual clutter.

Small case note: I once squeezed a double vanity into a 10 x 7 by using two 18" sinks and a slim profile vanity. It worked because we sacrificed counter depth and added open shelving for towels—so there’s always a workaround if you prioritize the feature.

For quick experimentation, try a free layout example when you’re sketching ideas; it helped me finalize one client’s plan in a single afternoon.

save pin

FAQ

Q1: Is 10 x 7 large enough for a tub and shower?

I often fit a standard 60" tub along the 10-foot wall and a narrow shower or just a tub-shower combo; it’s tight but definitely possible with thoughtful fixture selection.

Q2: What clearances should I plan around the toilet?

Allow at least 15" from the toilet center to any side obstruction and roughly 21–24" in front for comfortable use; I follow these minimums in every plan.

Q3: Can I include a washer-dryer in a 10 x 7 bathroom?

Yes—stacked units behind a pocket door or in a recessed closet work well, but ensure proper ventilation and service access for both machines.

Q4: Are pocket doors recommended?

I frequently specify pocket doors in 10 x 7 bathrooms because they save swing space, though they add a bit to cost and need good framing during renovation.

Q5: How do I improve storage in such a compact bath?

Use vertical cabinets, recessed niches in the shower, and mirrored medicine cabinets; floating vanities also free up floor space and make the room feel airier.

Q6: What flooring is best for a wet-room approach?

Waterproof tile or epoxy floors with a linear drain are my go-tos; if you choose wood-look materials, pick waterproof luxury vinyl with proper slope to drains.

Q7: Any accessibility rules I should consider?

For accessible clearances, refer to the ADA Standards for Accessible Design (2010), which detail turning spaces and fixture clearances; they’re the best authoritative guide for planning inclusive bathrooms.

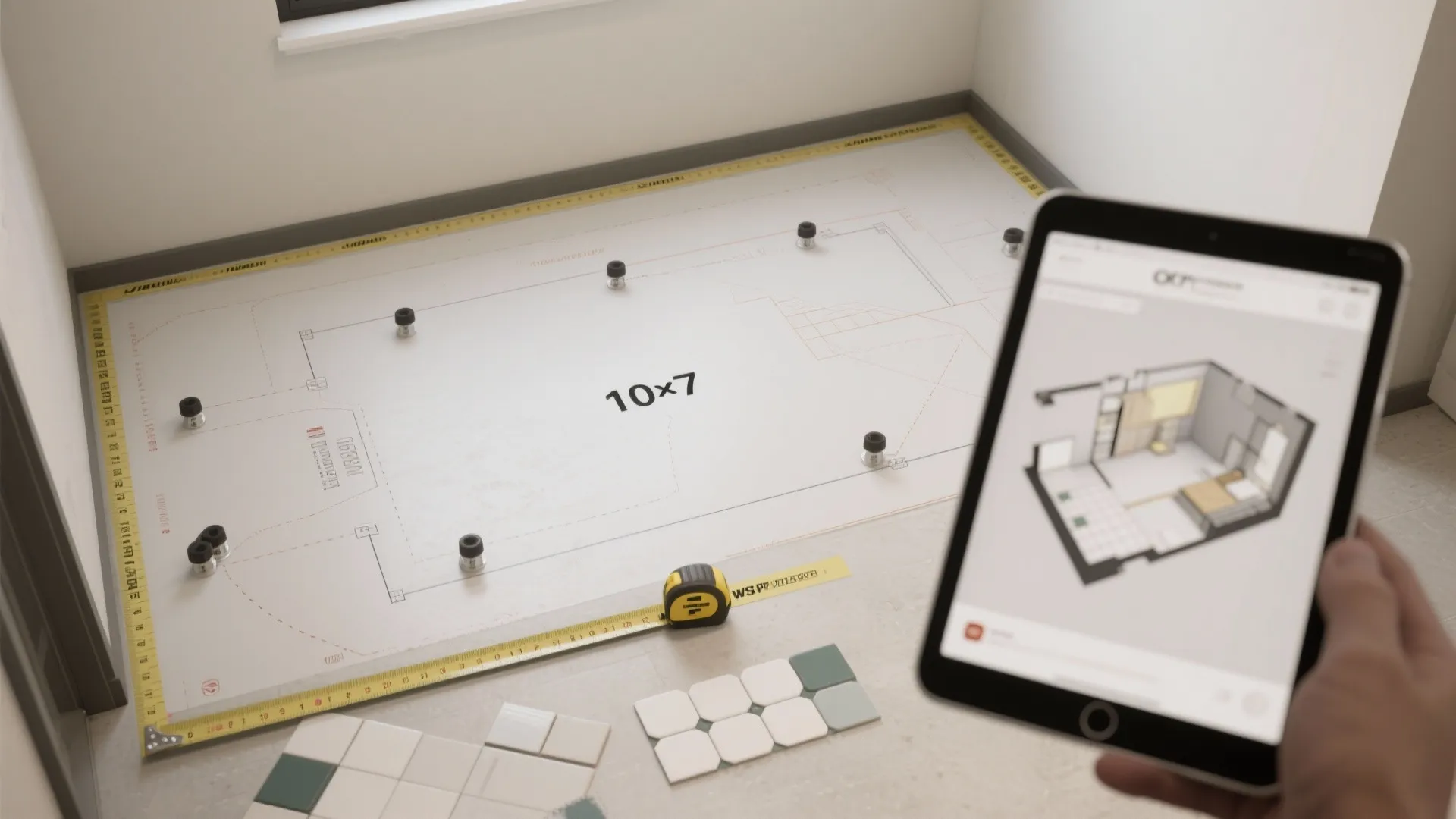

Q8: How do I test a layout before renovating?

I always mock up a full-scale layout on the floor with tape or use a digital planner to validate circulation and fixture sizes; this simple step prevents costly surprises.
