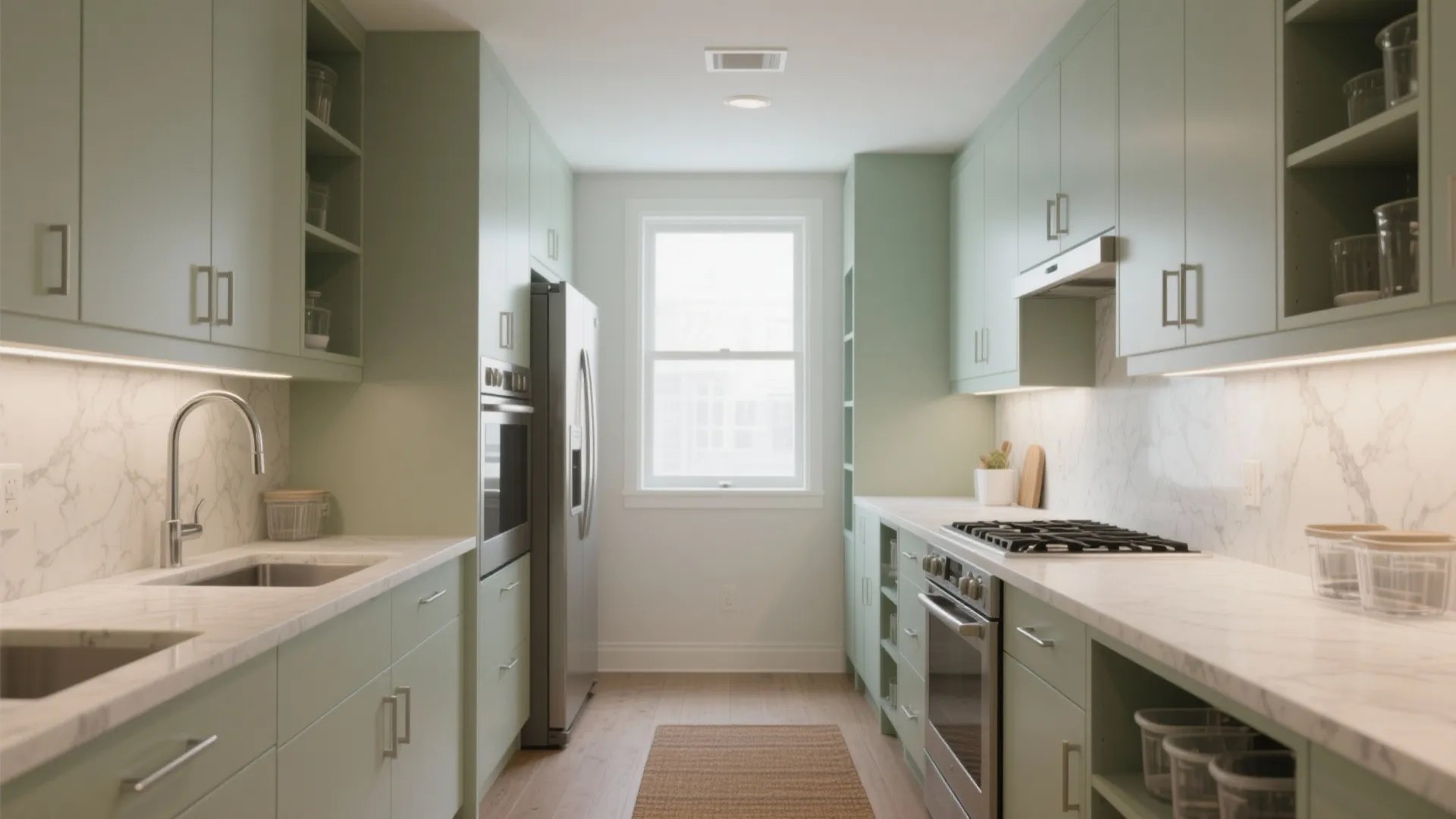

12 x 10 kitchen layout: Explore the best design ideas for a 12 x 10 kitchen layout

I’ve planned and built many kitchens in the 120 sq ft range, and a 12' x 10' footprint can feel surprisingly generous when circulation, storage, and task sequences are carefully choreographed. The aim is to keep the working triangle compact, maintain safe clearances, and leverage vertical storage without crowding the room's sightlines.

Evidence-Based Foundations for a 12' x 10' Kitchen

In compact kitchens, every inch matters. The WELL v2 Kitchen & Nourishment guidelines emphasize supportive environments for healthy routines, including access to fresh food and adequate task lighting; for task lighting, the Illuminating Engineering Society (IES) recommends roughly 500 lux on work surfaces for food prep to ensure safety and visual comfort (IES standards). Workflow research also points to movement efficiency: Herman Miller has documented that minimizing unnecessary steps reduces fatigue and increases throughput in task-focused environments, a principle that directly applies to kitchen work zones (Herman Miller Research). I build around these baselines so prep, cook, and clean cycles stay tight and intuitive.

Core Layout Strategies (12' x 10')

For 12' x 10', three configurations consistently perform well:

1. U-shape: Best for solo or duo cooks with strong storage. Keep 42"–48" aisle widths for comfortable turning. Sink centered on the base of the “U,” range on one leg, refrigerator on the other, all within 4'–9' legs to maintain an efficient triangle.
2. L-shape + Island Cart: Ideal when you need a landing surface without enclosing the space. An 18"–24" deep movable cart gives flex prep without stealing circulation.
3. Galley (parallel): If the long side hosts windows or doors, a galley maintains flow. Target 48" between runs to permit two users passing, with the sink and range on opposite runs and prep zone adjacent to the sink.

When mapping these zones, a room layout tool helps test aisle widths, appliance swing clearances, and landing spaces before committing to cabinets or utilities.

room layout tool

Work Triangle and Zone Zoning

I keep the classic triangle tight (12'–26' total path) and pair it with modern zone thinking: prep near the sink, cooking near the range, and storage aligned with both fresh and dry goods. Place the refrigerator at the edge of the triangle to allow quick snack access without crossing the hot zone. Landings matter: aim for 15"–24" clear counter on both sides of the range and at least 18" adjacent to the sink for staging. Trash and recycling belong directly under or near the prep zone, not at the end of the kitchen where traffic bottlenecks.

Aisles, Clearances, and Ergonomics

For a 12' x 10' kitchen, I target 42" aisles for single-cook, 48" if you often share the space. Keep 21" minimum in front of appliances, with 30" ideal for oven and dishwasher doors. Upper cabinet heights should respect reach ranges; store daily-use items between shoulder and waist height. Pulls and handles with 96mm centers offer comfortable grip; drawers at 18"–24" depth cover most cookware while avoiding overextension. Standing durations in kitchens are real; adding a soft mat at the prep zone improves comfort and reduces foot fatigue per ergonomic best practices (ergonomics.org).

Lighting: Layered and Glare-Controlled

Compact kitchens benefit from layered lighting: ambient (2700–3000K for warmth), task (3500–4000K for clarity at 450–600 lux on counters), and accent for depth. Under-cabinet fixtures with a 90+ CRI improve food color rendering. Control glare by using diffused lenses and keeping the light source out of direct sightlines. Dimmers allow a quick shift from bright prep to softer dining. If you’ve got a window on the 12' wall, use light, matte finishes around it to bounce daylight deeper without hotspots.

Storage Tactics for 120 sq ft

Vertical is your friend. Full-height pantry pull-outs on the short wall can absorb staples and small appliances. Deep drawers outperform doors for pots and pans; divide drawers with adjustable inserts to prevent tool migration. A 24"-wide appliance garage preserves counter continuity while keeping toasters or blenders ready. If wall cabinets crowd the room, consider open shelves for 48"–60" of linear display; mix with one closed run to avoid visual clutter. Use toe-kick drawers for flat items like baking sheets.

Materials, Surfaces, and Sustainability

In small kitchens, finishes drive perceived spaciousness. Low-sheen, light-toned cabinet fronts reduce visual noise; pair with a moderately veined countertop to hide crumbs and wear. Choose durable, low-VOC finishes; WELL v2 supports material health as part of occupant well-being. For floors, resilient options like cork or rubber reduce impact stress and provide traction. Stainless or induction cooktops improve longevity and indoor air quality—induction also reduces heat spill, keeping a compact space more comfortable.

Acoustics and Appliances

Hard surfaces amplify clatter. A simple rug runner and soft-close hardware dampen impact noise. Ventilation matters more in smaller volumes: a properly sized hood (capture area equal to or slightly larger than the cooktop) with quiet operation (under 3 sones at working speed) improves air quality without overpowering conversation. Dishwashers in the 42–48 dBA range keep noise down during meal clean-up.

Color Psychology for Compact Kitchens

Color can help zone activities and set pace. Soft neutrals and desaturated greens tend to reduce stress and support calm, steady tasks, while warm accents near dining encourage sociability. Keep saturation lower on large planes; add richer tones in small doses—backsplash niches, hardware, or stools—to avoid crowding the envelope. The goal is a visual rhythm that directs attention to work surfaces and keeps vertical planes light.

Appliance Placement and Power Strategy

In a 12' x 10', prioritize panel-ready or counter-depth appliances to save inches. Place the microwave either in a base drawer or a high but reachable niche (48"–54" AFF) to prevent shoulder strain. If using a slide-in range, maintain 9"–12" of counter both sides; with a wall oven, cluster it near pantry storage for baking ergonomics. Plan dedicated circuits for high-load appliances and include outlet strips under upper cabinets for small appliances to keep backsplashes clean.

Island Alternatives for Tight Circulation

Not every 12' x 10' can fit a fixed island with ideal 36" clearances all around. A slim 18"-deep peninsula off the L-shape creates seating and extra prep while preserving the main aisle. Mobile carts with locking casters give flexible prep and can tuck aside when guests arrive. If you test these in an interior layout planner, you’ll quickly see how small shifts affect circulation.

interior layout planner

Ventilation, Safety, and Code Notes

Keep combustible clearances per manufacturer instructions. If gas is in play, prioritize make-up air and a hood ducted to the exterior. For induction, you’ll reduce ambient heat and often gain safety features like pan recognition. GFCI outlets near water, anti-tip brackets on ranges, and slip-resistant flooring are non-negotiables in compact, high-traffic kitchens.

Styling and Everyday Use

I keep styling restrained: a single open shelf with curated everyday pieces, a soft textile runner, and a plant near the window. Place hooks for towels where they won’t brush against the cooktop. Use clear bins inside pantries to identify contents at a glance. Most importantly, maintain landing zones; clutter belongs in dedicated baskets or the appliance garage, not on the prep surface.

FAQ

What aisle width works best in a 12' x 10' kitchen?

Target 42" for single-cook use and 48" if two people regularly share the kitchen. This keeps movement fluid without sacrificing storage depth.

How much lighting do I need over the counters?

Aim for 450–600 lux task lighting on work surfaces, with 90+ CRI under-cabinet fixtures to improve color accuracy per IES guidance.

Is an island possible in this footprint?

Often a slim peninsula or mobile cart is a better choice. If you insist on a fixed island, ensure 36" minimum clearances all around—many 12' x 10' kitchens can’t support that without compromising flow.

Where should the refrigerator go?

Place it at the edge of the triangle so guests can access drinks without crossing the cook’s path. Leave 15"–18" landing space adjacent for convenience.

What’s the ideal work triangle length?

Keep the total path between sink, range, and refrigerator roughly 12'–26'. Shorter paths reduce steps and improve throughput, echoing efficiency principles seen in workplace research.

Are open shelves practical in small kitchens?

Yes, if limited to 48"–60" of linear run and curated. Balance with closed storage to prevent visual clutter and dust accumulation.

Which materials improve comfort?

Cork or rubber flooring reduces impact stress; low-sheen finishes cut glare. Induction cooktops minimize ambient heat, improving comfort in compact rooms.

How do I reduce noise?

Use soft-close hardware, a runner, and a quiet dishwasher (under ~48 dBA). Choose a range hood with low sone ratings and proper capture area.

What color palette works best?

Light neutrals on large planes with small, warm accents. Desaturated greens can support calm focus; keep strong colors to accessories or a controlled backsplash area.

Do I need make-up air for a hood?

For high-CFM hoods or tight envelopes, make-up air may be required. Follow local code and manufacturer guidance to maintain indoor air quality.
