16x16 Dining Room Layout: Seating, Walkways, and Furniture Scale Formula: Exact measurements designers use to fit the right table, seating, and circulation space in a 16x16 dining room without crowding the room.

Direct Answer

A 16x16 dining room works best with a table between 72–96 inches long, seating 6–8 people, while maintaining at least 42–48 inches of clearance around the table for walkways and chair movement. This spacing keeps circulation comfortable and prevents the room from feeling cramped. Furniture scale and wall storage must be planned together to preserve usable floor space.

Quick Takeaways

1. A 16x16 dining room comfortably fits a 6–8 seat dining table.
2. Maintain 42–48 inches of clearance around the table for walkways.
3. Tables between 72–96 inches long balance seating and circulation.
4. Buffets should stay under 20 inches deep to protect walkway space.
5. Oversized lighting or chairs often make the room feel smaller than it is.

Introduction

In my design practice, a 16x16 dining room is one of the most deceptively tricky spaces. On paper it sounds generous—256 square feet—but in real projects, poor spacing decisions can make it feel crowded fast.

The most common issue I see is homeowners choosing the wrong dining table size first and only thinking about walkways afterward. Once chairs start sliding back and people try to circulate around the table, everything suddenly feels tight.

The good news is that there is a reliable space planning formula designers use for square dining rooms. It balances seating capacity, walkway clearance, and furniture scale so the room feels comfortable during everyday meals and larger gatherings.

If you're still exploring layouts, you can also see how designers structure similar spaces in this collection of AI‑assisted dining room layout examples. Real layouts often reveal spacing mistakes faster than floor plans alone.

In this guide, I'll walk through the exact measurements I use when planning a 16x16 dining room—plus a few hidden mistakes that even experienced homeowners overlook.

save pin

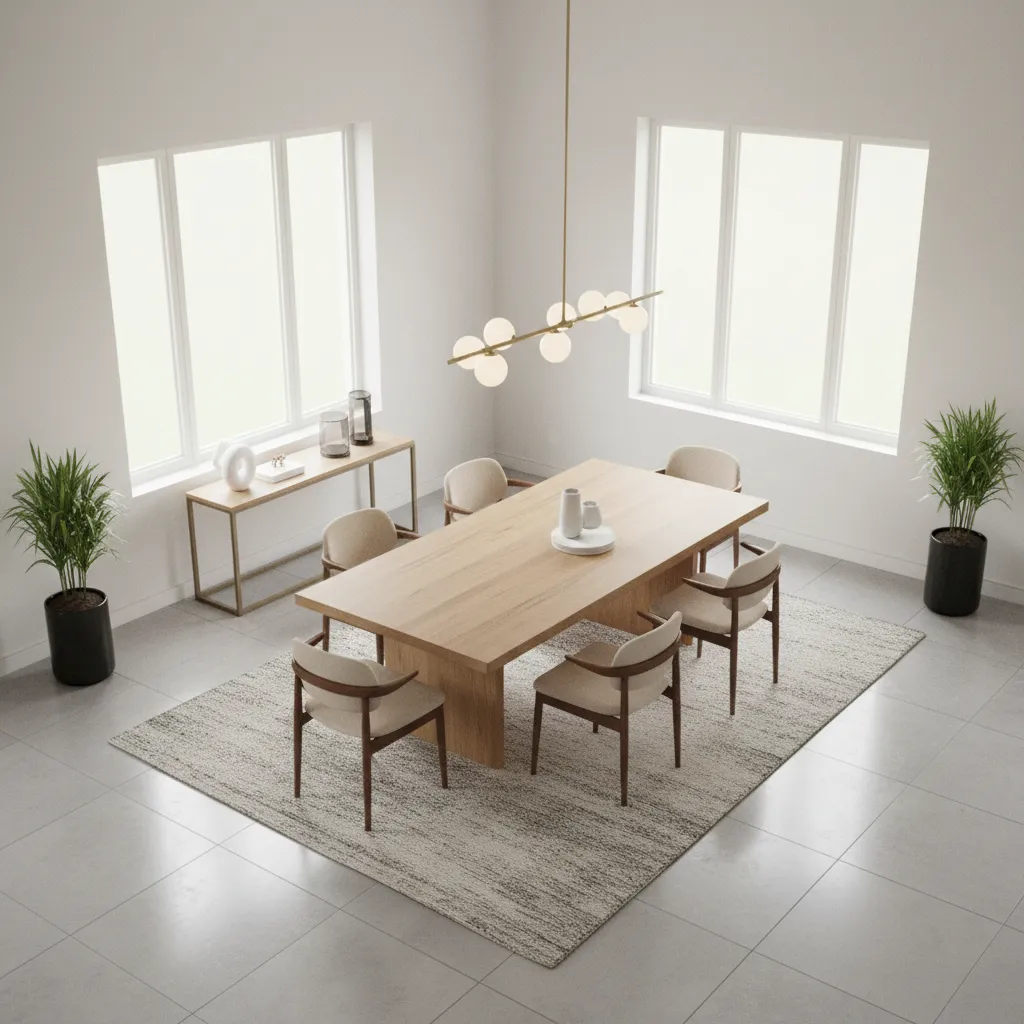

The Ideal Layout Framework for a 16x16 Dining Room

Key Insight: The most balanced layout centers a medium-large dining table while preserving a 4‑foot circulation ring around it.

Designers rarely start with the table size. Instead, we start with circulation. In a square room like 16x16, people naturally move around the table on multiple sides, which means walkways must work in every direction.

The planning framework usually looks like this:

1. Room size: 192 inches x 192 inches
2. Ideal circulation zone: 42–48 inches around table
3. Recommended table width: 40–44 inches
4. Recommended table length: 72–96 inches

Once these zones are mapped out, the table sits comfortably in the center with space for chairs to move.

According to guidelines from the National Kitchen & Bath Association (NKBA), 36 inches is the absolute minimum clearance behind dining chairs. In real homes, however, 42 inches is where the room actually feels comfortable.

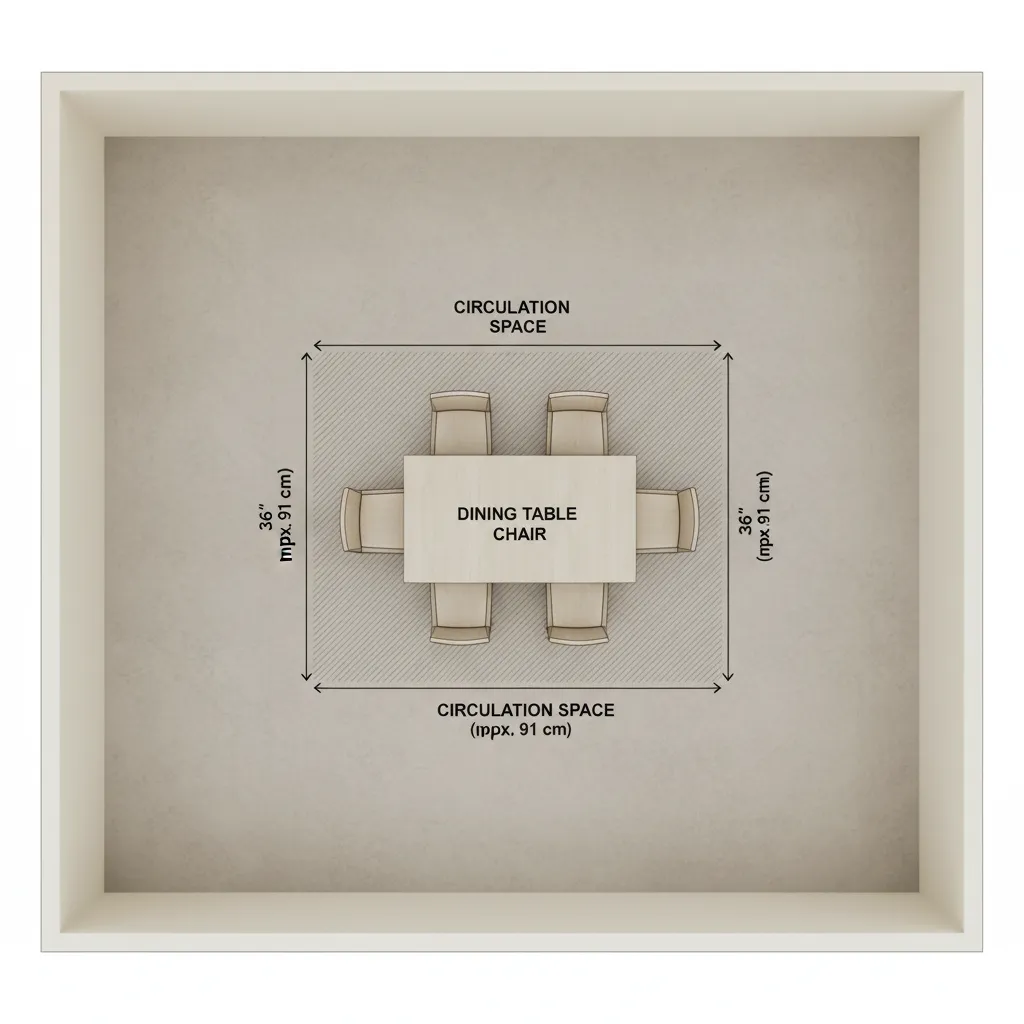

Minimum Walkway Clearance Around a Dining Table

Key Insight: A 16x16 dining room should maintain at least 42 inches of clearance around the table, and ideally 48 inches on main walkways.

Most people underestimate how far dining chairs extend when pulled out. A typical chair moves back about 20–24 inches during use. If the walkway behind it is too tight, circulation stops completely.

Here are the clearance tiers I typically explain to clients:

1. 36 inches – absolute minimum clearance
2. 42 inches – comfortable residential standard
3. 48 inches – ideal for high traffic flow

In a square 16x16 room, keeping at least two sides at 48 inches makes a noticeable difference during gatherings.

This is one reason I often recommend mapping circulation visually before choosing furniture. Many homeowners experiment with layouts using tools similar to this interactive floor plan layout planner for testing furniture spacing, which makes it much easier to see how chairs affect movement.

save pin

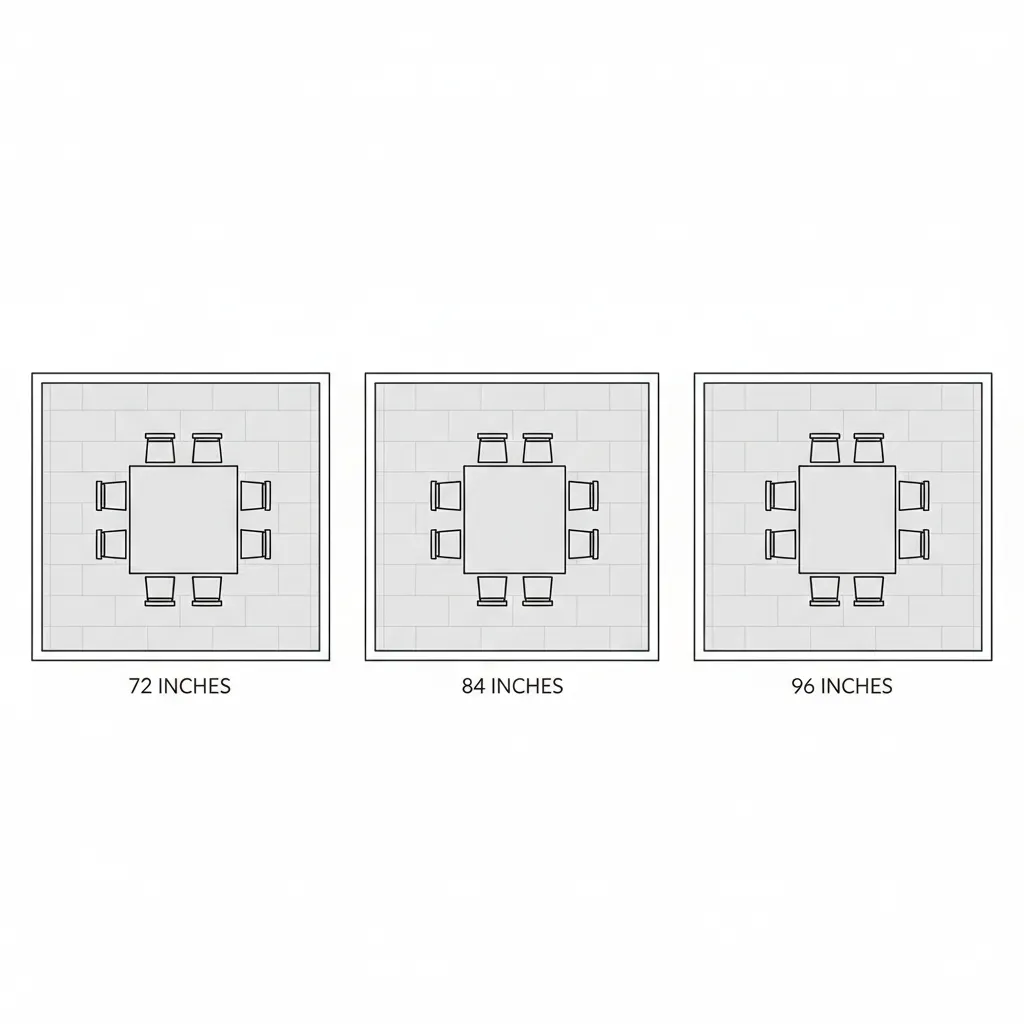

Dining Table Size and Seating Capacity Guidelines

Key Insight: The sweet spot for a 16x16 dining room is a 84–96 inch table seating 6–8 people.

When clients ask how many seats fit in a 16x16 dining room, the answer depends more on circulation than square footage.

Here is the typical sizing range I use in projects:

1. 72 inch table – 6 seats comfortably
2. 84 inch table – 6 to 8 seats
3. 96 inch table – 8 seats comfortably

Round tables also work well in square rooms:

1. 54 inch round – 4 to 6 seats
2. 60 inch round – 6 seats comfortably
3. 72 inch round – 8 seats but requires careful spacing

A common mistake is forcing a 10‑seat table into this room size. Technically it might fit, but circulation becomes frustrating.

save pin

Balancing Furniture Scale with Room Proportions

Key Insight: Furniture scale affects perceived space more than the actual table size.

After designing dozens of mid‑size dining rooms, I've noticed a pattern: oversized chairs and bulky bases often make the room feel tighter than the table itself.

Watch out for these hidden scale issues:

1. Thick pedestal bases that eat up leg space
2. Dining chairs wider than 22 inches
3. Armchairs placed on all sides of the table
4. Heavy upholstered seating in smaller rooms

Instead, balanced furniture proportions work better:

1. Chair width: 18–20 inches
2. Chair depth: 20–22 inches
3. Table base with open leg clearance

Interior designers frequently reference spatial guidelines from Architectural Graphic Standards when balancing furniture proportions in residential dining spaces.

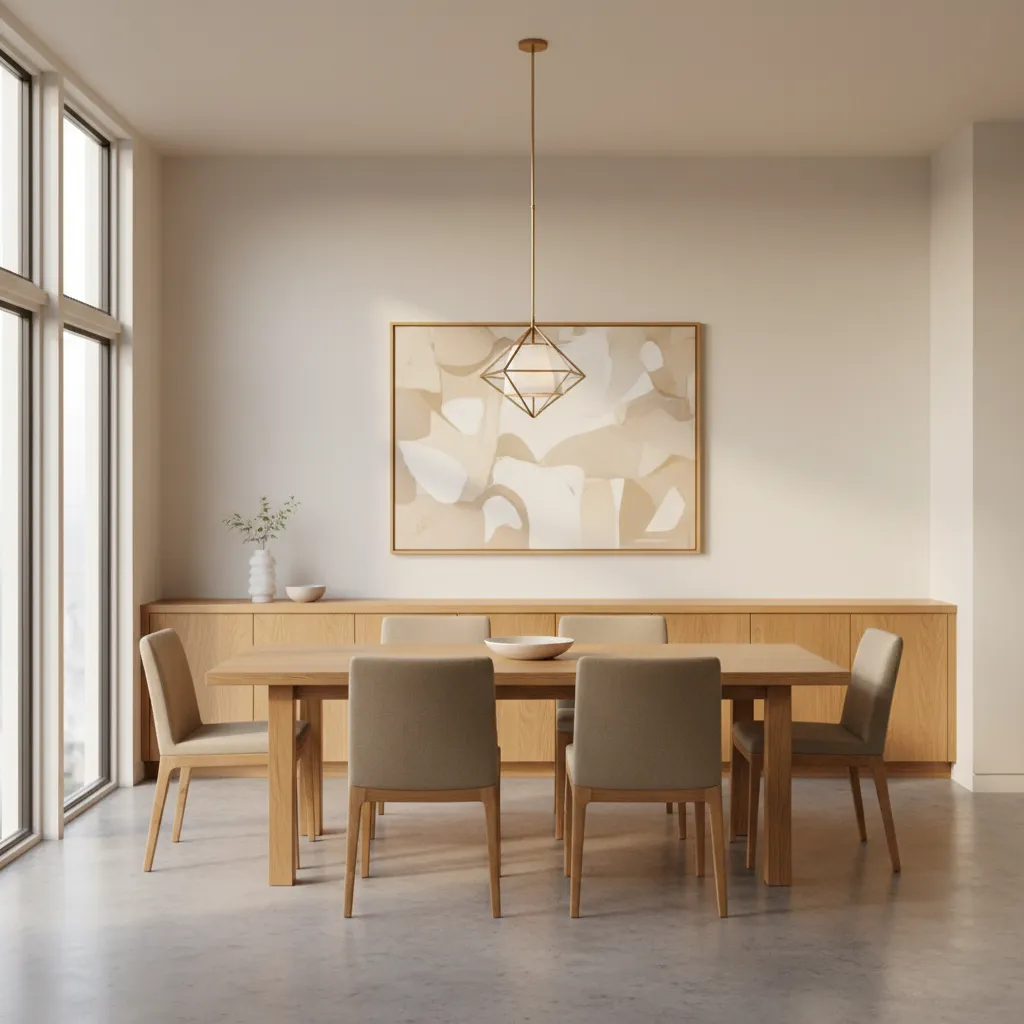

Optimizing Wall Space for Storage or Buffets

Key Insight: Buffets should stay between 16–20 inches deep to avoid shrinking walkway space.

In a 16x16 dining room, wall furniture can either improve functionality or ruin circulation.

The safest wall storage sizes are:

1. Buffet depth: 16–20 inches
2. Console depth: 14–18 inches
3. Cabinet height: 30–36 inches

Design trick I use frequently: place storage on the wall opposite the main doorway. This prevents the entry path from feeling blocked.

If you're experimenting with layouts, a simple drag‑and‑drop room layout planner for dining furniturecan help test buffet depth and chair spacing before buying furniture.

save pin

A Practical Layout Formula Designers Use

Key Insight: The most reliable planning formula is: table size + chair depth + 42 inch walkway clearance.

Here is the simplified designer formula for a square dining room:

1. Table width: 42 inches
2. Chair depth: 22 inches
3. Chair pullback: 24 inches
4. Walkway clearance: 42–48 inches

Calculation example:

1. 42 in table
2. + 24 in chair movement
3. + 42 in walkway
4. = 108 inches needed from table center to wall

This fits comfortably within a 16‑foot room while preserving usable circulation.

Answer Box

A 16x16 dining room performs best with a 72–96 inch dining table and 42–48 inches of clearance around it. This configuration supports 6–8 seats while maintaining comfortable circulation and balanced furniture scale.

Final Summary

1. A 16x16 dining room comfortably seats 6–8 people.
2. Maintain 42–48 inches of clearance around the dining table.
3. Tables between 84–96 inches provide the best balance.
4. Buffets should remain under 20 inches deep.
5. Furniture scale matters as much as table size.

FAQ

How many seats fit in a 16x16 dining room?

Most 16x16 dining rooms fit 6–8 seats comfortably with a table between 84 and 96 inches long.

What is the ideal dining table size for a square dining room?

A square dining room typically works best with an 84–96 inch rectangular table or a 60 inch round table.

How much walkway space is needed around a dining table?

Designers recommend 42–48 inches of clearance around the table for comfortable circulation.

Can a 10‑person table fit in a 16x16 dining room?

It may technically fit, but circulation becomes tight and chairs interfere with walkways.

Is a round table better for a 16x16 dining room?

Round tables work well in square rooms and encourage conversation, especially 54–60 inch sizes.

What buffet size works in a 16x16 dining room?

Buffets between 16 and 20 inches deep maintain comfortable walkway space.

What are common layout mistakes in a 16x16 dining room?

Oversized chairs, deep buffets, and ignoring chair pullback space are the most frequent issues.

What are standard 16x16 dining room layout measurements?

The most common layout uses a 72–96 inch table with 42–48 inches of surrounding clearance.

References

1. National Kitchen and Bath Association Planning Guidelines
2. Architectural Graphic Standards – Residential Layout Dimensions
3. American Institute of Architects residential space planning principles
