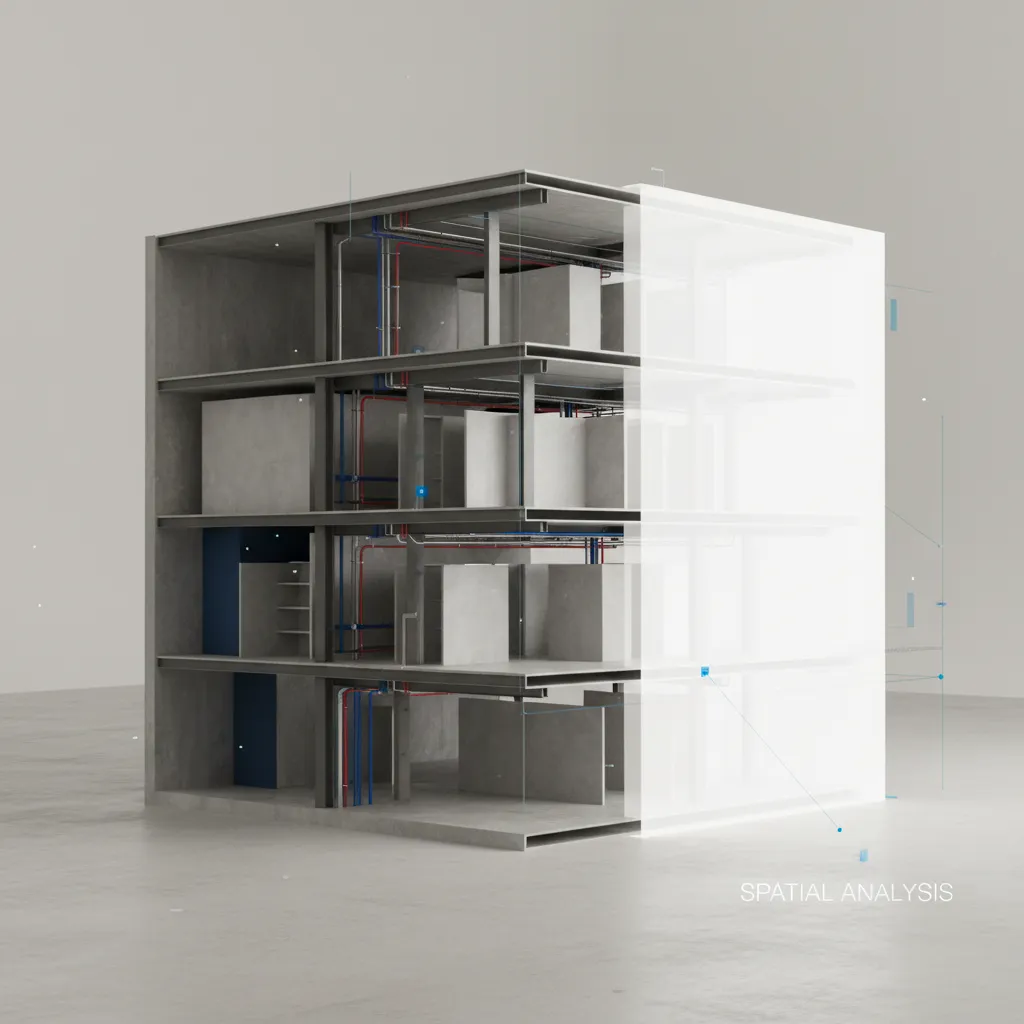

3D Model Cross Section vs Clipping Plane: Understanding the real differences between cross sections and clipping planes in 3D visualization, CAD, and design workflows.

A few years ago, I confidently told a client I would "slice the model open" so they could see the plumbing inside their apartment design. Ten minutes later, I realized I had used a clipping plane instead of a true section cut—and the contractor immediately noticed the difference. That slightly embarrassing moment taught me something important: in 3D visualization, small terminology differences can completely change how a model behaves.

When you work with CAD, BIM, or visualization tools long enough, you start seeing this confusion everywhere. Cross sections and clipping planes both reveal interior parts of a model, but they work very differently behind the scenes. And in small-space design especially, understanding these tools can unlock surprisingly powerful ways to communicate ideas.

In this guide, I'll break down the key differences between cross sections and clipping planes based on my real design experience, when each method works best, and a few situations where choosing the wrong one can cause headaches.

What Is a Cross Section in a 3D Model

A cross section is essentially a deliberate "cut" through a 3D object that reveals its internal structure. In architectural and engineering workflows, the system actually calculates geometry where the cut occurs, producing a new visible surface that represents the material being sliced.

For example, when I design compact apartments, I often create sectional views to show how pipes run behind cabinets or how insulation layers stack within walls. If you want to see a simplified version of how interior structures can be visualized, check out a quick interactive 3D floor planning example. It helps demonstrate how internal layouts become clearer when the model is properly sectioned.

The advantage of a cross section is clarity. Materials, layers, and structural relationships appear accurately. The downside? Generating sections can be computationally heavier and sometimes requires additional setup.

What Is a Clipping Plane in 3D Visualization

A clipping plane works differently. Instead of actually cutting geometry, it simply hides everything on one side of an imaginary plane. Think of it like moving a digital curtain through the model.

I use clipping planes constantly when presenting designs to clients. If someone wants to peek inside a crowded living space or inspect furniture placement behind a wall, sliding a clipping plane through the model takes seconds. No recalculation, no additional geometry—just instant visibility.

The tradeoff is accuracy. Because nothing is truly "cut," you usually don't see material layers or section surfaces. It's more of a quick inspection tool than a technical documentation method.

Key Functional Differences Between Cross Sections and Clipping

The biggest difference lies in how each method treats geometry. A cross section physically computes a cut surface, meaning the software understands materials, thickness, and internal layers. This is why architects rely on section views for construction drawings.

Clipping planes, on the other hand, are purely visual. They hide portions of a model without modifying or recalculating the geometry itself. That makes them incredibly fast for exploration but less suitable for precise documentation.

In practice, I treat clipping as a quick diagnostic tool and sections as the "official" analytical view. Mixing them up is one of the most common beginner mistakes I see.

When to Use Each Method in Engineering and Design

In real projects, the choice usually depends on what you're trying to communicate. If I need to explain construction details to contractors—wall thickness, pipe routing, cabinet framing—a proper section cut is non‑negotiable.

But when I'm presenting design concepts or reviewing spatial layouts with homeowners, clipping planes are far more convenient. For instance, while reviewing cabinetry placement in a compact apartment project, I showed clients a real kitchen layout visualization case where clipping helped reveal storage zones instantly.

The short version I tell my interns: sections are for documentation, clipping is for exploration.

Performance and Visualization Considerations

Performance can become a real issue with large models. In BIM environments with millions of polygons, generating multiple cross sections can slow things down because the system must compute new surfaces every time the cut updates.

Clipping planes are lighter because they simply adjust visibility. When I'm navigating complex interiors or experimenting with camera angles, clipping keeps the workflow smooth and responsive.

Modern visualization pipelines sometimes combine clipping with AI-based rendering pipelines. If you're curious how these kinds of visual workflows are evolving, this example of an AI-assisted interior visualization workflow shows how interactive exploration can stay fast even with detailed models.

Common Misconceptions About Sectioning and Clipping

One misconception I hear all the time is that clipping planes are just "faster sections." They're not. The two tools serve different conceptual purposes and produce different results.

Another misunderstanding is that sections are only useful for architects. In reality, product designers, engineers, and even game artists rely on cross sections to analyze internal relationships between parts.

Once you recognize the distinction, the tools stop feeling interchangeable. Instead, they become complementary—one built for precision, the other for speed.

FAQ

1. What is the main difference between a cross section and a clipping plane?

A cross section calculates a true cut through geometry and creates new visible surfaces. A clipping plane simply hides part of the model without modifying the geometry.

2. Which method is better for technical documentation?

Cross sections are better because they accurately show material layers, thickness, and internal structures needed for construction drawings.

3. Are clipping planes faster than cross sections?

Yes. Since clipping planes only change visibility rather than recomputing geometry, they are typically much faster to use in large models.

4. Can clipping planes replace section views in CAD?

Not really. They are great for inspection and navigation, but they usually cannot generate the detailed data required for engineering documentation.

5. When should I use a clipping plane?

Use clipping when you want to quickly explore a model's interior, review layouts, or present spatial arrangements interactively.

6. When should I use a cross section?

Use cross sections when analyzing structural details, producing drawings, or examining how different layers and materials interact.

7. Do BIM tools treat sections differently from visualization tools?

Often yes. BIM platforms typically generate more precise section geometry because they rely on construction data embedded in the model.

8. Are cross sections standard in engineering workflows?

Yes. According to Autodesk's CAD documentation, section views are widely used to reveal internal features that cannot be clearly described using exterior views alone.
