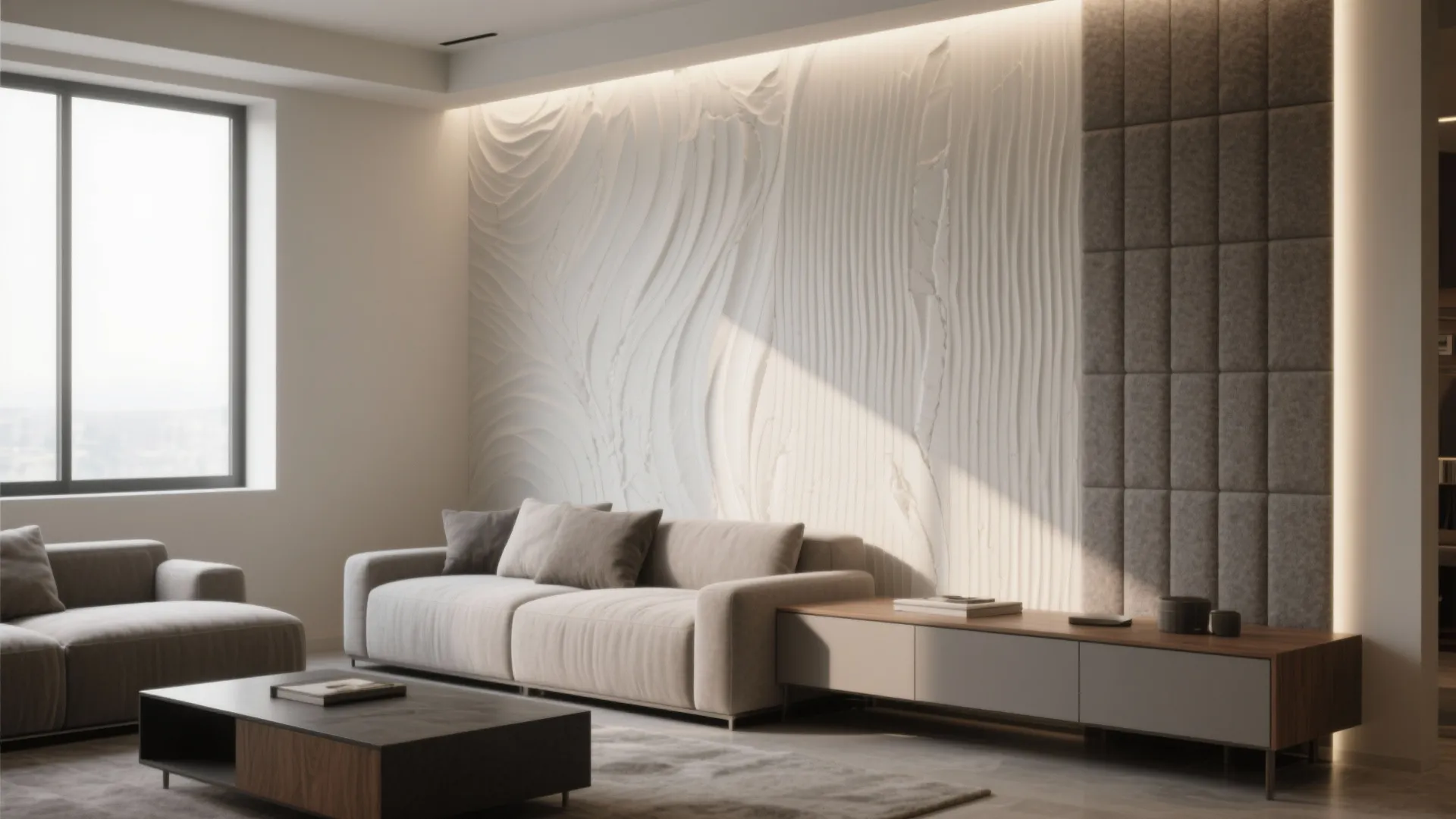

3D Wall Designs for Living Room: Elevate Your Space With Texture: 1 Minute to Freshen Up Your Living Room Walls With 3D Designs

I approach 3D wall design as a way to tune light, texture, and depth so a living room feels richer without visual noise. Dimensional surfaces can guide the eye, temper acoustics, and anchor the seating plan. Done thoughtfully, they elevate comfort and function in equal measure.

Data points reinforce the impact of tactile and visual layers. Steelcase research has linked sensory variety with improved engagement and well-being, noting that richer environmental cues support cognitive restoration and focus (Steelcase Research). From a lighting and comfort standpoint, WELL v2 emphasizes glare control and appropriate contrast, underscoring how textured surfaces interact with light to reduce visual fatigue and enhance ambiance (WELL v2 Features, Light). You’ll get the best results when the wall geometry, lighting, and seating distances are planned as one composition.

Color and psychology matter just as much as form. Verywell Mind’s color psychology guidance highlights how warmer hues can promote social connection while cooler tones calm and expand perceived space. In living rooms, a textured neutral wall with low-sheen finishes often reads sophisticated while preserving daylight quality and reducing specular glare, especially under layered lighting.

Set the Design Intention

Before selecting a pattern or panel, define what the 3D wall must do: anchor the media zone, create a conversation backdrop, absorb noise, or frame a window. I also consider sightlines from the entry and the primary seating positions. If the wall cues circulation or frames the main view, I keep the relief more subtle and rhythmic; if it’s a media wall, I balance texture with cable management, ventilation, and speaker integration.

Scale, Rhythm, and Spatial Ratios

Dimensional patterns need the right cadence. In rooms 12–16 ft wide, medium-relief modules (0.5–1.25 in depth) often provide enough shadow play without stealing floor area. I aim for a pattern frequency that echoes major furniture widths (sofas typically run 78–96 in; credenzas 60–84 in) to keep alignment clean. Vertical fluting widens narrow rooms; horizontal banding calms tall, echo-prone spaces. Reserve high-relief elements behind low-traffic zones and keep edges chamfered near door swings.

Light Behavior: Modeling, Contrast, and Glare

Textured walls read best with controlled grazing and balanced ambient light. I avoid harsh downlights directly in front of deep relief to prevent scalloping and hard hotspots. Instead, I specify 2700–3000K warm-white layered lighting with CRI 90+ and use wall grazers set 8–14 in off the surface to create soft shadow gradients. Per IES recommendations on glare control, shielding angles and spacing are critical for visual comfort (IES standards). This helps the pattern feel sculpted, not busy. Dim-to-warm strips behind valances can add evening intimacy without washing out texture.

Acoustic Comfort Built Into Texture

Hard-surface 3D tiles can bounce sound if overused. When the room is lively—hard floors, big windows—I mix in absorptive panels: felt fluting, micro-perforated wood with acoustic backing, or upholstered rib modules. Aiming for a balanced acoustic palette near the conversation zone reduces listening effort and allows lower background music levels. This is especially helpful in open-plan living areas that share volume with kitchens.

Material Play: From Plaster to Wood to Felt

• Sculpted plaster: Seamless, paintable, and great for gentle, continuous relief. Use in low-traffic zones or above wainscot height to avoid dings.

• MDF or hardwood fluting: Warm tactile presence; specify sealed edges and a wipeable matte finish. Pair with concealed LED grazing for rich shadow lines.

• Architectural concrete panels: Minimalist and durable; combine with soft textiles to balance acoustics.

• 3D gypsum tiles: Cost-effective modules that can be painted; keep joints aligned with furniture axes.

• Recycled PET felt: High acoustic absorption, color options, and lightweight install—ideal behind TV walls to dampen reflections.

• Ceramic relief tiles: Great around fireplaces; verify heat ratings and expansion joints.

Color, Finish, and Visual Balance

To keep dimensional walls timeless, I use a two-tone strategy: texture in a near-neutral (warm gray, stone, or buff) and accent color via textiles and art. Ultra-matte or eggshell sheens reduce glare and keep modeling crisp. If you want drama, reserve a saturated color for a smaller, high-intent area—like the niche behind shelves—so the primary relief remains calm and enduring.

Layout Integration With Furniture and Media

3D surfaces work best when they reinforce the seating layout. Align major pattern breaks with the centerline of the sofa or the TV to keep symmetry. Keep 6–8 in of clean border at corners and door casings for visual breathing room. For media walls, maintain ventilation behind panels (at least 1 in air gap for stack effect) and access panels for wiring. If you’re testing multiple furniture placements, a room layout tool helps simulate sightlines, focal points, and light grazing angles before finalizing finishes: room layout tool.

Installation Details That Elevate the Result

• Substrate prep: Level 4–5 finishes behind thin modules prevent telegraphing. Prime with the finish system you’ll use.

• Module layout: Start from a visible centerline and work outwards; dry-fit to confirm corner terminations.

• Edge conditions: Use returns, shadow gaps (3/8–1/2 in), or slim trims to avoid abrupt cut edges.

• Integration: Pre-plan speaker cutouts, outlets, and access doors; align with grooves or ribs so they visually disappear.

• Maintenance: Select impact-resistant materials at kid-height; specify touch-up paint or replaceable modules for high-wear zones.

Current Directions for 2024–2025

• Soft linear fluting with warm, desaturated palettes—calming yet dimensional.

• Hybrid media walls: ribbed wood flanking a central plaster field for acoustic balance.

• Eco-forward felt relief in earth tones.

• Micro-ripple textures paired with concealed linear grazers for quiet sophistication.

• Tactile wainscots (36–42 in high) with smooth walls above to balance budget and impact.

Lighting Prescriptions I Rely On

• Grazers: 8–14 in offset, 2700–3000K, CRI 90+, dimmable. Shield to avoid direct view.

• Ambient: Indirect cove or ceiling wash to soften contrast ratios and reduce eye strain (aligned with WELL v2 emphasis on visual comfort).

• Task and accent: Adjustable beams (15–30°) for art; avoid aiming directly at deep relief to reduce harsh specular highlights.

Budget and Phasing

Phase the wall in layers if needed: start with paint-ready sculpted gypsum or fluted MDF, then add integrated lighting and acoustic inserts later. Prioritize substrate prep and electrical rough-ins—those are expensive to retrofit. Choose a hero wall only where it meaningfully supports the seating plan and sightlines; the rest can remain calm, saving cost and preserving balance.

Common Pitfalls to Avoid

• Over-scaling relief in small rooms, which compresses space visually.

• Using high-gloss finishes on deep textures, amplifying glare and visual fatigue.

• Ignoring door swing clearances and corner returns, which leads to chipped edges.

• Forgetting acoustic balance in open plans—texture without absorption can increase echo.

FAQ

How do I choose the right depth for a 3D wall?

In typical living rooms, 0.5–1.25 in relief is enough for depth without stealing space. Go shallower near circulation paths and deeper behind furniture.

Will textured walls make my room feel smaller?

Not if you balance scale and color. Vertical, fine fluting in a light neutral can visually expand height, while controlled grazing prevents heavy shadows that shrink space.

What lighting works best with 3D textures?

Warm-white (2700–3000K), CRI 90+ with shielded grazers 8–14 in off the wall. Avoid harsh downlights directly in front of deep relief to reduce glare and scalloping, aligning with IES guidance on visual comfort.

Are 3D walls good behind a TV?

Yes—use low-relief, matte finishes to minimize reflections and integrate cable channels, ventilation, and speaker cutouts. Add acoustic felt panels if the room is lively.

How do I keep maintenance easy with kids and pets?

Specify impact-resistant materials at lower zones: dense MDF with rounded edges, durable paints in eggshell, or replaceable felt modules. Avoid brittle plaster at kid-height.

Can I use bold color with a 3D wall?

Use saturated hues in smaller, intentional zones (niches, shelving back panels). Keep the main relief in a near-neutral to preserve longevity and daylight quality, consistent with color psychology principles from Verywell Mind.

What about acoustics in open-plan living rooms?

Blend textured hard surfaces with absorptive elements—felt ribs, curtains, rugs, and soft seating. This mix controls echo and makes conversation easier at lower volumes.

How do I plan layout before committing to materials?

Mock up furniture, sightlines, and lighting in an interior layout planner to test scale, focal points, and grazing angles. A layout simulation tool helps you see shadow behavior before installation: interior layout planner.

Which materials are most sustainable?

Look for recycled PET felt, responsibly sourced wood, and low-VOC finishes. Modular systems allow replacement of damaged sections instead of full demolition.

How do I handle edges and corners elegantly?

Use shadow gaps (3/8–1/2 in), returns, or minimalist trims. Pre-plan terminations so modules don’t end as thin slivers at corners.

Can 3D tile go around a fireplace?

Yes—confirm tile heat ratings and leave expansion joints. Keep combustible materials outside the manufacturer’s specified clearances.
