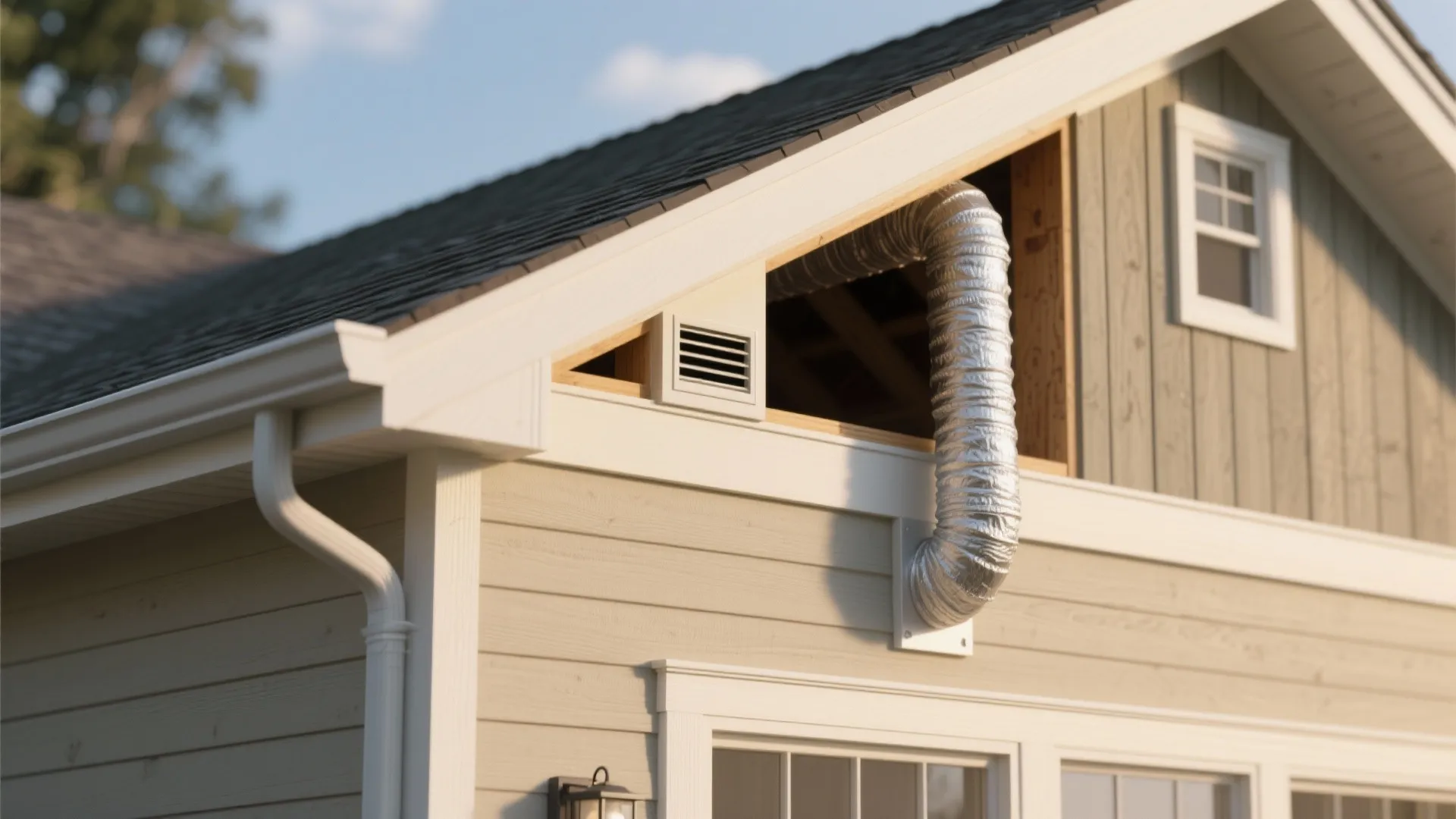

4-Inch Soffit Vent Tips: Practical ideas for installing a 4-inch soffit vent for a bathroom fan in small homes

I once had a client who wanted their bathroom exhaust vent hidden inside a decorative birdhouse on the soffit —funny, but it taught me a solid lesson: concealment is great, but airflow and accessibility aren’t negotiable. Small details like the vent collar size make or break performance, and for many compact bathrooms a 4-inch soffit vent is a common choice.

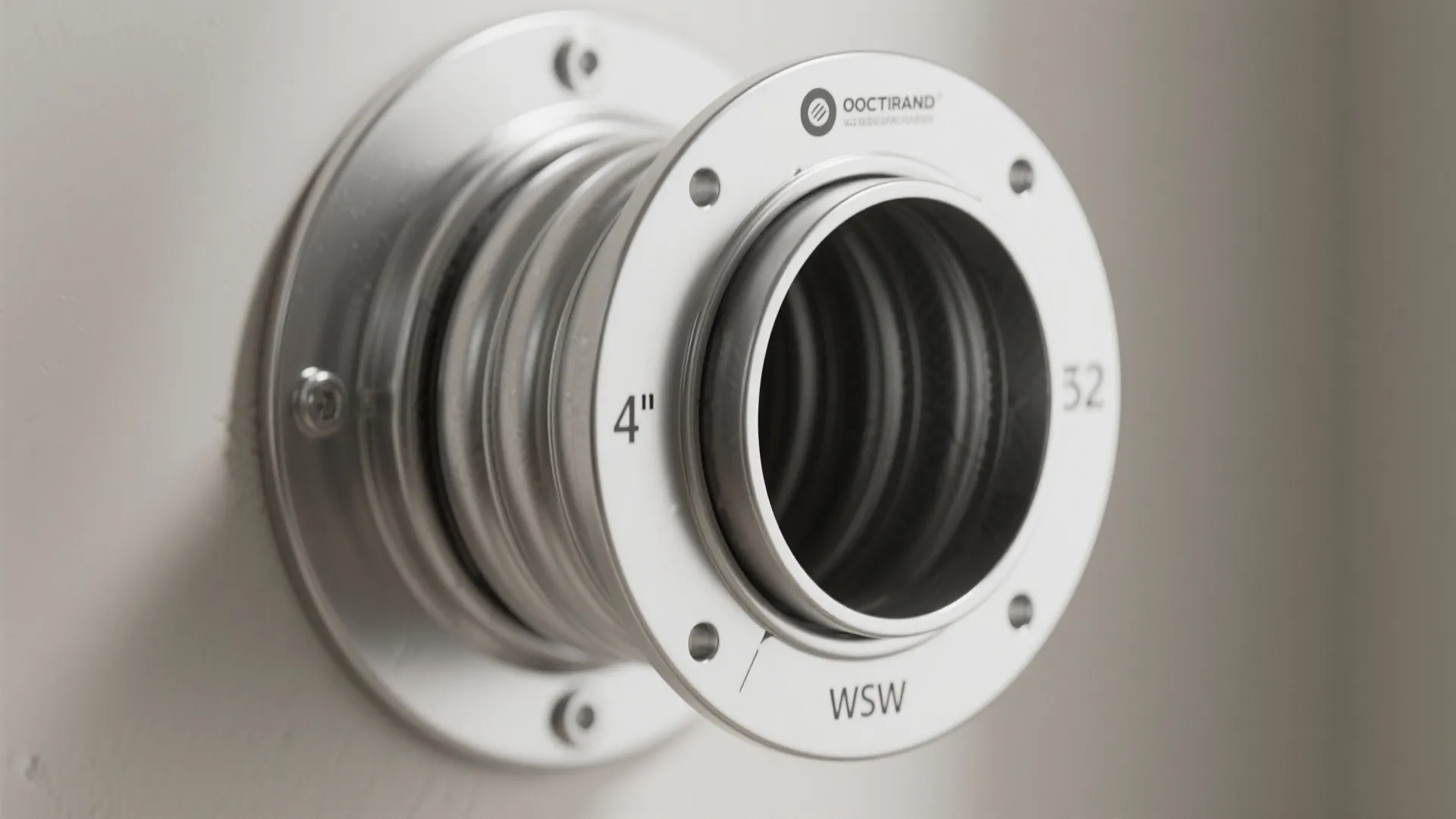

1. Confirm your fan’s duct size

First thing I do is check the bathroom fan’s duct collar. Many fans are 4-inch compatible, which makes a 4-inch soffit vent a natural match. The upside is easier installation and less need for adapters; the downside is that some higher-capacity fans need 6-inch ducts, so you must verify airflow requirements before committing.

save pin

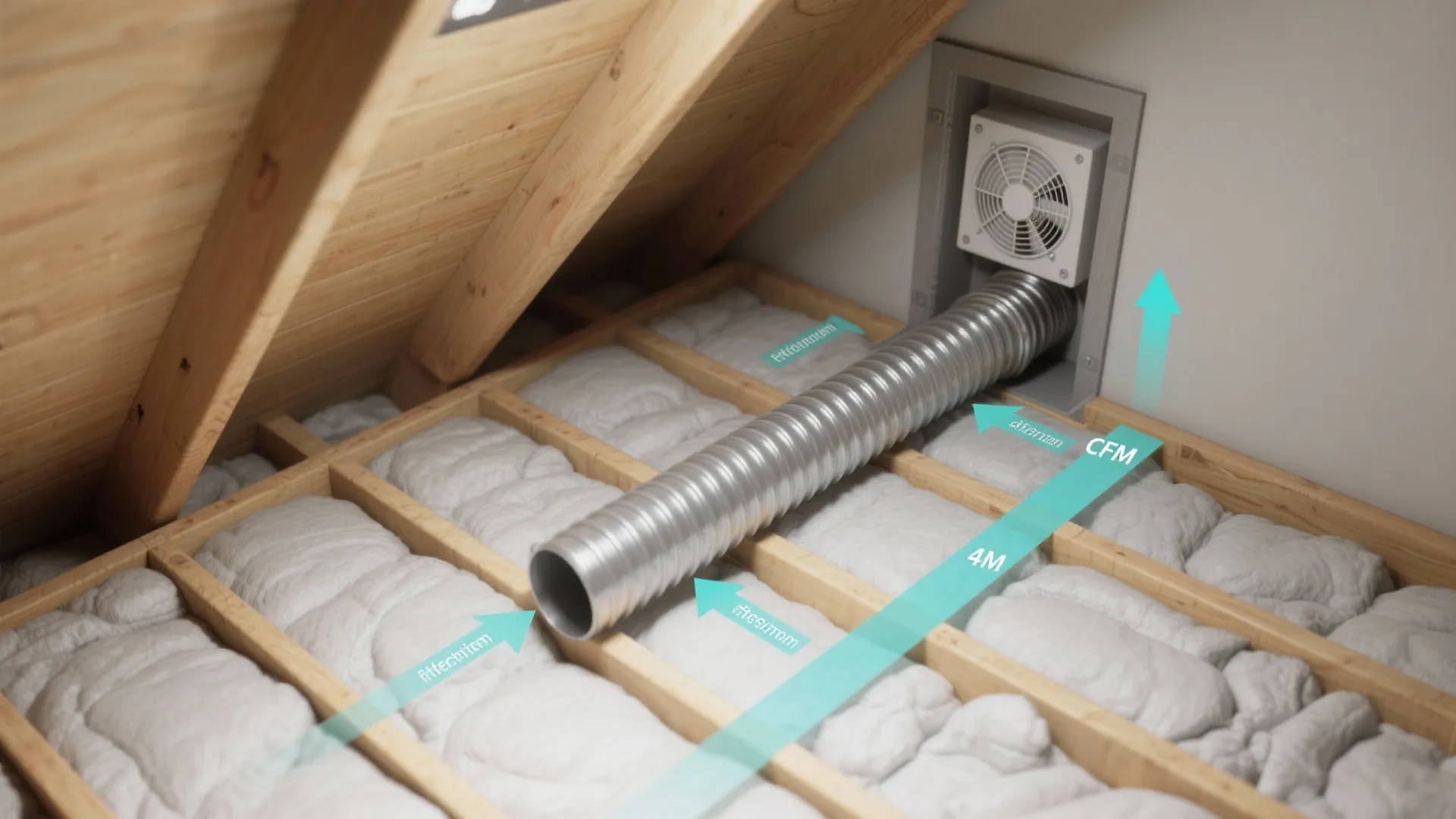

2. Use short, straight duct runs

I always recommend keeping the duct run from fan to soffit as short and straight as possible. For a 4-inch system that matters even more because losses add up faster. You get quieter operation and better efficiency, but if your layout forces many bends you might notice reduced CFM — consider upgrading the fan or using smoother, rigid ducting.

save pin

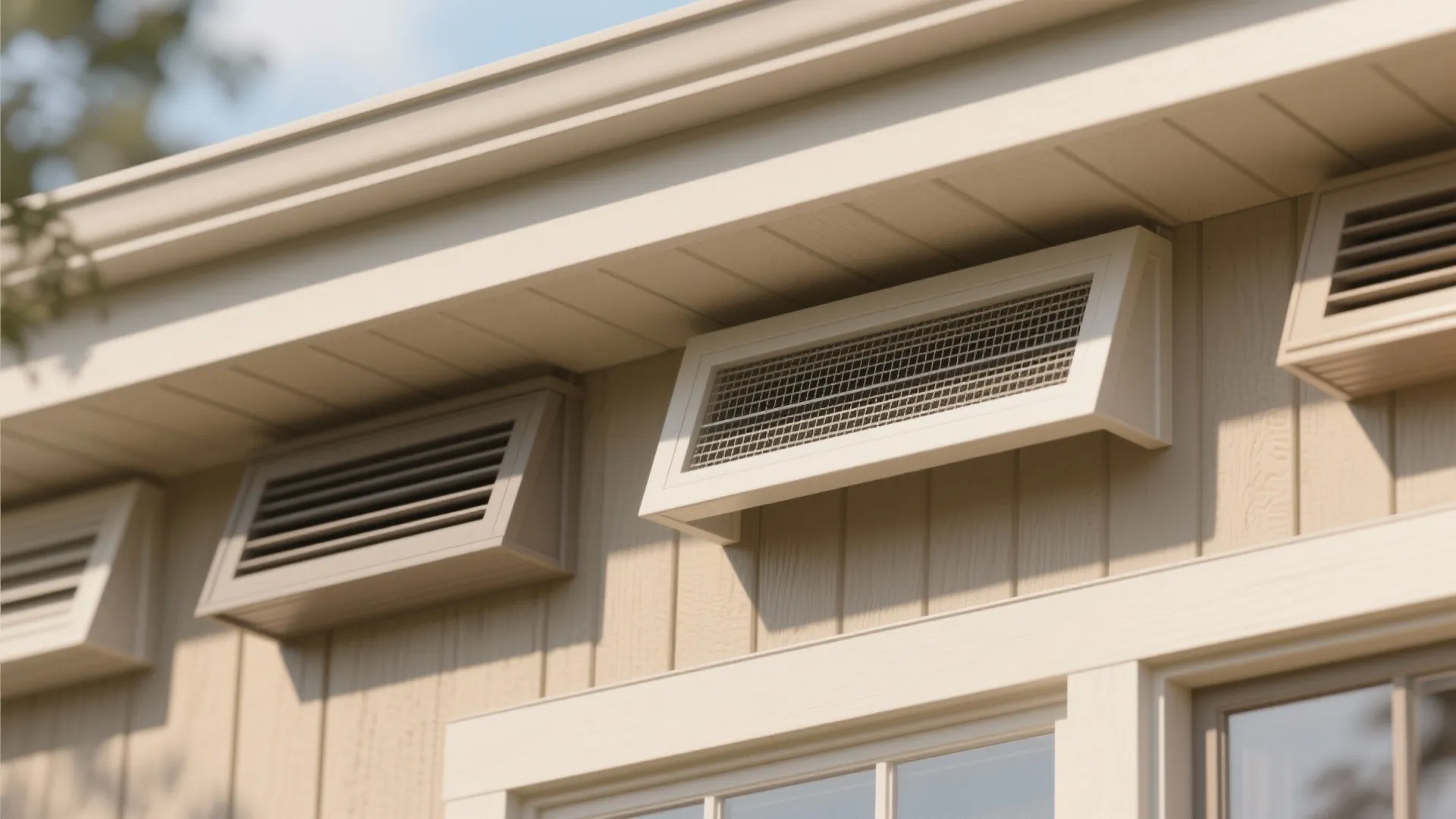

3. Choose the right soffit vent type

Not all soffit vents perform the same. I prefer low-profile, gravity-backdraft models for bathrooms to prevent outside air and critters from entering. They’re easy to maintain and generally affordable. A small trade-off can be aesthetic: some vents are more visible under the eaves, so you may want to pick a color or paintable finish that blends with your trim.

save pin

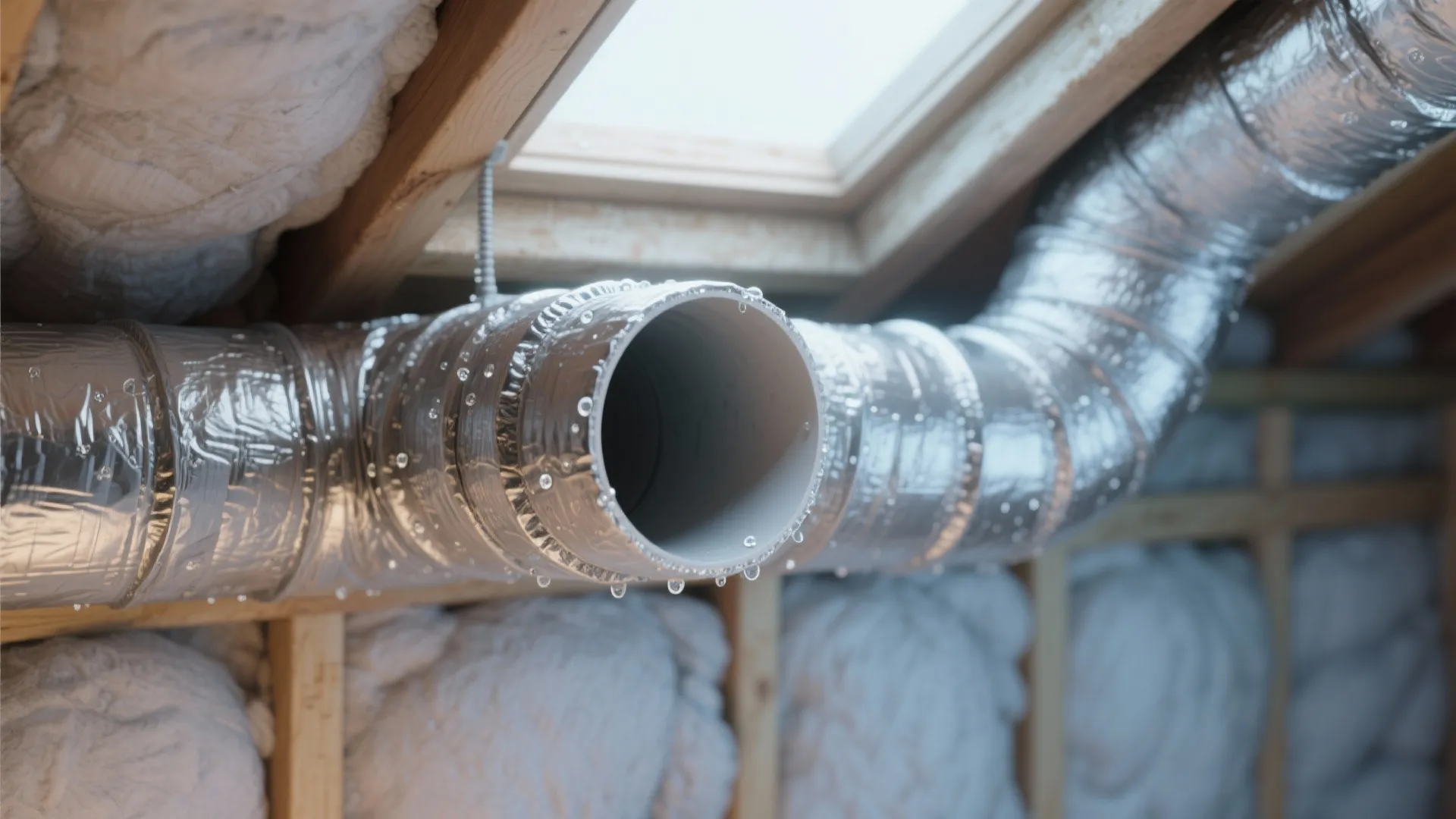

4. Watch for insulation and condensation issues

Installing a 4-inch soffit vent under an insulated attic needs attention: condensation can form if warm humid air meets cold surfaces. I once wrapped a duct in insulation and added a small vapor barrier — it cured the dripping problem. Also ensure attic vents and soffit openings aren't blocked by insulation to keep the whole roof assembly healthy.

save pin

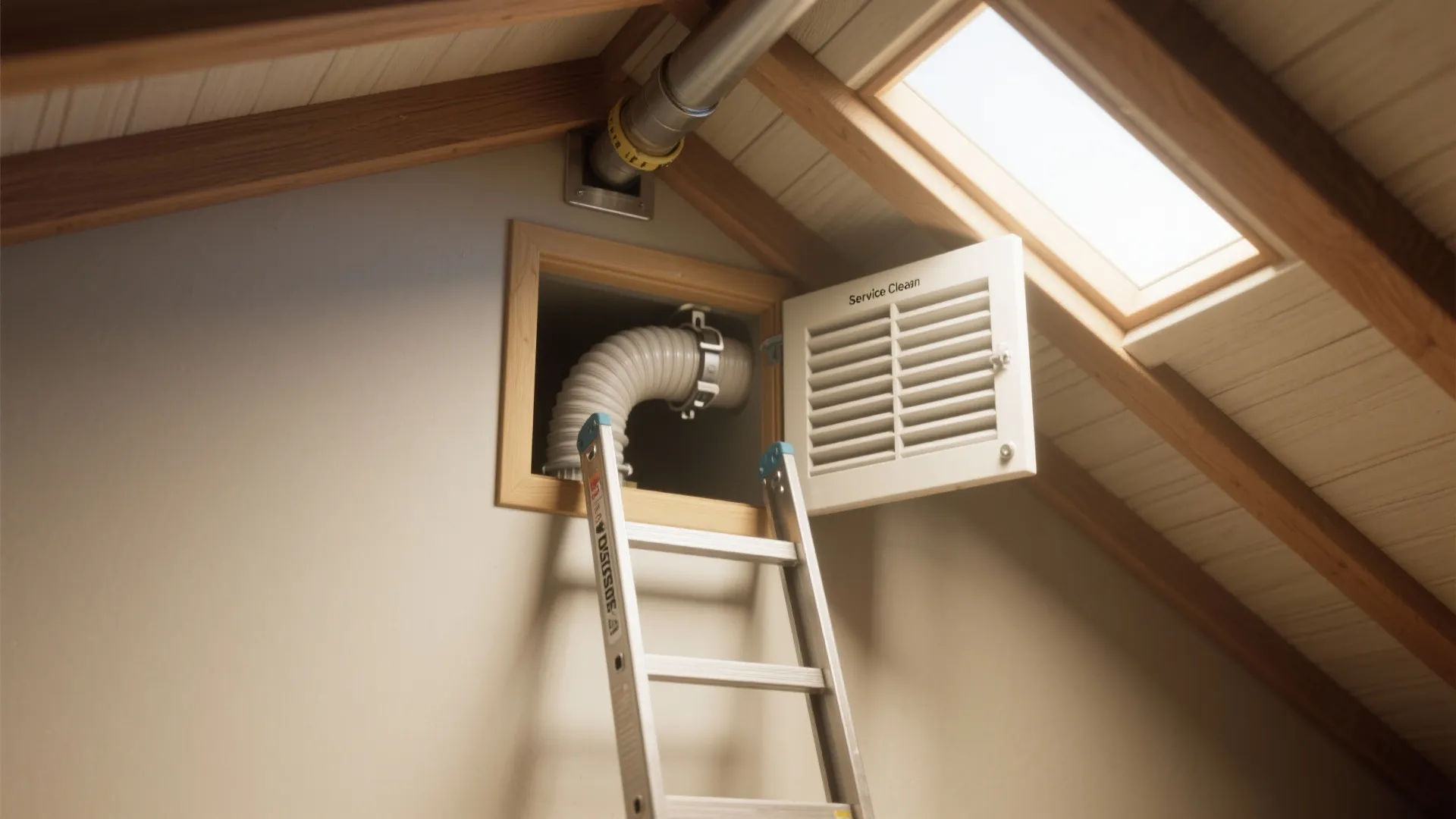

5. Install access and serviceability

Practicality beats hiding everything. Make sure the soffit vent is reachable for cleaning and that the duct connection is accessible in the attic. I’ve learned that future homeowners will thank you — or curse you — depending on how serviceable you leave the installation. If you want to prototype your layout before cutting holes, try a 3D floor planner to visualize routing and clearances.

save pin

FAQ

Q: Is a 4-inch soffit vent sufficient for most bathroom fans? A: It can be for fans rated around 50–80 CFM, but always match the fan’s duct collar and CFM rating; higher-flow fans often require 6-inch ducts.

Q: Can I run a 4-inch duct through the attic to a soffit vent with multiple bends? A: You can, but each bend reduces airflow; use rigid duct where possible and minimize turns to preserve performance.

Q: How do I prevent backdrafts with a soffit vent? A: Choose a vent with a built-in gravity flap or backdraft damper and ensure a tight, insulated duct connection.

Q: Will a soffit vent allow pests into my attic? A: Good-quality soffit vents include screens or grills; adding insect mesh and proper sealing reduces pest entry risk.

Q: Do I need insulation around the duct? A: Insulating the duct in unconditioned attics prevents condensation and heat loss; use appropriate duct insulation and vapor barrier materials.

Q: Any code considerations for soffit termination? A: Local codes vary; many require termination outside the building envelope and a dedicated exhaust to the outdoors — check local regulations or consult a licensed contractor.

Q: Where can I test layouts and visualize installation? A: I often use online planners that let me map duct routes and clearances; a practical example is the 3D floor planner case study that helped one of my projects avoid conflicts.

Q: What’s a reliable authority on ventilation sizing? A: ASHRAE and manufacturer installation manuals are authoritative; ASHRAE 62.2 provides guidance on ventilation rates and is a good reference.
