4-inch vs 6-inch Bathroom Fan Ducts — 5 Space-Saving Ideas: Which duct size should you choose and smart ways to optimize ventilation in small bathrooms

I once installed a bathroom fan duct that barely fit through an old rim joist, and the homeowner asked if duct size really mattered — I laughed, then cried a little when the fan whined like a tired vacuum. Small decisions like choosing a 4" or 6" duct can make a big difference in performance, noise, and how clean your ceiling looks. Small spaces always force better choices, and over my 10+ years designing compact homes, I’ve learned a few practical rules the hard way.

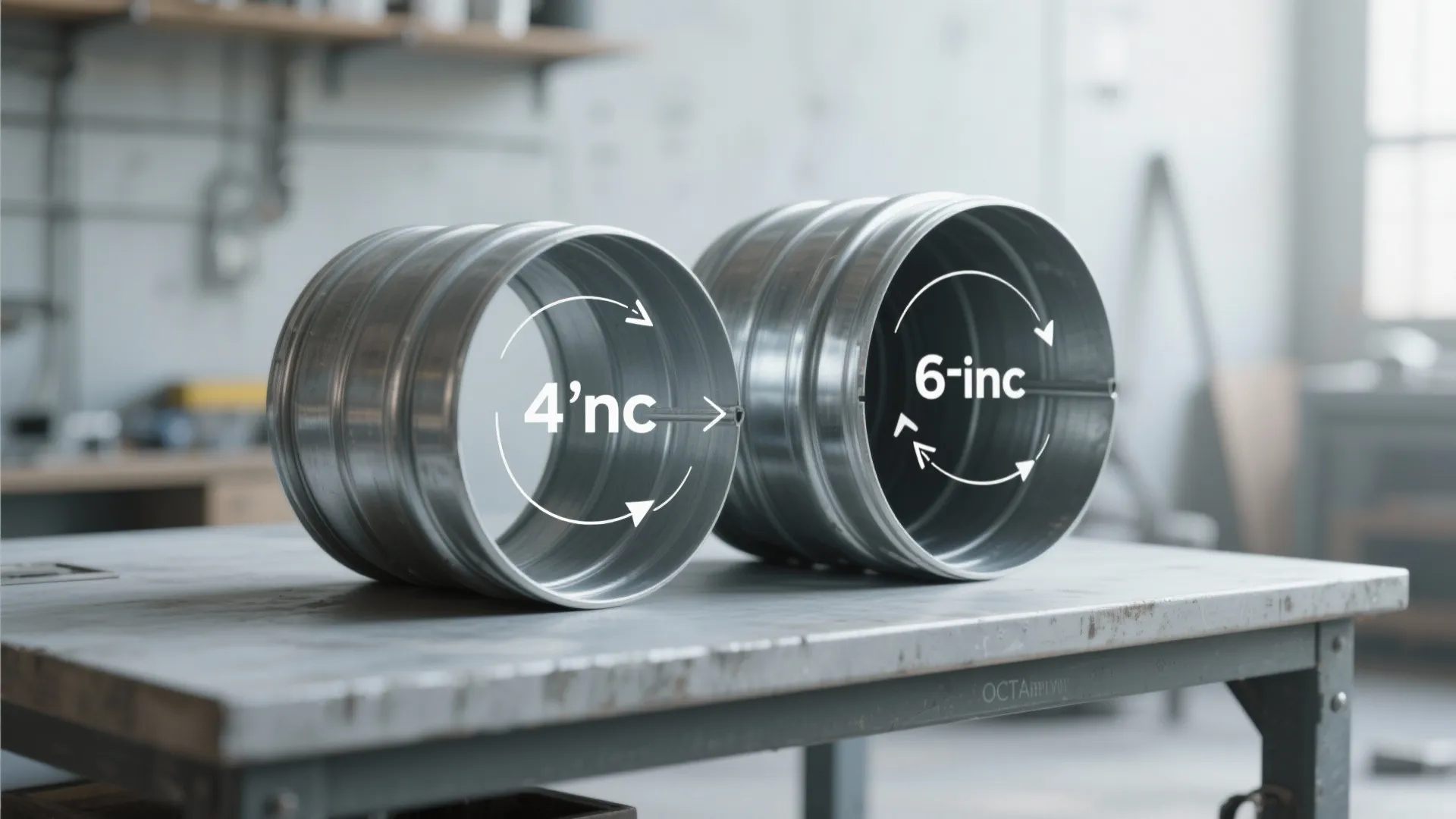

1. Understand what CFM and duct size mean

CFM (cubic feet per minute) is the real performance number you care about; a 6" duct usually handles higher CFM with less noise and lower static pressure. The upside is better airflow and quieter operation; the downside is you need more clearance and a bigger roof or wall cap. For tight ceiling cavities I sometimes specify a higher-quality 4" inline fan to balance space and performance, but that can cost more.

save pin

2. Check the route before choosing duct size

Measure the straight-line distance and count bends. A 6" duct tolerates longer runs and more elbows before performance drops noticeably. If you’ve got a short run under 6–8 feet with one 90° bend, a 4" duct can be fine. I once re-routed a duct two feet to avoid a plumbing chase — a small move that let me upgrade to 6" and cut fan noise in half.

save pin

3. Think noise, condensation, and maintenance

Larger ducts reduce air velocity, which lowers noise and condensation inside the duct. That means less chance of mildew and easier cleaning access. The trade-off is bulk: in some historic homes there’s simply no room for a 6" wall cap without custom work. I usually warn clients that quieter ventilation can mean a slightly higher initial install cost but fewer headaches later.

save pin

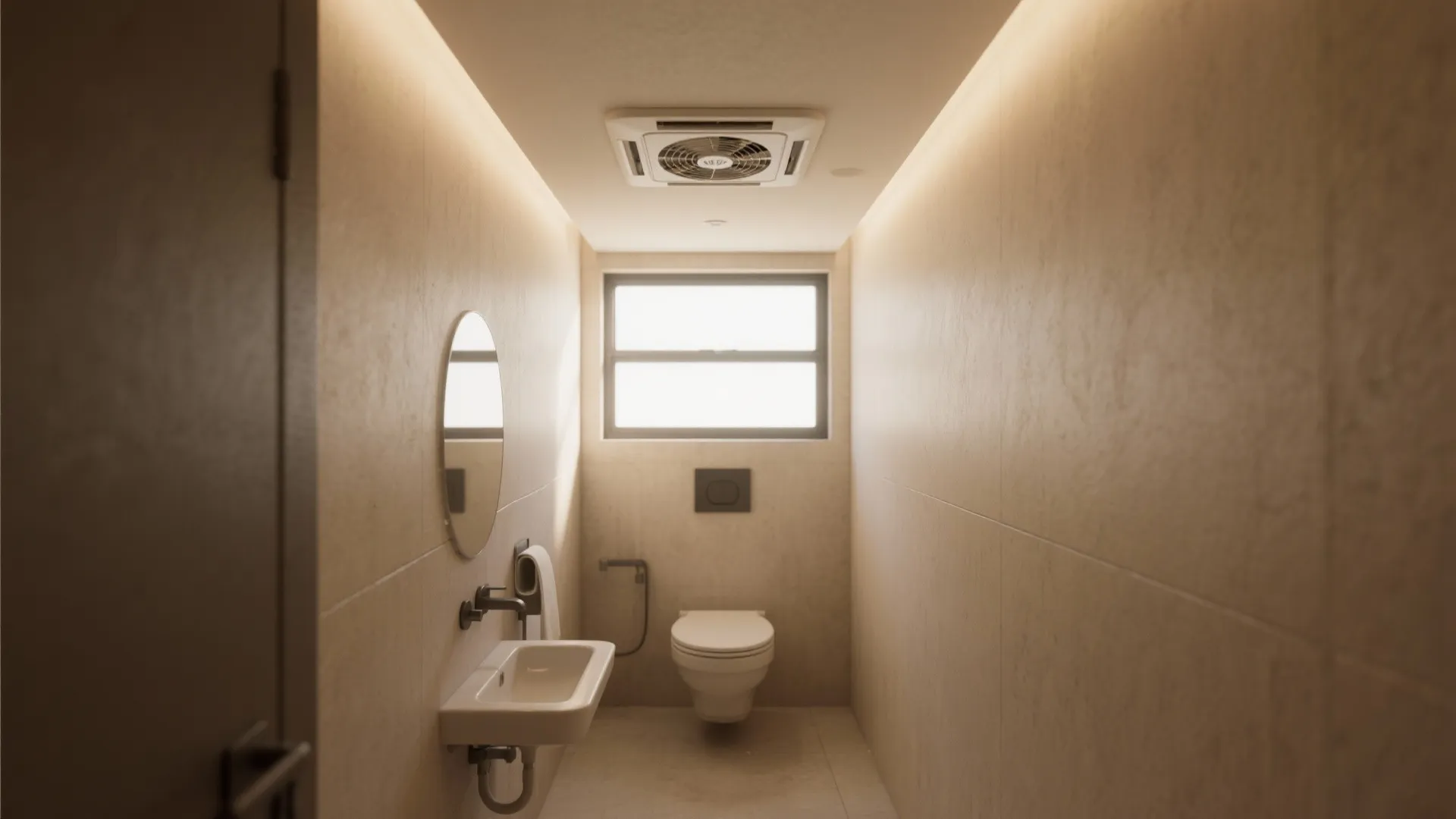

4. When to prefer 4"

Choose 4" when space is extremely tight, the bathroom is small (under 40 sq ft), and the run is short. A high-quality 4" fan can still meet code for small bathrooms and keep costs down. I’ve used this in powder rooms where shaving a few inches of bulk preserved a clean ceiling line — though I always check that the chosen fan’s CFM suits the room.

save pin

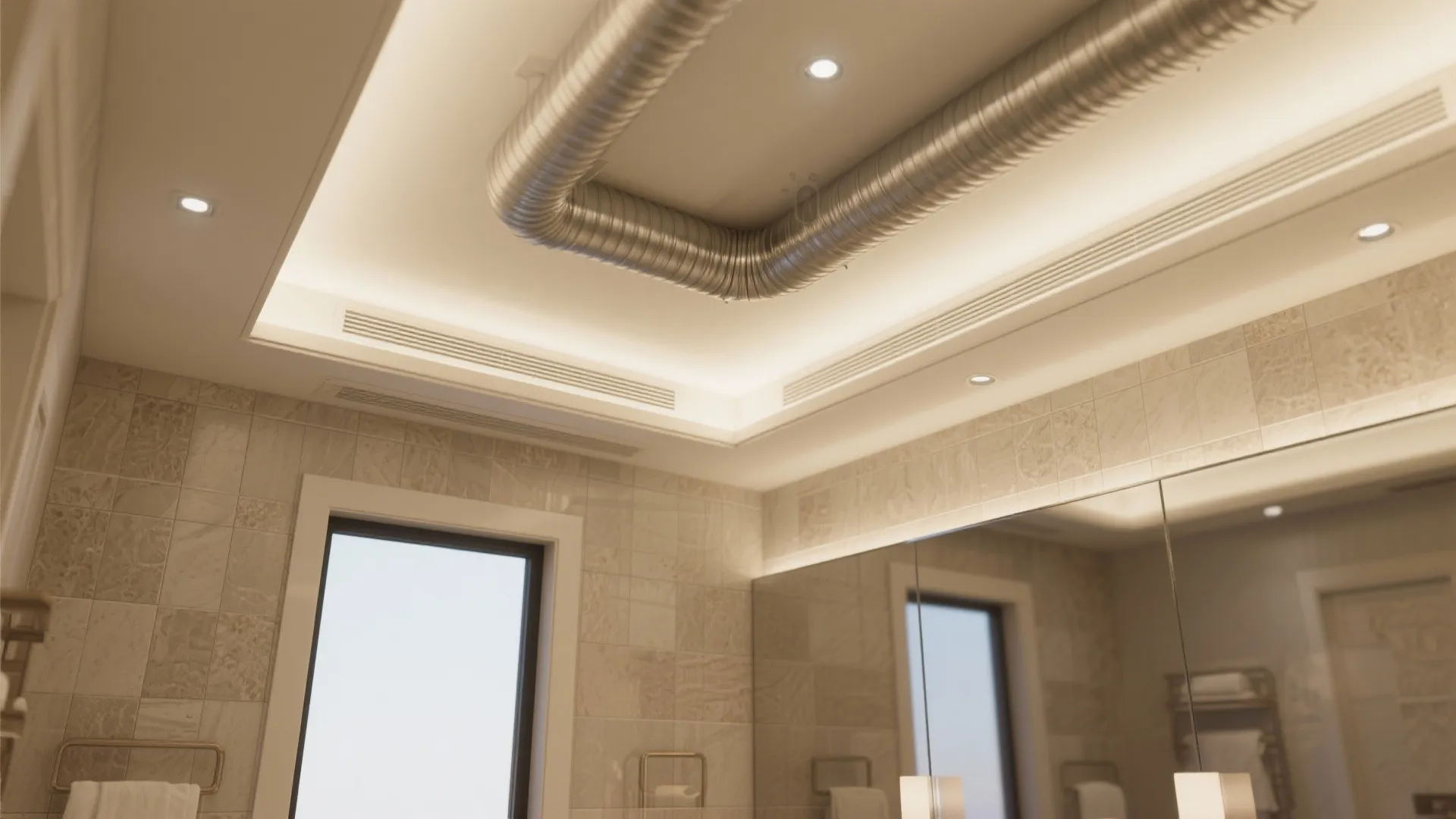

5. When to prefer 6"

Opt for 6" when you want quieter, more efficient ventilation for medium to large bathrooms, or when the duct run exceeds 8 feet. It’s my go-to in master baths and family bathrooms because it handles higher CFM with less strain. If you’re renovating and can afford to open a ceiling cavity, upgrading to 6" is one of those small investments that pay off in comfort.

For planning and visualizing duct routes in tight projects, I often sketch the layout in a room planner early on to avoid surprises and coordinate with mechanical trades.

save pin

FAQ

Q: Is a 4" duct legal for bathrooms? A: Many local codes allow 4" ducts for small bathrooms if the fan provides adequate CFM; always check your local code and the fan manufacturer’s installation instructions.

Q: How do I calculate required CFM? A: Multiply the bathroom ceiling height by floor area (in cubic feet) and use code or manufacturer recommendations; a common rule is 1 CFM per square foot for typical bathrooms.

Q: Will a 6" duct reduce fan noise? A: Yes—larger ducts lower air velocity, which generally reduces noise and motor strain.

Q: Can I convert a 4" fan to 6" later? A: Sometimes, but it may require opening ceilings or walls and replacing the fan housing; plan for space if you want that option later.

Q: Does duct material matter? A: Rigid or semi-rigid metal ducts outperform flexible foil or plastic for airflow and longevity; rigid ducts also lower noise.

Q: How important are elbows and bends? A: Very—each bend increases resistance. Keep runs straight and minimize turns for best performance.

Q: Any authoritative source on ventilation sizing? A: Yes, refer to ASHRAE and local building codes for precise requirements (for example, ASHRAE standards outline ventilation rates and practices).

Q: Should I hire a pro or DIY? A: If your run is simple and you’re handy, DIY can work; for duct transitions, long runs, roof penetrations, or permitting, hire a pro to ensure performance and code compliance.
