5 Small Bathroom Layout Ideas with Dimensions: Practical small bathroom layouts I’ve used (with dimensions and real tips)

Once I tried to squeeze a full wet room into a space smaller than my studio closet — the client wanted a tub, a washer, and a vanity. We ended up laughing, moving the washer to the kitchen, and learning that tiny bathrooms force you to get creative fast. Small spaces really do spark big ideas, and I’ll share five compact layouts I’ve actually used, complete with dimensions and practical trade-offs.

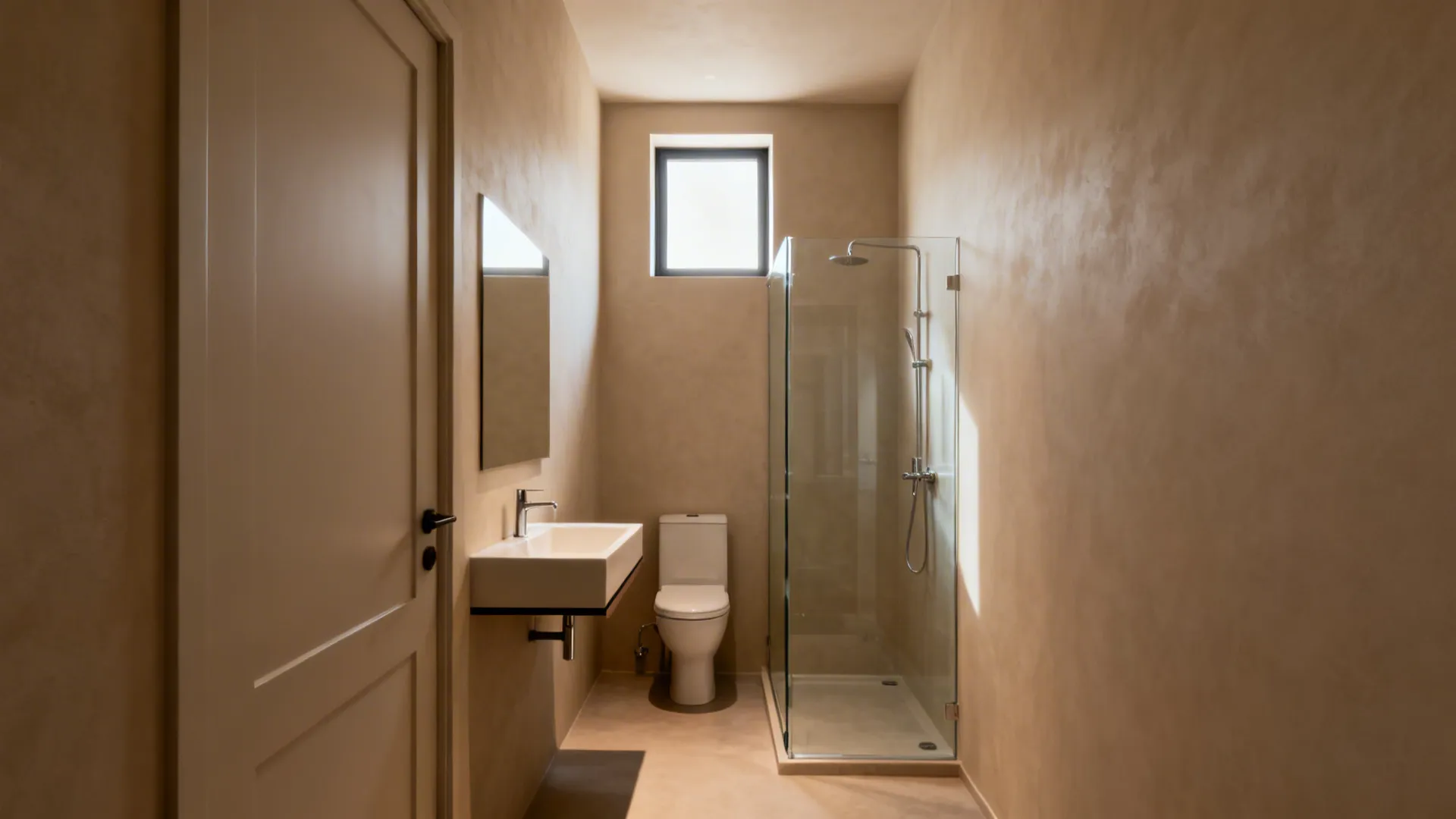

1. 4.5 ft x 7 ft: Classic Linear Layout (saves plumbing)

Think of this as the go-to narrow bathroom: a 54 in (4.5 ft) width and 84 in (7 ft) length. Place the sink and vanity at the door side, toilet in the middle, and a 30 in x 54 in shower at the far end. It keeps plumbing on one wall which cuts renovation cost and complexity. I used this in a brownstone conversion — it felt tight at first, but a floating vanity and a clear glass shower door opened the sightlines. Downsides: limited counter space and tight turning radius for two people.

save pin

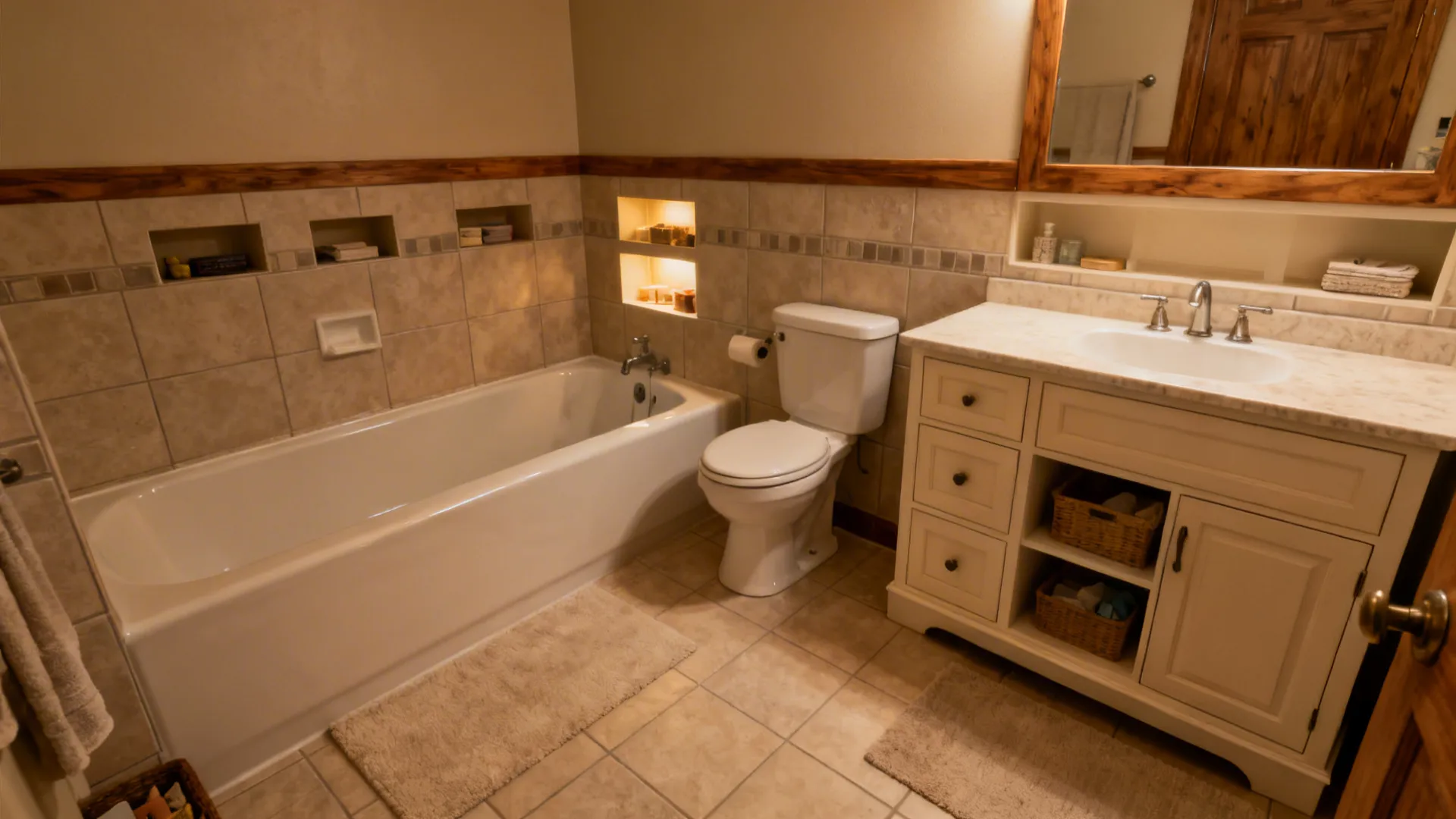

2. 5 ft x 8 ft: Standard Comfort with Tub Option

This 5 ft x 8 ft plan is the most flexible: a 60 in tub or a 32 in shower, a 24–30 in vanity, and a toilet between. I’ve recommended this to young families who sometimes want a tub for kids. The advantages are obvious—comfort and resale value—but you trade some storage unless you add tall cabinets or recessed niches. Pro tip: use a 24 in deep vanity to keep walking space while maximizing storage.

save pin

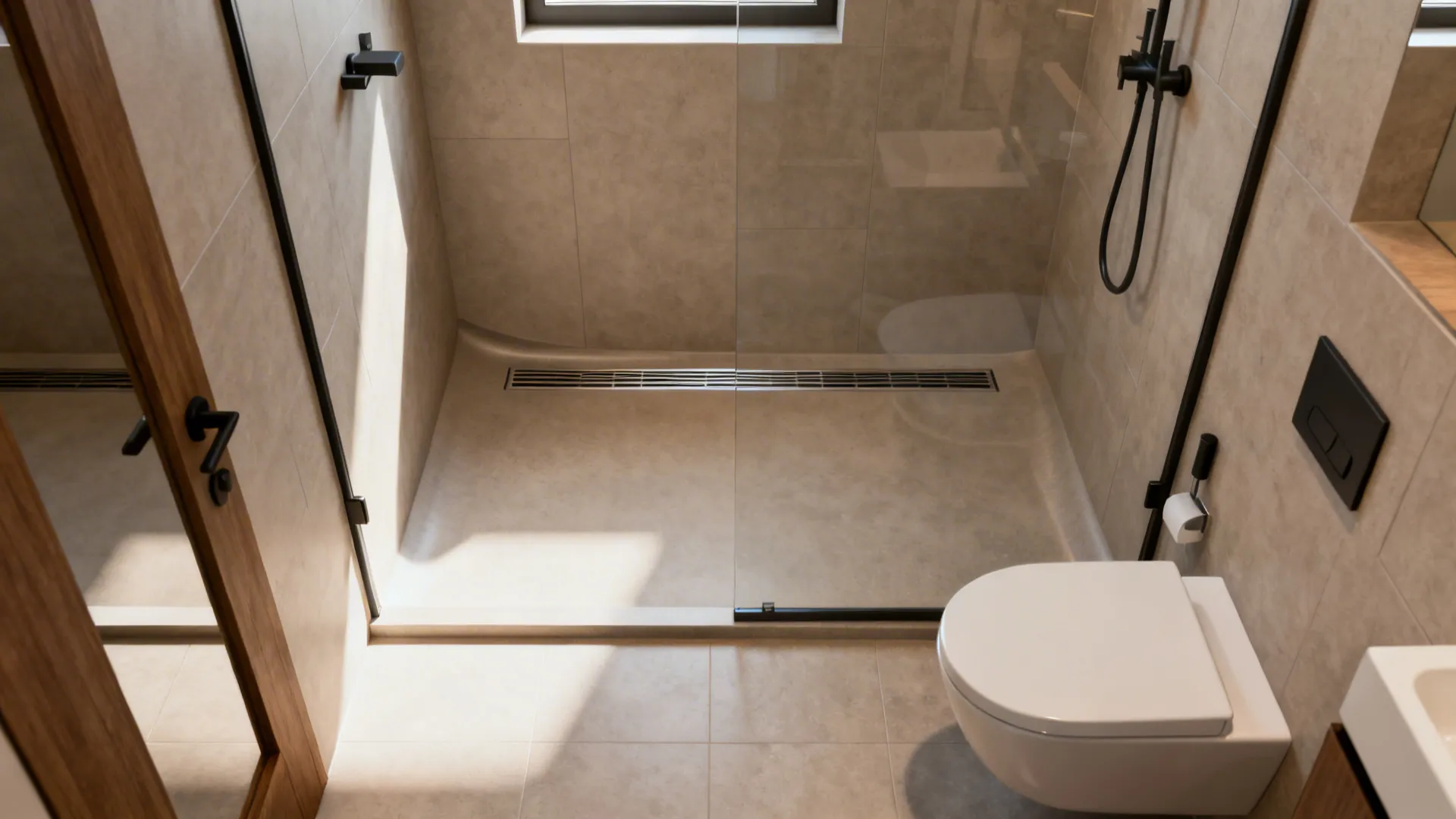

3. 3.5 ft x 7 ft: Compact Wet Room (best for very narrow spaces)

When width is the enemy, a wet room with a linear drain works wonders. At 42 in x 84 in, fit a wall-hung toilet and a walk-in wet area occupying half the length. I once retrofitted a historic flat with this layout; waterproofing and slope are extra work, but you gain a visually larger, barrier-free space. Challenge: requires excellent drainage planning and moisture-tolerant finishes.

save pin

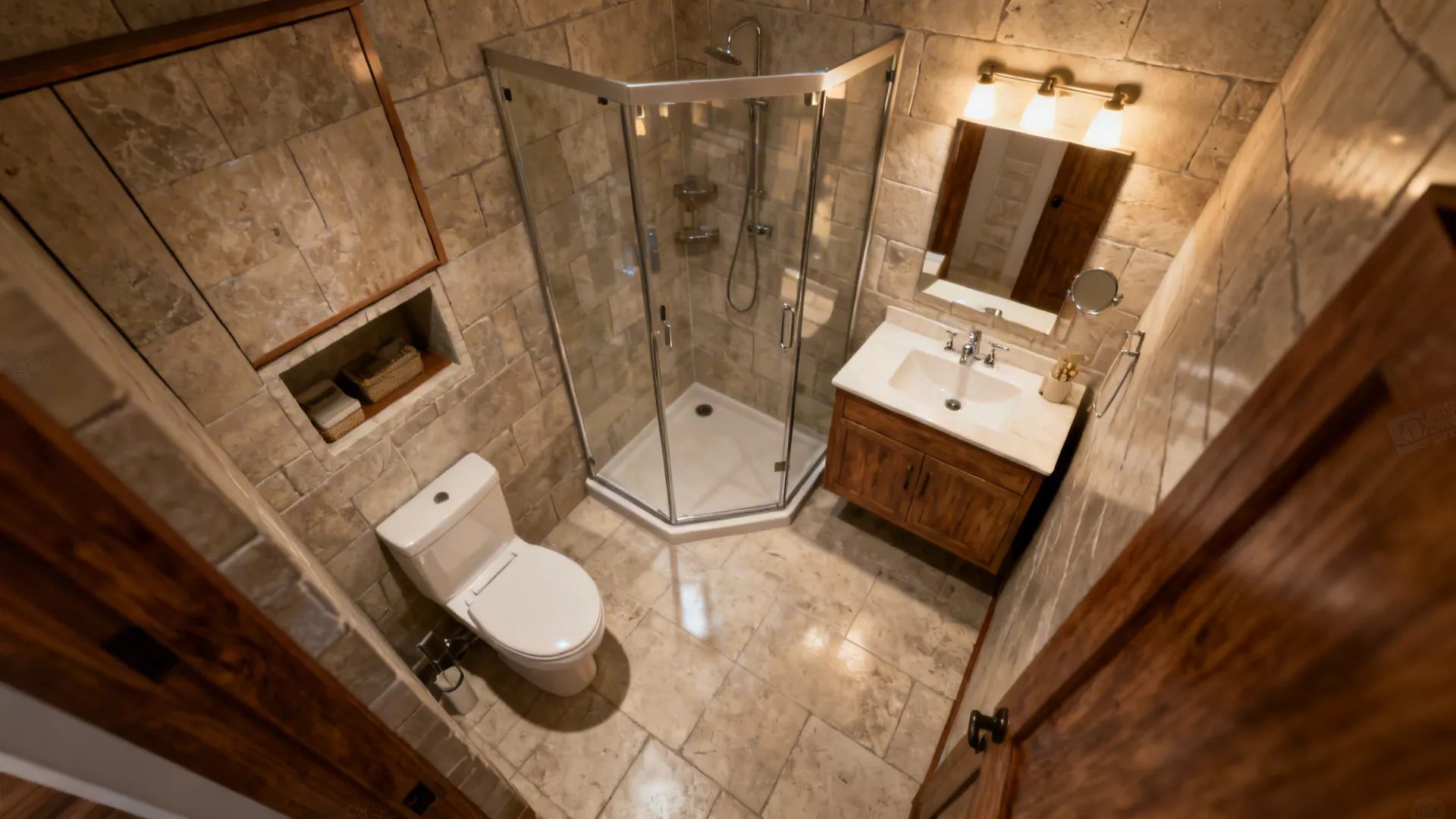

4. 6 ft x 6 ft: Square layout with corner shower

A roomy-for-small-bath option: 72 in by 72 in. I often place a 36 in corner neo-angle shower, a 24 in vanity, and a toilet along one wall. This layout balances circulation and storage; it’s easier to include linen cabinets or laundry stacked units. I used it in a condo where the owners wanted both storage and a more luxurious shower; the only catch is slightly higher floor area cost compared to narrow plans.

save pin

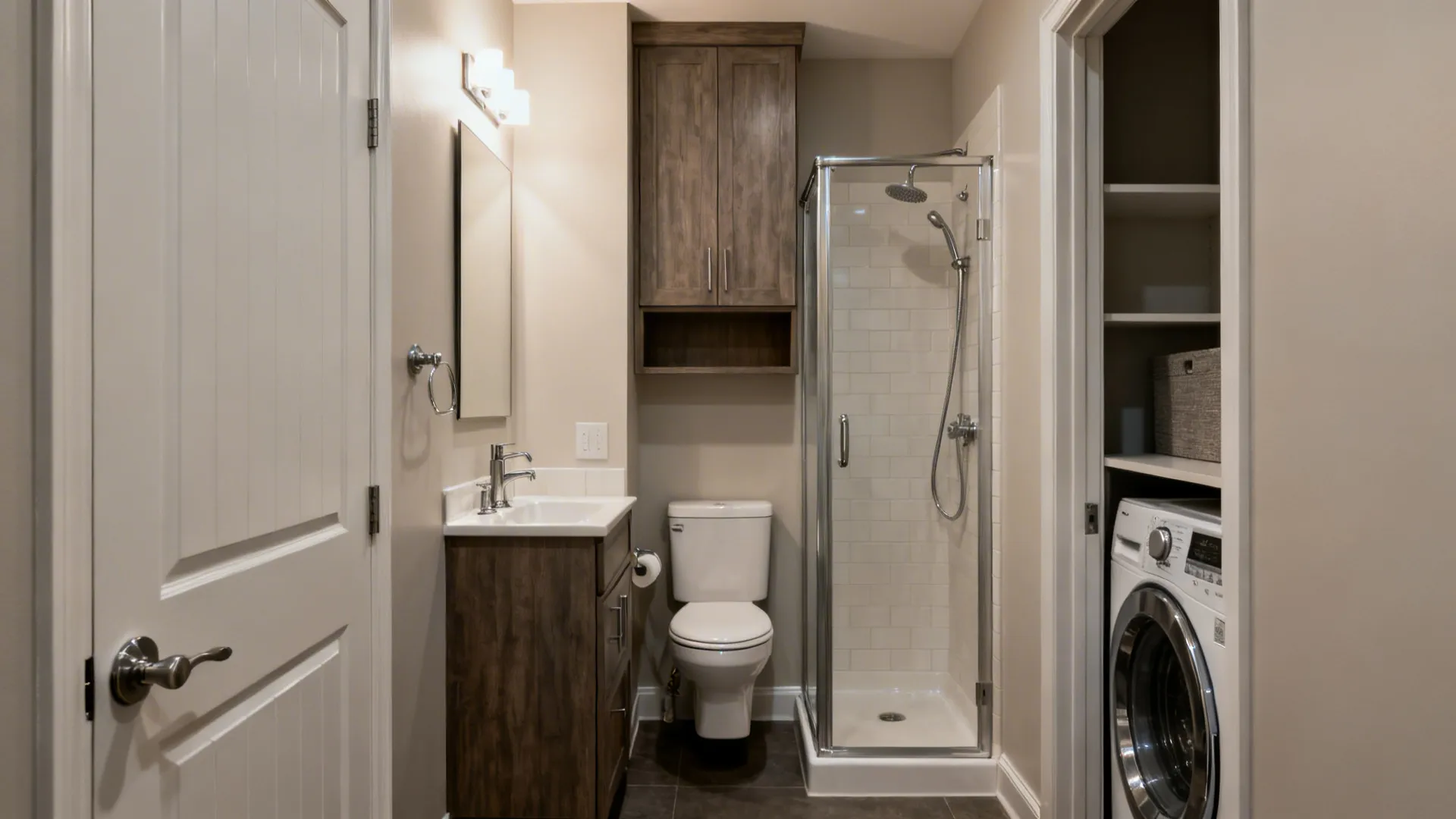

5. 5 ft x 6.5 ft: Pocket door + stacked storage (great for tight corridors)

When corridor space eats into the bathroom, pocket doors are lifesavers. At roughly 60 in x 78 in, use a 24 in vanity, wall-hung toilet, and a 30 in shower. The pocket door returns valuable swing space, and vertical cabinetry above the toilet adds storage without crowding. I specified this for a client who loved open sightlines; installing the pocket hardware added a small premium but was worth it.

save pin

Tips 1:

Practical measurements I rely on: 24–30 in vanity depth, 30–36 in clear circulation in front of fixtures, and at least 21 in in front of the toilet for comfortable use. If you want to experiment in 3D before building, try the 3D floor planner to quickly visualize multiple layouts and clearances; it saved me hours on one renovation where the initial plan blocked the towel heater.

save pin

FAQ

Q: What is the minimum comfortable bathroom size? A: I consider 3.5 ft x 7 ft (42 in x 84 in) the minimum for a functioning full bath with a shower. Smaller powder rooms can be pulled off at about 3 ft x 5 ft.

Q: Should I use a swinging or pocket door? A: Pocket doors free up swing space and are ideal for bathrooms under 6 ft wide; swinging doors are cheaper and simpler to install.

Q: What shower size is acceptable in a small bathroom? A: A 30 in x 54 in shower is a common compact choice that balances comfort and footprint.

Q: Are wall-hung toilets worth it? A: Yes for visual space and easier cleaning, but they cost more and need in-wall carrier systems.

Q: How do I prevent moisture issues in wet rooms? A: Proper waterproofing, linear drains, and correct floor slope are essential; consult a waterproofing specialist for warranty-backed solutions (see ANSI/ASME or local building codes for standards).

Q: Can I fit laundry in a small bathroom? A: Often yes—stacked units fit well in 5 ft x 8 ft or larger layouts, or in a recessed closet adjacent to the bathroom.

Q: What lighting strategy works best? A: Layered lighting—vanity task lights, ceiling ambient, and a shower-rated fixture—creates depth and removes shadows.

Q: Where can I quickly test different layouts before renovating? A: I recommend using an interactive floor planner to mock up dimensions and circulation; when I used one, it prevented a door swing clash with the towel rack.
