5 Small Commercial Kitchen Ideas: Creative, practical layouts and tips for maximizing efficiency in compact commercial kitchens

I once squeezed a full pizzeria into a space so tiny the delivery guy had to duck to get in — the oven barely fit and a chef’s hat brushed the ceiling. That challenge taught me a lot: small commercial kitchens don't have to be compromises, they can force smarter decisions and big creativity. In this piece I’ll share five practical design inspirations I’ve used on tight projects, drawn from real restaurant and cafe renovations.

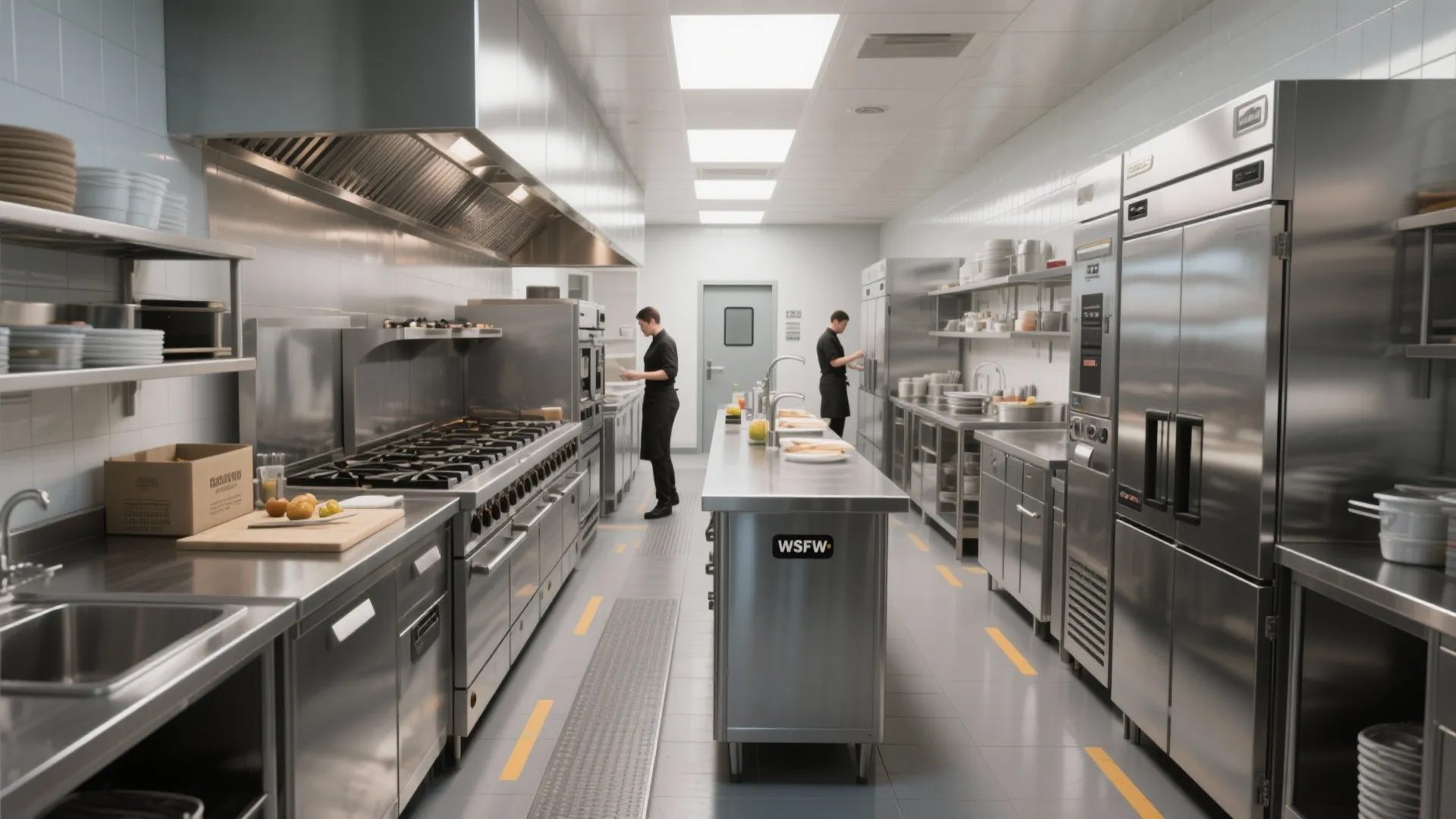

1. Galley layout with zones

A classic galley layout lets you line equipment for a clear flow: prep, cook, finish. I often mark strict zones so staff can work shoulder-to-shoulder without collisions. The upside is efficiency and lower footprint; the downside is ventilation and access which need careful planning — consider compact ventilation hoods and service doors to avoid bottlenecks.

save pin

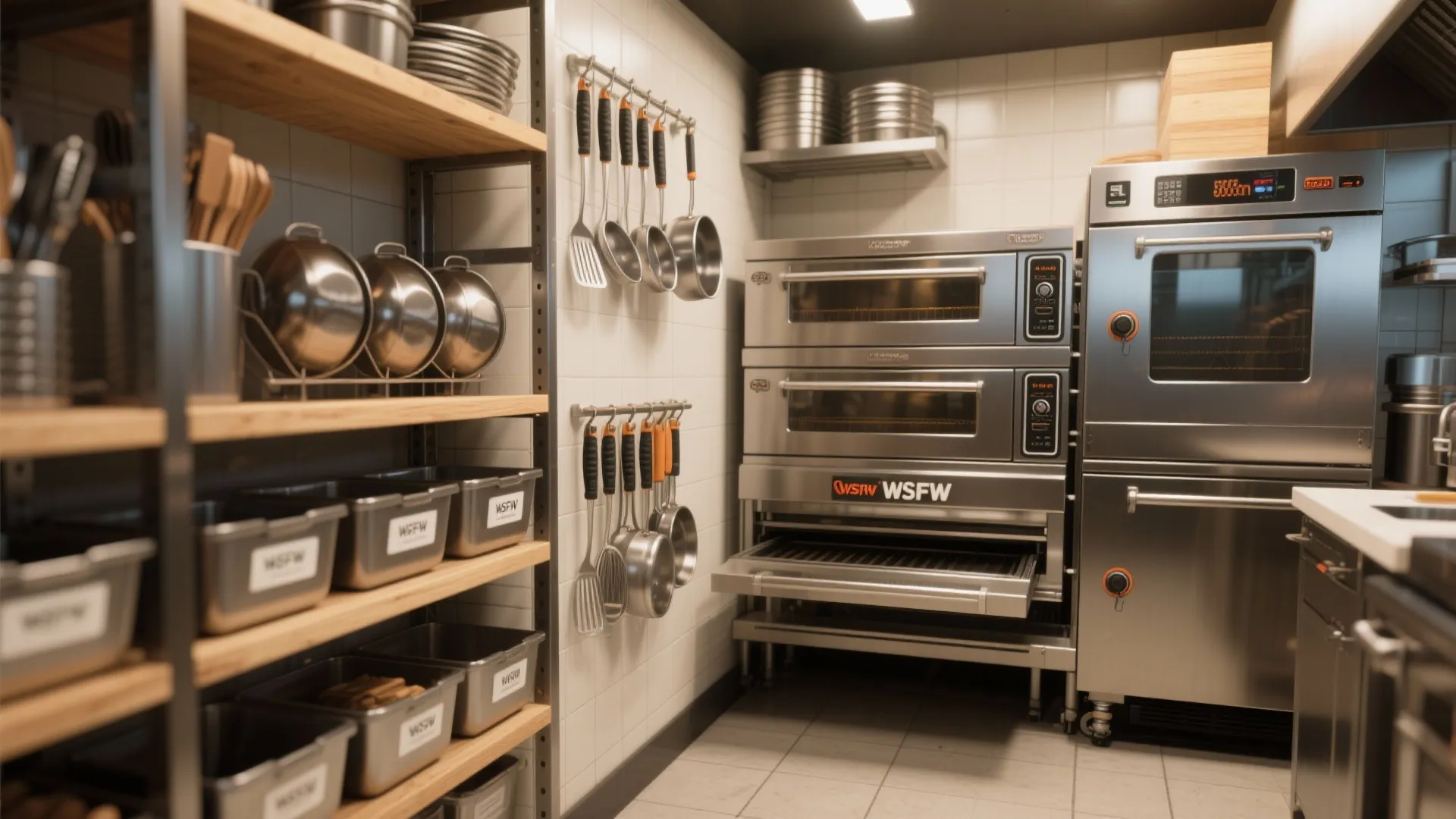

2. Vertical storage and equipment stacking

When floor space is scarce, I go vertical: shelving to ceiling, wall-mounted racks, and stackable combi ovens. This frees counters for prep and plating, but you must ensure ergonomics — don’t store heavy pans too high. I once installed pneumatic-assist shelving for a busy bakery; it saved time and backs.

save pin

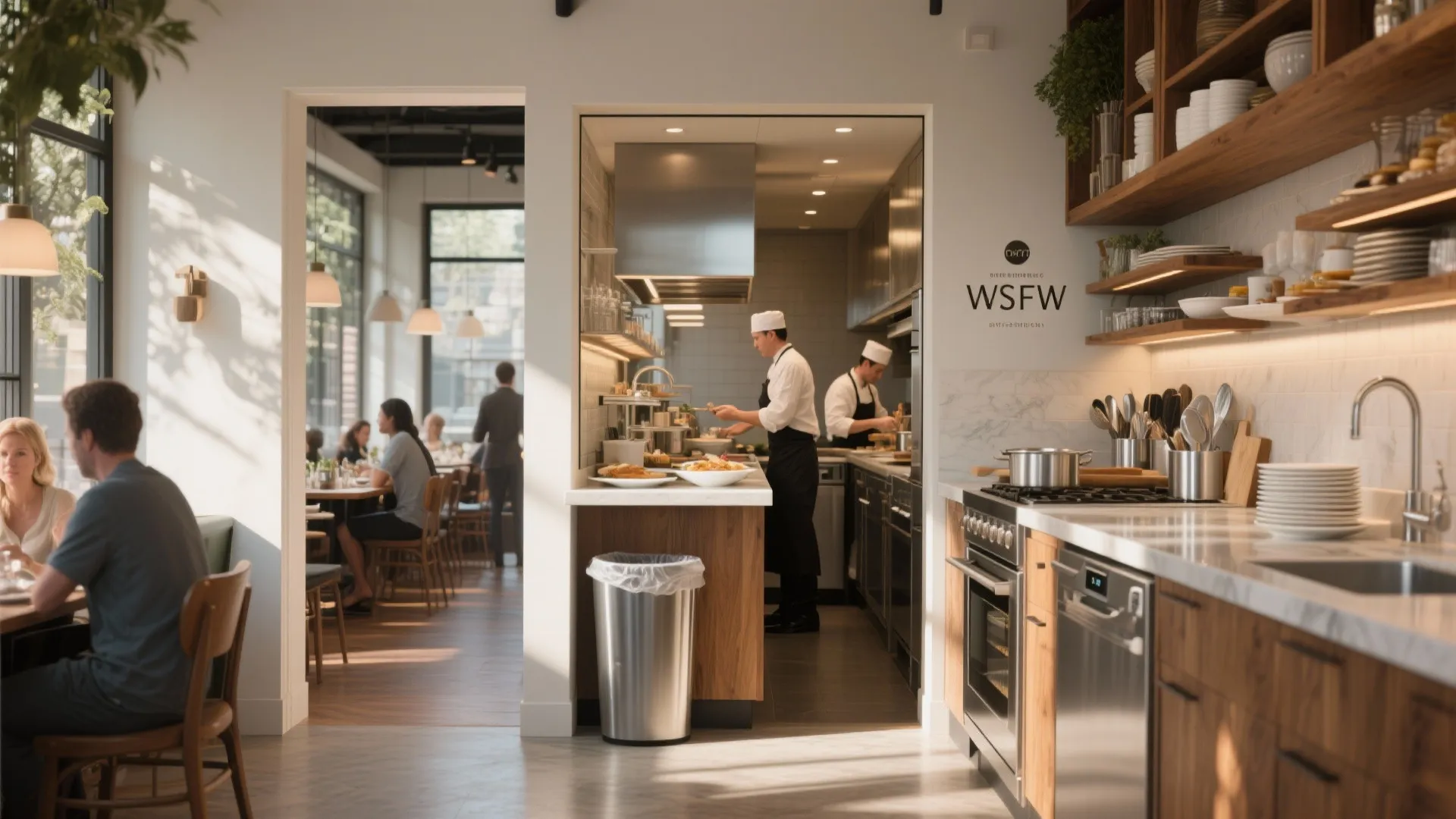

3. Open-plan pass with a prep island

An open pass creates visual connection to dining area and doubles as a plating station. A narrow prep island with integrated trash and under-counter refrigeration keeps things tidy. It can feel exposed for staff initially, but training and layout tweaks solve that; it also boosts service speed and guest experience.

save pin

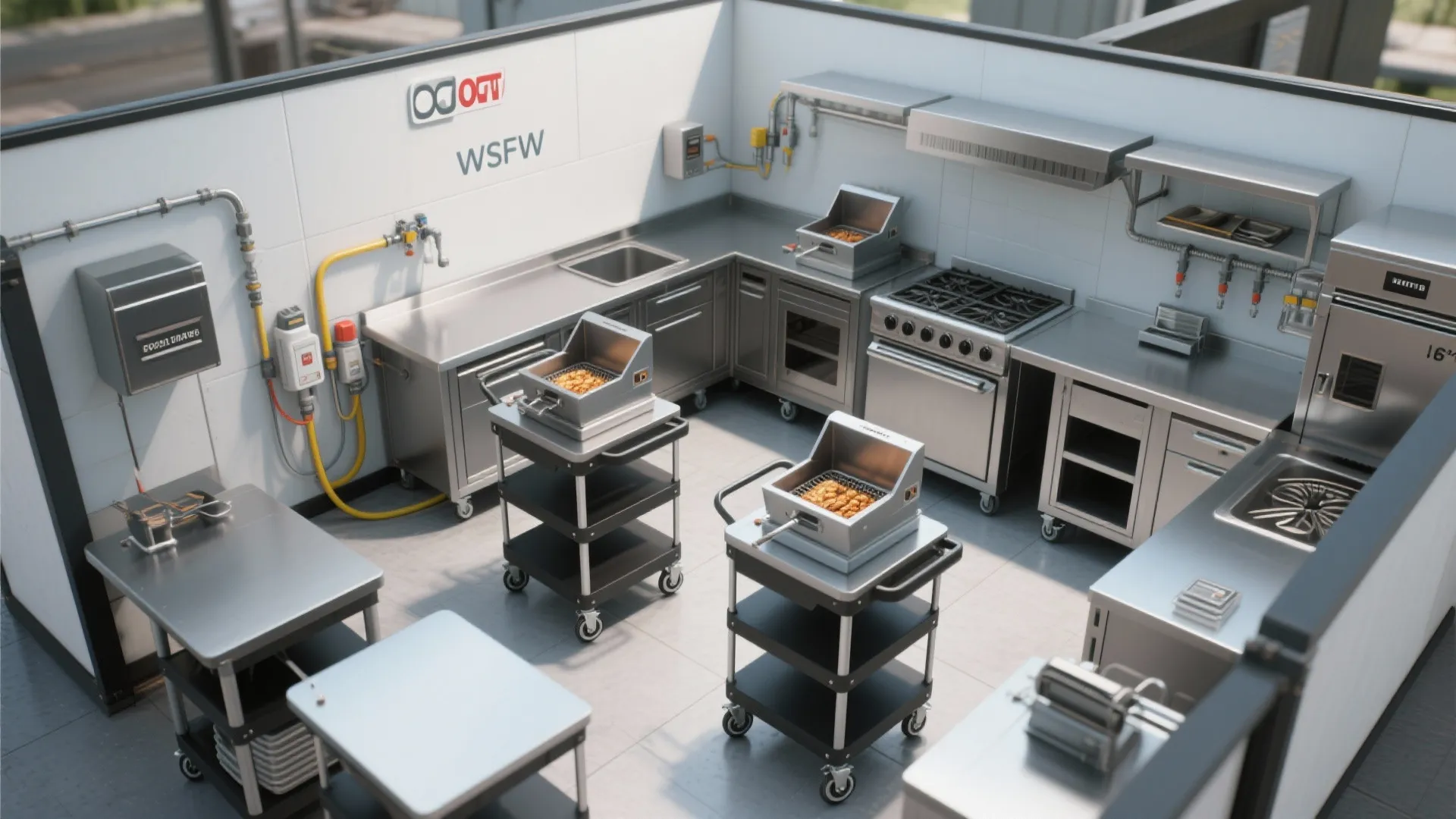

4. Modular, mobile stations

Bring modular carts and mobile fryers into play — they let you reconfigure the kitchen by shift or menu. I designed mobile stations for a pop-up kitchen that needed rapid changeovers; cleaning and utility hookups were the tricky parts, so plan quick-connect gas and electrical solutions.

save pin

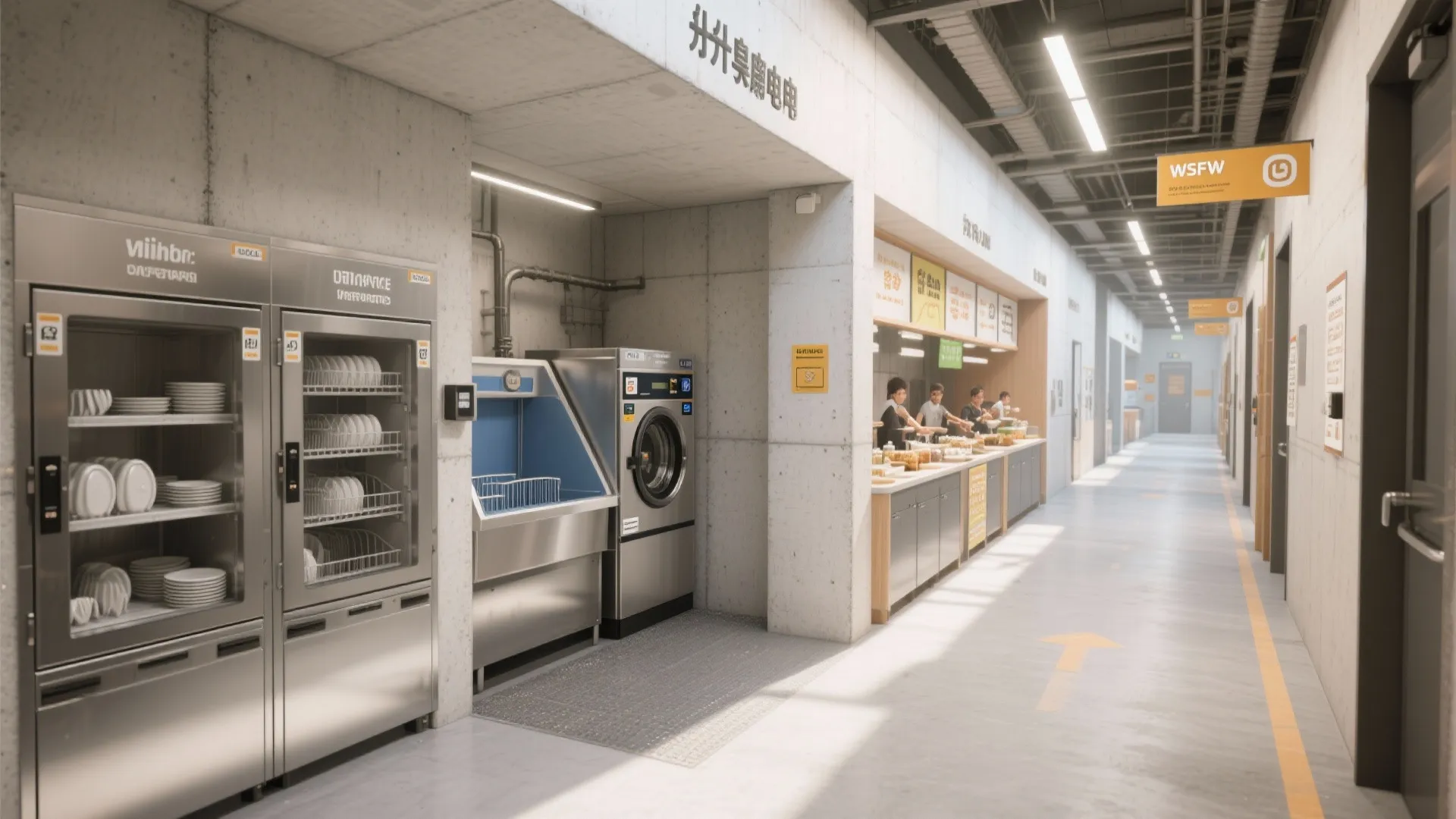

5. Shared utility corridors and micro-pantries

For multi-tenant buildings, shared utility corridors and compact pantries reduce duplication of equipment. I coordinated a scheme where three small food operators shared a central dishwashing bay, saving space and operating costs. It requires strong agreements and schedules, but the savings are real.

save pin

Tips 1:

Budget tip: prioritize refrigeration and ventilation first — they drive cost and compliance. Practical tip: mock up workstations at full scale before buying equipment. A small case I led used a cheap plywood mock-up and saved thousands in rework.

save pin

FAQ

Q1: What is the minimum size for a small commercial kitchen? A: It varies by local code and menu complexity, but many tiny cafes operate in 150–250 sq ft with careful layout and limited equipment.

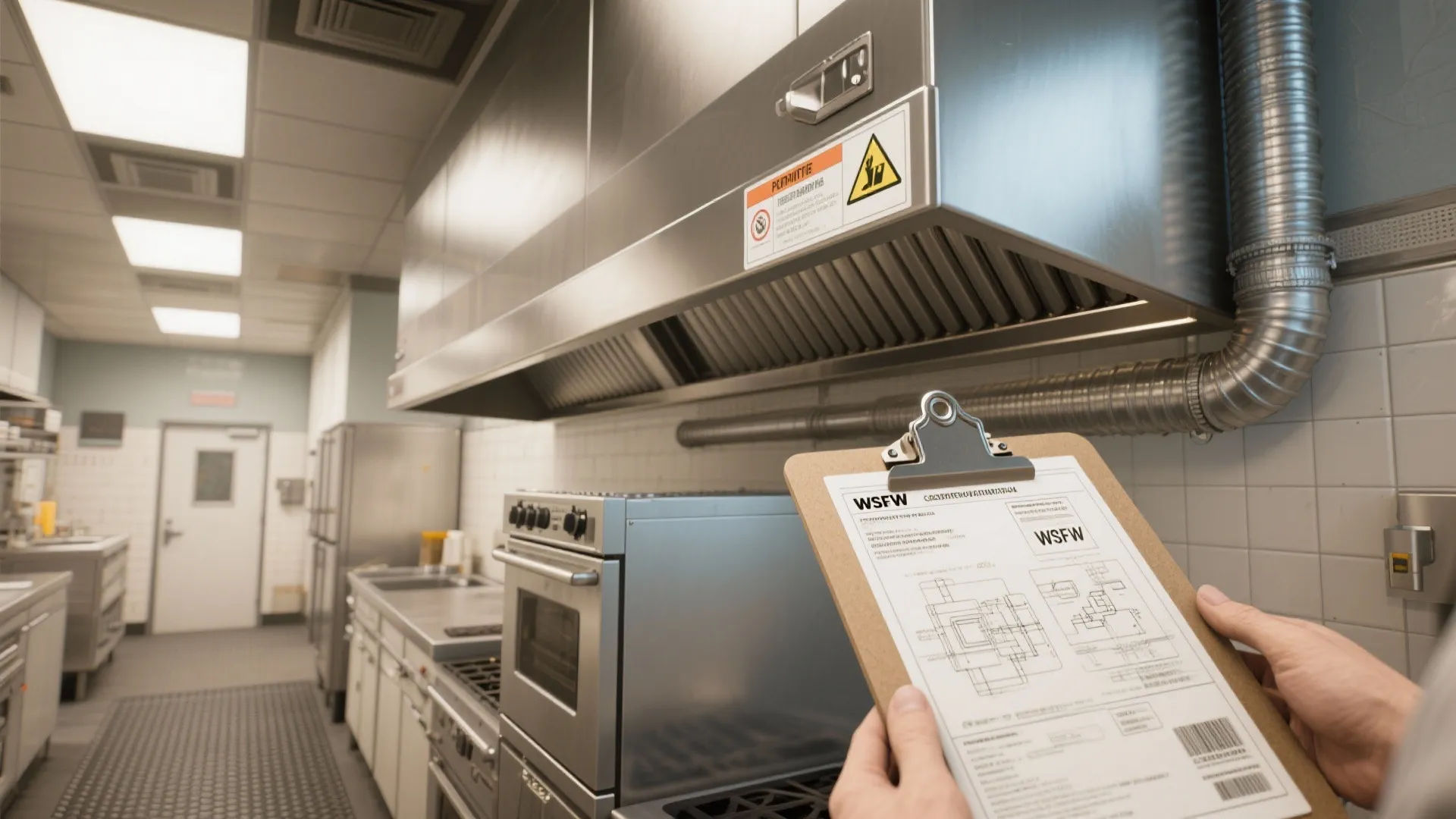

Q2: How do I handle ventilation in a compact kitchen? A: Use high-efficiency hoods sized to equipment, consider make-up air systems, and consult local HVAC engineers early.

Q3: Are modular appliances reliable for commercial use? A: Many manufacturers offer commercial-grade modular units; choose units with NSF/ETL certifications and proven service networks.

Q4: How can I optimize workflow in a tiny kitchen? A: Map tasks and create linear flows (receive→prep→cook→service) and minimize cross-traffic; a dry-run with staff reveals pinch points.

Q5: What permits are typically required? A: Permits often include health department approval, building and fire permits, and mechanical permits for ventilation — check local authorities.

Q6: Can shared kitchen utilities reduce costs? A: Yes, shared dishwashing or cold storage can cut capital and operating expenses, though you’ll need usage agreements and schedules.

Q7: How to choose flooring that holds up in small commercial kitchens? A: Choose non-slip, chemical-resistant commercial flooring; manufacturer specs and local health codes guide selections (CDC and local health departments provide standards).

Q8: Where can I see examples of effective kitchen layouts? A: I recommend exploring case studies and layout tools to visualize options; for instance, the 3D floor planner examples help test configurations.
