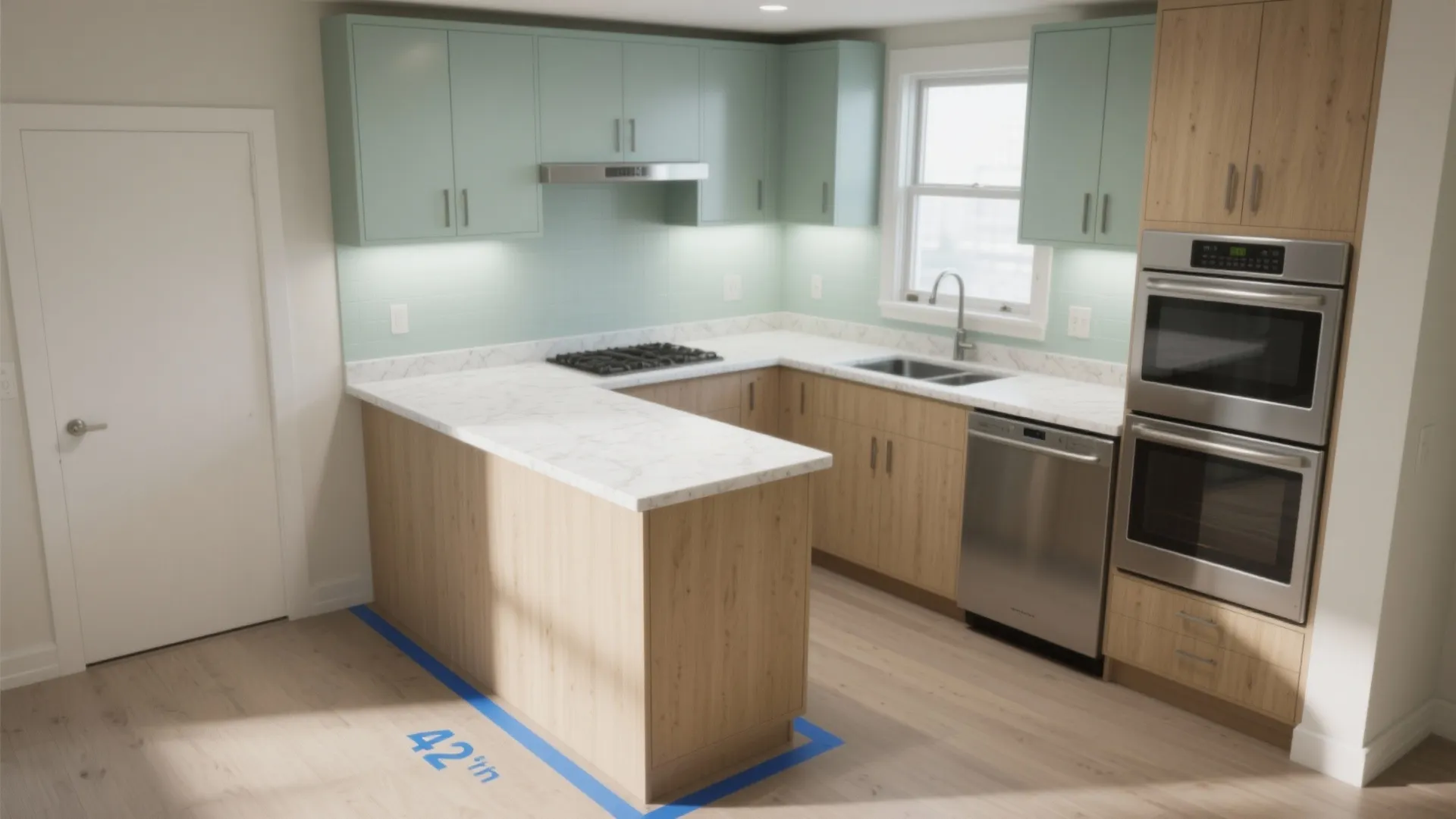

5 Small Kitchen Floor Plan Ideas That Actually Work: A senior designer’s real-world tricks to plan tiny kitchens that cook big

Years ago, a client begged me for a kitchen island in a 6-foot-wide galley. I nearly said yes—until I taped it out and realized we’d trap the fridge door forever. Now I always start with one simple ritual: sketch your room outline before dreaming up cabinets. Small spaces force big creativity, but the tape never lies.

If you’re wrestling a compact kitchen, I’ve got you. I’ll share five floor plan ideas I use in real homes, the upsides I love, and the gotchas I’ve learned the hard way.

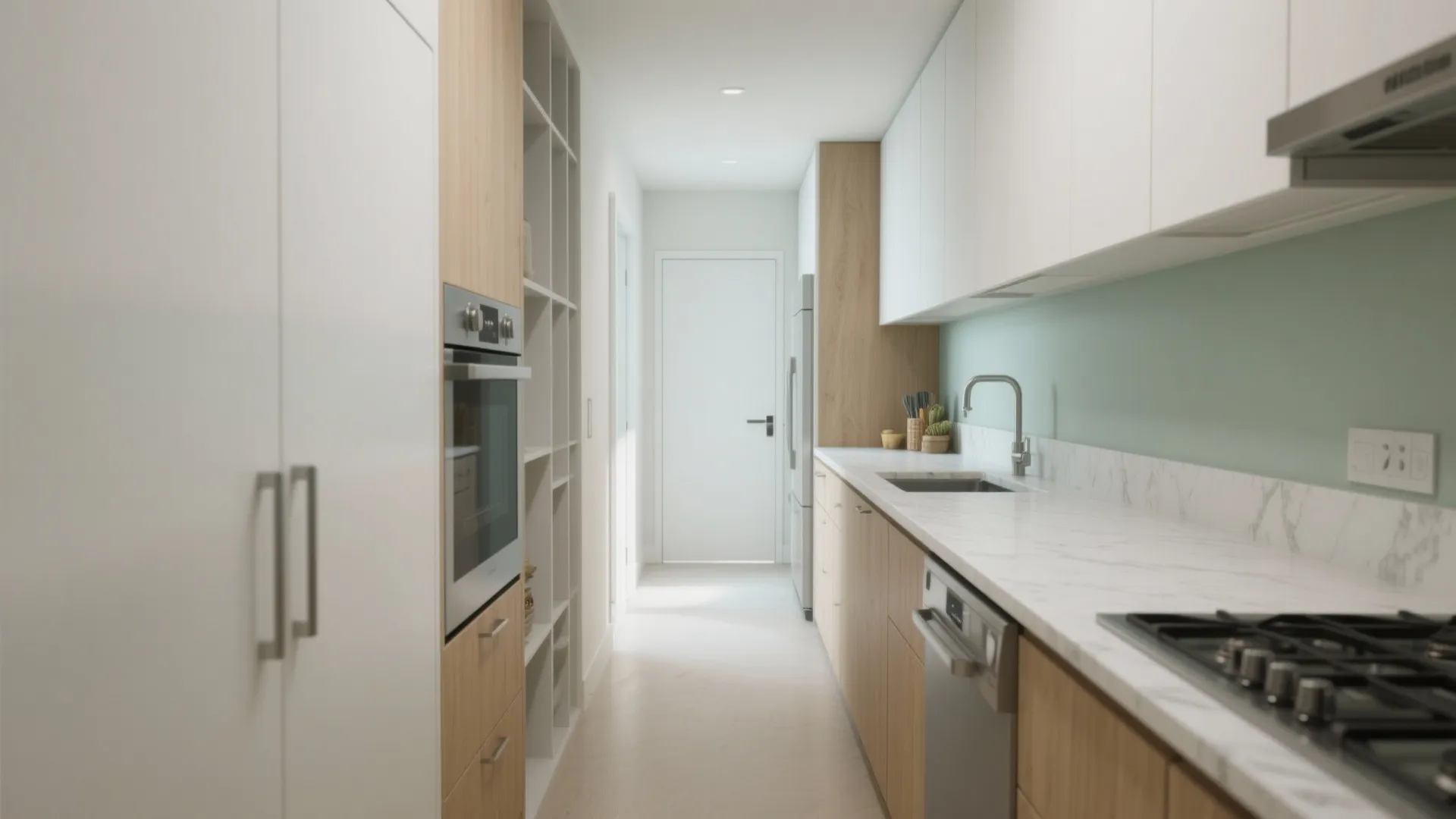

Idea 1: Tweak the classic galley—one “work” side, one “storage” side

In tight corridors, I make one run deeper for the sink, prep, and cooking, and the opposite run shallower with tall storage. It keeps the working triangle tight and frees your hips from constant cabinet bumps. If the home allows, I swap a swing door for a pocket or sliding panel to protect that precious aisle.

The perk is efficiency: everything is one step away. The challenge is claustrophobia. Go lighter on uppers, carry one continuous countertop, and keep the walkway clear (aim for about 42 inches for a primary cook). Budget saver: reuse existing plumbing on the same wall and splurge on pull-out trash and a narrow dishwasher.

save pin

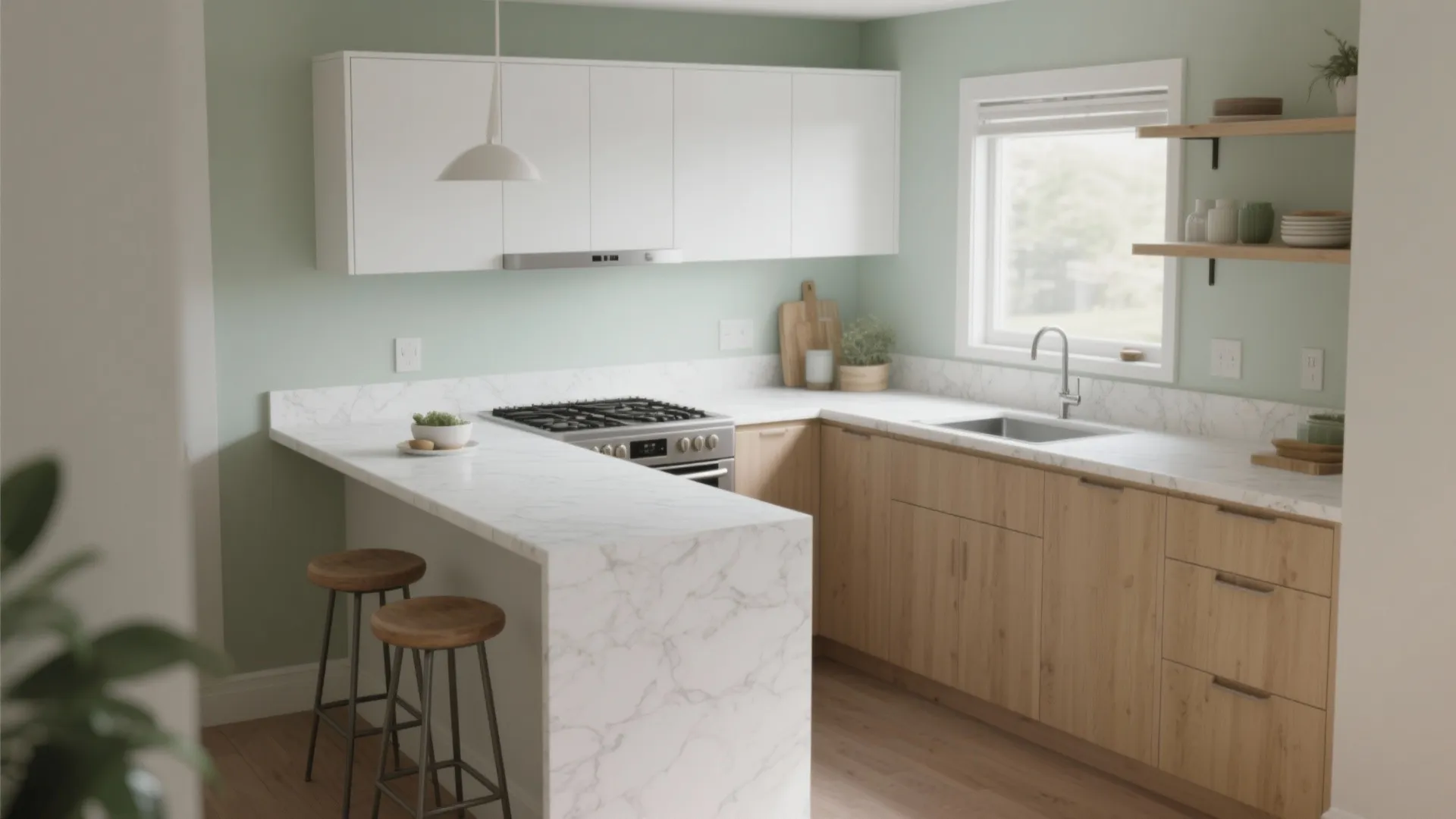

Idea 2: L-shaped with a petite peninsula for dining and prep

When a full island won’t fit, I flip the short leg of the L into a narrow peninsula. It creates a “harbor” for chopping, breakfast, or laptop time without blocking flow. I like a 12-inch overhang with slim stools and at least 36 inches of clearance behind seating so people can pass without sideways shuffling.

The upside is social cooking in small footprints. The watch-out is corner clutter—avoid giant blind corners by using a drawer stack on the return and a lazy Susan or diagonal corner only if you truly need it. If venting is tricky, keep the range on an exterior wall and tuck the sink on the long leg.

save pin

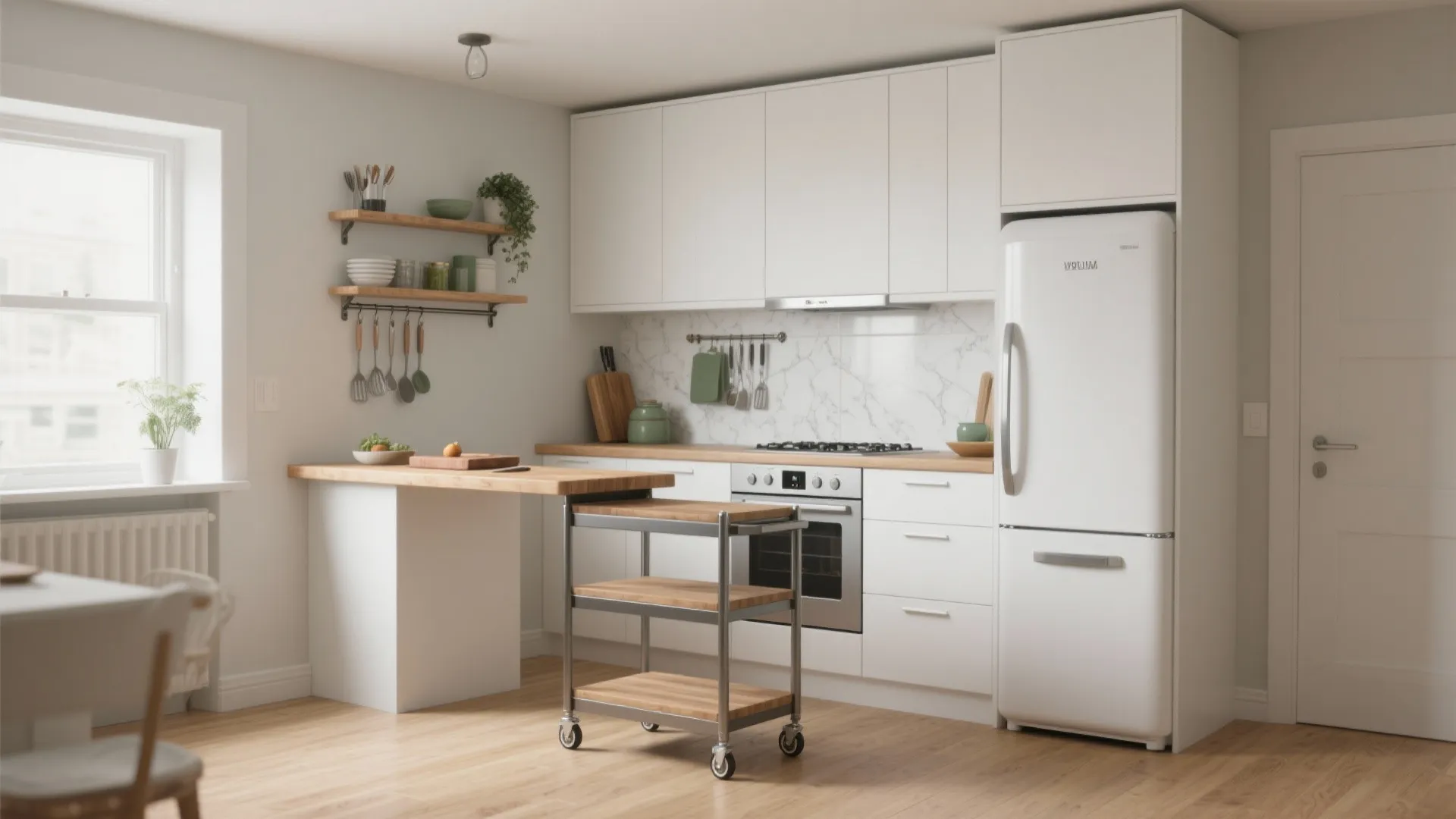

Idea 3: One-wall kitchen plus a mobile island (your secret second counter)

Studios and lofts love a single run of appliances with a rolling cart or slim island that parks where you need it. I often test circulation with quick 3D mockups so clients can “walk” the space and make sure the cart doesn’t block the fridge or oven doors.

The beauty is flexibility: lock the cart for prep, slide it aside for dinner. The challenge is power and weight—skip hardwired outlets unless you anchor the piece, and choose locking casters and a durable top (butcher block is forgiving and affordable). Bonus: a rail system above the counter keeps gadgets vertical and counters clear.

save pin

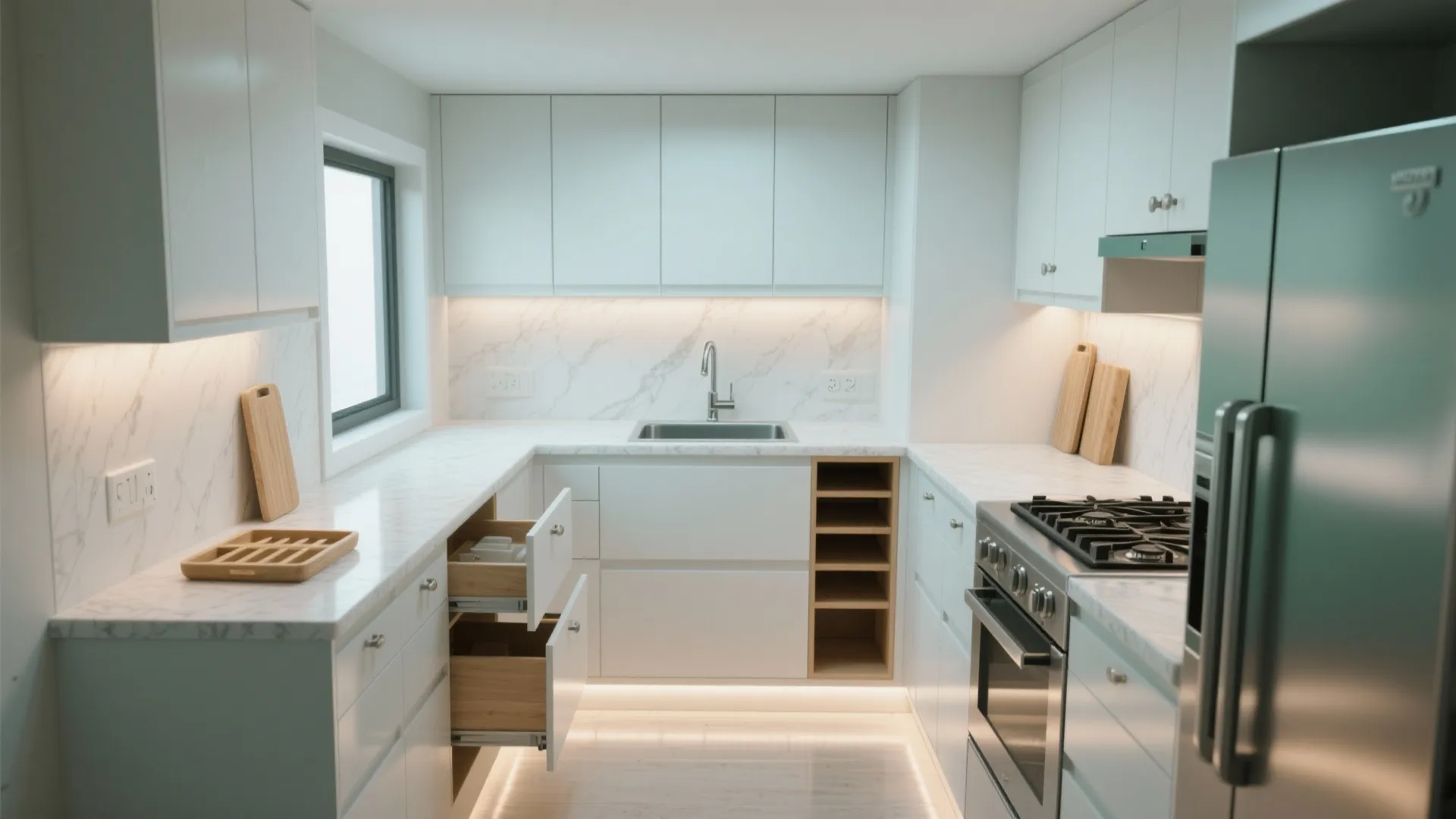

Idea 4: Micro U-shape that cooks like a pro

If your room is a small box, a U can be magic: sink in the center, range and fridge at the ends, and pull-outs everywhere. I prioritize drawers over doors, a tray cabinet for baking sheets, and a skinny pull-out pantry near the fridge to “borrow” storage from slivers of space.

The pro is speed—everything’s within a turn. The con is feeling boxed in. Keep at least ~42 inches in the work aisle for a single cook; if two people share the kitchen often, push toward 48 inches. Use light-reflective finishes, under-cabinet lighting, and a single flooring material to stretch the room visually.

save pin

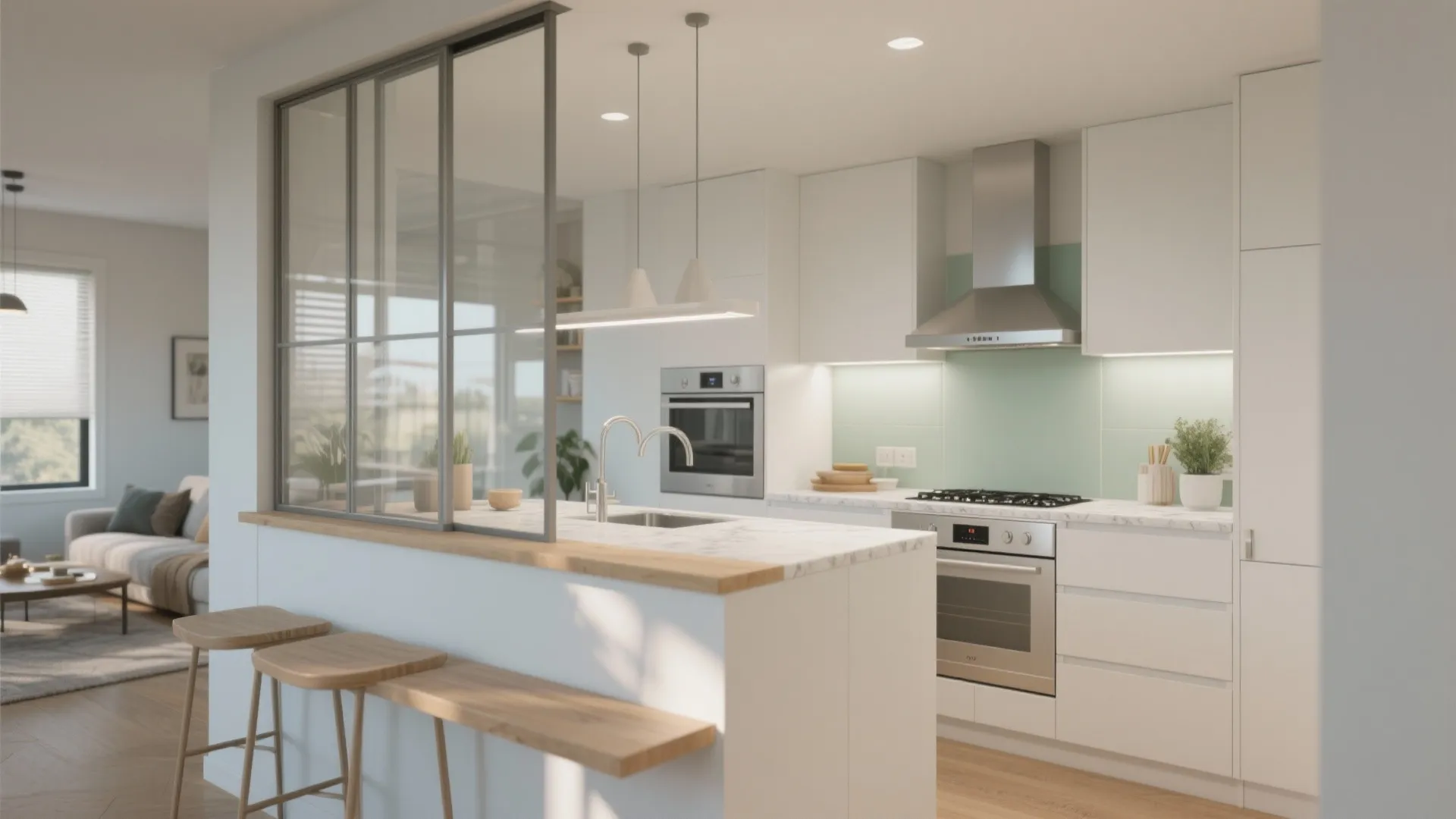

Idea 5: Broken-plan kitchen with glass or half walls

Open plan is great until your sofa smells like garlic. In small homes, I like half-height walls or glass sliders that borrow light from the living room while containing splatter and smells. Before building, I show clients photo-realistic renders so they can see how the glazing lines up with sightlines and where the hood throws light.

The win is airiness without chaos. The trade-off is cost—glass and track systems aren’t cheap. If the budget’s tight, start with a half wall and a strong, quiet recirculating hood with good charcoal filters, then add glazing later. And use the half wall as extra counter depth for a sneaky breakfast ledge.

save pin

FAQ

1) What’s the best small kitchen floor plan?

There’s no single winner. For narrow rooms, a galley is efficient; in square rooms, a U or L with a small peninsula often works best. Start with your door and window positions, then map the sink, range, and fridge within easy reach.

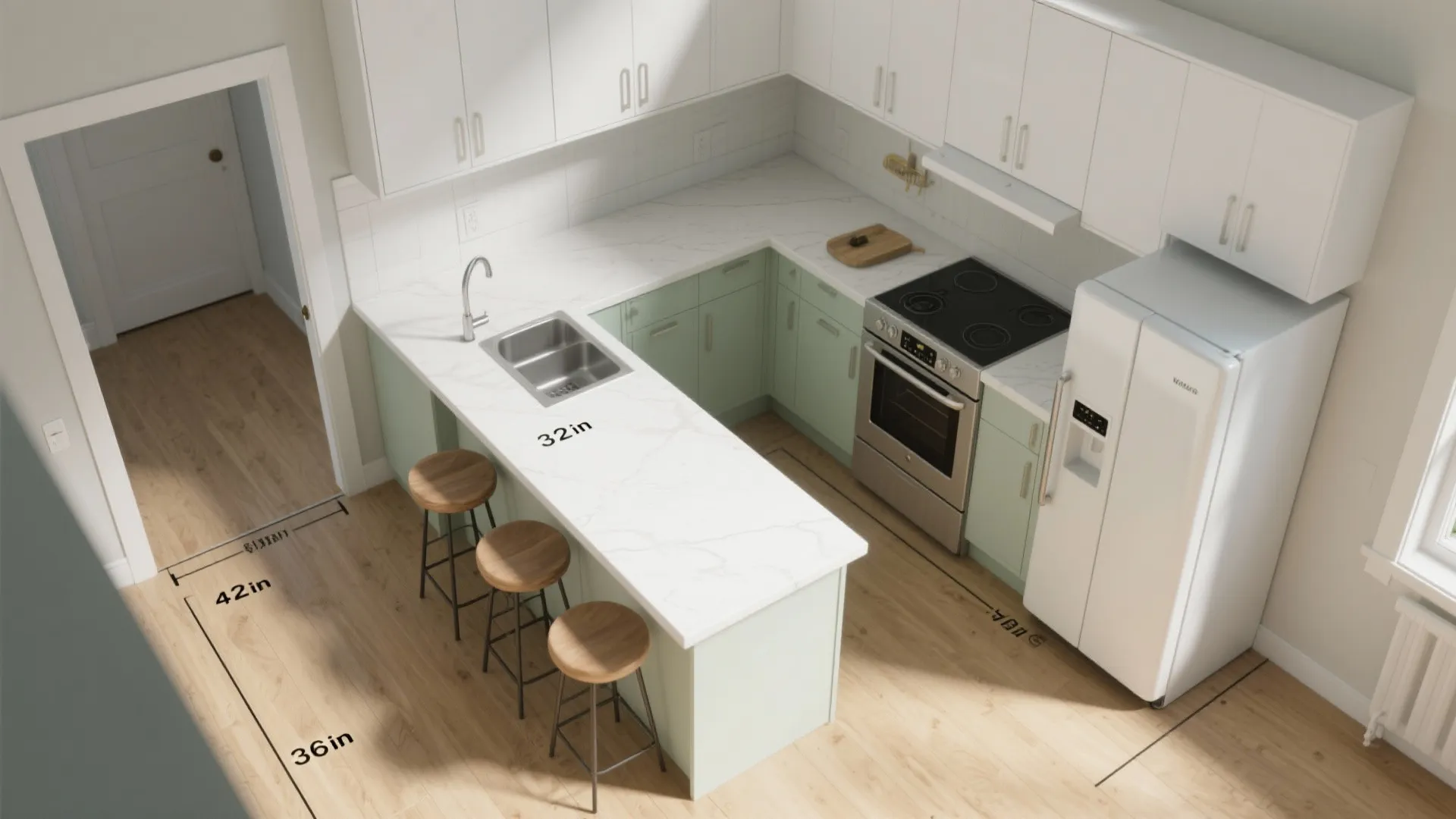

2) How wide should the aisle be in a tiny kitchen?

For a primary cook, aim for about 42 inches. If two people cook regularly, target 48 inches. Walkways behind seating should be about 36 inches to keep traffic smooth.

3) How do I fit a dishwasher in a small layout?

Consider an 18-inch model or a drawer dishwasher near the sink. If you must hand-wash, plan a double-bowl or a large single bowl with an integrated drainboard to keep counters dry.

4) Is the work triangle still relevant in small kitchens?

Yes, but think zones too. Keep sink, range, and fridge within a few steps, then layer zones—prep near the sink, landing space by the range, and a drop zone beside the fridge—to reduce backtracking.

5) What clearances do codes or guidelines recommend?

The NKBA Kitchen Planning Guidelines recommend 42-inch work aisles for one cook and 48 inches for two, with walkways at 36 inches. See NKBA’s published standards: https://nkba.org/gbc/kitchen-guidelines

6) Can I have an island in a small kitchen?

Maybe—if you can maintain the aisle clearances with all appliance doors open. A slim rolling cart can deliver “island” function without committing to fixed cabinetry.

7) How do I stop a small kitchen from feeling cramped?

Limit uppers on one wall, add under-cabinet lighting, and use light, continuous surfaces. Glass doors or a half wall to the living area can bring in light while keeping zones defined.

8) What budget moves give the biggest impact?

Keep plumbing in place, choose ready-to-assemble cabinets with upgraded hardware, and invest in drawers, not doors. A quality hood and task lighting often feel like a major renovation at a small cost.
