5 Smart Ideas for Wall Light Fixture Electrical Boxes: Small electrical box, big impact: practical tips from a seasoned interior designer

Once I tried to hide a wall sconce's electrical box behind a decorative plaster medallion — and the homeowner loved it until we realized the box was inaccessible for future wiring. That taught me a simple truth: in small spaces every electrical decision becomes a design decision. Small fixes often unlock big improvements, and in this article I’ll share 5 practical ideas for electrical boxes for wall light fixtures that I’ve used on real projects.

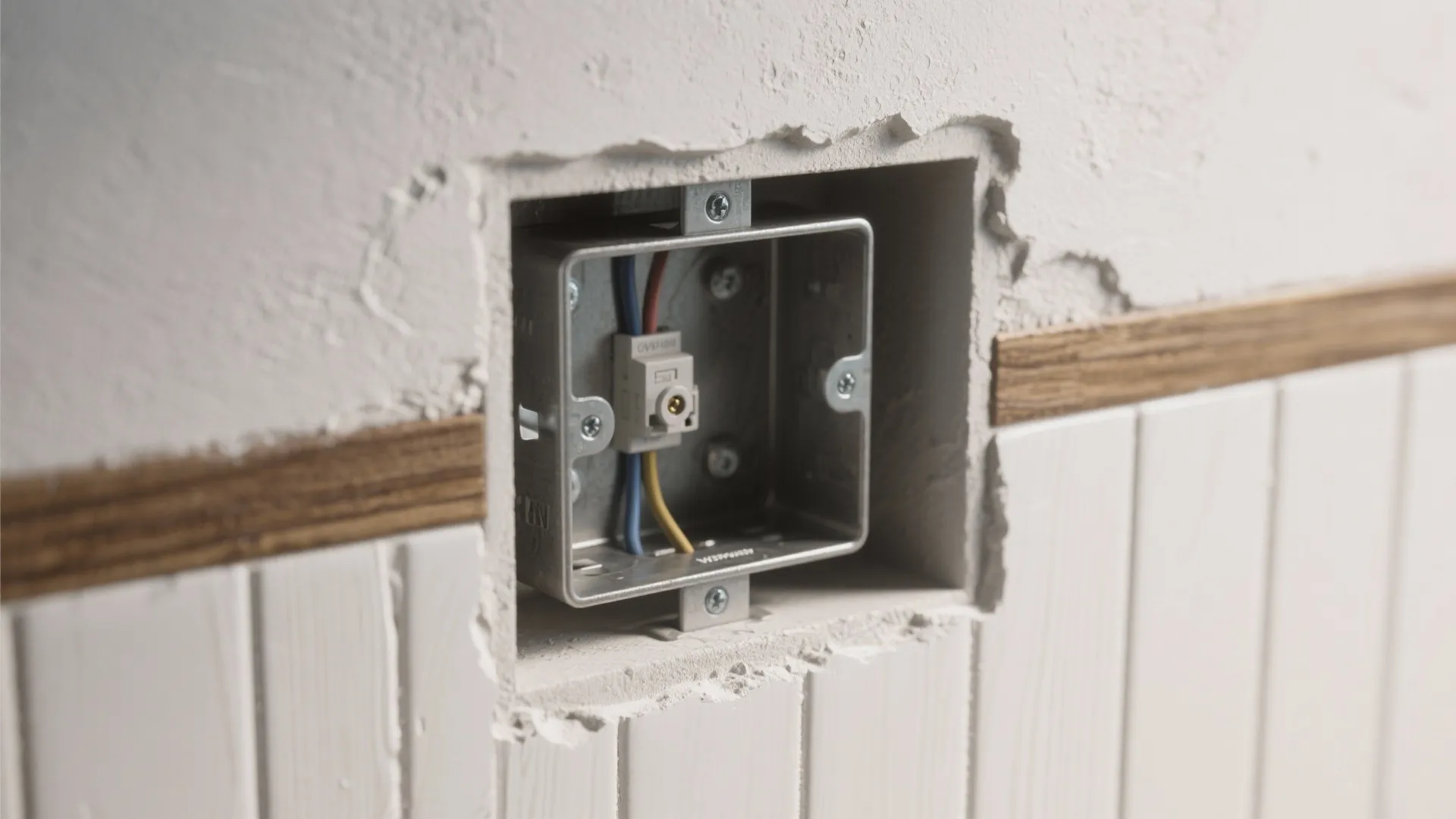

1. Choose the right box depth for layered walls

I often encounter plaster, tile, or shiplap layers that push the fixture away from the stud plane. Using a deeper or adjustable depth box prevents the face of the fixture from sitting proud or leaving gaps. The advantage is a clean finish and safer mounting; the challenge is measuring accurately before ordering parts. A quick tip: measure total wall thickness (substrate + finish) and add at least 1/4" for wiring clearance.

save pin

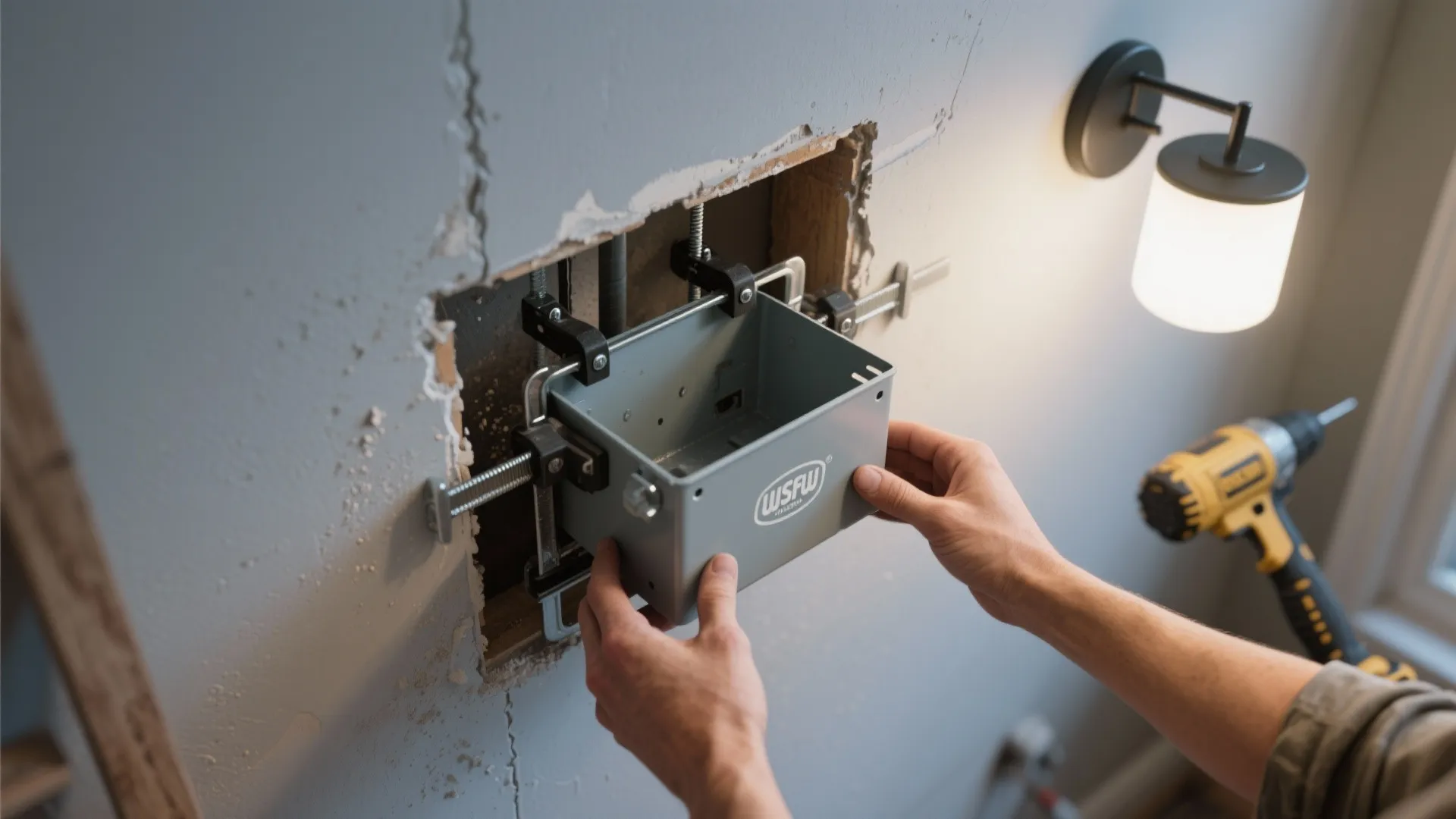

2. Use remodeling (old-work) boxes for retrofit jobs

When ripping out drywall isn’t an option, remodeling boxes that clamp to the existing drywall save the day. I’ve rescued several projects where homeowners refused demo — these boxes let you install new sconces with minimal mess. Downsides are limited wire capacity and slightly less sturdy support compared to new-work boxes, so for heavy fixtures I prefer reinforced options.

save pin

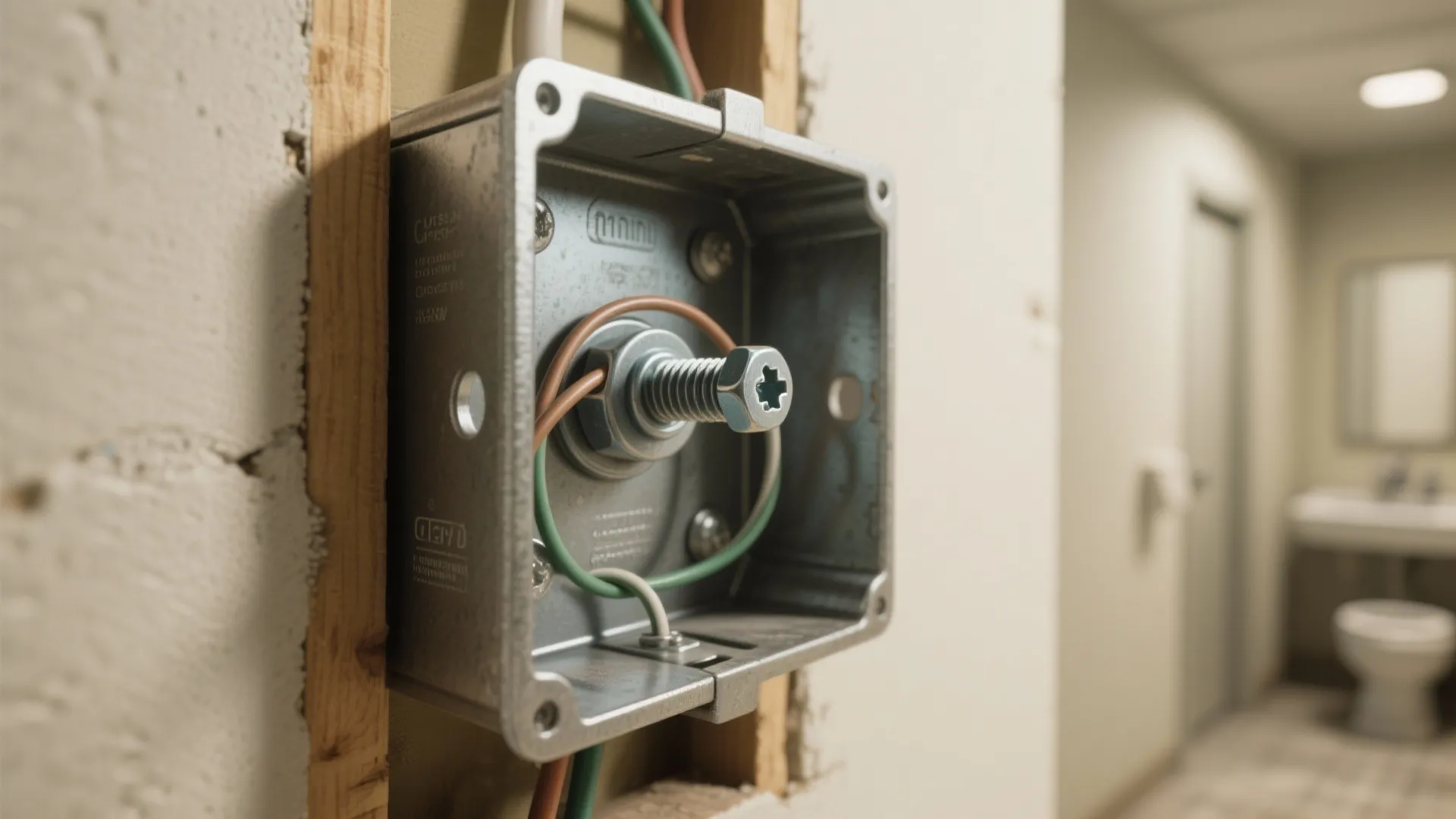

3. Consider metal boxes for grounded, code-compliant installs

Metal boxes are my go-to when grounding and durability matter, especially in bathrooms or high-traffic halls. They provide a solid mounting surface and can serve as a ground path if wired correctly. They can be heavier and need a bit more carpentry finesse, but the long-term reliability is worth it. If you’re not sure about grounding, consult a licensed electrician — safety first.

save pin

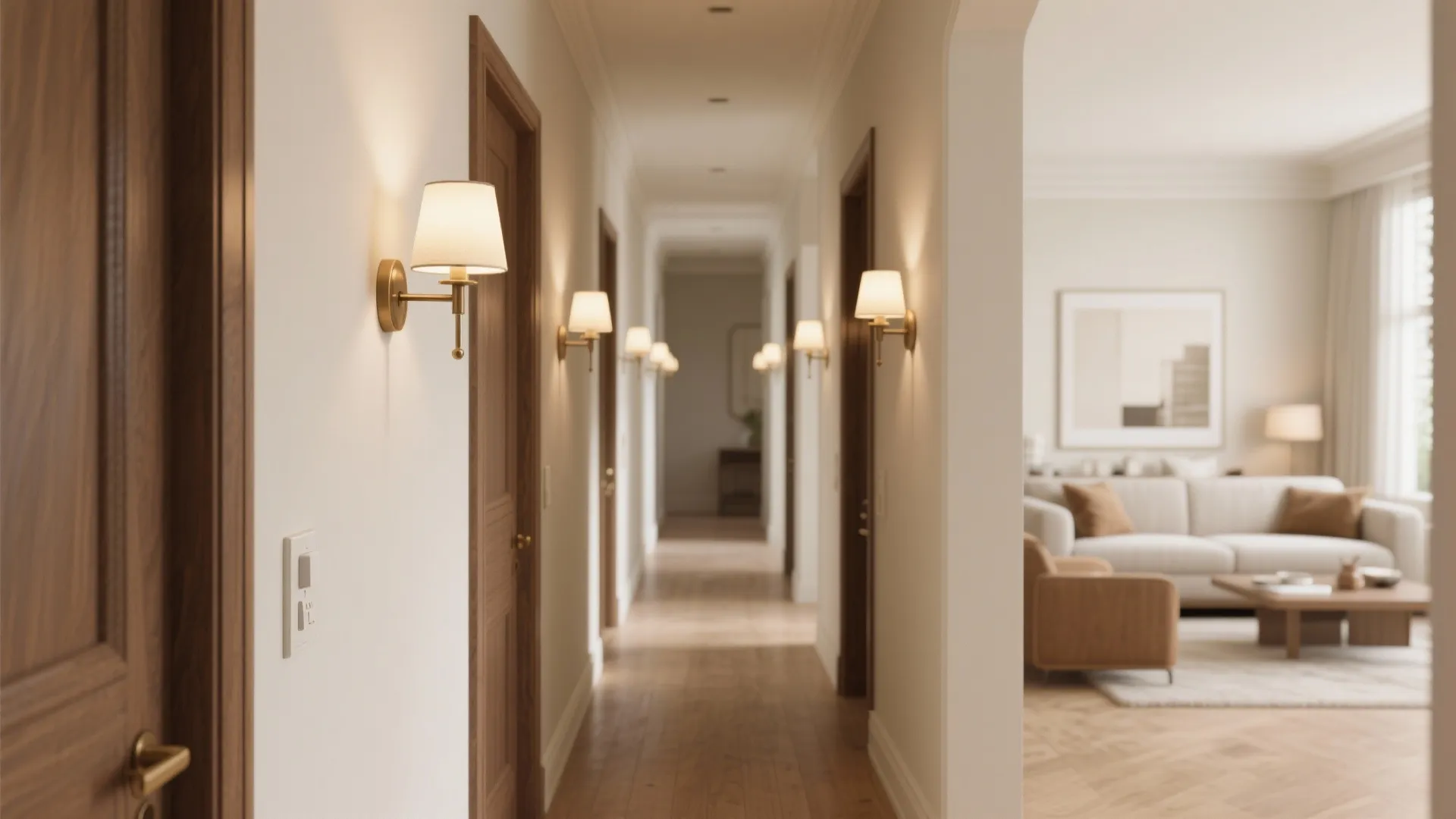

4. Plan box placement for switch compatibility and aesthetics

Placing the electrical box at the correct height affects both the look and function of a light. I usually set sconces so the center of the light is about 60–66" from the floor in living spaces; in staircases or reading nooks I adjust for sightlines. Smart placement avoids awkward switches and keeps the wiring run simple. For multi-gang needs, plan for a larger box early to avoid cramped wiring later — been there, fixed that.

save pin

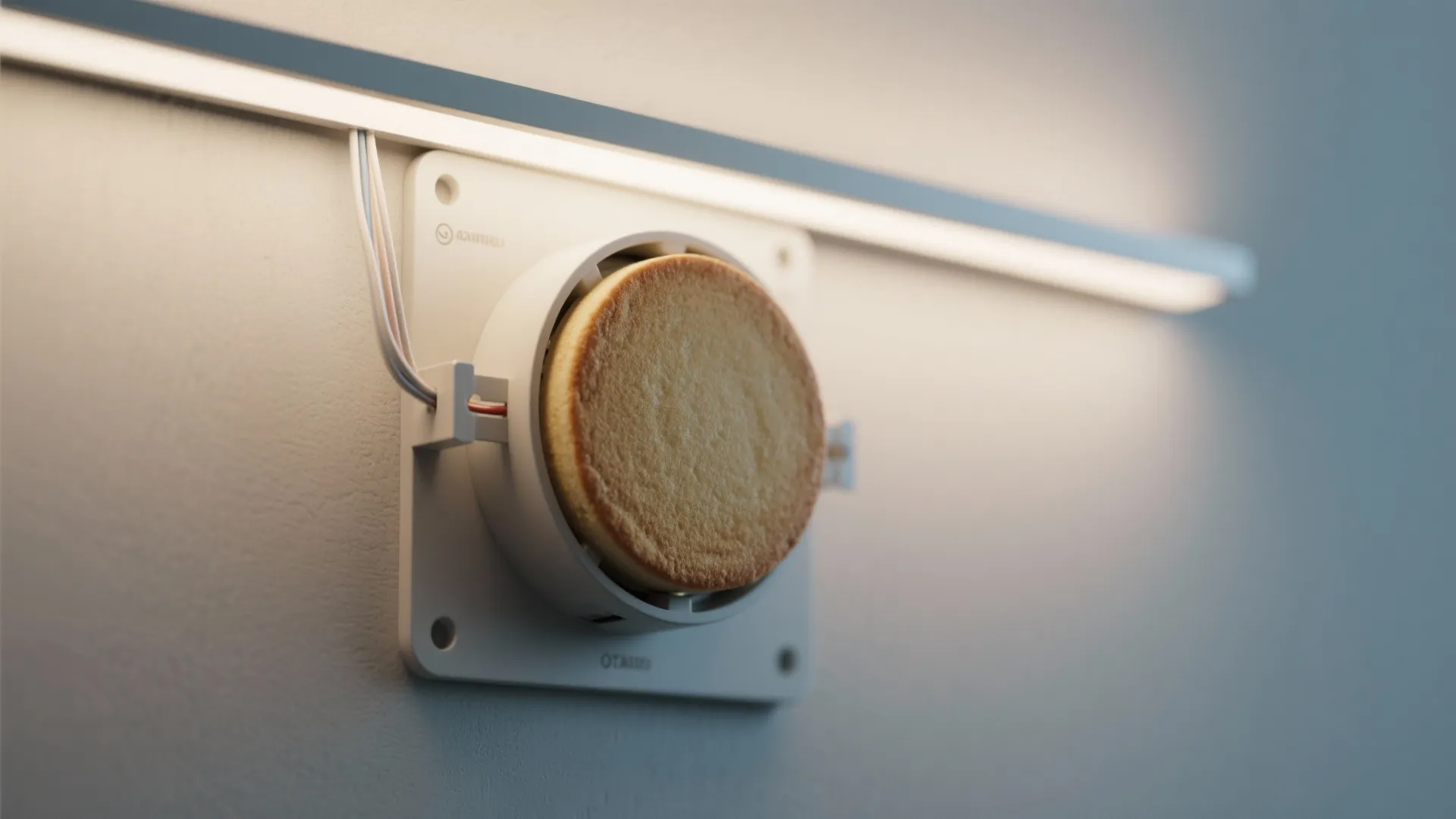

5. Use shallow pancake boxes behind thin fixtures

For ultra-thin wall lights a pancake (round, low-profile) box can sit behind the fixture without bulking the wall. They’re perfect for modern minimalist fixtures, but watch wire fill limits and mounting strength. Sometimes I pair a pancake box with a small mounted bracket to distribute weight — a little creative engineering that keeps the look clean.

save pin

Tips 1:

On several projects I used an online room planner to pre-visualize wall light placements and box locations early in the design stage — it saved time on site and prevented costly re-routes.

save pin

FAQ

Q1: What size electrical box do I need for a single wall sconce?

A: Most single-light wall sconces fit in a standard single-gang box; check the fixture’s required volume (cubic inches) and ensure the box meets wire fill requirements.

Q2: Can I install a wall light without cutting drywall?

A: Yes — remodeling (old-work) boxes clamp to the existing drywall and allow installation with minimal cutting, perfect for retrofits.

Q3: Are metal boxes required in bathrooms for wall lights?

A: Not always, but metal boxes provide better grounding and durability. Follow local electrical code and consult an electrician for wet locations.

Q4: How high should I mount a wall sconce with regard to the electrical box?

A: I usually center the fixture 60–66" from the finished floor for living areas; adjust based on sightlines and the fixture’s design.

Q5: What is a pancake box and when should I use it?

A: A pancake box is a shallow, round box ideal for thin fixtures; use it when wall depth is limited, but confirm wire fill and mounting requirements.

Q6: Can I use an old-work box for heavy fixtures?

A: Old-work boxes have limited support; for heavier fixtures choose reinforced boxes or new-work installations to ensure secure mounting.

Q7: Where can I visualize different box placements before construction?

A: I recommend using a room planner early in the design to map sconce locations and wiring runs; it reduces surprises on-site. (Resource: https://www.coohom.com/case/room-planner)

Q8: What is a reliable source for electrical box sizing and code requirements?

A: The National Electrical Code (NEC) provides authoritative guidance on box fill and installation practices — refer to the NEC for precise, enforceable rules.
