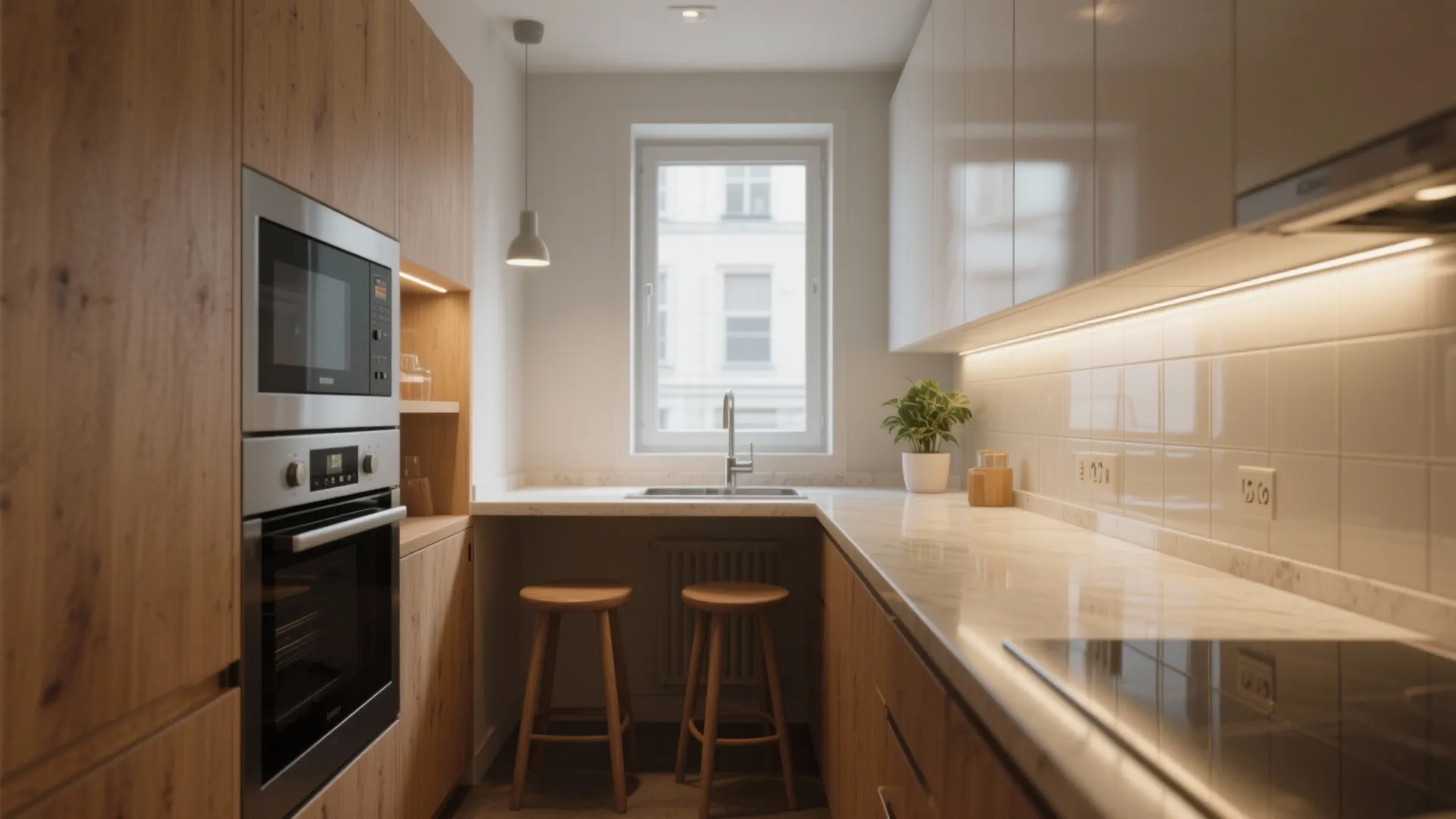

5 U-shaped Kitchen Designs for Small Kitchens: Practical, stylish U-shaped layouts that make tiny kitchens feel roomy — from a designer who’s seen it all

Once I almost convinced a client to put the oven under a sink because the apartment was that tight — lesson learned: creativity is great, but plumbing disagrees. That little near-miss taught me that small spaces force better decisions, not compromises. If you’re staring at a compact footprint wondering how a U-shaped plan could possibly work, relax — a smart kitchen layout planner and a few tricks will turn constraints into character.

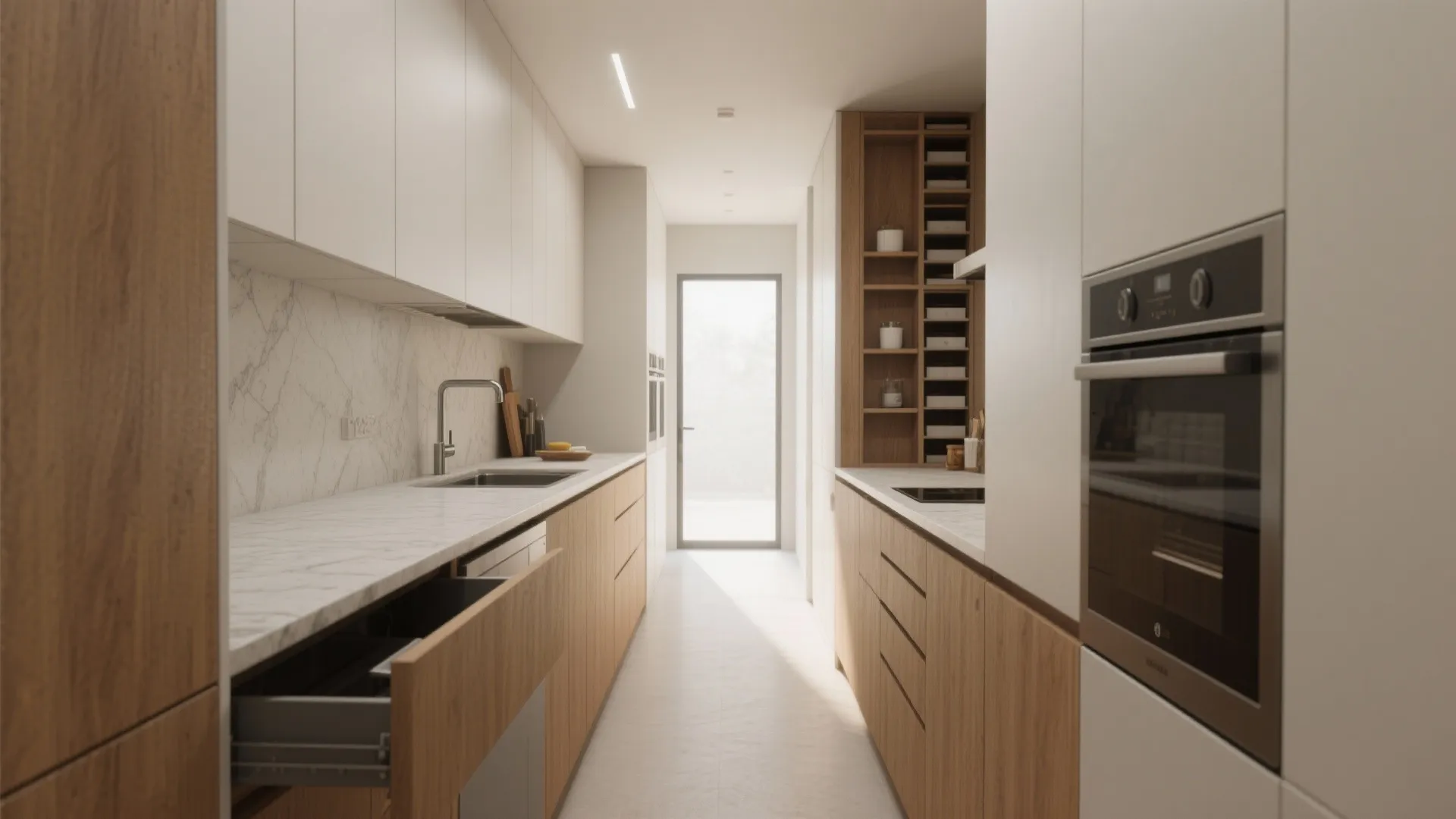

1. Slim U for narrow rooms

Turn a narrow galley into a functional U by shrinking one run to slim cabinets (12–15 inches deep) and keeping the sink centrally located. This preserves a working triangle and creates extra counter prep space without crowding movement.

Advantage: you gain continuous counters and a clear workflow. Challenge: smaller cabinets mean you need better organization — think vertical dividers and pull-outs.

save pin

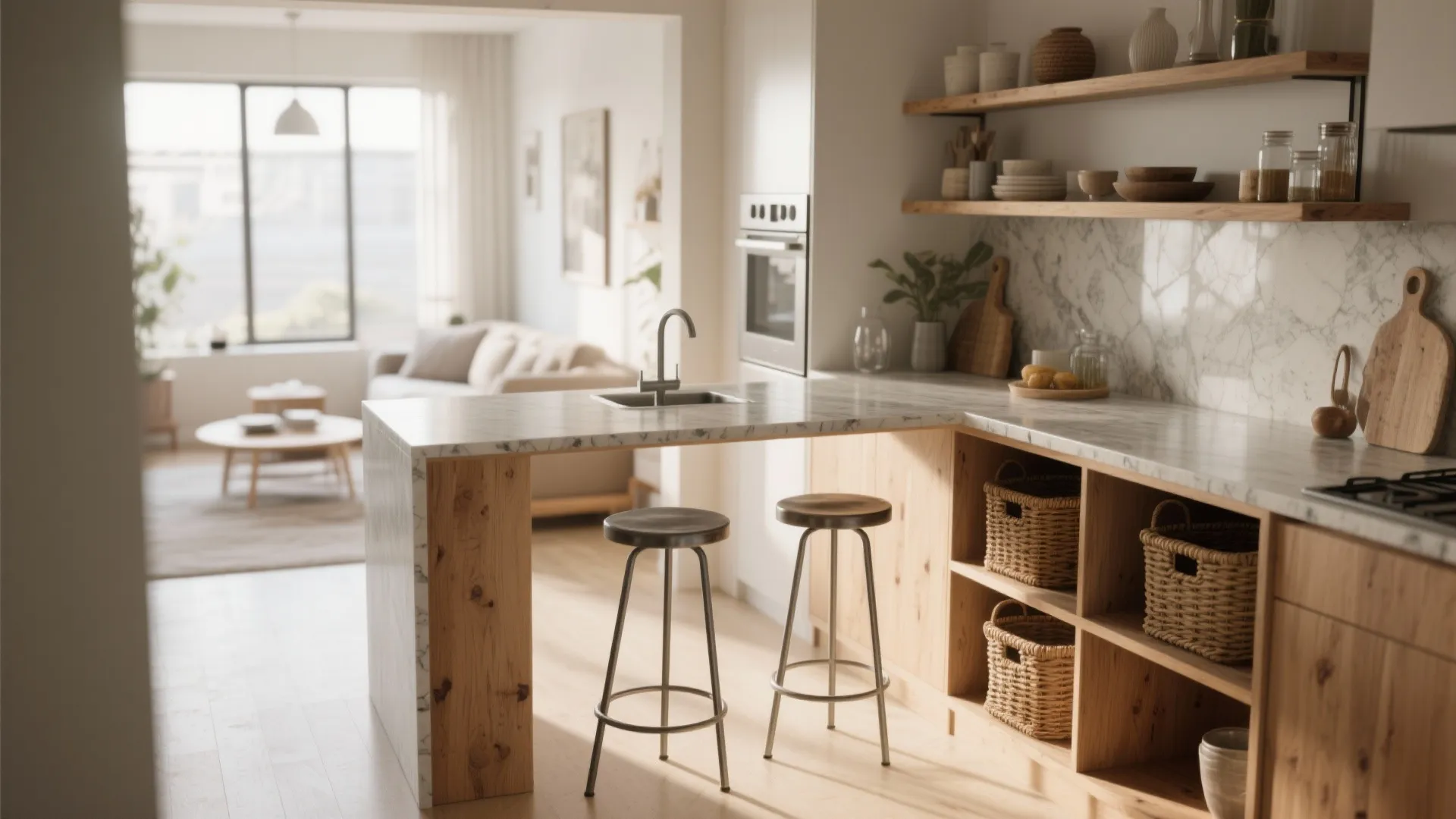

2. Floating peninsula with open legs

I love adding a slim floating peninsula instead of a bulky closed run. It keeps sightlines open and gives you a breakfast bar without closing off the space. Use open shelving below for baskets to soften the look and keep things lightweight.

It’s budget-friendly if you reuse existing counters; the trade-off is less hidden storage, so plan where to hide dishwasher detergents and trash.

save pin

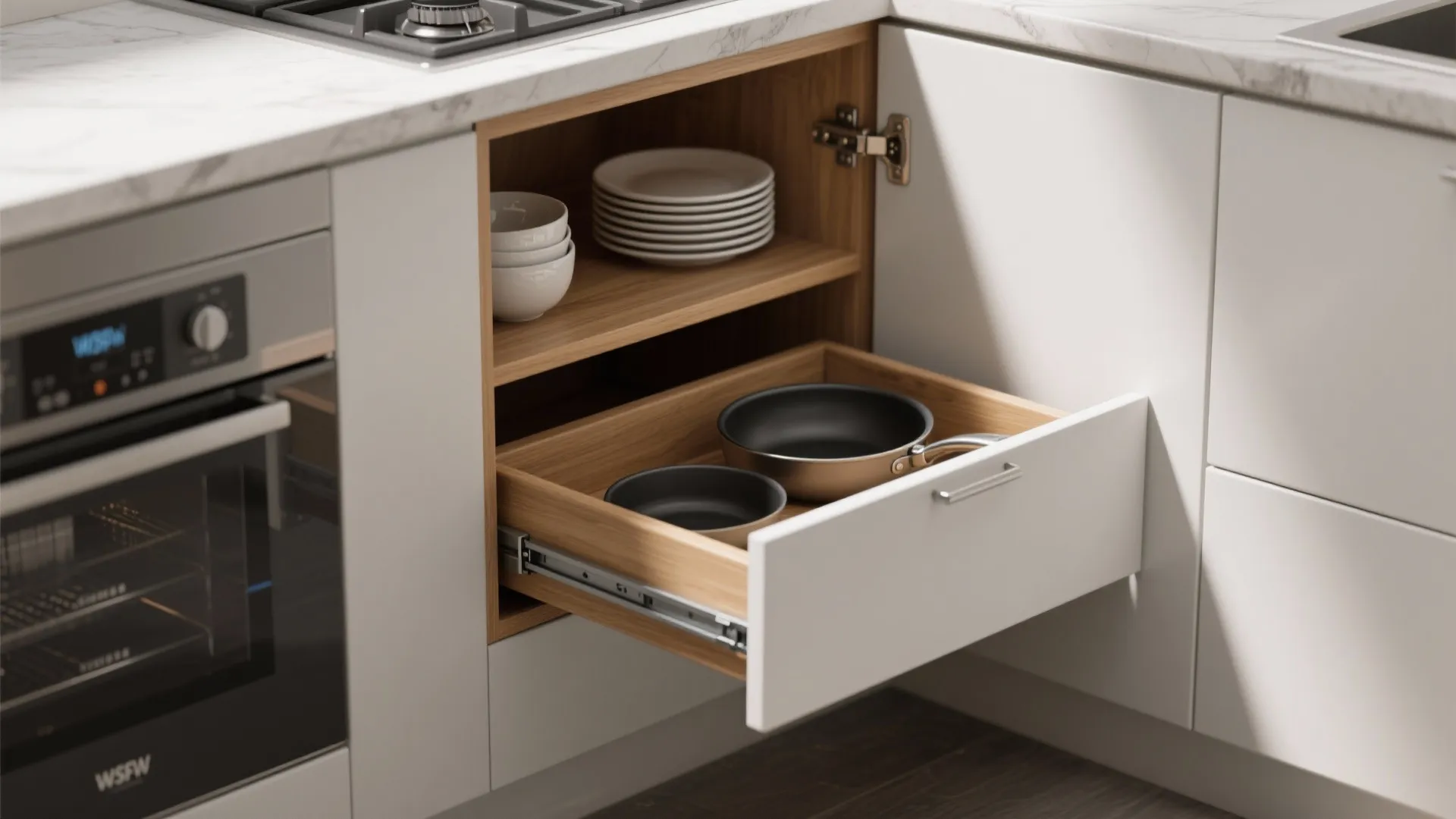

3. Corner magic: diagonal base or blind-corner pull-outs

Corners are where tiny U-shapes either thrive or die. I’ve swapped awkward 90-degree corners for diagonal bases or modern blind-corner pull-outs that actually let you reach things. A quick test: if you can’t see the back shelf from standing, plan a pull-out.

Small caveat: these fittings cost more, but they pay off in usability. If you want to mock up reach and flow before buying, try a 3D floor planner to visualize clearance and cabinet access.

save pin

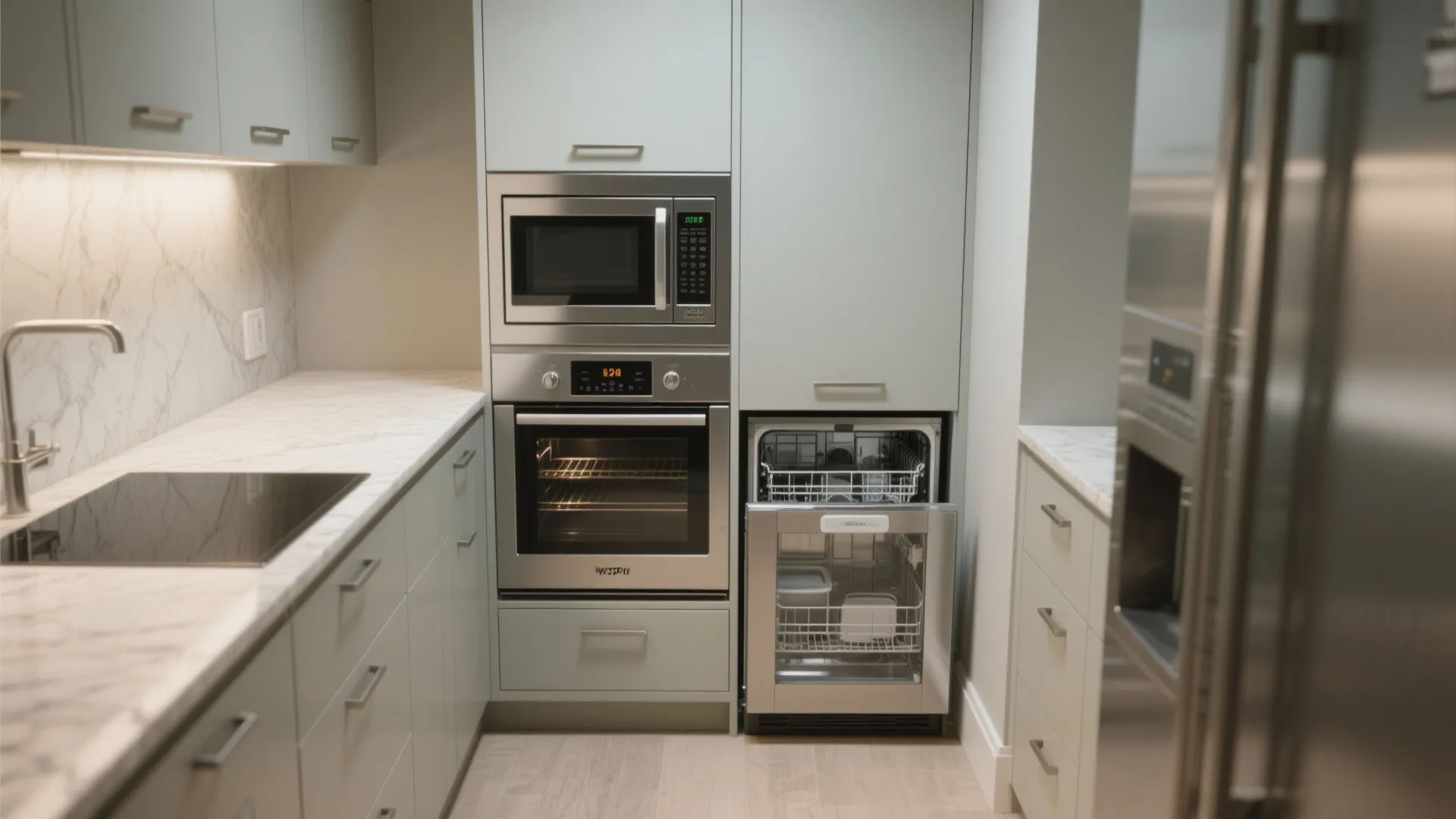

4. Slimline appliances and integrated solutions

Choose narrower appliances — 18–24 inch dishwashers, compact fridges, and built-in microwaves in columns — to keep runs continuous. I once fit a full-function cooking station in 7 feet by stacking oven and microwave in a pantry column.

Pros: keeps counters clear and sightlines tidy. Cons: some compact appliances cost more, so allocate a bit more of your budget here.

save pin

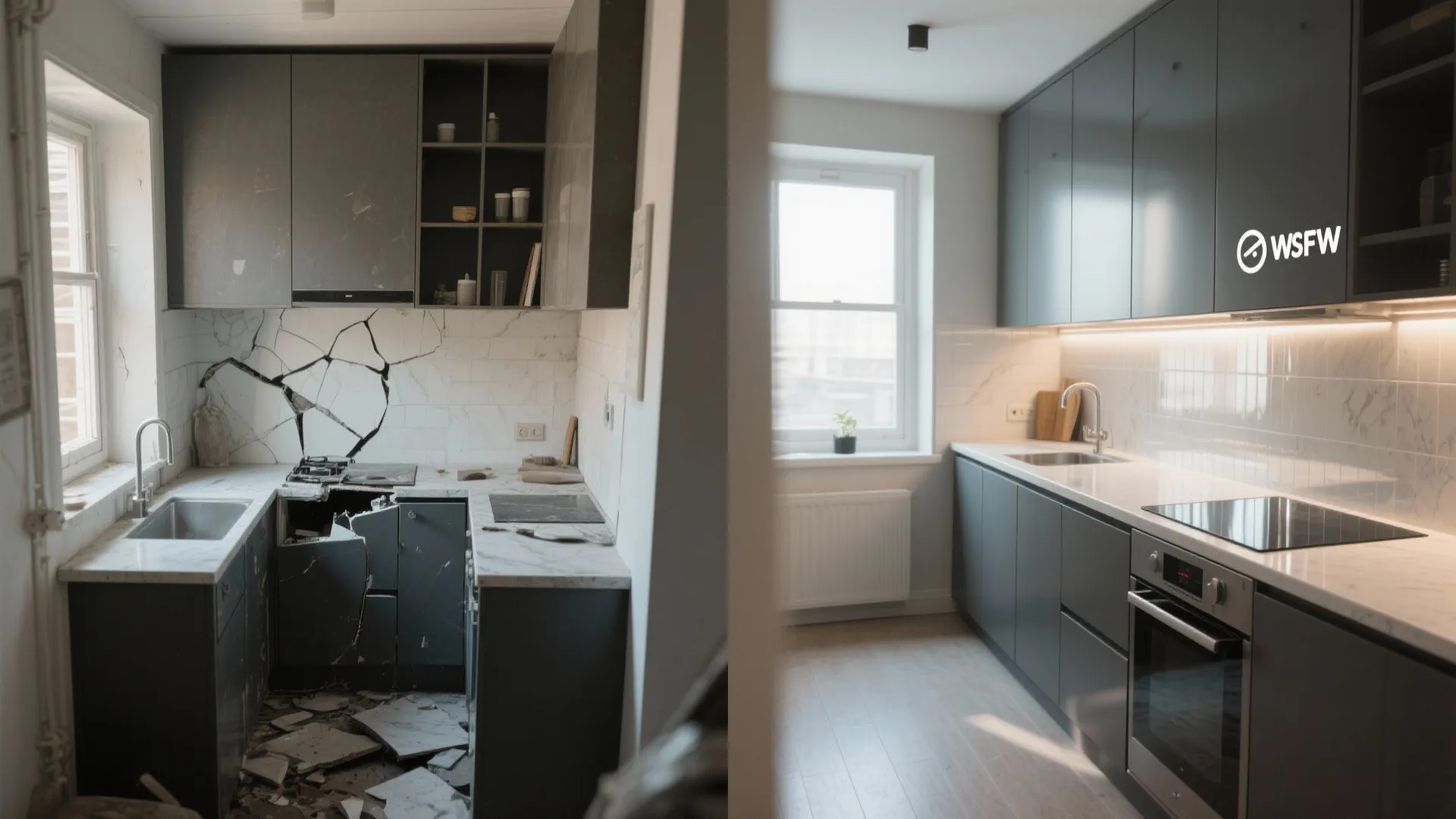

5. Light surfaces, continuous backsplash, and visual flow

In my experience, a continuous countertop and backsplash make a U-shaped kitchen read as one calm surface instead of three cramped segments. Lighter colors and reflective finishes bounce light around and make the room feel wider.

If you’re curious about automated layout suggestions, modern tools like AI home design can generate options fast — great for testing layouts before committing.

save pin

FAQ

How wide should a U-shaped kitchen be for comfortable movement?

A clearance of 42–48 inches between opposing runs is ideal for a single cook; 48–60 inches is better for multiple cooks. Narrower than 36 inches starts to feel cramped.

Can a U-shaped kitchen fit in a studio apartment?

Yes — by using shallow base cabinets, compact appliances, and an open leg peninsula you can create a functional U in very small footprints. Prioritize essentials and hide small appliances in cabinets.

What’s the cheapest way to add storage in a small U-kitchen?

Add tall pantry cabinets to one end, use vertical dividers, and install full-extension drawers. These changes are relatively low-cost but dramatically improve usability.

Are diagonal corner cabinets worth the cost?

For frequent cooks, yes — they turn wasted space into accessible storage. If your budget is tight, consider a lazy Susan or blind-corner pull-out as an alternative.

How do I maintain the visual flow in a tiny U-shaped kitchen?

Use a single countertop material and backsplash to create continuity, choose light-reflective finishes, and keep upper cabinets minimal or glass-fronted to reduce visual weight.

How important is the work triangle in a small U layout?

Very important — even in tiny kitchens. Keep sink, stove, and fridge within comfortable reach without blocking walkways. The National Kitchen & Bath Association (NKBA) provides detailed planning guidelines to reference (source: https://nkba.org/).

Can I add seating in a U-shaped small kitchen?

Yes — a slim floating peninsula or a narrow overhang at the end of a run can provide seating without compromising the work zone. Make sure you maintain clearance for drawers and appliance doors.

Should I hire a professional for a small U-shaped kitchen remodel?

If you’re changing plumbing, moving major appliances, or optimizing awkward corners, a designer or experienced contractor will save time and avoid costly mistakes. For visualizing ideas, tools can help you iterate before hiring pros.
