6-Inch vs 5-Inch vs 7-Inch Duct: Which Size Works Best for a 150 Sq Ft Room?: A practical airflow comparison to help you choose the right HVAC duct size for small bedrooms and offices.

Direct Answer

For a 150 sq ft room, a 6-inch duct is usually the most balanced choice because it delivers enough airflow without excessive noise or wasted capacity. A 5-inch duct may struggle to supply adequate CFM, while a 7-inch duct can sometimes push more air than the room actually needs.

In most residential HVAC systems designed correctly, a 6-inch supply duct comfortably handles the airflow requirements of small bedrooms, offices, or studios around this size.

Quick Takeaways

1. A typical 150 sq ft room needs roughly 80–120 CFM of airflow.
2. 5-inch ducts often underdeliver airflow for modern HVAC load expectations.
3. 6-inch ducts provide balanced airflow, pressure, and noise performance.
4. 7-inch ducts can oversupply air unless the room has high cooling loads.
5. Duct sizing must match system static pressure and layout, not just room size.

Introduction

When homeowners compare 6-inch vs 5-inch vs 7-inch duct options, they usually assume bigger automatically means better airflow. After working on dozens of residential design projects, I can tell you that duct sizing is rarely that simple.

A 150 sq ft bedroom or office sits right on the boundary where multiple duct diameters can technically work. But the real difference shows up in airflow balance, noise levels, and long‑term HVAC efficiency.

I’ve seen many cases where undersized ducts starved rooms of airflow, while oversized ducts created pressure imbalances that affected the rest of the house. The right choice depends on how airflow moves through the entire layout, not just the room size alone.

If you're still planning the room layout or HVAC register placement, using a visual planner like a simple room layout planning workflow for airflow and furniture placementcan help you understand where vents and returns should sit before deciding the final duct diameter.

In this guide, I’ll break down the airflow capacity of 5‑inch, 6‑inch, and 7‑inch ducts, explain how they behave in real systems, and help you decide which option works best for a 150 sq ft space.

save pin

Airflow Requirements for a 150 Sq Ft Room

Key Insight: Most 150 sq ft rooms require between 80 and 120 CFM of conditioned air to maintain comfortable temperature and air circulation.

HVAC airflow calculations are usually based on the Manual J and Manual D principles used across residential design. A common rule of thumb is around 0.5–0.8 CFM per square foot, though insulation, ceiling height, and sun exposure can change that.

Typical airflow estimates for a room this size look like this:

1. Small bedroom: 80–100 CFM
2. Home office with electronics: 90–110 CFM
3. Sun‑exposed room: 100–120 CFM

One mistake I frequently see is selecting duct size without checking the required airflow first. The duct should be sized to carry the airflow your HVAC system is designed to deliver—not the other way around.

save pin

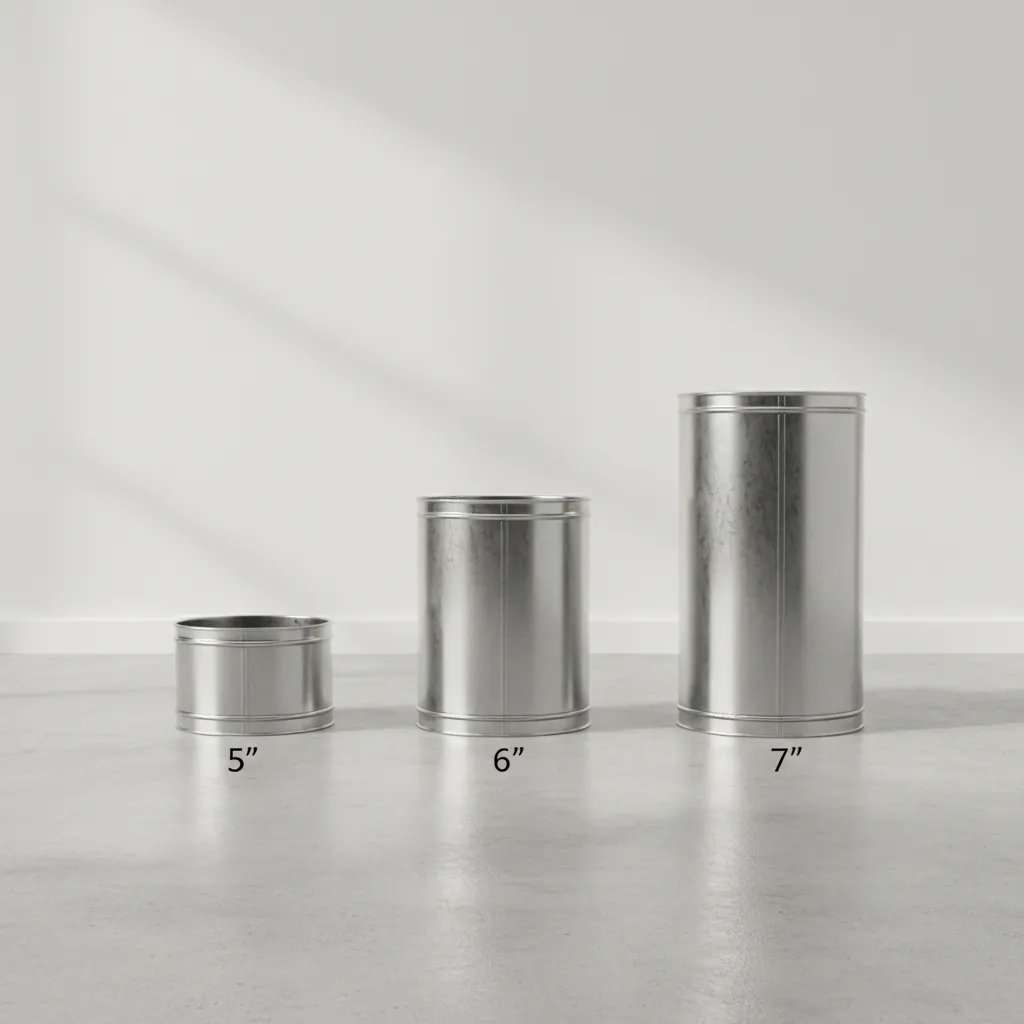

Typical CFM Capacity of 5-Inch, 6-Inch, and 7-Inch Ducts

Key Insight: A 6-inch duct typically delivers around 90–110 CFM, which aligns closely with the airflow needs of a 150 sq ft room.

The actual airflow depends on duct length, friction rate, and system pressure. But in residential HVAC design, installers usually expect approximate ranges like these:

1. 5-inch duct: 50–70 CFM
2. 6-inch duct: 80–110 CFM
3. 7-inch duct: 110–160 CFM

These numbers are consistent with standard HVAC duct sizing charts used by contractors following ACCA Manual D guidelines.

What this means in practice:

1. A 5-inch duct often falls short for modern comfort expectations.
2. A 6-inch duct aligns closely with typical room load calculations.
3. A 7-inch duct may supply more air than the room requires.

This is why many builders default to 6-inch supply ducts for small bedrooms in tract homes.

Performance Differences Between Common Duct Sizes

Key Insight: The biggest difference between duct sizes is not just airflow volume but pressure balance across the entire HVAC system.

Here is a simplified comparison based on typical residential installations:

1. 5-Inch DuctLower airflow capacity
2. Higher air velocity
3. Often creates weak airflow at the vent
4. 6-Inch DuctBalanced airflow delivery
5. Moderate air velocity
6. Most common choice for small rooms
7. 7-Inch DuctHigher airflow capacity
8. Lower velocity
9. May cause uneven airflow distribution

A subtle issue many homeowners overlook is that oversized ducts can actually reduce system balance. When one branch delivers significantly more air than others, nearby rooms may receive less airflow.

Energy Efficiency and Noise Considerations

Key Insight: The wrong duct size can increase fan energy use and create noticeable airflow noise.

During HVAC retrofits, I’ve seen many homes where undersized ducts caused loud air movement at the vents. This happens because air must travel faster through a smaller diameter duct.

Typical effects by duct size:

1. 5-inch duct: higher velocity and noticeable vent noise
2. 6-inch duct: balanced airflow and quieter operation
3. 7-inch duct: quiet airflow but possible system imbalance

Energy efficiency is also affected. If ducts are too restrictive, the blower motor works harder to maintain airflow, increasing electricity consumption.

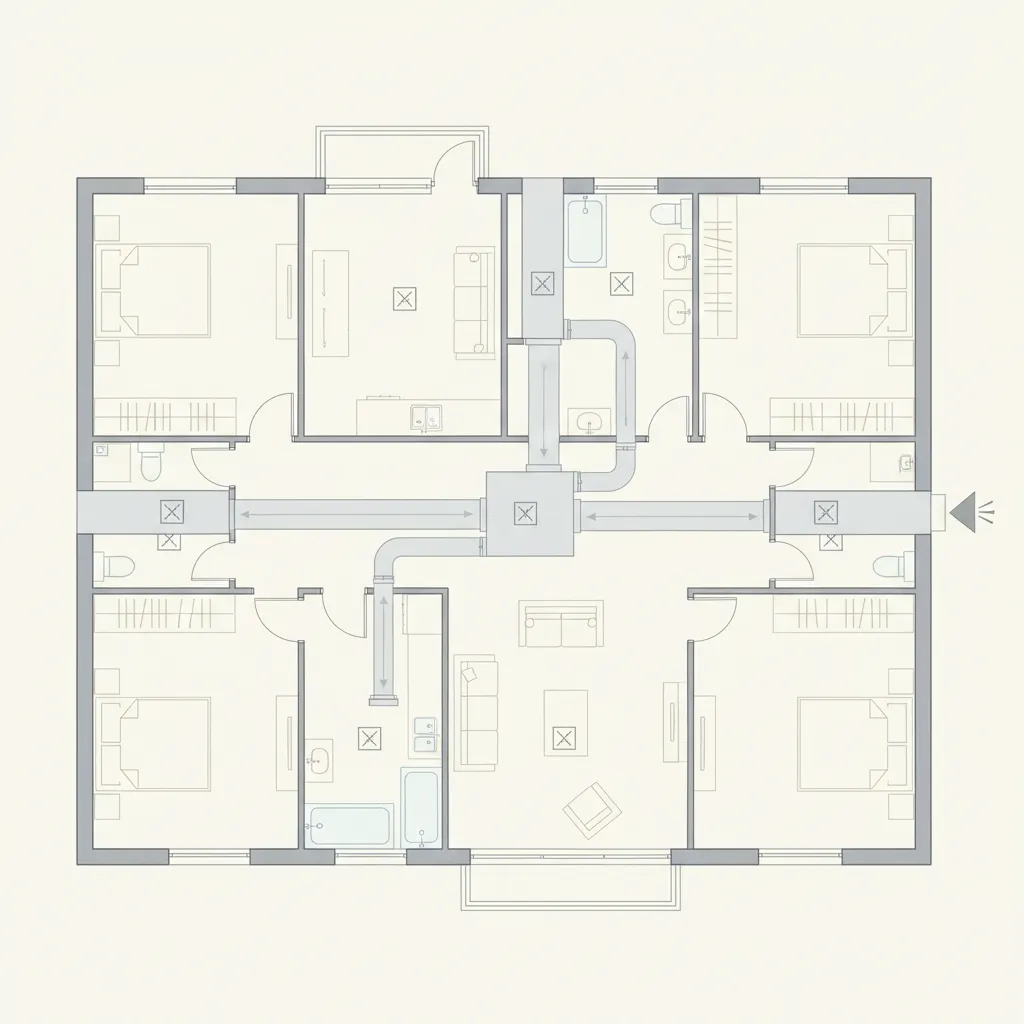

When designing HVAC layouts for new homes, I often map the full airflow path using a 3D floor planning approach for mapping vents and airflow paths. Visualizing duct runs early helps avoid noise and pressure issues later.

save pin

How to Choose the Right Duct Size for Your HVAC System

Key Insight: The correct duct size depends on system airflow design, duct length, and register placement—not just room square footage.

When selecting duct diameter, professionals typically follow these steps:

1. Calculate room heating and cooling load.
2. Determine required airflow in CFM.
3. Check available static pressure from the HVAC unit.
4. Select duct diameter based on friction rate charts.

Additional factors that can change the decision include:

1. Duct run longer than 25 feet
2. Multiple bends or elbows
3. Shared branch ducts
4. Ceiling height above 9 feet

Longer or more complex duct runs sometimes require stepping up from a 6-inch to a 7-inch duct to maintain airflow.

Answer Box

For a typical 150 sq ft room, a 6-inch duct usually provides the best balance of airflow, efficiency, and noise control. A 5-inch duct often delivers insufficient CFM, while a 7-inch duct may oversupply air unless the room has unusually high cooling demand.

save pin

When a 6-Inch Duct Is the Best Choice

Key Insight: A 6-inch duct is ideal when a room requires roughly 90–110 CFM and the duct run length is moderate.

Based on my experience reviewing residential HVAC layouts, a 6-inch supply duct is the most common solution for rooms like:

1. Small bedrooms
2. Home offices
3. Guest rooms
4. Small studios

It becomes especially appropriate when:

1. Duct runs are between 10 and 25 feet
2. Ceiling height is standard (8–9 ft)
3. The room has one supply vent

If you're visualizing airflow coverage or experimenting with vent placement, seeing the finished space through a realistic 3D home rendering of your room layout can help confirm whether one vent and a 6‑inch duct will distribute air evenly.

Final Summary

1. Most 150 sq ft rooms require about 80–120 CFM of airflow.
2. 5-inch ducts often underperform for modern HVAC airflow needs.
3. 6-inch ducts usually provide the best balance for small rooms.
4. 7-inch ducts are useful when airflow demand or duct length increases.
5. Proper HVAC design considers airflow, pressure, and duct layout together.

FAQ

Is a 6-inch duct enough for a 150 sq ft room?

Yes. A 6-inch duct typically delivers around 90–110 CFM, which is suitable for most 150 sq ft bedrooms or offices.

What happens if a duct is too small?

An undersized duct restricts airflow, causing weak cooling or heating and often producing louder vent noise.

Is a 7-inch duct too big for a small room?

Not necessarily, but it may supply more airflow than required, which can affect HVAC balance across other rooms.

What is the CFM difference between 5, 6, and 7 inch ducts?

A 5-inch duct typically carries 50–70 CFM, a 6-inch duct about 80–110 CFM, and a 7-inch duct roughly 110–160 CFM.

Which duct size is best for a small bedroom HVAC system?

In most homes, a 6-inch duct works best because it closely matches typical airflow requirements.

Can a 5-inch duct cool a 150 sq ft room?

Sometimes, but it may struggle during peak cooling demand, especially in warm climates.

Does duct diameter affect HVAC noise?

Yes. Smaller ducts increase air velocity, which often results in louder airflow noise at the vent.

Do longer ducts require larger diameters?

Yes. Longer runs increase friction loss, so installers may increase duct diameter to maintain airflow.

References

1. ACCA Manual D Residential Duct Systems
2. U.S. Department of Energy – Residential HVAC Design Guidelines
3. ASHRAE Fundamentals Handbook
