6x12 Bathroom Layout Comparison: Tub vs Walk-In Shower vs Wet Room: See how three common layouts actually perform in a 6x12 bathroom so you can choose the right setup before starting a remodel.

Direct Answer

The best 6x12 bathroom layout depends on how you prioritize bathing, space efficiency, and accessibility. A tub layout supports family use, a walk‑in shower improves circulation and comfort, and a wet room maximizes usable floor area in narrow bathrooms.

In most modern remodels I work on, homeowners choose walk‑in showers because they balance comfort, resale appeal, and layout flexibility in a 6x12 bathroom.

Quick Takeaways

1. A walk‑in shower usually creates the most comfortable daily layout in a 6x12 bathroom.
2. Bathtubs work best for families with kids or resale priorities.
3. Wet rooms maximize space but require careful waterproofing and drainage planning.
4. The biggest design mistake is ignoring circulation space around the vanity and toilet.
5. Layout decisions matter more than fixture size in narrow bathrooms.

Introduction

A 6x12 bathroom layout looks simple on paper, but in real remodeling projects it quickly becomes a puzzle of inches. Over the past decade working on residential renovations across Los Angeles, I’ve designed dozens of long, narrow bathrooms where every fixture decision changed how the room actually felt.

Many homeowners start with the wrong question: “Should I keep the tub?” In reality, the smarter question is how the entire layout functions. The same 6x12 bathroom can feel spacious or cramped depending on how fixtures align with circulation paths.

If you're experimenting with different arrangements, using a visual planner can make the process dramatically easier. Many homeowners start by sketching ideas with a simple tool that helps create a bathroom floor plan layout before committing to a remodel.

In this guide, I’ll compare three common layouts I frequently design for a 6x12 bathroom:

1. Standard bathtub layout
2. Walk‑in shower layout
3. Wet room layout

More importantly, we’ll look at the hidden trade‑offs most design articles skip—things like circulation comfort, storage pressure, and long‑term maintenance.

save pin

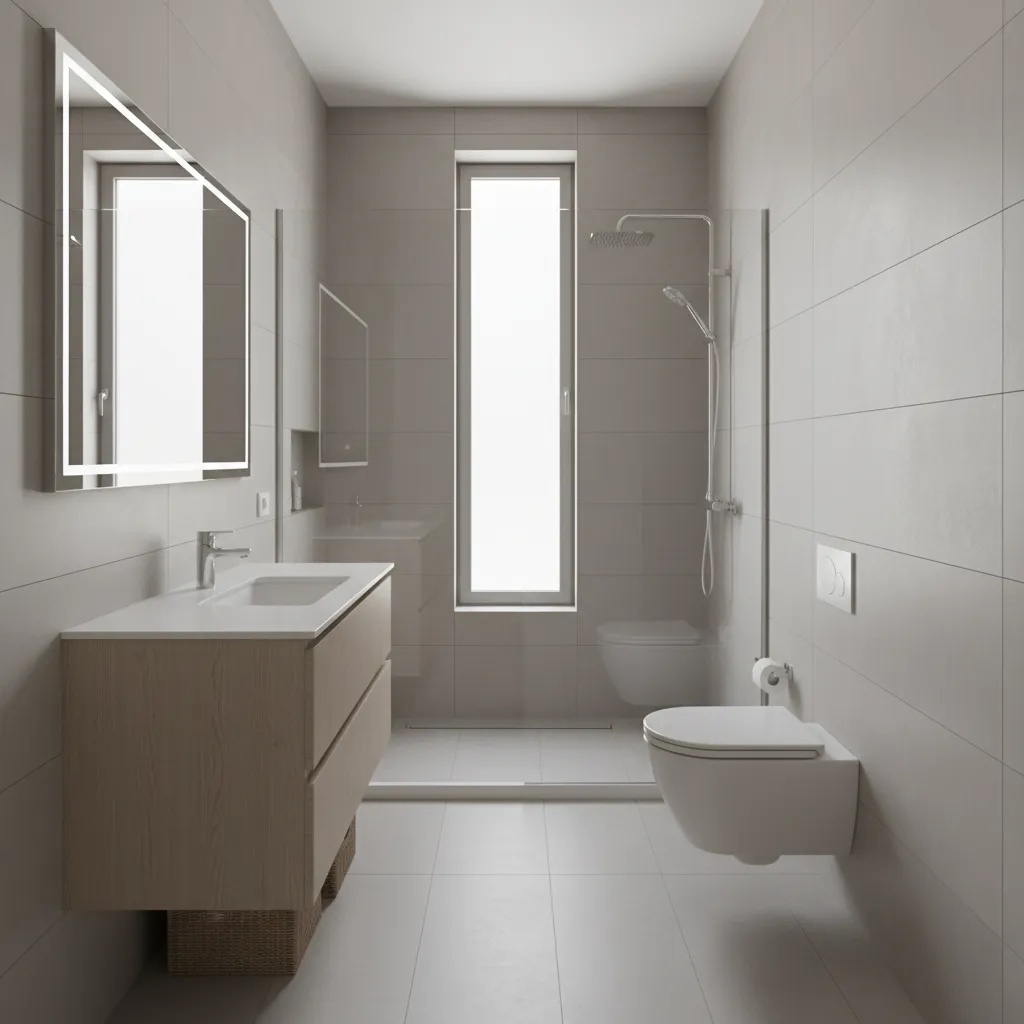

Why Layout Choice Matters in a 6x12 Bathroom

Key Insight: In narrow bathrooms, layout determines how spacious the room feels more than the size of fixtures.

A 6‑foot width doesn’t leave much flexibility. Once you account for standard fixture depths, the walking space down the middle becomes extremely sensitive to placement.

Typical fixture depths:

1. Bathtub: 30–32 inches
2. Vanity: 20–22 inches
3. Toilet clearance zone: 30 inches recommended

If fixtures are misaligned, circulation drops below the comfortable 30–36 inch walking path designers aim for.

From my experience, the biggest layout mistake is stacking every fixture on one wall without considering sightlines. When someone walks into the bathroom and immediately sees a bulky tub or toilet, the space feels tighter than it actually is.

Professional designers instead think in terms of zones:

1. Wet zone (shower or tub)
2. Vanity zone
3. Circulation path
4. Storage wall

Balancing those zones is what makes a narrow bathroom feel functional rather than cramped.

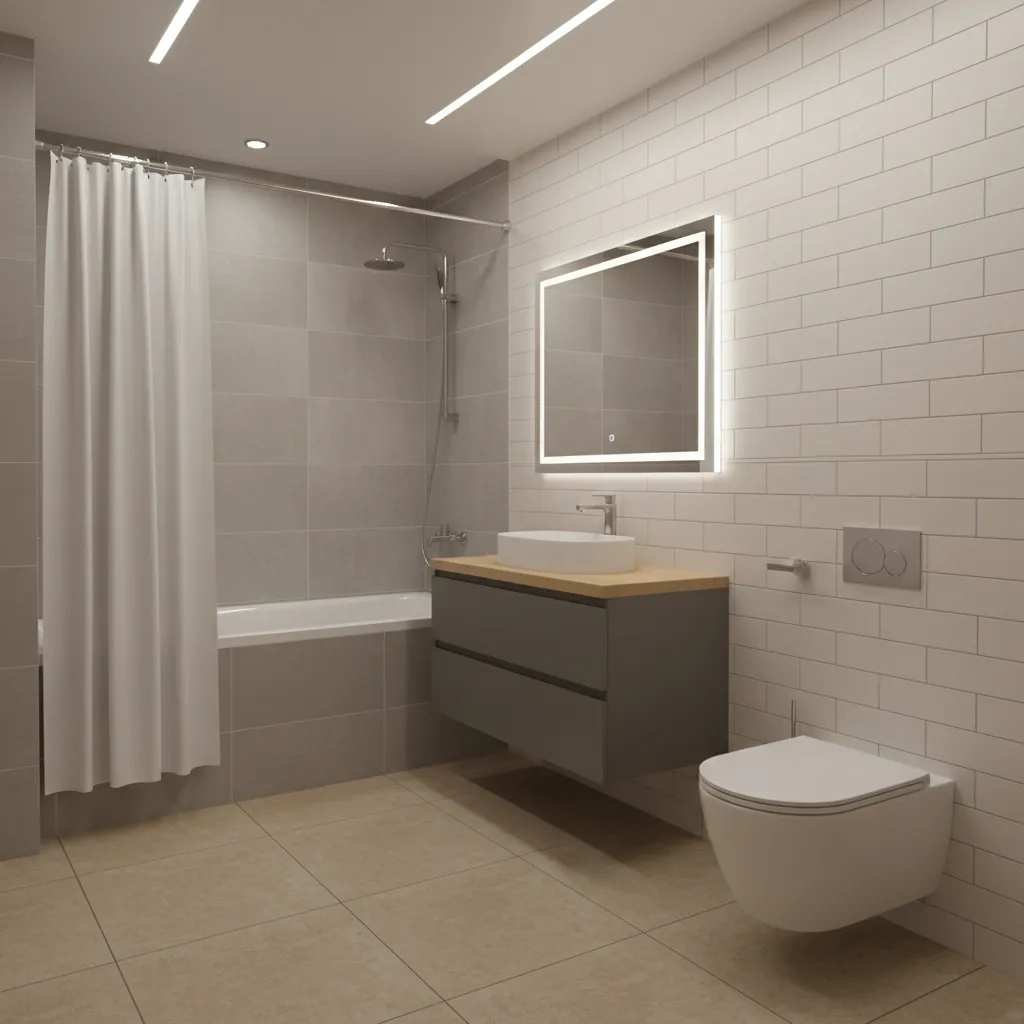

Standard Tub Layout for a 6x12 Bathroom

Key Insight: A bathtub layout is the most traditional configuration but consumes the most visual and physical space.

The classic 6x12 bathroom floor plan places the tub along the back wall with the toilet and vanity along one side.

Typical configuration:

1. Tub/shower combo at the far end
2. Single vanity near the entrance
3. Toilet centered between them

save pin

Advantages

1. Strong resale value (families often want at least one tub)
2. Simpler plumbing layout
3. Lower waterproofing cost compared with wet rooms

Trade‑offs most people overlook

1. The tub visually blocks the room's depth.
2. Shower curtains make narrow bathrooms feel smaller.
3. Storage often becomes limited.

According to the National Kitchen & Bath Association, many homeowners now prioritize larger showers in primary bathrooms, reserving tubs for secondary bathrooms.

That shift explains why many modern remodels remove tubs in smaller bathrooms unless children regularly use them.

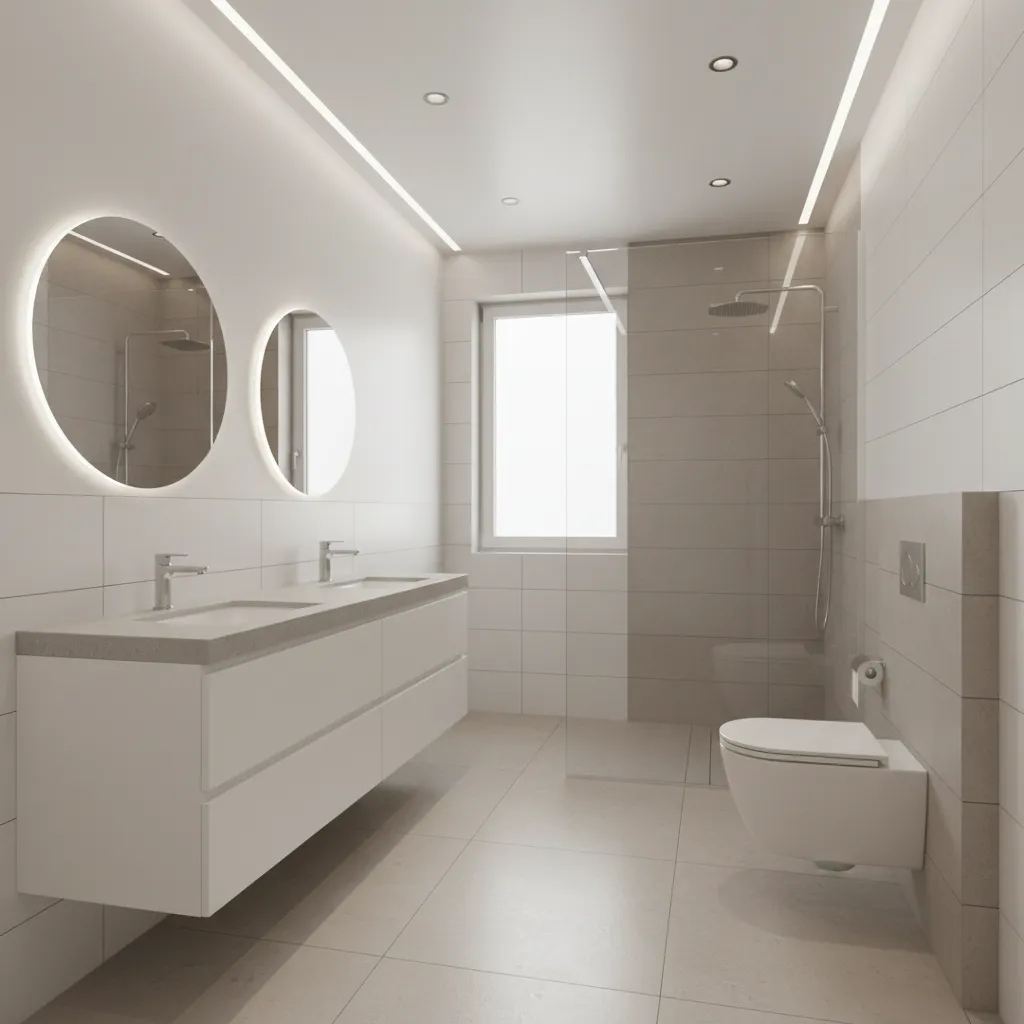

Walk-In Shower Layout Advantages and Trade-Offs

Key Insight: Walk‑in showers usually create the best balance between spaciousness and practicality in a 6x12 bathroom.

Replacing a tub with a glass‑enclosed walk‑in shower instantly changes the room's perception of space.

Why it works:

1. Glass panels keep sightlines open
2. Shower depth can be optimized for the room
3. More wall area becomes available for storage

Common walk‑in shower layout:

save pin

1. 36–48 inch shower at the back wall
2. Floating vanity opposite toilet
3. Clear center walking path

When homeowners experiment with layouts, visualizing spacing with a 3D planner for testing different bathroom fixture arrangements often reveals circulation improvements immediately.

Hidden design advantage

Walk‑in showers allow designers to move plumbing walls slightly to create built‑in niches or storage columns—something that’s much harder with a rigid bathtub footprint.

Possible downsides

1. No bathtub for children or soaking
2. Glass cleaning maintenance
3. Slightly higher tile installation cost

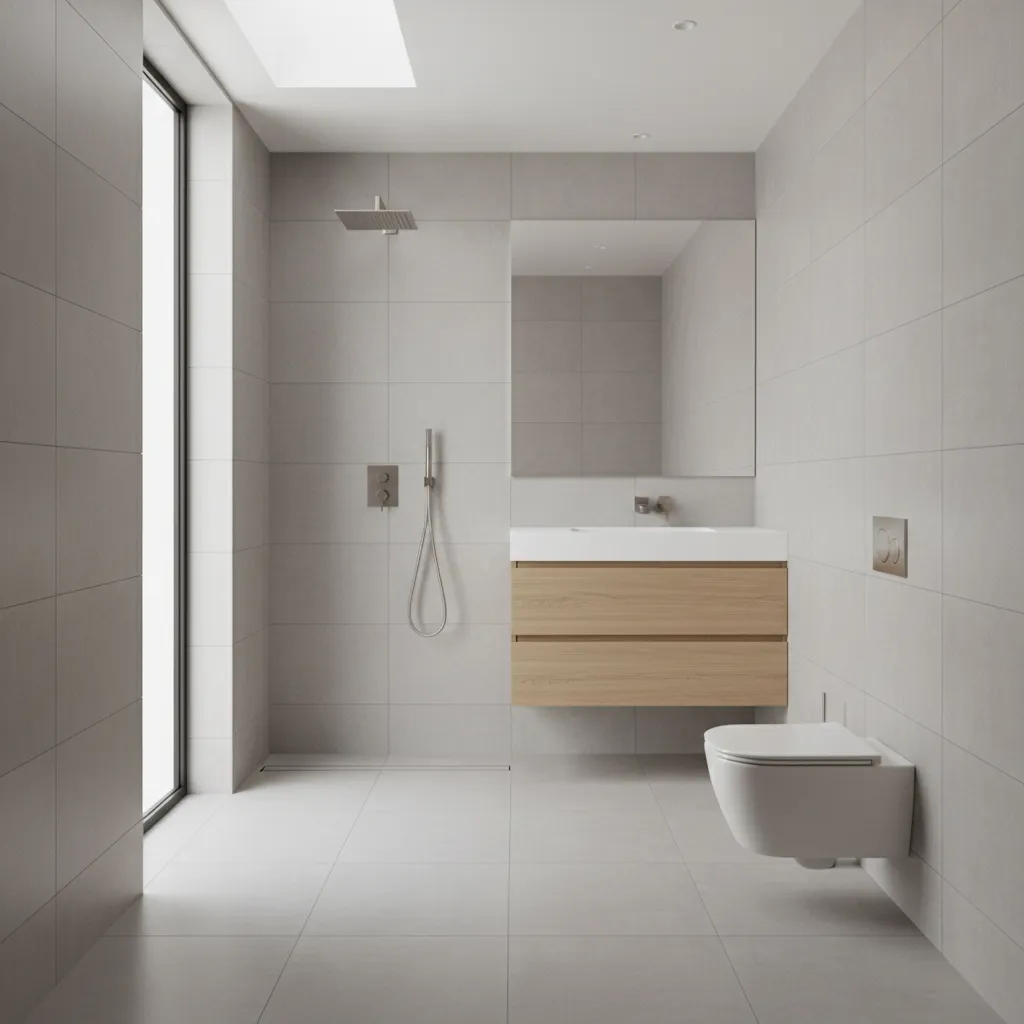

Wet Room Layout for Maximum Space Efficiency

Key Insight: Wet room designs eliminate barriers and can make a narrow bathroom feel dramatically larger.

A wet room integrates the shower area directly into the bathroom floor using continuous waterproofing and a central drain.

Instead of a shower enclosure, the entire room becomes part of the bathing zone.

Typical wet room setup:

1. Linear drain along one wall
2. Open shower area without curb
3. Wall‑mounted vanity and toilet

save pin

Why designers like wet rooms in narrow bathrooms

1. No bulky shower walls
2. Continuous flooring expands visual space
3. Highly accessible for aging‑in‑place design

Hidden costs most guides ignore

1. Full waterproofing membranes required
2. Precise floor slope engineering
3. More complex ventilation planning

These factors often add several thousand dollars compared with standard shower installations.

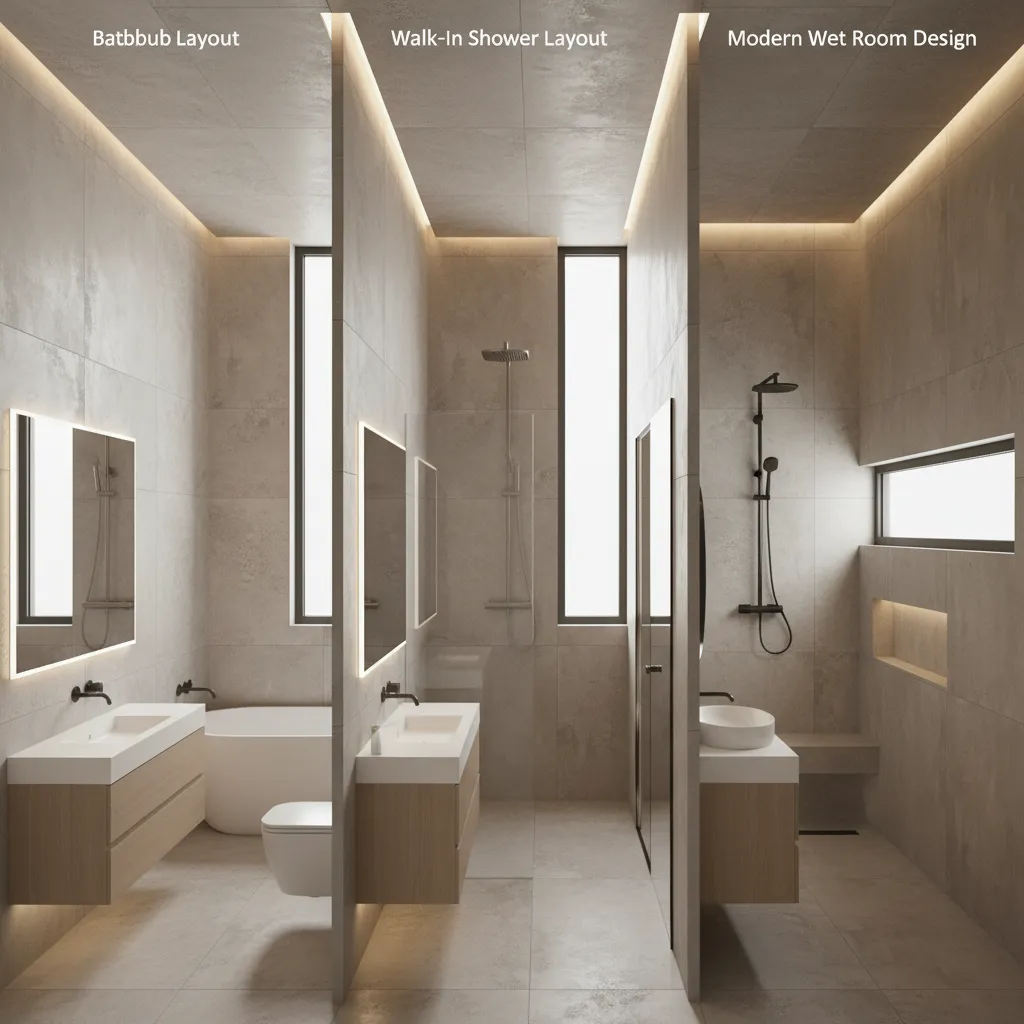

Space Usage Comparison Between the Three Layouts

Key Insight: The perceived spaciousness of a 6x12 bathroom depends on visual openness more than square footage.

Here’s how the three layouts compare in real design projects:

1. Tub layout: strongest for resale but visually compresses the room.
2. Walk‑in shower: best balance between comfort and openness.
3. Wet room: most spacious feel but highest construction complexity.

Many designers create test layouts using a realistic 3D bathroom rendering workflow before finalizing renovations. Seeing circulation paths in 3D often prevents costly layout mistakes.

Answer Box

For most homeowners remodeling a 6x12 bathroom, a walk‑in shower layout offers the best combination of comfort, visual openness, and long‑term usability. Tub layouts remain ideal for family homes, while wet rooms maximize space but require more complex construction.

Which Layout Works Best for Different Households

Key Insight: The right layout depends less on room size and more on who uses the bathroom daily.

From real client projects, here’s how the choices typically break down:

Best for families with children

1. Standard tub layout
2. Flexible bathing options
3. Better resale expectations

Best for couples or primary bathrooms

1. Walk‑in shower
2. Larger vanity space
3. More comfortable daily use

Best for accessibility or modern minimalist homes

1. Wet room layout
2. Barrier‑free shower entry
3. Maximum visual openness

Final Summary

1. Walk‑in showers usually create the most comfortable 6x12 bathroom layout.
2. Bathtubs remain important for family homes and resale value.
3. Wet rooms maximize openness but require complex waterproofing.
4. Circulation space matters more than fixture size.
5. Testing layouts visually prevents expensive remodeling mistakes.

FAQ

What is the best layout for a 6x12 bathroom remodel?

Most homeowners choose a walk‑in shower layout because it improves circulation space while keeping the bathroom visually open.

Can a bathtub fit comfortably in a 6x12 bathroom?

Yes. A standard 60‑inch tub fits along the short wall, which is why many traditional layouts place it at the end of the room.

Is a walk‑in shower better than a tub in a 6x12 bathroom?

For daily comfort and space perception, yes. Walk‑in showers make narrow bathrooms feel larger.

What is a wet room bathroom design?

A wet room integrates the shower into the bathroom floor using full waterproofing and open drainage.

Does removing a bathtub hurt resale value?

Sometimes. Homes with children often benefit from keeping at least one bathtub.

How much space should a shower have in a 6x12 bathroom layout?

A comfortable walk‑in shower is usually 36–48 inches deep depending on the layout.

Are wet rooms good for small bathrooms?

Yes. Wet rooms remove visual barriers, making compact bathrooms feel larger.

What is the biggest mistake in a 6x12 bathroom layout?

Ignoring circulation space around the vanity and toilet is the most common design mistake.
