9x5 Glass Dining Table Weight — 3 Thicknesses: How heavy is a 9 x 5 ft glass top and what to consider when designing around it

I once nearly lost a client because I casually suggested a dramatic 9 x 5 glass table—then watched them blanch when I mentioned how heavy it might be. To calm nerves I pulled up an interactive 3D floor planner and showed how layout and weight distribution change the whole picture. True story: a little visualization goes a long way with big, heavy pieces.

Small spaces spark big creativity, and heavy glass tops force you to think about structure, safety, and movement. Below I’ll walk you through practical numbers, real-world tips, and five design inspirations I use on real projects to keep things beautiful and safe.

1. Quick math: how much does a 9 x 5 ft glass top weigh?

Let’s do the simple calculation I do on-site. A 9 x 5 ft top = 45 ft² (about 4.18 m²). Using typical glass density (~2500 kg/m³), a 9x5 top weighs roughly:

- 6 mm (0.006 m): ~63 kg (≈138 lb).

- 10 mm (0.01 m): ~105 kg (≈230 lb).

- 12 mm (0.012 m): ~125 kg (≈276 lb).

Those numbers are for the glass alone—edges, finishing, and a heavy base add more. I always round up and plan for extra when ordering or moving.

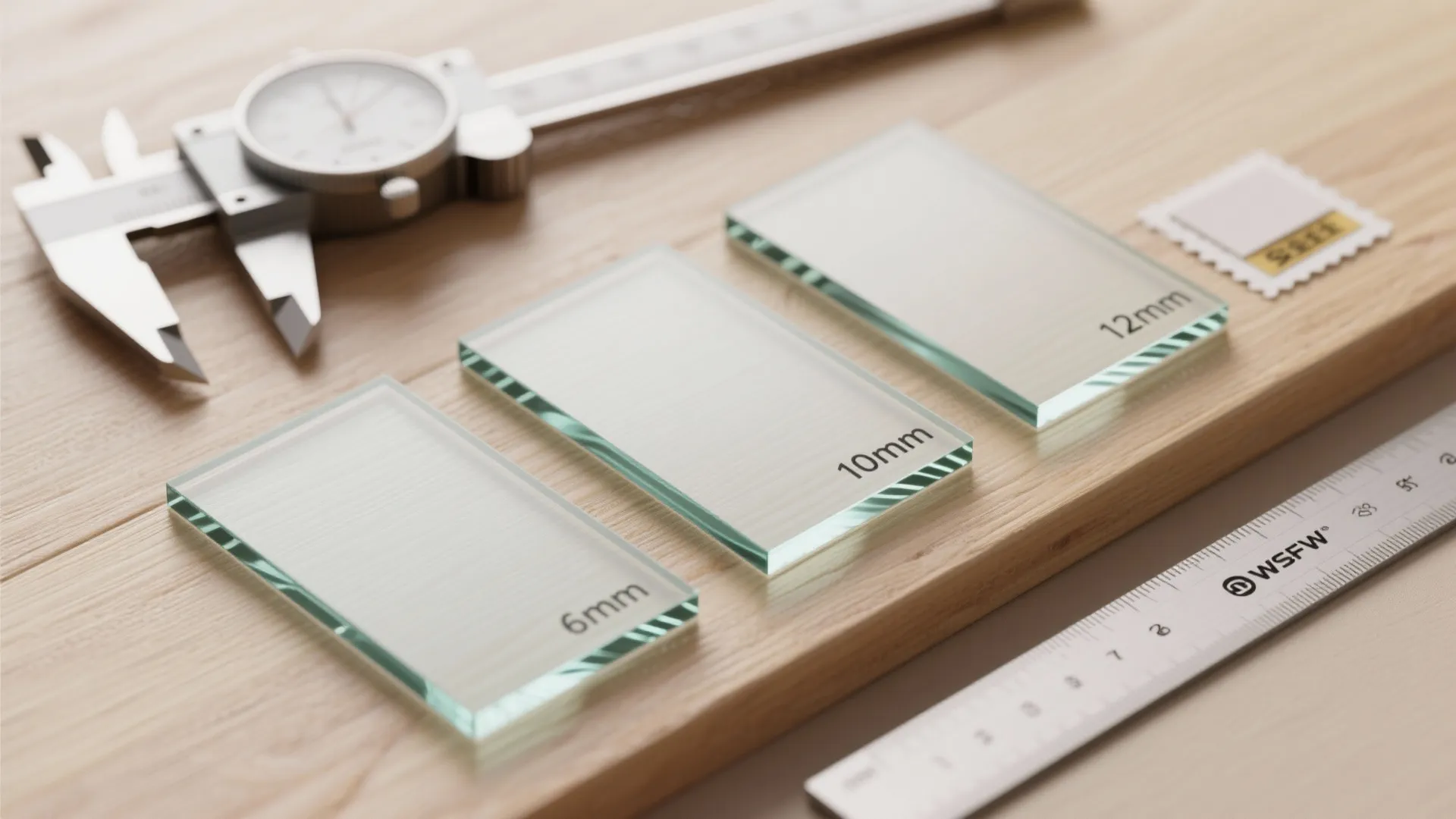

2. Pick the right thickness: balance look and practicality

Thinner glass looks delicate and feels airy, but at 9x5 ft you’re flirting with structural and handling limits. I usually recommend 10 mm tempered glass for balance; it’s a good middle ground between weight and stiffness. Tempered or laminated safety glass is a bit more expensive but worth it for durability and peace of mind.

Downside? Thicker glass means higher cost and harder logistics for delivery and installation—plan your budget and timing accordingly.

save pin

3. Base design matters: distribute the load smartly

Your base can make a heavy top feel effortless. Wide trestles, multiple legs, or a central pedestal with reinforced ribs all help spread weight and reduce point loads. On long spans I favor steel supports hidden under the glass for a floating look with solid performance.

When I’m testing layouts, a smart kitchen layout planner helps me visualize circulation and where reinforced flooring or extra supports might be needed. The trade-off: more structure can eat into legroom or visual lightness, so choose a design that matches how people will actually sit and move.

save pin

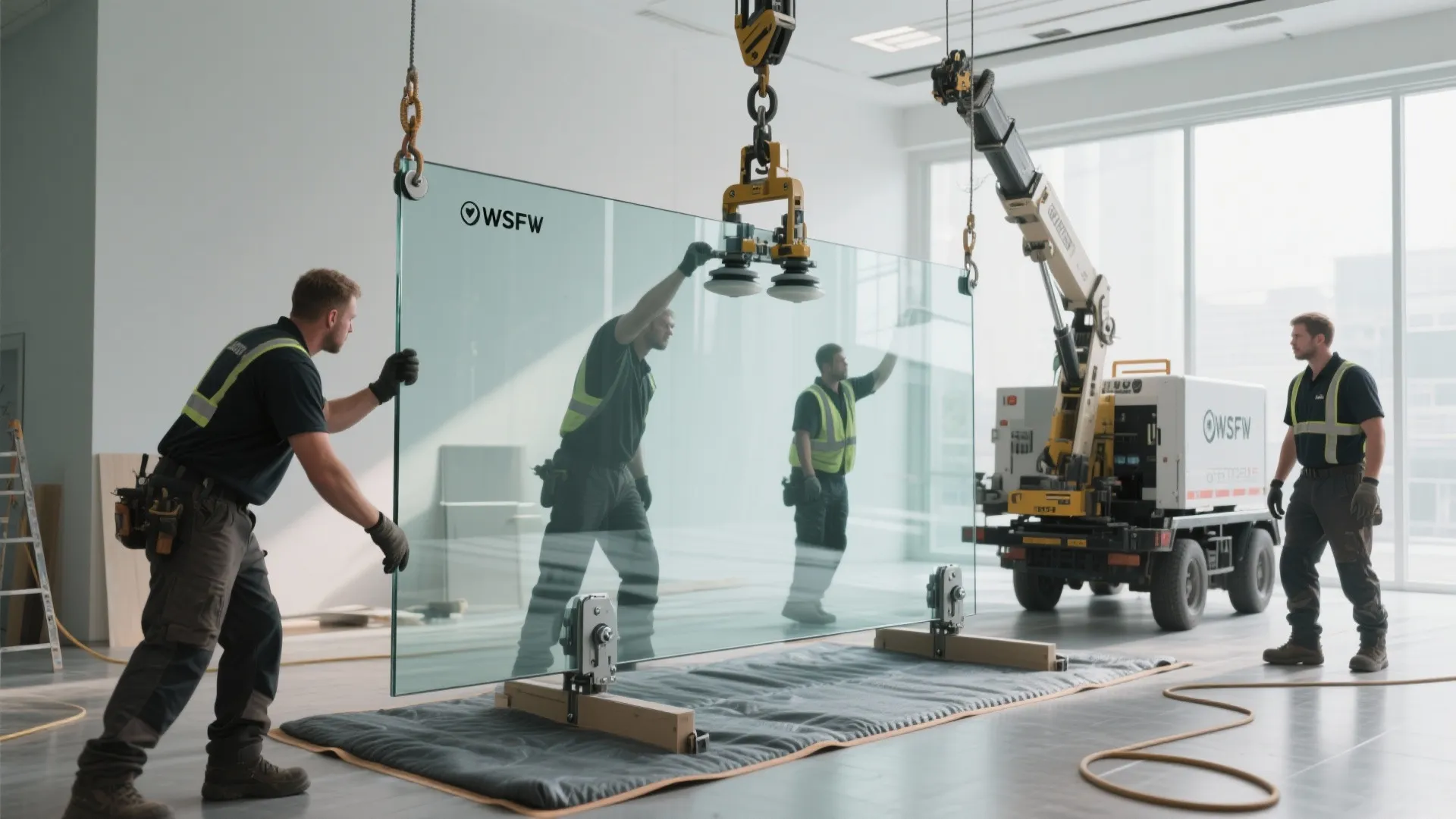

4. Safety and installation: the non-negotiables

Big glass tops demand professional handling—suction lifters, multiple hands, and careful staging. I always specify tempered or laminated glass for dining tops, rounded or beveled edges, and consider mechanical anchoring to the base so it won’t slide if bumped.

Minor challenge: working with pros adds cost, but it avoids chips, scratches, or worst-case breakage. Trust me, you don’t want to improvise lifting a 100+ kg slab with friends and a plywood sheet.

save pin

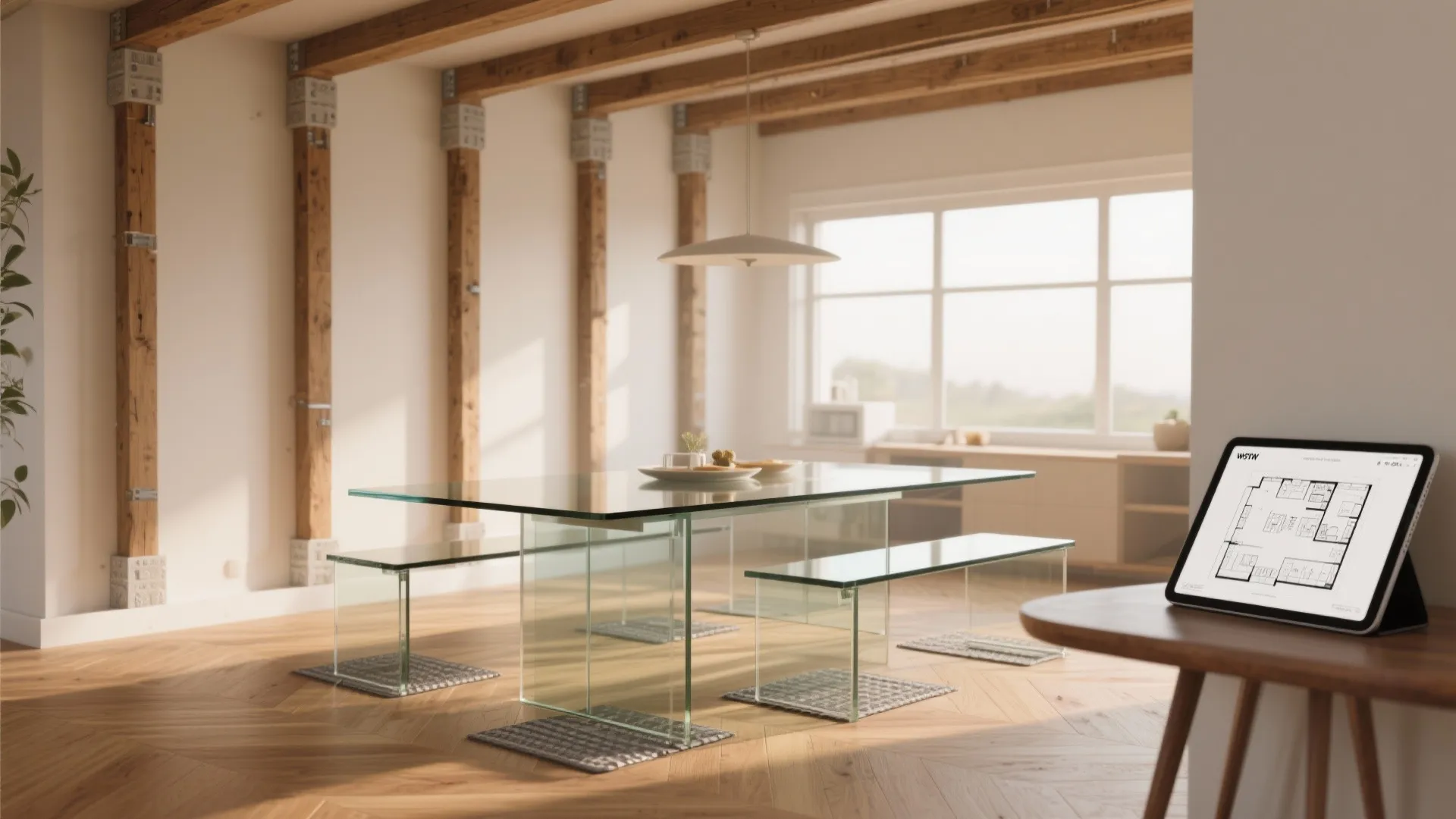

5. Design around the weight: placement, flooring, and moving plans

Where you put a heavy 9x5 table matters. Near load-bearing walls or over joists is safer than mid-span over long unsupported gaps. Use protective pads on feet to avoid scratches and consider a move-in plan—will the table arrive assembled or in parts?

For clients who love flexibility I sometimes suggest a modular appearance: a thick-look top made from two connected slabs or a glass insert over a lighter panel. If you’re playing with layouts, a detailed room planner can save hours and prevent costly mistakes.

save pin

FAQ

Q1: What unit did you assume for 9 x 5?

A1: I assumed feet (9 ft x 5 ft). If you meant meters, the weight would be dramatically higher—always confirm units before buying or moving.

Q2: Which glass thickness is standard for large dining tops?

A2: For a 9x5 ft dining top, 10–12 mm tempered glass is common. Thinner glass is lighter but less stiff; thicker glass costs more and is heavier to handle.

Q3: Do I need laminated glass?

A3: Laminated glass holds shards together if broken, adding safety for dining use. I recommend it for households with kids or high-traffic areas.

Q4: How many people needed to lift a 10 mm 9x5 glass top?

A4: For ~105 kg glass, plan on 4–6 trained movers using suction cups and proper rigging. DIY lifting is risky and not recommended.

Q5: Will a hardwood floor support the weight?

A5: In most homes a single glass top distributes weight broadly and is fine, but always check joist spans for concentrated loads. If concerned, consult a structural pro.

Q6: How do you calculate glass weight?

A6: Multiply area by thickness to get volume (m³) and then multiply by glass density (~2500 kg/m³). For reference, The Engineering Toolbox lists typical glass density around 2500 kg/m³ (see engineering references for details).

Q7: Are there lighter alternatives that mimic glass?

A7: Yes—look at thin, reinforced acrylics or composite panels that mimic glass clarity but are lighter. They scratch more easily, so weigh pros and cons.

Q8: Where can I get professional help for planning and rendering?

A8: Use design and planning case tools to visualize scale, support, and circulation before ordering. If you’re unsure, hire a local installer experienced with large glass tops.
