Accessible Bathroom Layouts Roll In Shower vs Transfer Shower Floor Plans: Understand the real design differences between roll in and transfer showers so you can choose the safest layout for wheelchair users.

Direct Answer

A roll in shower allows a wheelchair user to enter the shower directly without transferring, while a transfer shower requires the user to move from a wheelchair onto a built in seat. Roll in layouts prioritize independent access and larger maneuvering space, while transfer showers work in tighter bathrooms and rely on lateral movement from the wheelchair.

Quick Takeaways

1. Roll in showers allow direct wheelchair entry without transferring.
2. Transfer showers are more compact and designed for side transfer onto a seat.
3. Roll in layouts require significantly more floor space.
4. Safety features differ, especially grab bar placement and threshold design.
5. The best layout depends on mobility level, caregiver support, and bathroom size.

Introduction

When homeowners ask me about designing an accessible bathroom, the most common confusion is the difference between a roll in shower and a transfer shower floor plan. On paper they sound similar, but in practice they create completely different experiences for wheelchair users.

After working on dozens of accessible renovation projects across California, I've learned that the wrong shower layout can quietly sabotage an otherwise well designed bathroom. A beautiful accessible vanity or wide doorway doesn't matter much if the shower itself isn't usable.

The comparison between a roll in shower vs transfer shower layout usually comes down to three things: available floor space, the user's mobility level, and how independently they need to bathe.

If you're currently planning an accessible renovation, it helps to visualize these layouts clearly. Many homeowners start by sketching ideas with an interactive bathroom planning guide that helps visualize safe accessible shower zones before construction begins: experiment with different accessible bathroom layout ideas in a planning simulator.

In this guide I'll walk through the real design differences between these two layouts, including space requirements, wheelchair maneuverability, safety details, and the situations where each option works best.

save pin

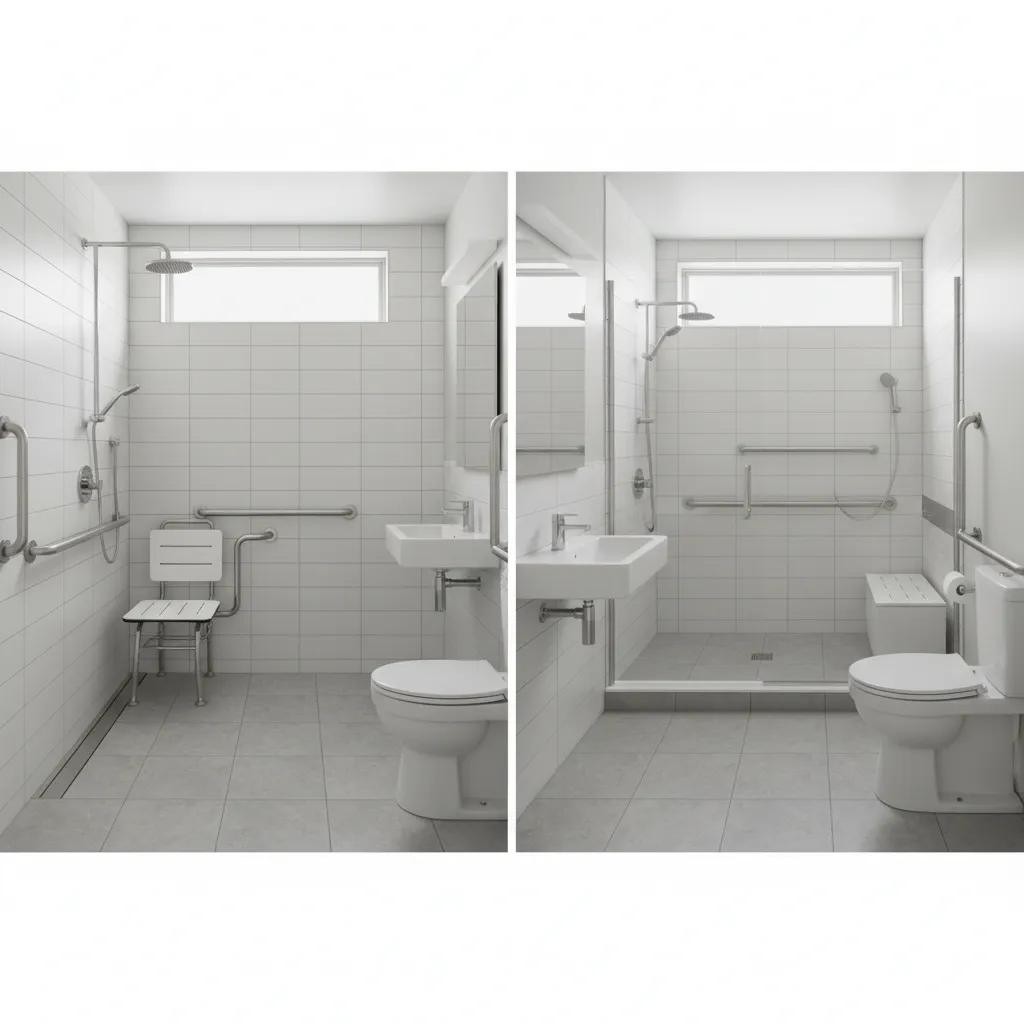

Overview of Roll In and Transfer Shower Designs

Key Insight: The fundamental difference is entry method: roll in showers allow direct wheelchair entry, while transfer showers require moving from the chair onto a fixed seat.

In accessible bathroom design, these two shower types serve very different mobility needs. The Americans with Disabilities Act (ADA) recognizes both designs because each solves a different spatial challenge.

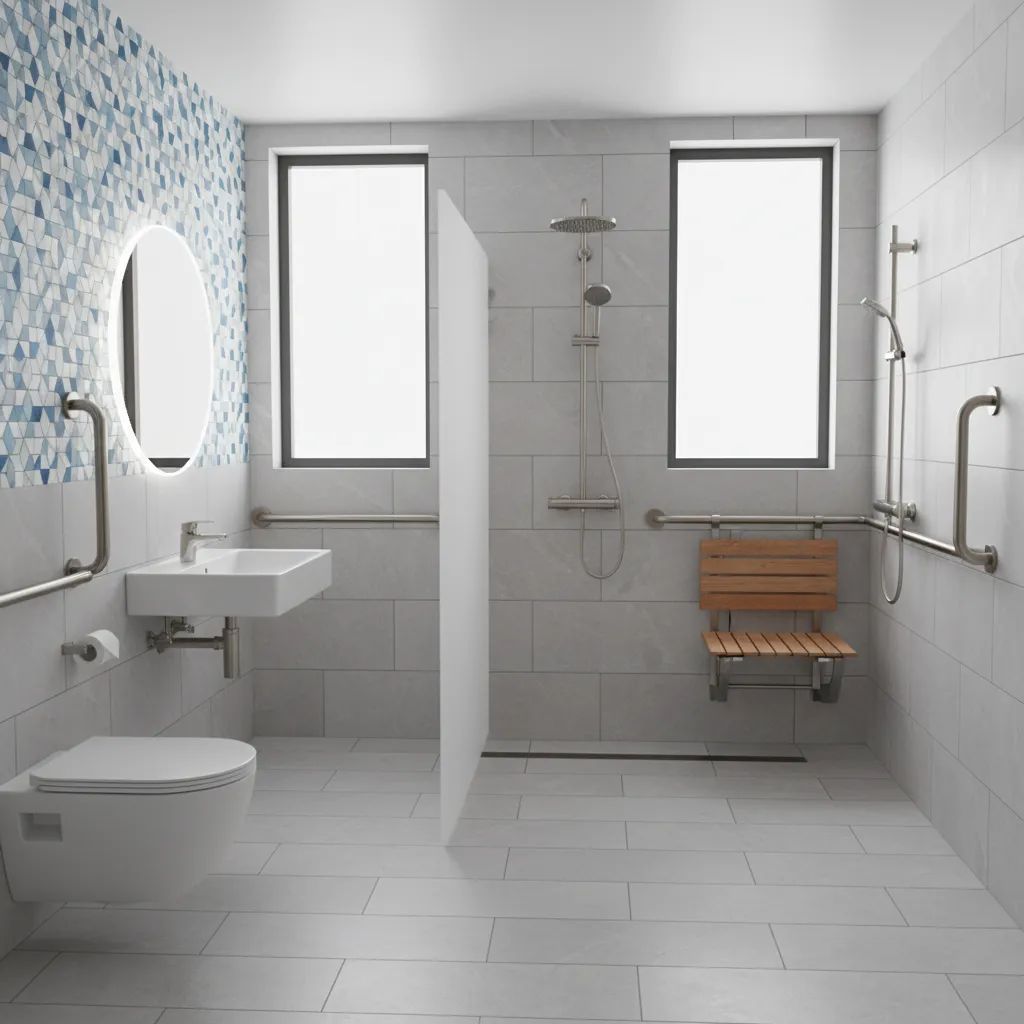

Roll In Shower

1. No threshold or a very low beveled entry
2. Large open shower area
3. Designed for full wheelchair entry
4. Often paired with fold down benches
5. Typically uses curtain or open layout

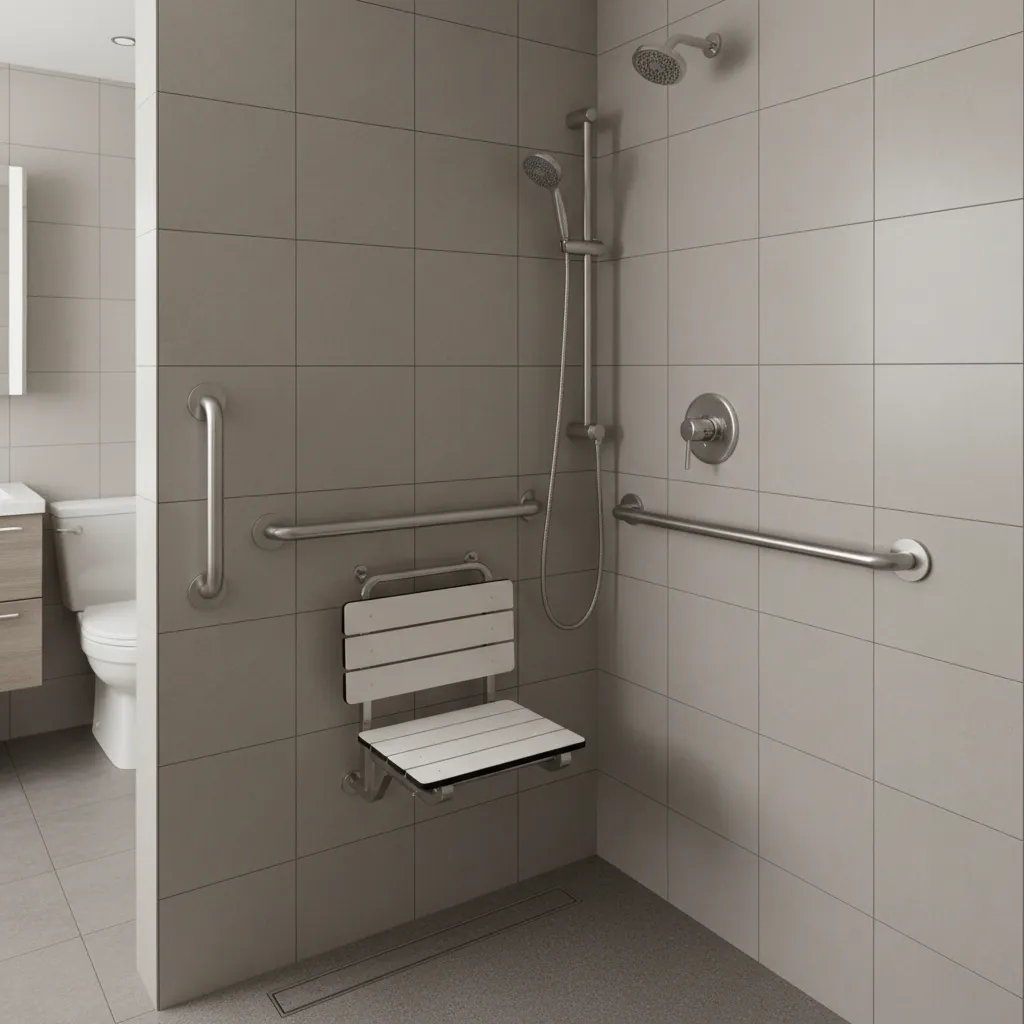

Transfer Shower

1. Compact enclosed shower compartment
2. Built in or fold down seat
3. User transfers laterally from wheelchair
4. More structured grab bar placement
5. Common in apartments and smaller homes

According to ADA Accessibility Guidelines, both shower types are standardized because accessibility isn't one size fits all. Some users can transfer independently, while others rely on remaining seated in their wheelchair.

save pin

Space Requirements for Each Shower Layout

Key Insight: Roll in showers require substantially more floor area, which is the biggest limitation in residential bathroom renovations.

In real projects, this is where most homeowners make their decision. Roll in showers are more flexible but demand larger bathrooms.

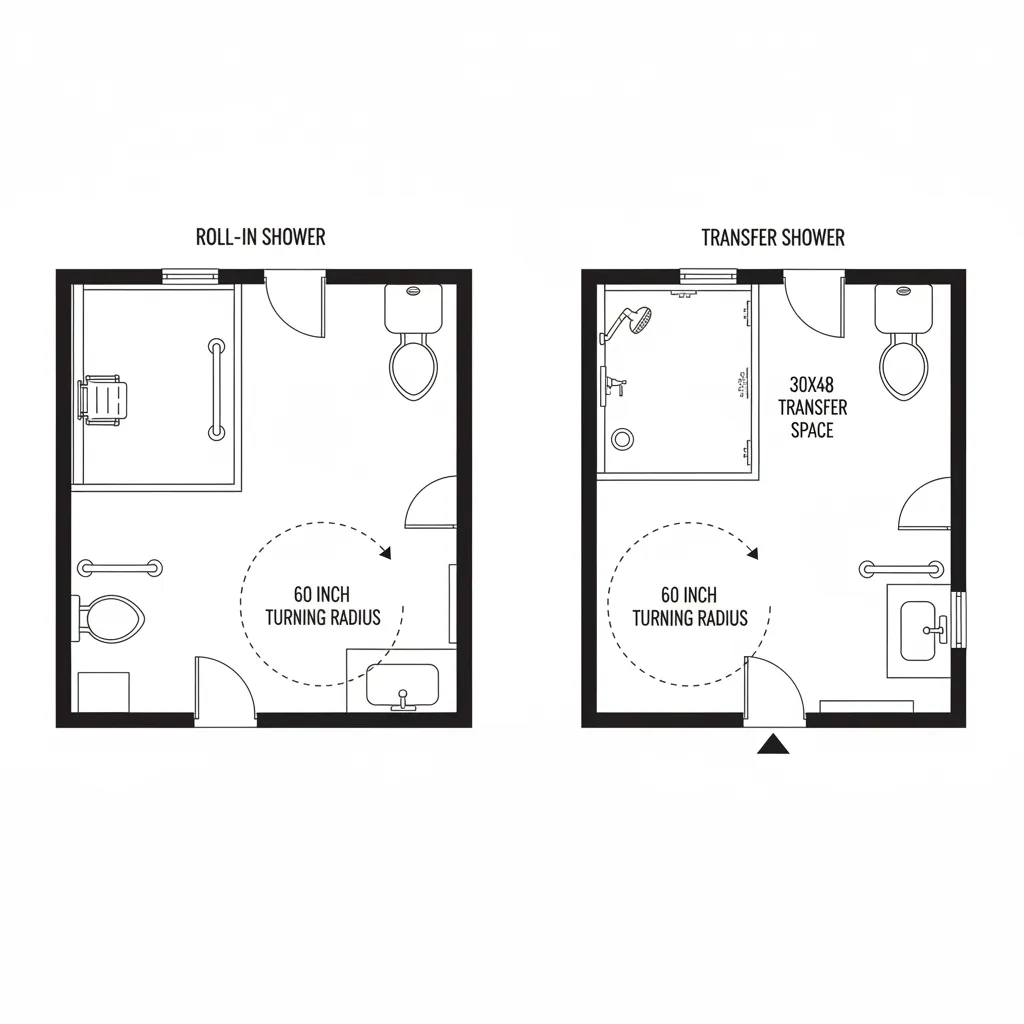

Typical Accessible Shower Dimensions

1. ADA roll in shower: 60" x 30" minimum
2. Alternate roll in design: 60" x 36"
3. Transfer shower: 36" x 36"
4. Recommended wheelchair turning radius in bathroom: 60"

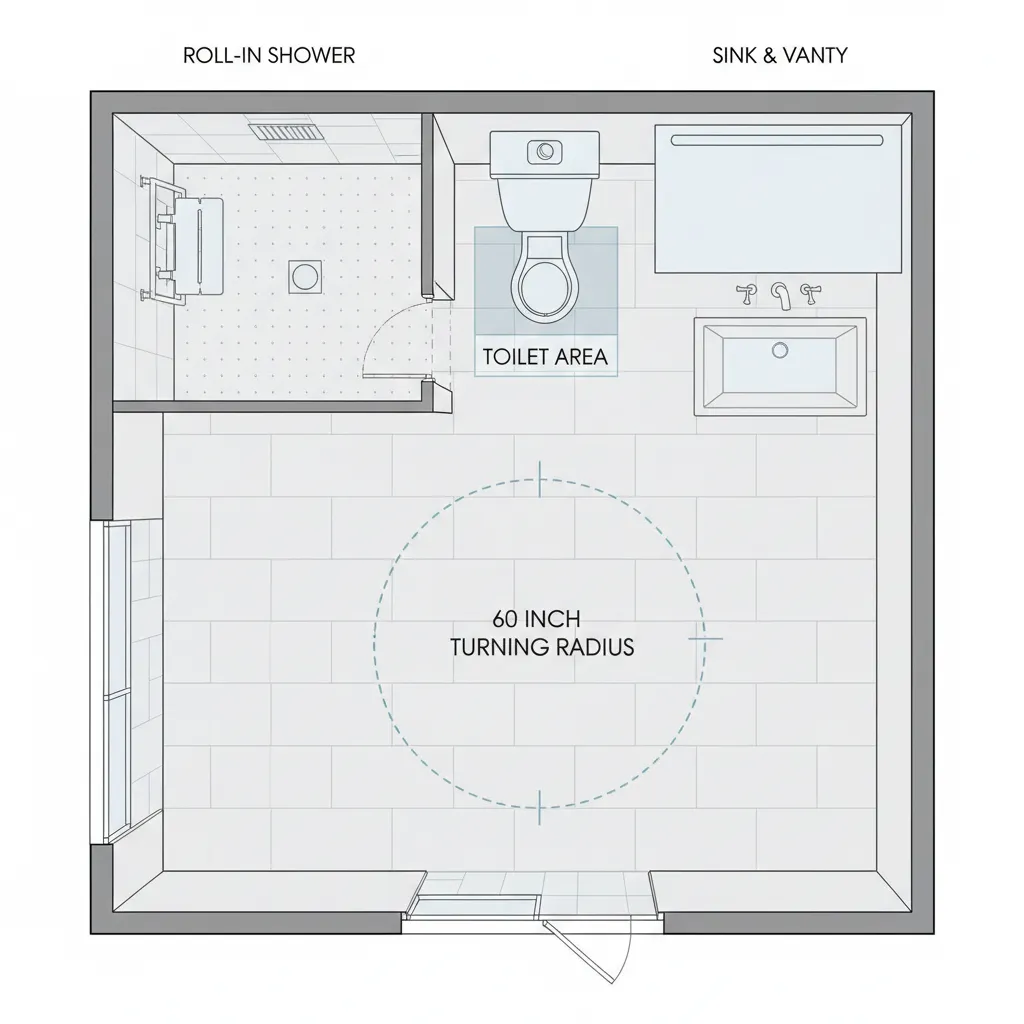

In practice, once you add turning space and clearance for fixtures, roll in showers often push the entire bathroom footprint closer to 7 ft by 8 ft or larger.

This is why many designers start layouts using spatial planning tools before construction begins. A quick way to test different configurations is to build an accessible bathroom floor plan and test turning clearances visually before committing to demolition.

Transfer showers, by contrast, can often fit into bathrooms that are only slightly larger than standard residential layouts.

Wheelchair Maneuverability Differences

Key Insight: Roll in showers prioritize movement freedom, while transfer showers prioritize controlled side transfer.

This difference becomes obvious the moment you observe someone actually using the space.

Roll In Shower Maneuverability

1. Wheelchair enters shower area directly
2. Large entry width
3. Allows caregiver assistance inside shower
4. Works with shower wheelchairs

Transfer Shower Maneuverability

1. Wheelchair remains outside shower
2. User slides sideways onto seat
3. Requires upper body strength
4. Less interior maneuvering space

In homes where long term mobility changes are possible, I usually recommend roll in layouts because they remain usable even if mobility declines.

This future proofing aspect is often overlooked in many bathroom remodels.

save pin

Safety and Accessibility Considerations

Key Insight: Proper grab bar placement and slip resistance matter more than the shower type itself.

One of the most common design mistakes I see is focusing only on layout while ignoring safety hardware placement.

Essential Safety Features

1. Slip resistant tile flooring
2. Handheld adjustable shower head
3. Horizontal and vertical grab bars
4. Fold down seating
5. Thermostatic mixing valves

Industry guidance from the National Kitchen and Bath Association emphasizes that grab bar placement must support both entry and seated use. In roll in showers this usually means bars on multiple walls, while transfer showers rely heavily on bars around the seat.

Answer Box

Roll in showers provide maximum accessibility and wheelchair entry but require larger bathrooms. Transfer showers fit smaller spaces but depend on the user's ability to move from wheelchair to seat safely.

Best Use Cases for Each Bathroom Floor Plan

Key Insight: The right layout depends more on user mobility than bathroom size alone.

Roll In Shower Works Best For

1. Full time wheelchair users
2. Users with limited transfer ability
3. Homes with caregiver assistance
4. Universal design renovations

Transfer Shower Works Best For

1. Smaller bathrooms
2. Users who can perform lateral transfers
3. Apartments or retrofits
4. Budget constrained remodels

From a long term design perspective, roll in showers often add more resale value because they align with universal design principles.

save pin

How to Choose the Right Layout for Your Space

Key Insight: The best accessible shower layout balances user independence, safety, and realistic spatial limits.

When evaluating a roll in shower vs transfer shower layout, I usually walk homeowners through three questions.

Step 1: Assess Mobility Level

1. Can the user safely transfer?
2. Will mobility likely decline?
3. Is caregiver help available?

Step 2: Measure Real Bathroom Space

1. Check 60 inch turning clearance
2. Evaluate door swing conflicts
3. Confirm fixture spacing

Step 3: Model the Layout

Before committing to construction, it helps to visualize the layout in 3D. Many designers now preview wheelchair accessible bathroom layouts with a 3D floor planning tool to ensure maneuvering paths work correctly.

This simple step often reveals problems that traditional blueprint drawings hide.

Final Summary

1. Roll in showers allow direct wheelchair access.
2. Transfer showers require a side transfer onto a seat.
3. Roll in layouts need significantly more floor space.
4. Transfer showers work well in compact bathrooms.
5. User mobility level should drive the final decision.

FAQ

What is the difference between a roll in shower and transfer shower layout?

A roll in shower allows wheelchair entry directly into the shower space, while a transfer shower requires moving from the wheelchair to a built in seat.

What size is a wheelchair roll in shower bathroom plan?

Most ADA roll in shower designs require a minimum size of 60 inches by 30 inches, though larger layouts provide better maneuverability.

Is a transfer shower ADA compliant?

Yes. ADA guidelines include specifications for transfer showers, typically measuring 36 by 36 inches with a built in seat.

Which accessible shower layout is best for wheelchair users?

Roll in showers are generally best for full time wheelchair users because they allow direct entry without transferring.

Can a small bathroom fit a roll in shower?

It can be difficult. Roll in showers require larger turning clearance, so small bathrooms often use transfer shower layouts instead.

Do roll in showers need doors?

Most roll in showers use curtains or open designs to allow wheelchair entry without obstruction.

Are transfer showers safe for elderly users?

They can be safe if grab bars and seating are properly installed, but they require enough strength for a lateral transfer.

What is the best accessible bathroom shower layout for long term mobility?

Designers often recommend roll in showers because they remain usable as mobility needs change over time.
