ADA and Universal Design Standards for Wheelchair Accessible Bathroom Floor Plans: Understand the professional layout rules that make wheelchair accessible bathrooms safe functional and future proof

Direct Answer

ADA and universal design standards define the minimum space, clearances, and fixture placement required for a wheelchair accessible bathroom floor plan. These guidelines ensure safe turning space, reachable fixtures, and properly positioned grab bars so wheelchair users can move independently and safely.

While ADA standards are legally enforced in many commercial environments, the same principles are increasingly applied to residential bathroom layouts to improve accessibility and long‑term usability.

Quick Takeaways

1. A wheelchair accessible bathroom requires a minimum 60 inch turning circle.
2. Clear floor space must allow approach to the toilet sink and shower.
3. Grab bars must be installed at precise heights and distances.
4. Universal design expands accessibility beyond strict ADA compliance.
5. Residential bathrooms can apply ADA logic even when not legally required.

Introduction

Designing a wheelchair accessible bathroom floor plan is one of the most technical layout challenges in residential interior design. After working on dozens of accessible remodels over the past decade, I can tell you the biggest problem homeowners face isn't style or fixtures. It's space planning.

Most bathrooms simply weren't built with accessibility in mind. Door swings block movement, vanities restrict knee clearance, and showers are too tight for a safe transfer.

Understanding ADA bathroom layout requirements changes how you approach the entire room. Instead of squeezing accessibility features into an existing layout, you start thinking in movement zones, turning radiuses, and clear floor paths.

If you're trying to map those spaces visually, using a simple way to draft accurate bathroom floor layouts before renovationmakes it much easier to test whether a room actually meets clearance requirements.

In this guide, I'll break down the ADA and universal design standards that professional designers rely on when planning accessible bathrooms — and just as importantly, the practical decisions that rarely show up in official guideline documents.

save pin

Overview of ADA Bathroom Layout Requirements

Key Insight: ADA bathroom layout requirements focus on movement clearance first and fixture placement second.

The Americans with Disabilities Act Accessibility Guidelines (ADAAG) provide detailed rules for accessible bathrooms in public and commercial buildings. These standards are widely used as reference points for residential accessible bathroom design as well.

The guidelines prioritize three functional principles:

1. Unobstructed wheelchair movement
2. Reachable fixtures and controls
3. Safe transfer zones around toilets and showers

Common ADA layout minimums include:

1. 60 inch diameter turning space
2. 32 inch minimum clear doorway
3. 30 by 48 inch clear floor space at fixtures
4. Properly reinforced walls for grab bars

According to the U.S. Access Board, these spatial requirements are based on average wheelchair dimensions and maneuvering patterns observed in accessibility research.

In practice, experienced designers often exceed these minimums. The difference between "compliant" and "comfortable" can easily be another 6–12 inches of circulation space.

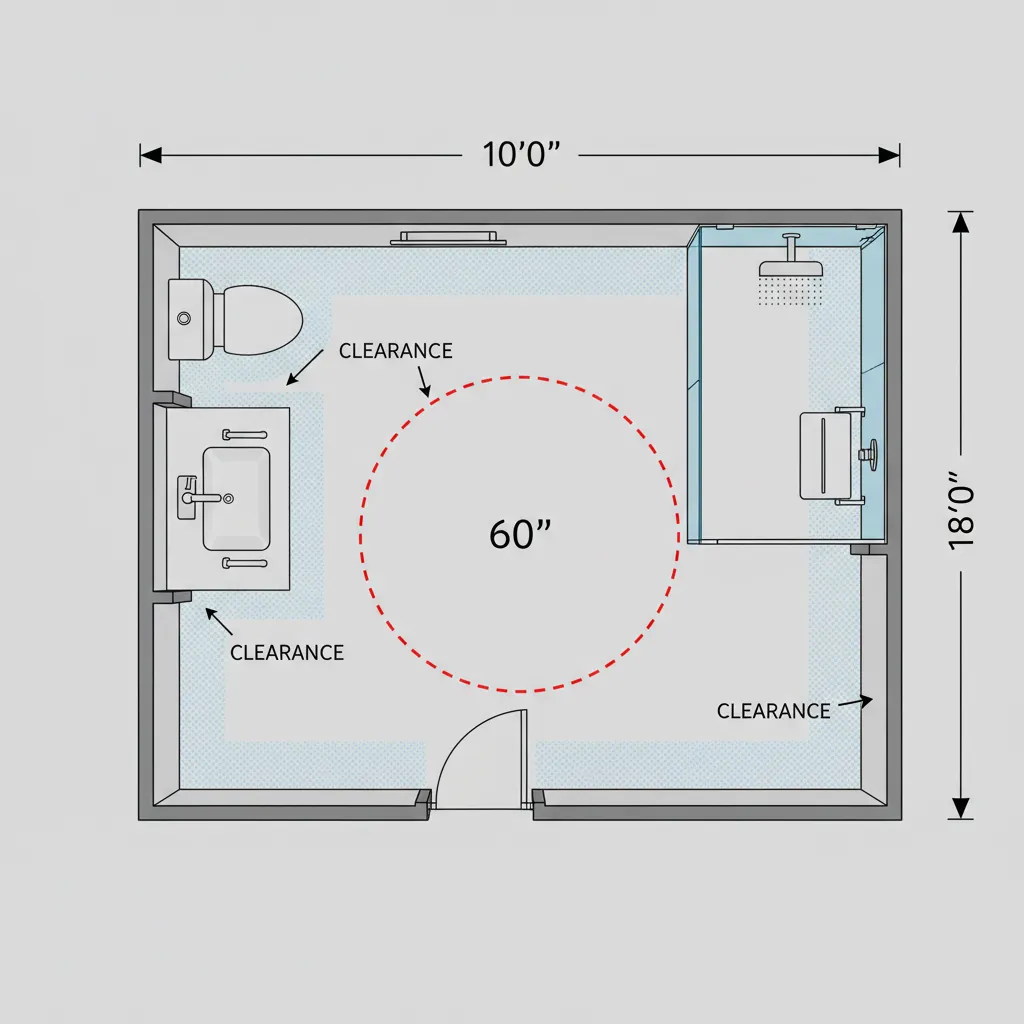

Wheelchair Turning Radius and Clear Floor Space Rules

Key Insight: The 60 inch turning radius is the single most important measurement in wheelchair accessible bathroom planning.

Wheelchair users need enough space to rotate, reposition, and approach fixtures from different angles. Without that clearance, even a technically compliant bathroom becomes difficult to use.

ADA defines two acceptable turning configurations:

1. 60 inch circular turning space
2. T-shaped turning space with three 36 inch arms

Clear floor space must also be positioned correctly around each fixture.

Typical clearance zones include:

save pin

1. 30 by 48 inch approach area at sinks
2. Transfer space beside toilets
3. Open entry space for roll-in showers

A common mistake I see in remodels is placing cabinets or decorative storage inside these required maneuvering zones. Even small obstructions can make wheelchair positioning difficult.

Planning these zones visually is much easier with a 3D layout tool that lets you test wheelchair clearance paths before construction begins.

ADA Toilet, Sink, and Grab Bar Placement

Key Insight: ADA fixture placement focuses on transfer safety rather than visual symmetry.

In traditional bathroom design, we often center fixtures or align them visually. Accessible design follows a different rule set: everything must support a safe wheelchair transfer.

Standard ADA toilet placement includes:

1. Toilet centerline 16–18 inches from the side wall
2. 60 inches of clearance from the side wall
3. Rear grab bar 36 inches long minimum
4. Side grab bar 42 inches long minimum

Sink requirements are equally specific:

1. Knee clearance of at least 27 inches high
2. Sink height maximum of 34 inches
3. Insulated pipes to prevent burns

Industry best practice is to reinforce bathroom walls with plywood backing during renovation. This allows grab bars to be repositioned later if mobility needs change.

Many hospitals and rehabilitation facilities follow this approach because it future‑proofs the bathroom without affecting appearance.

save pin

Shower and Bathtub Accessibility Guidelines

Key Insight: Roll-in showers provide the highest level of accessibility and are increasingly preferred in residential design.

ADA guidelines recognize two main accessible shower types:

1. Transfer showers
2. Roll-in showers

Transfer shower requirements:

1. 36 by 36 inch shower interior
2. Fold-down seat
3. Grab bars on multiple walls
4. Handheld shower controls

Roll-in shower requirements:

1. Minimum 60 by 30 inches
2. No raised threshold
3. Clear wheelchair entry

In real residential projects, roll-in showers are becoming the preferred solution because they work for wheelchair users, walkers, and aging homeowners alike.

A properly visualized layout using a realistic 3D bathroom visualization before construction helps homeowners understand how open these showers actually feel.

Answer Box

ADA accessible bathroom floor plans are built around three spatial rules: a 60 inch turning circle, clear approach space at fixtures, and precise grab bar placement. Universal design expands these principles to create bathrooms that remain functional for users of all ages and mobility levels.

Differences Between ADA Compliance and Universal Design

Key Insight: ADA compliance is about minimum legal requirements while universal design focuses on long term usability.

This distinction is often misunderstood.

ADA standards define the minimum dimensions required for accessibility in regulated environments. Universal design goes further by creating spaces that work for as many people as possible without special adaptation.

Key differences include:

1. ADA focuses on wheelchair accessibility
2. Universal design supports aging in place
3. Universal design prioritizes comfort and flexibility

Examples of universal design features:

1. Curbless showers
2. Lever style faucets
3. Comfort height toilets
4. Wide circulation pathways

Many modern residential bathrooms blend both approaches, ensuring accessibility without making the space feel clinical.

Applying Industry Standards to Residential Floor Plans

Key Insight: The best residential accessible bathrooms adapt ADA principles rather than copying them rigidly.

Homes have different spatial constraints than public buildings. Designers often adjust layouts while preserving the functional logic of accessibility standards.

Practical adaptations include:

1. Expanding bathrooms by borrowing space from closets
2. Repositioning doors to improve circulation
3. Using wall mounted sinks to increase maneuvering space
4. Installing sliding doors instead of swing doors

One overlooked design detail is lighting. Accessible bathrooms benefit from layered lighting because shadows can affect depth perception for older users.

save pin

Final Summary

1. ADA standards define minimum spatial rules for accessible bathrooms.
2. A 60 inch turning radius is the most critical layout requirement.
3. Grab bar positioning must follow precise placement guidelines.
4. Roll-in showers offer the most flexible accessible bathing solution.
5. Universal design expands accessibility beyond strict compliance.

FAQ

What is the ADA turning radius for a wheelchair bathroom?

A wheelchair accessible bathroom requires a 60 inch diameter turning circle or a T-shaped turning space to allow full maneuverability.

What size should an ADA compliant bathroom be?

Most ADA compliant wheelchair bathroom designs require enough space to fit a 60 inch turning radius plus fixture clearance areas.

What is the minimum door width for an accessible bathroom?

ADA guidelines require at least 32 inches of clear doorway width when the door is open.

How high should grab bars be installed?

Grab bars are typically installed between 33 and 36 inches above the floor according to ADA bathroom layout requirements.

Are ADA standards required for residential bathrooms?

No. ADA regulations mainly apply to public and commercial spaces, but many homeowners adopt them as best practices.

What is the difference between a transfer shower and roll in shower?

A transfer shower requires a seated transfer from a wheelchair while a roll-in shower allows direct wheelchair entry.

What is the ideal sink height for wheelchair users?

ADA accessible bathroom floor plan dimensions recommend a maximum sink height of 34 inches with knee clearance underneath.

Is universal design the same as ADA compliance?

No. Universal design aims for broader usability while ADA compliance focuses on minimum accessibility regulations.

References

1. U.S. Access Board ADA Accessibility Guidelines
2. National Kitchen and Bath Association Planning Guidelines
3. Center for Universal Design North Carolina State University
