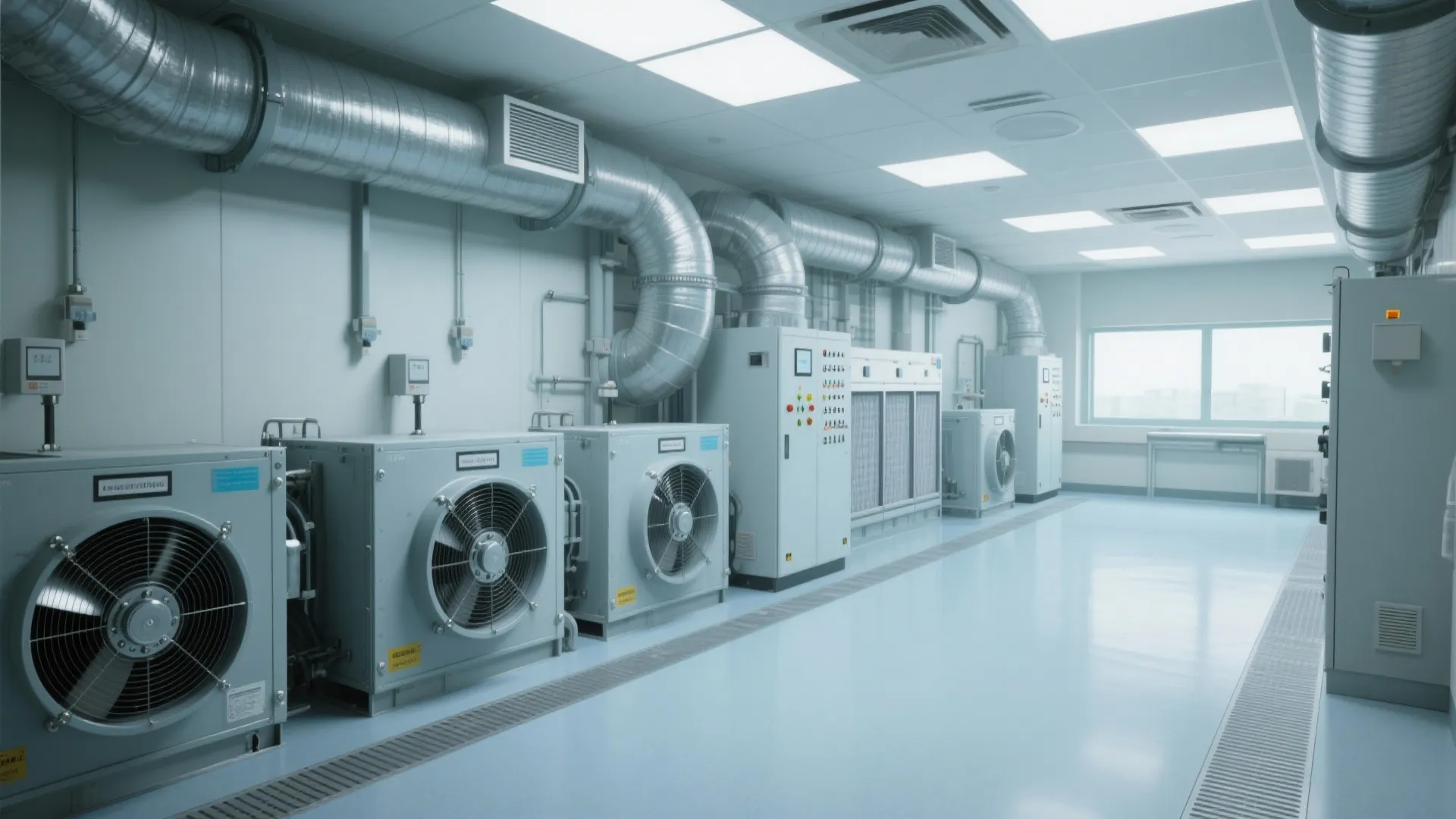

AHU Room in Hospital: Essential Design Insights: 1 Minute to Understand Hospital AHU Room Setup

Air Handling Unit (AHU) rooms are the mechanical backbone of any hospital, controlling air quality, pressurization, temperature, humidity, and filtration across critical departments. My work on large tertiary care facilities has reinforced a simple truth: AHU design decisions influence infection control, clinical outcomes, and energy cost for decades. Get the airflow right, protect service access, and engineer for resilience.

Data consistently ties indoor environmental performance to patient and staff well-being. The WELL Building Standard v2 recommends maintaining relative humidity between 30–60% to reduce pathogen viability and improve comfort, a range AHU systems must reliably support (v2.wellcertified.com). Lighting and task conditions also matter; IES illuminance recommendations place mechanical rooms in the 100–200 lux range for safe inspection and maintenance (ies.org/standards). In acute care, spatial pressurization targets are non-negotiable: operating rooms are generally kept positive relative to adjacent zones, while airborne infection isolation rooms are negative; AHUs must deliver those cascades without drift.

Workplace research echoes how air quality impacts performance. Steelcase notes that environments with better thermal and acoustic control reduce cognitive load and error rates, a principle that translates directly to clinical safety and engineering reliability (steelcase.com/research). In my hospital retrofits, tight filtration, stable temperature setpoints (typically 20–24°C for general clinical areas), and noise control around AHU rooms correlate with fewer nurse complaints and smoother operating theater schedules.

Core Functional Requirements

AHU rooms should accommodate service clearances on all sides of equipment—think 1.2–1.5 m around filter banks, coil sections, and fan assemblies—to enable safe maintenance and coil pull-out. Provide direct, unobstructed routes for replacement of large components (fans, motors, heat exchangers). Avoid dead-end corridors; mechanical lifts or hoists should be planned at design stage.

Air Quality, Filtration, and Pressurization

Hospitals typically rely on staged filtration: pre-filters (MERV 8–11) followed by final filters (MERV 14–16), with HEPA (99.97% at 0.3 μm) for critical zones like operating rooms or isolation suites. AHU rooms must allow for leak testing and media replacement safely, with gasketed housings and pressure taps. Pressure control is the heartbeat of critical care: differential pressure sensors should be redundant, with alarms integrated into the BMS. Duct-mounted sound attenuators and smooth transitions help prevent turbulence that can destabilize pressure cascades.

Thermal and Humidity Control

Stable supply air temperatures are essential: most general clinical spaces operate within 20–24°C, with surgical suites often cooler (18–22°C) for infection control and staff comfort. Humidification must maintain the WELL v2 30–60% RH target; we use clean steam or adiabatic systems depending on boiler and water quality. Keep humidifiers downstream of coils to prevent wetting the filters. Condensate management—proper traps, sloped pans, and access for cleaning—prevents microbial growth.

Acoustics and Vibration

Noise inside AHU rooms can exceed safe levels if not mitigated. Specify vibration isolation (spring mounts, inertia bases) and flexible connections to reduce transmission. Line ductwork near sensitive areas with acoustic insulation; confirm NC ratings meet clinical expectations for adjacent rooms. Fan selection should consider tonal noise; EC fans often lower noise and allow precise control.

Controls, Monitoring, and Resilience

Redundant sensors for temperature, humidity, differential pressure, and filter status reduce single-point failure risks. Integrate trend logging for infection control audits. Design for N+1 on critical fans and chilled water pumps serving surgical and isolation zones. Partition AHUs by clinical program to avoid cascading outages; implement automatic changeover and fail-safe damper positions. BMS dashboards should present alarm hierarchies and maintenance prompts clearly.

Layout Strategy and Serviceability

Efficient layouts prevent maintenance bottlenecks. Group filter banks near the entrance for quick swaps, position humidifiers with spill containment, and align coil pull paths with access doors. For renovation projects or tight footprints, simulate circulation and service clearances with a room layout tool to validate safe movement and equipment replacement routes.

room layout tool

Safety, Compliance, and Access Control

AHU rooms must be secured against unauthorized access. Provide lockable doors, clear signage, and anti-slip flooring. Maintain adequate illumination (100–200 lux per IES guidance) and emergency lighting. Fire-rated enclosures and smoke control dampers should align with hospital life safety plans. Chemical storage (e.g., for water treatment) belongs in a separated, ventilated niche with spill containment and eyewash stations.

Materials and Durability

Specify corrosion-resistant components: stainless fasteners, aluminum or coated steel panels, and anti-microbial interior linings where appropriate. Floors should be sealed, chemical-resistant epoxy for easy cleaning. Choose insulation with low VOCs and sealed edges to prevent fiber shedding into airstreams. Drainage, hose bibs, and wash-down areas simplify hygiene routines.

Energy Efficiency and Sustainability

Energy is a relentless OPEX driver. Consider heat recovery (run-around coils or energy wheels for non-infectious streams), high-efficiency fans, and variable speed drives. Demand-controlled ventilation in suitable zones, economizers where climate permits, and advanced sequences (supply air reset, static pressure reset) cut consumption while protecting clinical requirements. Meter AHU energy to validate savings and inform continuous commissioning.

Light Environment and Human Factors

Maintenance tasks demand legibility and comfort. Keep color temperatures around 4000–5000K for clarity, minimize glare with diffused luminaires, and place task lighting near filter banks and control panels. Visual contrast on floor thresholds and handrails supports safety. Clear circulation, unobstructed egress, and ergonomic access heights (filters between 0.8–1.6 m above floor) reduce strain.

Commissioning and Lifecycle

Commissioning should verify airflow, pressure cascades, leakage rates, sensor calibration, and alarm logic. Maintain detailed O&M manuals and update sequences after clinical feedback. Plan periodic duct and coil cleaning; replace belts, bearings, and filters per manufacturer guidance and measured pressure drop.

Common Pitfalls and How I Avoid Them

Cramped service clearances, under-sized access doors, noisy fans near patient zones, and poor condensate management are the usual suspects. I push for early equipment schedules, mock-up reviews, and walkable 3D models of AHU rooms. Invest in redundancy where failure is unacceptable; avoid mixing isolation exhaust with general return; and test pressure cascades before handover.

FAQ

What humidity range should hospital AHUs maintain?

Target 30–60% RH in most clinical areas, which aligns with WELL v2 guidance and reduces pathogen viability while improving comfort.

How do AHU rooms support pressure cascades for ORs and isolation rooms?

By using precise airflow control, differential pressure sensors, and properly sealed ductwork; ORs are kept positive, isolation rooms negative relative to adjacent spaces.

Which filters are typical for hospital AHUs?

Pre-filters (MERV 8–11), final filters (MERV 14–16), and HEPA for critical spaces. Housing must be gasketed with test ports to verify performance.

What service clearances are recommended?

Around 1.2–1.5 m on maintenance sides, with straight pull paths for coils and filters, and adequate door widths for component replacement.

How much lighting is needed in AHU rooms?

Provide 100–200 lux general illumination per IES recommendations, plus task lighting at panels and filter banks to reduce errors.

How can I reduce AHU noise impacting patient areas?

Use vibration isolation, acoustic lining, flexible connections, and select low-tonal-noise fans; place noisy components away from sensitive rooms.

What redundancy level is appropriate?

N+1 for critical fans and pumps serving surgical and isolation sectors, with automatic changeover and clear alarm logic in the BMS.

Are energy wheels suitable in hospitals?

Use them only on non-infectious airstreams to avoid cross-contamination risks; otherwise consider run-around coils or sensible plate exchangers.

Where should humidifiers be placed?

Downstream of cooling coils to prevent filter wetting, with proper drain pans, water quality controls, and access for cleaning.

How do I plan an AHU room in a tight renovation?

Prioritize service corridors and access doors, group maintenance-intensive components near entries, and validate movement paths with a room layout tool.
