Architectural Drafting Standards for Professional 2D Floor Plans: Industry conventions architects use to create clear, accurate, and buildable floor plan drawings

Direct Answer

Architectural drafting standards for floor plans define how architects represent walls, doors, dimensions, symbols, and scale so drawings are universally readable. These standards include consistent line weights, recognized symbols, clear dimensioning rules, and scale conventions that allow builders, engineers, and clients to interpret plans without ambiguity.

Quick Takeaways

1. Professional floor plans rely on standardized line weights, symbols, and dimensions for clarity.
2. Different line types communicate walls, hidden elements, fixtures, and structural boundaries.
3. Consistent scaling ensures drawings remain accurate across print and digital formats.
4. Architectural symbols prevent visual clutter while communicating complex information.
5. Consistency across sheets is essential for construction documentation.

Introduction

In my early years working on residential renovation projects in Los Angeles, I noticed something interesting: most problems on construction sites didn’t come from bad design ideas. They came from unclear drawings.

A contractor misreads a wall thickness. An electrician interprets a symbol differently. A client thinks a door swings the opposite direction. Small drafting mistakes quickly turn into expensive change orders.

This is exactly why architectural drafting standards for floor plans exist. They create a visual language that everyone in the building process understands—from architects and engineers to contractors and city reviewers.

Even today, when many designers use digital tools or AI-assisted workflows, those standards still matter. Whether you're sketching manually or experimenting with a visual workflow for generating accurate digital floor plans, the underlying conventions remain the same.

After more than a decade producing construction drawings, I’ve learned that great plans are not just beautiful—they’re disciplined. In this guide, I’ll break down the professional drafting standards architects use every day and explain why they matter.

save pin

Why Drafting Standards Matter in Architectural Floor Plans

Key Insight: Drafting standards exist so every professional reading a plan interprets the drawing the same way.

Architecture is collaborative. A single project may involve architects, structural engineers, interior designers, contractors, inspectors, and city reviewers. If drawings are inconsistent or unclear, the entire communication chain breaks down.

The American Institute of Architects (AIA) and the National CAD Standard both emphasize clarity, hierarchy, and consistency in architectural documentation. These principles ensure drawings function as precise instructions—not just illustrations.

Common problems caused by ignoring drafting standards include:

1. Incorrect construction due to unclear wall types
2. Misinterpretation of door swings or window placements
3. Conflicting dimensions across drawing sheets
4. Difficulty reviewing plans during permitting

One hidden mistake I see from beginners is treating floor plans like diagrams instead of technical documents. A floor plan must communicate measurable, buildable information.

That means hierarchy in line weights, standardized symbols, and properly structured dimensions.

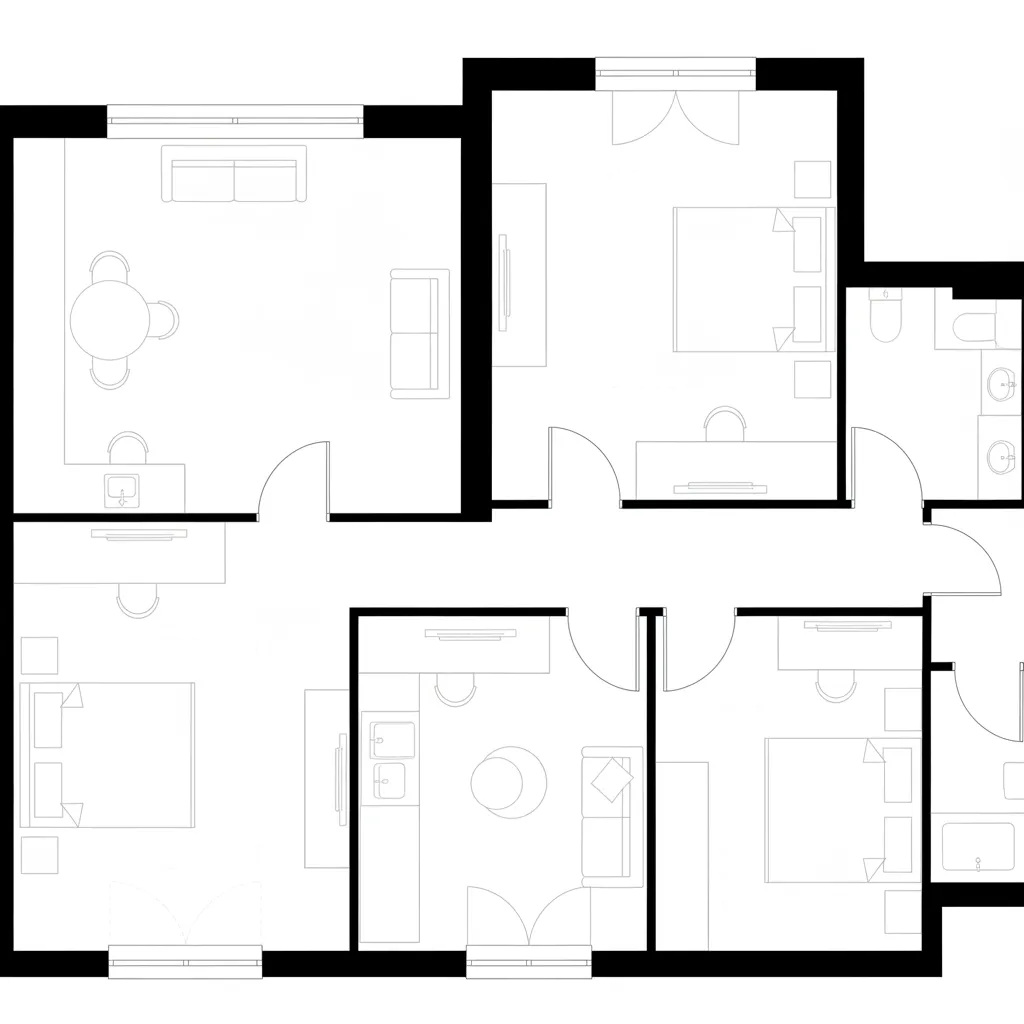

Standard Line Types and Line Weights

Key Insight: Line weight hierarchy is the backbone of readable architectural drawings.

If everything on a drawing has the same thickness, nothing stands out. Professional floor plans use a hierarchy of line weights to show spatial depth and importance.

Typical architectural line weight hierarchy:

1. Heavy lines – Cut elements such as walls and structural components
2. Medium lines – Doors, windows, cabinetry
3. Light lines – fixtures, furniture, appliances
4. Dashed lines – overhead items like cabinets or beams
5. Center lines – structural grids or alignment references

For example, when a floor plan cuts through walls at about 4 feet above the floor (the standard plan cut height), those walls appear bold. Furniture appears lighter because it sits below the cut plane.

This visual hierarchy lets someone read a complex plan within seconds.

save pin

Architectural Symbols and Notation Guidelines

Key Insight: Standardized symbols allow complex building information to be communicated without cluttering the drawing.

Architectural drawings rely on symbols because writing everything out would overwhelm the plan.

Common standardized symbols include:

1. Door swing arcs
2. Window tags
3. Section markers
4. Elevation markers
5. Grid bubbles
6. Stair direction arrows

Most architectural firms maintain internal symbol libraries to ensure consistency across projects. These conventions are influenced by standards such as the National CAD Standard and AIA documentation guidelines.

A mistake I frequently see from new designers is over-symbolizing drawings—adding unnecessary icons or custom graphics. Ironically, the more unique symbols you invent, the harder the plan becomes to read.

Professional drafting prioritizes recognition over creativity.

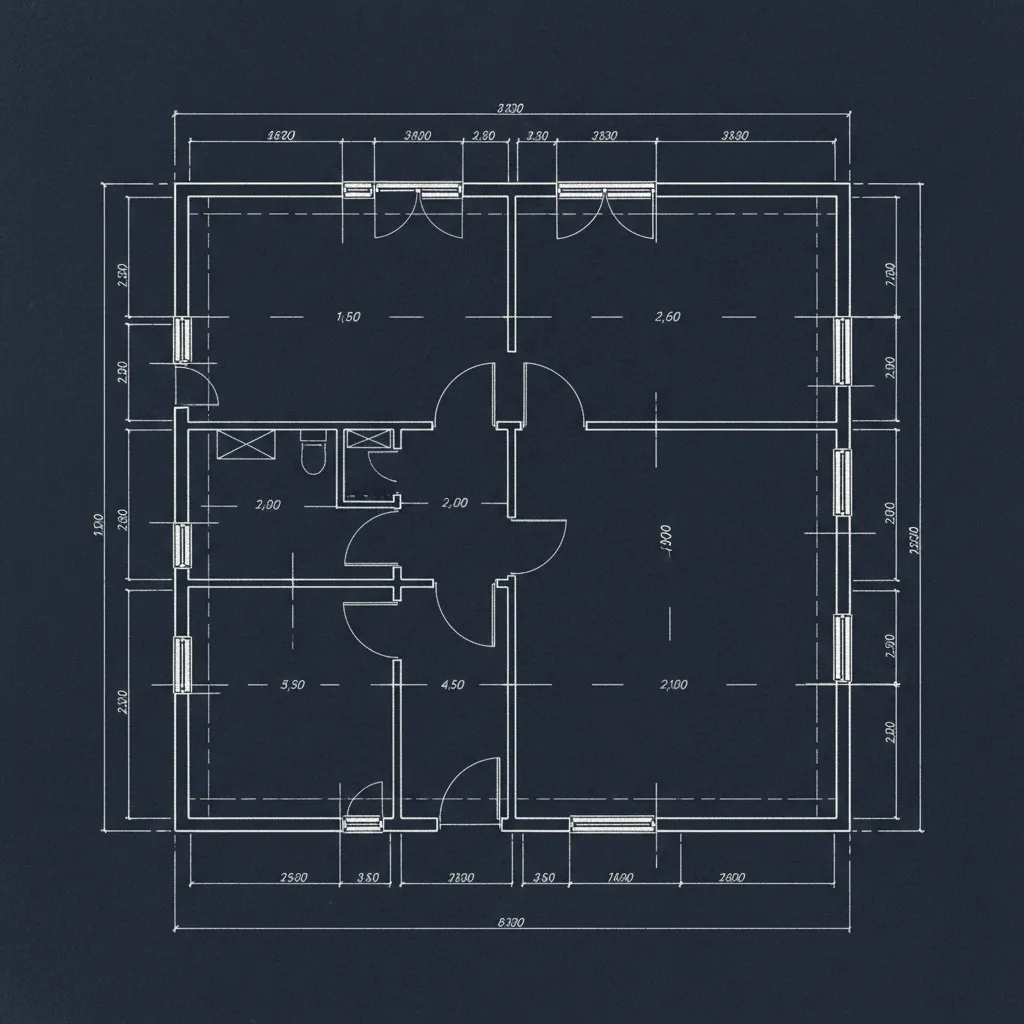

Dimensioning Rules for Accurate Plans

Key Insight: Dimensions should explain the building structure, not just individual objects.

Clear dimensioning is one of the most critical parts of professional architectural floor plan guidelines.

Architects usually use a layered dimension system:

1. First dimension line: openings such as doors and windows
2. Second dimension line: wall segments
3. Third dimension line: overall building dimensions

This layered approach allows contractors to verify measurements quickly.

Best practices include:

1. Always dimension to structural faces of walls
2. Avoid duplicate dimensions
3. Keep dimension strings outside the plan whenever possible
4. Align dimension text consistently

If you are experimenting with digital workflows or testing layouts in a simple layout generator used for quick architectural planning, maintaining these dimensioning rules will dramatically improve drawing clarity.

save pin

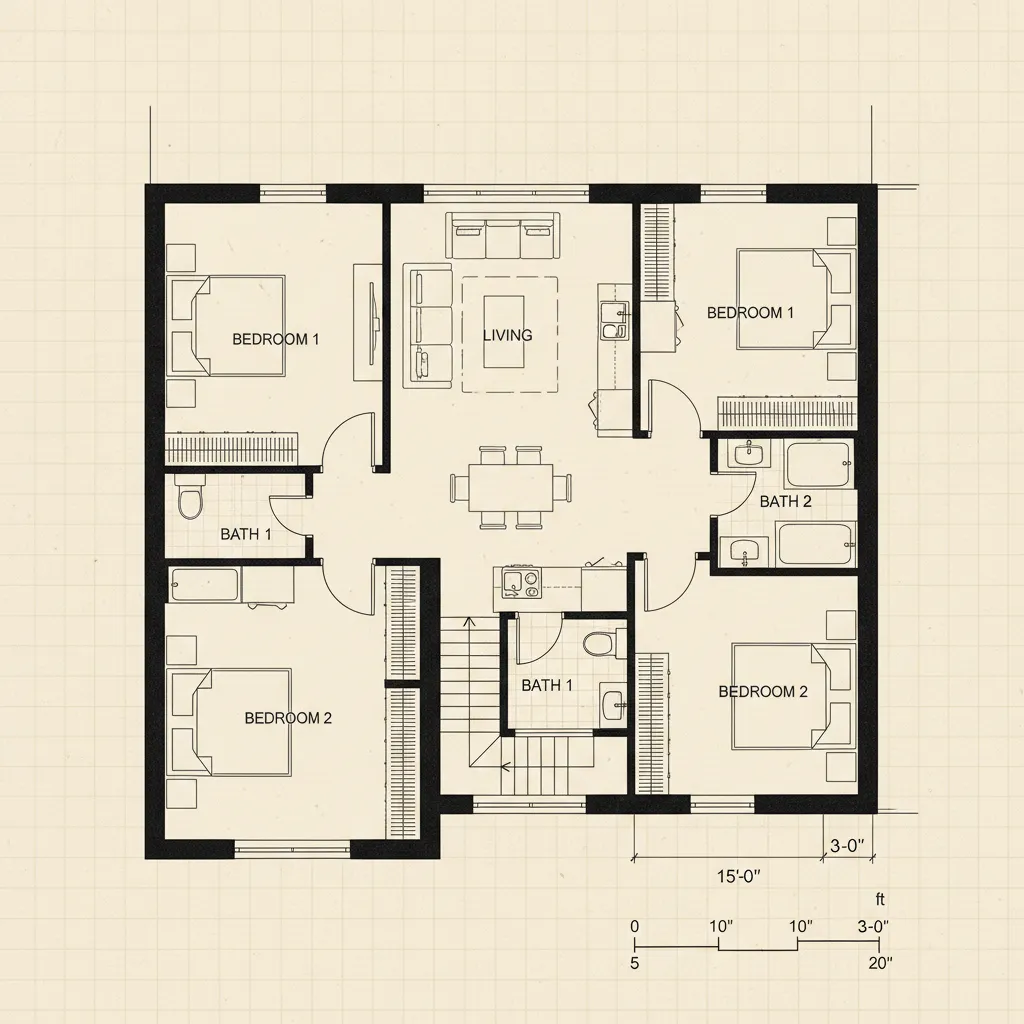

Scale Conventions Used in Residential and Commercial Plans

Key Insight: Standard drawing scales ensure plans can be accurately interpreted regardless of paper size.

Scale tells the viewer how real-world measurements translate to the drawing.

Common architectural floor plan scales include:

1. 1/4" = 1'-0" (typical residential floor plans)
2. 1/8" = 1'-0" (larger buildings)
3. 1/16" = 1'-0" (site or large commercial layouts)

Residential plans usually rely on 1/4" scale because it balances readability with sheet size.

Commercial projects often shift to smaller scales due to building complexity.

One overlooked issue is digital scaling. Many designers preview drawings on screens where scale becomes meaningless unless printing standards are maintained.

This is why architects always include a graphic scale bar on drawings.

Maintaining Consistency Across Multiple Drawings

Key Insight: Consistency across all drawing sheets is essential for professional documentation.

A full architectural set may contain dozens of sheets—floor plans, reflected ceiling plans, sections, elevations, and details.

If line weights, symbols, or dimensions change between sheets, the documentation becomes confusing.

Professional firms maintain consistency through:

1. Standardized CAD or BIM templates
2. Shared symbol libraries
3. Layer naming conventions
4. Drawing sheet standards

Visualization also plays a role. Many designers now generate preview perspectives using tools that help turn architectural layouts into realistic interior render previews, ensuring spatial decisions match what the plan communicates.

save pin

Answer Box

Professional architectural drafting standards ensure floor plans communicate construction information clearly and consistently. By using standardized line weights, symbols, dimensions, and scales, architects create drawings that builders and engineers can interpret accurately without confusion.

Final Summary

1. Architectural drafting standards create a universal visual language for construction drawings.
2. Line weight hierarchy improves clarity and reading speed.
3. Standard symbols communicate complex information efficiently.
4. Layered dimension systems reduce construction errors.
5. Consistent scales and templates keep multi-sheet drawings reliable.

FAQ

What are architectural drafting standards for floor plans?

They are industry conventions that define how walls, symbols, dimensions, and scales appear in architectural drawings to ensure universal readability.

Why are line weights important in architecture drawings?

Line weights create visual hierarchy, allowing readers to distinguish structural elements, fixtures, and annotations quickly.

What symbols are commonly used in floor plans?

Common symbols include door swings, window markers, section cuts, elevation markers, grid bubbles, and stair direction arrows.

How do architects dimension floor plans?

Architects typically use layered dimension strings showing openings, wall segments, and overall building dimensions.

What scale is used for residential floor plans?

Most residential plans use 1/4 inch equals 1 foot because it balances clarity and drawing size.

How do architects draw 2D floor plans professionally?

They follow architectural drafting standards for floor plans, including line weight hierarchy, standard symbols, and consistent dimensioning methods.

Do digital tools replace architectural drafting standards?

No. Software changes the workflow, but the drafting conventions themselves remain essential.

What are common mistakes in architectural floor plan drawings?

Inconsistent line weights, missing dimensions, unclear symbols, and incorrect scale usage are among the most frequent issues.
