Architectural Scale Ruler vs Graphic Scale Bar in Floor Plans: Understand when architects rely on numeric scales, scale rulers, or graphic scale bars to keep floor plan measurements accurate.

Direct Answer

An architectural scale ruler and a graphic scale bar both communicate measurement in floor plans, but they serve different purposes. The architectural scale (such as 1/4" = 1'-0") tells you the drawing ratio, while a graphic scale bar provides a visual measurement reference that remains accurate even if the drawing is resized. In professional architectural documents, graphic scales are often preferred because they protect measurement accuracy during printing or digital resizing.

Quick Takeaways

1. An architectural scale expresses the drawing ratio, such as 1/8 inch equals 1 foot.
2. A graphic scale bar provides a visual ruler embedded directly in the drawing.
3. Graphic scales remain accurate even if the drawing is resized.
4. Architectural rulers are mainly tools for drafting and measuring scaled drawings.
5. Construction documents typically include both written and graphic scale references.

Introduction

One of the most common questions I hear from junior designers is about the difference between an architectural scale ruler and a graphic scale bar. They sound similar, but they solve two completely different problems in floor plan drawings.

After working on residential projects, office layouts, and renovation documentation for more than a decade, I’ve seen how misunderstanding scale can create expensive mistakes. A contractor misreading a scaled drawing can shift wall placement by inches—or worse, feet.

The confusion usually comes from three related concepts:

1. Numeric scale ratios (like 1/4" = 1'-0")
2. Architectural scale rulers used for measuring drawings
3. Graphic scale bars embedded inside the drawing

When people start experimenting with digital planning tools or layout software, these concepts become even more important. Many beginners learn scale visually by experimenting with tools that simulate real drafting workflows, such as interactive planners that help users build a scaled 3D floor plan layout from scratch.

In this guide, I’ll break down exactly how each scale method works, where architects use them, and the hidden pitfalls most articles don’t mention.

save pin

What Is an Architectural Scale in Floor Plan Drawings

Key Insight: An architectural scale defines the proportional relationship between the drawing and the real building.

In traditional drafting, scale is written as a ratio. The most common examples in architectural drawings include:

1. 1/8" = 1'-0" (large building layouts)
2. 1/4" = 1'-0" (standard floor plans)
3. 1/2" = 1'-0" (detailed plans)
4. 1" = 1'-0" (construction details)

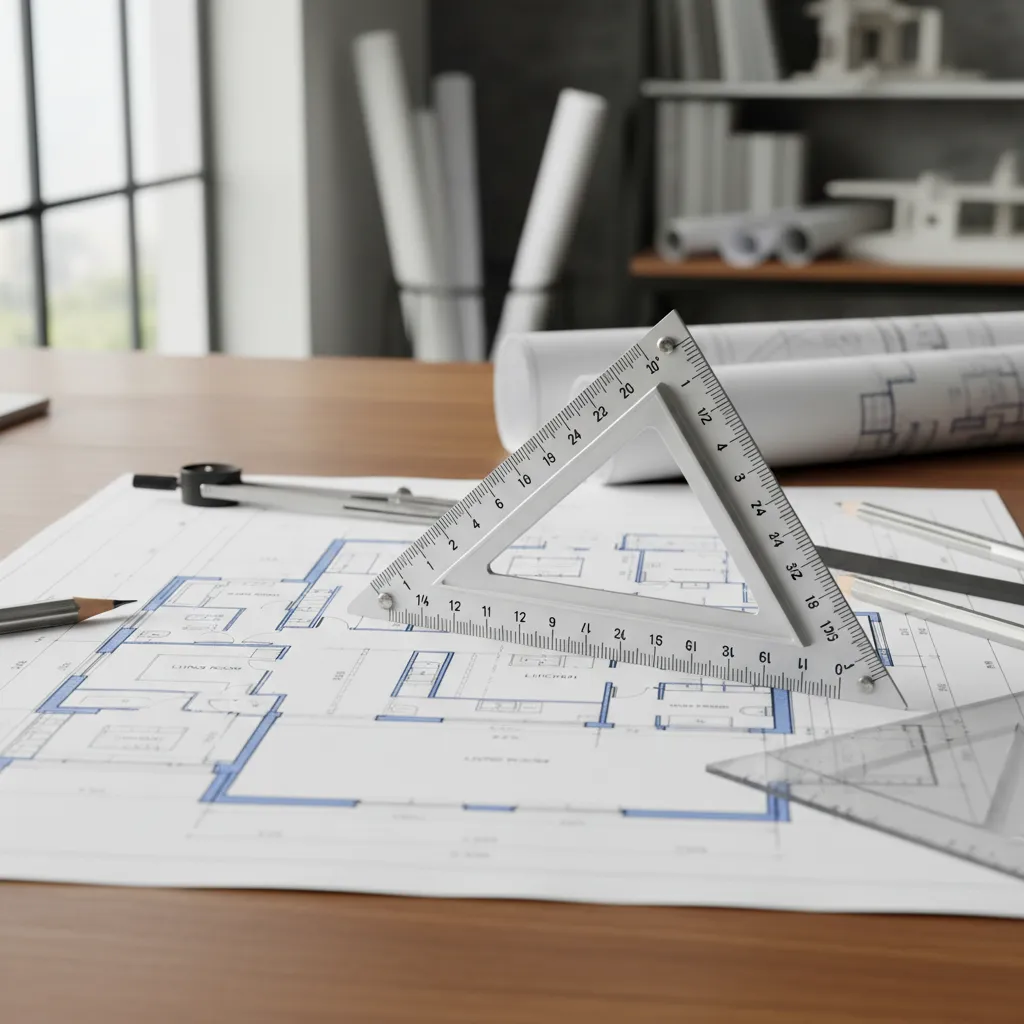

An architectural scale ruler is a triangular measuring tool with multiple calibrated edges. Each side corresponds to one drawing scale, allowing designers to quickly measure distances directly from the drawing.

However, there’s a limitation most beginners overlook.

If the drawing is resized—printed incorrectly, exported to PDF, or scaled during layout—the written scale becomes unreliable. I’ve seen this happen frequently when floor plans are shared through email or embedded in presentations.

That’s exactly why professional drawing sets rarely rely on written scale alone.

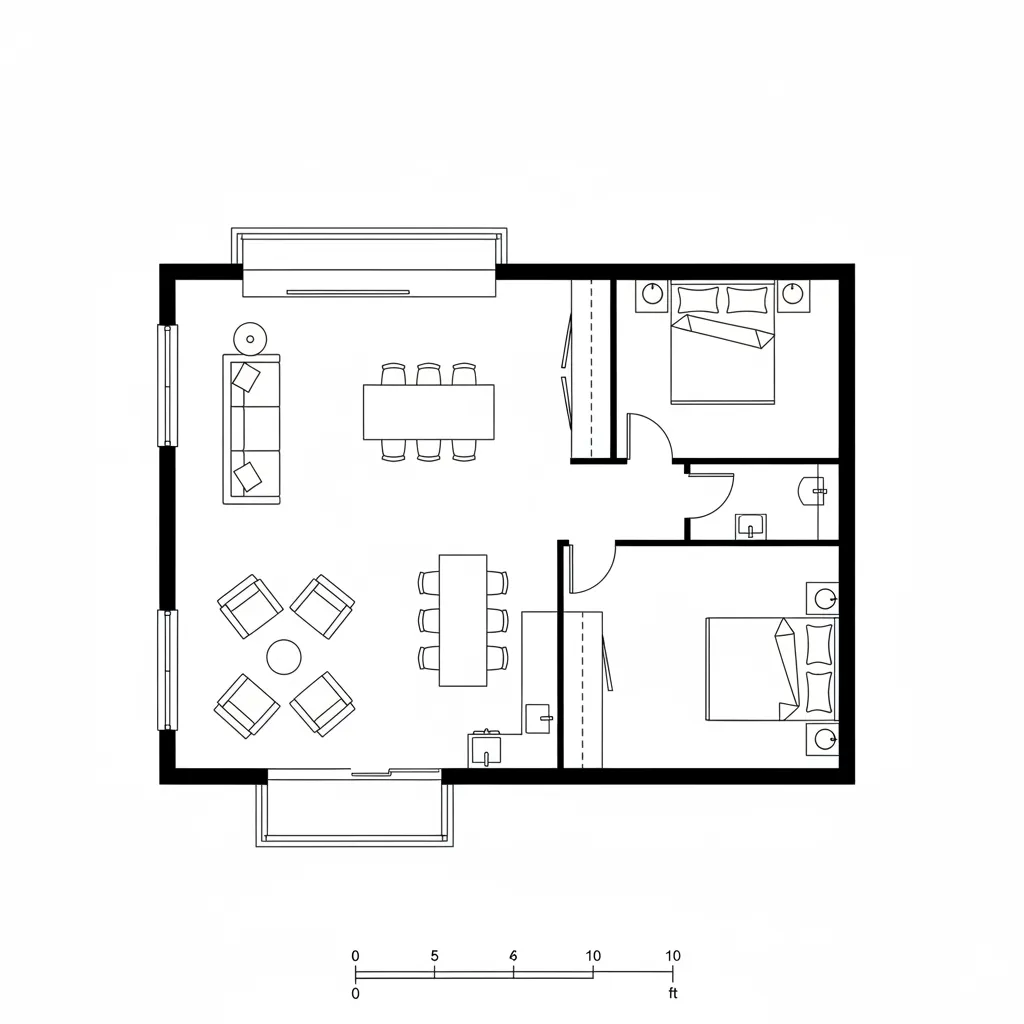

What Is a Graphic Scale Bar and How It Works

Key Insight: A graphic scale bar is a visual ruler embedded in the drawing that remains accurate even when the drawing size changes.

A graphic scale bar typically looks like a segmented line labeled with real-world measurements.

Example format:

1. 0
2. 5 ft
3. 10 ft
4. 15 ft

The crucial difference is that the scale bar resizes proportionally with the drawing. If a PDF is enlarged or reduced, the bar shrinks or expands with it, maintaining the correct relationship.

Because of this property, graphic scales are widely used in:

1. Architectural construction drawings
2. Site plans
3. Urban planning documents
4. Engineering maps

Digital design workflows also reinforce this approach. Many modern planning environments automatically generate scale bars when users experiment with room layouts and spatial measurements, helping maintain dimensional accuracy even during iterative design.

save pin

Architectural Ruler vs Graphic Scale Bar Key Differences

Key Insight: The architectural ruler is a measurement tool, while the graphic scale bar is a visual reference embedded in the drawing.

Although they’re often confused, these tools operate in completely different contexts.

1. Architectural Scale Ruler
2. Used by designers and builders to measure distances on scaled drawings.
3. Graphic Scale Bar
4. Printed directly on the drawing so anyone can visually measure distances.

Key comparison:

1. Scale ruler is external to the drawing
2. Graphic scale bar is embedded in the drawing
3. Rulers depend on correct printing
4. Scale bars remain accurate after resizing
5. Rulers require training to read
6. Scale bars are intuitive for anyone

In my experience reviewing construction sets, graphic scales dramatically reduce measurement confusion when drawings circulate between architects, engineers, contractors, and clients.

save pin

Advantages and Limitations of Each Scale Method

Key Insight: The most reliable architectural drawings combine written scales, graphic scale bars, and accurate dimension labels.

Each scale representation method solves a different problem.

Architectural Scale (Written Ratio)

1. Quickly communicates drawing proportion
2. Standard across architecture and construction
3. Works well with professional scale rulers
4. Becomes inaccurate if drawings are resized

Graphic Scale Bar

1. Remains accurate when drawings are resized
2. Easy for non‑experts to understand
3. Essential for site plans and maps
4. Requires careful placement and labeling

Dimension Labels

1. Provide the most precise measurements
2. Critical for construction documentation
3. Must be updated if plans change

In practice, construction drawings typically include all three layers of scale communication.

Answer Box

The architectural scale ratio explains the drawing’s measurement relationship, while a graphic scale bar provides a visual reference that stays accurate when the drawing is resized. Professional architectural plans usually include both methods to prevent measurement errors.

When Architects Prefer Graphic Scales in Construction Documents

Key Insight: Graphic scales are preferred in documents that may be printed, shared digitally, or resized across different formats.

In real project workflows, drawings pass through many stages:

1. Digital design files
2. PDF documentation
3. Printed plan sets
4. Reduced-size field copies

If a contractor prints a drawing at 90% scale, the numeric ratio becomes incorrect. But the graphic scale bar still reflects the correct measurement proportion.

This is why professional drawing sets almost always include the note:

"Do not scale drawings. Use dimensions only."Ironically, people still scale them. The graphic bar acts as a safety net.

save pin

How This Choice Affects Plan Readability and Measurement

Key Insight: The best floor plans communicate scale visually, numerically, and dimensionally at the same time.

Readable drawings reduce interpretation errors. Based on project reviews I’ve conducted, most scale-related mistakes happen when:

1. Only a written scale is included
2. Scale bars are missing
3. Dimensions are incomplete
4. PDF exports distort the original size

A well-prepared floor plan typically includes:

1. A written architectural scale
2. A graphic scale bar
3. Clear dimension strings
4. Consistent grid references

When designers experiment with layout concepts early in the process, visual planning tools can help reinforce spatial scale before documentation begins. Many teams prototype layouts digitally to test furniture placement and spatial proportions quickly, which reduces scaling mistakes later in CAD drawings.

Final Summary

1. An architectural scale ratio communicates the drawing’s measurement relationship.
2. A graphic scale bar provides a visual measurement reference.
3. Graphic scales remain accurate when drawings are resized.
4. Professional floor plans usually include both scale types.
5. Dimensions remain the most precise construction reference.

FAQ

What is the difference between a scale bar and numeric scale?

A numeric scale expresses a ratio like 1/4" = 1'-0", while a graphic scale bar visually represents measured distances directly in the drawing.

Why do architects include graphic scales in floor plans?

Graphic scales remain accurate even if the drawing is resized during printing or digital sharing.

Can you measure drawings using only an architectural scale ruler?

Yes, but only if the drawing was printed at the correct scale. Otherwise measurements will be inaccurate.

When should a graphic scale be used in a floor plan?

Graphic scales are especially useful in construction documents, site plans, and any drawings likely to be resized.

Do professional architectural drawings include both scale types?

Yes. Most construction documents include a written architectural scale and a graphic scale bar.

What is the most common floor plan scale?

Residential floor plans are commonly drawn at 1/4" = 1'-0" in the United States.

Is a graphic scale necessary in digital floor plans?

Yes, because PDFs and images can be resized, making written scales unreliable.

What mistakes happen when scale bars are missing?

Contractors may estimate measurements incorrectly if drawings are resized or printed improperly.
