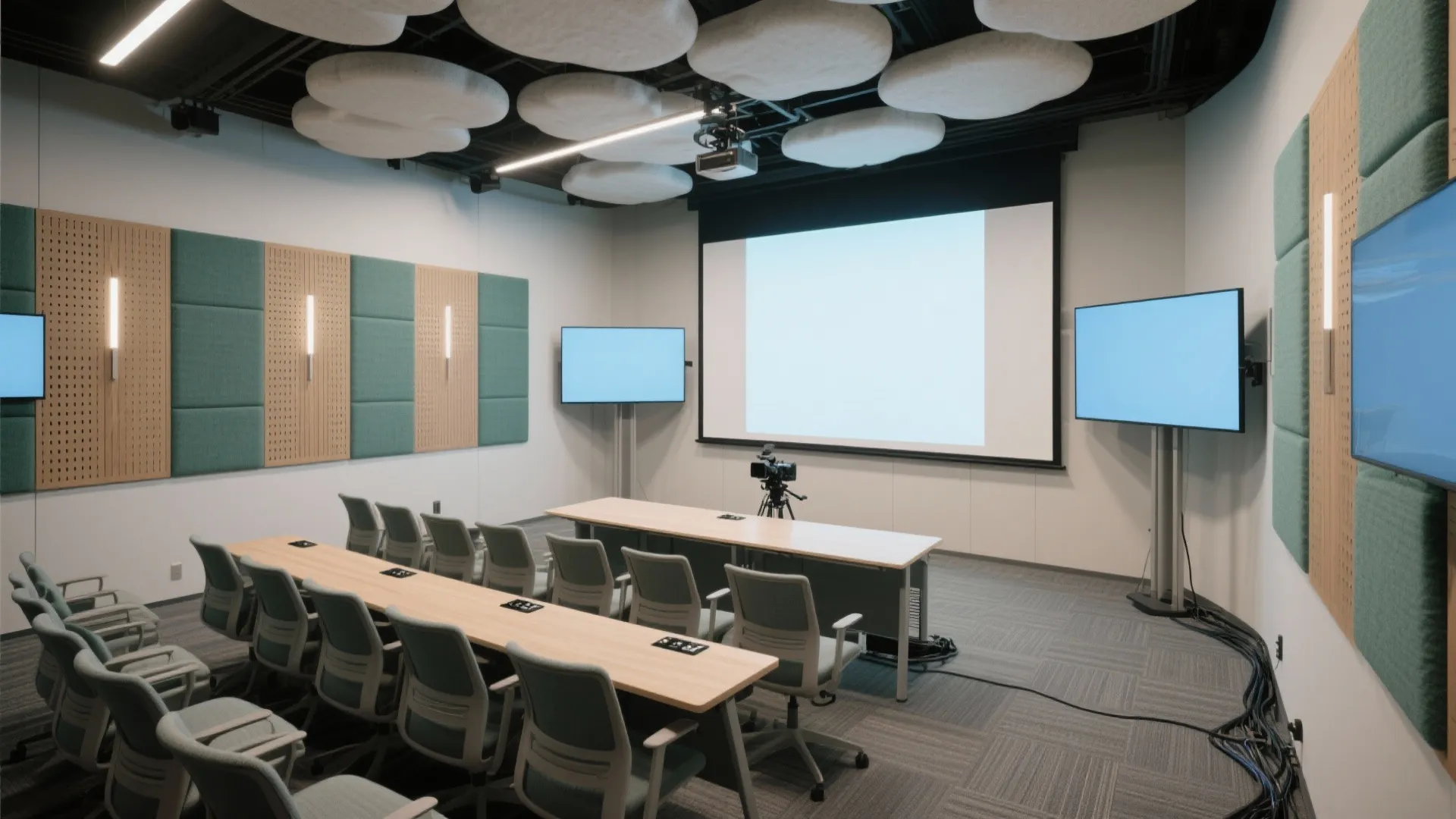

Audio Visual Room Plan: Essential Guide for Perfect Setups: 1 Minute to Master the Fast-Track Audio Visual Room Plan

I plan audio-visual rooms to behave like instruments—tuned for clarity, comfort, and control. A successful AV setup isn’t just gear; it’s sightlines, lighting, acoustic absorption, cable management, furniture ergonomics, and workflow logic working in sync. Below is a design-first guide that scales from small conference rooms to training centers and hybrid studios.

In rooms designed for focused collaboration, acoustic control and lighting are non-negotiable. Steelcase research found that noise is a top disruptor of focus in the office, with workers losing time to auditory distractions that reduce comprehension and recall. WELL v2 references also underscore glare management and circadian lighting impacts on cognitive performance and mood across workspaces, informing illuminance targets and spectral quality choices. To anchor decisions, I use task illuminance around 300–500 lux for general AV rooms and tighten glare with UGR ≤19 on primary viewing axes per IES guidance; speech transmission is stabilized when reverberation times hover near 0.4–0.6 seconds for small rooms.

Color choices amplify performance. Verywell Mind’s color psychology overview notes that cool hues like blue and desaturated green promote calm and focus, while saturated reds heighten arousal and can increase perceived urgency—useful for training but risky for long-form presentations. I reserve warm accents at the periphery and keep wall fields in neutral LRV 50–70 to sustain contrast and prevent visual fatigue. For layout exploration and seating sightline simulations, an interior layout planner helps visualize throw distances and viewer cones using a room layout tool.

Core Spatial Ratios and Viewing Geometry

In presentation rooms, sightlines determine comprehension long before audio does. I target the 1.5–2.0x image height viewing distance for detail-heavy content; maximum viewing distance rarely exceeds 6x image height for legible text. Maintain the screen top at or slightly below a 30° vertical viewing angle from the back row to reduce neck strain. Avoid extreme lateral viewing beyond ~45° off-axis for primary seats; beyond that, reserve for overflow or casual seating.

Acoustic Strategy: Absorption, Diffusion, and Isolation

Small AV rooms benefit from controlled decay and clean speech transmission. A balanced mix of broadband absorption and mild diffusion keeps energy from pooling while preventing a dead-sounding space. I allocate approximately 20–30% of wall area to absorptive treatment in compact rooms, prioritizing first reflection points, the rear wall, and ceiling cloud zones over presenters. Bass traps in corners stabilize low-frequency response for rooms that double as streaming or recording studios. Keep mechanical noise floors below NC/NR 25–30 to avoid masking speech; door sweeps, seals, and staggered stud walls help isolate adjacent noise sources.

Lighting: Layered Control for Screens and Faces

Glare kills contrast. Use indirect ambient lighting with dimmable circuits and add vertical facial illumination around 150–250 lux for presenters—enough for cameras without washing out screens. Spectral content matters: 3000–3500K is comfortable for mixed-use, while 4000K works for high-focus environments. Shield luminaires to keep luminance out of the screen field of view, and apply matte finishes on surfaces near displays. Reference WELL v2 lighting preconditions to align with visual comfort and circadian considerations.

Ergonomics and Human Factors

People should move with minimal friction. Seat spacing around 900–1000 mm in rows prevents knee collisions and allows equipment passage. For standing presenters, provide anti-fatigue flooring and a clear 1200 mm radius around the primary control zone. Mount displays so the center sits roughly 1.1–1.3 m above finished floor for seated audiences. Cable paths should follow predictable trunk lines with strain relief and labeled terminations; nothing should run across circulation routes.

Technology Layout and Workflow Logic

Plan the technology stack as a service loop. Place the control interface where the presenter naturally stands, with clear sight to both the audience and the screen. Rack equipment should allow front and rear access with 900 mm service clearance. If video conferencing is core, center the camera at eye height aligned to the primary seating axis; avoid extreme high/low angles that distort gaze. Microphones should triangulate coverage: ceiling arrays for flexibility or table goosenecks for predictable pickup. Speakers perform best when decoupled from walls and aimed for even SPL across seats; use mild delay fills for deep rooms.

Material Selection and Sustainability

Pick finishes like you’re tuning an instrument: acoustically absorptive but durable and low-VOC. Fabric-wrapped panels, perforated timber with acoustic backing, and carpet tiles with dense underlayment tame reflections and footsteps. Use matte, low specular finishes near screens, and select stain-resistant textiles for high-traffic environments. Where feasible, leverage modular components for easy maintenance and extended life cycles.

Color Psychology and Visual Balance

Color supports behavior. Blues and cool neutrals calm; warm highlights energize. Keep high-chroma colors away from the front wall to preserve image contrast. Balance wall-light-dark rhythms across the room to avoid perceptual tilting; a slightly darker rear wall helps anchor attention forward. For training spaces requiring high engagement, introduce controlled warm elements on seating or back-of-room panels without affecting the screen surround.

Seating, Circulation, and Sightline Refinement

Seating geometry should read the content strategy. Staggered rows with gentle curvature improve lateral sightlines. Maintain at least 1000–1200 mm primary aisles and 800 mm secondary paths. If the room doubles for workshops, opt for mobile seating with lockable casters. For more precise planning and throw-distance checks, use an interior layout planner or layout simulation tool to model screen size, projector lens ratios, and row offsets.

Acoustic Comfort in Hybrid and VC Rooms

Hybrid spaces require acoustic symmetry: consistent microphone pickup and speaker placement that avoids hot spots. Keep reverberation low enough for clarity while retaining some room tone to avoid clinical sound on calls. Manage tone with absorbers behind the camera and diffusers on lateral walls. Test intelligibility using short speech recordings at multiple seats and listen for flutter echoes; treat opposing parallel planes to eliminate them.

Power, Connectivity, and Cable Discipline

Cable chaos ruins good rooms. Deliver power at the table edge or floor boxes aligned with typical device placement. Use color-coded Velcro for service loops and label everything—panel IDs, port numbers, and cable types. Keep low-voltage away from high-voltage runs to avoid interference, and reserve a path for future expansion. Provide network redundancy on critical devices and isolated VLANs for AV hardware.

Commissioning and Calibration

Commissioning locks in performance. Calibrate display brightness and color temperature to the room’s ambient light; set projector black levels against screen reflectance. EQ microphones for natural speech and notch any persistent room modes. Walk every seat with a short checklist: glare, contrast, speech clarity, and comfort. Track fixes, not just findings.

Maintenance and Lifecycle Strategy

Design for everyday resilience. Choose components with accessible service portals, keep spare lamps and cables in labeled bins, and schedule quarterly checks. Documentation should mirror reality: rack elevations, cable maps, and seating plans updated after every change. When a room evolves—more cameras, different seating—revisit acoustics and lighting rather than bolting on tech without spatial retuning.

FAQ

Q1: What illuminance levels work best for AV rooms?

A1: Aim for 300–500 lux ambient with dimmable control and keep facial lighting around 150–250 lux for presenters. These ranges support visibility while preserving display contrast; reference IES visual comfort guidance and WELL v2 lighting considerations.

Q2: How do I size the screen for legible text?

A2: Start with viewing distance: keep primary seats within 1.5–2.0x image height for detail work, and avoid exceeding 6x image height for general legibility. Ensure the top viewing angle from the back row stays at or below roughly 30°.

Q3: What reverberation time should I target?

A3: For small AV rooms, 0.4–0.6 seconds balances clarity and naturalness. Use absorbers at first reflection points and add diffusion to keep the room lively without echo.

Q4: How do I prevent screen glare?

A4: Use indirect lighting, shield luminaires from the screen, specify matte finishes nearby, and place windows behind viewers rather than behind the presenter. Keep Unified Glare Rating near or below 19 on primary viewing axes.

Q5: Where should I place microphones and cameras?

A5: Center the camera around eye height aligned to the main seating axis. Use ceiling arrays for flexible rooms or table microphones for predictable pickup. Triangulate mic coverage and avoid fans or HVAC outlets close to mics.

Q6: What seating layout improves sightlines?

A6: Stagger rows with gentle curvature and limit lateral viewing beyond ~45° off-axis for primary seats. Maintain 1000–1200 mm for main aisles and 800 mm for secondary paths to avoid bottlenecks.

Q7: How do color choices affect AV performance?

A7: Cool, muted hues support focus; high-chroma colors near the screen reduce perceived contrast. Keep neutral wall fields in LRV 50–70 and reserve warm accents for peripheral zones to sustain visual comfort.

Q8: What’s the best way to manage cables?

A8: Route power and data through floor boxes or table edges, use labeled and color-coded ties, separate low-voltage from high-voltage runs, and plan service loops for maintenance without disrupting circulation.

Q9: How do I handle noise from adjacent spaces?

A9: Add door seals and sweeps, use staggered stud or double-layer walls where needed, and keep the room’s noise floor under NC/NR 25–30 so speech isn’t masked.

Q10: What’s the maintenance rhythm for AV rooms?

A10: Quarter-year checks for lighting levels, acoustic conditions, cable integrity, and calibration. Keep spares, update documentation after changes, and re-tune when the room’s function evolves.
