Audio Visual Room Plan: The Ultimate Guide to Smart AV Spaces: Fast-Track Guide to Designing an Audio Visual Room in Minutes

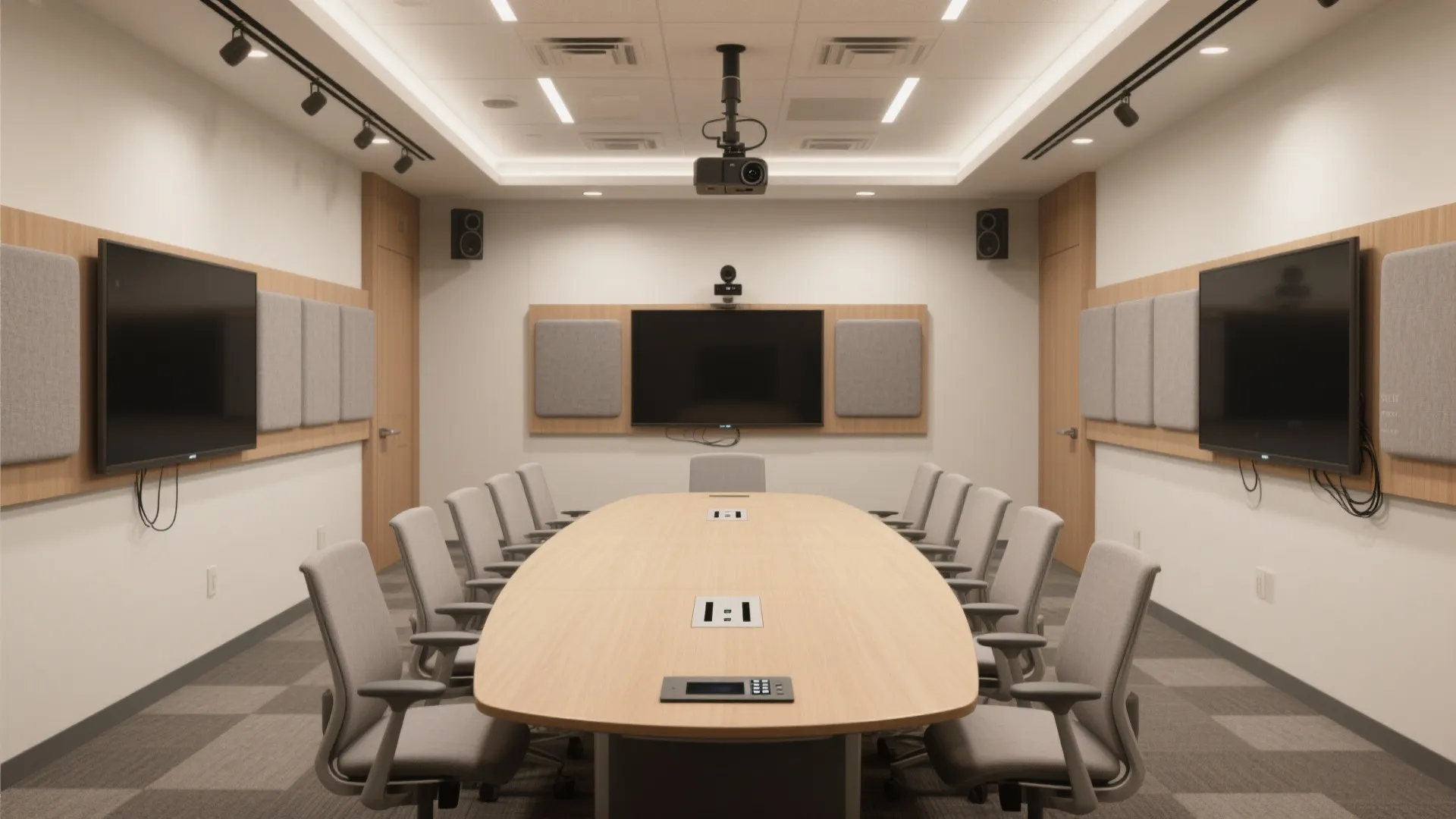

I’ve planned and built AV rooms across workplaces, schools, and hybrid collaboration hubs for over a decade. A smart AV space succeeds when technology, acoustics, lighting, ergonomics, and workflow all align. Done right, meetings start on time, voices sound natural, screens read clearly, and people stay engaged without fatigue.

Performance needs to be measurable. WELL v2 recommends background noise levels for collaboration spaces around NC 35–40 to reduce vocal strain and improve intelligibility (v2.wellcertified.com). Steelcase research found that 70% of workers report noise negatively impacts their ability to focus, underscoring the need for acoustic planning (steelcase.com/research). Meeting visibility also depends on illuminance: IES recommends approximately 300–500 lux for multipurpose rooms, with careful control of glare near screens (ies.org/standards).

Color and psychology matter too. Studies summarized by Verywell Mind indicate that cooler hues can support focus while warm accents improve social comfort (verywellmind.com/color-psychology). That balance helps long sessions feel coherent without feeling sterile. With these baselines, we can stitch technology into a room that supports clarity, trust, and ease of use.

Core Principles of an AV-Ready Room

• Sightlines: Screens should meet a minimum 1.5–2.0x screen height viewing distance for legibility of 8–10pt UI elements, with the front row no closer than 1.2x screen height to avoid scanning fatigue.

• Sound: Target RT60 around 0.5–0.7 seconds for small conference rooms and 0.7–1.0 seconds for larger spaces to maintain speech intelligibility.

• Lighting: Keep 300–500 lux on task planes, while limiting vertical illuminance on screens to avoid washout; aim for 2700–3500K for social comfort, 3500–4000K for focus work.

• Ergonomics: Camera height near eye level (1.2–1.5m off floor), microphone coverage that avoids table center clatter, and seating posture supported by chairs with adjustable lumbar and armrests.

• Workflow: Single-touch start, clear cable management, and intuitive input switching prevent setup delays and reduce cognitive load.

Room Typologies and Layout Strategies

Every AV room begins with purpose. Small huddle rooms (2–6 people) prioritize quick connect, table microphones, all-in-one soundbars, and simplified UI. Mid-size conference rooms (6–12 people) benefit from dual displays, zoned microphone arrays, and ceiling speakers. Training and multipurpose rooms require modular furniture, distributed audio, and flexible lighting scenes. When planning layouts, a room layout tool can rapidly visualize seating, camera angles, and screen heights while simulating varied table shapes and viewing distances: room layout tool.

Acoustics: Control the Room Before You Add More Gear

Acoustic comfort is the foundation. I start with perimeter absorption—0.6–0.8 NRC panels at first reflection points—and complement with diffusers at the rear wall to maintain natural speech energy. Carpet tiles with felt underlayment reduce footfall noise without compromising maintenance. Door sweeps and gasketing protect speech privacy, especially for rooms near circulation zones. Integrating soft seating and bookshelves strategically can improve low-mid absorption while keeping the space visually warm.

Lighting: Avoid Washout, Preserve Expression

Lighting must serve both camera imaging and human comfort. Place fixtures so faces receive soft, frontal illumination at 200–300 lux while keeping screens free from specular glare. Pair indirect ambient lighting with dimmable task lights. Tunable white between 3000–4000K allows quick scene shifts from relaxed discussion to high-attention presentations. Avoid downlights directly above cameras or displays; use wall washers to balance vertical illuminance and enhance legibility of content.

Displays and Sightlines

For single-display rooms, a 75–98" screen suits medium spaces; dual 65–86" screens are ideal for content plus gallery views. Maintain centerline to the dominant seating axis and set eye height alignment so viewers aren’t craning. If ceiling height is limited, consider low-profile mounts and slightly raise seating platforms in the back row to protect sightlines. Keep the bottom of the screen approximately 90–110cm above finished floor for seated audiences.

Cameras, Microphones, and Speakers

Camera framing should include the primary table and participants’ eye lines. PTZ cameras suit multi-mode rooms; fixed wide-angle cameras work in huddle spaces. Microphone arrays (ceiling or tabletop) should avoid HVAC diffusers to reduce noise pickup. Ceiling speakers evenly distributed in a grid produce a natural sound field; for presentation-heavy rooms, add front fills. Always test AEC (acoustic echo cancellation) with typical furniture and occupancy to ensure clean duplex audio.

Control and Connectivity

Control systems need fewer decisions and clearer feedback. I use a single home screen: Join, Present, Room Settings. Cable management should present just the essentials—HDMI/USB-C—with labeled pass-throughs. Networked AV (AV-over-IP) is powerful, but only if IT collaborates on QoS and VLAN segmentation early. Provide a manual override for lights and audio levels, with presets for daily scenarios: Meeting, Presentation, Video Call, Recording.

Furniture, Ergonomics, and Human Factors

Select tables with rounded corners to ease movement and avoid pressure points. Chairs should adjust in seat height, back tilt, and arm height to support varied postures over long sessions. Place cameras near eye level and avoid seating layouts where participants must turn 90° to face screens; a shallow arc or chevron layout keeps bodies relaxed. Cable cubbies in the center third of the table minimize reach. For accessibility, maintain 900mm clear pathways and 1200mm turning radii.

Material Selection and Sustainability

High-NRC acoustic panels, recycled PET felt, and low-VOC finishes improve air quality and acoustic performance without excess cost. Sustainable casework with FSC-certified substrates and durable laminates stands up to heavy use. Use fabric-wrapped panels with removable covers for easy maintenance. Finishes should support camera imaging—medium-value neutral walls keep skin tones natural and reduce auto-exposure hunting.

Commissioning and Testing

Before handing over a room, run a commissioning checklist: measure RT60, background NC levels, and illuminance across key tasks; verify camera presets and audio routing; confirm network bandwidth and device updates; test content legibility from all seats; and capture a baseline recording for quality comparison. Train a small group of room champions who can assist peers and provide feedback loops for continuous improvement.

Future-Proofing and Trends for 2024–2025

Rooms are shifting toward AI-assisted camera framing, beamforming microphones, and flexible tables with integrated power. But the human factors stay constant. Ergonomic seating, low-glare lighting, and coherent workflows matter more as meetings blend remote and in-room presence. Consider modular acoustic elements and tunable lighting so you can pivot modes—standup, hybrid presentation, workshop—without swapping the entire system.

Tips 1: Quick Planning Checklist

• Define primary use (hybrid meetings, training, presentations).

• Set acoustic goals (RT60, NC), lighting targets (lux, CCT).

• Map sightlines and screen sizes to seating distances.

• Place cameras at eye level and avoid extreme angles.

• Choose microphone/speaker layouts that match room size.

• Program simple presets and label cables clearly.

• Validate with a layout simulation early: interior layout planner.

FAQ

Q1: What illuminance level prevents screen washout in AV rooms?

A1: Keep general ambient around 300–500 lux per IES guidance, and reduce direct light on screens using wall washers or indirect fixtures to avoid glare and washout.

Q2: How do I set acoustic targets for a small conference room?

A2: Aim for RT60 of 0.5–0.7 seconds and background noise near NC 35–40, aligning with WELL v2 recommendations for collaboration comfort.

Q3: What screen size fits a 10–12 person room?

A3: A single 86–98" display or dual 75" displays usually provide legibility, with viewing distances around 1.5–2.0x screen height for content clarity.

Q4: Where should cameras be placed for natural eye contact?

A4: Near eye level on the primary sightline, typically 1.2–1.5m from the floor; avoid high ceiling mounts that force participants to look up.

Q5: Do color choices affect attention and mood?

A5: Yes. Cooler neutrals support focus, warm accents improve social comfort. This aligns with summarized findings on color psychology reported by Verywell Mind.

Q6: How do I reduce echo without over-deadening the room?

A6: Combine absorption at first reflection points with rear-wall diffusion. Add soft finishes and felt underlays, and balance materials so speech stays lively but controlled.

Q7: What control interface prevents meeting delays?

A7: A simplified home screen—Join, Present, Room Settings—paired with presets (Meeting, Presentation, Video Call) minimizes decision friction and setup errors.

Q8: How should I manage cables and connectivity?

A8: Provide labeled HDMI/USB-C at reachable table cubbies, secure under-table cable trays, and offer wireless options. Keep redundancy, but avoid clutter.

Q9: What seating layout works best for hybrid calls?

A9: A shallow arc or chevron keeps faces toward the camera and screens, improving engagement and making remote participants feel included.

Q10: How do I plan for future AV upgrades?

A10: Specify modular furniture, ceiling grids that accept additional speakers or mics, and tunable lighting. Coordinate with IT on network capacity for AV-over-IP growth.
