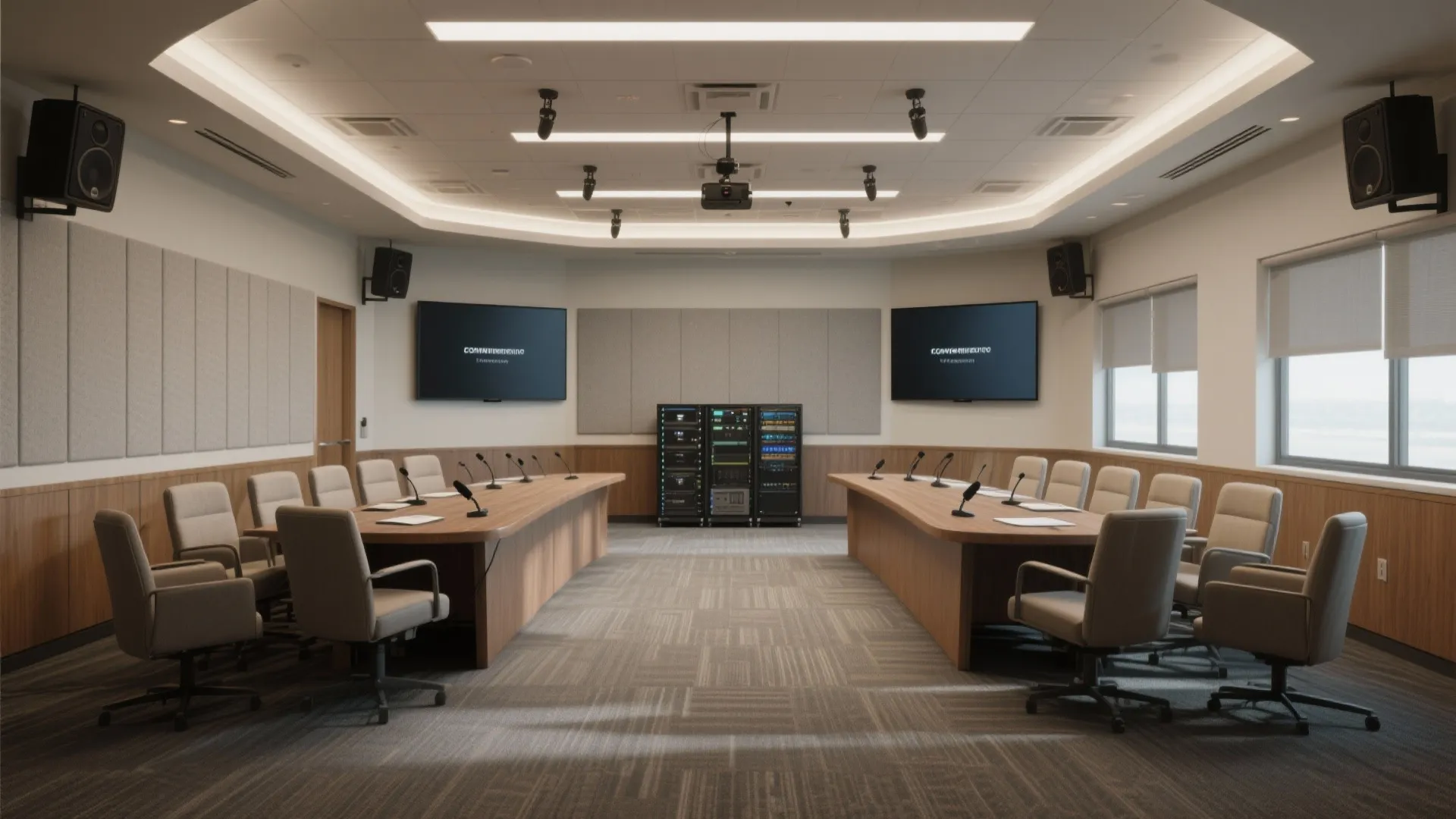

Audio Visual Room Plan: Ultimate Guide for Smart Spaces: Fast-Track Guide to Planning a Perfect AV Room in Just Minutes

I design AV rooms to feel effortless: voices are clear, visuals stay crisp, and controls never get in the way. The best plans balance acoustics, lighting, sightlines, ergonomics, and technology infrastructure—then stress-test them for real behaviors. In recent projects, optimizing reverberation time (RT60) to 0.3–0.6 seconds dramatically improved speech intelligibility for hybrid meetings, aligning with typical recommendations for small to mid-size conferencing spaces.

Data reinforces the value of an integrated approach. WELL v2 emphasizes acoustic comfort as a core performance component and sets pathways for controlling background noise and reverberation. Steelcase research found teams spend 70–80% of their day communicating in various modes—formal, informal, digital, hybrid—making clear audio and adaptable layouts mission-critical in collaboration spaces. I plan AV rooms to accommodate these modes by combining acoustic zoning, multi-layer lighting, and ergonomic seating with precise device placement.

Audio visual rooms fail most often at the basics: glare on displays, flutter echo between parallel walls, poor mic capture due to ceiling height or incorrect table geometry, and cable chaos that hinders maintenance. I fix these by tuning room proportions, using sound-absorbing finishes at first reflection points, and setting strict cable management with labeled patch panels. For layout exploration and sightline checks, a room layout tool helps visualize seating arcs, camera angles, and screen heights before construction.

Core Principles for AV Room Planning

• Acoustic intent first: target RT60 around 0.3–0.6 s for small/medium rooms; use broadband absorption on walls/ceiling, bass traps in corners if low-frequency buildup appears. Position mics outside major HVAC paths; isolate noisy equipment racks.

• Sightlines and screen legibility: mount displays so the bottom edge sits roughly 40–48 inches above the finished floor for seated audiences; keep the farthest viewer within 6× the display height for text-heavy content. Avoid window backlighting behind presenters.

• Lighting layers: direct glare kills contrast. Combine dimmable ambient, vertical illuminance on faces (around 150–250 lux), and low-glare task lighting. Bias lighting behind displays can reduce eye strain and perceived flicker. Follow IES recommendations for illuminance and glare control in visual task areas.

• Ergonomic seating and table geometry: trapezoid or gentle arc tables improve sightlines and mic pickup; keep seat-to-seat spacing at 30–34 inches center-to-center. Maintain 36–42 inches circulation around seating for accessibility.

• Infrastructure and thermal management: oversize conduit paths and cable trays for future devices; provide conditioned airflow for equipment racks (front-to-back). Separate power and signal where possible and ground carefully to avoid hum.

Acoustics: Materials, Layout, and RT60 Tuning

I start with a simple acoustic map: primary reflection points near speakers and microphones, parallel surfaces to break, and corner zones likely to develop low-frequency buildup. Wall panels with NRC 0.8+, acoustic ceilings (CAC and NRC balanced), and upholstered seating help tame mid-to-high frequencies. If glass is essential, I mix it with micro-perforated absorbers or fabric-wrapped panels opposite the glazing.

Flooring matters: carpet with dense underlayment reduces footfall noise and helps manage mid-frequency reverberation. For rooms with video conferencing, avoid ceiling mics directly under supply diffusers. Keep HVAC noise below NC 25–30 for speech-critical spaces; it’s a simple guardrail that keeps mics clean and processing minimal.

Lighting for Cameras and Eyes

Camera-friendly lighting is even, vertical, and low-glare. I aim for 150–250 lux vertical on faces with 300–500 lux ambient horizontal light. Color temperature around 3500–4000K reads natural on camera and blends with daylight. Avoid point sources casting harsh shadows; use diffusers and wide beam angles. Dim to match screen brightness during presentations to maintain contrast without fatiguing the eyes.

For rooms with windows, control daylight with dual-layer shades (sheer + blackout). Specify luminaires with low UGR to protect against glare in multi-display setups. Lighting controls should include preset scenes: presentation, video call, collaboration, and cleaning—each tuned for both human visual comfort and camera sensor performance.

Display Size, Mounting, and Viewing Geometry

Correct sizing curbs eye strain and back-row disengagement. For content with mixed text and visuals, keep the furthest viewer within 6× display height; for dense data, shrink to 4×. If using projection, set screen gain and ambient light control to preserve contrast; avoid white walls that bloom and lift black levels.

Mount cameras at eye height and angled slightly downward to minimize foreshortening. Keep the camera axis aligned with the primary speaking position; avoid extreme side mounting that breaks eye contact. If using multiple displays for hybrid calls, set the remote participant screen close to the camera to support natural gaze alignment.

Microphones, Speakers, and DSP Strategy

Table microphones perform best in quieter rooms with controlled reflections; ceiling arrays excel in flexible seating but demand careful room tuning. I keep the direct path between talkers and mics free of reflective surfaces and use acoustic panels at the first reflection points. For speakers, choose patterns that avoid ceiling splash and back-wall build; steer energy toward listeners. DSP should provide echo cancellation, adaptive noise reduction, and automatic mixing—then be locked with simple presets that end users cannot accidentally override.

Furniture, Circulation, and Behavior Patterns

Behavior dictates layout. In decision-heavy meetings, I prefer arc seating that keeps every participant within a 30–35° visual cone to the main display and camera. For training rooms, staggered rows with ample knee space and 42-inch aisles improve entry/exit flow. When rooms need to flip, mobile tables on low-noise casters and modular power bring flexibility without cable clutter. To visualize alternate seating patterns quickly, test scenarios with an interior layout planner like this layout simulation tool.

Control Systems and User Experience

Interfaces should be minimal: join call, share screen, adjust volume, change lighting scene. Anything beyond that lives in a protected admin layer. I place touch panels near the presenter’s position and add a secondary control at the entrance for quick setup. Status LEDs on mics and cameras reduce uncertainty; clear cable paths and labeled ports prevent last-minute hunts. Interaction Design Foundation research consistently shows simpler, discoverable controls reduce cognitive load and error rates—the same logic applies to AV rooms.

Power, Cabling, and Future-Proofing

Plan generous conduit runs with gentle bends; separate AC power from data cabling; provide PoE for endpoints to reduce wall warts. Rack layouts should leave 30–40% headroom for future gear, with hot/cold aisle logic and sensor-based thermal alarms. I use ceiling service zones to keep floors clean and set a backbone for quick device swaps. Labeling conventions, change logs, and QR-coded diagrams save time when something fails five minutes before a board meeting.

Sustainability and Material Choices

Acoustic materials now arrive with recycled content and low-VOC certifications; fabric-wrapped panels and mineral fiber ceilings can meet both acoustics and environmental goals. LED luminaires with high efficacy cut heat loads and energy use, helping HVAC quiet down. Choose durable surfaces that absorb rather than reflect sound—textured wallcoverings, wood slats with acoustic backers, and carpet tiles with closed-loop recycling.

Commissioning and Testing

I never hand over an AV room without a commissioning script: measure RT60, STI or CIS for speech clarity, check illuminance at face level and on workplanes, test sightlines from every seat, validate camera framing, and run a full call with typical participants. Document DSP presets, lighting scenes, and equipment maps. Train power users and leave a micro playbook near the entrance. Rooms that launch with confident users tend to stay in good shape.

Tips 1: Quick Sizing and Placement Rules

• Keep farthest viewer within 6× screen height for mixed content; 4× for data-heavy.

• Aim for RT60 ~0.3–0.6 s in small/medium rooms; HVAC noise NC ≤ 30.

• Provide 36–42 inches circulation in aisles; seat spacing 30–34 inches center-to-center.

• Vertical face illuminance 150–250 lux; ambient horizontal 300–500 lux; CCT 3500–4000K.

• Mount cameras near eye level, aligned with primary speaking position.

FAQ

1) What reverberation time should I target for a small conference room?

Generally 0.3–0.6 seconds. This range supports clear speech without deadening the room and aligns with typical acoustic recommendations for spoken communication spaces.

2) How bright should lighting be for video calls?

Keep vertical illuminance on faces around 150–250 lux and ambient horizontal 300–500 lux. Use diffused, low-glare fixtures and set color temperature near 3500–4000K for natural camera rendering.

3) What table shape improves mic pickup and sightlines?

Gentle arcs or trapezoids help maintain consistent distances to microphones and cleaner sightlines to cameras and displays, reducing cross-talk and off-axis viewing.

4) How do I size the display for the back row?

Ensure the farthest viewer sits within 6× display height for mixed content. For spreadsheets or dense data, reduce to 4× to keep text legible.

5) How can I reduce echo without over-treating the room?

Place broadband absorption at first reflection points, add a reasonable amount of soft finishes (carpet, upholstered seating), and break parallel walls with diffusive elements. Measure RT60 and adjust incrementally.

6) Where should the camera be mounted?

Near eye level, slightly angled toward the primary speaking position. Keep the remote participant display close to the camera to support natural eye contact.

7) What background noise level is acceptable for speech?

Target NC 25–30 for conferencing spaces. Low mechanical noise reduces the burden on microphones and DSP while keeping voices clear.

8) How do I plan for future AV upgrades?

Oversize conduits, reserve rack space, separate power and signal, and document everything. Provide PoE where practical and maintain labeled cable paths with QR-coded diagrams.

9) Which standards or research can guide design decisions?

Use WELL v2 for acoustic and comfort strategies and reference workplace behavior insights from Steelcase research to align room features with collaboration patterns.

10) What lighting controls are most useful?

Preset scenes for presentation, video call, collaboration, and cleaning. Include easy dimming and keep advanced settings in an admin layer to prevent accidental changes.

11) How do I address glare on displays?

Control daylight with dual-layer shades, select luminaires with low UGR, apply bias lighting behind displays, and tune ambient levels to support contrast.

12) What’s the best way to manage cables neatly?

Plan trunk paths with trays and conduits, use labeled patch panels, keep power and data separated, and standardize strain relief and service loops at endpoints.
