Best Practices for Waterproofing Exterior Door Installations: Professional installation techniques that prevent water intrusion and extend the lifespan of exterior doors

Direct Answer

The best way to waterproof an exterior door installation is to control water in layers: a sloped sill pan, properly sequenced flashing, integration with the wall’s water‑resistive barrier, and flexible sealants that accommodate movement. When these layers are installed in the correct order, water is directed outward rather than trapped behind the door frame.

Most long‑term failures happen not because materials are missing, but because the drainage path was blocked or flashing layers were reversed.

Quick Takeaways

1. Waterproofing works best when flashing layers follow a shingle‑style overlap from bottom to top.
2. A sloped sill pan is the most critical defense against water intrusion.
3. Exterior doors fail more often from trapped water than from direct rain exposure.
4. Flexible flashing tapes outperform rigid materials in complex wall assemblies.
5. Climate conditions should always influence flashing materials and sealant choices.

Introduction

After installing hundreds of entry systems across different climates, one pattern becomes obvious: exterior doors rarely fail because the door itself is poorly built. They fail because the waterproofing around the door opening was treated as an afterthought.

Proper exterior door waterproofing is really about managing water movement. Rain, wind pressure, and condensation constantly push moisture toward openings in the building envelope. If the flashing sequence isn't designed to guide that moisture outward, water will find its way behind trim, inside framing, and eventually into the interior wall cavity.

I’ve seen beautifully built homes develop rot around entry doors within just a few years simply because the sill pan wasn't sloped or the flashing tape was installed in the wrong order.

Before discussing advanced techniques, it helps to visualize how a properly assembled entry opening works. If you want to see a simplified breakdown of door opening structure, this step‑by‑step visualization of structural opening layoutshelps illustrate how water pathways form around framed openings.

The rest of this guide walks through the installation practices professionals use to prevent water intrusion around exterior doors—and the subtle mistakes that cause long‑term failures.

save pin

Key Principles of Moisture Control Around Exterior Doors

Key Insight: Exterior door waterproofing works only when every layer directs water outward, never inward.

Moisture control is based on a simple principle used throughout building science: each upper layer must overlap the layer below it so gravity can do the work.

However, many installations fail because installers try to “seal everything.” Completely sealing an exterior door opening often traps water instead of draining it.

Core moisture‑management principles:

1. Always create a drainage path at the sill.
2. Install flashing in shingle sequence (bottom → sides → top).
3. Allow water to escape rather than relying only on sealants.
4. Integrate flashing with the wall's WRB system.

According to building envelope guidance from the International Association of Certified Home Inspectors, most moisture damage around doors begins at the sill area where water becomes trapped against framing.

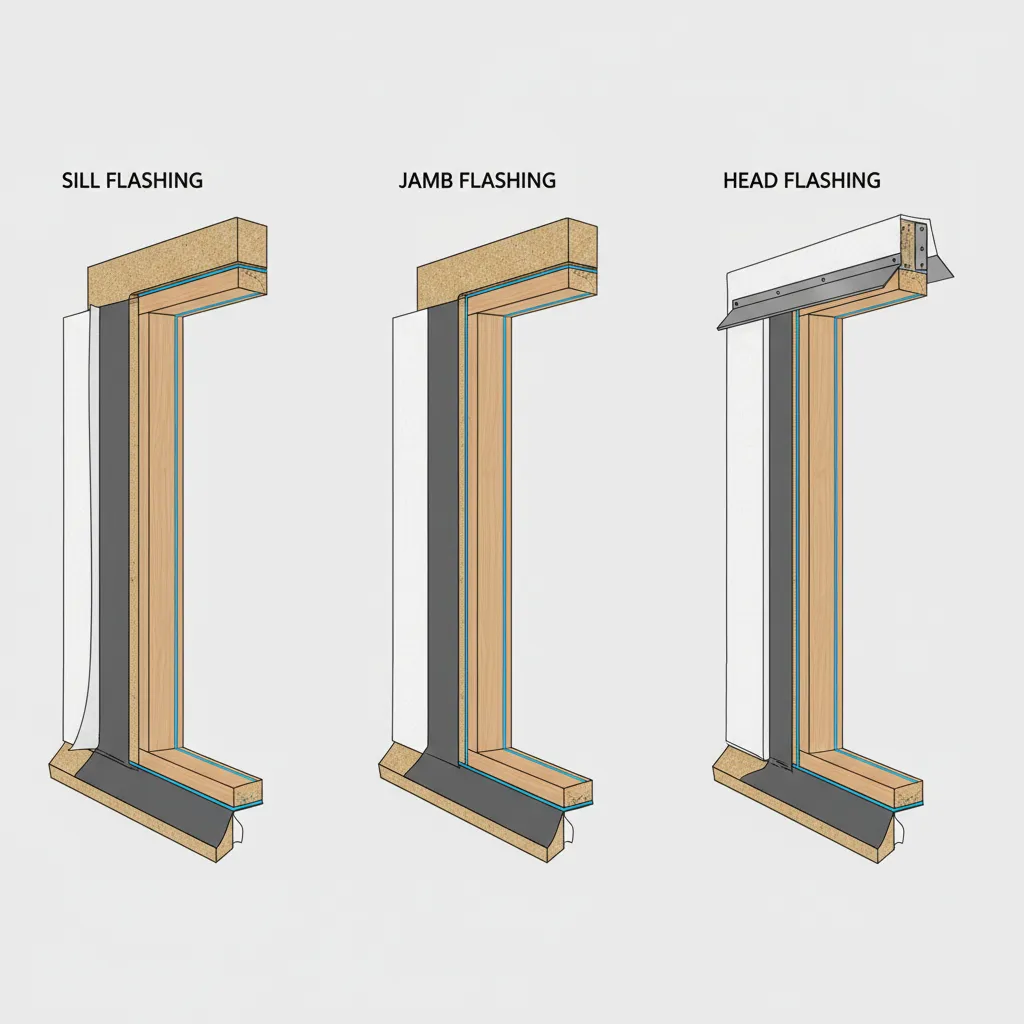

Proper Flashing Layer Order for Maximum Protection

Key Insight: The order of flashing installation matters more than the material itself.

Many contractors debate tape versus metal flashing, but in practice, the sequence of installation has a much bigger impact on waterproofing performance.

Correct flashing sequence:

1. Install sloped sill pan or formed sill flashing.
2. Apply self‑adhesive flashing on jambs.
3. Install door unit.
4. Apply head flashing above the door.
5. Overlap with WRB or house wrap.

When flashing layers follow this sequence, water naturally sheds outward instead of entering the wall cavity.

One common mistake I see on job sites is reversing the order of head flashing and house wrap. That small error can direct rainwater directly behind the door frame.

save pin

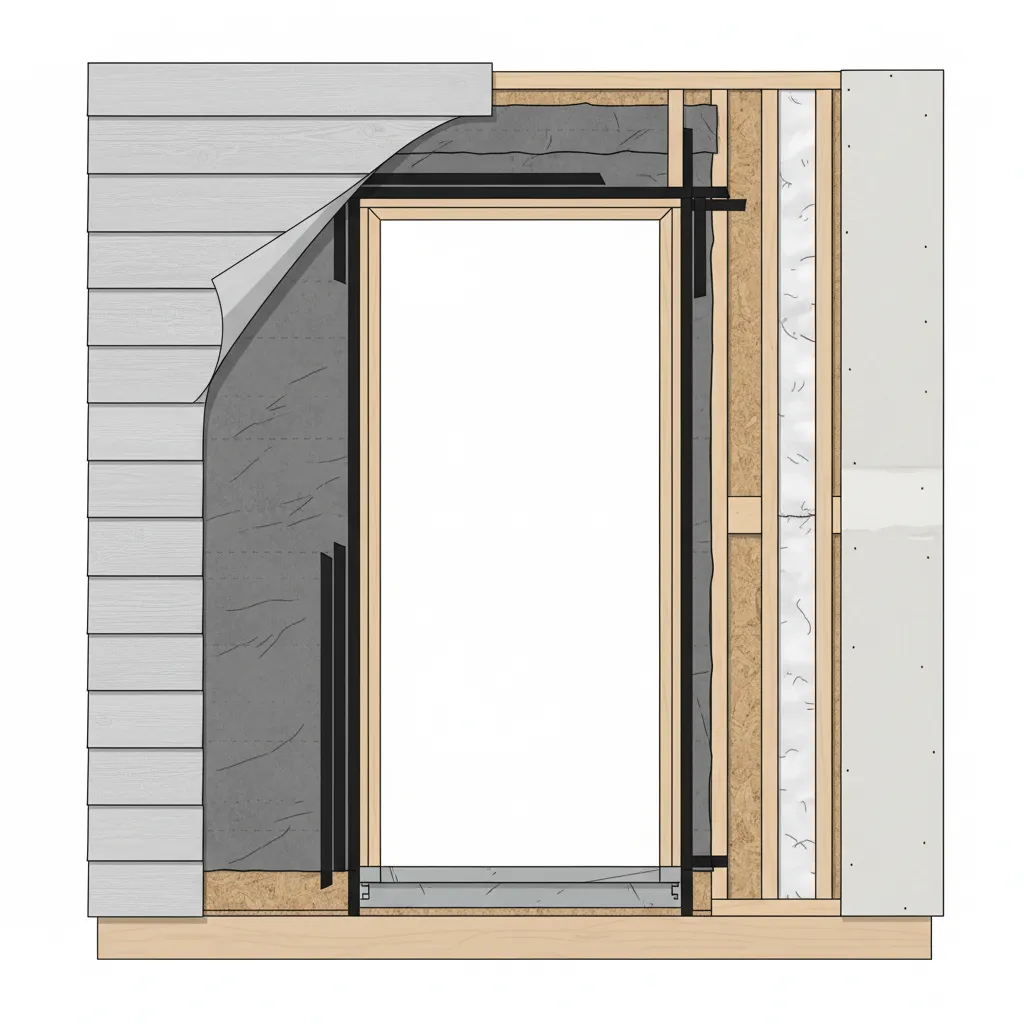

Integrating Door Flashing with House Wrap and WRB

Key Insight: The door opening must function as part of the wall’s water‑resistive barrier system—not as an isolated installation.

The water‑resistive barrier (WRB) surrounding the door should tie directly into the flashing system so water traveling down the wall continues safely past the door opening.

Professional integration method:

1. Cut WRB in an inverted “Y” pattern at the door opening.
2. Wrap the side flaps into the rough opening.
3. Temporarily tape the upper flap upward.
4. Install door flashing layers.
5. Fold the top WRB flap down over the head flashing.

This technique creates the same drainage effect used in roof shingles.

Design teams sometimes model envelope assemblies to ensure water movement paths are uninterrupted. This interactive planning workflow for visualizing structural openings can help illustrate how door assemblies interact with surrounding walls.

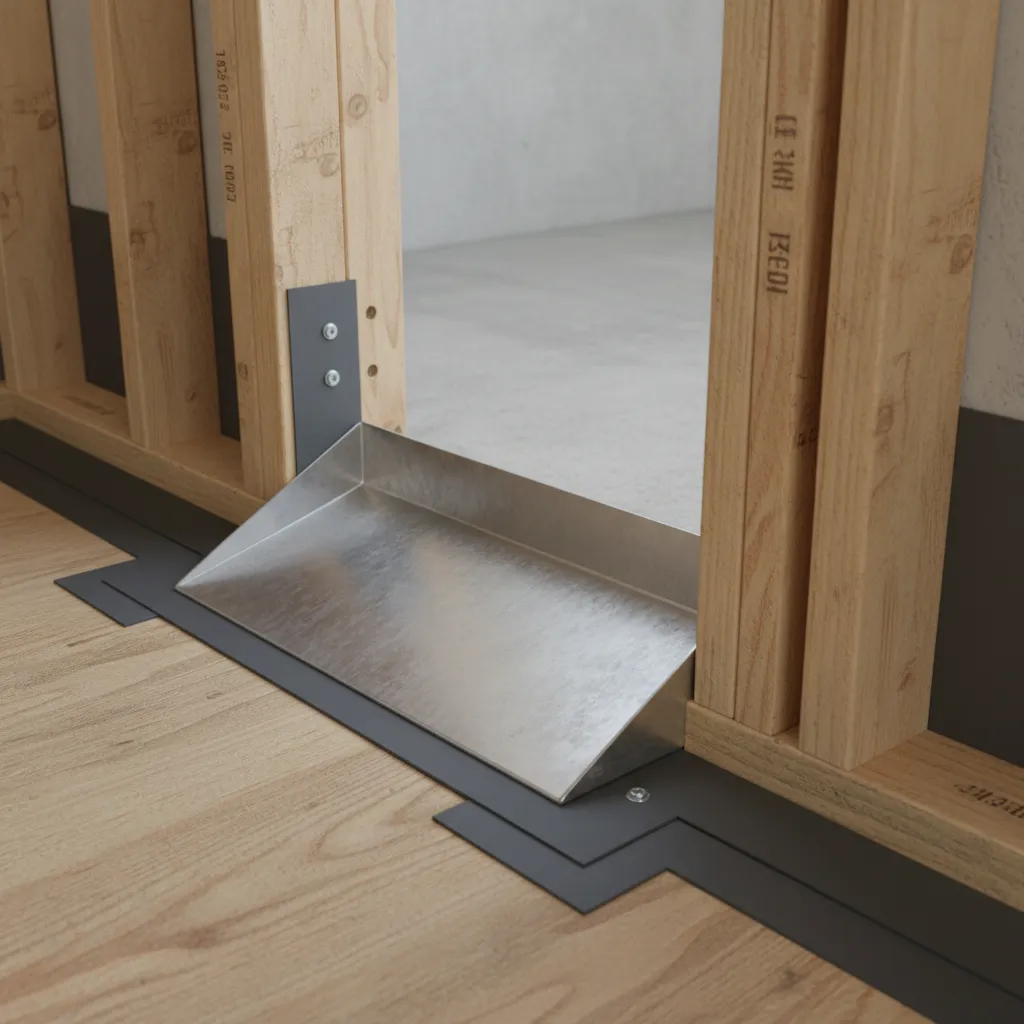

Optimizing Sill Pan Installation for Drainage

Key Insight: The sill pan is the single most important waterproofing element in an exterior door installation.

If water enters around the door frame—and it eventually will—the sill pan determines whether the water drains outside or into the framing.

Best sill pan practices:

1. Use a rigid or formed pan with a back dam.
2. Ensure the sill slopes outward.
3. Extend flashing up the jambs at least 6 inches.
4. Avoid blocking drainage with excessive sealant.

In coastal and heavy‑rain climates, some builders add a second layer of flexible flashing beneath the pan for redundancy.

save pin

Sealing Strategies That Prevent Long-Term Water Damage

Key Insight: Sealants should support the drainage system—not replace it.

Many installers rely heavily on caulking around exterior doors. The problem is that sealants degrade over time, especially when exposed to UV and temperature changes.

Better sealing strategy:

1. Use sealant only at critical air‑sealing points.
2. Leave drainage paths open at the sill.
3. Use backer rods to control joint depth.
4. Select high‑movement exterior sealants.

In professional installations, sealants are treated as a secondary barrier. The flashing and drainage layers remain the primary defense.

Climate-Specific Waterproofing Techniques

Key Insight: Waterproofing methods must adapt to regional weather patterns.

A door installation that works well in a dry climate may fail quickly in regions with wind‑driven rain or freeze‑thaw cycles.

Climate considerations:

1. Cold climates: prioritize air sealing and condensation control.
2. Coastal climates: use corrosion‑resistant flashing materials.
3. Rainy climates: increase flashing overlap distances.
4. Hot climates: choose UV‑resistant flashing tapes.

When planning door placement and envelope details in new homes, designers often review how entry points interact with surrounding walls and structural openings. This visual planning approach for organizing door and wall layouts helps identify areas where water exposure may be higher.

Answer Box

The most reliable way to prevent water intrusion around exterior doors is layered protection: a sloped sill pan, properly sequenced flashing, WRB integration, and limited sealant use. When installed in shingle order, these layers guide water safely outside the building envelope.

Checklist for a Fully Waterproof Exterior Door Installation

Key Insight: A systematic checklist prevents the small mistakes that cause major moisture failures.

Professional installation checklist:

1. Sill pan installed and sloped outward
2. Jamb flashing applied before door placement
3. Door frame fastened without compressing flashing
4. Head flashing installed above door
5. WRB layered over head flashing
6. Sealant applied only where needed

Following a checklist dramatically reduces installation defects—especially on large construction projects where multiple crews may work on the same opening.

Final Summary

1. Exterior door waterproofing depends on layered moisture control.
2. Sill pans are the most critical drainage component.
3. Flashing sequence is more important than flashing material.
4. Sealants should support drainage systems, not replace them.
5. Climate conditions must influence installation techniques.

FAQ

What is the best way to waterproof an exterior door opening?

Use a sloped sill pan, layered flashing, WRB integration, and flexible sealants. These components direct water away from the wall assembly.

Should exterior doors have flashing?

Yes. Flashing prevents water intrusion around exterior doors by directing moisture away from the rough opening.

How do professionals prevent water intrusion around exterior doors?

Professionals install sill pans, flashing tapes, head flashing, and integrate the door with the building’s water‑resistive barrier.

Is caulking enough to waterproof a door?

No. Caulking alone eventually fails. Proper waterproofing requires flashing and drainage layers.

What type of flashing is best for door waterproofing?

Self‑adhesive flashing tapes combined with metal head flashing provide durable protection.

How much should flashing overlap around doors?

Most professionals recommend at least 2–4 inches of overlap to ensure proper drainage.

Why do exterior doors leak during heavy rain?

Leaks usually occur when flashing layers are installed in the wrong order or when the sill pan is missing.

Can improper flashing damage door framing?

Yes. Long‑term water intrusion can rot framing, insulation, and drywall surrounding the door.
