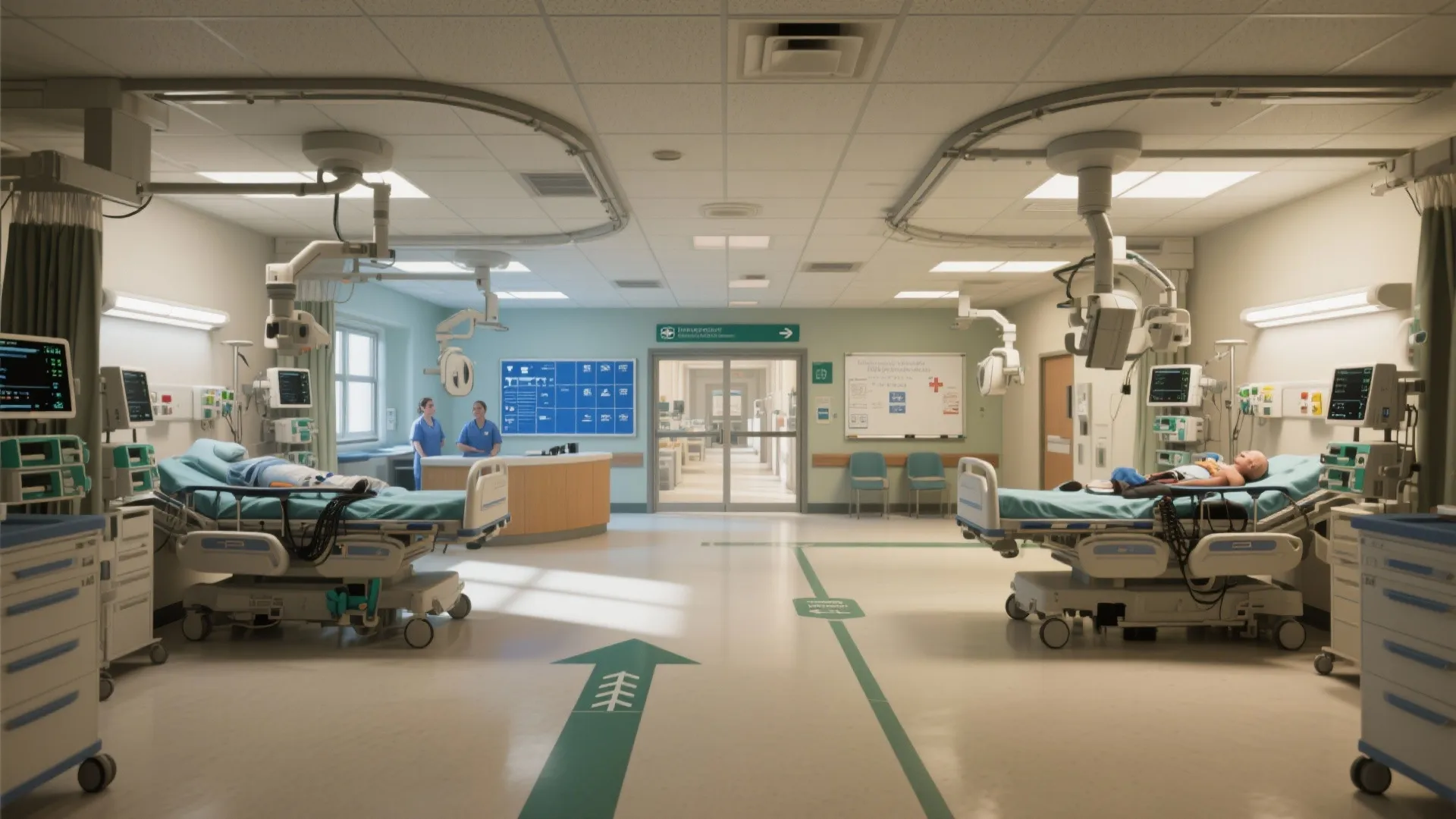

Casualty Room Design: Tips for Efficient Emergency Spaces: 1 Minute to Smarter Casualty Room Layouts for Rapid Response

Casualty rooms demand a design language that anticipates urgency, compresses decision-making time, and protects staff and patients under stress. My approach blends evidence-based planning with practical layout tactics that shorten handoffs, reduce errors, and support clinical resilience.

Emergency throughput is directly tied to physical layout. Steelcase research reports that 45% of work interruptions in healthcare stem from environmental factors, contributing to slower task completion and increased error risk. WELL v2 also emphasizes glare control and task illumination to minimize fatigue and support circadian alignment, both essential in extended shifts. Grounding a casualty room in these standards significantly improves consistency under pressure.

Color and cognition matter when seconds count. VerywellMind’s color psychology overview notes that blues and greens promote calm and reduce perceived stress, while saturated reds heighten arousal—useful for critical signage but fatiguing if overused on large surfaces. I lean on a restrained palette for staff areas and high-contrast, non-glare wayfinding where rapid recognition is vital.

Plan for Rapid Triage and Clear Pathways

An emergency space should move patients from arrival to disposition with minimal backtracking. I prioritize a direct line from entry to triage, followed by immediate access to resuscitation bays and imaging. Clear visual axes and floor markings cut hesitation. When evaluating circulation, a room layout tool helps simulate bottlenecks and test multiple flow scenarios before construction: room layout tool.

Zoning: Separate High-Acuity from Fast-Track

Divide the casualty area into three primary zones: resuscitation/critical care, general treatment, and fast-track/minor injuries. This separation reduces acoustic spillover and preserves the cognitive bandwidth of staff handling life-threatening cases. High-acuity bays should be closest to imaging and crash carts; fast-track rooms remain near discharge desks and pharmacy pickup to speed turnover.

Ergonomics for Staff Efficiency

Standing workstations with adjustable heights and anti-fatigue flooring reduce musculoskeletal strain during long shifts. Keep reach envelopes tight—critical tools within 500–700 mm of primary standing positions. Mobile carts with standardized setups limit search time and support cross-team familiarity; this aligns with ergonomics principles on task fit and repetitive motion reduction from recognized bodies like ergonomics.org.

Lighting: Task Accuracy Without Glare

Illumination should balance clarity and comfort. Follow IES guidelines for clinical task lighting with 500–1000 lux at examination surfaces, and 300–500 lux in circulation corridors. Use 3500–4000K color temperature for neutral rendering of skin tones while avoiding harsh cool whites that increase visual strain. Indirect ambient lighting with targeted, dimmable task heads prevents veiling reflections on monitors and instruments.

Acoustics: Lower Noise to Improve Decisions

Emergency rooms are loud by nature, but targeted interventions help. Acoustic ceiling tiles with high NRC, rubber or resilient flooring, and sound-dampened partitions around triage reduce cognitive load. Curate alarm volumes and harmonics—spiky, high-frequency alerts are detectable at lower levels and reduce overall noise. Speech privacy in consultation rooms helps ensure compliance and calmer conversations.

Materials: Cleanability, Durability, and Tactile Calm

Finish selections must withstand frequent disinfection: seamless sheet vinyl with heat-welded seams, solid-surface counters, and metal with powder-coat finishes. Avoid glossy surfaces that magnify glare. Use warm, matte textures to humanize the space without compromising hygiene. Select high-contrast edges for stairs and thresholds to reduce slips, and rounded corners to minimize injury in tight maneuvers.

Visual Hierarchy and Wayfinding

Patients and staff should make correct choices at a glance. Employ a consistent signage system using high-contrast typography and iconography. Color-coding zones (e.g., green for fast-track, blue for treatment, red reserved for critical alerts) accelerates navigation without visual clutter. Reinforce hierarchy via lighting intensity differences: brighter triage desks, softer waiting bays.

Workflow-Driven Storage

Stock-outs and search time kill momentum. Create standardized micro-stations: airway kits, IV start kits, trauma dressings—each mirrored across bays. Use transparent fronts or digital inventory displays, and position storage along secondary circulation to keep primary paths clear. For larger departments, trial alternative bay-to-storage ratios with an interior layout planner to validate replenishment routes: interior layout planner.

Technology Integration: Visibility and Redundancy

Mount monitors at eye level with anti-glare coatings and cable management channels. Use ceiling-mounted booms in high-acuity bays to free floor space for rapid access. Redundant power and data drops eliminate dangerous daisy-chaining. Digital whiteboards at staff hubs display bed status, imaging queues, and critical labs to cut verbal handoffs.

Human Factors: Staff Wellbeing Under Pressure

Place small decompression nooks near staff stations—dimmed light, neutral colors, and acoustic shielding. Access to daylight in break rooms supports circadian stability; WELL v2 highlights light as a key determinant in mental wellbeing and alertness. Include hydration points and ergonomic seating within short reach of the main corridor to reduce time away from stations.

Resuscitation Bays: Precision Layout

Each bay gets symmetrical equipment placement to support team roles and muscle memory. Keep airway management, vascular access supplies, and trauma kits in fixed locations mirrored left-right. Floor area should allow 360° circulation around the bed, with ceiling booms for gas, suction, and power. Install dimmable high CRI task lights with shadow control.

Infection Control and Clean Workflow

Position hand hygiene stations at all thresholds. Create a dirty-to-clean flow—clear bins for sharps and biohazard next to treatment points, then immediate access to soiled utility rooms. Separate clean supply rooms from dirty rooms along different corridors to avoid cross-traffic.

Waiting and Family Areas

Provide sightlines to staff desks for reassurance, with acoustic separation from triage. Soft, calm color palettes reduce anxiety; blues and greens are effective according to color psychology literature. Offer flexible seating configurations and clear temperature control to prevent thermal discomfort, especially during long waits.

Scaling Up: Modular Flex Capacity

Use demountable partitions and mobile equipment clusters to scale during surges. Define flexible fast-track pods that convert into observation bays. Simulate these reconfigurations with a layout simulation tool to test nurse-patient ratios and egress compliance: layout simulation tool.

Tips 1: Keep Critical Distances Short

Place imaging and lab draw areas adjacent to triage for rapid ruling-in or ruling-out. Limit door counts on primary routes to avoid congestion and improve stretcher maneuvering.

Tips 2: Standardize, Then Label

Standardize storage, then apply bold, anti-glare labels. Consistency beats customization in emergencies—staff should find identical kits in every bay.

Tips 3: Balance Light and Color

Use neutral 3500–4000K light with high CRI in treatment zones, reserve saturated colors for small signage elements to prevent visual fatigue.

Tips 4: Design for Silence Where Possible

Soft-close hardware, rubber flooring, and acoustic panels reduce cumulative stress and improve communication clarity.

Tips 5: Maintain Clear Visual Axes

Direct sightlines from staff hubs to triage and high-acuity rooms speed recognition and response.

Tips 6: Build Redundancy into Power and Data

Dual drops and UPS integration mitigate risk during equipment failure or surges.

Tips 7: Protect Staff Movements

Rounded corners, generous clearances, and unobstructed routes minimize collision risk, especially with mobile equipment.

Tips 8: Test Your Flow Before You Pour Concrete

Run multiple mock scenarios—mass casualty, high respiratory load, pediatric surge—using a room design visualization tool to pressure-test the plan: room design visualization tool.

FAQ

How much illumination should examination areas have?

Target 500–1000 lux with high CRI task lighting, per widely referenced IES clinical task recommendations, to ensure accurate visual assessment without glare.

Which colors reduce anxiety in waiting zones?

Blues and greens are associated with calm and lower perceived stress; keep saturated reds for critical signage only, as noted in color psychology literature.

What layout reduces patient handoffs?

A straight path from entry to triage, then immediate access to resuscitation bays and imaging. Minimize doors and intersections on primary routes.

How do I keep noise under control?

Use high-NRC ceiling tiles, resilient flooring, and acoustic partitions. Calibrate alarm volumes and frequency profiles to remain audible at lower levels.

What ergonomic features matter most for staff?

Adjustable-height workstations, anti-fatigue surfaces, tight reach envelopes, and standardized mobile carts that minimize search time.

How should resuscitation bays be equipped?

Symmetrical equipment placement, ceiling-mounted booms for gas and power, 360° circulation, and dimmable high-CRI task lights with shadow control.

How do I separate fast-track from high-acuity care?

Zone the department into distinct areas with clear wayfinding. Place fast-track near discharge and pharmacy pickup; keep high-acuity near imaging and crash carts.

What materials are best for hygiene?

Seamless sheet vinyl flooring, solid-surface counters, and matte finishes that resist harsh disinfectants while minimizing glare.

Can layout tools really help before construction?

Yes. Simulating flows with a room layout tool uncovers bottlenecks and validates staffing ratios and egress under surge scenarios.

How do I support staff wellbeing?

Create decompression nooks with controlled lighting and acoustic shielding, provide daylight access in break rooms, and keep hydration stations close to hubs.
