Choosing the Right Wheelchair Accessible Bathroom Layout for a Home Renovation: A practical guide to selecting a safe, comfortable, and functional bathroom layout for wheelchair users during a home remodel.

Direct Answer

The right wheelchair accessible bathroom layout depends on three main factors: available room size, the user’s mobility range, and turning space for a wheelchair. Most successful residential renovations prioritize a clear 60‑inch turning radius, barrier‑free shower access, and unobstructed pathways between fixtures. Choosing the right configuration early prevents expensive structural changes later.

Quick Takeaways

1. A 60‑inch turning circle is the foundation of most wheelchair accessible bathroom layouts.
2. Door placement often determines whether a layout works or fails.
3. Curbless showers dramatically improve accessibility and long‑term usability.
4. Fixture spacing matters more than total bathroom size.
5. Early layout planning avoids costly plumbing relocation later.

Introduction

After working on dozens of residential remodels, I can say that choosing a wheelchair accessible bathroom layout is rarely just about making things bigger. In many homes, the real challenge is making a limited space function safely without turning the bathroom into something that feels clinical.

Homeowners planning an accessible bathroom renovation usually start with the same questions: Will the wheelchair fit? Is a curbless shower necessary? Do we need to move walls?

In many cases, the answer comes down to layout decisions made before construction even begins. I often recommend sketching multiple concepts first using a simple planning tool like this guide for creating a basic bathroom floor plan before renovation begins. Even rough layouts help reveal circulation problems early.

In this guide, I’ll walk through the design factors I evaluate with clients, common mistakes that cause expensive rebuilds, and how to choose a layout that works both today and ten years from now.

save pin

Key Factors When Planning an Accessible Bathroom Renovation

Key Insight: The success of an accessible bathroom rarely depends on size alone—circulation space and fixture placement matter far more.

Many homeowners assume accessibility simply means enlarging the bathroom. In reality, I’ve seen well‑designed 60 square‑foot bathrooms outperform poorly planned 120 square‑foot ones.

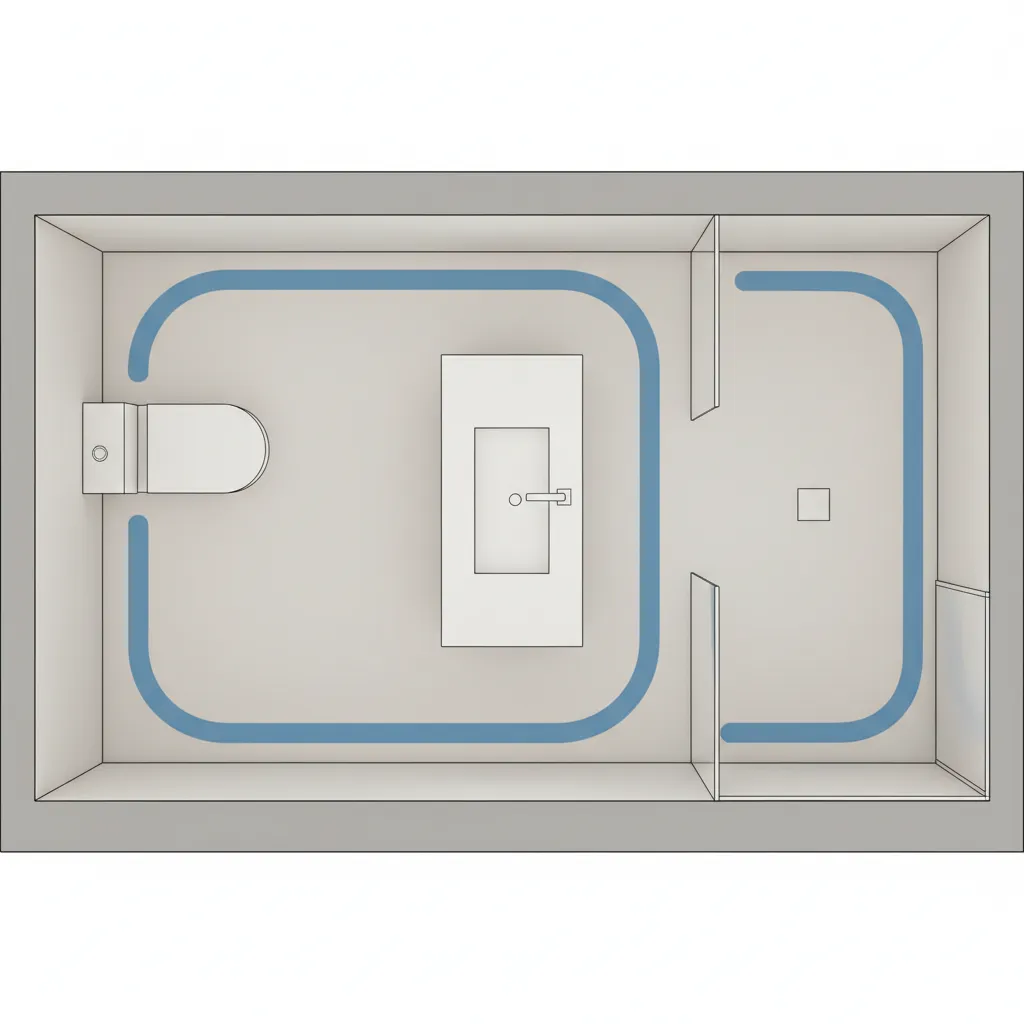

The layout must allow wheelchair users to approach every fixture safely and comfortably. If one fixture blocks turning movement, the entire design fails.

Important layout factors include:

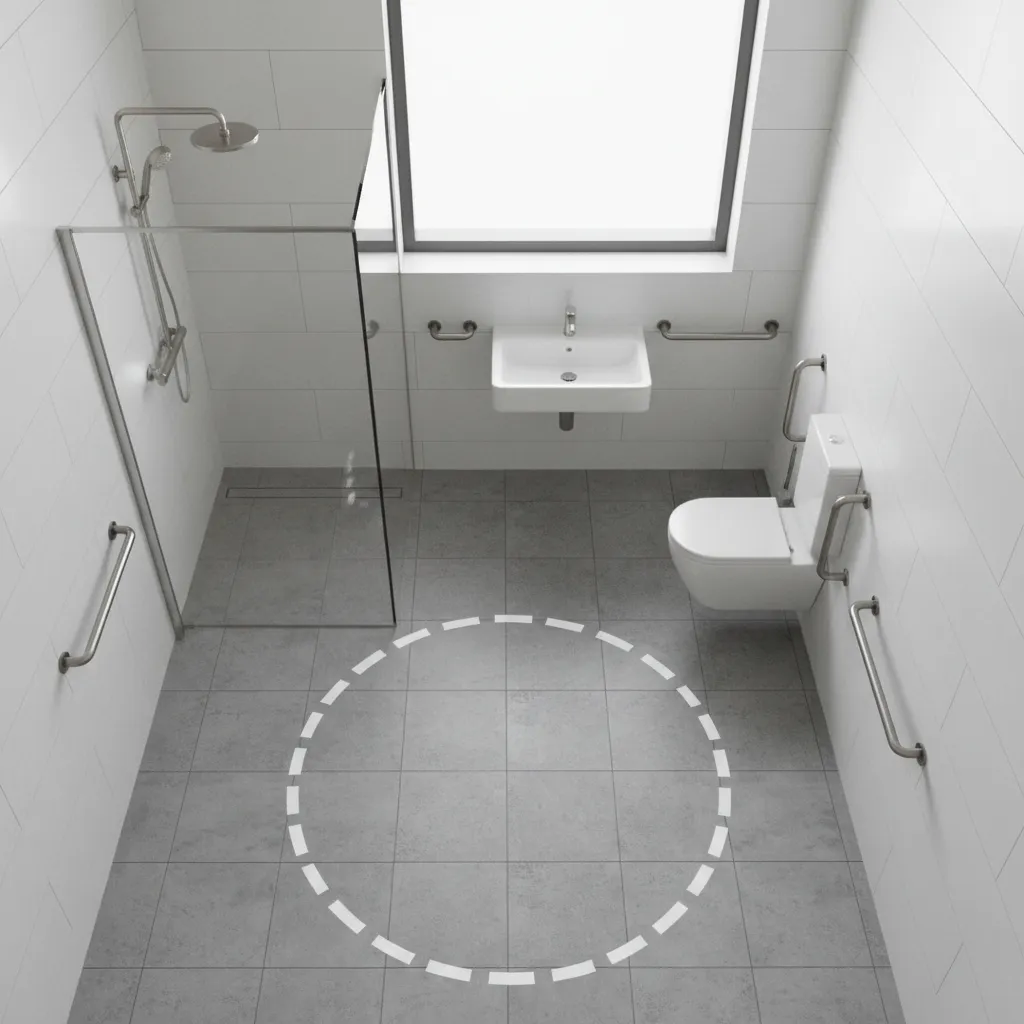

1. Minimum 60 inch wheelchair turning circle
2. At least 30 x 48 inches of clear approach space for each fixture
3. Door swings that do not block maneuvering space
4. Walk‑in or curbless shower entry
5. Wall reinforcement for grab bars

According to the U.S. Access Board accessibility guidelines, turning clearance and approach space are the two measurements most often overlooked in residential renovations.

Assessing User Mobility and Wheelchair Needs

Key Insight: The best bathroom layout for wheelchair users at home must be customized to the user’s mobility—not just ADA diagrams.

One mistake I frequently see is homeowners copying ADA diagrams directly without evaluating the specific wheelchair user. Real homes require more flexibility.

For example, a power wheelchair often needs more turning space than a manual chair. Transfer style also matters: some users transfer from the side, others from the front.

Key questions I ask clients:

1. Is the wheelchair manual or powered?
2. Does the user transfer independently?
3. Is caregiver assistance required?
4. Is long‑term aging‑in‑place a goal?

These answers directly influence fixture spacing, toilet placement, and shower configuration.

When clients want to test different layouts visually, I often suggest experimenting with a visual bathroom layout planner that helps test wheelchair circulation. Seeing the turning radius mapped in 3D makes design decisions much easier.

save pin

Comparing Layout Options for Different Bathroom Sizes

Key Insight: Different room sizes naturally favor different accessible layout configurations.

During accessible bathroom renovation planning, I usually evaluate three common layout types.

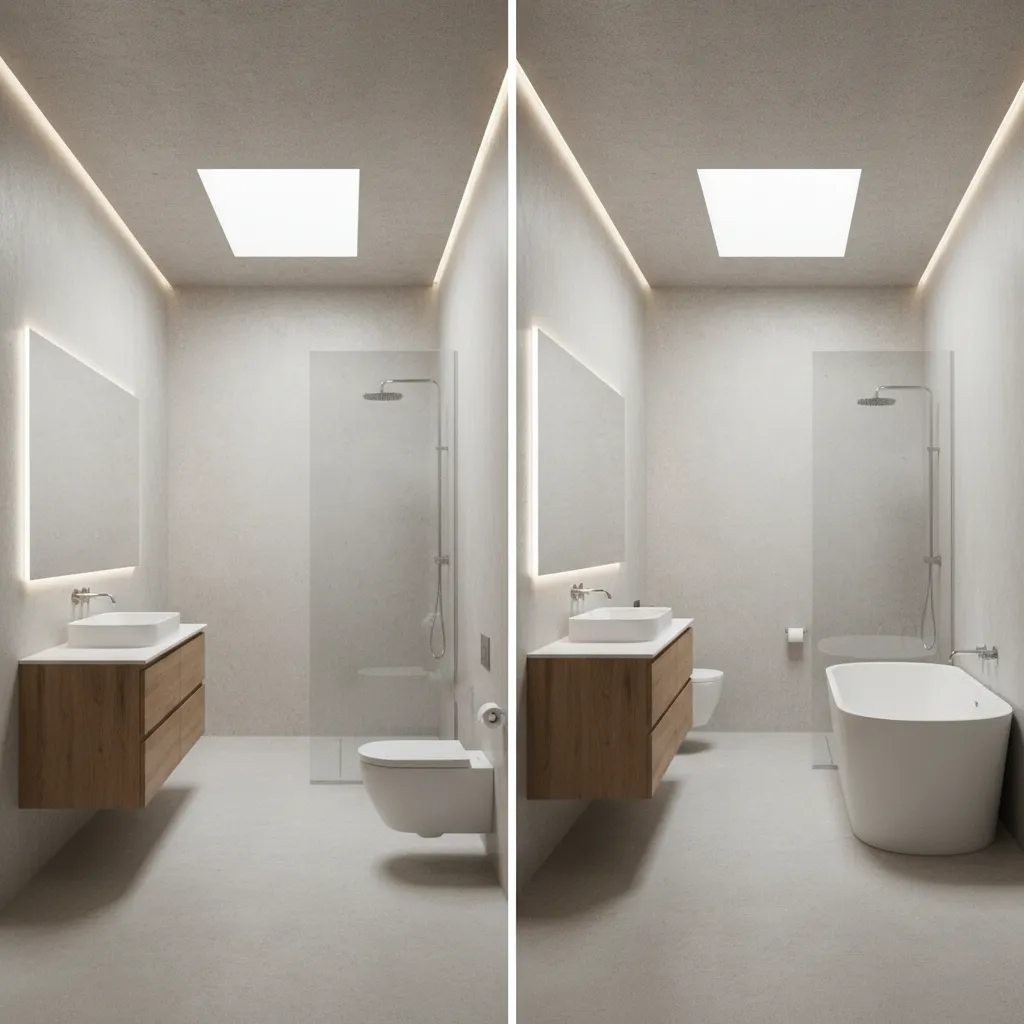

1. Linear Layout

1. Fixtures arranged along one wall
2. Works well in narrow bathrooms
3. Provides uninterrupted wheelchair path

2. L‑Shaped Layout

1. Fixtures placed along two adjacent walls
2. Allows a clear turning zone in the center
3. Common in medium sized bathrooms

3. Opposing Fixture Layout

1. Fixtures on opposite walls
2. Works best in wider bathrooms
3. Provides balanced maneuvering space

The biggest hidden mistake I see is placing the toilet too close to the shower entry. That often blocks the side transfer space wheelchair users need.

save pin

Answer Box

The best wheelchair accessible bathroom layout prioritizes turning radius, clear approach space, and barrier‑free shower entry. Layout efficiency matters more than total room size in most residential renovations.

Budget and Construction Constraints

Key Insight: Plumbing relocation is usually the most expensive part of an accessible bathroom remodel.

Many homeowners plan an ideal layout without considering structural limits. Moving a toilet drain line can dramatically increase renovation costs.

Common hidden costs include:

1. Relocating plumbing stacks
2. Lowering subfloors for curbless showers
3. Reframing walls for wider door openings
4. Reinforcing walls for grab bars

In several projects I’ve worked on, keeping the toilet in its original plumbing location saved over $5,000 in reconstruction work.

Working With Contractors and Accessibility Specialists

Key Insight: The earlier accessibility specialists join the design process, the fewer costly revisions occur during construction.

A successful accessible bathroom renovation typically involves collaboration between:

1. Interior designers
2. Contractors
3. Occupational therapists
4. Accessibility consultants

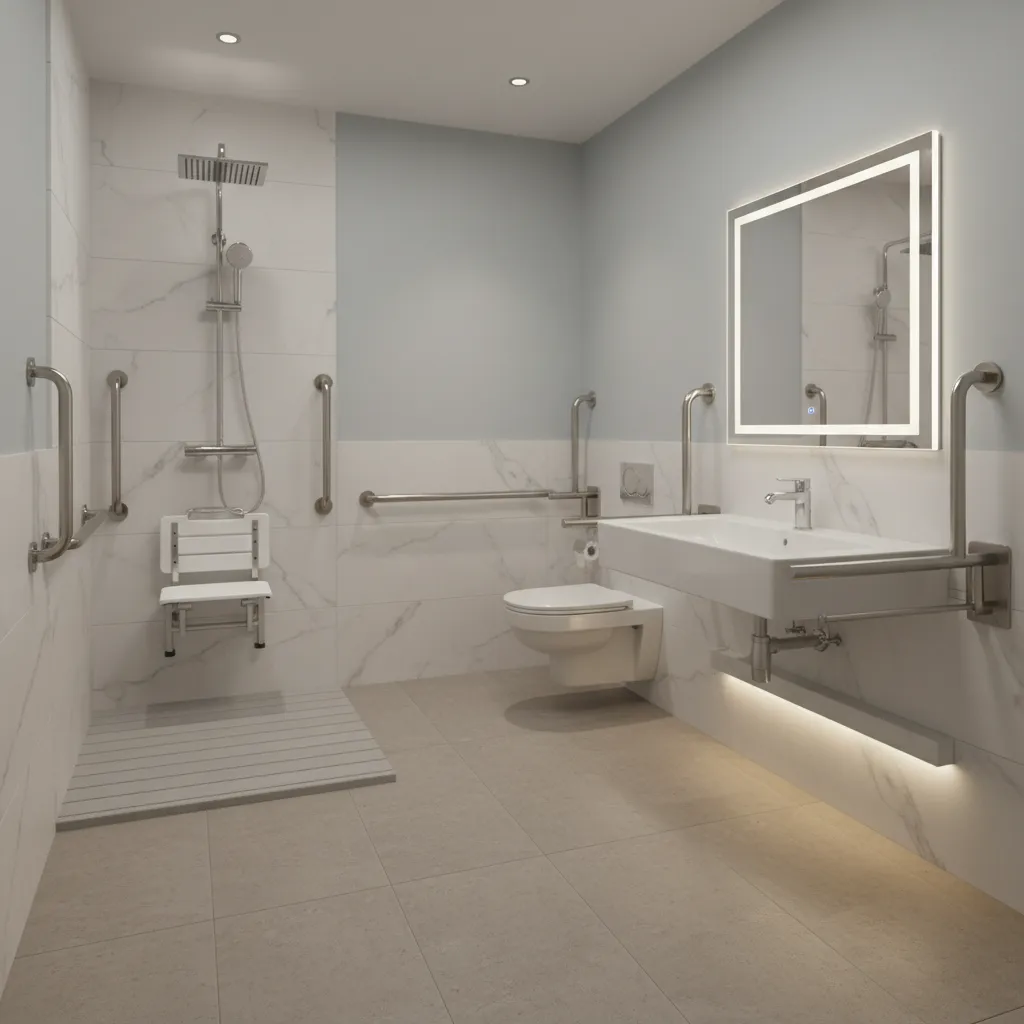

In complex remodels, I recommend creating a digital floor plan that contractors can evaluate before demolition begins. Tools designed for visualizing bathroom renovation layouts in 3D before constructionhelp identify clearance conflicts early.

save pin

Final Checklist Before Choosing a Floor Plan

Key Insight: A simple pre‑construction checklist can prevent most layout mistakes.

Before finalizing a wheelchair accessible bathroom layout, confirm these design requirements:

1. 60 inch turning radius is maintained
2. Toilet has side transfer space
3. Shower entry is barrier free
4. Door swing does not block circulation
5. Grab bar backing is installed in walls
6. Sink allows knee clearance

In practice, these six details determine whether an accessible bathroom truly works for everyday use.

Final Summary

1. Layout efficiency matters more than total bathroom size.
2. Turning radius and approach clearance are critical.
3. Door placement can make or break accessibility.
4. Plumbing relocation drives renovation costs.
5. Testing layouts early prevents expensive rebuilds.

FAQ

What is the best wheelchair accessible bathroom layout?

A layout that provides a 60‑inch turning radius, clear access to all fixtures, and a curbless shower typically works best for most wheelchair users.

How big should a wheelchair accessible bathroom be?

Most functional designs range from 60–100 square feet, but smaller bathrooms can still work with efficient fixture placement.

Do residential accessible bathrooms need to follow ADA rules?

Private homes are not legally required to follow ADA guidelines, but many designers use them as a reliable planning reference.

Can a small bathroom become wheelchair accessible?

Yes. Strategic layout adjustments, sliding doors, and curbless showers can make small bathrooms accessible.

Is a curbless shower necessary for wheelchair users?

In most cases yes, because it eliminates barriers and makes roll‑in access much easier.

What mistakes happen most during accessible bathroom renovation planning?

Common mistakes include insufficient turning space, blocked transfer areas, and poor door placement.

How do I choose the right wheelchair accessible bathroom layout?

Evaluate user mobility, room size, plumbing constraints, and turning clearance before finalizing a design.

What fixtures work best in an accessible bathroom design?

Wall‑mounted sinks, comfort‑height toilets, handheld shower heads, and slip‑resistant flooring improve usability.
