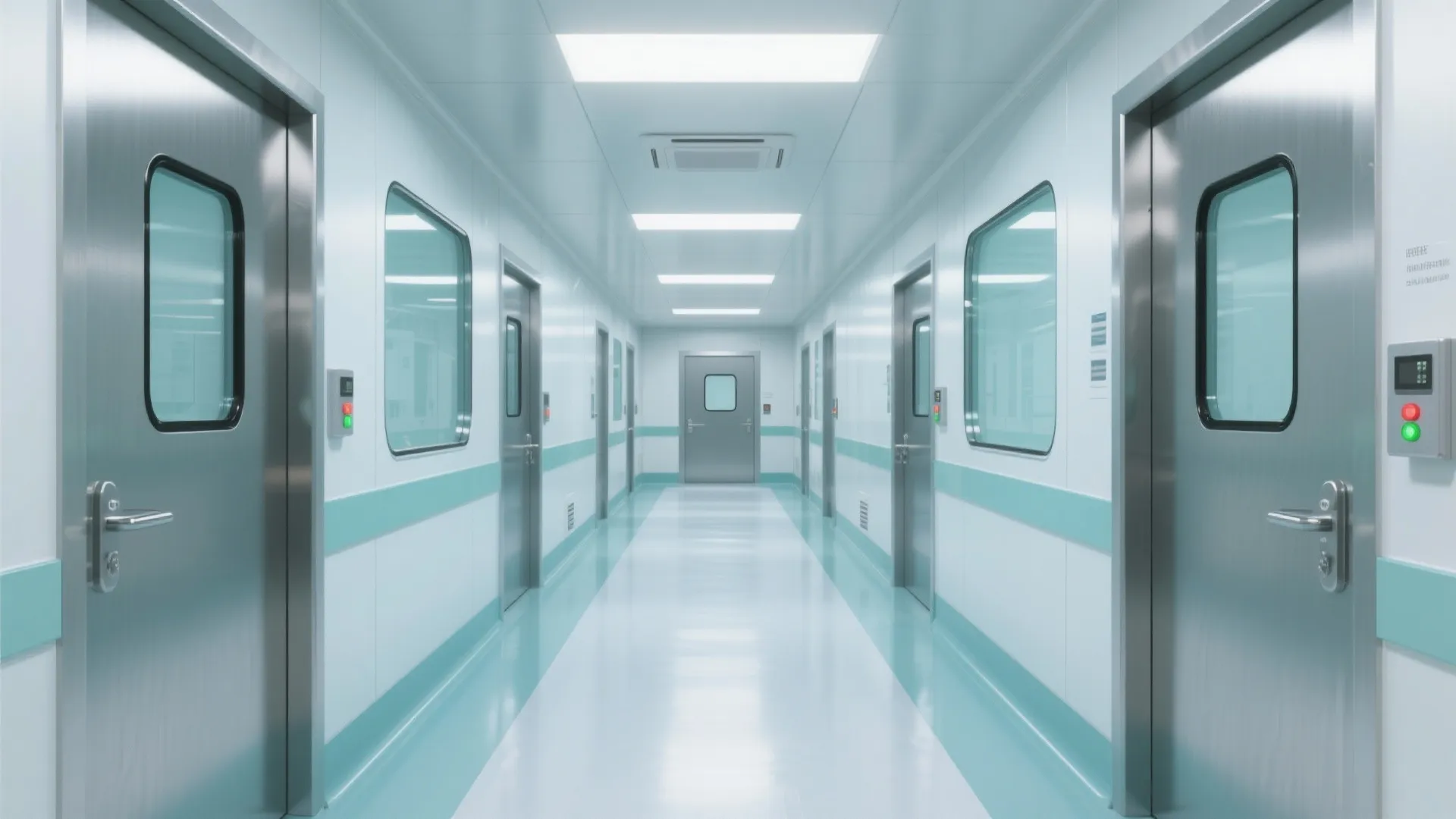

Clean Room Doors: Essential Guide for a Spotless Space: 1 Minute to Spotless Clean Room Doors with These Expert Tips

Clean room doors do more than open and close—they control contamination pathways, stabilize pressure regimes, and protect process integrity. In my projects for microelectronics and biopharma clients, door selection has consistently ranked among the top three determinants of a cleanroom’s long-term performance and maintenance burden.

Two data points frame the stakes. First, up to 80% of contamination in controlled environments is people-driven, which makes door cycles, seals, and entry protocols a primary line of defense (Steelcase research on behavioral impact in workplaces underscores the role of movement patterns in environmental performance). Second, WELL v2 recommends maintaining appropriate air pressure differentials and limiting pollutant infiltration at transitions—door gasketing and closer selection directly influence these conditions (WELL v2 Air concept guidance, v2.wellcertified.com). With that in mind, I’ll break down door types, performance criteria, hardware, and operational strategies that actually hold up in daily use.

Core Performance Criteria for Clean Room Doors

Before choosing a style, anchor on measurable targets:

1. Air tightness and pressurization: Even a 1–2 mm gap can disrupt pressure differentials, raising particle infiltration at every cycle. Specify continuous perimeter gaskets and automatic drop seals for thresholds.
2. Surface hygiene: Non-shedding, non-porous, and seamless finishes (powder-coated steel, high-pressure laminate with sealed edges, or GRP/FRP) reduce colony-forming unit (CFU) hotspots. Avoid exposed fasteners in the splash zone.
3. Cleanability: Large radii (≥10 mm) on frames and vision panels, limited crevices, and solvent-resistant seals streamline GMP cleaning protocols.
4. Durability under chemicals: Validate resistance to IPA, hydrogen peroxide vapor (HPV), sodium hypochlorite, and quats. Request third-party chemical compatibility data.
5. Access control and cycle frequency: High-traffic entries need robust hinges, closers, or automatic operators rated for >500,000 cycles; interlocked doors require fail-safe logic.

For lighting and visual comfort at transitions, I apply IES recommendations to keep corridor glare below disruptive levels (see ies.org/standards for applicable guidance), ensuring safe egress while preserving visibility of contamination signage and floor demarcation.

Door Types and When to Use Each

Door selection should align with the cleanliness class, pressure regime, and workflow:

1. Hinged swing doors: The workhorse for ISO 7–8 spaces and GMP Grade D–C non-critical zones. Choose fully flush leaf and frame with integral gaskets, and a concealed closer for smooth closing and seal compression.
2. Hermetic sliding doors: Ideal for higher pressure differentials and where traffic or equipment width makes swings impractical. True hermetic models use a descending seal that compresses against the frame and floor for higher air tightness.
3. GRP/FRP doors: Excellent in corrosive or wet-cleaned areas; gel-coated skins are non-shedding and resist chemicals. I specify them in wash-down airlocks and compounding pharmacies.
4. Stainless steel doors (304/316L): Best for aggressive disinfection or high abrasion areas; specify brush or #4 finish to balance cleanability and glare control.
5. Flush glazed doors: For supervision and daylight capture without sacrificing hygiene—ensure double-sealed, flush vision panels with safety glazing and no exposed glazing beads.

If you’re mapping personnel and material flows, a light-touch way to test door swings, clearances, and interlocks is to run a quick layout simulation with a room layout tool to validate movement patterns and reduce cross-contamination risk: room layout tool.

Airlocks, Interlocks, and Pressure Strategy

Doors in controlled environments perform best when they act as part of a system:

1. Interlock logic: Prevent two doors from opening simultaneously to protect pressure cascades. I prefer magnetic locks with door position sensors tied to the BMS for event logs.
2. Pressure cascades: Establish +5 to +15 Pa step-ups for sterile paths and negative cascades for containment labs. Door seals and closer speed should be tuned to avoid pressure shocks.
3. Vestibule depth and cycle time: Size airlocks to accommodate donning/doffing without propping doors open. Typical cycle time targets run 6–10 seconds close time, with soft close to protect seals.

Aligning these with WELL v2 Air guidance on infiltration and pressure maintenance supports both performance and occupant health.

Hardware and Controls That Actually Hold Up

Hardware often becomes the failure point under frequent disinfection:

1. Hinges: Stainless steel continuous (piano) hinges distribute load and minimize snag points. Avoid porous polymer bushings in bleach-intensive zones.
2. Closers: Adjustable sweep and latch speeds reduce door slam and seal wear. Specify cover plates to eliminate dirt traps.
3. Seals and thresholds: Combine perimeter magnetic gaskets with automatic drop seals. In wheeled traffic zones, use recessed thresholds to avoid particle traps.
4. Handles and pulls: Oversized, easy-grip stainless pulls enable gloved operation and reduce contact time; consider hands-free kick plates for waste pass-throughs.
5. Automation: Low-energy operators with touchless actuation (IR or capacitive sensors) minimize contact. Pair with timed interlocks and visual/audible cues.

Materials and Finishes for Hygiene and Longevity

Material selection balances hygiene, durability, and visual comfort:

1. Door skins: Powder-coated steel, GRP/FRP, or 316L stainless—all with flush surfaces. Validate coating hardness and resistance to cracking under HPV.
2. Frames: Fully welded steel or aluminum with sealed miters; coved junctions simplify wipe-downs.
3. Vision panels: Flush, double-laminated glazing with silicone-free, non-shedding gaskets; specify anti-fog for cold rooms.
4. Color strategy: Use desaturated blues/greens in staff areas to lower stress and sustain focus; color psychology research notes cool hues can support calm states (verywellmind.com/color-psychology). Contrast bands around pulls improve visibility with PPE goggles.

Ergonomics, Behavior, and Traffic Management

Human factors shape contamination risk more than any single product choice. From an ergonomics standpoint, align handle heights (typically 900–1050 mm) with gloved-grip comfort, provide 1.2–1.5 m clear passage for cart turns, and keep swing arcs off primary circulation to avoid hesitation and door holding. Behaviorally, place donning benches before the first interlocked door to reduce backward step-backs and accidental re-entries.

Acoustic and Visual Comfort Around Cleanroom Entries

Air handling noise and door automation can raise stress and errors. Select operators under 50 dBA at 1 m where possible, and treat adjacent walls with cleanable acoustic panels. For lighting, target neutral-white (3500–4000 K) with controlled glare so reflective stainless surfaces don’t bloom; this aligns with IES glare control guidance and supports visual inspection tasks.

Installation Details That Prevent Headaches

I’ve learned to protect future uptime by obsessing over the details during install:

1. True plumb and level: Even a 2–3 mm twist undermines gasket compression. Shim and grout frames fully.
2. Seal continuity: Inspect for corners where gaskets gap or compress unevenly; field-trim drop seals after final leveling.
3. Floor interfaces: Recessed thresholds or hygienic ramps prevent debris accumulation and trip risks.
4. Commissioning: Smoke pencil or differential pressure testing with doors latched; log close times and interlock delays.

Cleaning, Maintenance, and Lifecycle Planning

Maintenance is part of design. Standardize a cleaning matrix by chemistry and frequency, rotate seals annually in high-cycle points, and log operator cycle counts via BMS. For sliding doors, schedule quarterly track and brush cleanouts; for swinging doors, check closer valves and hinge fasteners biannually. Train staff on no-prop policies and document interlock overrides.

Common Pitfalls and How to Avoid Them

1. Relying on standard commercial doors in ISO-classified zones.
2. Exposed hardware and glazing beads that trap debris.
3. Improper interlock timing that frustrates staff and leads to door blocking.
4. Ignoring chemical compatibility—coatings blister after repeated HPV cycles.
5. Undersizing airlocks, forcing simultaneous door openings.

Planning Your Door Strategy

Map your pressure cascades, traffic volumes, and cleaning regimen first. Then match door type, seals, and automation to those realities. If you’re iterating a new flow path or validating equipment clearances, a quick pass with an interior layout planner helps surface conflicts early and prevents costly rework: interior layout planner.

FAQ

What makes a door suitable for a clean room?

Non-shedding, flush surfaces; continuous seals; chemical resistance; and hardware rated for frequent cycles. Interlock compatibility and pressure stability are essential.

Are sliding doors better than swinging doors for cleanrooms?

Neither is universally better. Hermetic sliding doors excel where airtightness and wide, obstacle-free openings are needed. Hinged doors are simpler, often more economical, and reliable for many ISO 7–8 or Grade C–D areas.

How do I maintain pressure differentials at doorways?

Use perimeter gaskets, automatic drop seals, interlocks that prevent simultaneous openings, and tune closer speeds. Verify during commissioning with differential pressure readings.

Which materials resist aggressive disinfectants?

316L stainless, GRP/FRP skins, and high-quality powder coats tested against IPA, bleach, and HPV. Request compatibility test reports from manufacturers.

What glazing details are acceptable in cleanroom doors?

Flush, sealed vision panels with laminated safety glass and no exposed beads or fasteners. Consider anti-fog treatments for cold environments.

How high should door handles be for gloved users?

Typically 900–1050 mm (about 35–41 inches) from finished floor, with oversized pulls to accommodate gloved grip and reduce contact time.

Can door automation reduce contamination risk?

Yes. Touchless actuation and controlled close speeds reduce contact and improve seal compression. Pair with interlocks and visual indicators to support user behavior.

How often should seals be replaced?

Inspect quarterly; replace annually in high-cycle zones or sooner if compression set or chemical degradation appears. Drop seals require field adjustment after any frame shift.

What noise level should automated doors target?

Ideally below 50 dBA at 1 meter near critical work areas to minimize distraction and fatigue. Verify with manufacturer data and site measurements.

Do color choices on doors matter in cleanrooms?

Yes. Low-saturation cool hues support calm focus, while high-contrast pull zones and edge bands improve visibility through PPE. Color psychology sources support this approach.

What’s the best way to size an airlock?

Accommodate users, carts, and donning movements without forcing simultaneous door openings. Provide enough dwell space for interlock delays (often 3–8 seconds between door cycles).

How do I commission door interlocks?

Verify door position sensors, lock timing, emergency override function, and event logs. Test with smoke pencil to assess pressure impact during cycles.
