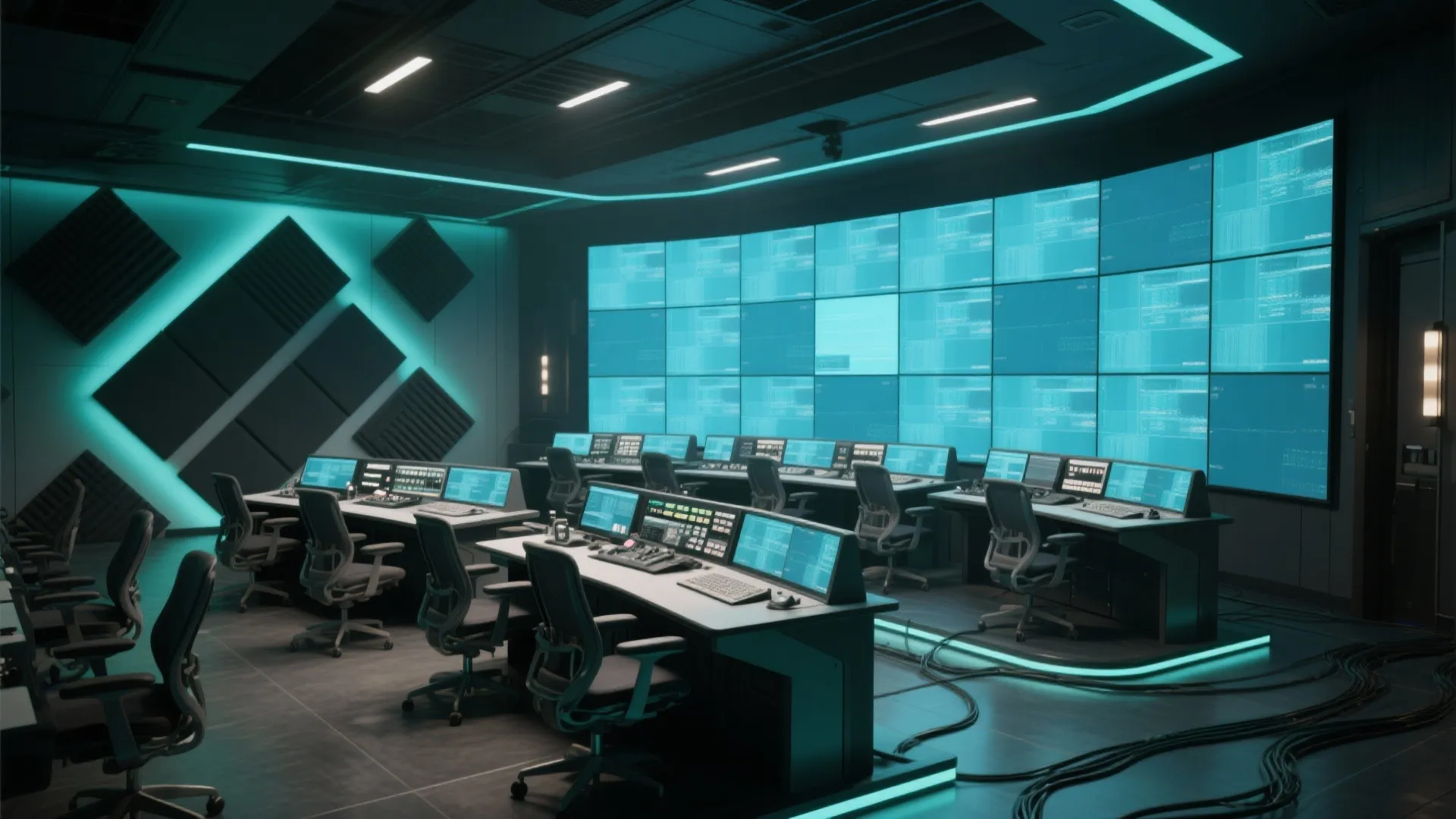

Command and Control Room Design Essentials for Modern Spaces: Fast-Track Guide to Setting Up Your Efficient Command and Control Room

Command and control rooms succeed when people, information, and space act in perfect sync. In my projects—from metropolitan traffic centers to utility grid operations—the brief is always the same: crystal-clear situational awareness, low cognitive load, and zero downtime. Evidence backs the human factors behind this: WELL v2 recommends a 300–500 lux task-lighting baseline for most screen-intensive work, with careful glare control to reduce visual fatigue, while IES standards emphasize layered lighting and uniformity for visual comfort over long shifts. Productivity and error reduction also hinge on behaviorally attuned layouts; Steelcase research has shown that physical environments designed around human needs can significantly improve cognitive performance and team coordination when stress is high.

Scale and multisource data complicate the picture. Gensler’s workplace studies consistently point to visibility and access to information as top predictors of team effectiveness, and Herman Miller’s research ties posture support and sightline integrity to decreased musculoskeletal strain across extended monitoring periods. Translating those findings into a command environment means: sightlines without head-turning, lighting that eliminates veiling reflections, acoustics that preserve speech intelligibility, and workflows that reduce unnecessary movement. These are not aesthetic choices—they are operational safeguards.

Define the Mission, Then the Layout

Every control room should be planned from a mission map: what decisions are made, by whom, how fast, and with which data streams. I start with adjacency diagrams linking roles (lead operator, incident manager, analyst pods) to display surfaces and collaboration zones. Critical tasks get prime sightlines to the main video wall; support roles flank without obstructing. When stakeholders need to pressure-test scenarios or rearrange positions, a room layout tool like the interior layout planner helps simulate station counts, aisle widths, and viewing distances before we commit to infrastructure.

Visual Ergonomics: Distance, Angle, and Contrast

Clarity beats scale. For large video walls, I target a viewing distance of 1.5–3.0 times the image height for primary operators, capping vertical viewing angles around 15–20° to minimize neck extension. Individual consoles should position the top line of text near eye level or slightly below; multi-monitor arrays deserve gentle concavity so outer screens sit within a 30–35° eye rotation. Glare control is nonnegotiable: matte finishes on desktops, dark low-gloss frames around displays, and indirect ambient lighting ensure contrast ratios stay legible across shifts.

Lighting That Sustains Vigilance

Balanced layers carry the day: 300–500 lux horizontal ambient, 150–300 lux vertical illuminance on faces for clean camera presence, and task lighting with low UGR optics aimed away from screens. Tunable white (2700–5000K) can support circadian rhythms for 24/7 teams—cooler during peak alertness windows, warmer toward shift transitions. I specify fixtures with excellent dimming curves and flicker control (IEEE 1789 compliant where possible) to prevent eyestrain at low levels. Crucially, place downlights off the specular path to displays to avoid veiling reflections on glossy dashboards.

Acoustic Clarity Without Deadening the Room

Operators must hear incident callouts distinctly without the room feeling lifeless. I target an RT60 around 0.5–0.7 seconds for mids, with focused absorption at first reflection points and diffusers behind the operator field to keep speech intelligible. Soft flooring in aisles, microperforated wall panels, and acoustic baffles above collaboration tables create a gradient of quiet at consoles and liveliness in huddle corners. For hot zones (NOC/SOC escalation tables), consider directional sound masking tuned a few dB above the noise floor to maintain privacy without drowning alerts.

Console Design: Posture, Reach, and Cable Discipline

Height-adjustable consoles with memory presets let mixed-height teams alternate between sit and stand without losing sightlines. I design work surfaces with a 600–800 mm reach envelope for primary controls, parking secondary gear beyond that. Monitor arms should support fine tilt and depth adjustments—crucial when operators swap shifts. Integrated cable raceways and power/data troughs keep heat sources and EM noise away from knees and peripherals; maintenance panels must open without dismantling the station.

Sightlines and Spatial Ratios

The room’s rhythm matters as much as its equipment. I favor a shallow fan or chevron layout, aligning console rows to the video wall’s center to minimize head travel for priority content. Aisles of 1,200–1,500 mm allow clean circulation and ADA-accessible turning radii without crowding operators. Leadership stations sit slightly raised only if line-of-sight control is essential; otherwise, a low-profile glass or open boundary keeps collaboration fluid while maintaining acoustic separation.

Resilience and Redundancy by Design

Downtime is the true cost center. I separate critical power branches (UPS A/B) to opposite sides of the console grid, specify dual network drops at each position, and route primary/secondary video feeds on independent switch paths. Environmental resilience means thermal zoning: keep heat-intensive racks out of the operator bowl, with hot-aisle containment and monitored airflow. If the command floor houses equipment, specify low-velocity displacement ventilation at the operator zone to avoid draft discomfort and noise.

Color Psychology and Visual Hierarchy

Muted, low-reflectance palettes keep the visual field calm so alerts carry weight when they appear. Color psychology research highlights blue-green tones for steadiness and control, while small, high-chroma accents guide attention to critical pathways or emergency hardware. Reserve saturated color for coded states on the video wall; walls, ceilings, and consoles should support the data—not compete with it.

Collaboration Without Distraction

Incident response demands quick huddles and strategic alignment. I carve out collaboration nooks at the room perimeter with partial acoustic shielding and dedicated displays that mirror selected sources. Mobile scrum boards, writable glass, and a compact war-room adjacent to the floor let teams step out to debate without flooding the operator field with speech noise. Thoughtful zoning means big conversations don’t ripple through the consoles.

Technology Integration and Lifecycle

Tech ages faster than architecture. I design generous pathways—raised floor or overhead trays—for future cable runs, leave service loops at every console, and use modular display mounts that accept new aspect ratios. Choose AV over IP where the organization’s network maturity supports it; otherwise, keep a simplified, well-documented KVM backbone. Labeling discipline, asset tags, and change logs are as much a design deliverable as the furniture plan.

Security, Egress, and Human Factors

Access control must be robust but never impede egress. Swing doors away from the console arc, keep exits visible from the supervisor position, and ensure low-level path lighting remains legible in dim scenes. For 24/7 teams, micro-rest areas with low-stimulus lighting and acoustic privacy help operators reset between rotations. Small comforts—a personal locker, bottle fill within 10 meters, clean HVAC filtration—compound into fewer errors late in the night shift.

From Schematic to Simulation

Before build, I run a full-scale mockup or a digital simulation to test sightlines, glare risks, and circulation. A layout simulation tool such as the room design visualization tool lets teams validate viewing distances, lighting positions, and console angles under realistic scenarios, reducing costly field changes.

FAQ

What lighting levels work best for a 24/7 control room?

Target 300–500 lux ambient on the work plane with glare-controlled task lights. Keep vertical illuminance on faces around 150–300 lux for camera clarity. Use tunable white to ease circadian strain on rotating shifts.

How far should operators sit from a large video wall?

A practical range is 1.5–3.0 times the image height for primary viewing, with vertical viewing angles ideally under 20°. This keeps text legible without neck strain.

Which console features matter most for long shifts?

Height-adjustability with presets, depth-adjustable monitor arms, a 600–800 mm primary reach envelope, and integrated cable/power management. Quiet fans or passive cooling help reduce noise fatigue.

How do I control noise without killing collaboration?

Balance absorption and diffusion. Aim for RT60 around 0.5–0.7 s, add absorption at first reflection points, and place collaboration nooks with partial acoustic screens at the perimeter.

What color palette supports focus in a command environment?

Low-gloss neutrals with cool undertones help keep the room visually calm. Reserve saturated colors for alert states and wayfinding to preserve hierarchy.

How should redundancy be handled at the console level?

Provide dual power (UPS A/B), dual network drops, and independent video paths for critical stations. Separate cable routes to limit single points of failure.

Is AV over IP appropriate for command rooms?

Often yes, if the IT backbone and security policies can support it. If not, a robust, well-labeled KVM or matrix system with clear failover procedures is preferable. Prioritize documentation and change control.

What’s the best way to prototype sightlines and traffic flow?

Use a scaled mockup or a digital interior layout planner to test console angles, aisle widths, and viewing distances. Simulations reveal glare hot spots and congestion before construction.

How do I reduce eye strain for operators?

Control glare, maintain consistent luminance across screens, use flicker-free dimming, and keep the top of monitors at or slightly below eye level. Encourage microbreaks and posture changes.

What are typical aisle and clearance dimensions?

Main aisles of 1,200–1,500 mm support comfortable circulation and accessibility; leave at least 900 mm behind seated positions for pass-through in tight zones.
