Common 9x5 Bathroom Layout Mistakes and How to Fix Them: Practical design fixes that make a narrow 9x5 bathroom feel functional, comfortable, and far less cramped

Direct Answer

The most common 9x5 bathroom layout mistakes come from ignoring clearance, oversizing fixtures, and placing doors where circulation should be. In a room only five feet wide, even a few inches of misplacement can make the entire bathroom feel cramped. Correcting fixture scale, door swing, and plumbing alignment usually solves most layout problems without a full renovation.

Quick Takeaways

1. A 9x5 bathroom fails most often because clearance rules are ignored.
2. Oversized vanities and swinging shower doors quickly block circulation.
3. Toilet placement often violates minimum spacing in narrow layouts.
4. Repositioning fixtures along one wall usually improves flow instantly.
5. Smart planning tools help visualize tight bathroom layouts before construction.

Introduction

In more than a decade of residential projects, the 9x5 bathroom layout is one of the most deceptively tricky spaces I deal with. On paper, it looks simple. In reality, five feet of width leaves almost no margin for error.

Homeowners often tell me the same thing: the bathroom technically fits everything, but somehow it still feels cramped. Doors collide, knees hit the vanity, or the toilet feels wedged into a corner. These are classic 9x5 bathroom layout mistakes, and they usually happen during the planning stage—not during construction.

One of the best ways to catch these issues early is visualizing the room in advance. Many homeowners I work with start by using a simple interactive layout planner for visualizing small bathroom spaces, which quickly reveals circulation conflicts that are hard to see in 2D drawings.

In this guide, I'll break down the most common planning errors I see in narrow bathrooms and show practical ways to fix them before they turn into expensive remodel regrets.

save pin

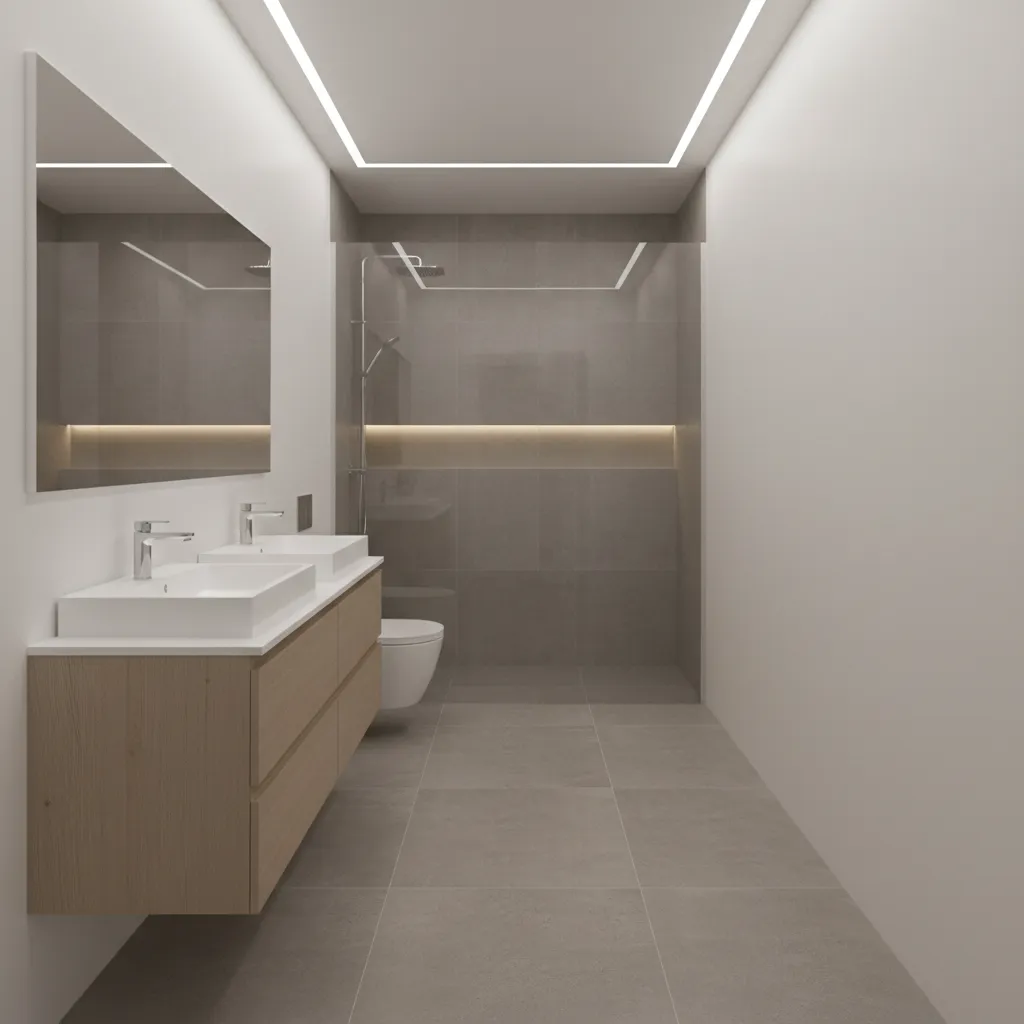

Why 9x5 Bathrooms Are Easy to Misplan

Key Insight: A 9x5 bathroom is difficult because width, not length, becomes the limiting factor for circulation.

Most people assume the nine‑foot length provides plenty of space. The problem is the five‑foot width must accommodate fixtures, walking space, and door swings simultaneously. That means every inch matters.

Standard fixture depths already consume most of the width:

1. Standard vanity depth: 20–22 inches
2. Standard toilet depth: about 28 inches
3. Comfortable walkway clearance: 24–30 inches

Add those numbers together and you quickly exceed the available space unless fixtures are carefully aligned.

Hidden issue designers often see:

1. Homeowners mixing residential and commercial fixture sizes
2. Incorrect door swing assumptions
3. Ignoring code clearances around toilets

The National Kitchen and Bath Association (NKBA) recommends at least 15 inches from the toilet centerline to a side wall and at least 21 inches of front clearance. In a 9x5 bathroom, those numbers dominate the entire layout.

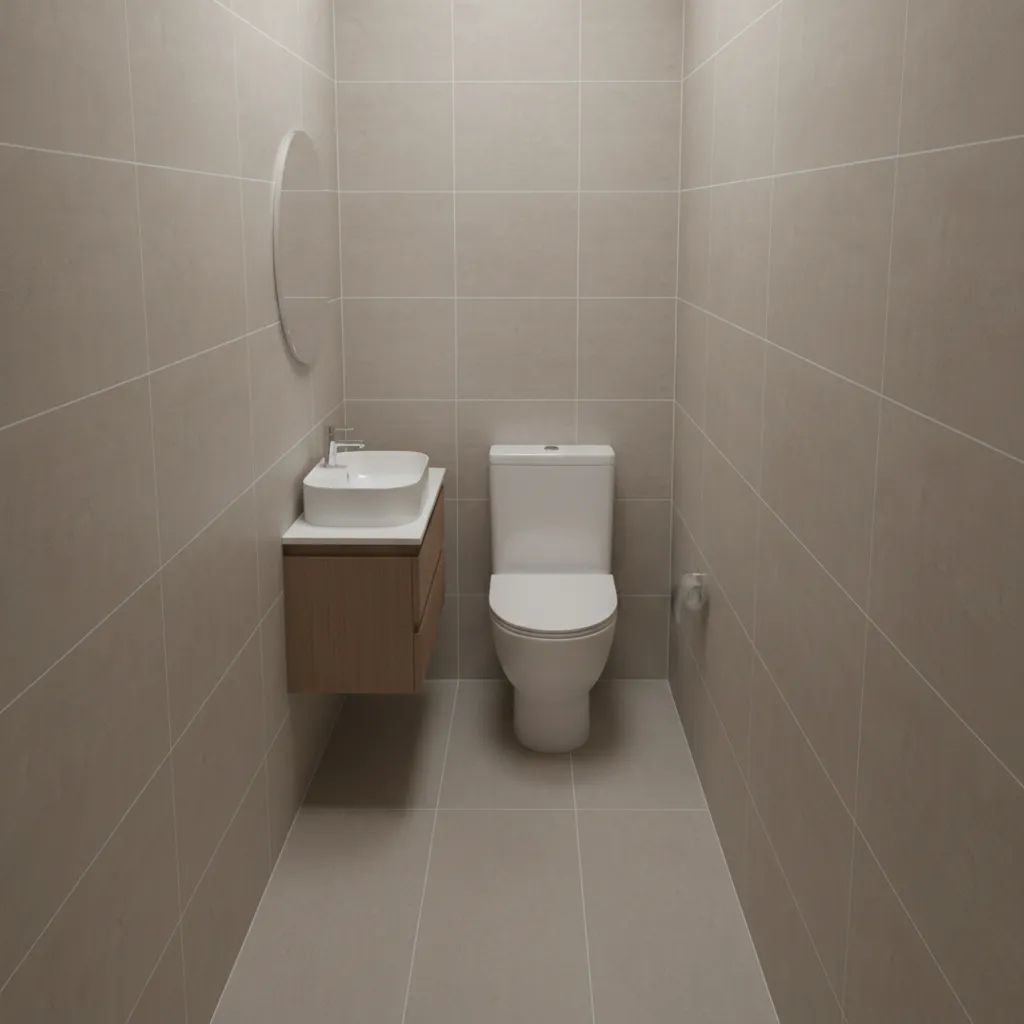

Mistake: Poor Toilet Clearance in Narrow Layouts

Key Insight: Toilet clearance problems are the number one reason a 9x5 bathroom feels uncomfortable.

I frequently see toilets placed too close to the vanity or wall because homeowners try to maximize storage. The result is technically functional but uncomfortable to use.

Common spacing mistakes include:

1. Toilet placed less than 15 inches from side obstacles
2. Vanity corner intruding into knee clearance
3. Toilet installed directly facing a door swing

Better layout options:

1. Align toilet and vanity on the same wall
2. Shift the vanity toward the entrance
3. Use a compact elongated toilet (often 2–3 inches shorter)

In several remodels I've completed in Los Angeles condos, simply moving the toilet 4 inches away from the vanity dramatically improved usability without moving plumbing lines significantly.

save pin

Mistake: Shower Doors Blocking Circulation

Key Insight: Swinging shower doors are one of the most overlooked layout conflicts in small bathrooms.

A hinged shower door typically needs 22–30 inches of swing clearance. In a five‑foot‑wide room, that swing often collides with the vanity or toilet.

Designers usually solve this with one of three strategies:

1. Sliding glass shower doors
2. Walk‑in shower openings
3. Fixed glass panels

Comparison of common shower door options:

1. Hinged doors: clean look but large clearance requirement
2. Sliding doors: ideal for tight bathrooms
3. Walk‑in designs: modern but require longer shower walls

If you're experimenting with layouts, testing different shower positions using a 3D bathroom floor layout visualizer for tight spaces can reveal door conflicts instantly.

Mistake: Oversized Vanities in a 9x5 Space

Key Insight: The wrong vanity size can destroy circulation more than any other fixture.

Homeowners often assume a bigger vanity means better storage. In a narrow bathroom, the opposite is often true.

Typical vanity mistakes:

1. 36‑inch vanities in rooms designed for 24–30 inches
2. Deep cabinet boxes exceeding 22 inches
3. Double sink attempts in extremely tight spaces

Better vanity strategies for 9x5 bathrooms:

1. Wall‑mounted floating vanities (18–20 inch depth)
2. Narrow console sinks
3. Offset sink placement

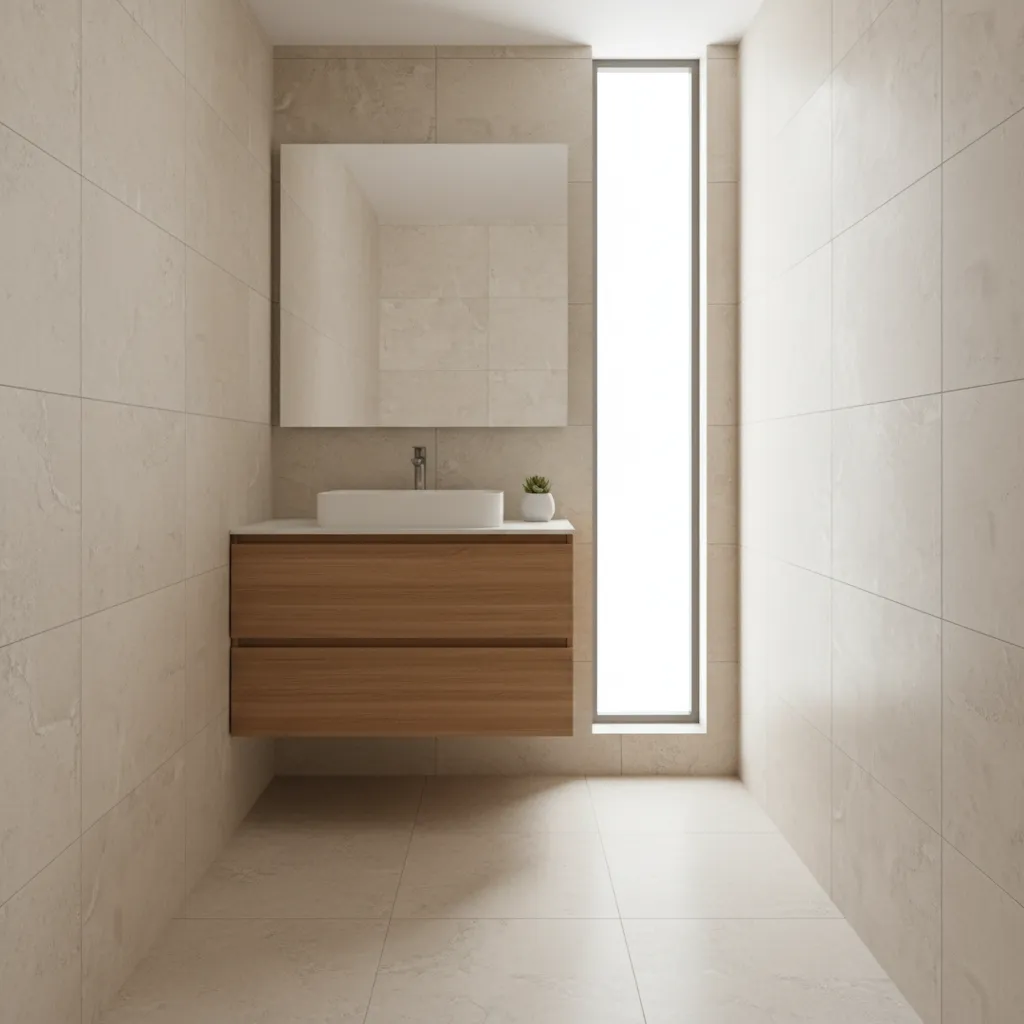

Floating vanities are particularly effective because the visible floor underneath tricks the eye into perceiving more space—a technique widely used in modern apartment renovations.

save pin

Fixing Plumbing Placement Constraints

Key Insight: Plumbing locations limit flexibility, but smart fixture swaps can often avoid expensive pipe relocation.

Many homeowners assume a bad layout means moving plumbing. In reality, experienced designers often adjust fixture types instead.

Cost comparison from typical remodels:

1. Moving toilet plumbing: expensive structural work
2. Changing vanity size: minimal cost
3. Switching shower configuration: moderate cost

Practical workaround strategies:

1. Use compact toilets with shorter projections
2. Install corner sinks near existing plumbing
3. Convert tubs into walk‑in showers

In one recent renovation project, replacing a deep vanity with a shallow floating model solved the circulation problem without touching plumbing lines.

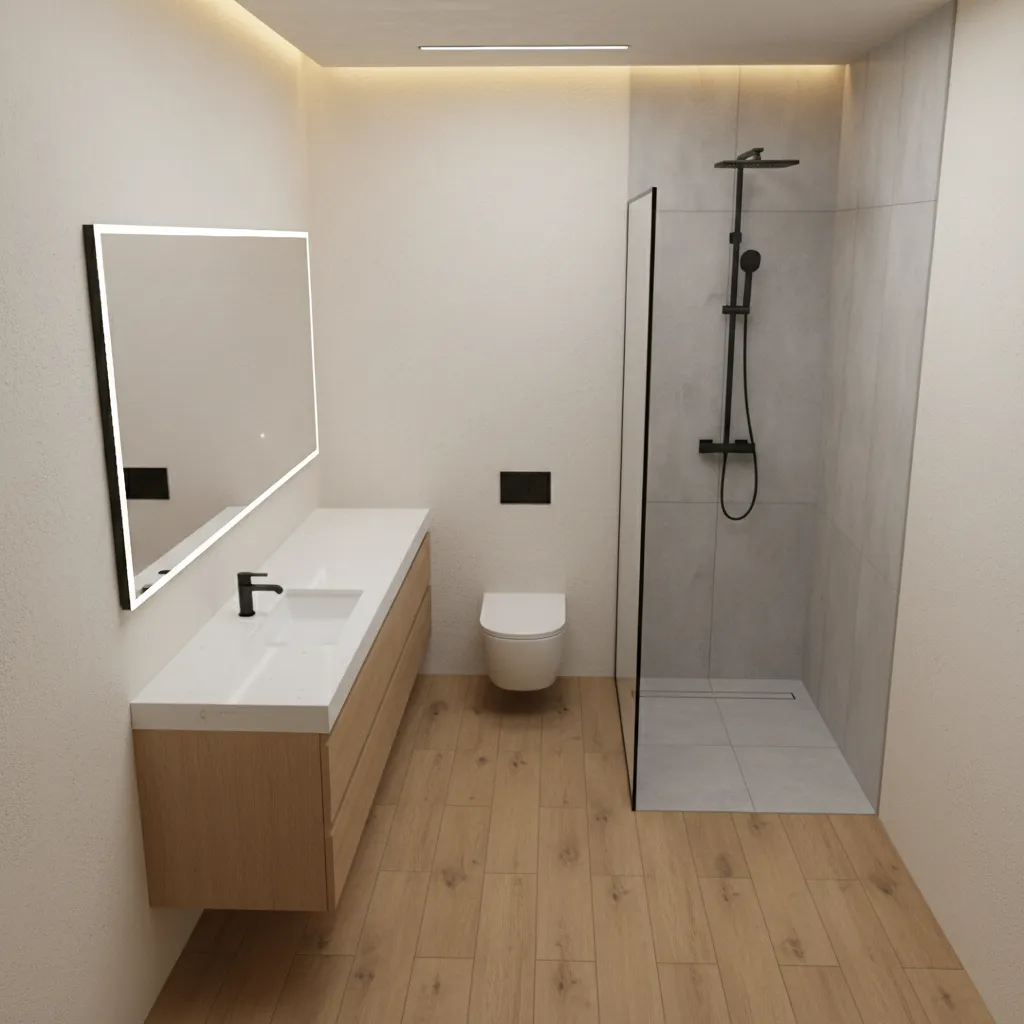

How to Redesign a Crowded 9x5 Bathroom

Key Insight: The most effective redesign strategy is aligning all major fixtures along one wall.

This layout reduces cross‑traffic and keeps the center of the bathroom open.

Step‑by‑step redesign approach:

1. Map existing plumbing locations.
2. Place the shower or tub at the far end.
3. Align toilet and vanity along one wall.
4. Preserve at least 24 inches of walkway space.
5. Use sliding or pocket doors whenever possible.

Many homeowners experimenting with layout fixes start by testing ideas in a visual bathroom layout planning environment for small remodelsso they can test fixture swaps before committing to construction.

save pin

Answer Box

The biggest 9x5 bathroom layout mistakes come from ignoring clearance, installing oversized fixtures, and allowing doors to block circulation. The best fix is usually simplifying the layout: align fixtures on one wall, reduce vanity depth, and avoid swinging shower doors.

Checklist to Avoid Layout Problems

Key Insight: Most small bathroom issues can be prevented with a simple clearance checklist during planning.

Use this quick checklist before finalizing your layout:

1. At least 15 inches from toilet centerline to side wall
2. Minimum 21 inches of front clearance for toilet
3. Vanity depth ideally under 21 inches
4. Walkway clearance around 24 inches
5. Avoid hinged doors in tight circulation paths

Designers often discover that correcting just one of these measurements can transform the usability of a narrow bathroom.

Final Summary

1. Most 9x5 bathroom layout mistakes come from ignoring clearance rules.
2. Oversized vanities and hinged shower doors cause major circulation conflicts.
3. Small fixture adjustments often solve problems without moving plumbing.
4. Aligning fixtures along one wall creates the most efficient narrow layout.
5. Planning tools help reveal layout mistakes before renovation begins.

FAQ

What is the biggest mistake in a 9x5 bathroom layout?

Ignoring clearance around the toilet and vanity is the most common issue. Even a few inches of lost space can make the bathroom feel cramped.

Can a 9x5 bathroom fit a shower and vanity comfortably?

Yes. Most layouts place the shower at the far end and align the vanity along one wall to preserve walking space.

Why does my 9x5 bathroom layout feel cramped?

This usually happens when fixtures are too large or doors block circulation paths. These are classic 9x5 bathroom layout mistakes.

What vanity size works best in a 9x5 bathroom?

A 24–30 inch vanity with 18–20 inch depth typically works best in narrow bathrooms.

Is a sliding shower door better for small bathrooms?

Yes. Sliding doors eliminate swing clearance, making them ideal for tight layouts.

Can I keep my existing plumbing in a redesign?

Often yes. Switching fixture sizes or types can solve layout problems without relocating pipes.

Are floating vanities good for small bathrooms?

Floating vanities create visual space and improve floor visibility, making narrow bathrooms feel larger.

How do I avoid common small bathroom design errors?

Follow clearance guidelines, reduce fixture size, and test layouts digitally before renovation.
