Common Air Conditioning Problems After Installing a Unit in a 972 Sq Ft Home: Learn why a new AC may still cool poorly in a small home and how to diagnose airflow, sizing, insulation, and thermostat issues.

Direct Answer

If your air conditioner struggles after installation in a 972 sq ft home, the most common causes are incorrect system sizing, airflow restrictions, poor thermostat placement, or hidden insulation problems. Even a brand‑new AC unit can cool poorly if the airflow path, duct layout, or heat gain in the home was not evaluated during installation.

Quick Takeaways

1. Incorrect AC sizing is the most common reason a small home cools unevenly.
2. Short cycling often indicates an oversized air conditioner.
3. Weak airflow usually comes from duct restrictions or poor vent placement.
4. Thermostat location can mislead the system and cause uneven cooling.
5. Insulation and sun exposure strongly affect cooling performance in smaller houses.

Introduction

I have worked on dozens of small residential layouts where homeowners installed a new system expecting instant comfort, only to find the AC not cooling a 1000 sq ft house properly. A 972 sq ft home should generally be one of the easiest spaces to cool, yet performance issues are surprisingly common.

In many cases, the problem isn't the equipment itself. It is the interaction between layout, airflow, insulation, and thermostat placement. I have seen brand‑new units struggle simply because return vents were poorly positioned or because the system was oversized for the house.

If you suspect sizing might be the issue, it helps to first review a realistic home layout and cooling coverage estimate for a 972 sq ft floor plan. Many cooling problems become obvious once you examine airflow paths and room distribution.

This guide walks through the most common causes I see in small homes and how to diagnose them logically before assuming the unit itself is defective.

save pin

Signs Your 972 Sq Ft Home AC System Is Not Performing Properly

Key Insight: Performance issues in small homes usually appear as uneven cooling, constant cycling, or rooms that never reach the thermostat temperature.

Because smaller homes have less air volume, problems show up faster than in larger houses. When the system isn't balanced correctly, you will typically notice it within days of installation.

Common warning signs include:

1. Living room cools quickly but bedrooms stay warm
2. AC turns on and off every few minutes
3. One side of the house feels humid
4. Airflow from vents feels weak
5. Temperature never reaches the thermostat setting

In field inspections, uneven cooling in a 900 sq ft home is often linked to duct design rather than equipment quality. HVAC contractors frequently reuse older ductwork when installing new units, which can restrict airflow.

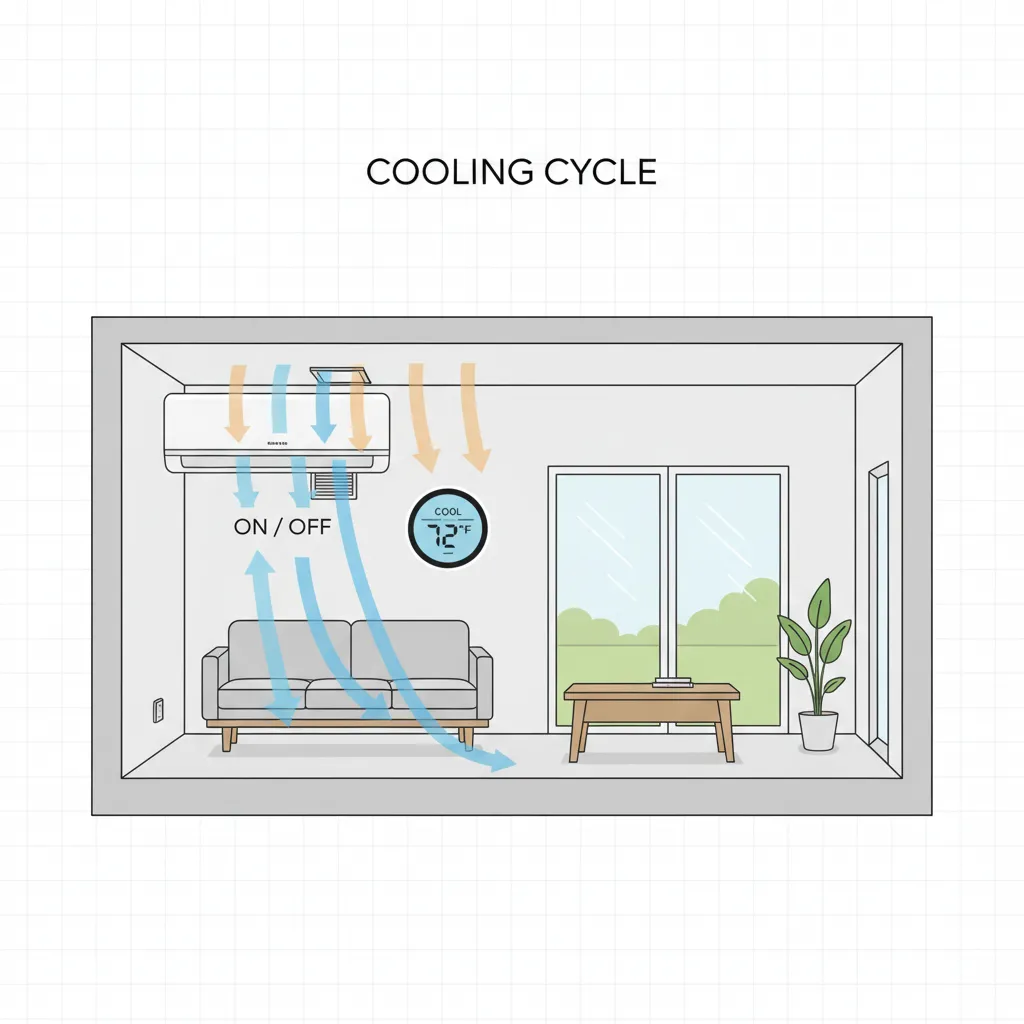

Oversized vs Undersized Air Conditioner Symptoms

Key Insight: Oversized air conditioners are more common than undersized ones in small homes, and they create short cycling and humidity problems.

Many installers intentionally oversize systems to "be safe," but in houses under 1,000 square feet this approach backfires.

Here is how the symptoms differ:

1. Oversized AC symptomsShort cycling every 5–10 minutes
2. Cold but humid indoor air
3. Large temperature swings
4. Higher electricity usage
5. Undersized AC symptomsAC runs constantly
6. Temperature slowly creeps upward on hot days
7. Rooms farthest from the unit stay warm

Oversized air conditioner symptoms in small houses appear more frequently because cooling load calculations are sometimes skipped during quick installations.

save pin

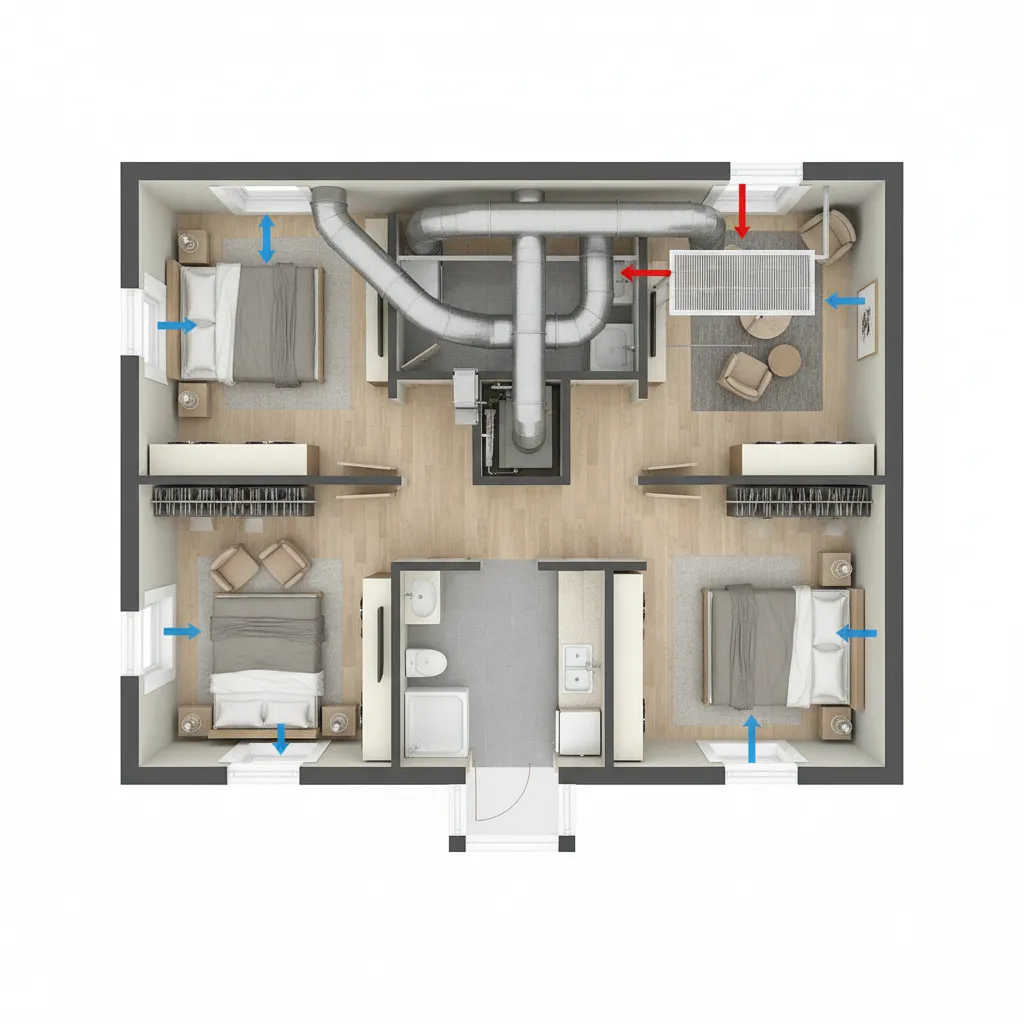

Airflow and Duct Problems in Small Houses

Key Insight: Poor airflow is the most overlooked reason a small home air conditioner is not working properly.

In homes under 1,000 square feet, airflow design matters more than equipment power. When supply vents or return ducts are incorrectly placed, the AC struggles to circulate cooled air evenly.

Typical airflow problems include:

1. Return vent located only in the hallway
2. Long duct runs feeding small bedrooms
3. Blocked vents behind furniture
4. Undersized return ducts

I often recommend mapping the room airflow visually before assuming the AC is failing. A quick way to understand circulation is to visualize room airflow paths and vent placement inside a simple floor plan. Once you see where air enters and exits rooms, dead zones become obvious.

According to HVAC design standards published by ASHRAE, balanced airflow between supply and return is critical for stable cooling performance. Without it, even a correctly sized system struggles.

save pin

Thermostat Placement and Calibration Issues

Key Insight: A poorly placed thermostat can make a perfectly functional AC system behave as if it is failing.

I have seen thermostats installed directly above return vents or in sun‑exposed hallways. In both cases, the thermostat reads temperatures that do not represent the rest of the house.

Common placement mistakes include:

1. Thermostat near a supply vent
2. Placement in direct sunlight
3. Installed too close to the kitchen
4. Mounted on exterior walls

These situations often cause air conditioner short cycling in a small home because the thermostat senses rapid temperature changes.

The best location is usually a central interior wall roughly 5 feet above the floor, away from direct airflow and heat sources.

Insulation and Heat Gain Problems

Key Insight: Hidden heat gain can overpower a correctly sized air conditioner in smaller homes.

One misconception I frequently encounter is that AC capacity alone determines cooling success. In reality, heat gain through walls, windows, and attic space can dramatically increase cooling demand.

Common sources of heat gain:

1. Attics with insufficient insulation
2. Large west‑facing windows
3. Dark roofing materials
4. Air leaks around doors and windows

Even small improvements—like sealing attic leaks or adding reflective window film—can noticeably improve cooling performance in a 972 sq ft home.

Answer Box

The most common reason a new AC struggles in a 972 sq ft home is not equipment failure but system imbalance. Oversizing, poor airflow design, thermostat placement errors, and insulation gaps account for most cooling complaints.

When to Call an HVAC Technician

Key Insight: Persistent short cycling or weak airflow after basic checks usually requires professional diagnostics.

You should contact an HVAC technician if you notice:

1. Short cycling every few minutes
2. Ice forming on refrigerant lines
3. Large temperature differences between rooms
4. Extremely weak airflow from vents

Before calling a technician, it can help to map the full home layout and cooling zones in a simple 3D floor plan. Many professionals use similar visualizations to diagnose airflow problems quickly.

save pin

Final Summary

1. Oversized AC systems frequently cause short cycling in small homes.
2. Airflow and duct layout strongly influence cooling performance.
3. Thermostat placement can create misleading temperature readings.
4. Hidden heat gain often explains poor cooling despite new equipment.
5. Persistent problems should be evaluated by an HVAC professional.

FAQ

Why is my AC not cooling my 1000 sq ft house?

Incorrect system sizing, blocked airflow, thermostat misplacement, or insulation issues are the most common causes.

What size AC is usually needed for a 972 sq ft home?

Most homes of this size use around 1.5 to 2 tons of cooling capacity, depending on insulation, climate, and window exposure.

Why does my air conditioner short cycle in a small home?

Short cycling often indicates an oversized air conditioner or thermostat placement too close to vents.

Can duct design affect cooling in a small house?

Yes. Poor duct routing or undersized returns often cause uneven cooling and weak airflow.

How do I fix uneven cooling in a 900 sq ft home?

Check airflow balance, ensure vents are open, evaluate duct layout, and verify thermostat placement.

Is it normal for a small home AC to run constantly?

No. Continuous operation often means the unit is undersized or the home has excessive heat gain.

Can insulation affect AC performance?

Yes. Poor attic insulation can significantly increase cooling demand even in smaller homes.

Should a new air conditioner cool a small home quickly?

In most cases yes. If a new system struggles, airflow design or sizing errors are usually responsible.
