Common AutoCAD Mistakes When Designing Dining Hall Layouts (And How to Fix Them): Practical fixes for scaling, table spacing, and block alignment issues in AutoCAD dining hall floor plans.

Direct Answer

The most common AutoCAD dining hall layout mistakes involve incorrect drawing scale, misaligned table blocks, inconsistent spacing between seating areas, poor layer organization, and unreadable dimensions. These issues usually happen because designers mix units, reuse poorly structured blocks, or skip layout planning before drafting. Fixing them requires consistent scaling, standardized blocks, controlled layers, and verified spacing rules.

Quick Takeaways

1. Most dining hall drafting problems start with incorrect drawing units or scale settings.
2. Misaligned table blocks usually come from inconsistent insertion points.
3. Dining tables should maintain clear circulation space of 36–48 inches.
4. Layer discipline becomes essential when layouts exceed 50+ seating elements.
5. Clean annotations improve readability for contractors and facility managers.

Introduction

I have reviewed dozens of restaurant and cafeteria layouts over the past decade, and the same AutoCAD dining hall layout problems appear again and again. Not because designers lack skill, but because dining spaces combine two things that make drafting tricky: repetition and circulation logic.

A dining hall might contain 60 to 200 seats. That means repeating blocks, adjusting spacing, maintaining traffic paths, and keeping everything readable for contractors. When even one drafting rule breaks—scale mismatch, poorly defined blocks, or messy layers—the entire layout becomes difficult to interpret.

Many designers jump straight into AutoCAD drafting without first testing layout flow. In real projects, I often sketch or simulate arrangements first using tools that visualize seating distribution before drafting the technical plan. If you're still figuring out optimal table placement, this guide on visualizing different seating arrangements before drafting the final floor plancan save hours of redraw work.

In this article I'll break down the drafting mistakes I see most often when creating dining hall plans—and the practical fixes that keep layouts clean, scalable, and construction‑ready.

save pin

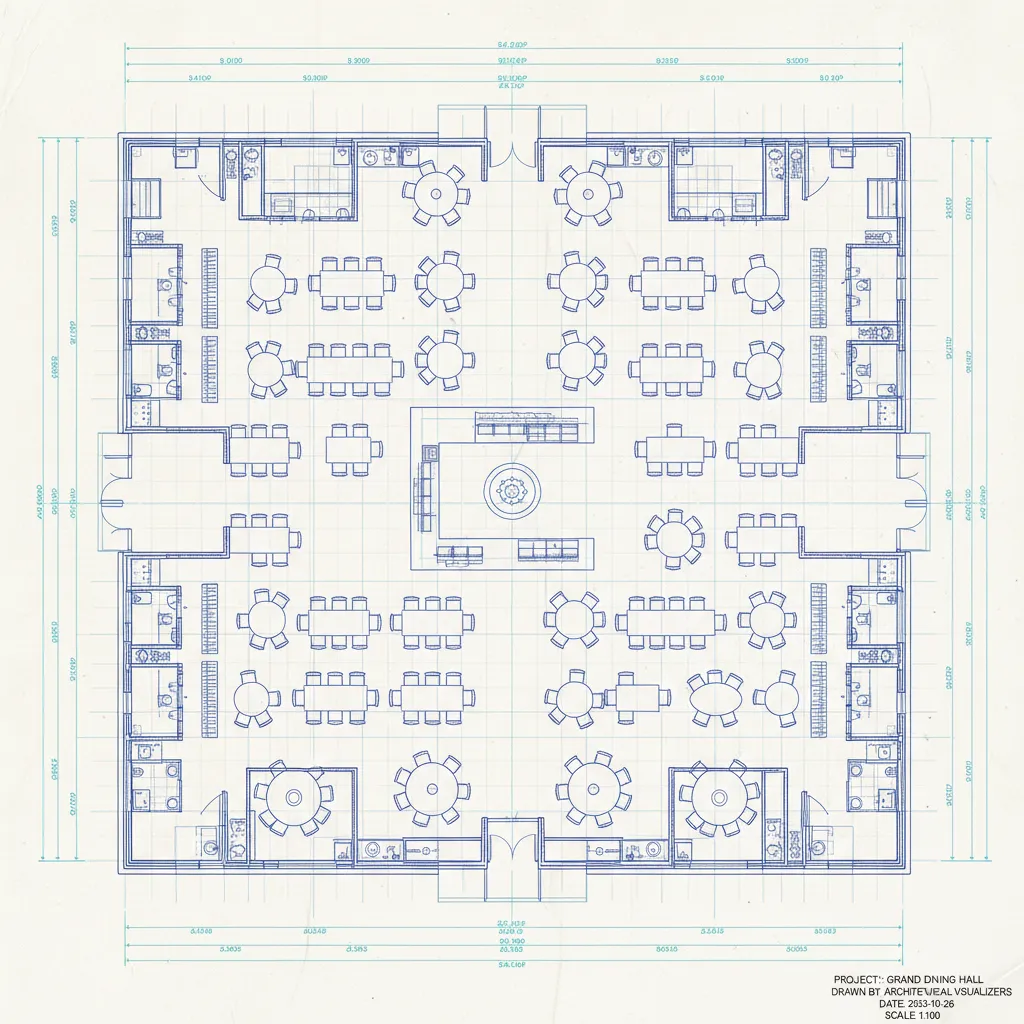

Incorrect Scaling Problems in Dining Hall Floor Plans

Key Insight: Most AutoCAD floor plan scaling issues happen when units, annotation scales, and block sizes are not standardized at the beginning of the project.

Dining hall layouts rely on precise spacing between tables, aisles, and service zones. If the drawing scale is wrong—even slightly—your seating capacity calculations quickly fall apart.

I once reviewed a cafeteria plan that looked perfectly organized until we checked dimensions. The drawing units were set to inches while imported blocks were created in millimeters. Every table ended up slightly oversized.

Typical scale problems include:

1. Importing furniture blocks built in different unit systems
2. Working in model space without verifying drawing units
3. Incorrect annotation scale causing dimension confusion
4. Scaled blocks instead of true-size blocks

Practical Fix

1. Set units before starting the drawing (UNITS command).
2. Keep furniture blocks at real-world scale.
3. Use 1:1 model space drafting.
4. Confirm dimensions using a known table size (typically 30–36 inches).

According to Autodesk drafting guidelines, maintaining 1:1 scale in model space is the most reliable way to prevent layout distortion in architectural plans.

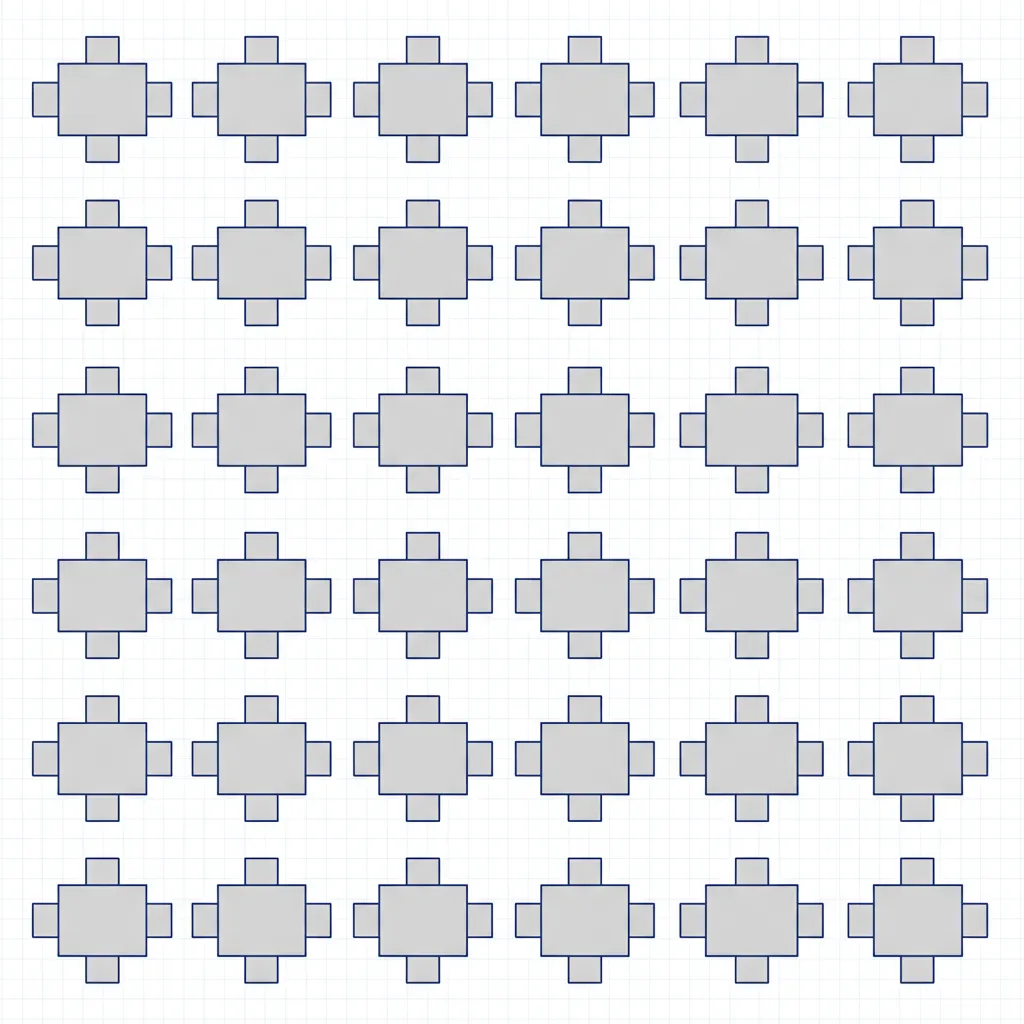

Why Table Blocks Do Not Align Properly in AutoCAD

Key Insight:Misalignment usually occurs because table blocks were created with inconsistent base points.

Block insertion points determine how objects snap to grids or align with other furniture. If the base point sits off-center, every placed table drifts slightly off alignment.

This becomes obvious when arranging long rows of dining tables—one row looks clean while the next appears staggered.

save pin

Common causes of block alignment issues:

1. Furniture blocks downloaded from different libraries
2. Incorrect base point placement
3. Scaled blocks instead of standardized versions
4. Rotated UCS settings

How I fix this in real projects:

1. Open the block in Block Editor.
2. Move the base point to the table center.
3. Ensure geometry is symmetrical.
4. Save as a standardized library block.

When teams manage large dining hall layouts, maintaining a shared block library dramatically reduces drafting errors.

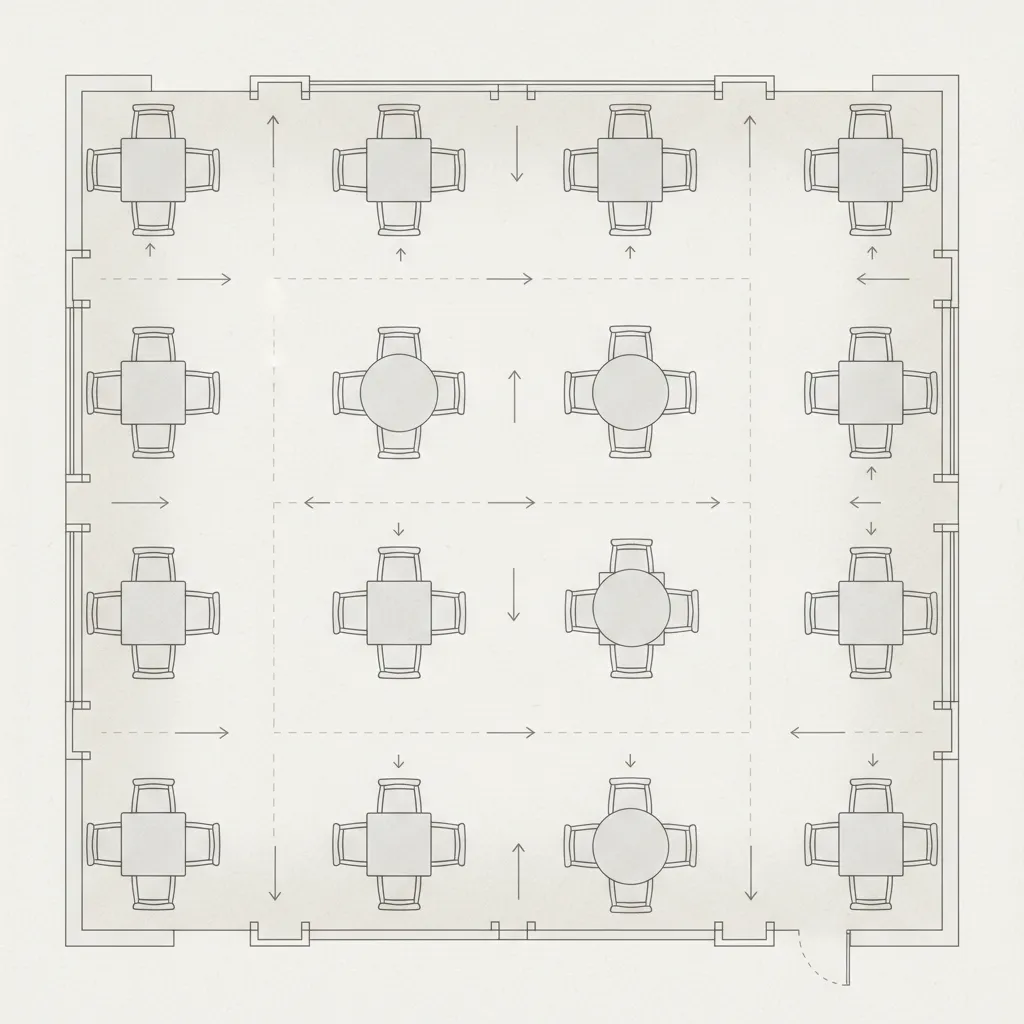

Fixing Spacing Errors Between Dining Tables

Key Insight: Incorrect spacing is the most expensive layout mistake because it directly affects seating capacity and safety compliance.

Designers often prioritize fitting more tables rather than protecting circulation space. But codes and comfort guidelines require minimum clearances.

Typical spacing standards used in hospitality design:

1. 36 inches minimum between table edges
2. 42–48 inches for main circulation paths
3. 60 inches clearance for ADA turning space

When layouts grow complex, manually adjusting tables becomes inefficient. In early planning stages, I often model seating density using layout visualization tools before committing to a full AutoCAD draft. For example, experimenting with testing seating density with a visual 3D floor planning workflowhelps reveal spacing problems instantly.

save pin

Quick workflow to correct spacing:

1. Create spacing reference circles around tables.
2. Use ARRAY or COPY commands for consistent distribution.
3. Verify walkway widths with temporary dimension lines.
4. Run a final circulation check.

The National Restaurant Association notes that customer comfort strongly correlates with adequate table spacing, especially in high‑traffic dining environments.

Layer Management Issues in Large Hall Layouts

Key Insight: Without structured layers, large dining hall plans quickly become unreadable.

When a drawing contains walls, furniture, lighting, kitchen access points, and circulation paths, everything overlapping on one layer creates chaos.

I usually structure layers like this:

1. ARCH-WALL
2. FURN-TABLE
3. FURN-CHAIR
4. CIRCULATION
5. DIMENSION
6. ANNOTATION

Benefits of strict layer organization:

1. Faster editing
2. Cleaner plotting
3. Easier collaboration
4. Reduced accidental object selection

This becomes even more important in institutional dining halls or university cafeterias where layouts evolve through multiple revisions.

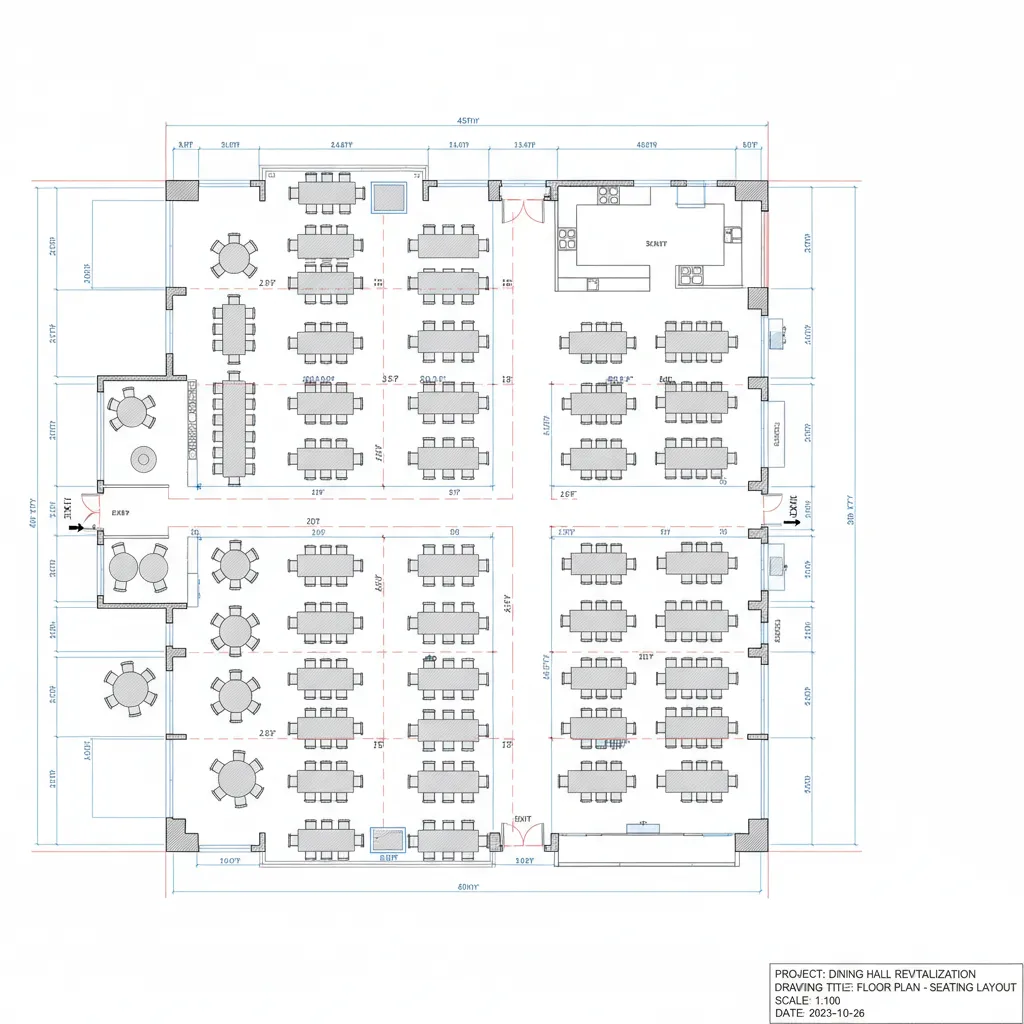

Resolving Dimension and Annotation Problems

Key Insight: A technically correct layout still fails if contractors cannot read the dimensions.

Dimension issues usually appear when annotation scales differ across viewports.

Typical annotation mistakes include:

1. Overlapping dimension lines
2. Text too small in printed drawings
3. Dimensions referencing furniture instead of structure
4. Missing overall room dimensions

save pin

Reliable annotation structure:

1. Primary dimensions: wall-to-wall
2. Secondary dimensions: aisle widths
3. Furniture spacing notes

Industry drafting standards recommend separating structural dimensions from furniture placement notes to avoid contractor confusion.

Best Practices to Prevent Layout Drafting Errors

Key Insight: Most drafting mistakes disappear when layout planning happens before detailed AutoCAD work begins.

Over the years I've noticed that designers who prototype layouts visually make fewer technical errors later. Seeing seating flow before drafting prevents constant revisions.

Simple prevention checklist:

1. Confirm drawing units before starting
2. Use standardized furniture blocks
3. Define circulation zones early
4. Organize layers before placing furniture
5. Verify table spacing with dimension checks

Answer Box

The majority of AutoCAD dining hall drafting mistakes stem from inconsistent scale, poorly defined blocks, and incorrect spacing between tables. Establishing standardized blocks, maintaining real-world scale, and planning circulation paths before drafting eliminates most layout problems.

Final Summary

1. Incorrect scale settings cause major seating layout distortions.
2. Misaligned table blocks usually have incorrect base points.
3. Dining halls require consistent circulation space planning.
4. Layer organization prevents confusion in large layouts.
5. Clear annotations ensure contractors interpret drawings correctly.

If you're planning layouts before committing to CAD drafting, experimenting with creating quick dining hall floor plan concepts before AutoCAD drafting can help test seating arrangements and avoid major redraws later.

FAQ

Why do AutoCAD table blocks not align properly?

Most alignment issues occur because the block base point is not centered. Redefining the insertion point fixes the problem.

What is the standard spacing between dining tables?

Most dining layouts maintain 36–48 inches between table edges to allow comfortable movement.

How do I fix AutoCAD floor plan scaling issues?

Check drawing units, keep objects at real-world size, and draft in model space at 1:1 scale.

What causes AutoCAD dining hall layout problems?

Common causes include mixed units, inconsistent blocks, and incorrect spacing between seating areas.

How many seats can fit in a dining hall layout?

It depends on table size and circulation space. Typical layouts allocate 15–18 square feet per seat.

Why are my AutoCAD dimensions unreadable when printed?

This usually happens when annotation scales differ between model space and layout viewports.

Should furniture be dimensioned in architectural drawings?

Generally no. Dimensions should reference walls and structural elements instead.

What is the best workflow for troubleshooting restaurant layout in AutoCAD?

Verify units, rebuild blocks, check table spacing, organize layers, and review annotations before final plotting.
