Common Electrical Floor Plan Mistakes and How to Fix Them: Learn how to spot layout errors early and fix electrical floor plan mistakes before they become costly construction problems

Direct Answer

The most common electrical floor plan mistakes involve poor outlet placement, inefficient lighting circuits, coordination gaps with architectural layouts, and code compliance oversights. These problems usually happen when electrical planning is done too late in the design process or without visualizing real furniture and circulation patterns.

The good news is that most electrical layout errors can be identified early by reviewing outlet spacing, verifying lighting circuits, and testing the layout with a digital planning tool before construction begins.

Quick Takeaways

1. Most electrical floor plan mistakes happen when electrical planning starts after architectural layouts are finalized.
2. Incorrect outlet placement often appears when furniture layouts are ignored during electrical planning.
3. Lighting circuits frequently fail because designers underestimate how people actually use rooms.
4. Code compliance mistakes usually occur in kitchens, bathrooms, and outdoor electrical layouts.
5. Visual floor planning tools can reveal layout conflicts before construction begins.

Introduction

After more than a decade designing residential interiors and collaborating with electrical engineers, I’ve learned that electrical floor plan mistakes rarely come from lack of knowledge. They usually come from timing.

Electrical layouts are often drafted after the architectural floor plan is "finished." By then, furniture placement, circulation, and real-life usage patterns haven’t been fully tested. The result? Outlets hidden behind cabinets, awkward switch locations, and lighting circuits that feel frustrating once people actually move into the space.

When I review electrical plans for clients, I almost always overlay them on a visual layout. Tools that allow you to experiment with a smart floor planning layout before construction beginsmake it much easier to detect conflicts between furniture, lighting, and outlets.

In this guide, I’ll walk through the most common electrical drawing problems I see in real projects, why they happen, and practical ways to fix them before they become expensive job-site changes.

save pin

Why Electrical Floor Plan Errors Happen

Key Insight: Most electrical floor plan mistakes are process problems, not technical problems.

In many residential projects, the architectural layout is finalized first. Electrical planning then happens quickly afterward, sometimes by referencing standard spacing rules instead of real-life usage patterns.

That approach works on paper but fails in practice.

From reviewing dozens of residential construction drawings, I consistently see four root causes.

1. Late-stage electrical planning – Electrical layouts are added after design decisions are locked.
2. No furniture overlay – Outlet placement ignores beds, sofas, and kitchen appliances.
3. Overreliance on generic standards – Designers follow spacing guidelines without considering real usage.
4. Poor coordination between teams – Architects, designers, and electricians review plans separately.

Industry practice supports this observation. The National Electrical Contractors Association often emphasizes early coordination between architectural and electrical drawings to reduce field revisions.

In real projects, early visualization almost always eliminates these issues before construction begins.

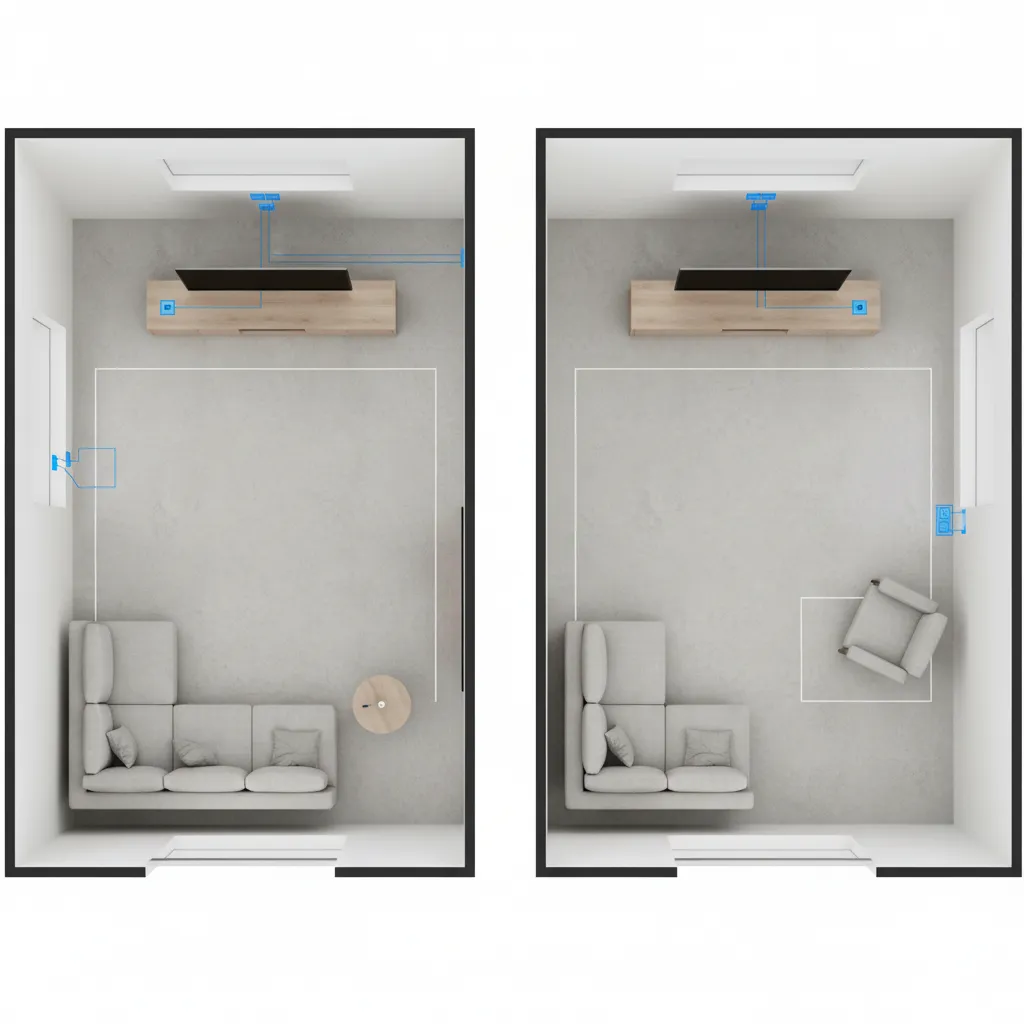

Incorrect Outlet and Switch Placement

Key Insight:Outlet placement errors usually come from ignoring furniture and daily behavior patterns.

In new homes, outlets are technically compliant but practically inconvenient surprisingly often. I've seen bedroom outlets placed directly behind headboards or living room outlets hidden behind built-in cabinets.

The core issue is simple: the electrical plan wasn't developed alongside the furniture plan.

Common outlet placement mistakes include:

save pin

1. Outlets hidden behind large furniture
2. Too few outlets in media areas
3. Switches located behind doors
4. No bedside outlets for device charging
5. Kitchen counter outlets placed where appliances cannot reach

How to fix it:

1. Overlay furniture layout on the electrical plan.
2. Check outlet reach for every appliance.
3. Confirm switches are reachable when entering rooms.
4. Test everyday activities such as charging devices or turning on lights.

Designers often discover these issues only after visualizing the space using a realistic 3D floor planning environment for testing furniture and electrical placement.

Lighting Circuit Layout Problems

Key Insight: Lighting circuits fail when designers focus on fixtures instead of lighting zones.

Many electrical floor plans show lighting fixtures clearly but fail to define how lighting should function.

For example, a living room may have:

1. recessed ceiling lights
2. pendant lighting
3. wall sconces

If all of these fixtures are connected to a single switch, the room loses flexibility.

Better lighting design divides spaces into zones:

1. Ambient lighting circuits
2. Task lighting circuits
3. Accent lighting circuits

According to lighting design recommendations from the Illuminating Engineering Society, layered lighting improves both usability and energy efficiency.

In practice, I always ask one simple question when reviewing plans:

What combination of lights would someone realistically turn on in this room?

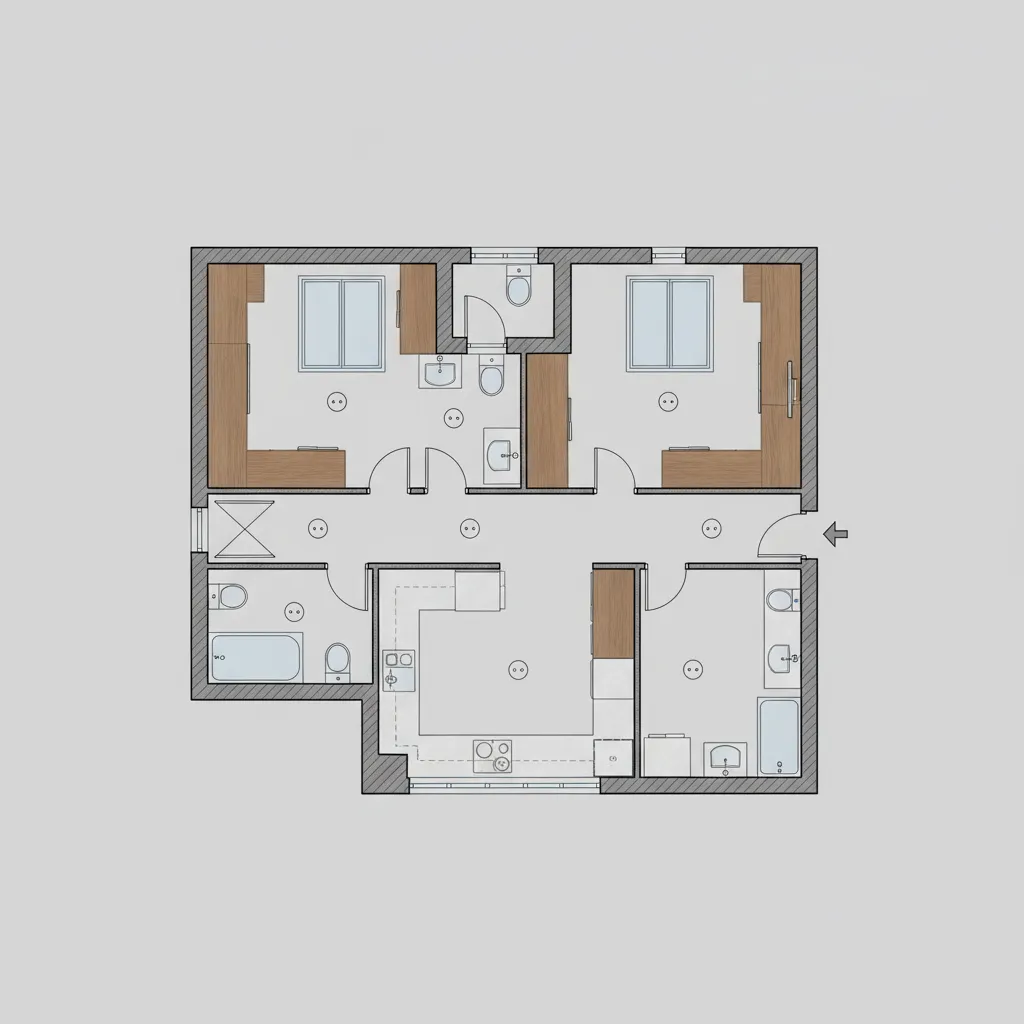

Coordination Issues with Architectural Plans

Key Insight:Electrical layouts often conflict with architectural elements like cabinets, windows, and built-ins.

This is one of the most expensive mistakes because it’s usually discovered during construction.

Typical coordination problems include:

save pin

1. Outlets located behind built-in shelving
2. Switches covered by trim or cabinets
3. Lighting fixtures misaligned with ceiling beams
4. Wall sconces placed where windows are installed

The root cause is simple: electrical plans and architectural plans were reviewed separately.

A practical solution is using a unified digital planning environment where electrical components sit directly on the floor plan. Many designers now start with a simple digital layout tool that lets you sketch and test room layouts quickly before placing electrical elements.

Code Compliance and Safety Mistakes

Key Insight: The most overlooked electrical floor plan code compliance issues occur in kitchens, bathrooms, and outdoor areas.

These rooms have strict electrical safety requirements that designers sometimes overlook when focusing on aesthetics.

Typical compliance mistakes include:

1. Missing GFCI outlets near sinks
2. Improper outlet spacing along kitchen countertops
3. Outdoor outlets without weather protection
4. Bathroom outlets placed too close to water sources

The National Electrical Code provides clear requirements for outlet spacing and safety devices, especially in kitchens and bathrooms.

Even experienced designers occasionally miss these rules when plans evolve quickly during renovations.

Answer Box

The fastest way to detect electrical floor plan mistakes is to overlay the electrical layout on a realistic furniture plan and review how people will actually use the space. Most errors appear immediately when outlets, switches, and lighting are tested against real room layouts.

Step by Step Troubleshooting Checklist

Key Insight: A simple review checklist can catch most electrical drawing problems before construction begins.

Here is the checklist I use when reviewing electrical layouts.

1. Overlay furniture layout with the electrical plan.
2. Verify outlet reach for all appliances and devices.
3. Confirm switches are accessible from room entry points.
4. Check lighting circuits for functional zoning.
5. Review kitchen and bathroom code requirements.
6. Confirm electrical elements do not conflict with cabinets or windows.

Running through this list takes less than 20 minutes but can prevent thousands of dollars in change orders.

Tools That Help Detect Layout Errors

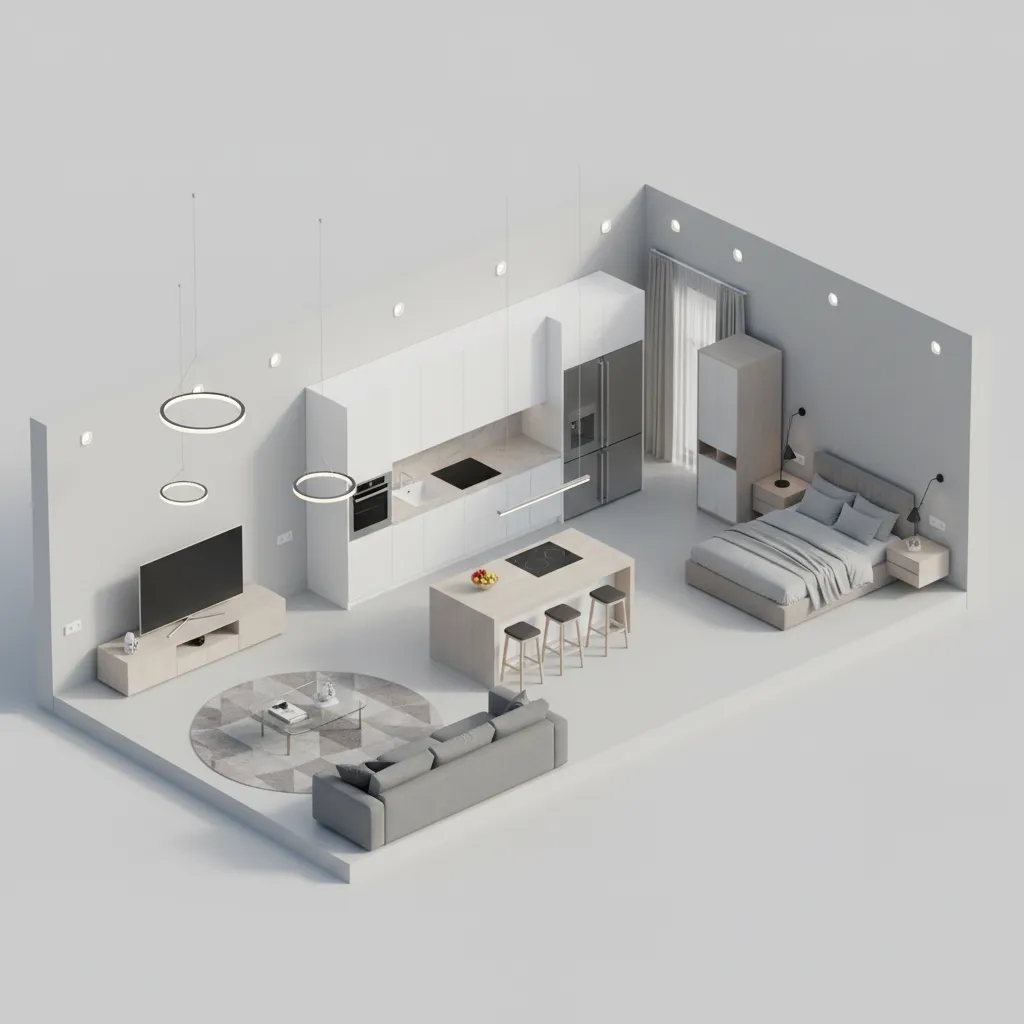

Key Insight:Visualization tools are one of the fastest ways to reveal electrical layout problems before construction starts.

Traditional 2D electrical drawings can hide real-world problems. When you view the same layout in a spatial model, issues become obvious almost immediately.

Modern planning tools help designers:

save pin

1. visualize furniture placement
2. test lighting positions
3. confirm outlet accessibility
4. detect layout conflicts early

In my experience, combining architectural planning with spatial visualization reduces electrical revision requests dramatically during construction.

Final Summary

1. Most electrical floor plan mistakes come from planning electrical layouts too late.
2. Outlet placement errors usually appear when furniture layouts are ignored.
3. Lighting works best when circuits are organized by functional zones.
4. Coordination between architectural and electrical plans prevents costly construction changes.
5. Visual planning tools make layout conflicts easier to detect early.

FAQ

What are the most common electrical floor plan mistakes?

The most common electrical floor plan mistakes include poor outlet placement, inadequate lighting circuits, switch locations behind doors, and missing code-required outlets in kitchens and bathrooms.

How do you fix electrical layout errors before construction?

The best approach is overlaying furniture layouts with electrical drawings and reviewing outlet access, switch locations, and lighting zones before construction begins.

Why do outlet placement mistakes happen in floor plans?

Outlet placement mistakes usually happen when electrical plans are created without considering furniture layouts or appliance locations.

Do electrical floor plans need to follow building codes?

Yes. Electrical floor plans must comply with local building codes and the National Electrical Code, especially for kitchens, bathrooms, and outdoor installations.

How many outlets should a room have?

Most building codes require outlets every 12 feet along walls, but additional outlets are often needed depending on furniture layout and device usage.

Can lighting circuits be changed after construction?

Yes, but it can require opening ceilings or walls, which increases renovation costs significantly.

What tools help detect electrical floor plan mistakes?

3D planning and layout visualization tools help designers see how electrical components interact with furniture and room layouts.

What is the best way to troubleshoot an electrical floor plan?

An electrical design troubleshooting guide usually starts with reviewing outlet placement, lighting circuits, architectural coordination, and electrical code compliance.
