Common Errors When Measuring Floor Area From Floor Plans: A practical troubleshooting guide to fix incorrect floor area calculations from architectural drawings

Direct Answer

Most incorrect floor area calculations from floor plans happen because of scale misinterpretation, ignoring wall thickness, or measuring irregular shapes incorrectly. Small reading mistakes on architectural drawings can easily compound into large square‑footage errors. Verifying scale, structural boundaries, and measurement method usually fixes the problem.

Quick Takeaways

1. Incorrect drawing scale is the most common reason floor plan measurements are wrong.
2. Ignoring wall thickness can change the final area calculation significantly.
3. Irregular room shapes often cause major measurement mistakes.
4. Outdated or incomplete drawings frequently produce inaccurate totals.
5. Cross‑checking measurements with digital tools reduces human error.

Introduction

In more than a decade working with residential plans and interior layouts, I've seen how often floor area calculations go wrong—even on otherwise professional architectural drawings. Measuring space from a floor plan looks straightforward, but tiny interpretation errors can snowball into hundreds of square feet of discrepancy.

Clients often come to me confused: their contractor, architect, and real estate listing all show different numbers. In most cases, the issue isn't complicated math. It's usually misreading scale, measuring the wrong boundaries, or using outdated plans.

When I review projects, I often rebuild the layout digitally first. Tools designed for turning a simple sketch into a measurable digital floor planmake it much easier to verify dimensions before construction or renovation begins.

In this guide, I'll break down the most common floor plan measurement mistakes I encounter in real projects and explain how to catch them before they become expensive problems.

save pin

Why Floor Area Calculations From Plans Go Wrong

Key Insight: Most floor area errors originate from interpretation mistakes rather than calculation errors.

Architectural drawings compress a huge amount of information into a two‑dimensional document. When someone unfamiliar with drafting conventions reads them, it's easy to misunderstand boundaries, scales, or measurement references.

Typical sources of mistakes include:

1. Using the wrong drawing scale
2. Measuring inside wall surfaces instead of structural boundaries
3. Ignoring columns, shafts, or stair cores
4. Approximating curved or angled walls
5. Working from outdated revisions

The American Institute of Architects emphasizes that architectural drawings are interpretation tools, not guaranteed measurement documents. That distinction alone explains why manual area calculations often differ from official building documentation.

Misreading Drawing Scale and Dimensions

Key Insight: A single scale misunderstanding can multiply measurement errors across the entire floor plan.

Every architectural drawing is produced at a defined scale—commonly 1/4 inch = 1 foot or 1:100 depending on region. If that scale is misread or printed incorrectly, all manual measurements become unreliable.

Common scale mistakes I see in real projects:

1. Printed plans resized automatically by the printer
2. Digital PDFs measured without checking scale calibration
3. Mixing metric and imperial measurements
4. Assuming all sheets in a drawing set share the same scale

One quick verification method is to measure a labeled dimension line on the drawing. If the measured result doesn't match the printed dimension, the drawing scale is already compromised.

save pin

Forgetting Wall Thickness and Structural Elements

Key Insight: Whether you measure inside or outside walls dramatically changes the final floor area.

This is a subtle but critical issue. Different industries define floor area differently:

1. Real estate listings often measure usable interior space.
2. Architectural calculations frequently measure to structural wall centers.
3. Building codes sometimes use exterior wall boundaries.

In residential buildings, exterior walls alone can add 6–12 inches of thickness per side. Across a full home, that difference can easily shift the calculated area by several percent.

Before measuring, confirm which boundary standard you're using:

1. Interior finished surface
2. Wall centerline
3. Exterior structural wall

Mixing these standards within the same plan is one of the fastest ways to produce inconsistent numbers.

Mistakes When Measuring Irregular Room Shapes

Key Insight: Irregular geometry causes many floor plan calculations to underestimate or overestimate actual area.

Rooms rarely form perfect rectangles. Bay windows, angled walls, curved partitions, and stair cutouts complicate measurements quickly.

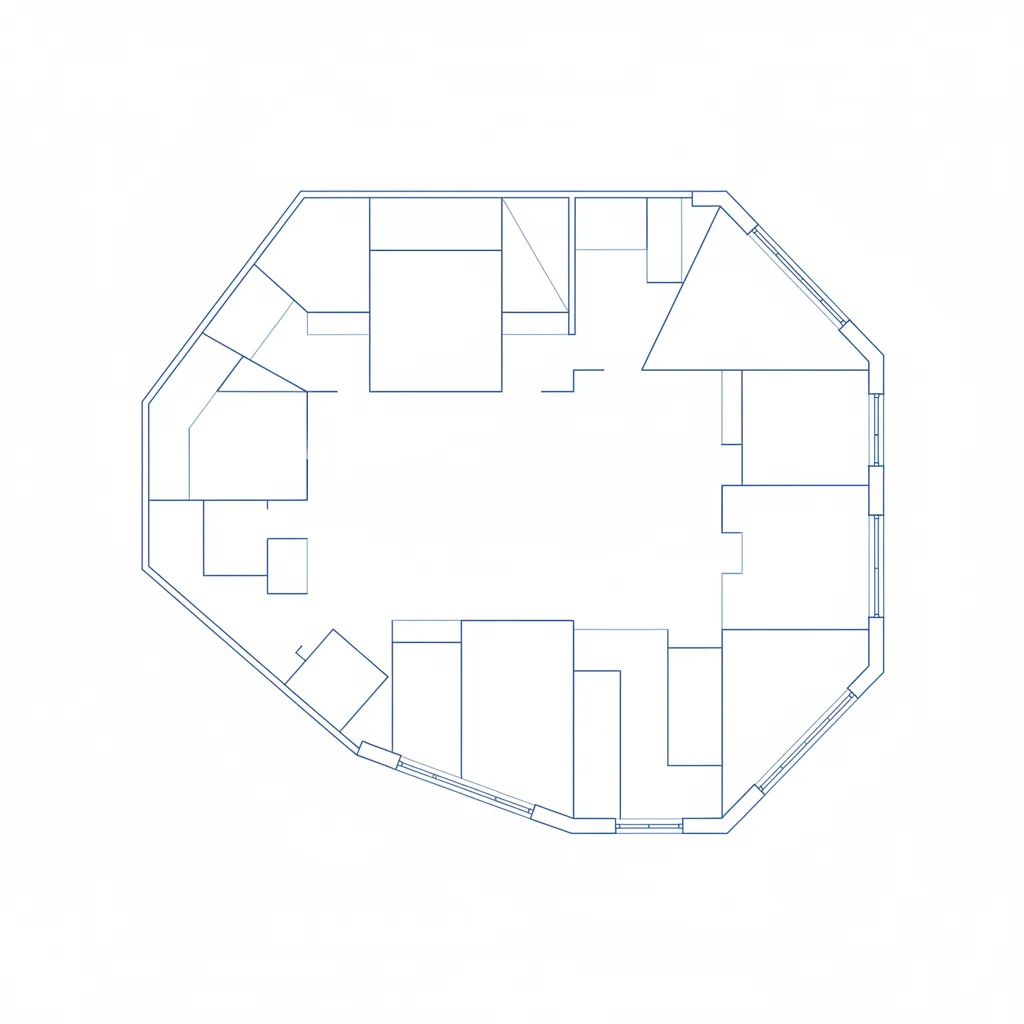

Instead of estimating irregular areas visually, experienced designers break complex shapes into simple geometric pieces.

A reliable workflow looks like this:

1. Divide the room into rectangles, triangles, and trapezoids
2. Measure each section individually
3. Calculate areas separately
4. Add the totals together

When reviewing renovation projects, I often rebuild the layout using a visual 3D floor layout planning workflow. Seeing the geometry spatially reduces the chance of missing angled walls or partial areas.

save pin

Problems With Incomplete or Outdated Plans

Key Insight: Using an outdated drawing set can invalidate your entire floor area calculation.

Architectural plans evolve throughout a project. Revisions happen frequently during permitting, engineering review, and construction coordination.

If you're measuring from an early schematic drawing, you might miss:

1. Revised wall locations
2. Expanded stair openings
3. Added mechanical shafts
4. Structural column adjustments

On a recent remodel project in Los Angeles, a client calculated the floor area from a marketing floor plan rather than the construction drawings. The difference ended up being nearly 8% once structural revisions were included.

Always verify the drawing revision date and sheet version before performing measurements.

Answer Box

The fastest way to fix wrong floor area calculations is to verify drawing scale, confirm measurement boundaries, and rebuild irregular rooms using simple geometric sections. Most errors come from interpretation rather than arithmetic.

save pin

How to Verify Your Floor Area Calculation

Key Insight: Cross‑checking your measurements with multiple methods quickly reveals hidden errors.

In professional workflows, we rarely rely on a single measurement approach. Instead, we verify calculations through multiple checkpoints.

Effective verification methods include:

1. Comparing dimension totals along parallel walls
2. Checking room areas against architectural schedules

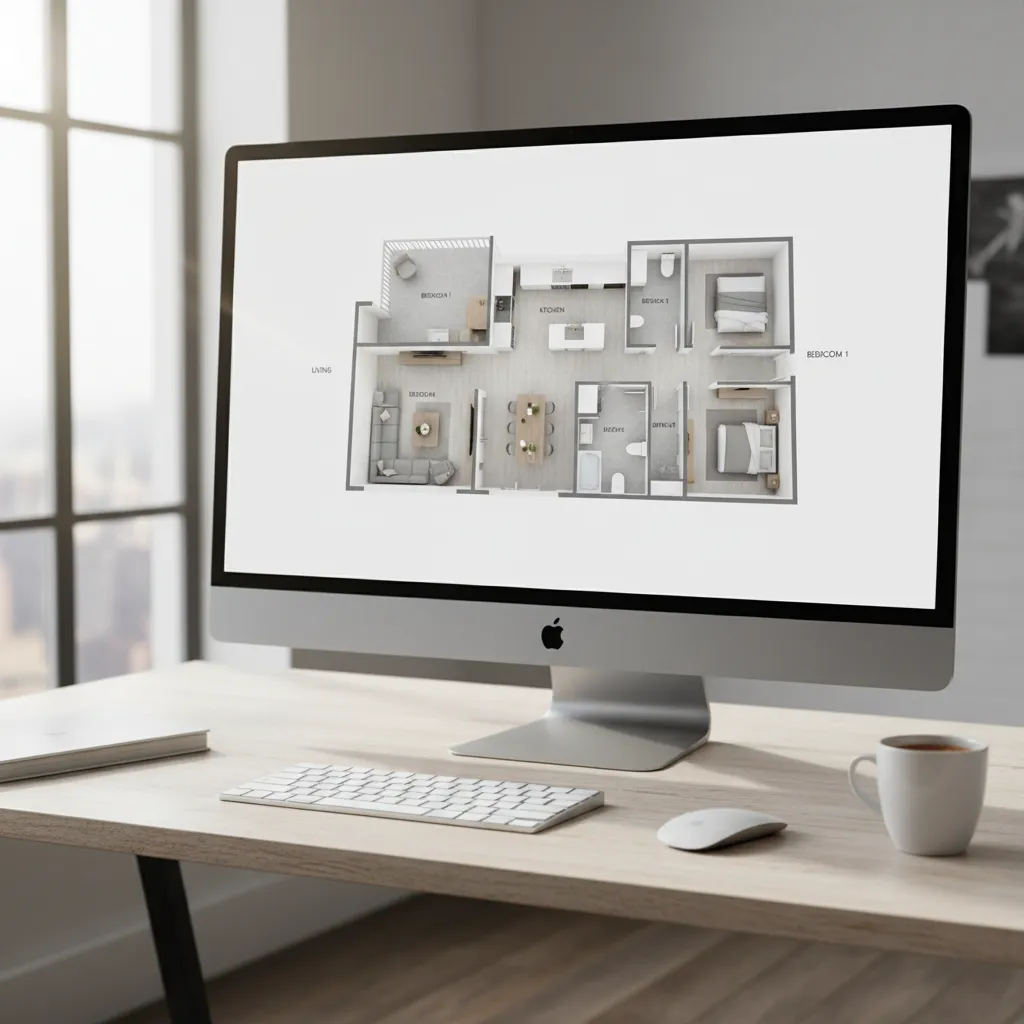

3. Rebuilding the layout digitally
4. Measuring using calibrated PDF tools

Recreating the layout in a structured environment like a step‑by‑step room layout planning workspace often reveals missing dimensions or shape misinterpretations immediately.

Professional Tips to Avoid Measurement Errors

Key Insight: A consistent measurement workflow prevents most floor plan calculation mistakes.

After years of reviewing residential plans, I follow a simple checklist before finalizing any area calculation.

Practical habits that reduce errors:

1. Always confirm drawing scale before measuring
2. Measure along structural wall references
3. Break irregular rooms into geometric sections
4. Use the latest drawing revision
5. Verify totals using digital modeling tools

One overlooked issue is overconfidence in printed drawings. Even professionally produced plans can contain inconsistencies, especially early in design phases. Verification is part of the process, not a sign something is wrong.

Final Summary

1. Scale misinterpretation is the leading cause of floor plan measurement errors.
2. Wall thickness and boundary standards significantly affect total floor area.
3. Irregular room shapes require geometric breakdown for accurate measurement.
4. Outdated plans frequently produce misleading area calculations.
5. Digital layout verification helps detect hidden measurement mistakes.

FAQ

Why are my floor plan area calculations different from the architect's numbers?

Architects may measure to structural wall boundaries while you measured interior surfaces. Different measurement standards often explain the discrepancy.

What is the most common mistake when measuring floor area from plans?

Misreading the drawing scale is the most common mistake when calculating floor area from architectural plans.

How do I check if a floor plan scale is correct?

Measure a dimension line labeled on the drawing. If your scaled measurement does not match the printed dimension, the drawing scale is incorrect.

Should floor area include wall thickness?

It depends on the measurement standard. Some calculations include exterior wall thickness, while others measure only interior usable space.

How do you measure irregular room shapes on a floor plan?

Break the room into smaller geometric shapes such as rectangles and triangles, calculate each area separately, then combine them.

Can incorrect scale on architectural drawings cause large area errors?

Yes. Even a small scale error can multiply across the entire drawing, producing significant floor area inaccuracies.

Are digital tools more accurate for measuring floor plans?

Yes. Digital tools allow calibrated scaling and geometric snapping, which reduces human measurement errors.

How can I fix wrong floor area calculations?

Recheck drawing scale, confirm wall measurement boundaries, divide irregular shapes correctly, and verify results using a digital layout reconstruction.
