Common Microlux Lighting Design Errors and How to Fix Them: Practical troubleshooting tips from real lighting design workflows to fix Microlux calculation, import, and simulation problems

Direct Answer

Most Microlux lighting design errors come from three sources: incorrect geometry imports, incomplete luminaire data, or unrealistic calculation settings. Fixing these issues usually involves cleaning the CAD model, verifying photometric files, and adjusting calculation grids or reflectance values. In real projects, small setup mistakes often create the largest simulation errors.

Quick Takeaways

1. Incorrect CAD layers and scaling cause many lighting simulation failures.
2. Missing IES or LDT files often lead to blank luminaires or incorrect results.
3. Overly dense calculation grids can slow or crash simulations.
4. Room surface reflectance values heavily influence illuminance results.
5. Clean geometry improves both performance and lighting accuracy.

Introduction

After working on dozens of lighting layouts across residential and commercial interiors, I've noticed a pattern: most Microlux lighting simulation troubleshooting requests come down to setup problems rather than software limitations.

Designers often assume the calculation engine is wrong when illuminance results look strange. In reality, the issue is usually a messy CAD import, incorrect luminaire photometry, or unrealistic reflectance assumptions. Even experienced designers run into these issues when transferring models from architectural tools.

If your lighting results feel "off," start with the geometry. I often recommend reviewing spatial layouts first using tools that help visualize the environment clearly, like a visual room layout planning workflow used for early design validation. Clean spatial context dramatically improves simulation accuracy.

Below are the most common Microlux errors I've seen in practice and the fastest ways to fix them.

save pin

Why Lighting Simulation Errors Occur in Microlux

Key Insight: Most lighting errors originate from incorrect input data rather than calculation algorithms.

Lighting simulation software is extremely sensitive to geometry and material assumptions. A misplaced ceiling height, incorrect reflectance value, or mis-scaled CAD import can dramatically distort results.

In one office project I worked on, illuminance values were reading 30% lower than expected. The problem turned out to be a CAD model imported in millimeters but interpreted as meters.

Common sources of simulation errors:

1. Incorrect model scale from CAD imports
2. Missing ceiling or wall surfaces
3. Wrong reflectance values for materials
4. Incomplete luminaire photometric files
5. Improper calculation grid spacing

Industry guidance from the Illuminating Engineering Society emphasizes that accurate geometry and surface reflectance are foundational to reliable lighting simulations.

Fixing Incorrect Illuminance Calculations

Key Insight: Illuminance errors usually result from unrealistic reflectance settings or incorrect calculation planes.

When designers see lighting levels that look impossible—either extremely bright or unusually dark—the calculation plane is often the culprit.

Check these settings first:

1. Calculation plane height (typically 0.8 m for desks)
2. Wall reflectance (commonly 50–70%)
3. Ceiling reflectance (around 80%)
4. Floor reflectance (20–30%)

Another hidden mistake is overusing extremely tight calculation grids. While it seems more precise, it can actually introduce numerical noise and slow the simulation dramatically.

A balanced grid spacing of 0.5–1 meter works for most architectural lighting layouts.

save pin

Resolving CAD or Model Import Problems

Key Insight: Dirty CAD files are the number one reason lighting models fail to calculate correctly.

Architectural CAD files often contain thousands of unnecessary elements—annotations, blocks, construction lines, and overlapping surfaces. These confuse lighting engines.

Before importing into Microlux:

1. Purge unused CAD layers
2. Remove annotation objects
3. Convert blocks into simple geometry
4. Verify unit scaling
5. Ensure rooms are fully enclosed

When geometry becomes complex, I often validate spatial structure using a clean floor plan creation workflow that rebuilds room boundaries. Rebuilding simplified geometry can eliminate many simulation failures.

Handling Missing Luminaire Data Files

Key Insight: Without correct photometric files, lighting software cannot produce reliable results.

Luminaire data files (IES or LDT formats) contain the photometric distribution required for accurate calculations.

If a fixture appears but produces no realistic lighting, check the following:

1. The photometric file is correctly linked
2. The manufacturer data file is not corrupted
3. The luminaire orientation is correct
4. The photometric distribution matches the installed fixture

Manufacturers such as Philips, Zumtobel, and Fagerhult publish verified IES libraries. Using manufacturer files instead of generic libraries significantly improves accuracy.

save pin

Improving Simulation Accuracy

Key Insight: Simulation accuracy improves more from realistic materials and layout validation than from increasing calculation resolution.

A common misconception among newer designers is that more calculation points automatically produce better lighting simulations. In reality, the physical model matters far more.

Key accuracy improvements include:

1. Correct material reflectance values
2. Realistic luminaire mounting heights
3. Accurate ceiling structures
4. Proper room enclosure

In complex interiors, rendering the environment visually can help reveal layout mistakes. I often preview spaces using a full 3D interior visualization workflow that shows lighting context clearly. Visual validation often catches mistakes that numeric simulations miss.

Answer Box

Most Microlux lighting simulation problems come from incorrect model inputs. Cleaning CAD files, verifying luminaire photometric data, and setting realistic reflectance values usually resolve inaccurate lighting results.

Performance Issues and Software Stability

Key Insight: Performance problems are typically caused by excessive geometry or calculation density.

When simulations freeze or crash, the model is usually too complex.

Ways to improve performance:

1. Simplify imported CAD geometry
2. Reduce calculation grid density
3. Remove hidden or unnecessary layers
4. Limit reflective surfaces in early simulations

In large commercial lighting projects, simplifying the model can reduce simulation time by more than 70%.

save pin

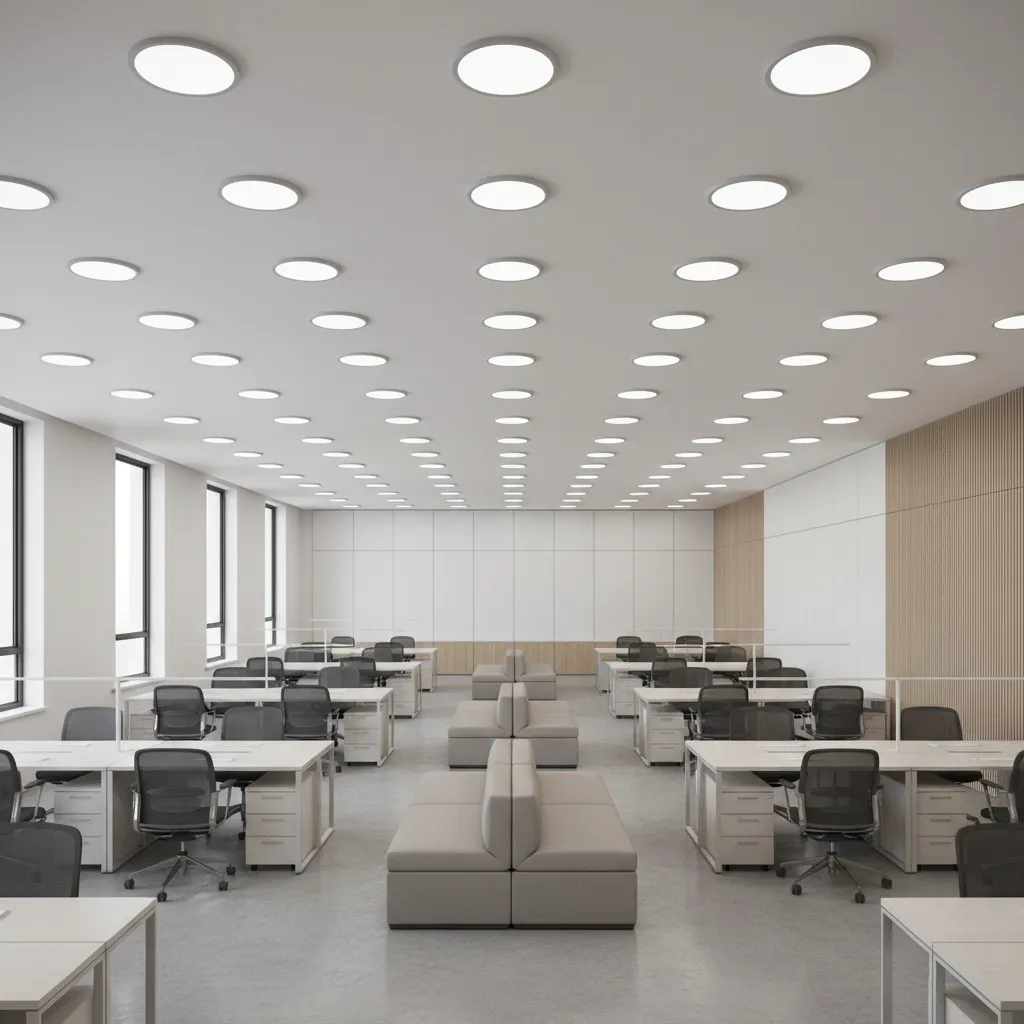

Debugging Lighting Layout Problems

Key Insight: Lighting layouts often fail because spacing rules ignore room proportions.

Many designers place luminaires based on visual symmetry rather than photometric spacing rules.

A more reliable method:

1. Start with manufacturer spacing criteria
2. Align fixtures with task zones
3. Maintain consistent mounting height
4. Verify overlap of light distribution patterns

Lighting engineers frequently apply the spacing-to-mounting-height ratio (SHR) provided by luminaire manufacturers to avoid uneven illumination.

Final Summary

1. Most Microlux errors come from geometry or data problems.
2. Clean CAD models dramatically improve simulation reliability.
3. Correct photometric files are essential for accurate lighting results.
4. Realistic reflectance settings strongly influence illuminance calculations.
5. Simpler models often produce faster and more reliable simulations.

FAQ

Why are my Microlux illuminance results incorrect?

Incorrect reflectance settings, calculation plane height, or mis-scaled CAD models usually cause wrong results.

How do I fix a Microlux lighting calculation error?

Check model scale, luminaire photometric files, and surface reflectance values before recalculating.

Why won't my CAD file import correctly in Microlux?

Complex CAD layers, blocks, and annotations often cause import failures. Clean the file before importing.

What file format does Microlux use for luminaires?

Most lighting simulations use IES or LDT photometric files supplied by manufacturers.

Why is my Microlux simulation extremely slow?

Dense calculation grids or overly detailed geometry are the most common performance issues.

How can I improve Microlux lighting simulation accuracy?

Use verified luminaire data, realistic reflectance values, and simplified architectural models.

What causes lighting layout errors in Microlux?

Incorrect spacing, mounting height issues, and ignoring photometric distribution patterns.

Can missing luminaire files break a Microlux project?

Yes. Without photometric data, the software cannot simulate light distribution correctly.

References

1. Illuminating Engineering Society Lighting Handbook
2. CIBSE Lighting Guide LG7
3. Manufacturer photometric libraries (IES / LDT)
