Common Mistakes When Measuring Kitchen Backsplash Square Footage: Avoid tile shortages and costly delays by understanding the measurement errors homeowners and even contractors often overlook.

Direct Answer

The most common mistakes when measuring kitchen backsplash square footage happen when homeowners ignore cabinet gaps, appliance spaces, partial wall sections, or miscalculate backsplash height. Small miscalculations across several wall sections quickly add up, often leading to tile shortages or wasted material.

Accurate backsplash measurement requires calculating each wall section separately, subtracting blocked areas, and verifying height differences along the countertop.

Quick Takeaways

1. Most backsplash measurement mistakes come from assuming all walls share the same height.
2. Small gaps around cabinets, windows, and appliances can significantly affect square footage.
3. Under‑cabinet measurements are rarely consistent across an entire kitchen wall.
4. Always measure backsplash sections individually rather than estimating the whole wall.
5. Add 10–15% extra tile to protect against cutting waste and miscalculations.

Introduction

Backsplash square footage seems simple until the tile boxes arrive and suddenly there isn't enough to finish the wall. I've seen this happen in dozens of kitchen remodels over the past decade. The homeowner measured once, multiplied width by height, and assumed the math was done.

But kitchens aren't flat rectangles. Cabinets shift, appliances interrupt the wall, and backsplash height changes across the room. Those details are exactly where backsplash square footage calculations break down.

One trick I often recommend before measuring is sketching the kitchen layout first using a visual planning tool like this guide on planning a kitchen layout before measuring walls. Seeing each wall section clearly prevents the most common measurement assumptions.

In this guide I'll break down the backsplash measurement errors I see most often in real renovation projects—and how to fix them before you run short on tile.

save pin

Why Backsplash Measurements Often Go Wrong

Key Insight: Most backsplash square footage mistakes happen because people measure the entire wall instead of the actual tileable sections.

When homeowners calculate backsplash area, they often measure the full length of the countertop and multiply by a single height. On paper that seems logical. In reality, kitchens rarely have a uniform backsplash height across the entire wall.

Common sources of error include:

1. Upper cabinets that sit at different heights
2. Windows cutting into the backsplash space
3. Range hoods that extend higher than surrounding cabinets
4. Peninsula or corner transitions

Professional installers measure each section separately. A typical wall might actually contain four or five individual backsplash zones.

According to guidance from the National Kitchen & Bath Association (NKBA), segmented measurement dramatically reduces material waste during tile installations.

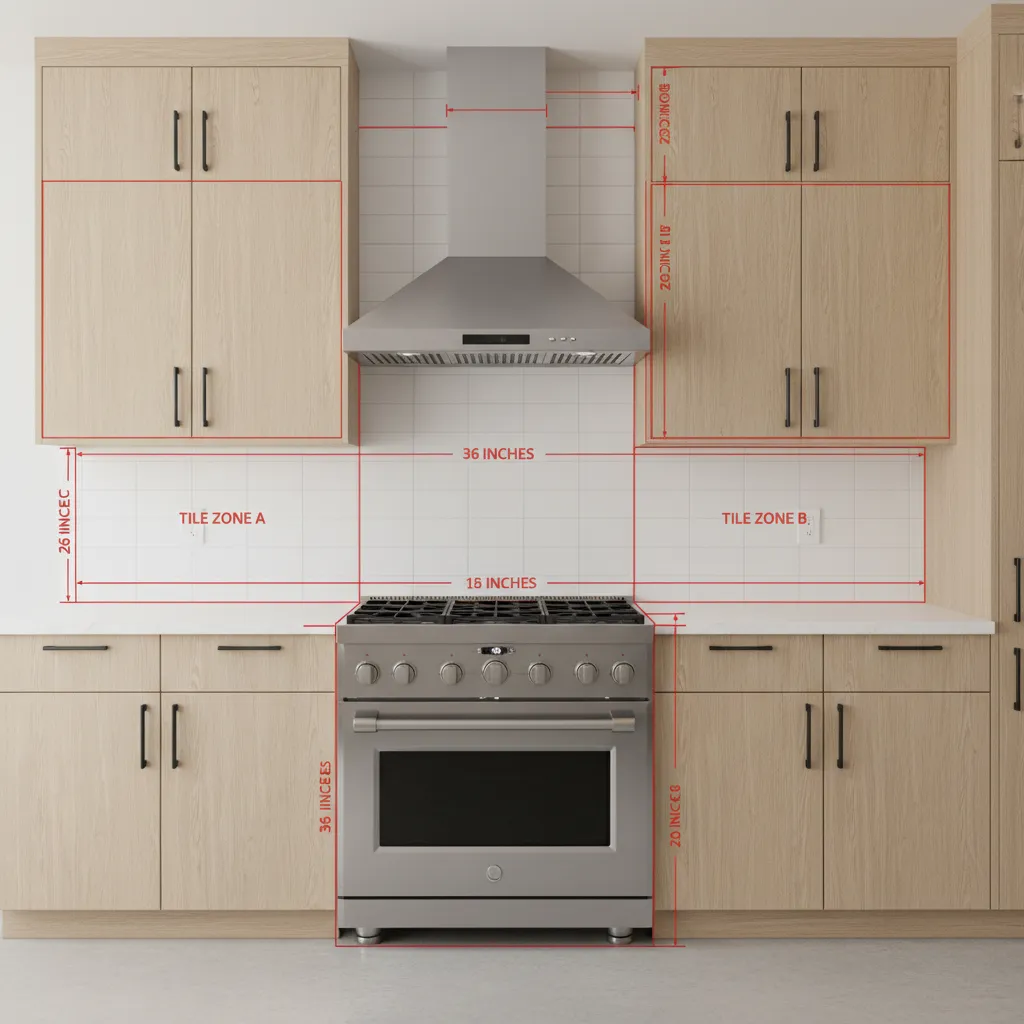

Ignoring Cabinet Gaps and Appliance Spaces

Key Insight: Failing to subtract appliances and cabinet interruptions can inflate backsplash square footage by 10–20%.

This is probably the single most common mistake I see when reviewing homeowner measurements.

Areas that usually should NOT be included:

1. Behind large range hoods
2. Inside pantry cabinet walls
3. Full-height refrigerator panels
4. Window openings

But here's the twist: small appliance gaps sometimes still need tile.

For example, the 4–6 inch wall strip behind a slide‑in range often requires tile coverage even though many people forget to include it in their backsplash square footage.

A quick layout test using tools like this walkthrough for visualizing kitchen wall sections before material planninghelps reveal hidden tile zones most people miss.

save pin

Forgetting Edge Areas and Partial Wall Sections

Key Insight: Small partial sections—edges, corners, and side splashes—often account for several extra square feet of tile.

In real kitchens, backsplash tile rarely stops exactly where the cabinets do. Designers frequently extend tile slightly beyond cabinetry to create visual balance.

Edge areas people forget to measure:

1. Side splashes at the end of countertops
2. Short vertical strips next to tall cabinets
3. Narrow walls beside windows
4. Back panels behind open shelving

Individually these sections seem tiny. But in many kitchens they add up to 2–5 extra square feet of tile.

That difference alone can mean the difference between finishing the job or needing another tile shipment.

save pin

Misjudging Height Between Countertop and Cabinets

Key Insight: Assuming a standard backsplash height often leads to incorrect square footage calculations.

Many homeowners assume backsplash height is always 18 inches. That number comes from traditional cabinet spacing, but modern kitchens often vary.

Typical backsplash height variations:

1. Standard cabinet space: 18 inches
2. Custom cabinet installs: 17–20 inches
3. Behind ranges: 24–30 inches
4. Full‑height feature walls: 36 inches or more

In one Los Angeles project I worked on, the homeowner estimated 32 square feet of tile. After measuring the taller range section and window edges, the true backsplash square footage was 41 square feet.

That’s nearly a 30% difference.

Answer Box

The most reliable way to measure backsplash square footage is to divide the kitchen wall into separate sections, measure each section individually, subtract appliances and windows, and then add 10–15% extra tile for waste.

This segmented approach prevents the most common backsplash measurement errors in kitchen renovations.

How to Correct a Wrong Backsplash Square Foot Estimate

Key Insight: A wrong backsplash measurement can usually be corrected quickly by re‑mapping the wall sections.

If you realize your backsplash square feet estimate is wrong, follow this process:

1. Sketch every backsplash wall separately
2. Measure width and height of each tileable area
3. Subtract windows and blocked sections
4. Add the totals together
5. Include 10–15% extra tile for cuts

Digital planning tools also help double‑check calculations visually. Many homeowners use simple modeling guides like previewing backsplash coverage in a 3D kitchen layoutto confirm measurements before ordering tile.

save pin

Checklist to Verify Your Backsplash Measurements

Key Insight: A quick pre‑purchase checklist can prevent nearly every backsplash measurement error.

Before buying tile, verify these points:

1. Each wall section measured individually
2. Height measured at multiple locations
3. Windows and appliance zones subtracted
4. Edge splashes included
5. Waste factor added (10–15%)

Professional installers almost always double‑check measurements the day before installation. That extra verification step prevents material shortages that can delay an entire kitchen remodel.

Final Summary

1. Backsplash square footage errors usually come from treating the kitchen wall as one rectangle.
2. Cabinets, appliances, and windows must be subtracted from measurements.
3. Backsplash height often varies across the kitchen.
4. Small edge areas can add several square feet.
5. Segmented measurement is the most reliable method.

FAQ

How do I calculate backsplash square footage correctly?

Measure each wall section separately, multiply width by height, subtract windows or appliances, and add the totals together.

Why is my backsplash square feet estimate wrong?

Most estimates are wrong because homeowners assume a uniform backsplash height or forget small wall sections near cabinets.

How much extra tile should I buy?

Most installers recommend 10–15% extra tile to account for cutting waste and measurement errors.

Do I tile behind the stove?

Usually yes. Many kitchens extend backsplash tile behind the range, sometimes higher than the surrounding sections.

Should I include windows in backsplash measurements?

No. Window openings should be subtracted from your backsplash square footage calculation.

Is backsplash height always 18 inches?

No. While 18 inches is common, many kitchens vary between 17 and 24 inches depending on cabinetry and appliances.

Can backsplash measurement errors cause tile shortages?

Yes. Even a small error can leave you several tiles short, especially with patterned or discontinued materials.

What is the easiest way to visualize backsplash coverage?

Using a simple kitchen layout or 3D plan helps confirm where backsplash tile will actually be installed.

References

National Kitchen & Bath Association (NKBA) Kitchen Planning Guidelines

Tile Council of North America Installation Handbook
