Common Problems After Fixing a Toilet Flange and How to Troubleshoot Them: Practical troubleshooting steps for leaks, wobbling toilets, and failed repairs after fixing a closet flange.

Direct Answer

If problems appear after fixing a toilet flange—such as wobbling, leaks, or bolt alignment issues—the cause is usually improper flange height, weak subfloor support, or a failed wax seal. Most post‑repair failures happen because the flange isn’t fully secured to the floor or sits at the wrong height relative to the finished flooring.

Systematically checking flange height, bolt alignment, floor integrity, and wax ring compression usually resolves the issue without replacing the entire toilet.

Quick Takeaways

1. Most leaks after a flange repair come from incorrect flange height or a poorly compressed wax ring.
2. A toilet that still rocks usually means the flange or subfloor is not structurally secured.
3. Repair rings can fail if the original flange body or surrounding floor is damaged.
4. Flange height should sit roughly flush with or slightly above the finished floor.
5. Severe subfloor damage often requires redoing the entire flange installation.

Introduction

After working on hundreds of bathroom remodels over the past decade, I’ve noticed something interesting: fixing a toilet flange is rarely the end of the story. Homeowners often complete a repair only to discover new problems—leaks around the base, a toilet that still rocks, or bolts that refuse to line up.

These issues usually show up within the first few days after installation. The good news is that most of them have predictable causes. In fact, nearly every case I’ve encountered comes down to flange height, structural support, or sealing pressure.

If you’ve already attempted a repair and something still feels wrong, this guide walks through the exact troubleshooting steps professionals use. I’ll also point out the hidden mistakes that many DIY tutorials skip—especially the floor‑structure issues that cause repeated flange failures.

And if you're planning a broader bathroom upgrade while solving plumbing issues, exploring tools that help visualize bathroom layout improvementscan make the process much easier.

save pin

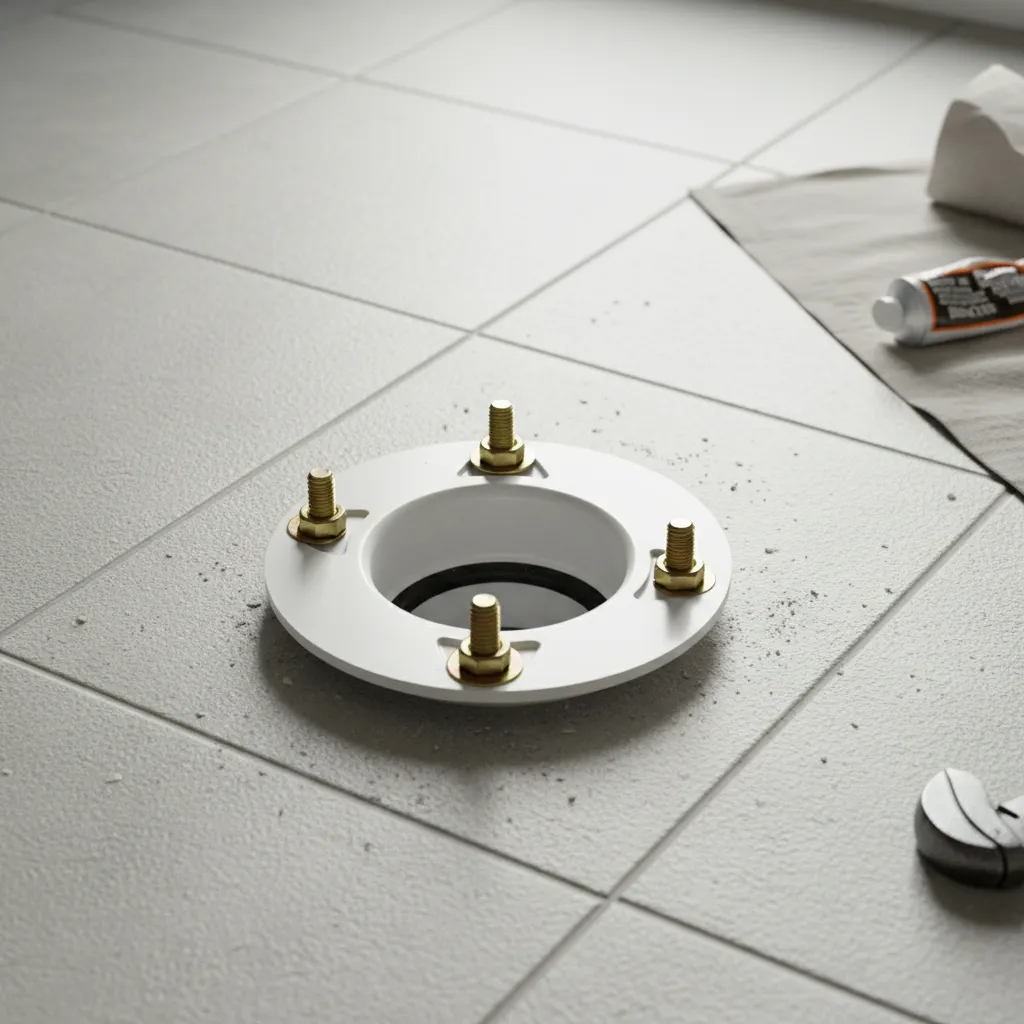

Toilet Still Wobbles After Flange Repair

Key Insight: A wobbling toilet almost always means the flange or floor underneath is still structurally unstable.

Many people assume the toilet bolts hold the fixture firmly in place. They don’t. Their job is simply to clamp the toilet down onto the wax seal. The real stability should come from the flange being firmly anchored to the floor.

In my projects, a rocking toilet typically points to one of three problems.

1. Flange screws were installed into damaged subfloor.
2. The flange repair ring wasn’t fully anchored.
3. Tile or flooring is uneven around the base.

What to check:

1. Remove bolt caps and verify bolts are tight but not overtightened.
2. Check whether the flange itself moves when you press near the bolts.
3. Inspect flooring gaps under the toilet base.

If the flange shifts even slightly, the repair will eventually fail again.

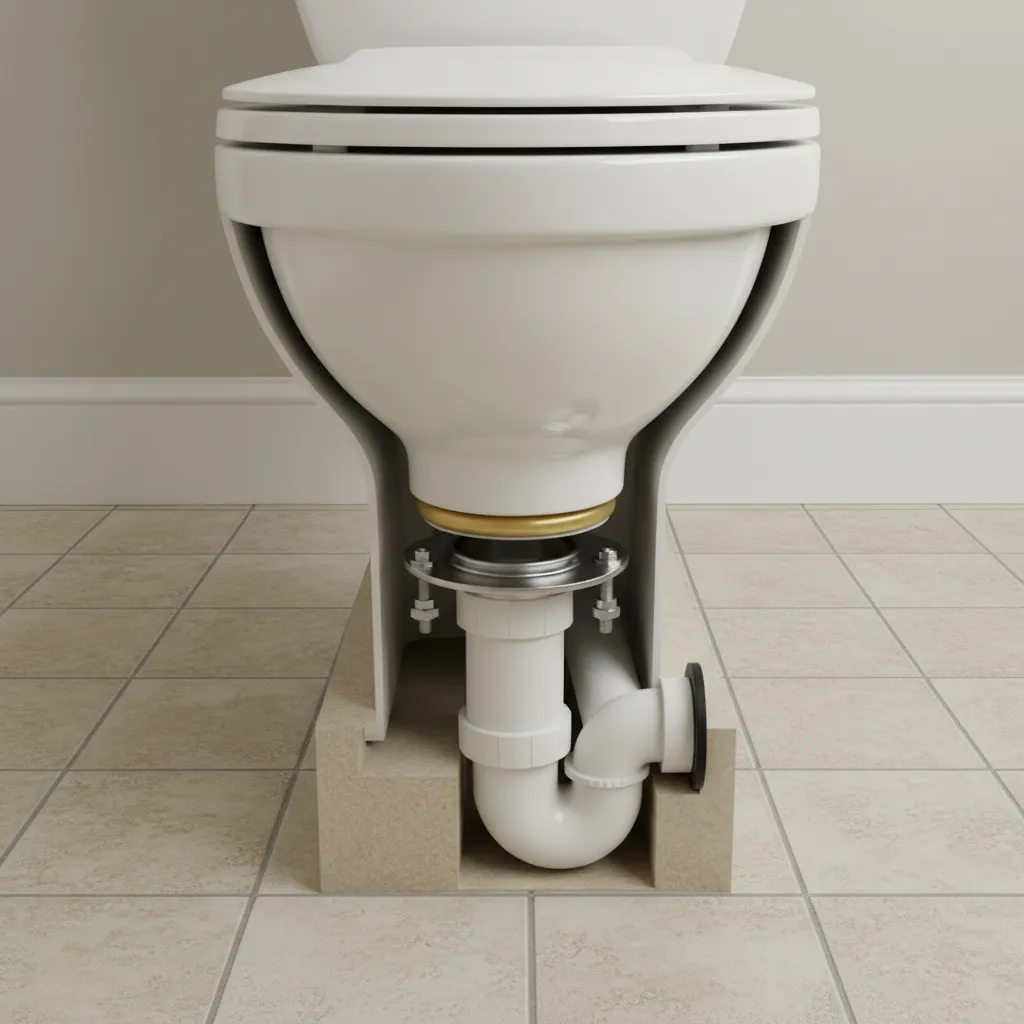

Water Leaking Around the Base of the Toilet

Key Insight: If water appears around the toilet base after repair, the wax ring likely failed to seal correctly.

This is one of the most common post‑repair complaints. Surprisingly, the wax ring is rarely defective—it’s usually a height problem.

The wax ring must compress evenly between the toilet outlet and the flange. If the flange sits too low, the wax cannot create a full seal.

Typical causes of leaks:

1. Flange installed below finished floor level
2. Wax ring shifted during toilet placement
3. Toilet moved before wax fully compressed
4. Double wax rings used incorrectly

In professional installations, the flange typically sits about 1/4 inch above finished flooring. That small detail prevents most leaks.

save pin

Repair Ring Not Aligning With Bolt Slots

Key Insight: Misalignment happens when the original flange body is warped or partially broken beneath the repair ring.

Repair rings are designed to reinforce the existing flange—not completely replace it. If the underlying plastic or metal flange is cracked beyond the bolt channel area, the ring may never sit correctly.

Signs the repair ring won’t work:

1. Bolts tilt inward when tightened
2. Ring cannot sit flat on the flange surface
3. Screws miss solid flooring

This is where many DIY repairs fail. The repair ring strengthens the flange ears but cannot correct structural distortion underneath.

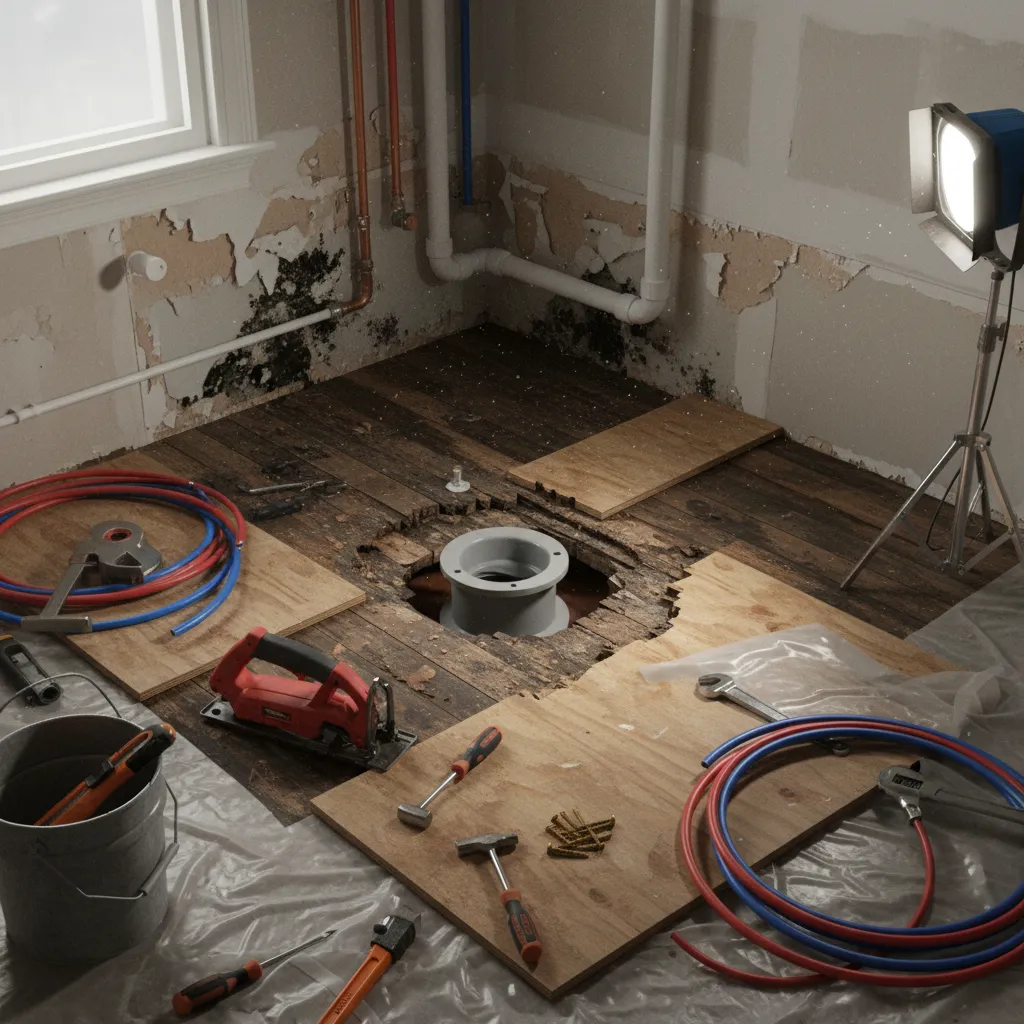

Broken Subfloor Around the Flange

Key Insight: If the subfloor around the flange is soft or cracked, no repair ring or wax seal will solve the problem.

Older homes frequently develop hidden rot or compression around toilet flanges due to long‑term moisture exposure.

During renovations I often see flanges attached to plywood that has deteriorated to the point where screws barely hold.

Warning signs:

1. Flange screws spin without tightening
2. Floor flexes when weight shifts near toilet
3. Wood around flange appears dark or soft

In these cases, cutting out and replacing a small section of subfloor is usually the only durable fix.

When planning structural repairs alongside layout improvements, many homeowners find it helpful to preview the bathroom structure using a 3D floor planning visualization for bathroom renovations before reinstalling fixtures.

Wax Ring Fails After Flange Repair

Key Insight: Repeated wax ring failure usually indicates movement in the toilet or flange assembly.

Wax rings are extremely reliable when the toilet stays perfectly still. The moment the fixture shifts—even slightly—the wax seal breaks.

Common triggers:

1. Loose flange screws
2. Uneven flooring
3. Improper bolt tightening sequence

Professional installation method:

1. Install bolts into flange slots first.
2. Place wax ring on toilet outlet.
3. Lower toilet vertically without twisting.
4. Tighten bolts gradually, alternating sides.

Twisting the toilet during placement is one of the biggest hidden causes of seal failure.

save pin

When the Flange Is Too Low or Too High

Key Insight: Incorrect flange height is responsible for more failed repairs than broken flanges themselves.

After tile replacement or flooring upgrades, the flange often ends up sitting too low relative to the finished floor.

Correct flange height reference:

1. Ideal: top of flange sits slightly above finished floor
2. Acceptable: flush with finished floor
3. Problematic: more than 1/4 inch below floor

Solutions include flange spacers or extension kits designed to restore proper sealing height.

When to Redo the Entire Flange Installation

Key Insight: If the flange body, pipe connection, and surrounding floor are compromised, a full replacement is more reliable than repeated repairs.

Many homeowners try stacking solutions—repair rings, extra wax rings, longer bolts. Unfortunately, that often leads to recurring leaks.

Full replacement is recommended when:

1. The flange is cracked across the pipe opening
2. Multiple repair attempts have failed
3. The flange cannot be securely screwed into the floor
4. The drain pipe connection is loose

If you're tackling a full bathroom repair or layout change at the same time, reviewing interactive bathroom layout planning ideas before reinstalling fixtures can help prevent spacing issues around the toilet.

Answer Box

The most common causes of problems after fixing a toilet flange are incorrect flange height, weak subfloor support, and failed wax ring compression. Proper troubleshooting involves checking flange stability, floor structure, and seal alignment before reinstalling the toilet.

Final Summary

1. Most post‑repair toilet leaks come from improper flange height.
2. A wobbling toilet usually indicates poor floor support.
3. Repair rings cannot fix severely damaged flanges.
4. Subfloor condition determines long‑term flange stability.
5. Full flange replacement is sometimes the most reliable solution.

FAQ

Why is my toilet still leaking after flange repair?

The most common reason is improper flange height or a wax ring that didn’t compress correctly during installation.

Why does my toilet wobble after fixing the flange?

The flange or subfloor may still be loose. Toilet bolts cannot stabilize a weak floor.

Can a repair ring fix a completely broken flange?

No. Repair rings only reinforce bolt areas. A severely cracked flange usually requires full replacement.

How do I know if the flange height is correct?

The flange should sit flush with or slightly above the finished floor surface.

Do I need a double wax ring if the flange is low?

Sometimes, but flange spacers are usually a more reliable long‑term solution.

Why does the wax ring keep failing?

Movement in the toilet base or flange typically breaks the seal.

Can uneven tile cause toilet leaks?

Yes. If the toilet base isn’t evenly supported, the wax seal may break over time.

What is the best way to troubleshoot toilet flange problems?

Check flange stability, floor condition, bolt alignment, and wax ring compression in that order.
